IE INTERRUPT ENABLE REGISTER EA ET 2 ES

  • Slides: 7
Download presentation

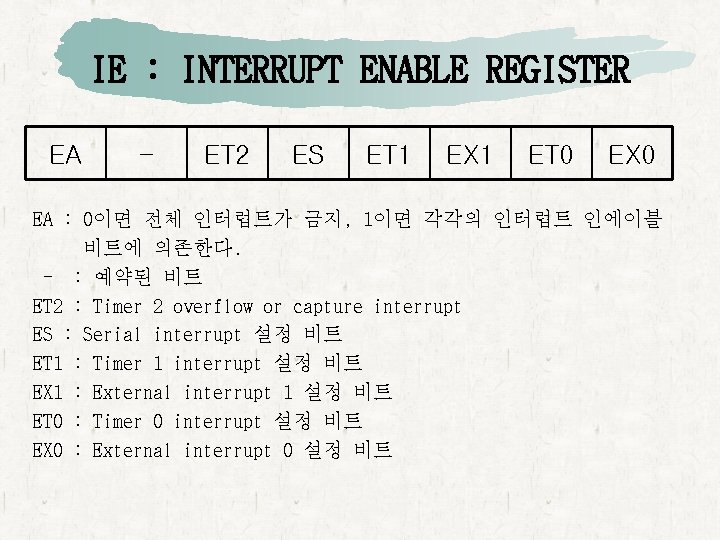

IE : INTERRUPT ENABLE REGISTER EA - ET 2 ES ET 1 EX 1

IE : INTERRUPT ENABLE REGISTER EA - ET 2 ES ET 1 EX 1 ET 0 EX 0 EA : 0이면 전체 인터럽트가 금지, 1이면 각각의 인터럽트 인에이블 비트에 의존한다. - : 예약된 비트 ET 2 : Timer 2 overflow or capture interrupt ES : Serial interrupt 설정 비트 ET 1 : Timer 1 interrupt 설정 비트 EX 1 : External interrupt 1 설정 비트 ET 0 : Timer 0 interrupt 설정 비트 EX 0 : External interrupt 0 설정 비트
