IE 469 Manufacturing Systems 694 VII Flexible Manufacturing

IE 469 Manufacturing Systems ﺼﻨﻊ ﻨﻈﻢ ﺍﻟﺘﺼﻨﻴﻊ 694 VII - Flexible Manufacturing Systems ﻧﻈﺎﻡ ﺍﻟﺘﺼﻨﻴﻊ ﺍﻟﻤﺮﻥ 1 - System Technology ﺗﻘﻨﻴﺔ ﺍﻟﻨﻈﺎﻡ

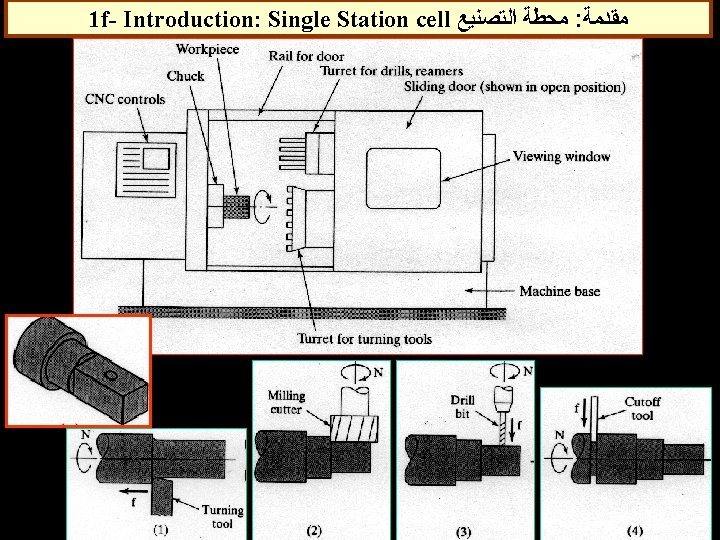

1 b- Introduction: Single Station cell ﻣﺤﻄﺔ ﺍﻟﺘﺼﻨﻴﻊ : ﻣﻘﺪﻣﺔ

1 c- Introduction: Single Station cell ﻣﺤﻄﺔ ﺍﻟﺘﺼﻨﻴﻊ : ﻣﻘﺪﻣﺔ

1 d- Introduction: Single Station cell ﻣﺤﻄﺔ ﺍﻟﺘﺼﻨﻴﻊ : ﻣﻘﺪﻣﺔ

1 e- Introduction: Single Station cell ﻣﺤﻄﺔ ﺍﻟﺘﺼﻨﻴﻊ : ﻣﻘﺪﻣﺔ

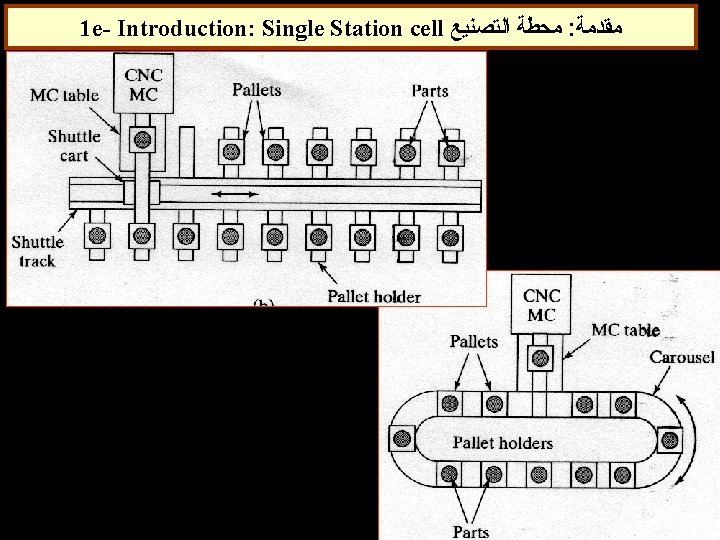

1 f- Introduction: Single Station cell ﻣﺤﻄﺔ ﺍﻟﺘﺼﻨﻴﻊ : ﻣﻘﺪﻣﺔ

1 g- Introduction: Single Station cell ﻣﺤﻄﺔ ﺍﻟﺘﺼﻨﻴﻊ : ﻣﻘﺪﻣﺔ

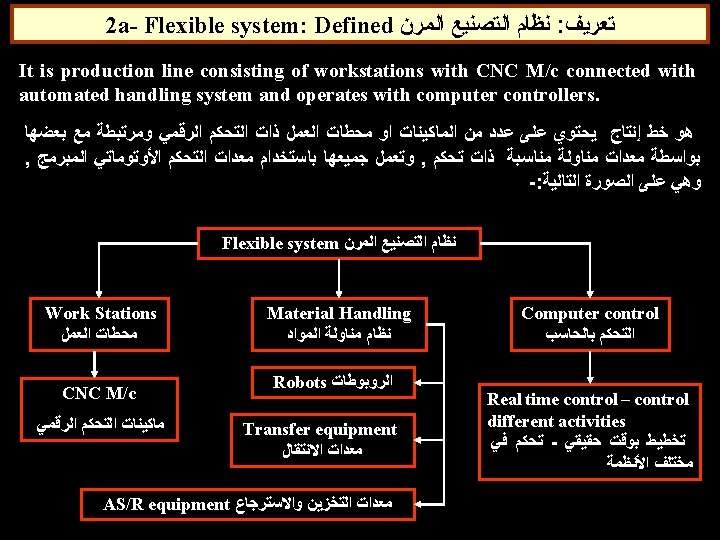

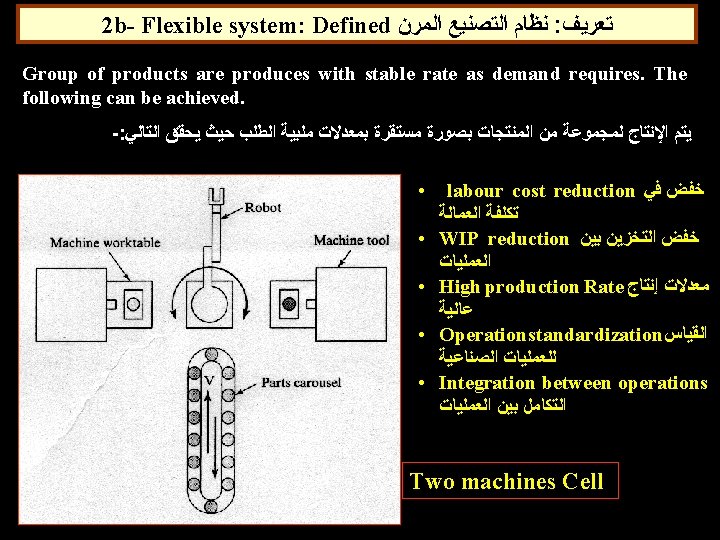

2 c- Flexible system: Defined ﻧﻈﺎﻡ ﺍﻟﺘﺼﻨﻴﻊ ﺍﻟﻤﺮﻥ : ﺗﻌﺮﻳﻒ Three machines Cell

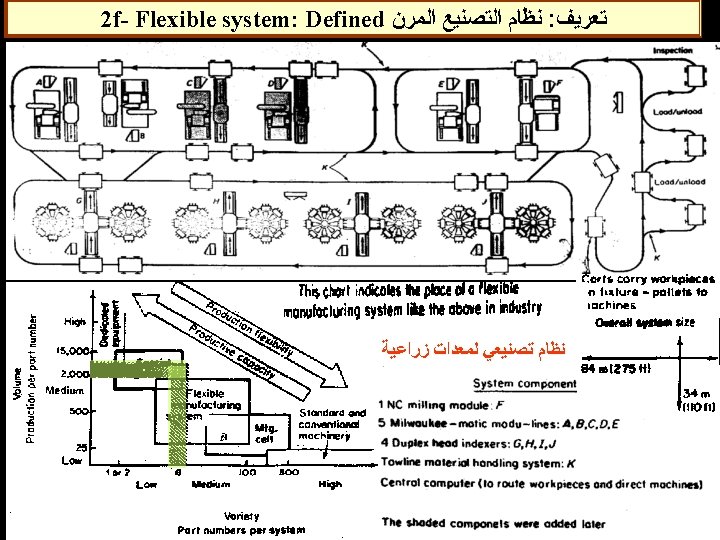

2 d- Flexible system: Defined ﻧﻈﺎﻡ ﺍﻟﺘﺼﻨﻴﻊ ﺍﻟﻤﺮﻥ : ﺗﻌﺮﻳﻒ Terminal Work station Robot

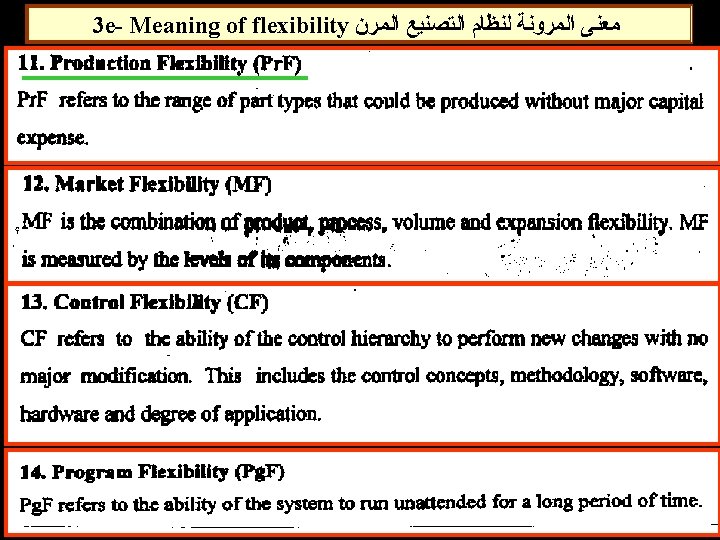

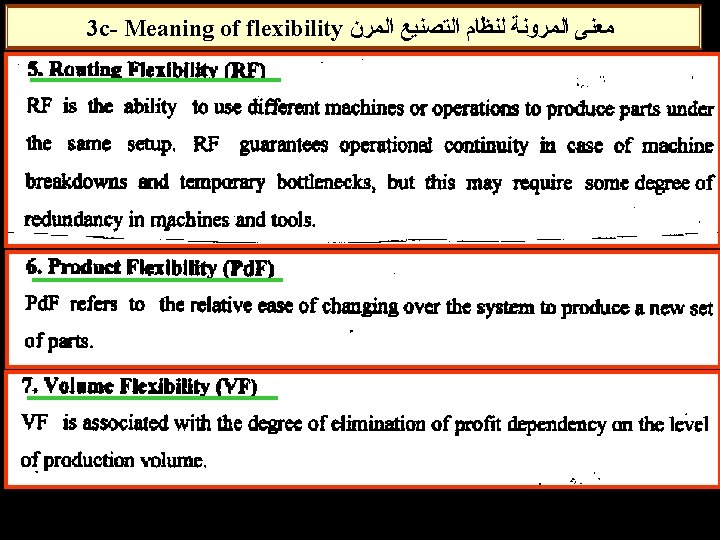

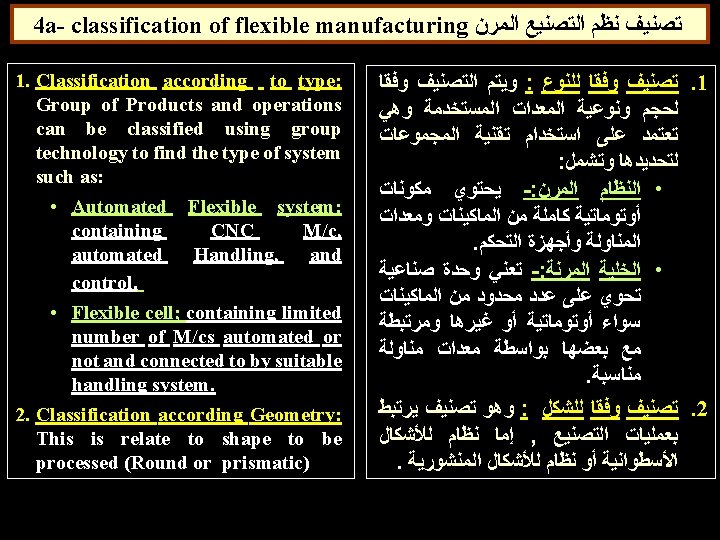

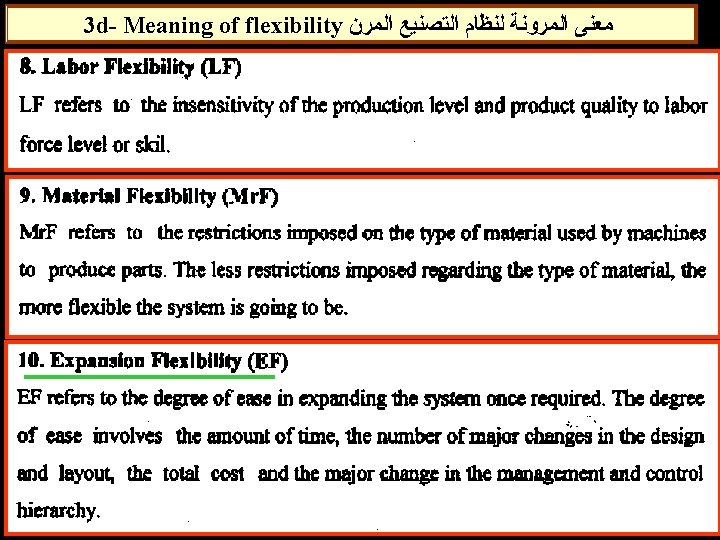

Variety ﺍﻟﺘﻨﻮﻉ 4 c- classification of flexible manufacturing ﺗﺼﻨﻴﻒ ﻧﻈﻢ ﺍﻟﺘﺼﻨﻴﻊ ﺍﻟﻤﺮﻥ ﻃﻠﺐ ﻋﺸﻮﺍﺋﻲ Random Order ﻣﻜﺮﺱ Dedicated Quantity ﺍﻟﻜﻤﻴﺔ FMS System Type Flexibility Criteria Part Schedule Variety Change Dedicated Limited Random Order Limited Error Recovery New Part Limited NO Possible Frequent Minimized YES

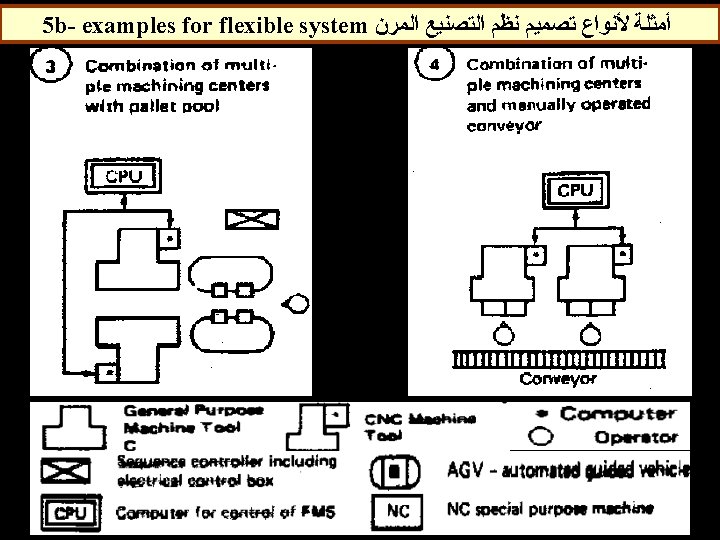

6 a- Flexible system configuration ﺃﺸﻜﺎﻝ ﻣﺨﻄﻄﺎﺕ ﻧﻈﻢ ﺍﻟﺘﺼﻨﻴﻊ ﺍﻟﻤﺮﻥ work In/out. 1 2 1 4 3 2 3 5 work out. 6 4 5 6 A- In line 1 2 3 work In/out. B- Carousel 6 5 4

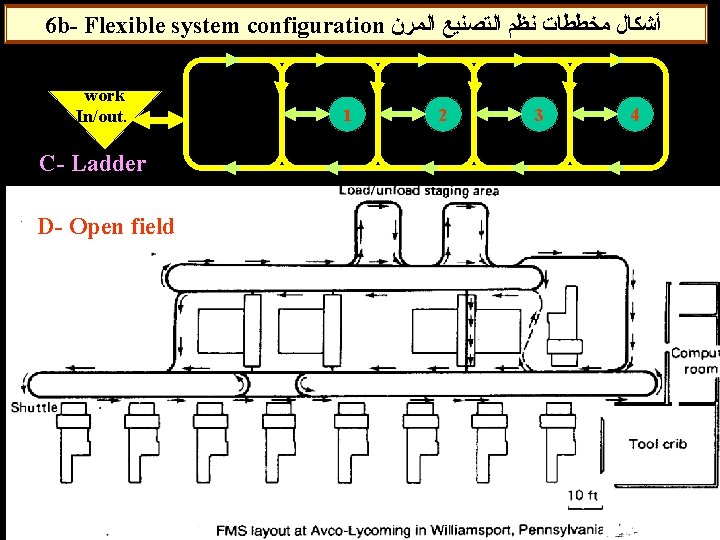

6 b- Flexible system configuration ﺃﺸﻜﺎﻝ ﻣﺨﻄﻄﺎﺕ ﻧﻈﻢ ﺍﻟﺘﺼﻨﻴﻊ ﺍﻟﻤﺮﻥ work In/out. C- Ladder D- Open field 1 2 3 4

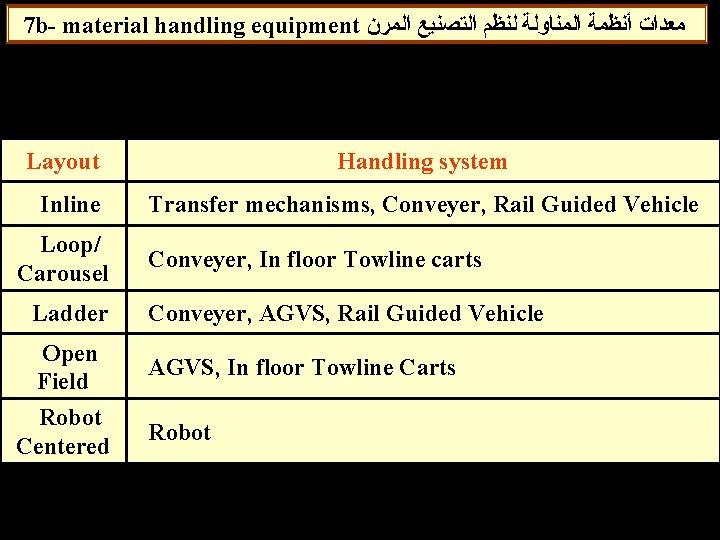

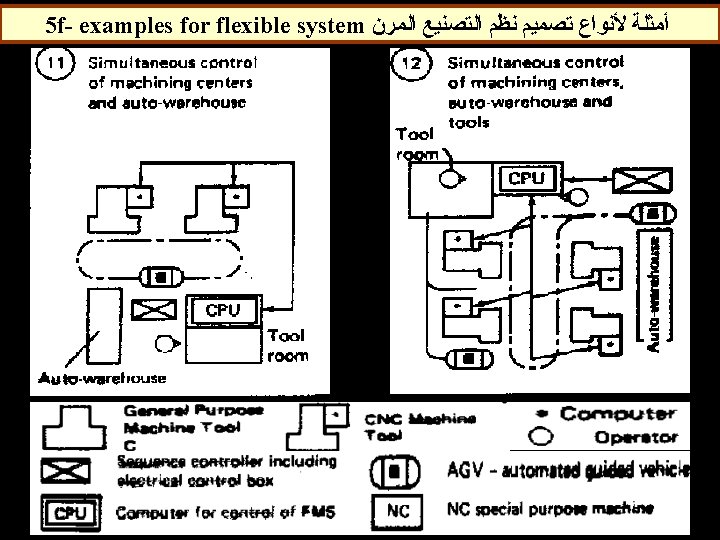

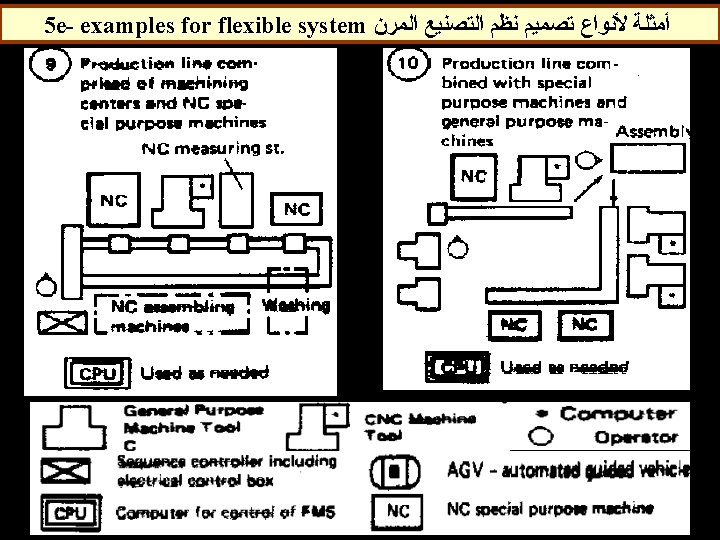

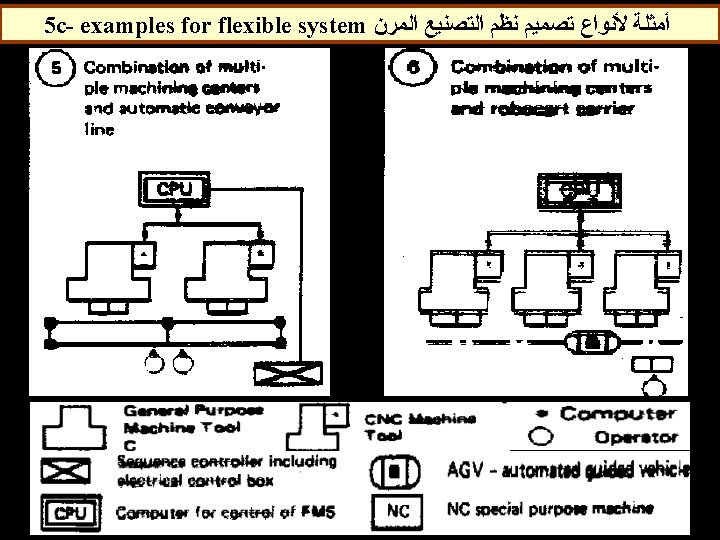

7 b- material handling equipment ﻣﻌﺪﺍﺕ ﺃﻨﻈﻤﺔ ﺍﻟﻤﻨﺎﻭﻟﺔ ﻟﻨﻈﻢ ﺍﻟﺘﺼﻨﻴﻊ ﺍﻟﻤﺮﻥ Layout Inline Loop/ Carousel Ladder Open Field Robot Centered Handling system Transfer mechanisms, Conveyer, Rail Guided Vehicle Conveyer, In floor Towline carts Conveyer, AGVS, Rail Guided Vehicle AGVS, In floor Towline Carts Robot

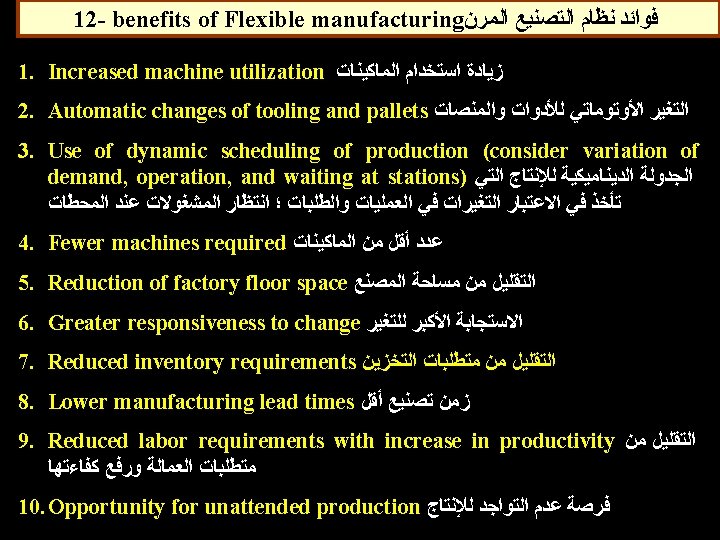

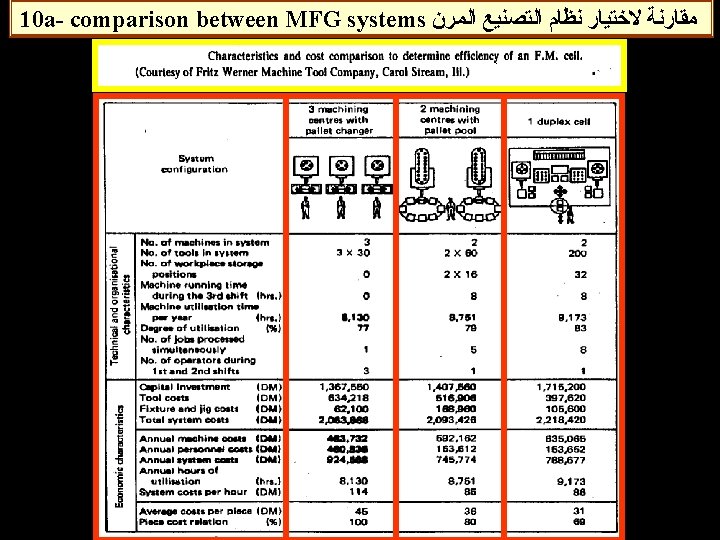

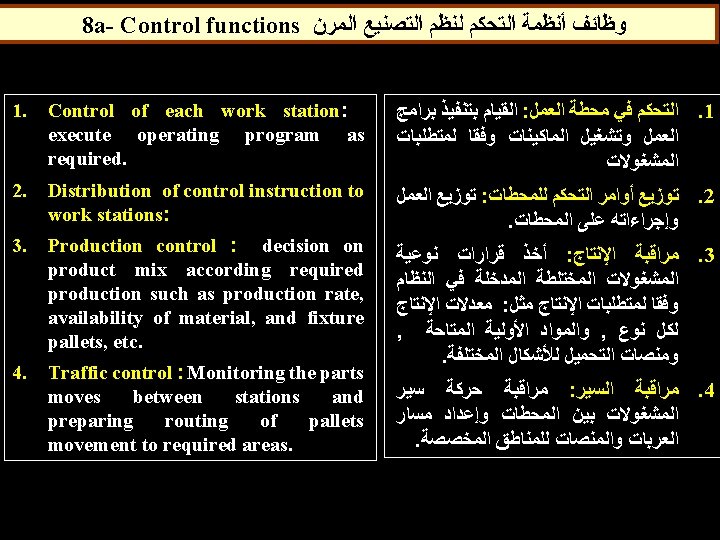

9 d- flexible system work time ﺯﻣﻦ ﺍﻟﻌﻤﻞ ﻟﻨﻈﺎﻡ ﺍﻟﺘﺼﻨﻴﻊ ﺍﻟﻤﺮﻥ Time to change tools and work holders(Perform Setup) is not shown
