Identifying Bonds Ionic vs Covalent Double Triple Covalent

Identifying Bonds (Ionic vs. Covalent) Double & Triple Covalent Bonds

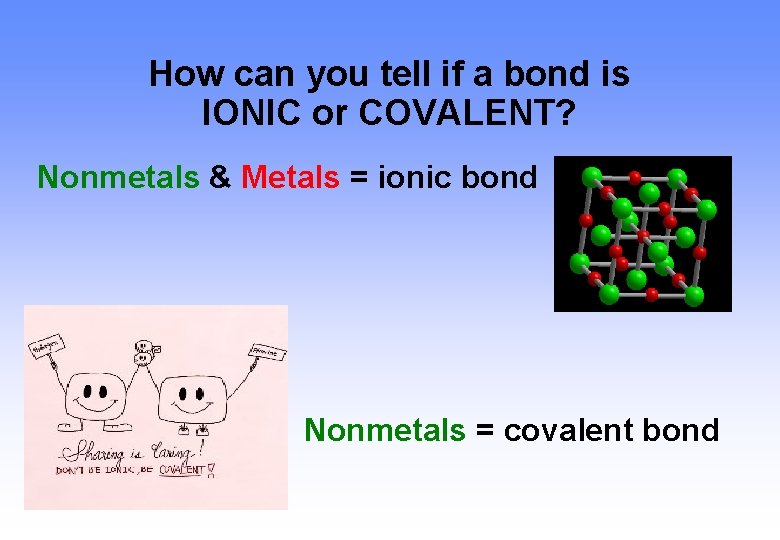

How can you tell if a bond is IONIC or COVALENT? Nonmetals & Metals = ionic bond All Nonmetals = covalent bond

Writing Covalent Formulas Place the nonmetal furthest to the left on the periodic table first. If both elements are in the same group/family then place the element closest to the top first. Examples: Cl + H = HCl O + 2 H = H 2 O 4 Cl + C = CCl 4

Steps for Building a Dot Structure Ammonia, NH 3 1. Decide on the central atom; never H. Therefore, N is central on this one 2. Add up the number of valence electrons that can be used. H = 1 and N = 5 Total = (3 x 1) + 5 = 8 electrons / 4 pairs

Building a Dot Structure 3. Form a single bond between N H H the central atom and each surrounding atom (each bond takes 2 electrons!) 4. Remaining electrons form LONE PAIRS to complete the octet as needed (or duet in the case of H). H • • H N H 3 BOND PAIRS and 1 LONE PAIR. H

Building a Dot Structure 5. Check to make sure there are 8 electrons around each atom except H. H should only have 2 electrons. This includes SHARED pairs. • • H N H H 6. If you have more electrons in the drawing than in step 2, you must make double or triple bonds. If you have less electrons in the drawing than in step 2, you made a mistake!

Carbon Dioxide, CO 2 1. Central atom = C 4 e 2. Valence electrons = O 6 e- X 2 = 12 e. Total: 16 valence electrons 3. Form bonds. This leaves 12 electrons (6 pair). 4. Place lone pairs on outer atoms. 5. Check to see that all atoms have 8 electrons around it except for H, which can have 2.

Carbon Dioxide, CO 2 C 4 e. O 6 e- X 2 = 12 e. Total: 16 valence electrons How many are in the drawing? 6. There are too many electrons in our drawing. We must form DOUBLE BONDS between C and O. Instead of sharing only 1 pair, a double bond shares 2 pairs. So one pair is taken away from each atom and replaced with another bond.

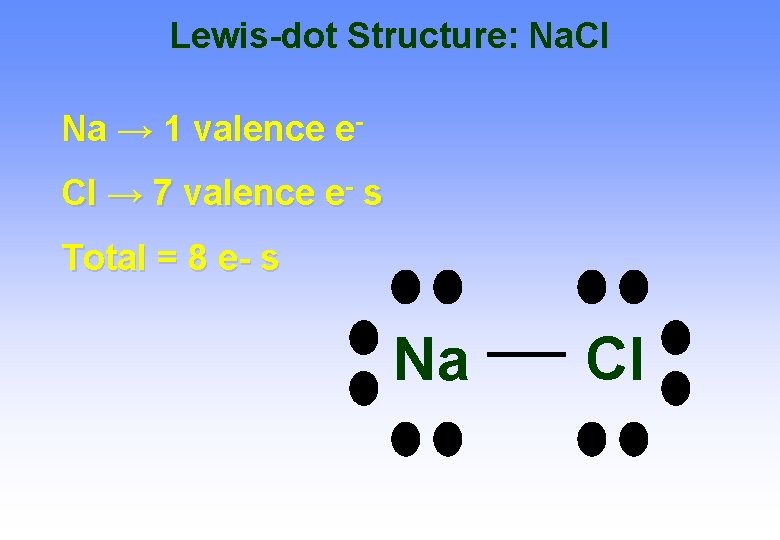

Lewis-dot Structure: Na. Cl Na → 1 valence e. Cl → 7 valence e- s Total = 8 e- s Na Cl

Lewis-dot Structure: Na. Cl Na → 1 valence e. Cl → 7 valence e- s Total = 8 e- s Na Cl

Lewis-dot Structure: Na. Cl Na → 1 valence e. Cl → 7 valence e- s Total = 8 e- s X Na Cl It must be an Ionic Bond!

Ionic bonding: Na. Cl Na+ Cl –

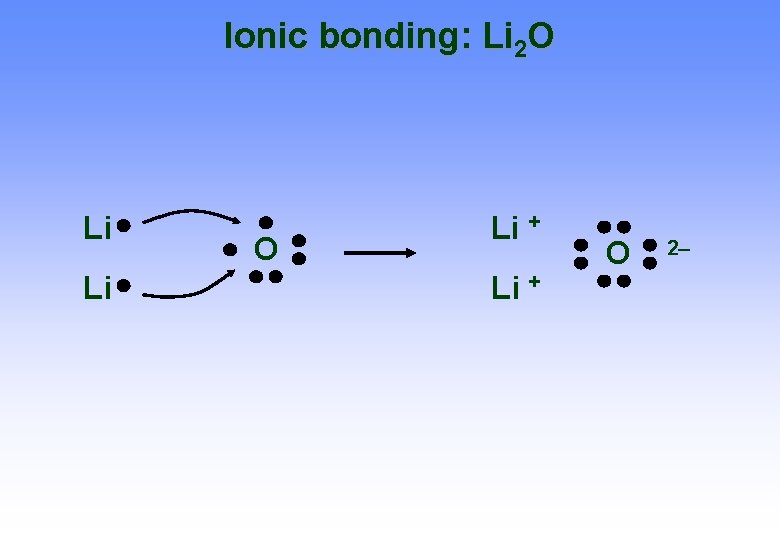

Ionic bonding: Li 2 O Li Li O Li + O 2–

Carbon Monoxide, CO 1. Valence electrons = C 4 e. O 6 e 2. Form bonds. Total: 10 valence electrons

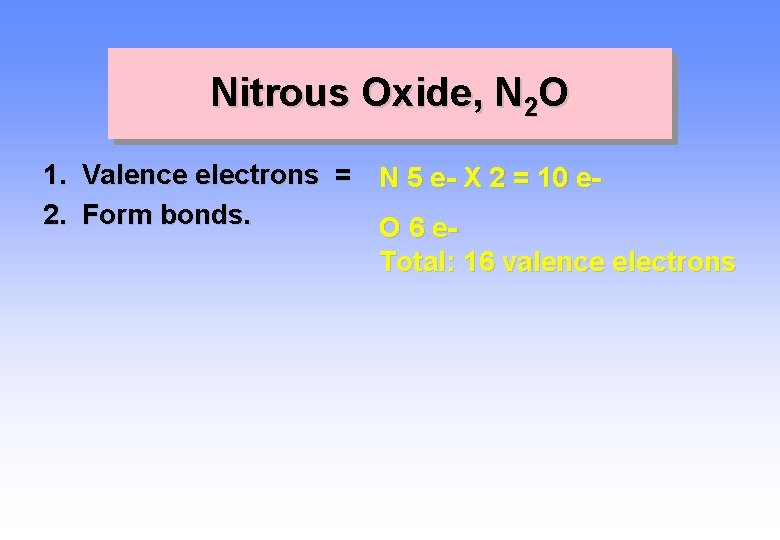

Nitrous Oxide, N 2 O 1. Valence electrons = N 5 e- X 2 = 10 e 2. Form bonds. O 6 e. Total: 16 valence electrons
