Identify Key Information from a Graph NQ 1

Identify Key Information from a Graph N-Q. 1, F-IF. 4, F-LE. 1

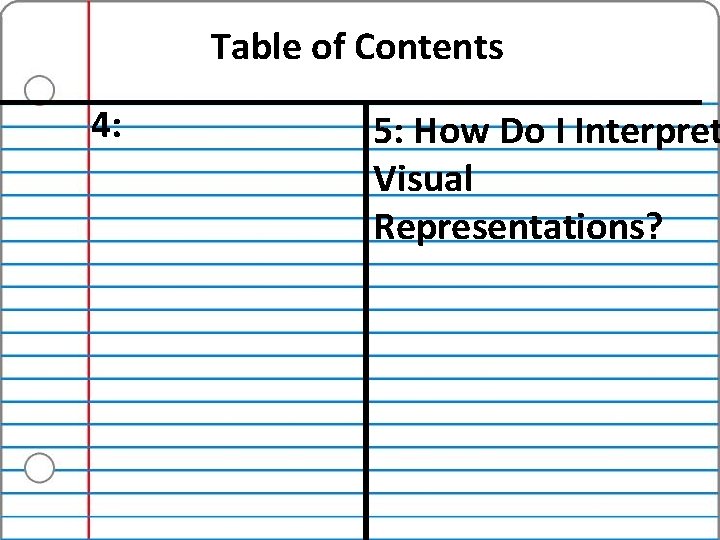

Table of Contents 4: 5: How Do I Interpret Visual Representations?

Learning Intention/Success Criteria LI: We are learning to get information off graphs SC: I know how to -read graphs in context -answer questions based on visual representations of data -interpret what is happening in the visual representation based on context and labels -understand how labels affect the meaning of different sections on the graph

EQ: How Do I Interpret Visual 6/12/2021 Representations?

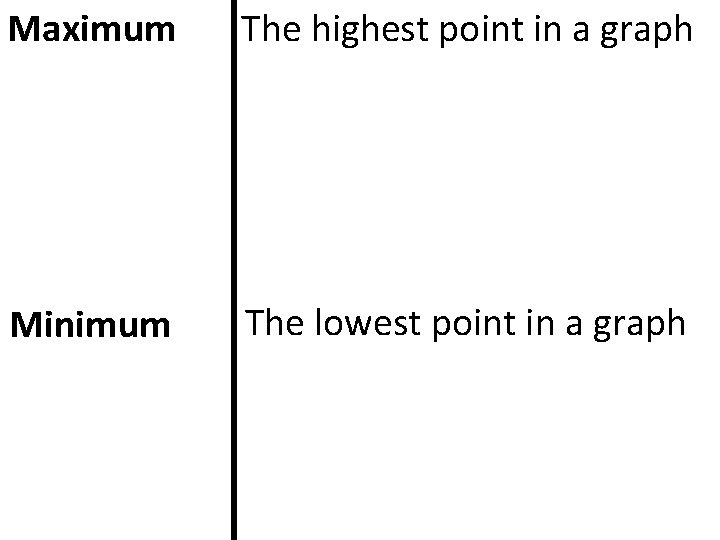

Maximum The highest point in a graph Minimum The lowest point in a graph

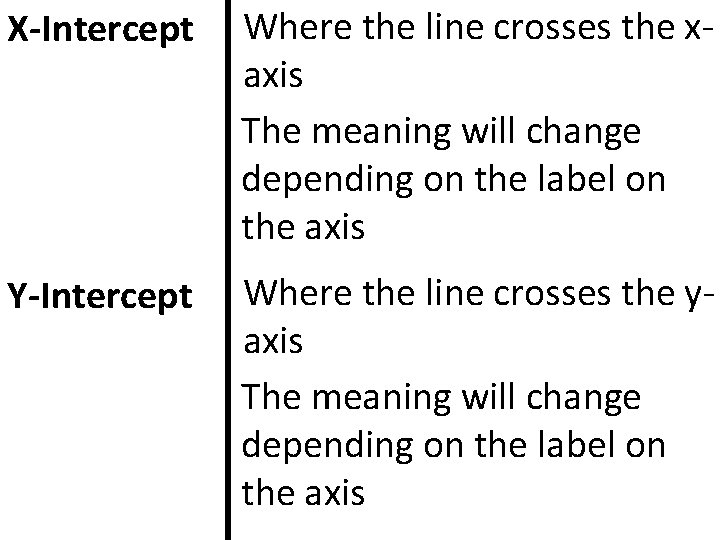

X-Intercept Where the line crosses the xaxis The meaning will change depending on the label on the axis Y-Intercept Where the line crosses the yaxis The meaning will change depending on the label on the axis

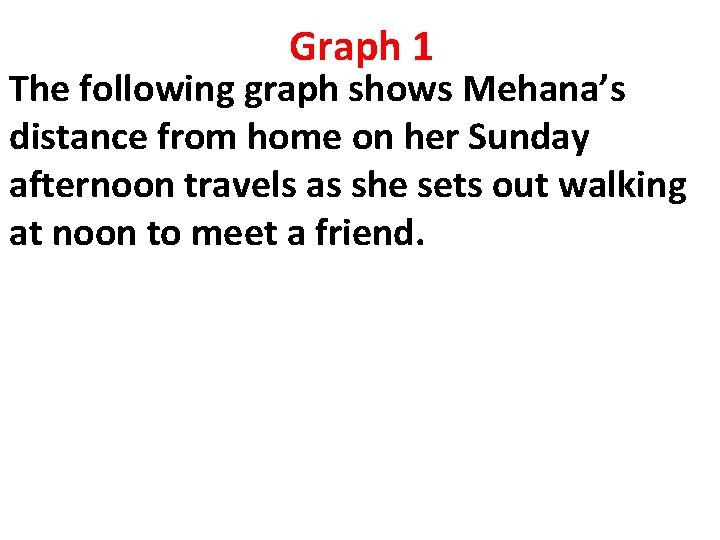

Graph 1 The following graph shows Mehana’s distance from home on her Sunday afternoon travels as she sets out walking at noon to meet a friend.

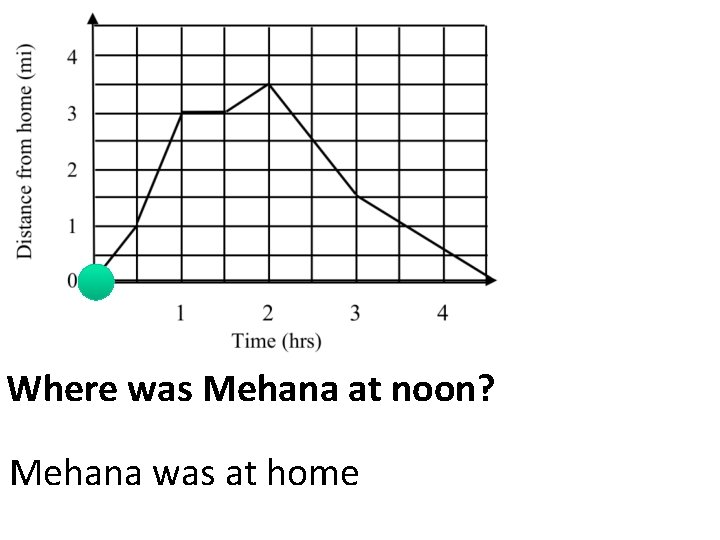

Where was Mehana at noon? Mehana was at home

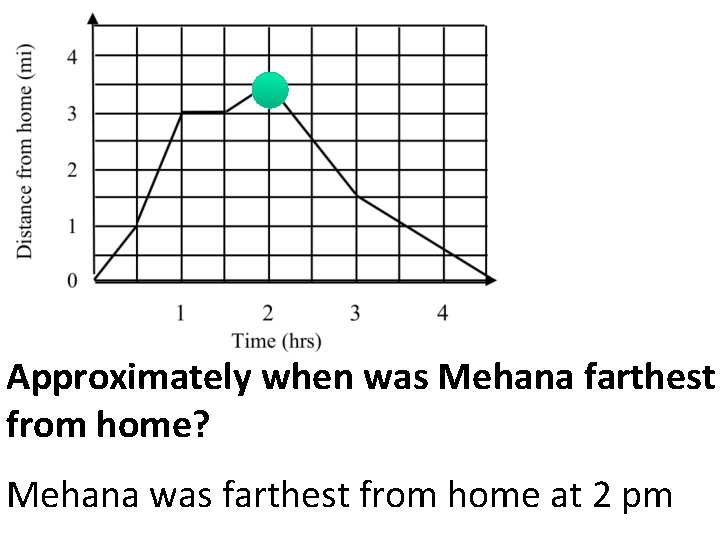

Approximately when was Mehana farthest from home? Mehana was farthest from home at 2 pm

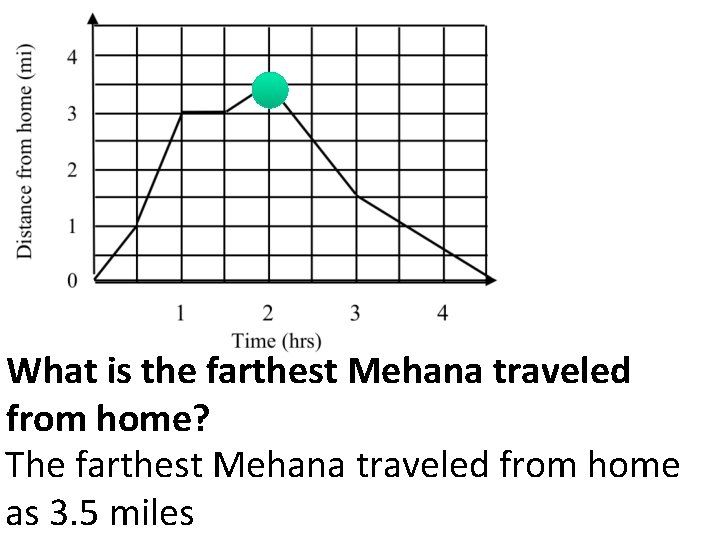

What is the farthest Mehana traveled from home? The farthest Mehana traveled from home as 3. 5 miles

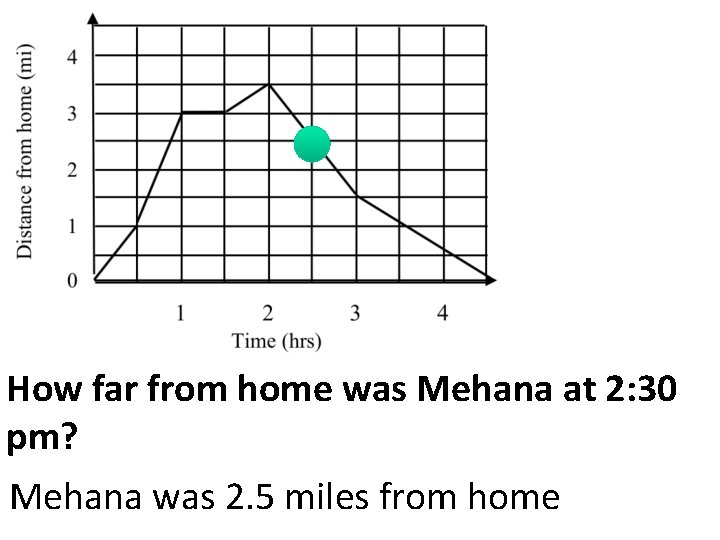

How far from home was Mehana at 2: 30 pm? Mehana was 2. 5 miles from home

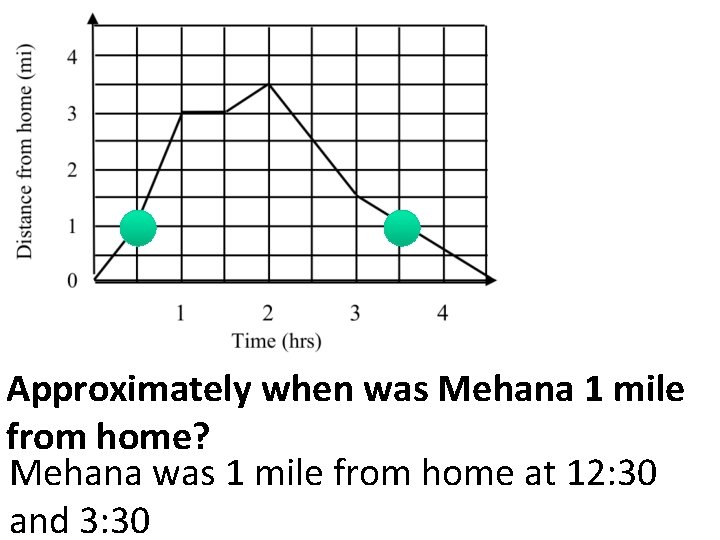

Approximately when was Mehana 1 mile from home? Mehana was 1 mile from home at 12: 30 and 3: 30

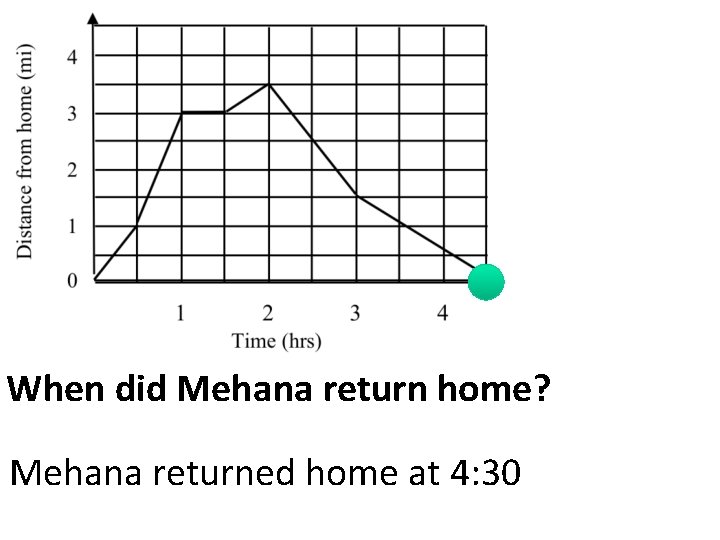

When did Mehana return home? Mehana returned home at 4: 30

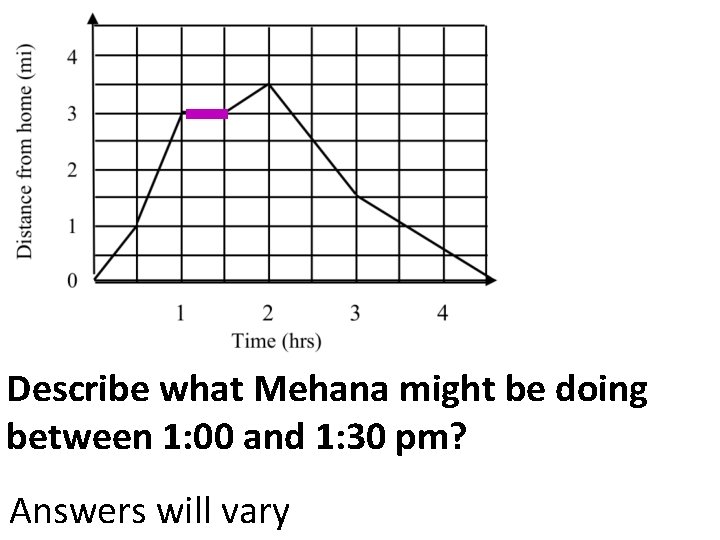

Describe what Mehana might be doing between 1: 00 and 1: 30 pm? Answers will vary

Graph 2 The following graph shows Logan’s height above the ground in feet, as he climbs a tree to get a coconut.

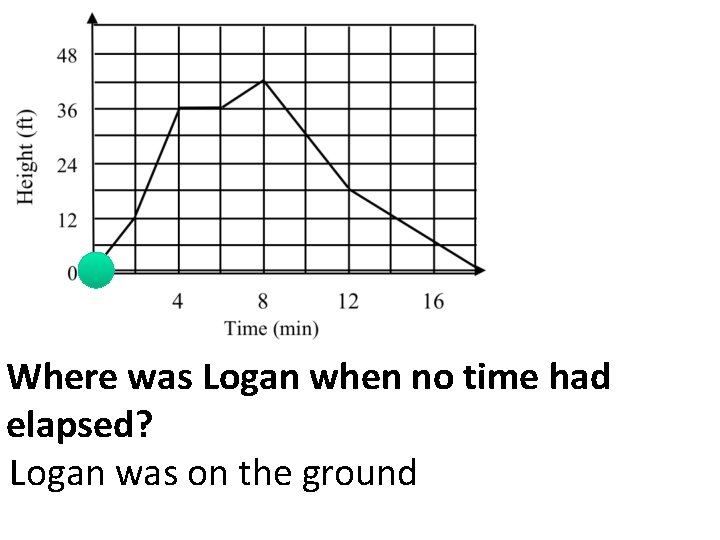

Where was Logan when no time had elapsed? Logan was on the ground

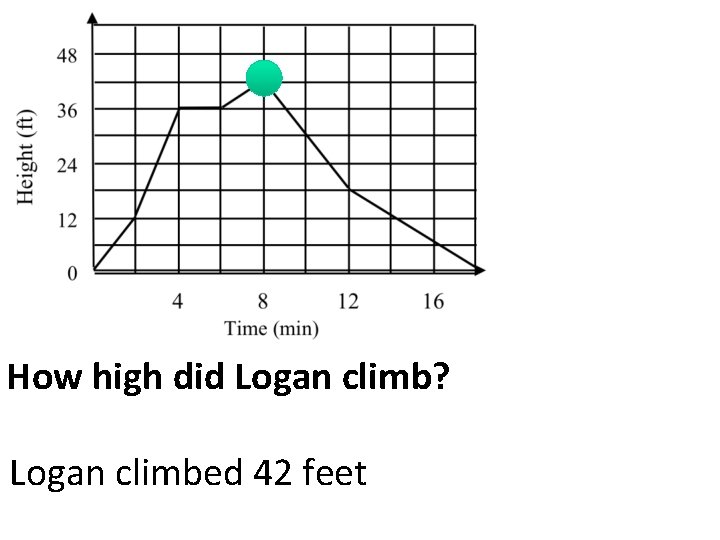

How high did Logan climb? Logan climbed 42 feet

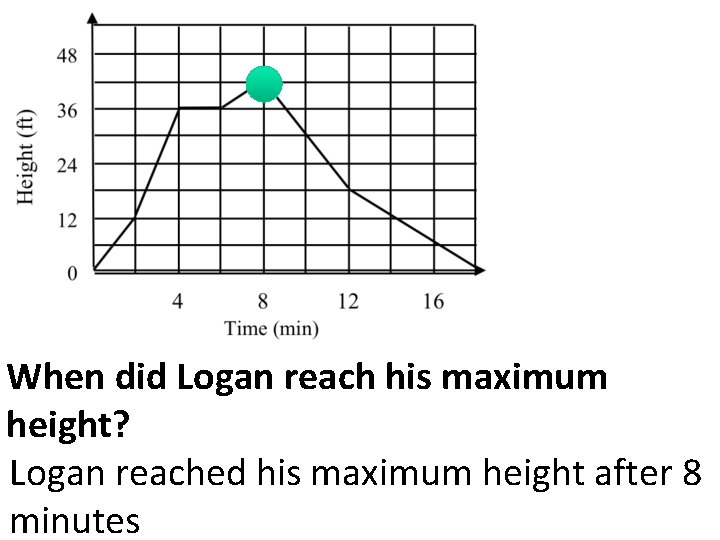

When did Logan reach his maximum height? Logan reached his maximum height after 8 minutes

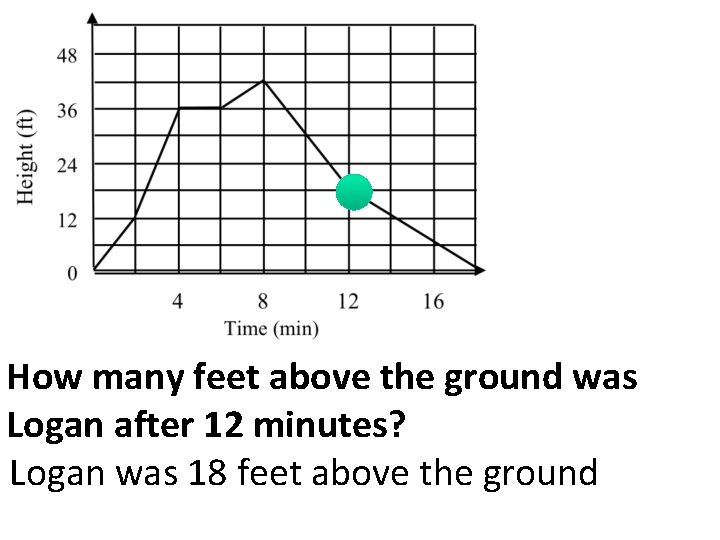

How many feet above the ground was Logan after 12 minutes? Logan was 18 feet above the ground

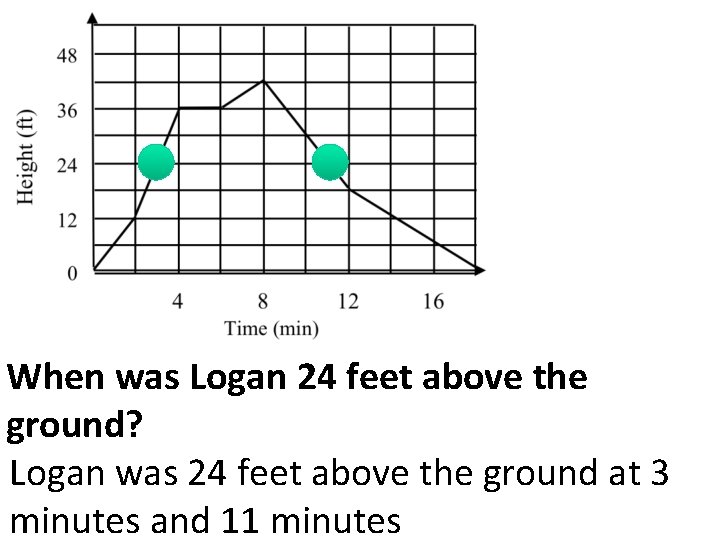

When was Logan 24 feet above the ground? Logan was 24 feet above the ground at 3 minutes and 11 minutes

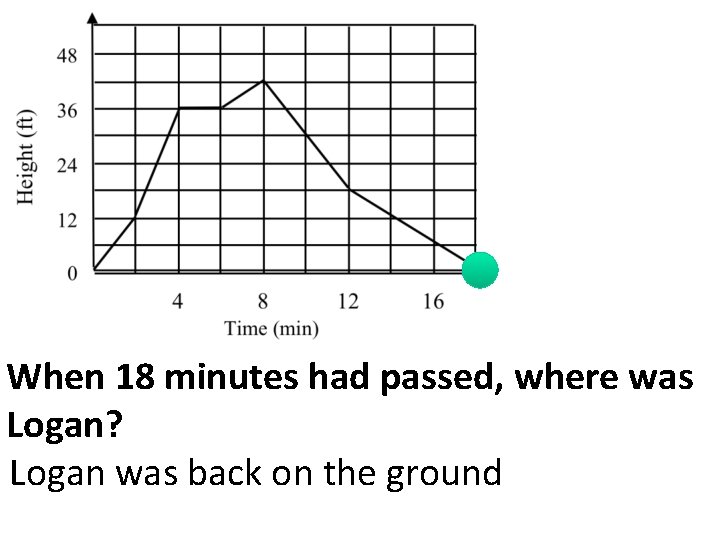

When 18 minutes had passed, where was Logan? Logan was back on the ground

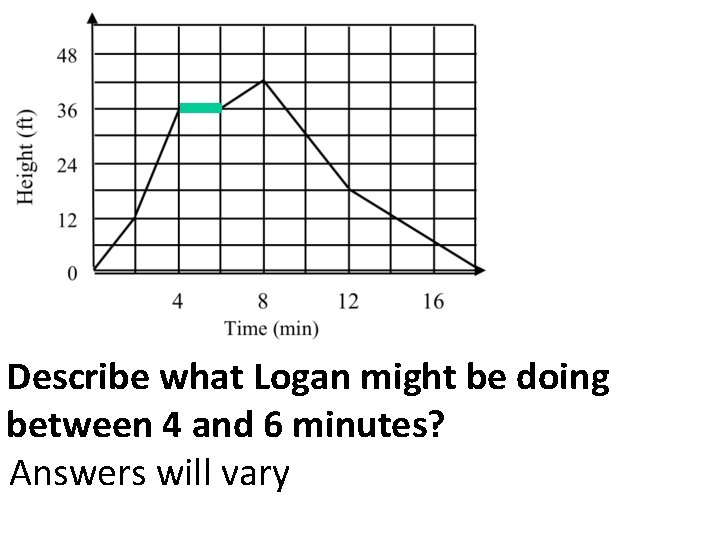

Describe what Logan might be doing between 4 and 6 minutes? Answers will vary

Graph 3 The following graph shows Taylor’s speed in miles/hour while driving to the store.

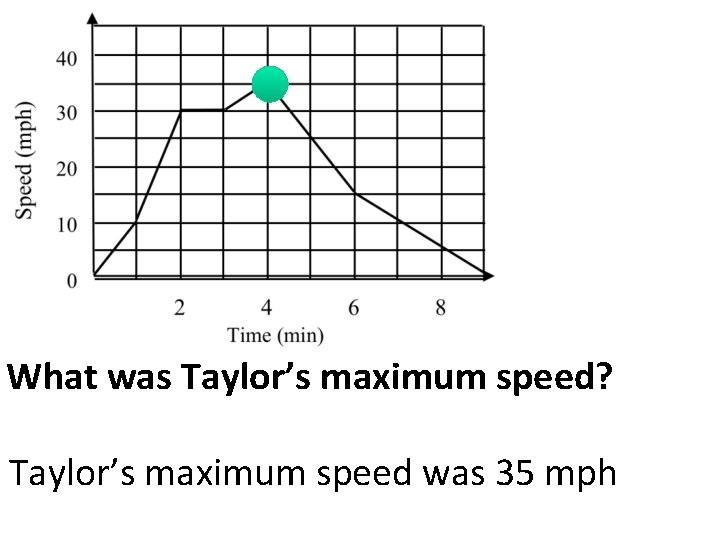

When did Taylor reach her maximum speed? Taylor reached her maximum speed after 4 minutes

What was Taylor’s maximum speed? Taylor’s maximum speed was 35 mph

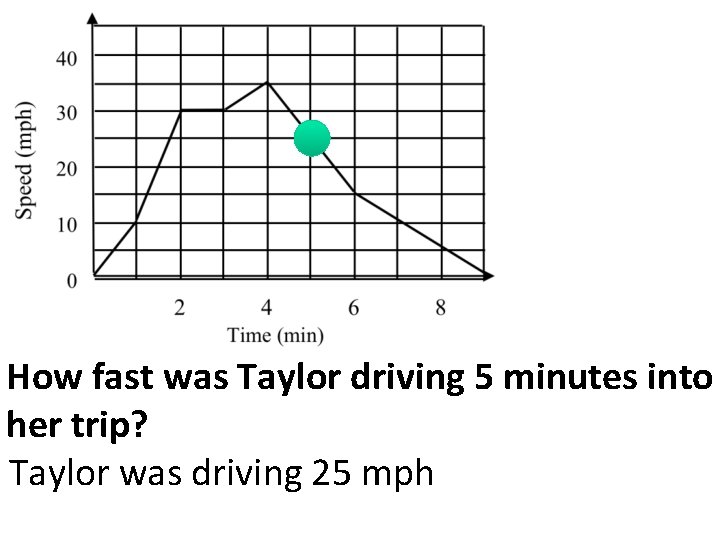

How fast was Taylor driving 5 minutes into her trip? Taylor was driving 25 mph

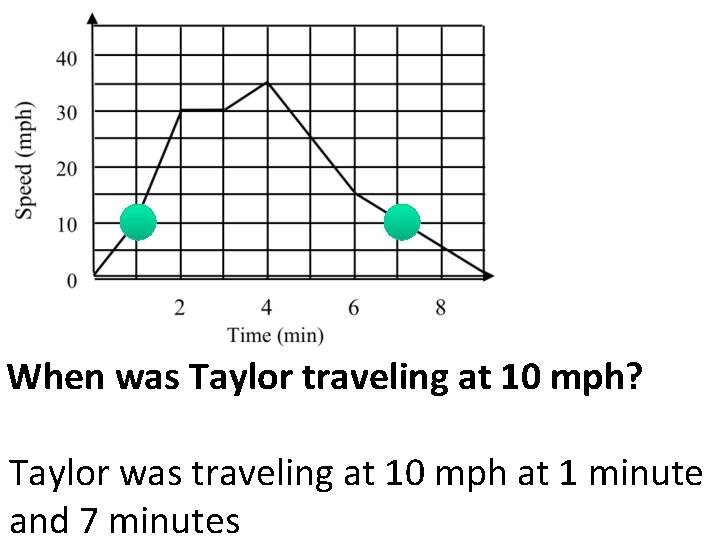

When was Taylor traveling at 10 mph? Taylor was traveling at 10 mph at 1 minute and 7 minutes

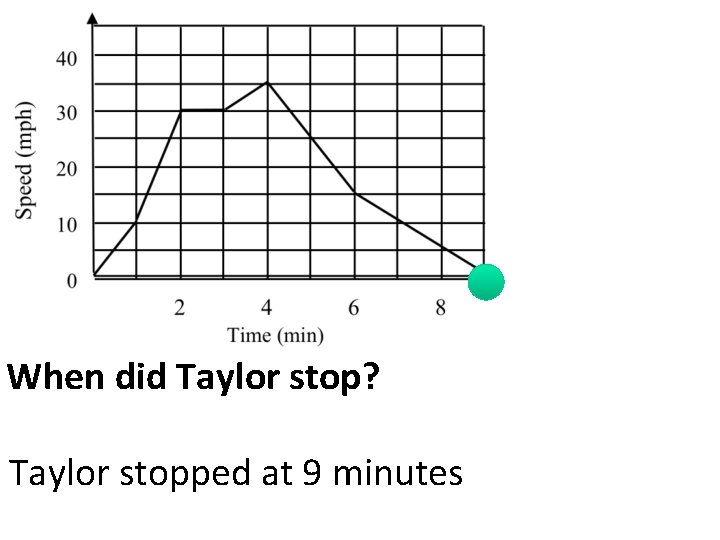

When did Taylor stop? Taylor stopped at 9 minutes

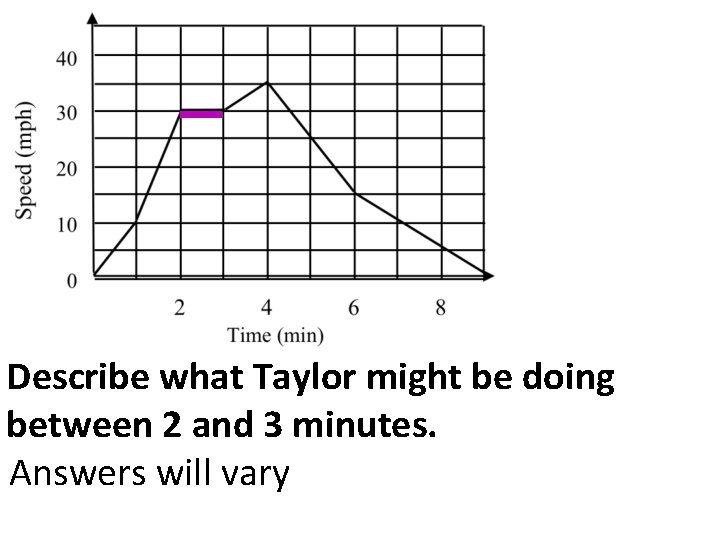

Describe what Taylor might be doing between 2 and 3 minutes. Answers will vary

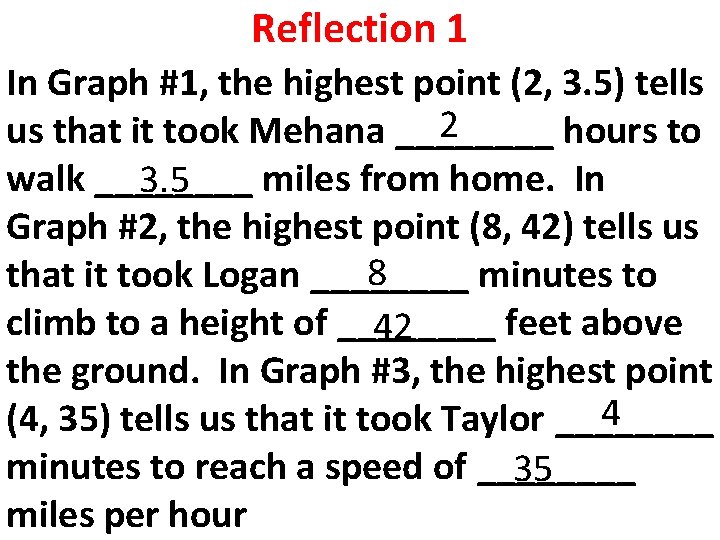

Reflection 1 In Graph #1, the highest point (2, 3. 5) tells 2 us that it took Mehana ____ hours to walk ____ miles from home. In 3. 5 Graph #2, the highest point (8, 42) tells us 8 that it took Logan ____ minutes to climb to a height of ____ feet above 42 the ground. In Graph #3, the highest point 4 (4, 35) tells us that it took Taylor ____ minutes to reach a speed of ____ 35 miles per hour

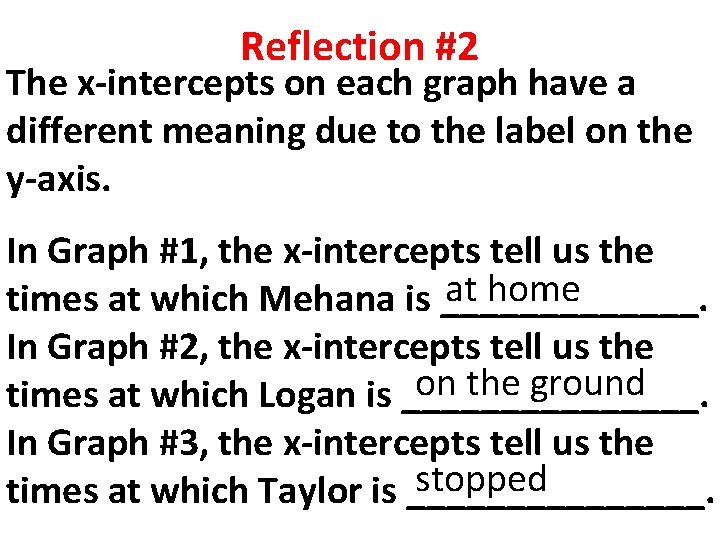

Reflection #2 The x-intercepts on each graph have a different meaning due to the label on the y-axis. In Graph #1, the x-intercepts tell us the at home times at which Mehana is _______. In Graph #2, the x-intercepts tell us the on the ground times at which Logan is ________. In Graph #3, the x-intercepts tell us the stopped times at which Taylor is ________.

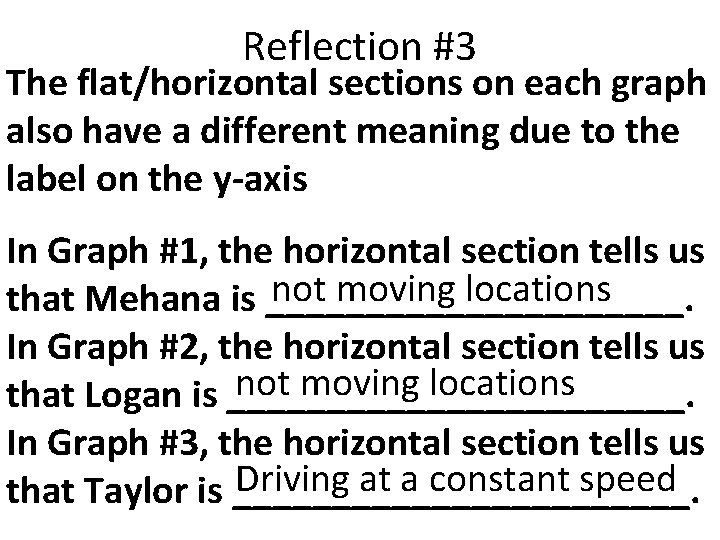

Reflection #3 The flat/horizontal sections on each graph also have a different meaning due to the label on the y-axis In Graph #1, the horizontal section tells us not moving locations that Mehana is ___________. In Graph #2, the horizontal section tells us not moving locations that Logan is ____________. In Graph #3, the horizontal section tells us Driving at a constant speed that Taylor is ____________.
