IDEC Smart Relay FL 1 E Product Update

IDEC Smart. Relay FL 1 E Product Update November 2008 Think Automation and beyond…

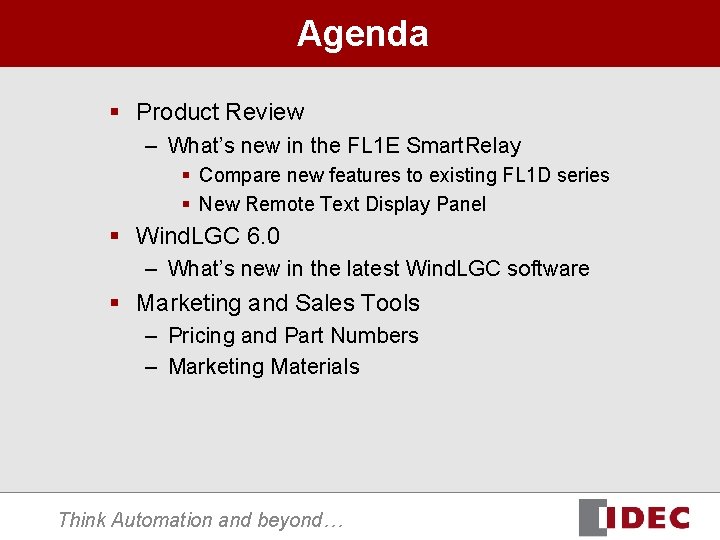

Agenda § Product Review – What’s new in the FL 1 E Smart. Relay § Compare new features to existing FL 1 D series § New Remote Text Display Panel § Wind. LGC 6. 0 – What’s new in the latest Wind. LGC software § Marketing and Sales Tools – Pricing and Part Numbers – Marketing Materials Think Automation and beyond…

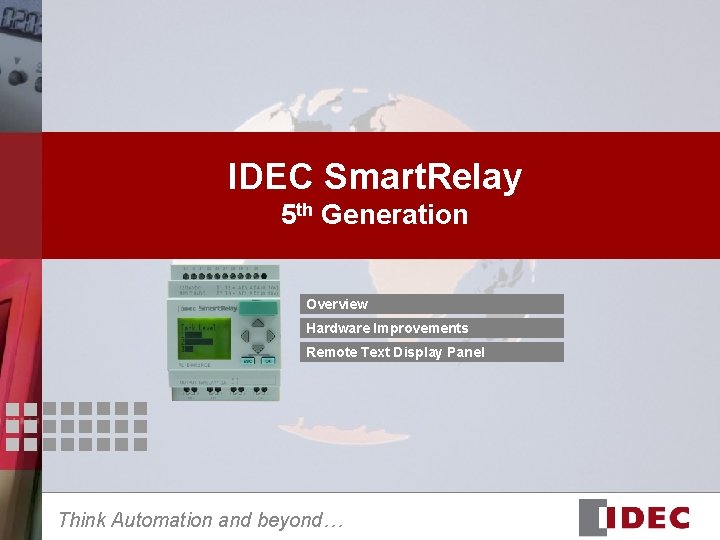

IDEC Smart. Relay 5 th Generation Overview Hardware Improvements Remote Text Display Panel Think Automation and beyond…

Overview § 3 New Improvements to FL 1 E series 1. Hardware Improvements 2. Wind. LGC 6. 0 3. New Remote Text Display panel Think Automation and beyond…

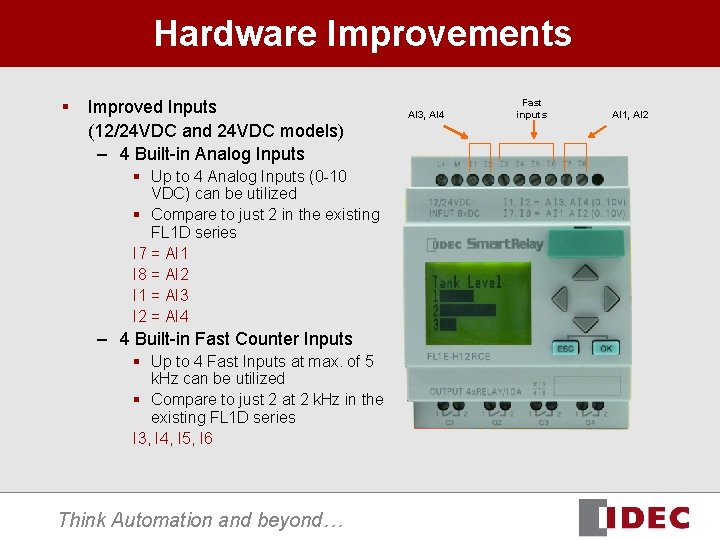

Hardware Improvements § Improved Inputs (12/24 VDC and 24 VDC models) – 4 Built-in Analog Inputs § Up to 4 Analog Inputs (0 -10 VDC) can be utilized § Compare to just 2 in the existing FL 1 D series I 7 = AI 1 I 8 = AI 2 I 1 = AI 3 I 2 = AI 4 – 4 Built-in Fast Counter Inputs § Up to 4 Fast Inputs at max. of 5 k. Hz can be utilized § Compare to just 2 at 2 k. Hz in the existing FL 1 D series I 3, I 4, I 5, I 6 Think Automation and beyond… AI 3, AI 4 Fast inputs AI 1, AI 2

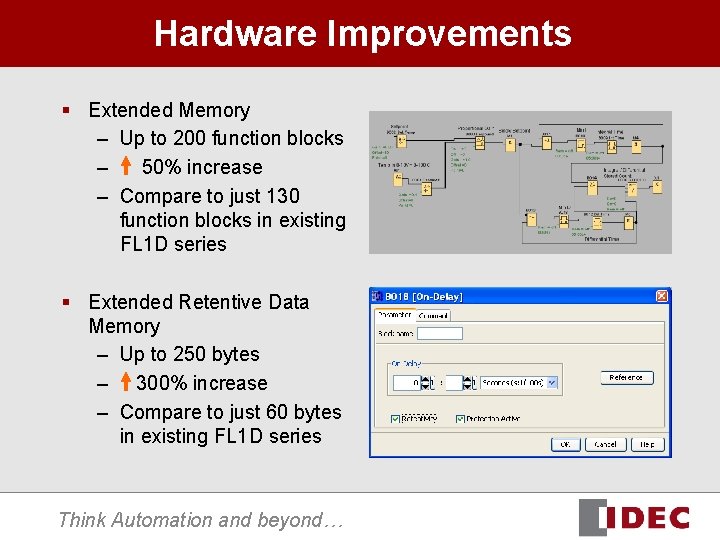

Hardware Improvements § Extended Memory – Up to 200 function blocks – 50% increase – Compare to just 130 function blocks in existing FL 1 D series § Extended Retentive Data Memory – Up to 250 bytes – 300% increase – Compare to just 60 bytes in existing FL 1 D series Think Automation and beyond…

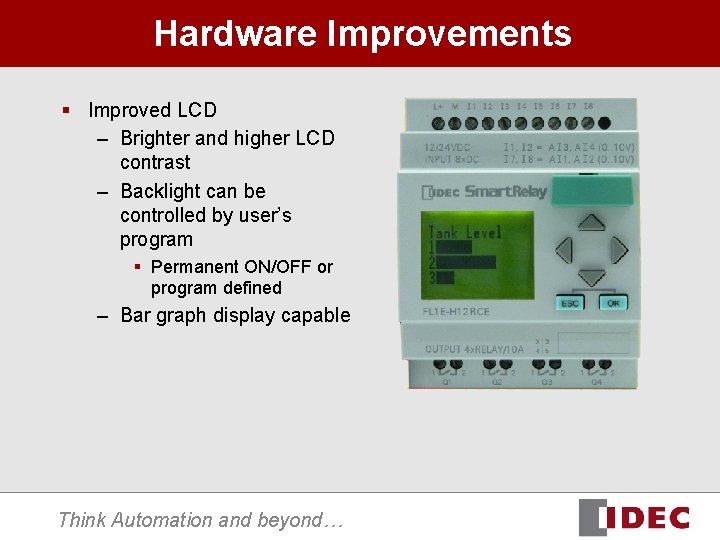

Hardware Improvements § Improved LCD – Brighter and higher LCD contrast – Backlight can be controlled by user’s program § Permanent ON/OFF or program defined – Bar graph display capable Think Automation and beyond…

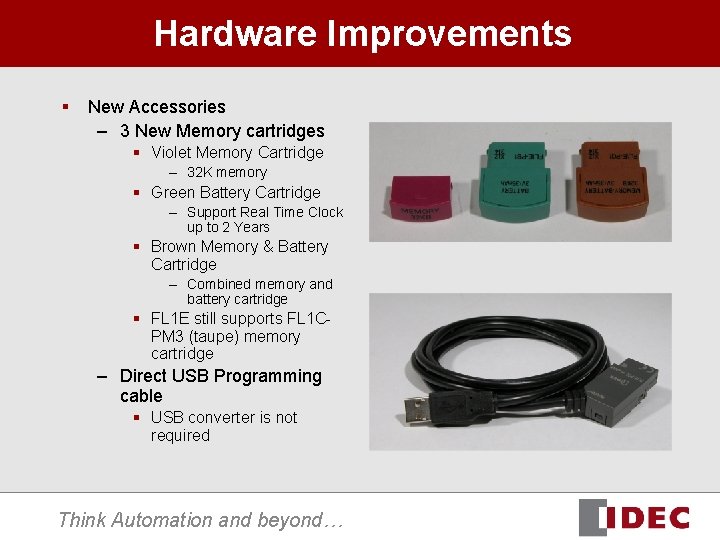

Hardware Improvements § New Accessories – 3 New Memory cartridges § Violet Memory Cartridge – 32 K memory § Green Battery Cartridge – Support Real Time Clock up to 2 Years § Brown Memory & Battery Cartridge – Combined memory and battery cartridge § FL 1 E still supports FL 1 CPM 3 (taupe) memory cartridge – Direct USB Programming cable § USB converter is not required Think Automation and beyond…

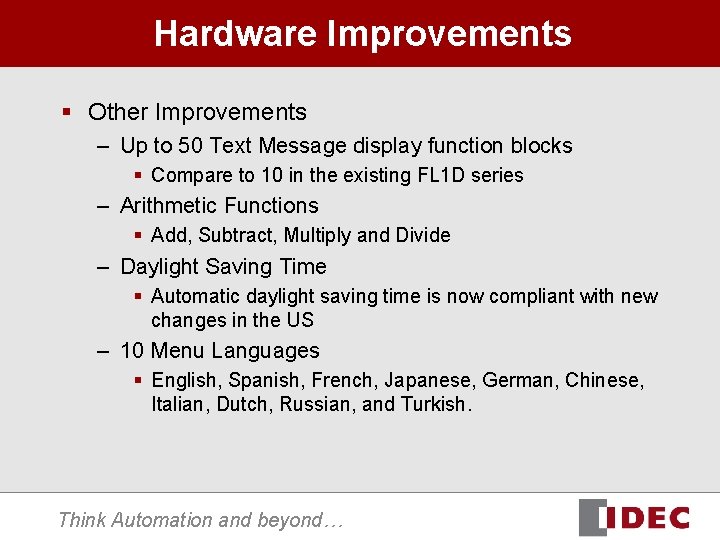

Hardware Improvements § Other Improvements – Up to 50 Text Message display function blocks § Compare to 10 in the existing FL 1 D series – Arithmetic Functions § Add, Subtract, Multiply and Divide – Daylight Saving Time § Automatic daylight saving time is now compliant with new changes in the US – 10 Menu Languages § English, Spanish, French, Japanese, German, Chinese, Italian, Dutch, Russian, and Turkish. Think Automation and beyond…

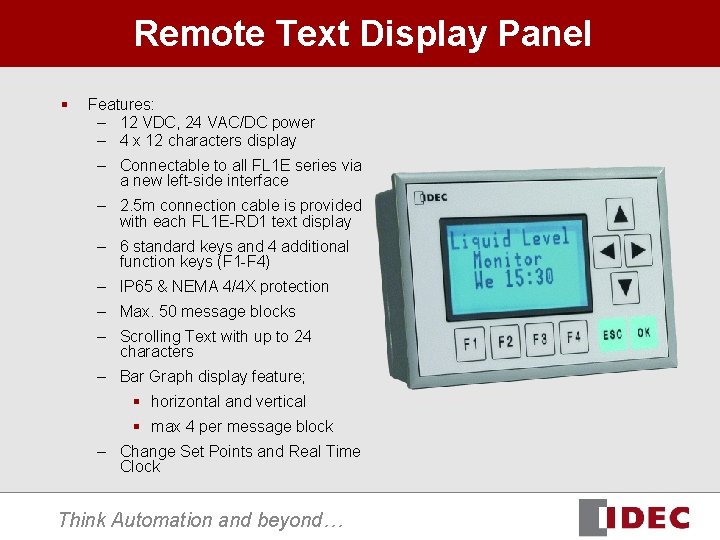

Remote Text Display Panel § Features: – 12 VDC, 24 VAC/DC power – 4 x 12 characters display – Connectable to all FL 1 E series via a new left-side interface – 2. 5 m connection cable is provided with each FL 1 E-RD 1 text display – 6 standard keys and 4 additional function keys (F 1 -F 4) – IP 65 & NEMA 4/4 X protection – Max. 50 message blocks – Scrolling Text with up to 24 characters – Bar Graph display feature; § horizontal and vertical § max 4 per message block – Change Set Points and Real Time Clock Think Automation and beyond…

Wind. LGC 6. 0 New Connectors and Function Blocks Updated Function Blocks Think Automation and beyond…

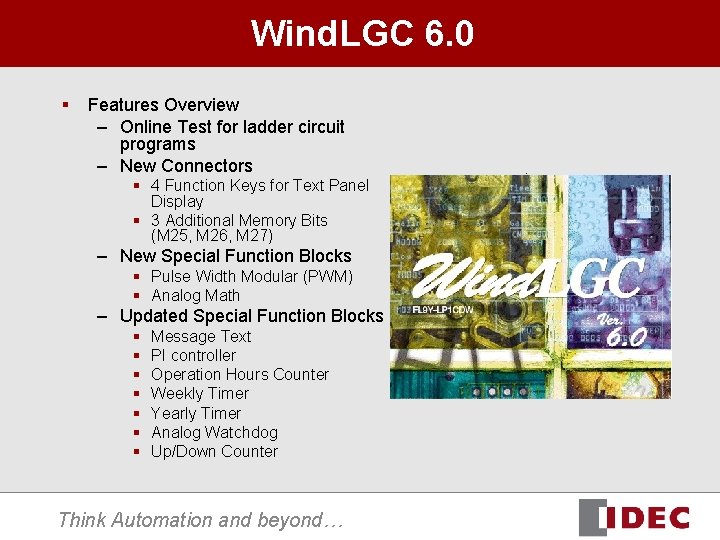

Wind. LGC 6. 0 § Features Overview – Online Test for ladder circuit programs – New Connectors § 4 Function Keys for Text Panel Display § 3 Additional Memory Bits (M 25, M 26, M 27) – New Special Function Blocks § Pulse Width Modular (PWM) § Analog Math – Updated Special Function Blocks § § § § Message Text PI controller Operation Hours Counter Weekly Timer Yearly Timer Analog Watchdog Up/Down Counter Think Automation and beyond…

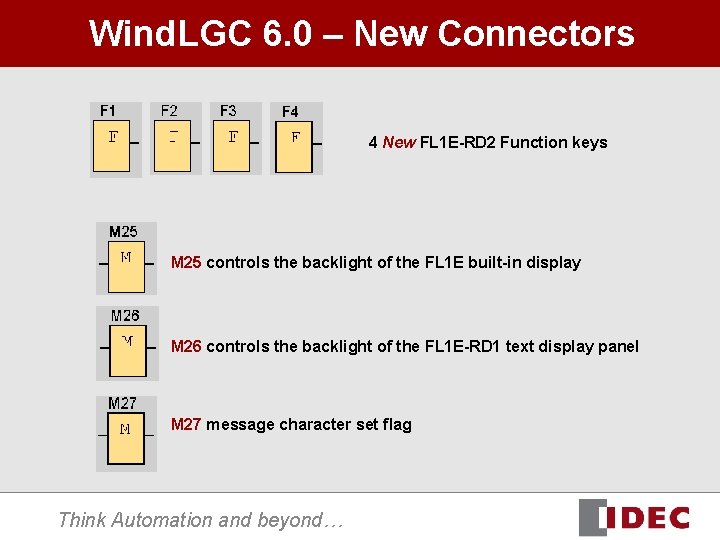

Wind. LGC 6. 0 – New Connectors 4 New FL 1 E-RD 2 Function keys M 25 controls the backlight of the FL 1 E built-in display M 26 controls the backlight of the FL 1 E-RD 1 text display panel M 27 message character set flag Think Automation and beyond…

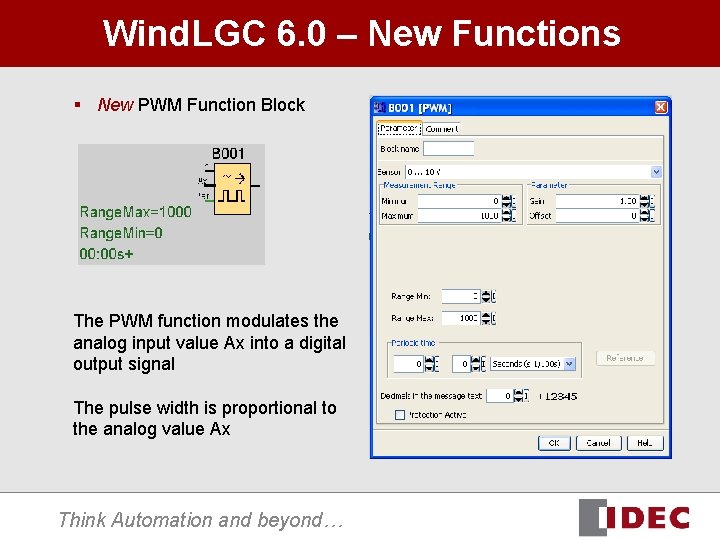

Wind. LGC 6. 0 – New Functions § New PWM Function Block The PWM function modulates the analog input value Ax into a digital output signal The pulse width is proportional to the analog value Ax Think Automation and beyond…

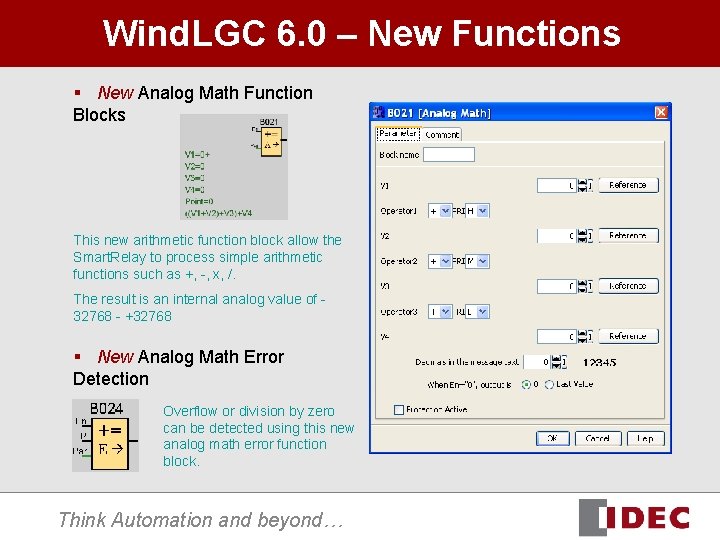

Wind. LGC 6. 0 – New Functions § New Analog Math Function Blocks This new arithmetic function block allow the Smart. Relay to process simple arithmetic functions such as +, -, x, /. The result is an internal analog value of 32768 - +32768 § New Analog Math Error Detection Overflow or division by zero can be detected using this new analog math error function block. Think Automation and beyond…

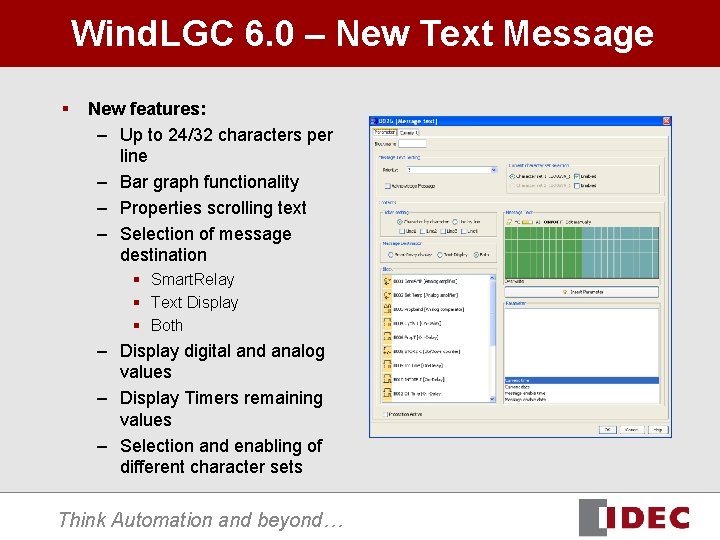

Wind. LGC 6. 0 – New Text Message § New features: – Up to 24/32 characters per line – Bar graph functionality – Properties scrolling text – Selection of message destination § Smart. Relay § Text Display § Both – Display digital and analog values – Display Timers remaining values – Selection and enabling of different character sets Think Automation and beyond…

Marketing and Sales Tools Part Numbers and List Price Marketing Materials Think Automation and beyond…

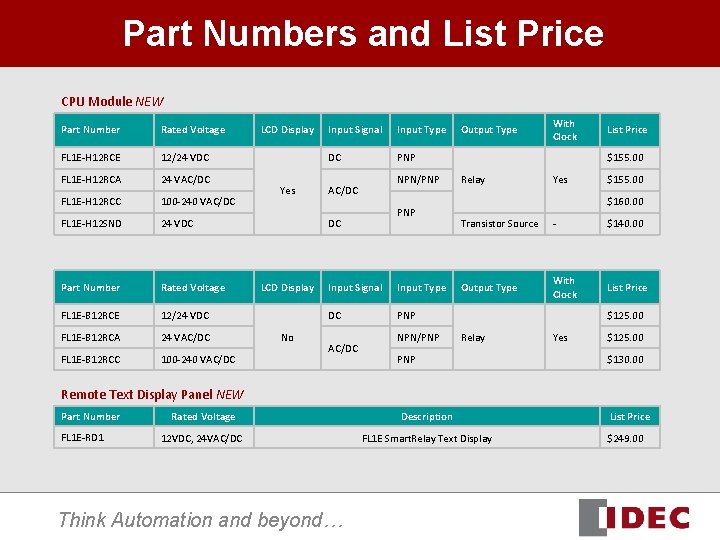

Part Numbers and List Price CPU Module NEW Part Number Rated Voltage FL 1 E-H 12 RCE 12/24 VDC FL 1 E-H 12 RCA 24 VAC/DC FL 1 E-H 12 RCC 100 -240 VAC/DC FL 1 E-H 12 SND 24 VDC Part Number Rated Voltage FL 1 E-B 12 RCE 12/24 VDC FL 1 E-B 12 RCA 24 VAC/DC FL 1 E-B 12 RCC 100 -240 VAC/DC LCD Display Yes Input Signal Input Type DC PNP NPN/PNP AC/DC PNP DC LCD Display No Input Signal Input Type DC PNP AC/DC NPN/PNP Output Type With Clock List Price $155. 00 Relay Yes $155. 00 $160. 00 Transistor Source - $140. 00 Output Type With Clock List Price $125. 00 Relay PNP Yes $125. 00 $130. 00 Remote Text Display Panel NEW Part Number FL 1 E-RD 1 Rated Voltage Description 12 VDC, 24 VAC/DC FL 1 E Smart. Relay Text Display Think Automation and beyond… List Price $249. 00

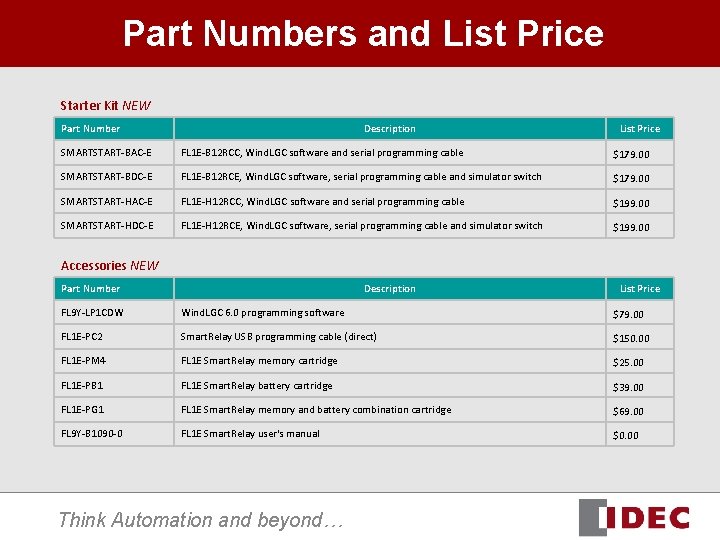

Part Numbers and List Price Starter Kit NEW Part Number Description List Price SMARTSTART-BAC-E FL 1 E-B 12 RCC, Wind. LGC software and serial programming cable $179. 00 SMARTSTART-BDC-E FL 1 E-B 12 RCE, Wind. LGC software, serial programming cable and simulator switch $179. 00 SMARTSTART-HAC-E FL 1 E-H 12 RCC, Wind. LGC software and serial programming cable $199. 00 SMARTSTART-HDC-E FL 1 E-H 12 RCE, Wind. LGC software, serial programming cable and simulator switch $199. 00 Accessories NEW Part Number Description List Price FL 9 Y-LP 1 CDW Wind. LGC 6. 0 programming software $79. 00 FL 1 E-PC 2 Smart. Relay USB programming cable (direct) $150. 00 FL 1 E-PM 4 FL 1 E Smart. Relay memory cartridge $25. 00 FL 1 E-PB 1 FL 1 E Smart. Relay battery cartridge $39. 00 FL 1 E-PG 1 FL 1 E Smart. Relay memory and battery combination cartridge $69. 00 FL 9 Y-B 1090 -0 FL 1 E Smart. Relay user's manual $0. 00 Think Automation and beyond…

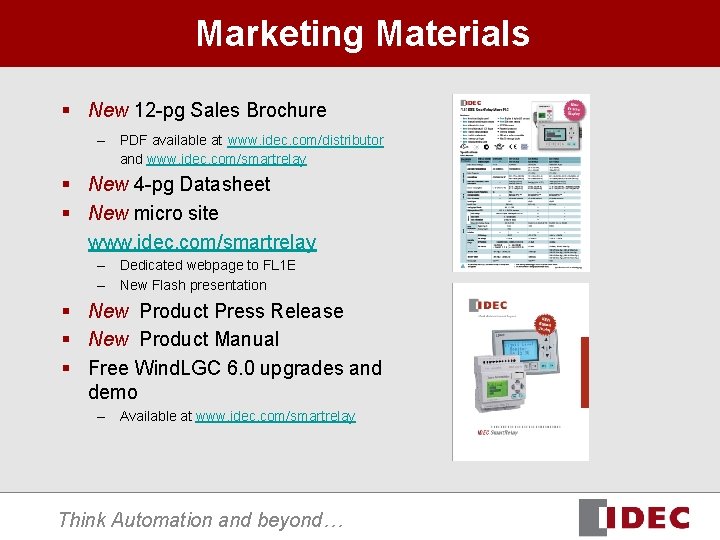

Marketing Materials § New 12 -pg Sales Brochure – PDF available at www. idec. com/distributor and www. idec. com/smartrelay § New 4 -pg Datasheet § New micro site www. idec. com/smartrelay – Dedicated webpage to FL 1 E – New Flash presentation § New Product Press Release § New Product Manual § Free Wind. LGC 6. 0 upgrades and demo – Available at www. idec. com/smartrelay Think Automation and beyond…
