IDCO Research Study: Direct Patient Messaging ICD Data Implementation and Randomization Michael J. Mirro, MD, FACC, FAHA, FACP Chief Academic/Research Officer Parkview Health

Funding • Feasibility IDCO Study (SJM-MIE) Office of the National Coordinator for Health Information Technology Challenge Grant awarded to Indiana Health Information Technology (IHIT). • No. More. Clipboard and Parkview Research (grant sub-recipients) • SJM-EPIC ICD messaging Study Industry Support ($150, 000)

Patients Speak Out About Access to Data

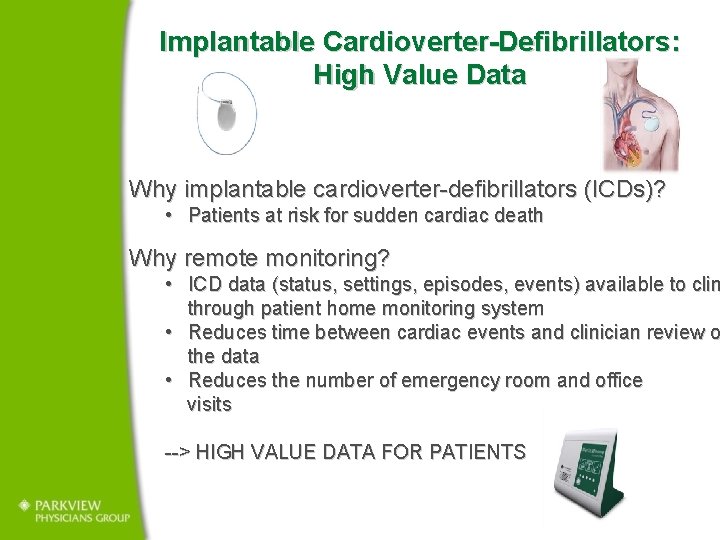

Implantable Cardioverter-Defibrillators: High Value Data Why implantable cardioverter-defibrillators (ICDs)? • Patients at risk for sudden cardiac death Why remote monitoring? • ICD data (status, settings, episodes, events) available to clin through patient home monitoring system • Reduces time between cardiac events and clinician review o the data • Reduces the number of emergency room and office visits --> HIGH VALUE DATA FOR PATIENTS

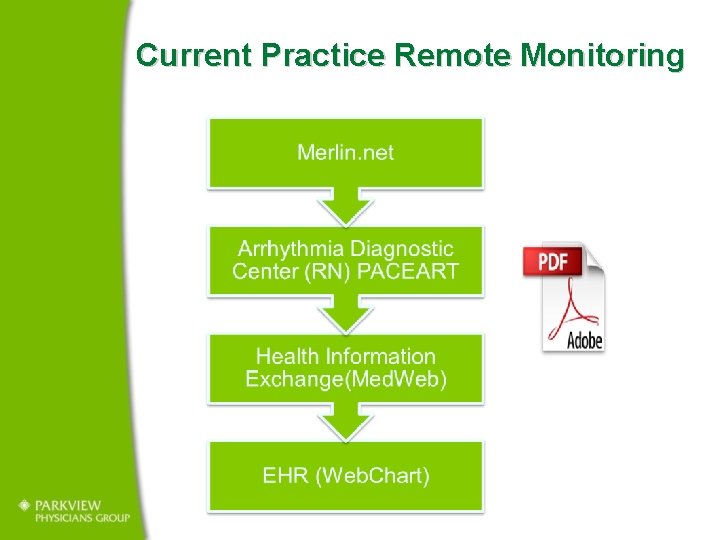

Current Practice Remote Monitoring

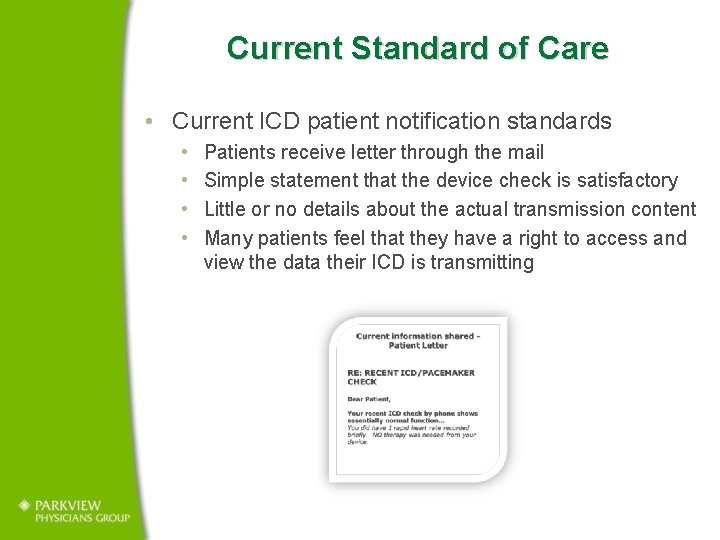

Current Standard of Care • Current ICD patient notification standards • • Patients receive letter through the mail Simple statement that the device check is satisfactory Little or no details about the actual transmission content Many patients feel that they have a right to access and view the data their ICD is transmitting

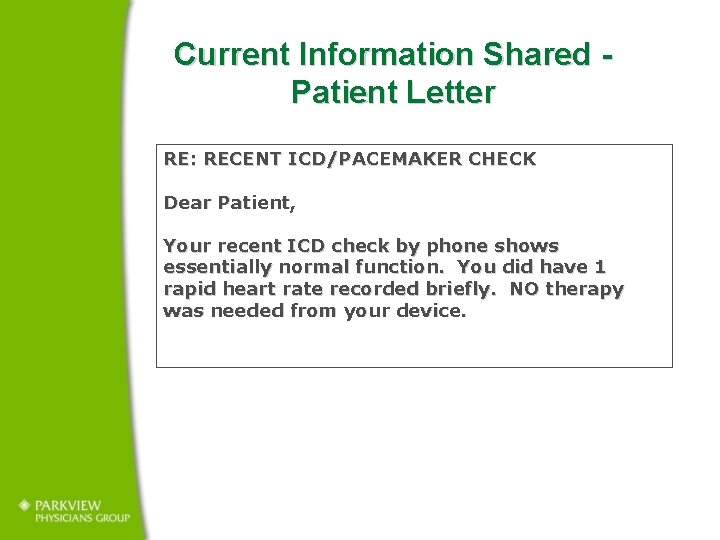

Current Information Shared Patient Letter RE: RECENT ICD/PACEMAKER CHECK Dear Patient, Your recent ICD check by phone shows essentially normal function. You did have 1 rapid heart rate recorded briefly. NO therapy was needed from your device.

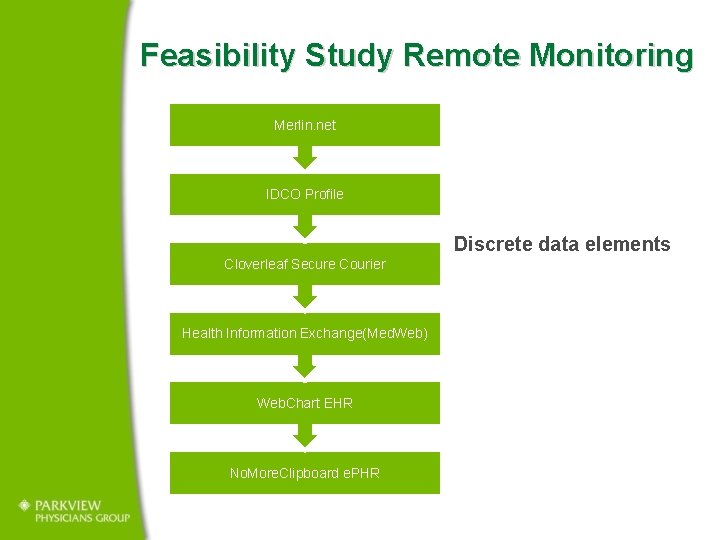

Feasibility Study Remote Monitoring Merlin. net IDCO Profile Discrete data elements Cloverleaf Secure Courier Health Information Exchange(Med. Web) Web. Chart EHR No. More. Clipboard e. PHR

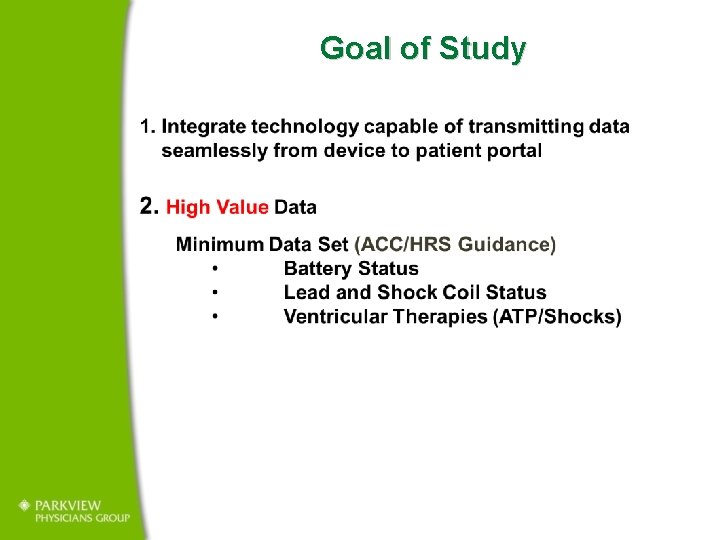

Goal of Study

Study Design Sample: 21 St. Jude ICD patients undergoing remote monitoring (Merlin. net) Site: Parkview Physicians Group – Cardiology, Fort Wayne Duration: 3 months Intervention: electronic delivery of Patient Notification Summary using the Implantable Device Cardiac Observation Profile (standard) Measures: -Baseline patient survey and three month survey to assess Patient Activation (Patient Activation Measure, Insignia Health LLC) -Semi-structured interview at 3 months -Number of logins into No. More. Clipboard PHR -Provider survey at PPG-Cardiology

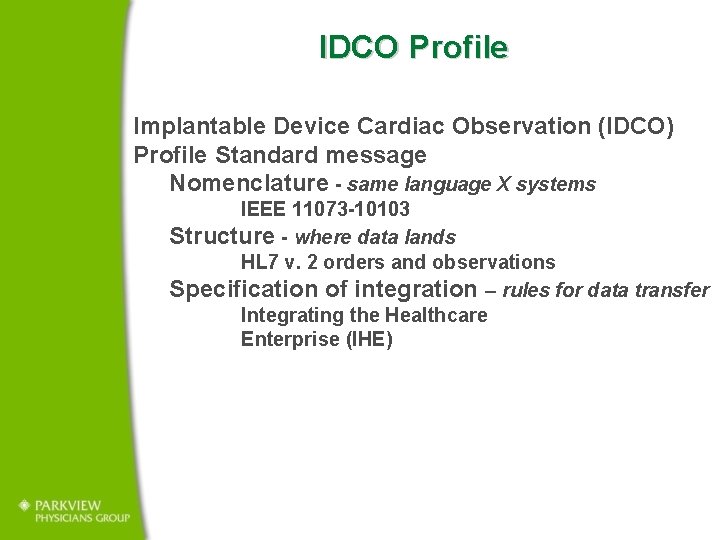

IDCO Profile Implantable Device Cardiac Observation (IDCO) Profile Standard message Nomenclature - same language X systems IEEE 11073 -10103 Structure - where data lands HL 7 v. 2 orders and observations Specification of integration – rules for data transfer Integrating the Healthcare Enterprise (IHE)

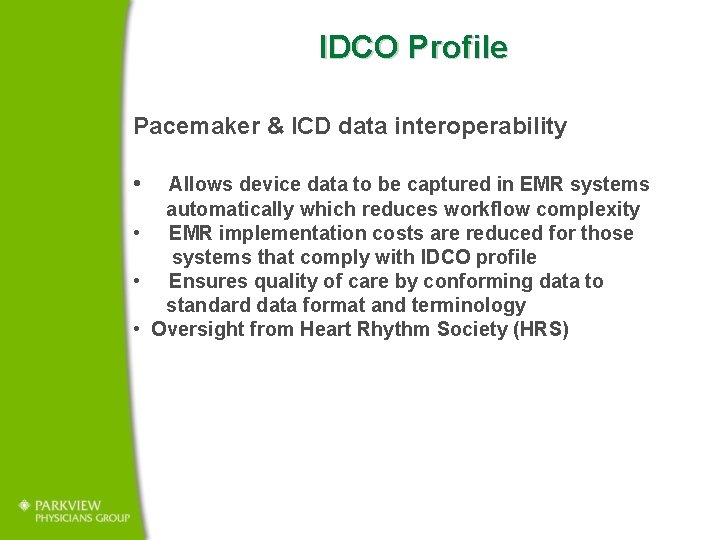

IDCO Profile Pacemaker & ICD data interoperability • Allows device data to be captured in EMR systems automatically which reduces workflow complexity • EMR implementation costs are reduced for those systems that comply with IDCO profile • Ensures quality of care by conforming data to standard data format and terminology • Oversight from Heart Rhythm Society (HRS)

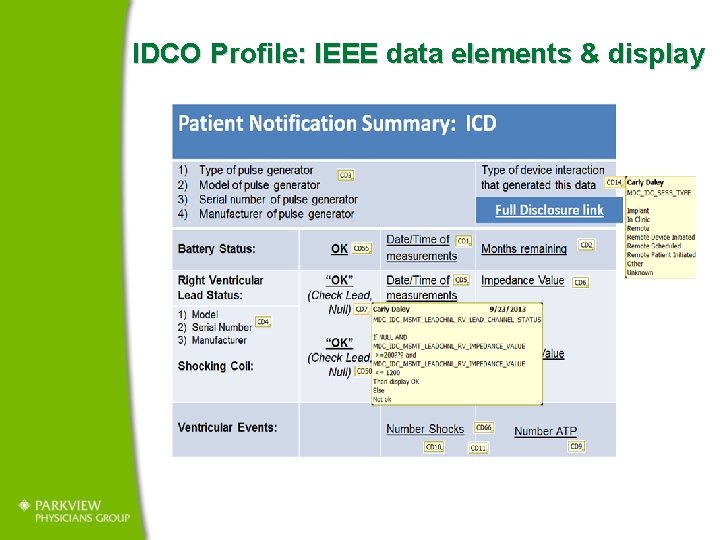

IDCO Profile: IEEE data elements & display

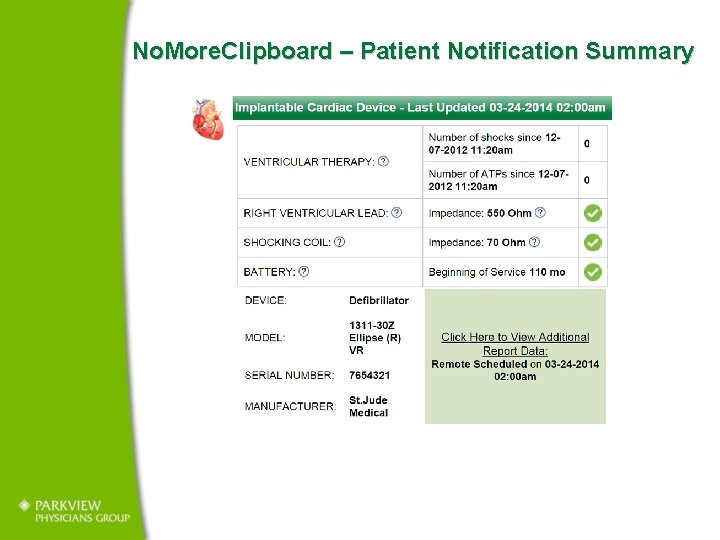

No. More. Clipboard – Patient Notification Summary

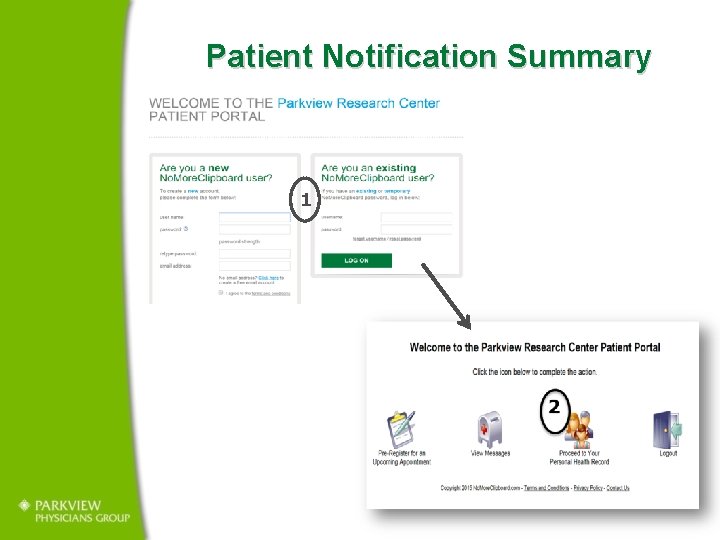

Patient Notification Summary 1

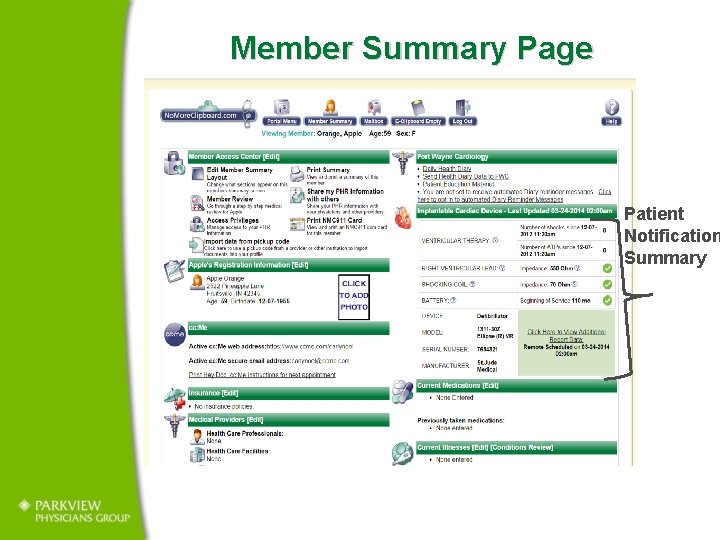

Member Summary Page Patient Notification Summary

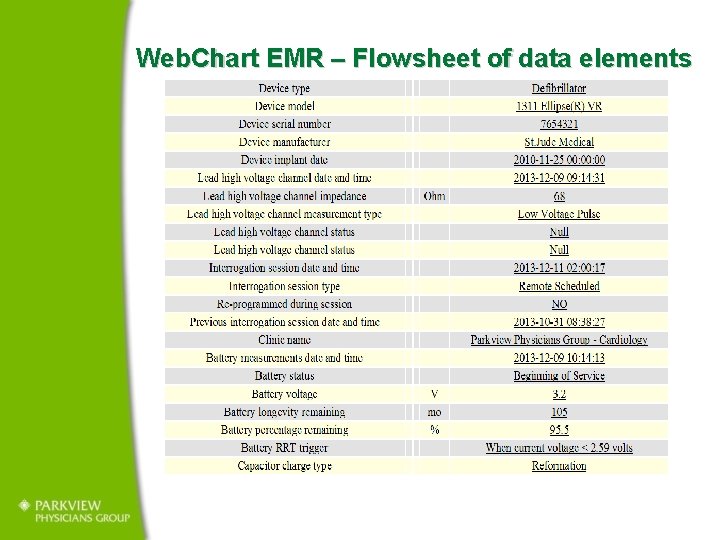

Web. Chart EMR – Flowsheet of data elements

Patient Notification Summary – lessons learned Patients want to know what their device is doing, if there is “anything wrong”, and their battery status

RESEARCH STUDY: Patient Notification of Remote Implantable Cardioverter - Defibrillator (ICD) Monitoring Data: Impact of Patient Engagement on Outcomes – Merlin. net™ System AKA…. SJM-IDCO STUDY Study AIM - Demonstrate the value of electronically messaging data from remote monitoring of ICDs via an electronic personal health record (PHR) to improve patient engagement

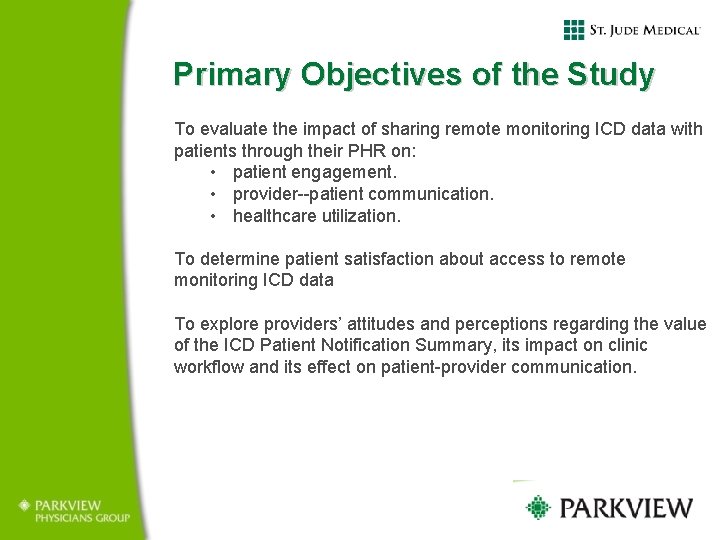

Primary Objectives of the Study To evaluate the impact of sharing remote monitoring ICD data with patients through their PHR on: • patient engagement. • provider--patient communication. • healthcare utilization. To determine patient satisfaction about access to remote monitoring ICD data To explore providers’ attitudes and perceptions regarding the value of the ICD Patient Notification Summary, its impact on clinic workflow and its effect on patient-provider communication.

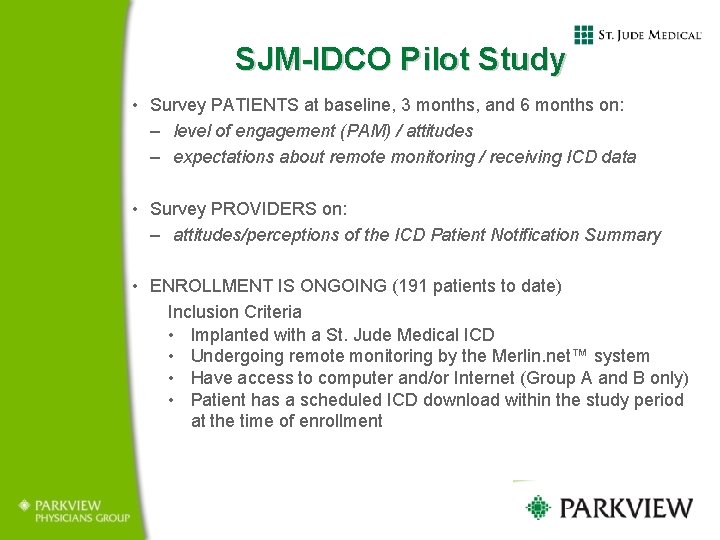

SJM-IDCO Pilot Study • Survey PATIENTS at baseline, 3 months, and 6 months on: – level of engagement (PAM) / attitudes – expectations about remote monitoring / receiving ICD data • Survey PROVIDERS on: – attitudes/perceptions of the ICD Patient Notification Summary • ENROLLMENT IS ONGOING (191 patients to date) Inclusion Criteria • Implanted with a St. Jude Medical ICD • Undergoing remote monitoring by the Merlin. net™ system • Have access to computer and/or Internet (Group A and B only) • Patient has a scheduled ICD download within the study period at the time of enrollment

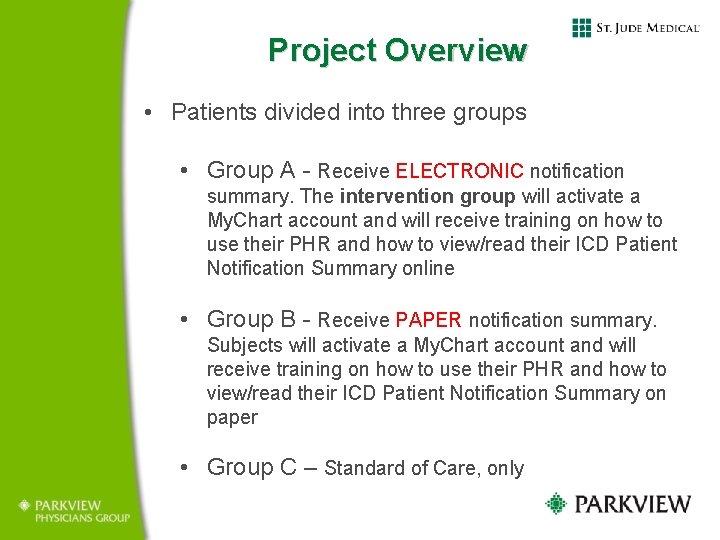

Project Overview • Patients divided into three groups • Group A - Receive ELECTRONIC notification summary. The intervention group will activate a My. Chart account and will receive training on how to use their PHR and how to view/read their ICD Patient Notification Summary online • Group B - Receive PAPER notification summary. Subjects will activate a My. Chart account and will receive training on how to use their PHR and how to view/read their ICD Patient Notification Summary on paper • Group C – Standard of Care, only

SJM-IDCO STUDY Enrollment is ongoing 191 patients to date… Number of patients Total (191) Group A (73) Group B (71 ) Group C (47) Female 62 (32%) 24 (33%) 19 (27%) 19 (40%) Male 129 (68%) 49 (67%) 52 (73%) 28 (60%) 18 -29 4 (2%) 3 (4%) 1 (1%) 0 (0%) 30 -39 5 (3%) 3 (4%) 2 (3%) 0 (0%) 40 -49 9 (5%) 5 (7%) 4 (6%) 0 (0%) 50 -59 30 (16%) 15 (19%) 9 (19%) 7 (15%) 60 -69 56 (29%) 20 (27%) 25 (35%) 11 (23%) 70 -79 60 (31%) 21 (28%) 21 (30%) 18 (38%) 80 -89 26 (14%) 6 (8%) 9 (13%) 11 (23%) Gender Age

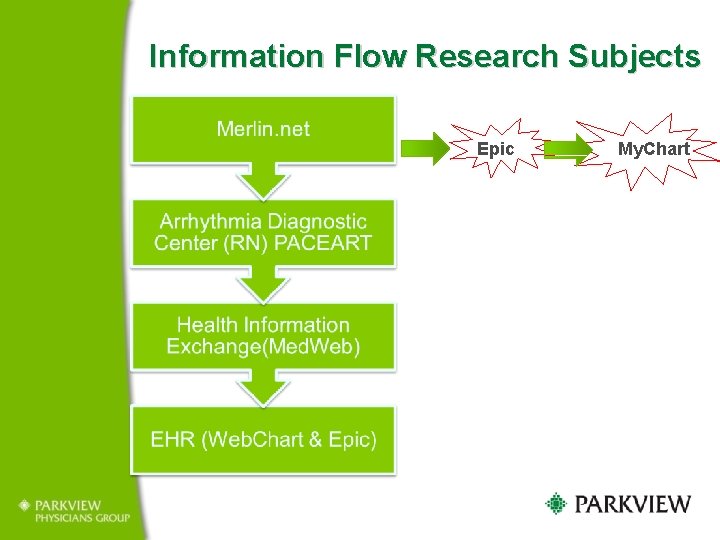

Information Flow Research Subjects Epic My. Chart

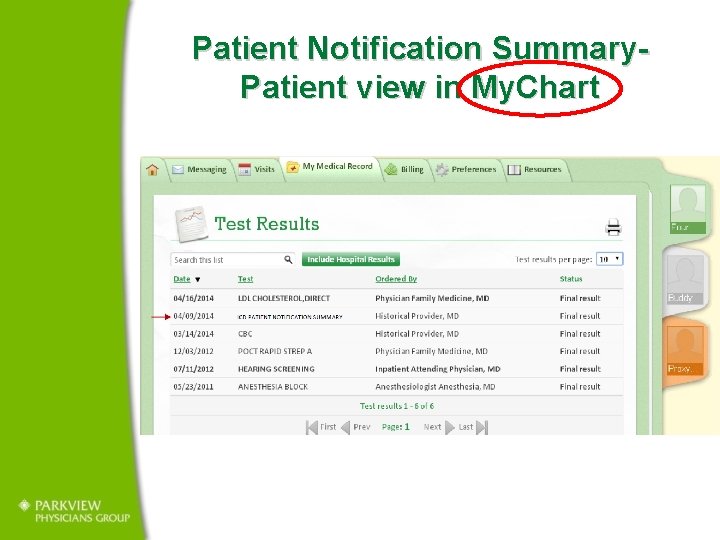

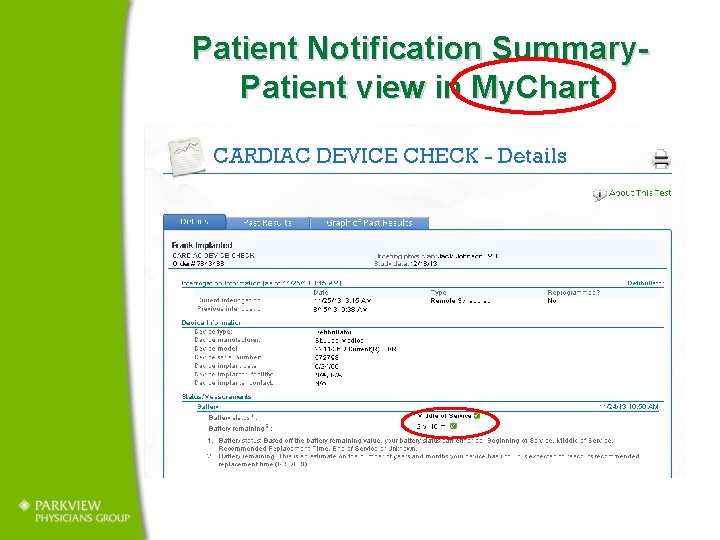

Patient Notification Summary. Patient view in My. Chart

Patient Notification Summary. Patient view in My. Chart

My. Chart Display Design ACC/HRS Guidance Provide Patients with High Value Data Minimum Data Set • • • Battery Status Lead and Shock Coil Status Ventricular Therapies (ATP/Shocks)

My. Chart Display Design Feedback (Patient Interviews-feasibility study) • For example: Patients appreciated and desired having explanations, However hovering over was not intuitive. • Lesson applied: current study EPIC DISPLAY includes the definitions on the display page

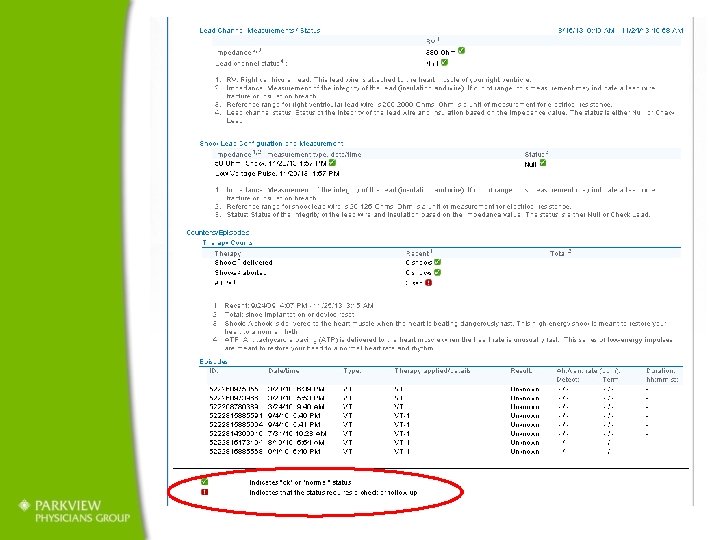

Patient Notification Summary. Patient view in My. Chart

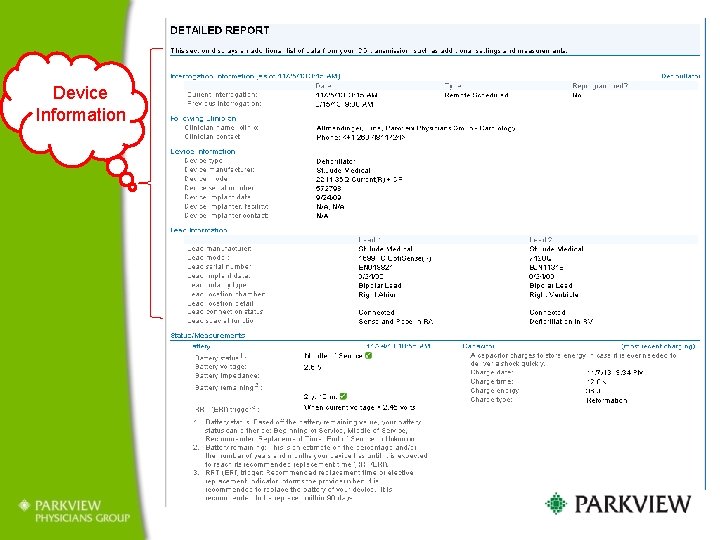

Device Information

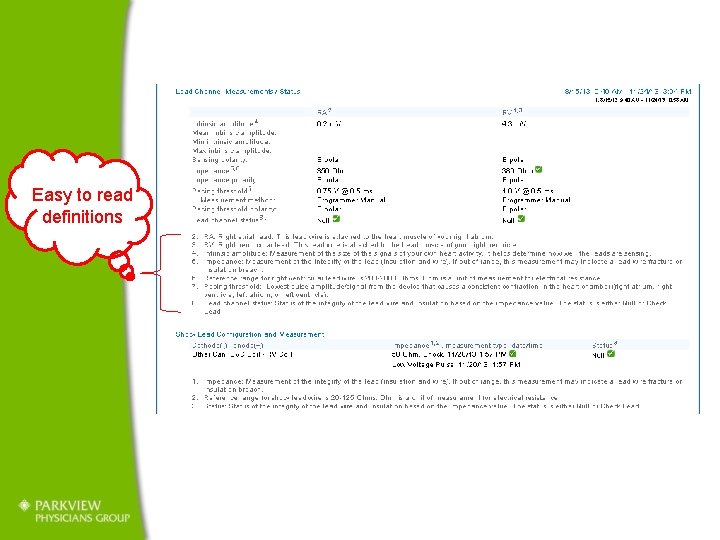

Easy to read definitions

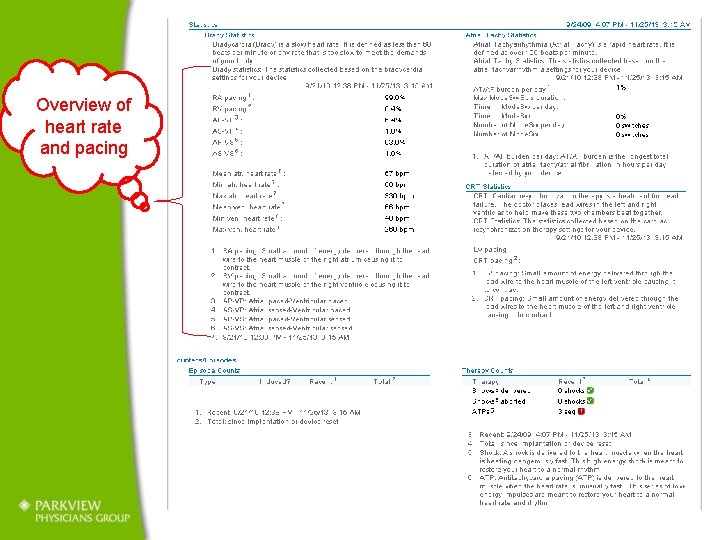

Overview of heart rate and pacing

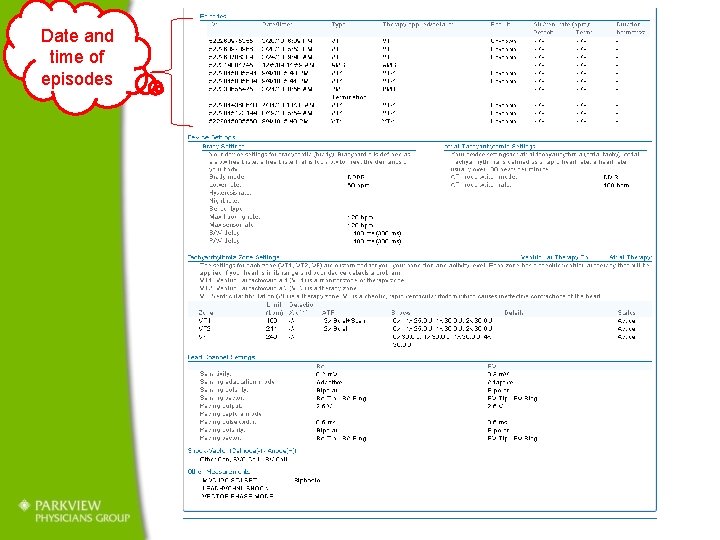

Date and time of episodes

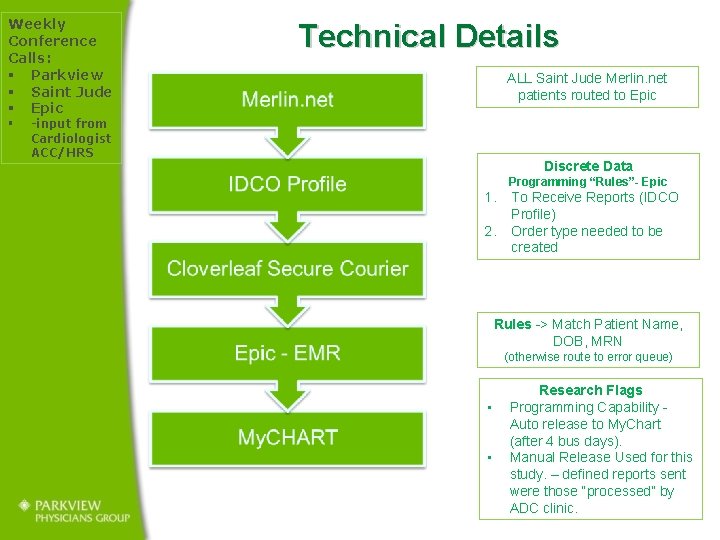

Weekly Conference Calls: § Parkview § Saint Jude § Epic § Technical Details ALL Saint Jude Merlin. net patients routed to Epic -input from Cardiologist ACC/HRS Discrete Data Programming “Rules”- Epic 1. 2. To Receive Reports (IDCO Profile) Order type needed to be created Rules -> Match Patient Name, DOB, MRN (otherwise route to error queue) • • Research Flags Programming Capability Auto release to My. Chart (after 4 bus days). Manual Release Used for this study. – defined reports sent were those “processed” by ADC clinic.

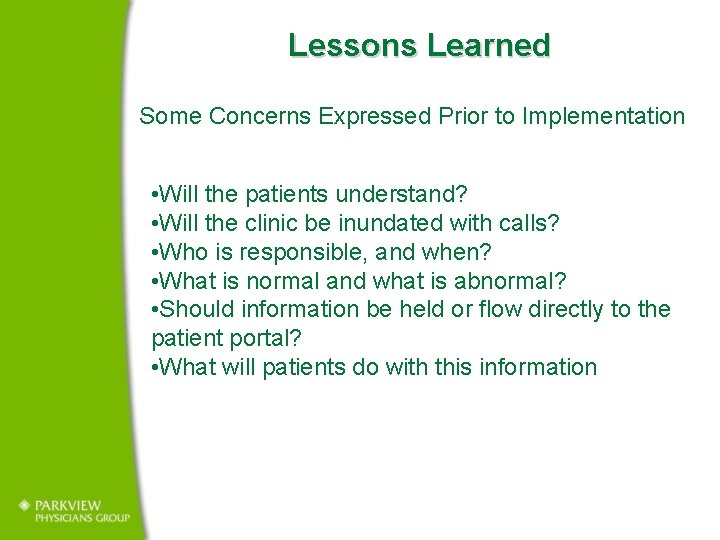

Lessons Learned Some Concerns Expressed Prior to Implementation • Will the patients understand? • Will the clinic be inundated with calls? • Who is responsible, and when? • What is normal and what is abnormal? • Should information be held or flow directly to the patient portal? • What will patients do with this information

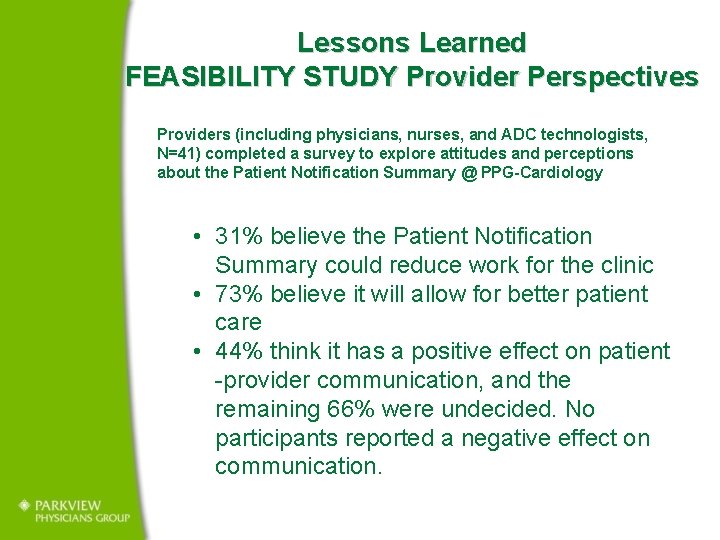

Lessons Learned FEASIBILITY STUDY Provider Perspectives Providers (including physicians, nurses, and ADC technologists, N=41) completed a survey to explore attitudes and perceptions about the Patient Notification Summary @ PPG-Cardiology • 31% believe the Patient Notification Summary could reduce work for the clinic • 73% believe it will allow for better patient care • 44% think it has a positive effect on patient -provider communication, and the remaining 66% were undecided. No participants reported a negative effect on communication.

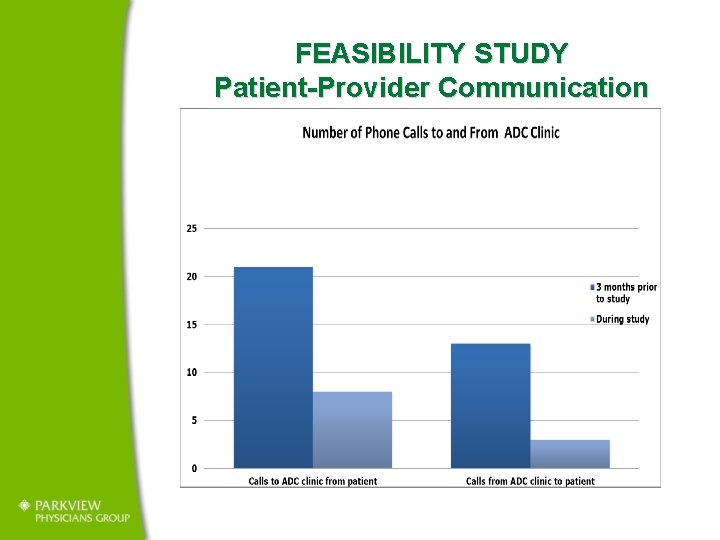

FEASIBILITY STUDY Patient-Provider Communication

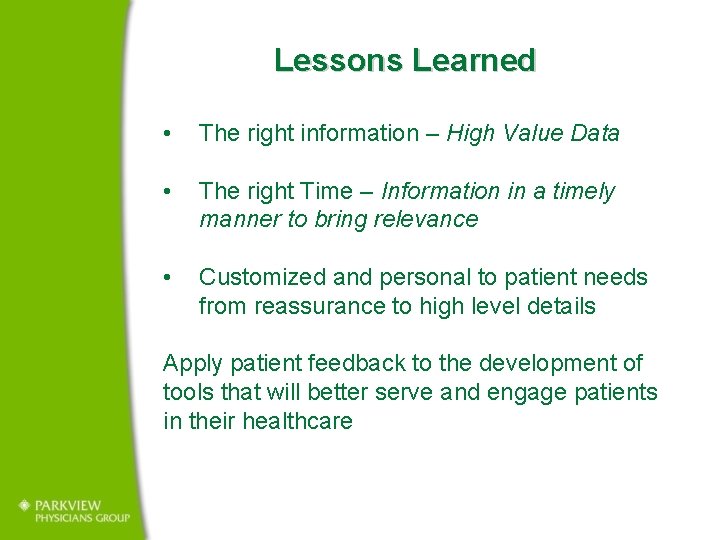

Lessons Learned • The right information – High Value Data • The right Time – Information in a timely manner to bring relevance • Customized and personal to patient needs from reassurance to high level details Apply patient feedback to the development of tools that will better serve and engage patients in their healthcare

Thank you! Questions: Michael J. Mirro MD FACC Lisa Heral RNBA CCRC Lisa. Heral@parkview. com - 260 -266 -5615 Carly Daley BA CCRC Carly. daley@parkview. com 260 -266 -5587

Extra Slides

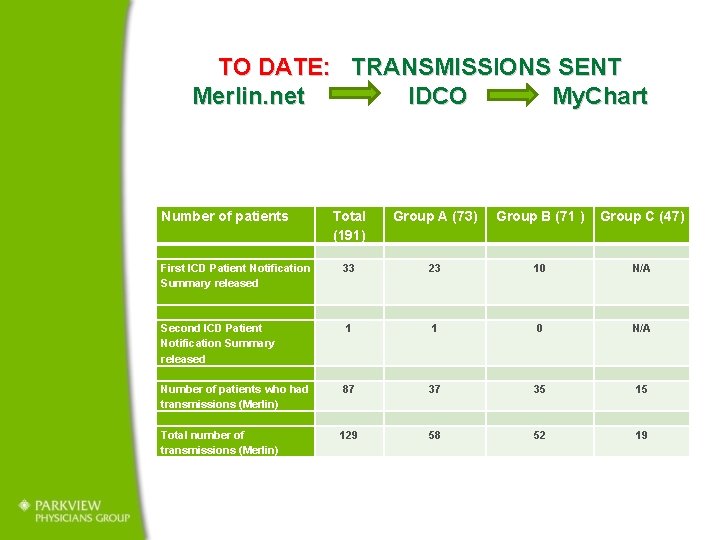

TO DATE: TRANSMISSIONS SENT Merlin. net IDCO My. Chart Number of patients Total (191) Group A (73) Group B (71 ) Group C (47) First ICD Patient Notification Summary released 33 23 10 N/A Second ICD Patient Notification Summary released Number of patients who had transmissions (Merlin) Total number of transmissions (Merlin) 1 1 0 N/A 87 35 129 58 52 19

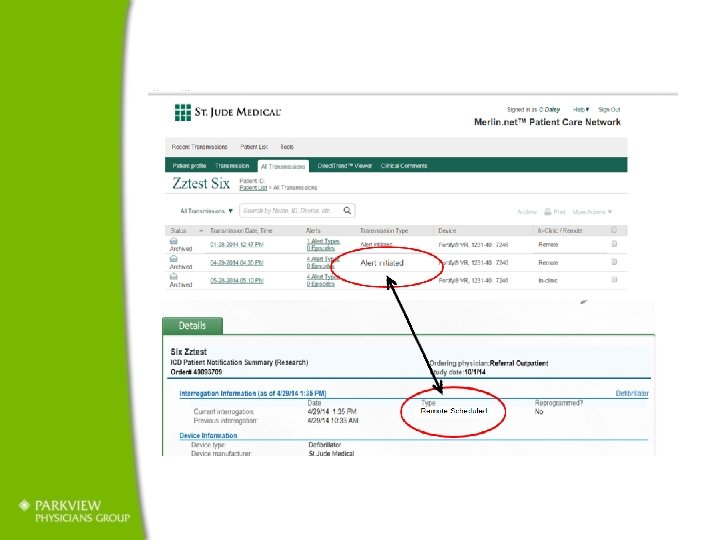

Lessons Learned i. EEE Enumeration List Semantics PATIENT: 2 am device Check MERLIN: Alert Initiated EPIC: Remote Scheduled
