ID 308 Construction + Materials IV: Construction Documents Systems Coordination Prof. Brody Endicott College

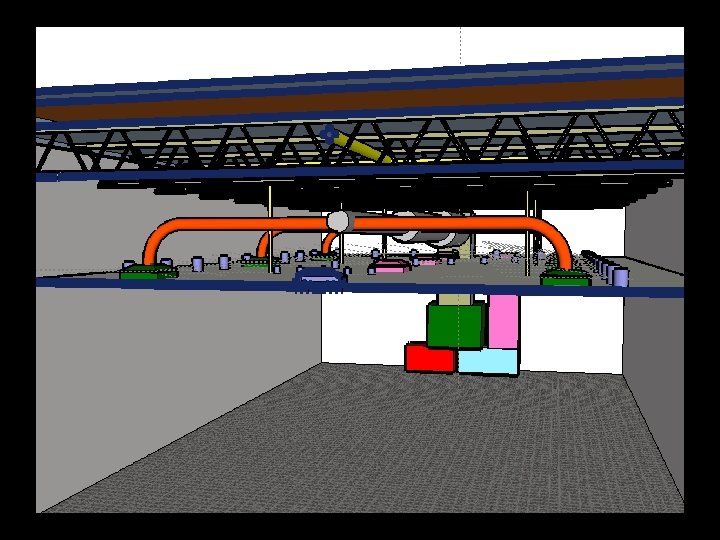

All that other stuff • Fire protection – Sprinklers – Exit lighting and signage – Smoke detection systems • HVAC diffusers and registers • Miscellaneous electrical – A/V, including speakers, network repeaters, (telephones), etc – Retractable screens, projectors, etc

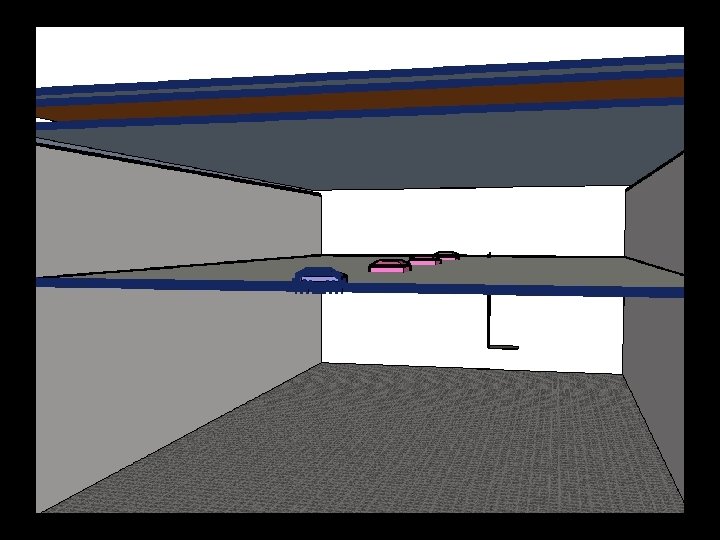

Dimensions of recessed lighting
Structural Systems
Steel yourselves
Concrete systems
Most restrictive
Heating and A/C symbols
Mechanical Plans from the Engineer
You need the duct sizing and register locations

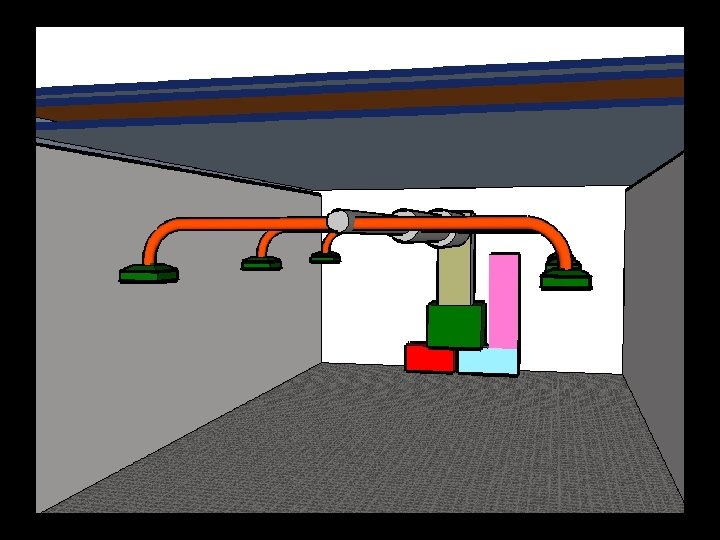

Air systems: how they work

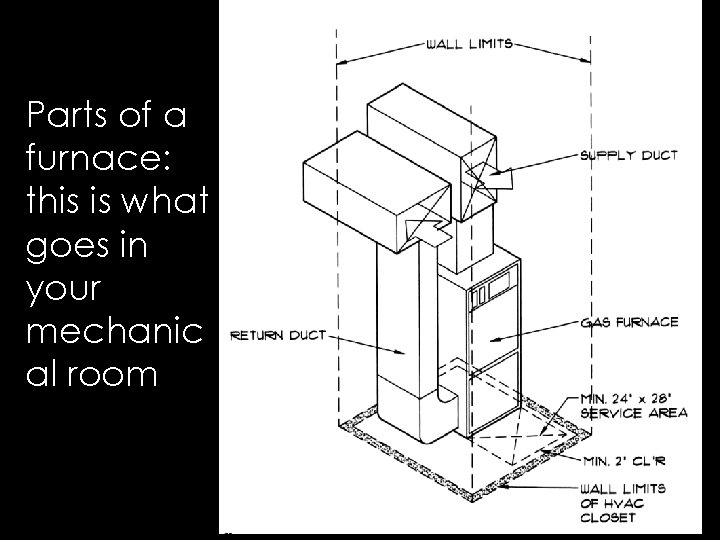

Parts of a furnace: this is what goes in your mechanic al room
Supply air diffusers

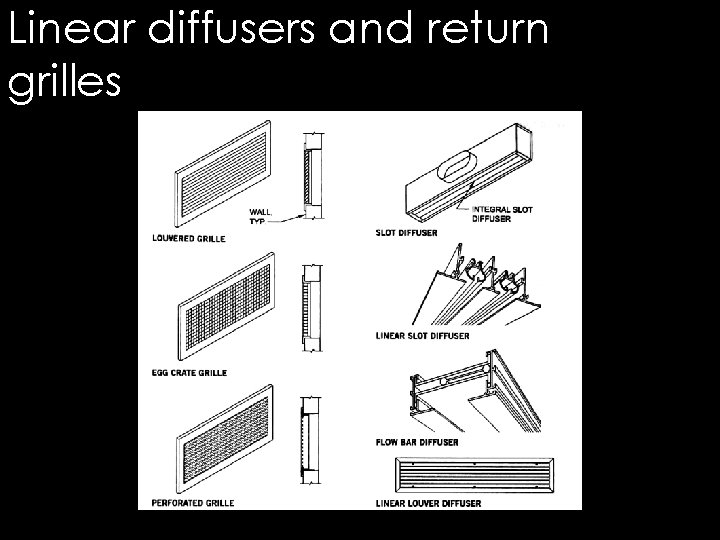

Linear diffusers and return grilles
Fire codes • See NFPA 72 • Three parts: – Initiation – Notification – Control
Manual Pull Stations • By each required exit
Smoke detectors • One in every enclosed space • One every 41’ along corridors (for ceilings below 24’) • Optical sensitivity • Hard-wired
Fire Detectors • One near each required exit in exit access corridors • Required in some specific occupancies (hazardous)

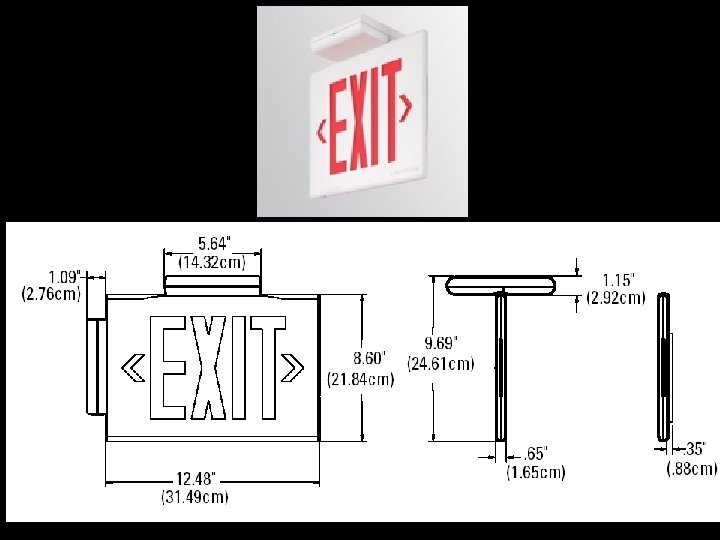

Exit signage • Wall or ceiling mtd; can be lit internally • At every exit door • Every 100’
Strobe lights and horns • Spread out so that they’re visible within major egress components • Also in bathrooms

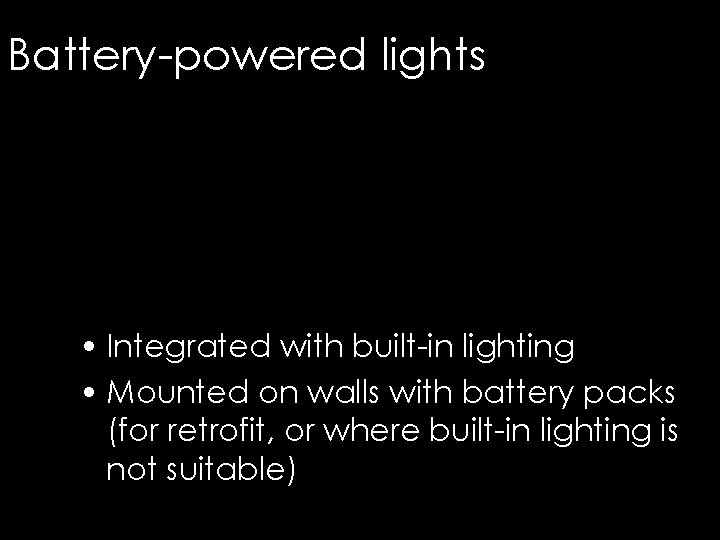

Battery-powered lights • Integrated with built-in lighting • Mounted on walls with battery packs (for retrofit, or where built-in lighting is not suitable)

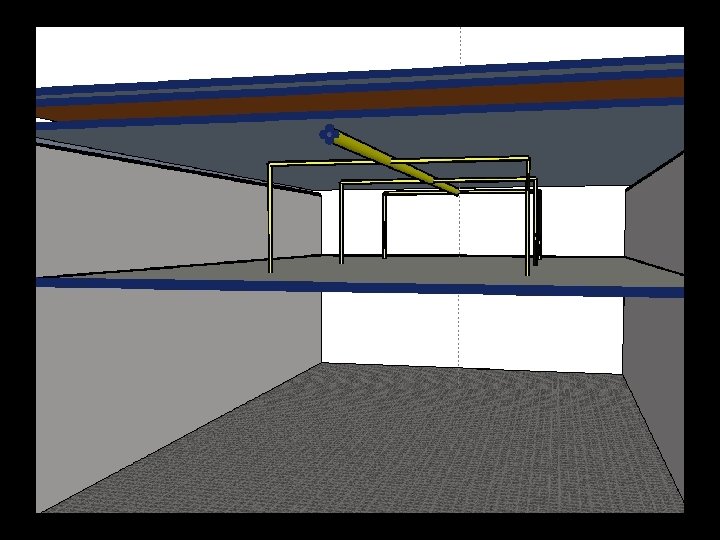

Sprinklers • Use this process when working with an engineer of any sort – Start with rule of thumb for initiation layout – Read engineer’s drawings for final design, and copy onto your RCP – Coordinate: look for interferences with lighting, ducts, soffits and structure – note any changes and send back to engineer – 7. 5’ from wall, 15’ OC both directions

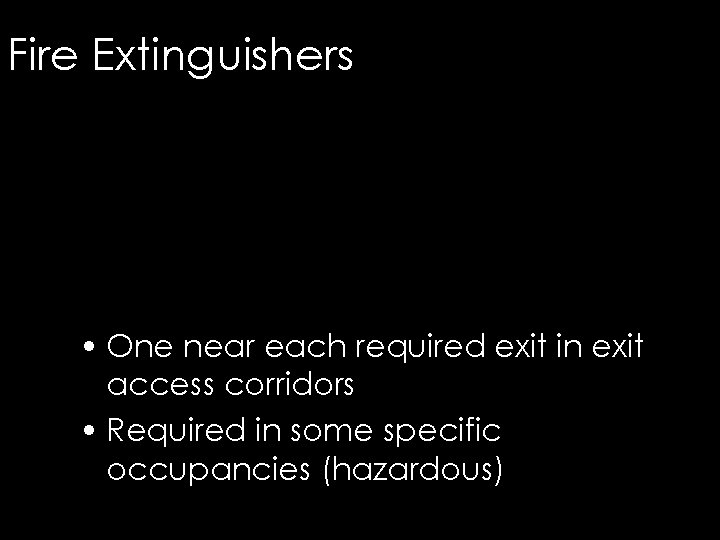

Fire Extinguishers • One near each required exit in exit access corridors • Required in some specific occupancies (hazardous)
Hose cabinets • By required exits
Other operable devices • Hold-opens • Fire department notification • Stairwell pressurization • Smoke management systems
Wireless • Wireless repeaters – Every 150’ within direct line of sight – 50’ through interior partitions – Not at all through masonry/exterior walls
Rules of Thumb • For schematic layouts • Use and engineer or other consultant for final layout
A/V equipment • TV’s, projectors, etc • Sight lines are critical (for viewer and projector) • Speakers: – Coverage varies greatly by system – One in a room – Wall or ceiling mtd – Stereos, CD’s, etc: within the room
Don’t Forget Signage!!! • Exit signs at all the doors (show in elevation, if you’re doing them) • Strobe emergency lights in the bathrooms • Emergency lights along all the paths of egress • All need to be located in the drawings and specified

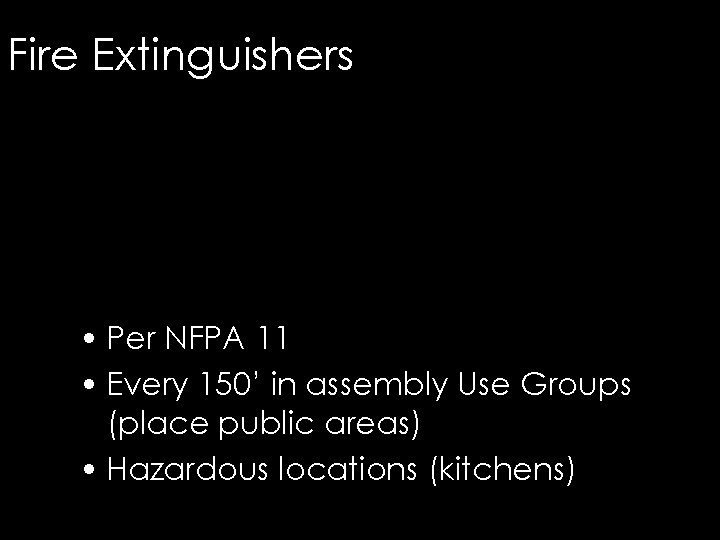

Fire Extinguishers • Per NFPA 11 • Every 150’ in assembly Use Groups (place public areas) • Hazardous locations (kitchens)
What to do this week on your projects • Calculations are due this week! • As for the rest of the term… – Add all dimensions to RCPs – Add all notes – Start drawing up details – Finish up Lighting Schedule – Keep saving and labeling your fixture cuts as you decide on them
Ceiling Construction Details n. Interface of horizontal elements and vertical
ACT meeting GWB wall
ACT hung off structure

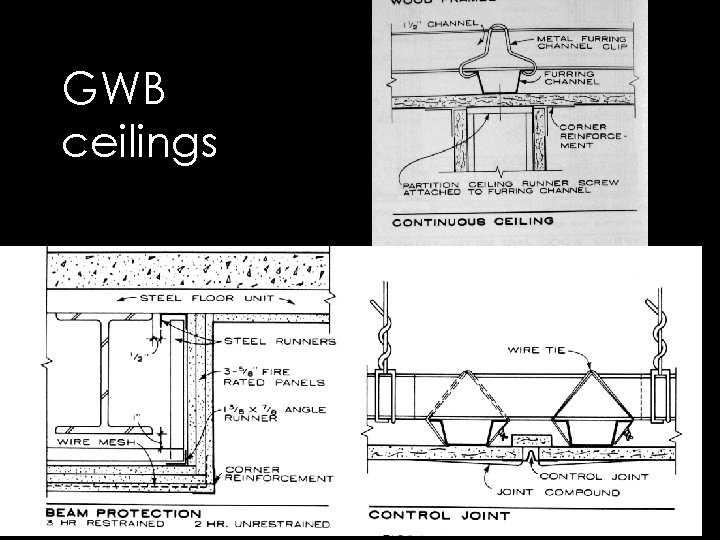

GWB ceilings
Special conditions
Special conditions
Special conditions
Stretched ceiling
