ICTUS CEREBRI, STENOSI CEREBROVASCOLARI E ULTRASUONI: DIAGNOSI E TERAPIA CON IL DOPPLER TRANSCRANICO Dr A. Costa U. O. Neurologia Vascolare A. O. Spedali Civili di Brescia

Indicazioni � Visualizzare le occlusioni e le stenosi intracraniche nelle principali arterie � Valutare gli effetti emodinamici intracranici in presenza di stenosi o occlusioni extracraniche � Monitorare la ricanalizzazione dei vasi intracranici nella fase acuta dell’ictus � Monitorare l’emodinamica cerebrale intracranica � Dopo emorragia subaracnoidea � In. In pazienti con aumentata ICP � Durante/dopo procedure di rivascolarizzazione extracranica � Endarterectomia carotidea � Angioplastica � Durante/dopo interventi neuroradiologici � Balloon occlusion � Coiling of AVM � Durante interventi cardiochirurgici � Visualizzazione e quantificazione dello shunt destro-sinistro � Patent foramen ovale

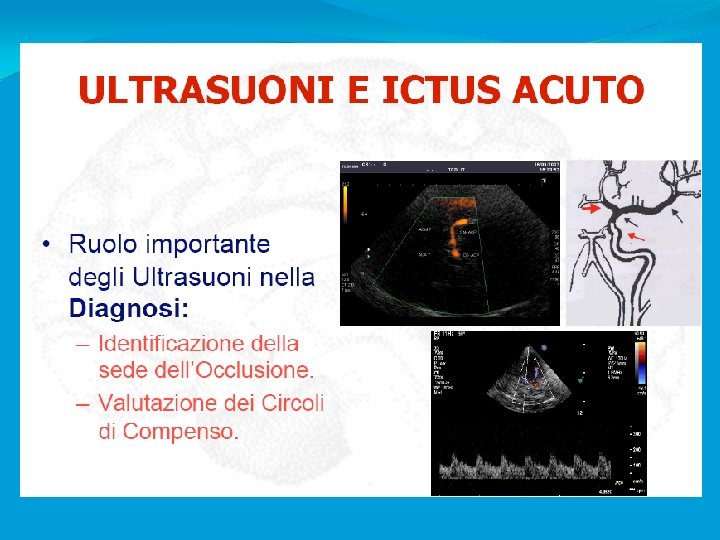

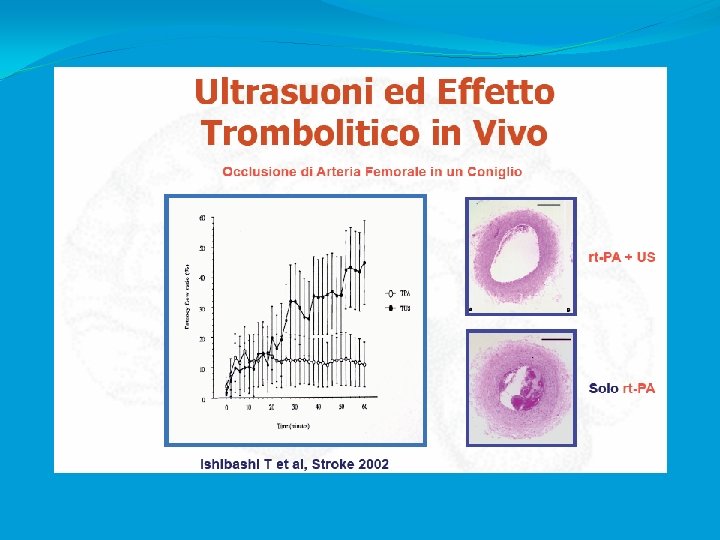

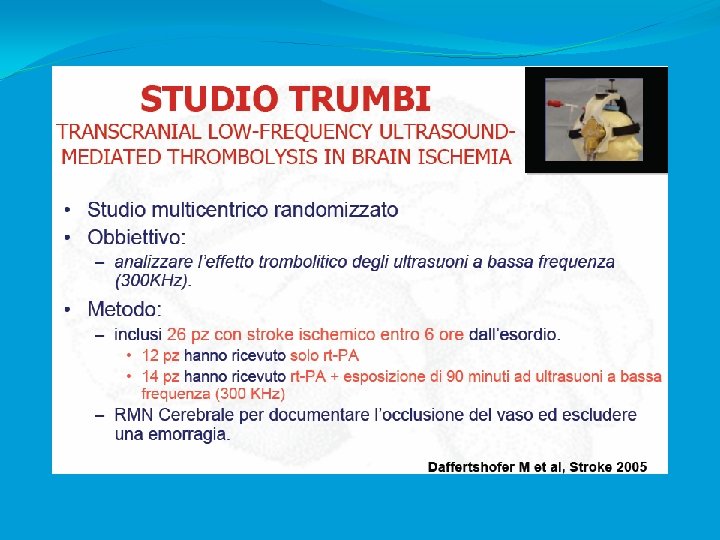

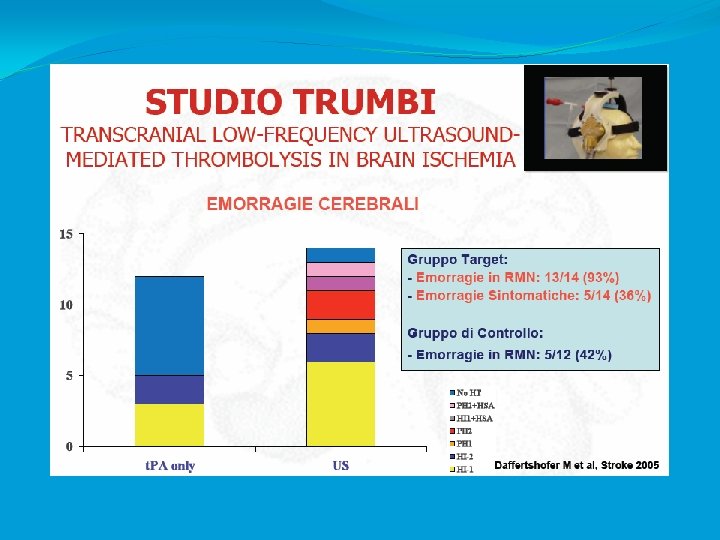

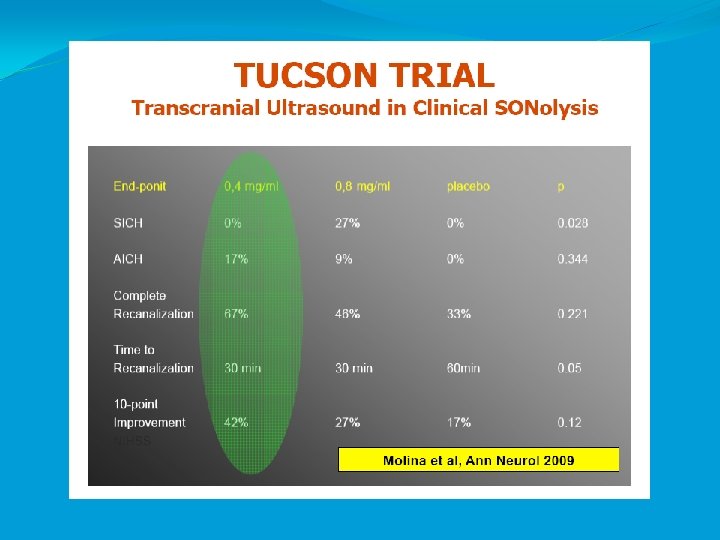

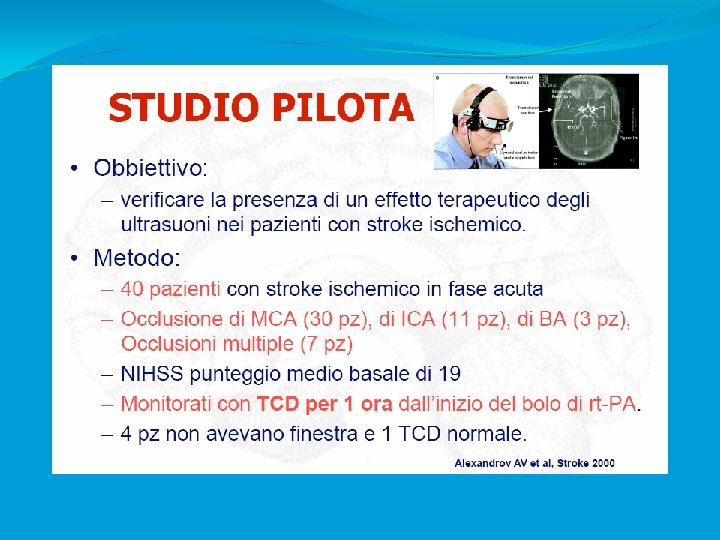

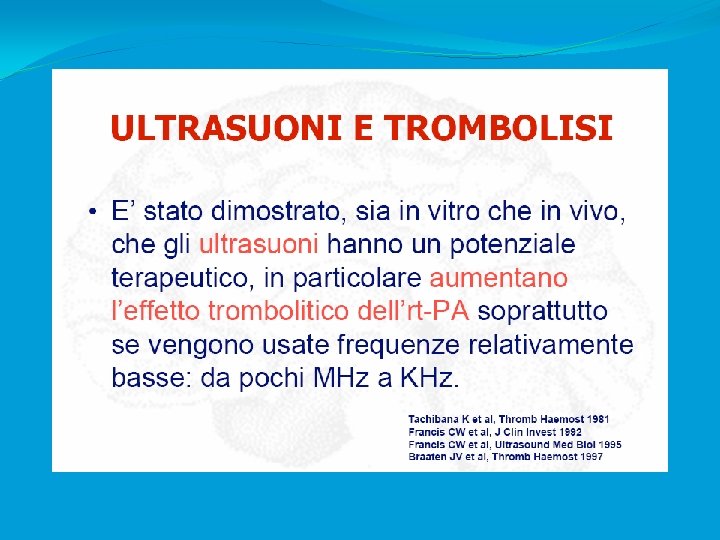

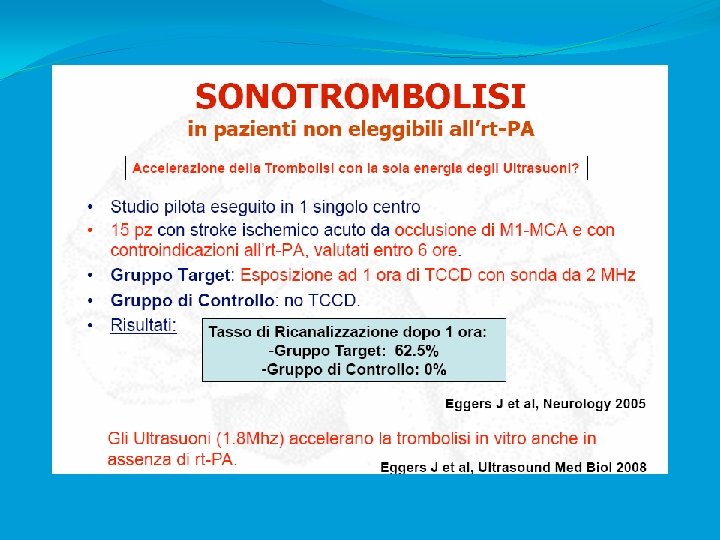

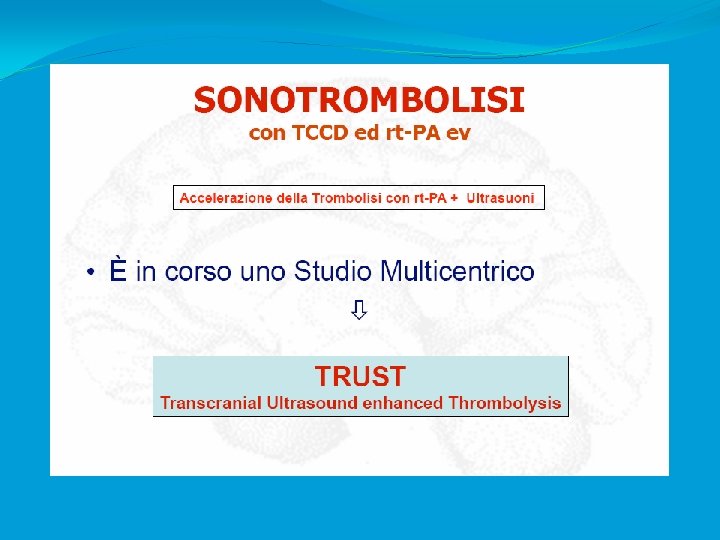

Indicazioni (2) � Test funzionali � Stimulazione delle arteriole intra craniche con CO 2 o altri farmaci vasoattivi � Lateralizzazione del linguaggio prima della neurochirurgia � NEW � Brain perfusion imaging � Trombolisi con ultrasuoni � Stratificazione del richio

Diagnostic Criteria – Stenosis �Increased flow velocity – generally focal �Disturbed flow �Turbulence; spectral broadening �Covibration phenomena �Vibration of the vessel wall & surrounding soft tissue �Drop in post-stenotic velocity �Changes in post-stenotic waveform morphology �Prolonged systolic upstroke �Decreased pulsatility

Diagnostic Criteria – Occlusion �Absence of arterial signal at expected depth �Presence of signals in vessels which communicate with the occluded artery �Altered flow in communicating vessels, indicating collateralization

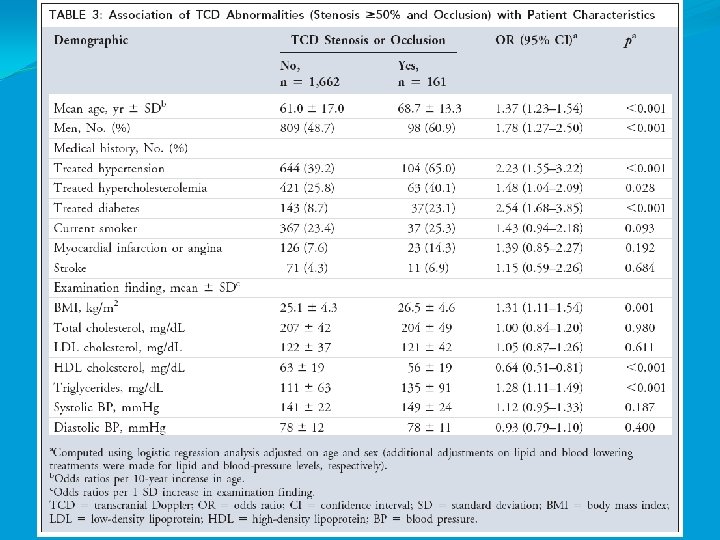

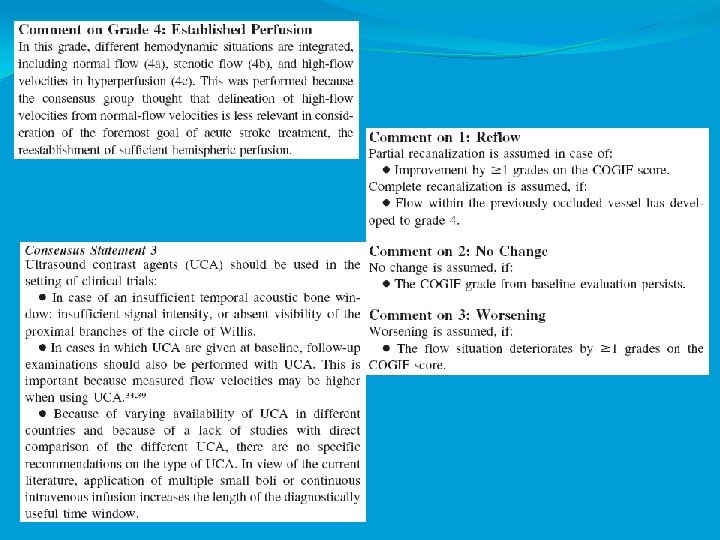

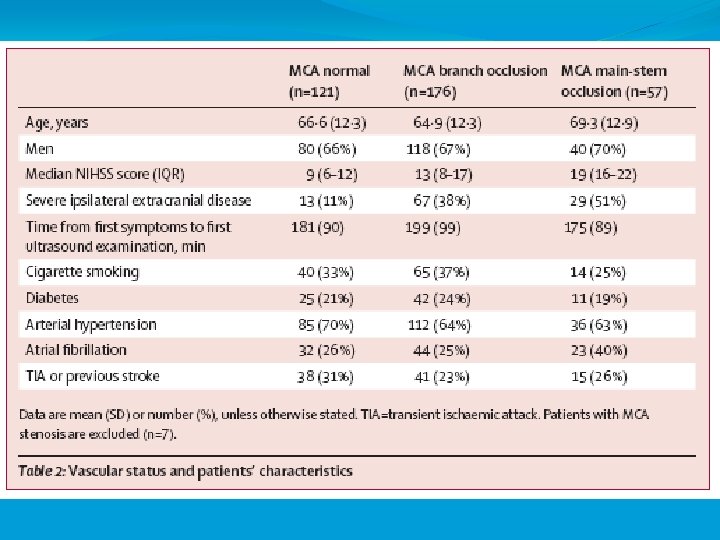

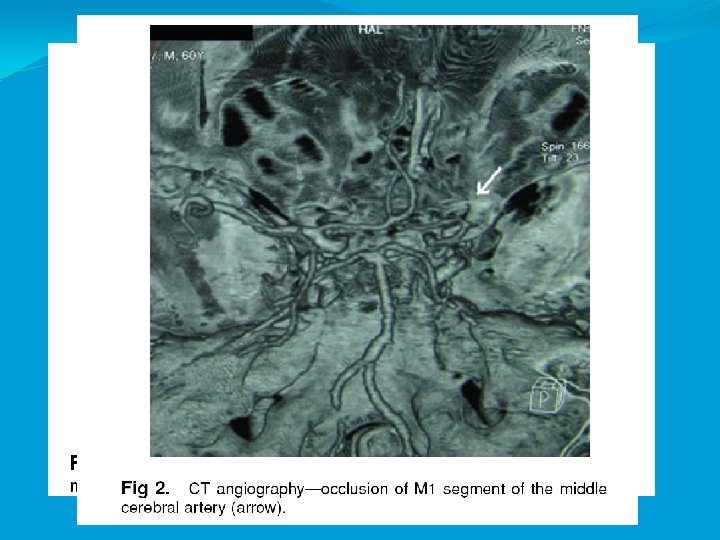

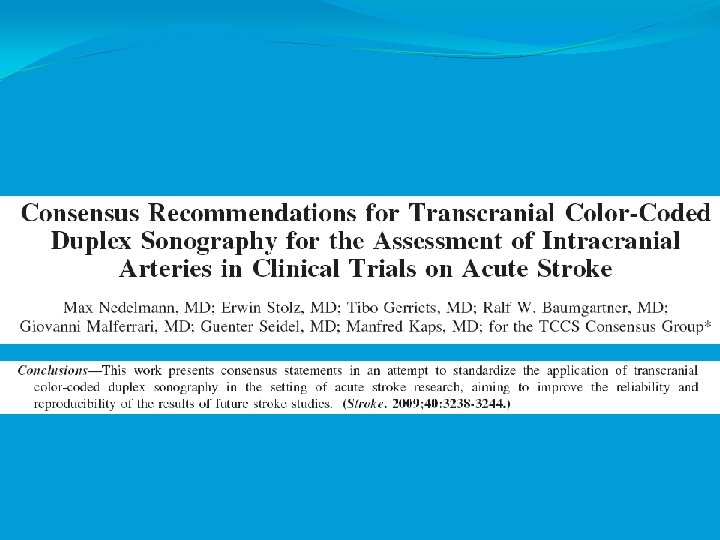

Occlusione Arteria Cerebrale Media M 1 - Criteri diagnostici NAIS TCCS Consensus Il segnale di flusso dell’MCA è assente in contemporanea alla visualizzazione delle restanti arterie del circolo anteriore o delle vene profonde cerebrali o del circolo controlaterale Sensibilità 85 -100% Specificità 90 -98%

Occlusione ICA a T - Criteri diagnostici NAIS TCCS Consensus Il segnale di flusso dell’MCA, ICA distale e A 1 è assente in contemporanea alla visualizzazione dalla finestra omolaterale di A 1 del circolo controlaterale o omolaterale La visualizzazione delle vene profonde cerebrali, di A 2 o del circolo controlaterale aumenta la credibilità della diagnosi. Meglio se confermata dalla riduzione della velocità di flusso diastolico sull’ICA cervicale o sulla CCA o dalla presenza di flusso oscillante Sensibilità 70 -90% Specificità 90 -95%

Occlusione segmento distale M 1 o di multipli rami di M 2 Criteri diagnostici NAIS TCCS Consensus Differenze del 30% nella velocità di picco sistolico nel segmento prossimale di M 1 Velocità di fine diastole inferiore a 26 cm/s e indice di fine diastole inferiore a 2. 5 (se >2. 5 indice di occlusione M 1)(? ). Calcolare l’indice di asimmetria se non vi sono alterazioni del flusso lungo l’ICA o M 1 bilateralmente. Basse velocità di flusso vanno comunque tenute in considerazione in relazione al beneficio derivante dalla trombolisi Sensibilità 70 -90% Specificità 90 -95%

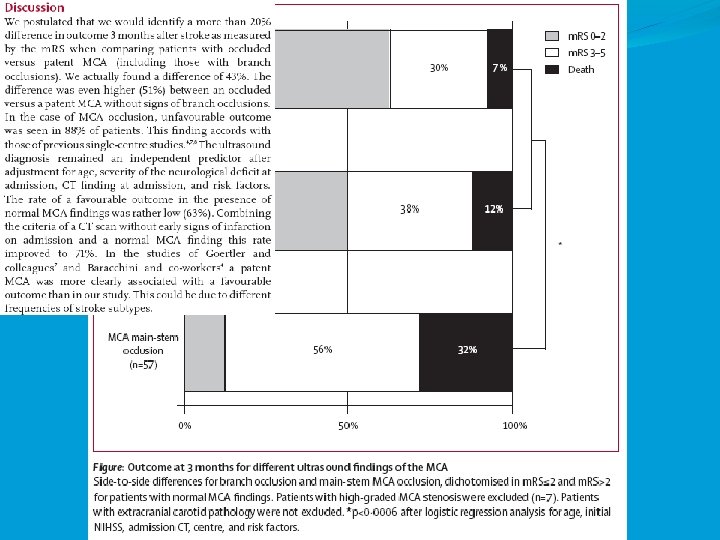

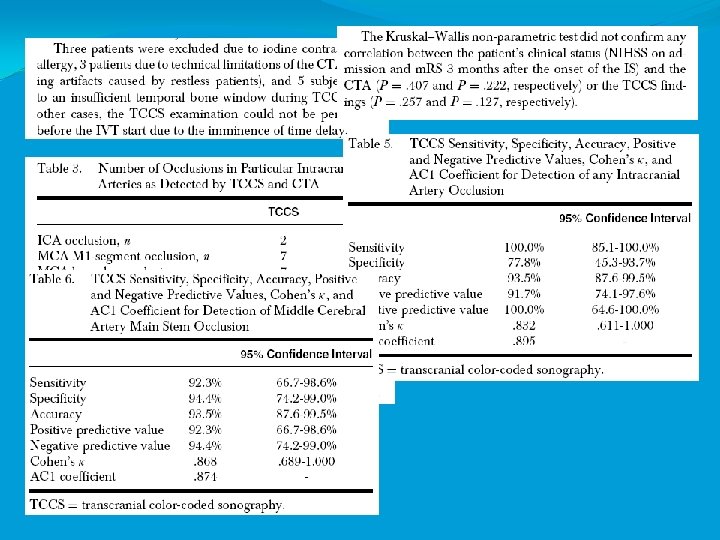

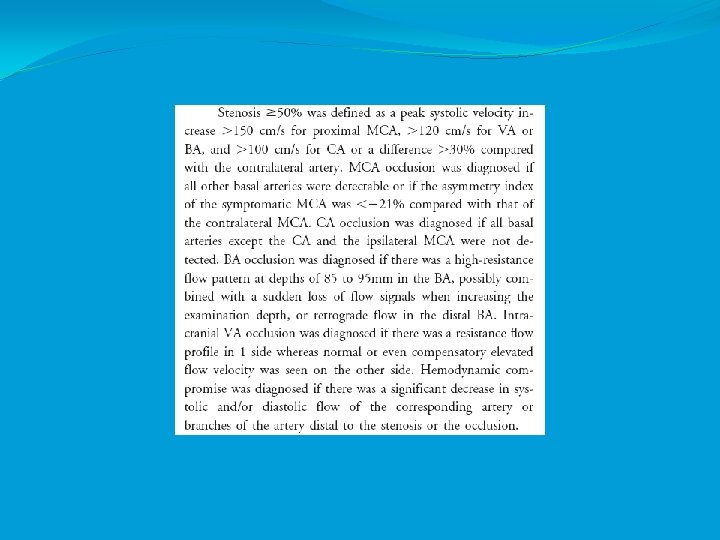

Stenosi M 1 (o del segmento distale dell’ICA) – Criteri diagnostici NAIS TCCS Consensus Significativa (cioè superiore al 50%) se la velocità di picco sistolico dell’MCA o ICA distale è superiore a 220 cm/s. Non vi sono dati validati per definire una diagnosi. Sensibilità 70 -90%? Specificità 90 -95%?

MCA Stenosis

Pitfalls & Diagnostic Accuracy �Lack of flow signal due to an inadequate temporal window �Misinterpretation of hyperdynamic collateral channels or AVM feeders as stenosis �Displacement of arteries because of a space-occupying lesion �Misinterpretation of physiologic variables in the circle of Willis �Misdiagnosis of vasospasm as stenosis �Misinterpretation of reactive hyperemia following spontaneous recanalization as stenosis

Pitfalls & Diagnostic Accuracy Vertebral-Basilar System �Normal flow and size of vessels are highly variable �Location and course of the arteries are unpredictable �Difficulty in reliably identifying the junction of the vertebral arteries �Absence of the vertebral artery flow signal on one side may not represent disease � Lack of flow in one vertebral artery distally, above the origin of the PICA due to vertebral artery hypoplasia �Occlusion of one vertebral artery or a “top of the basilar” occlusion does not necessarily lead to relevant flow abnormalities

Summary of findings Intracranial Steno-Occlusive Disease INDICATION SENSITIVITY (%) SPECIFICITY (%) Intracranial Steno -Occlusive Disease: REFERENCE STANDARD Conventional angiography Anterior Circulation 70 -90 90 -95 Posterior Circulation Occlusion 50 -80 80 -96 Copyright 2004 American Academy of Neurology

Summary of findings Intracranial Steno-Occlusive Disease (Continued ) INDICATION SENSITIVITY (%) SPECIFICITY (%) MCA 85 -95 90 -98 ICA, VA, BA 55 -81 96 REFERENCE STANDARD Recommendation: Data are insufficient to establish TCD criteria for greater than 50% stenosis or for progression of stenosis in intracranial arteries (Type U). 19 Copyright 2004 American Academy of Neurology

Summary of findings Acute cerebral infarction INDICATION Acute cerebral infarction SENSITIVITY (%) SPECIFICITY (%) 85 -95 90 -98 REFERENCE STANDARD Recommendation: TCD is probably useful for the evaluation of patients with suspected intracranial steno-occlusive disease, particularly in the ICA siphon and MCA (Type B, Class II evidence). The relative value of TCD compared with MRA or CTA remains to be determined (Type U). Data are insufficient to give a recommendation regarding replacing conventional angiography with TCD (Type U).

Summary of findings Extracranial ICA Stenosis INDICATION SENSITIVITY (%) SPECIFICITY (%) Extracranial ICA Stenosis: REFERENCE STANDARD Conventional angiography Single TCD variable 3 -78 60 -100 TCD Battery 49 -95 42 -100 TCD Battery & Carotid Duplex 89 100 Recommendation: TCD is possibly useful for the evaluation of severe extracranial ICA stenosis or occlusion (Type C, Class IIIII evidence).

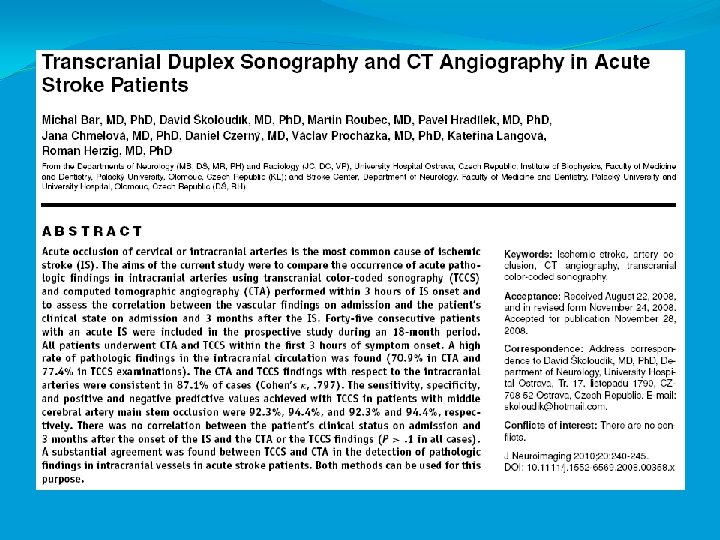

Transcranial Color-Coded Sonography (TCCS) or Imaging TCD

Summary of findings Ischemic Cerebrovascular Disease INDICATION SENSITIVITY SPECIFICITY (%) ACo. A Collateral Flow 100 PCo. A Collateral Flow 85 98 REFERENCE STANDARD

Summary of findings Ischemic Cerebrovascular Disease (Continued) INDICATION SENSITIVITY SPECIFICITY (%) Intracranial Steno. Occlusive Lesions Any Up to 100 Up to 83 REFERENCE STANDARD

Summary of findings Ischemic Cerebrovascular Disease (Continued) INDICATION SENSITIVITY SPECIFICITY (%) /= 50% Stenosis MCA 100 ACA 100 VA 100 BA 100 PCA 100 REFERENCE STANDARD

Summary of findings Ischemic Cerebrovascular Disease (Continued) Recommendation: (CE)-TCCS is probably useful in the evaluation and monitoring of patients with ischemic cerebrovascular disease (Type B, Class II-IV evidence).

Summary of findings Hemorrhagic Cerebrovascular Disease INDICATION Parenchymal Hypoechogenicity in MCA Distribution SENSITIVITY SPECIFICITY (%) 69 83 REFERENCE STANDARD Computed tomographic scan Recommendation: (CE-) TCCS is probably useful in the evaluation and monitoring of patients with aneurysmal SAH or intracranial ICA/MCA VSP following SAH (Type B, Class II-III evidence). Data are insufficient regarding the use of TCCS to replace CT for diagnosis of ICH (Type U).

Summary of findings Cerebral Thrombolysis INDICATION SENSITIVIT Y (%) SPECIFICITY (%) Cerebral Thrombolysis Conventional angiography, magnetic resonance angiography, clinical outcome Complete Occlusion 50 100 Partial Occlusion 100 76 91 93 Recanalization REFERENCE STANDARD

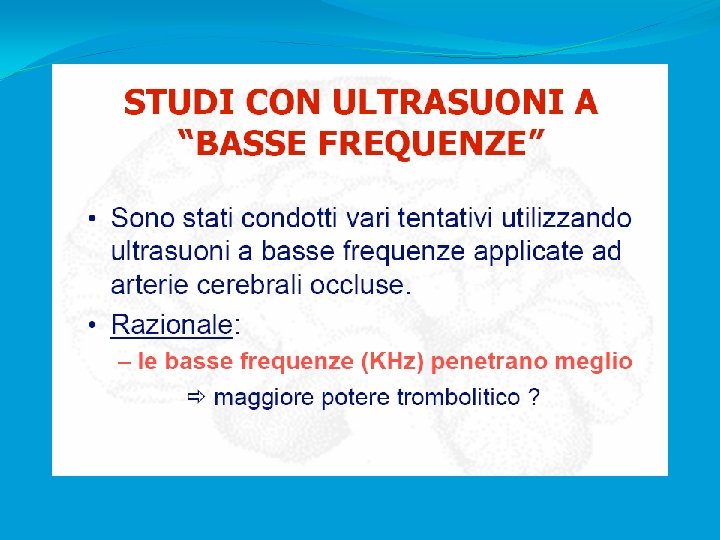

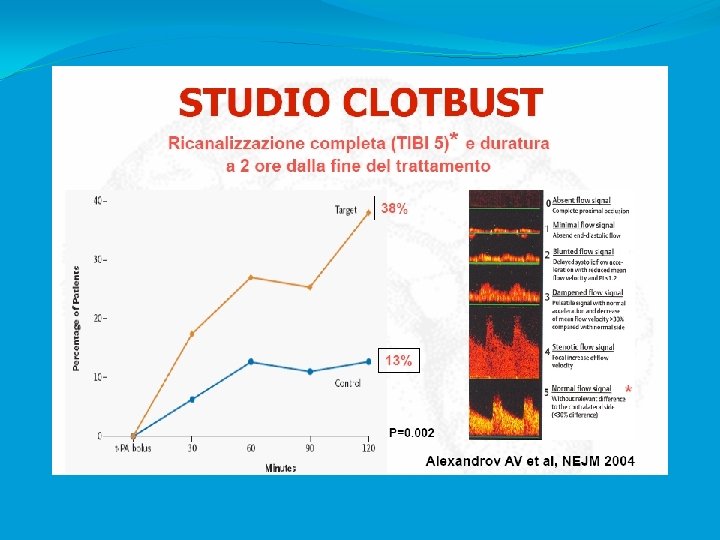

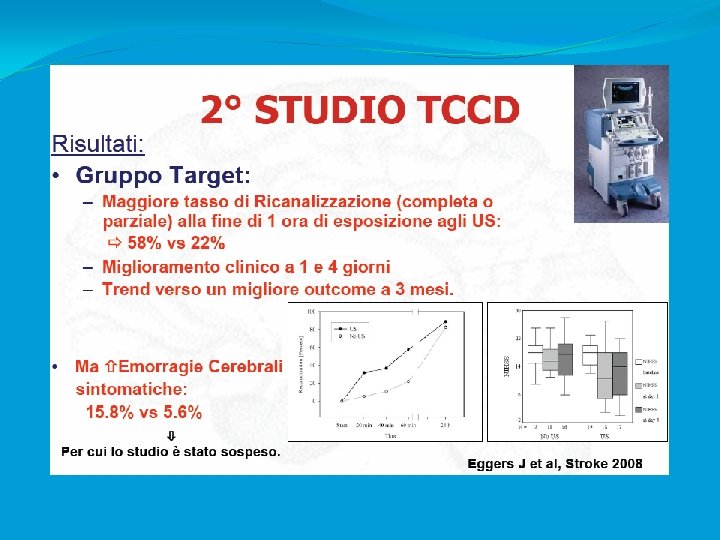

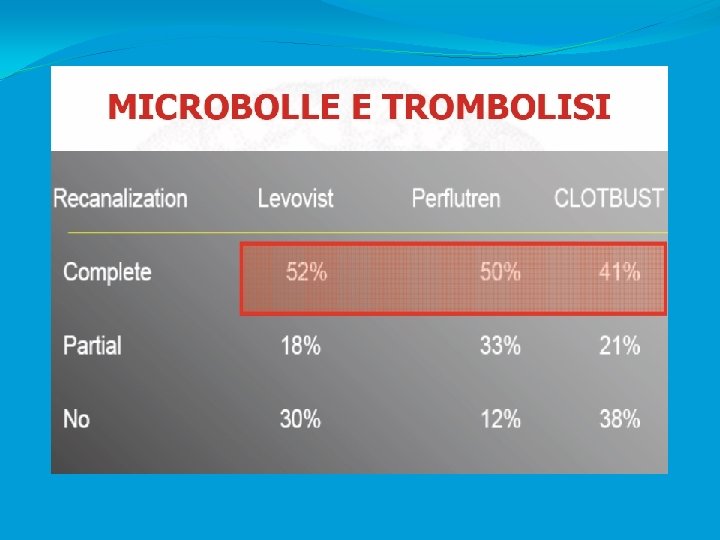

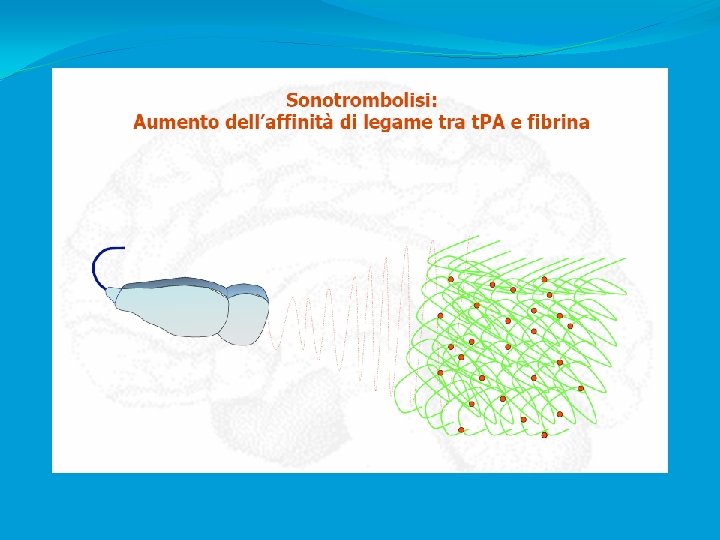

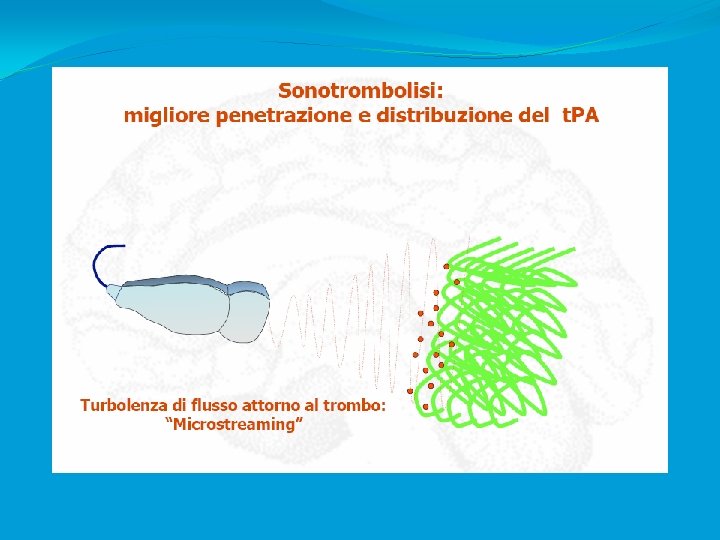

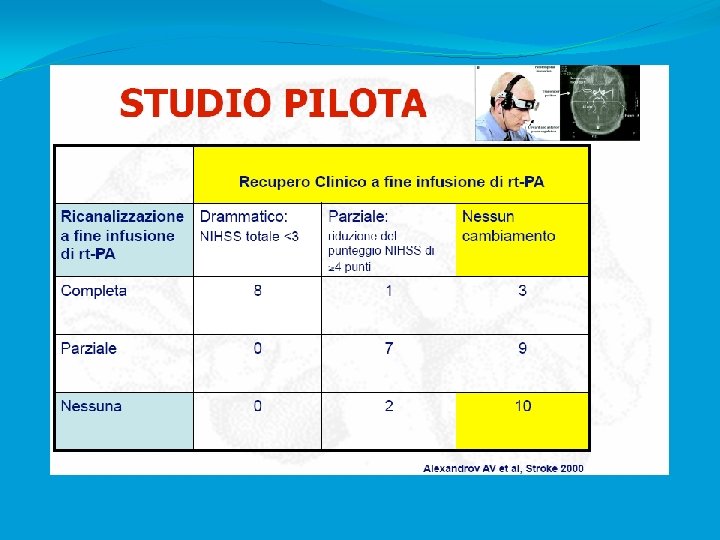

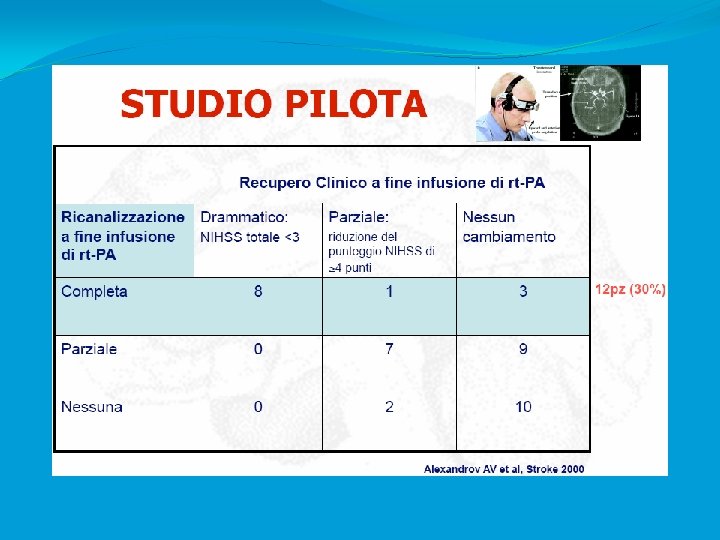

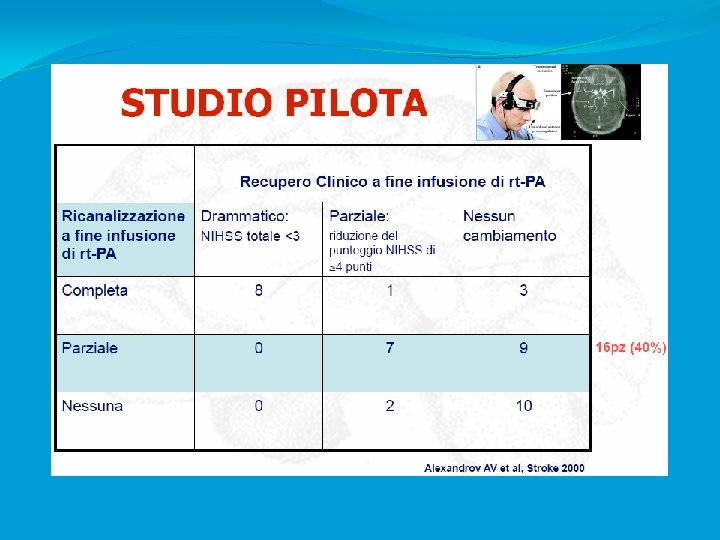

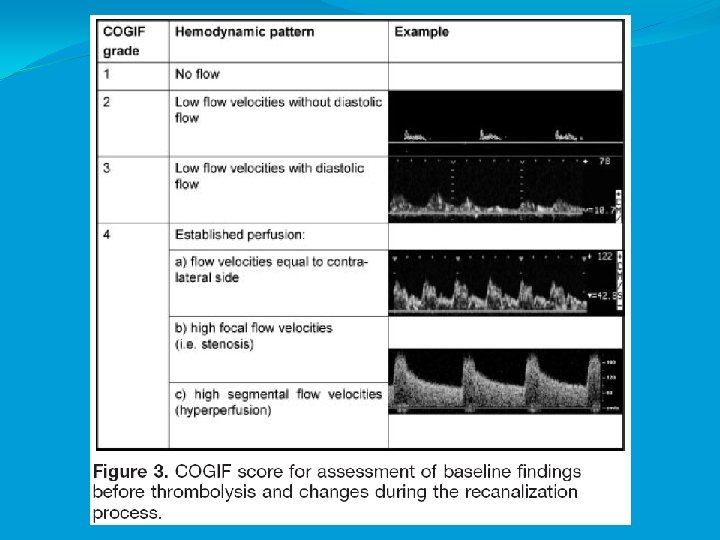

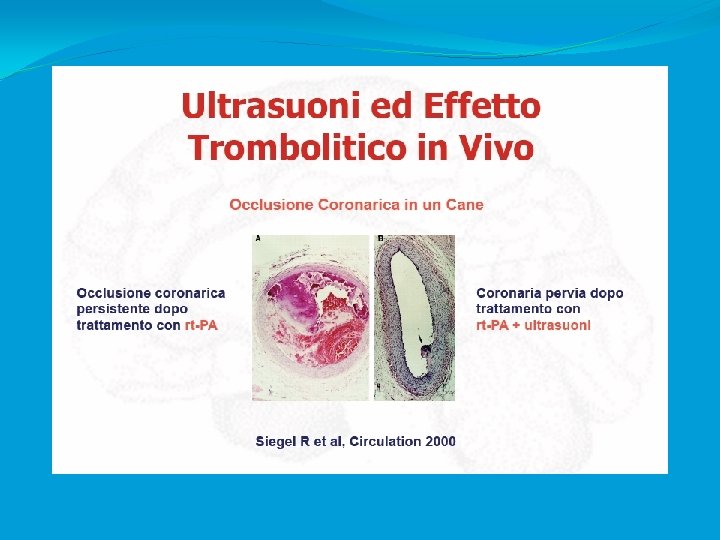

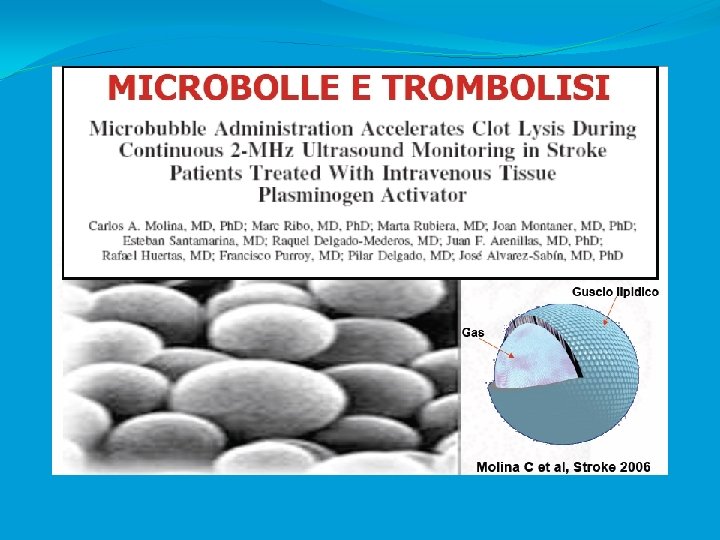

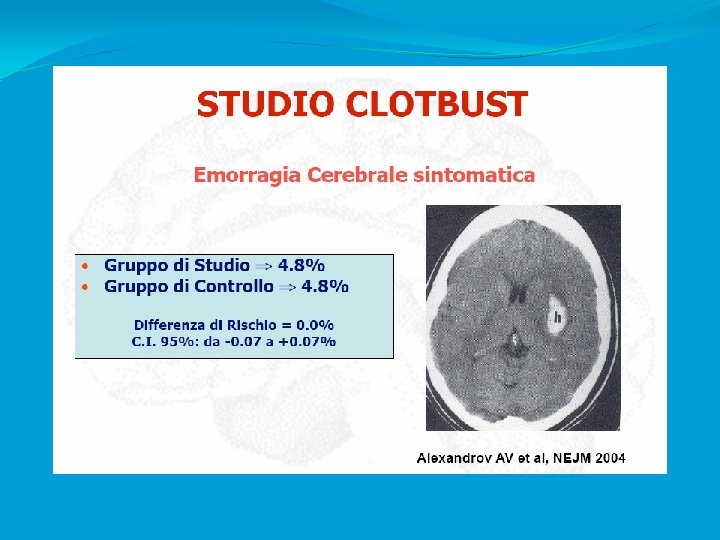

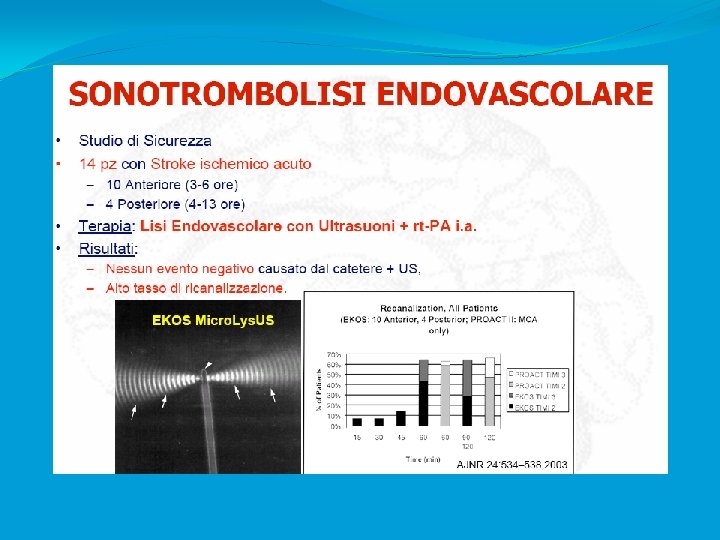

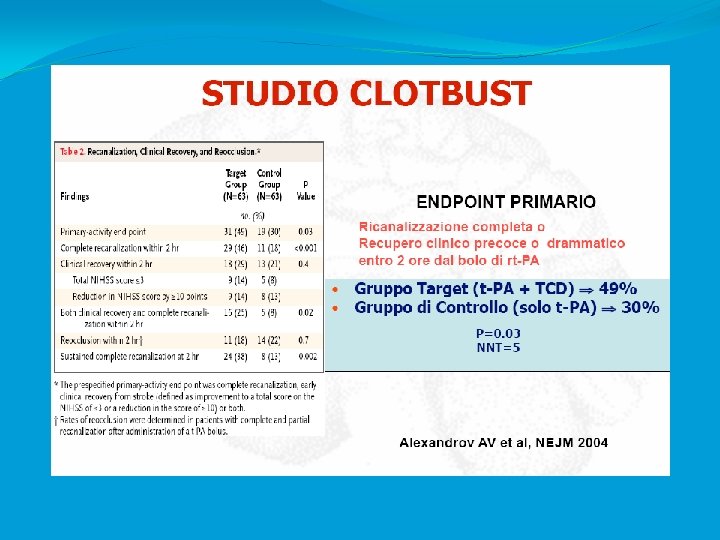

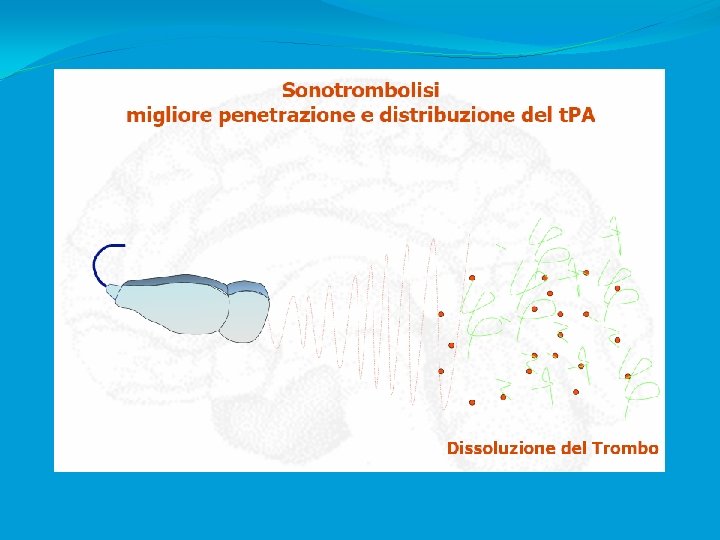

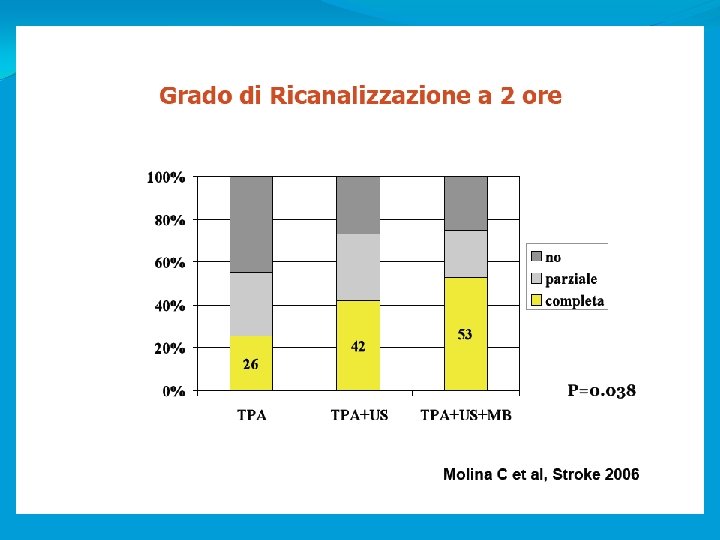

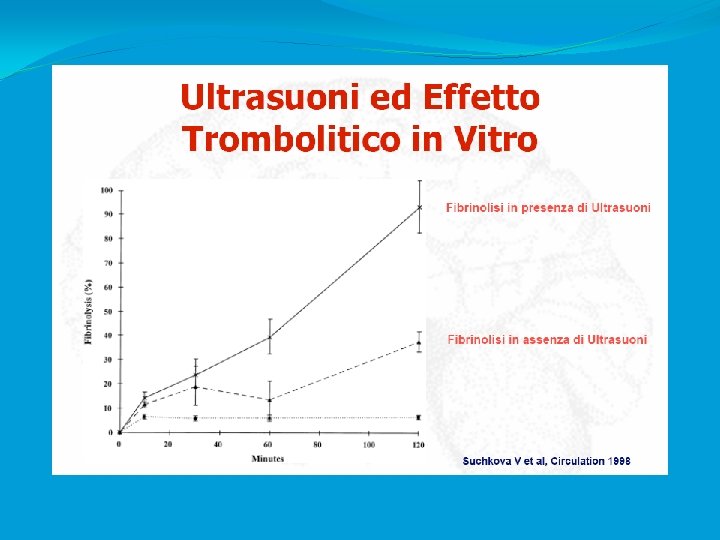

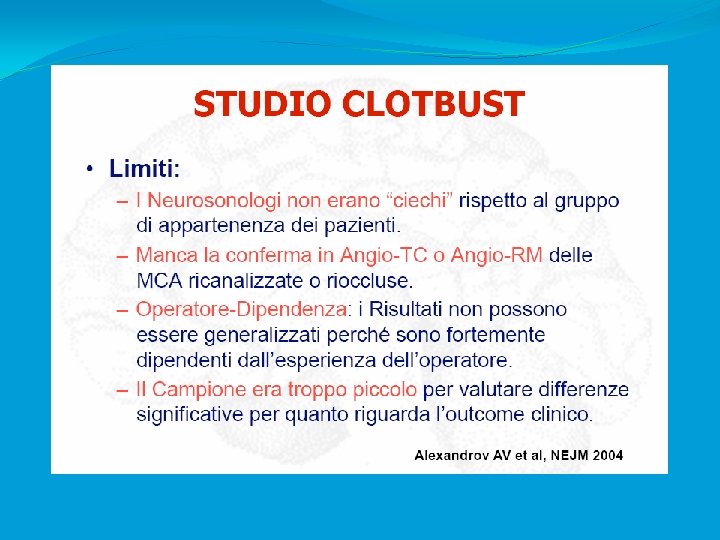

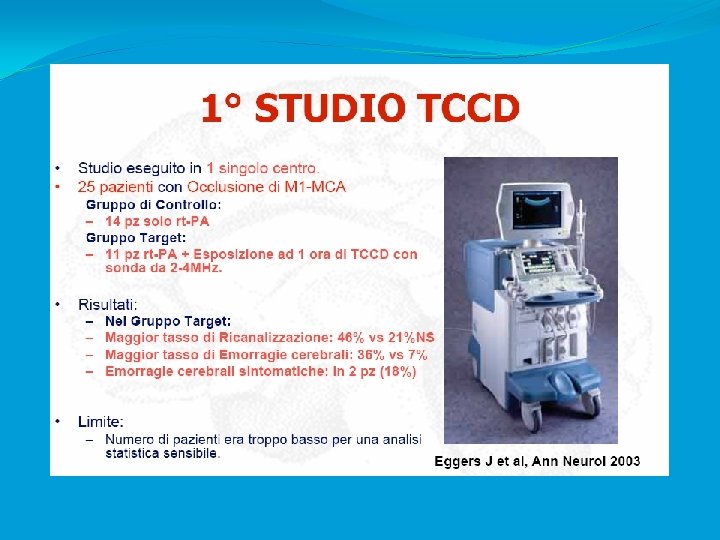

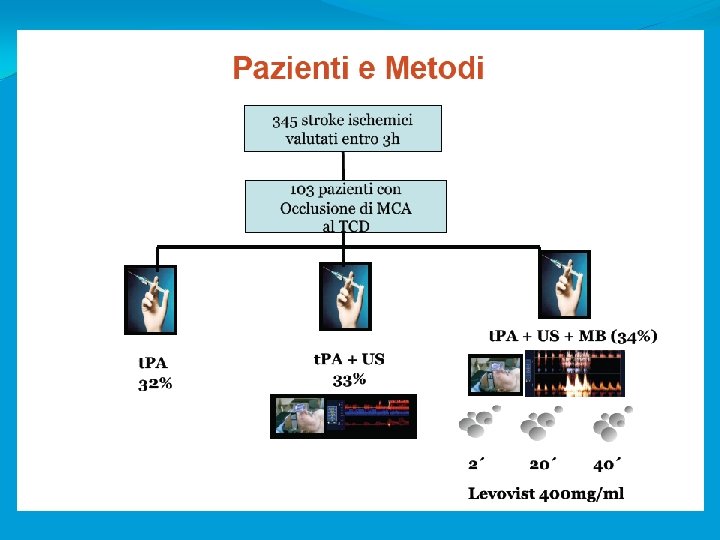

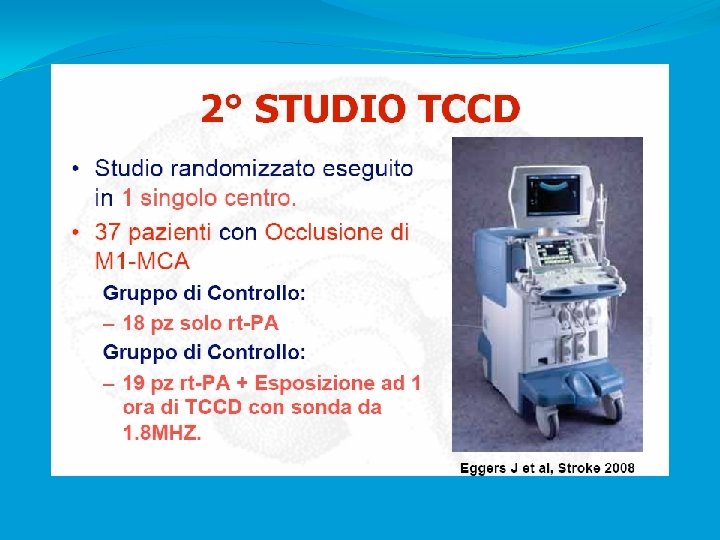

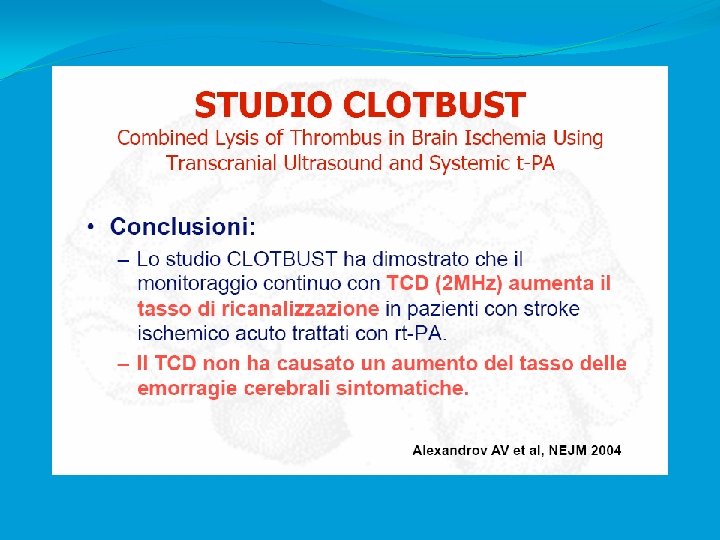

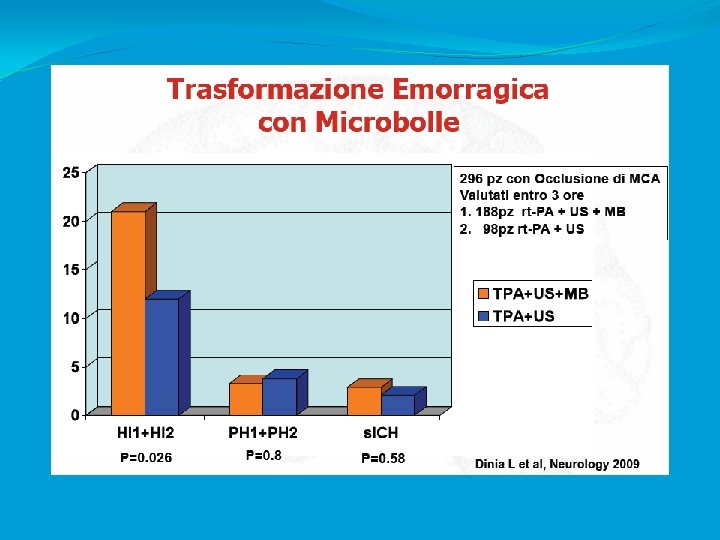

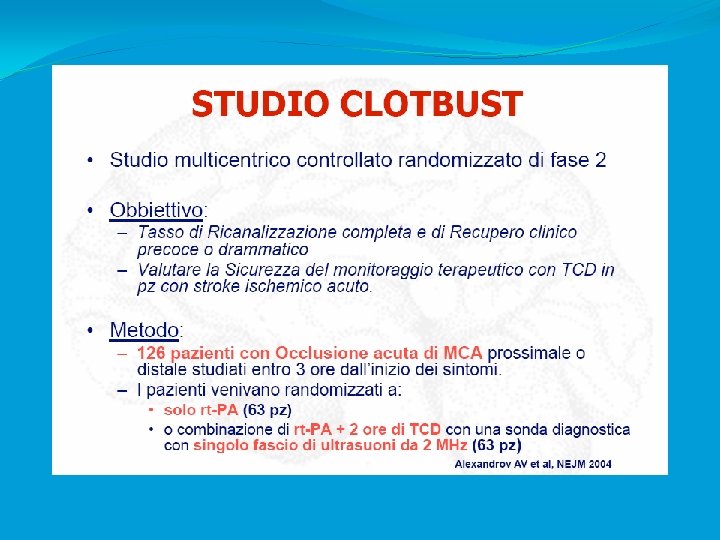

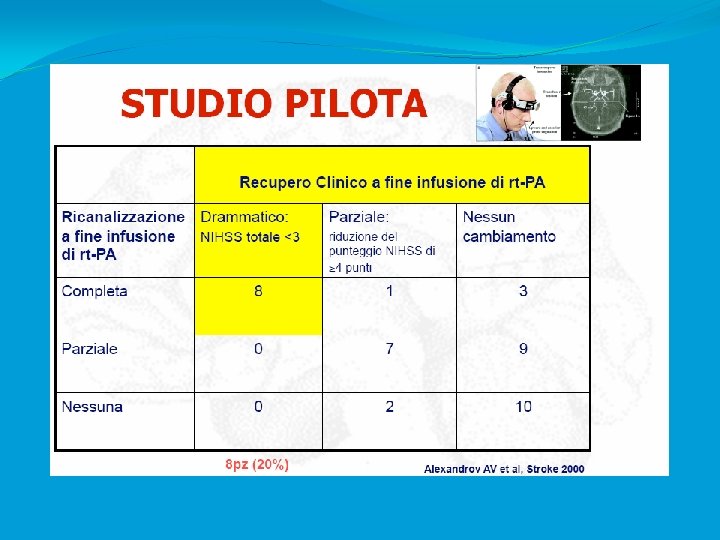

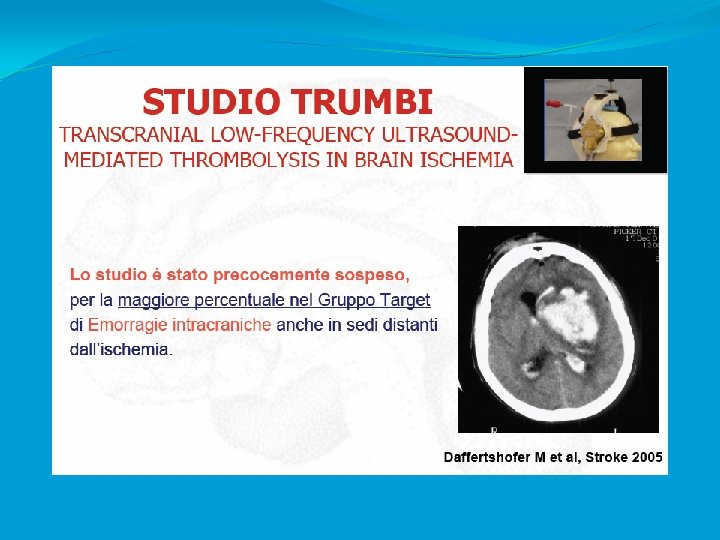

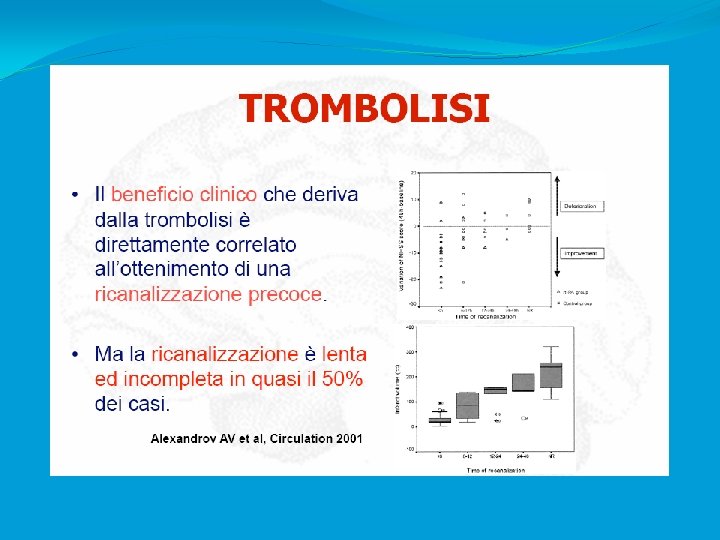

Summary of findings Cerebral Thrombolysis (continued) Recommendation: TCD is probably useful for monitoring thrombolysis of acute MCA occlusions (Type B, Class II-III evidence). Present data are insufficient to either define the optimal frequency of TCD monitoring for clot dissolution and enhanced recanalization or to influence therapy (Type U).

Summary of findings Carotid Endarterectomy (CEA) INDICATION Carotid Endarterectomy (CEA): SENSITIVITY SPECIFICITY (%) REFERENCE STANDARD EEG, magnetic resonance imaging, clinical outcomes Recommendation: CEA monitoring with TCD can provide important feedback pertaining to hemodynamic and embolic events during and after surgery that may help the surgeon take appropriate measures at all stages of the operation to reduce the risk of perioperative stroke. TCD monitoring is probably useful during and after CEA in circumstances where monitoring is felt to be necessary (Type B, Class II-III evidence).

Summary of findings Vasomotor Reactivity (VMR) Testing Recommendation: TCD vasomotor reactivity testing is considered probably useful for –the detection of impaired cerebral hemodynamics in patients with asymptomatic severe (>70%) stenosis of the extracranial ICA –patients with symptomatic or asymptomatic extracranial ICA occlusion and patients with cerebral small artery disease (Type B, Class II-III evidence). How the results from these techniques should be used to influence therapy and affect patient outcomes remains to be determined (Type U).

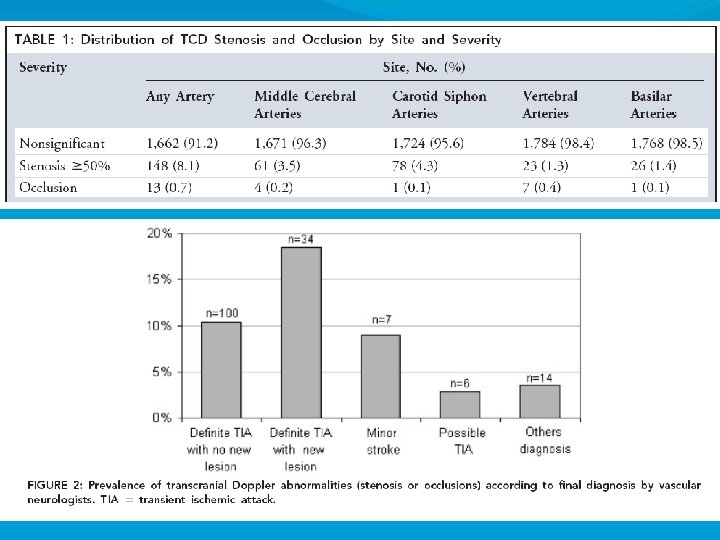

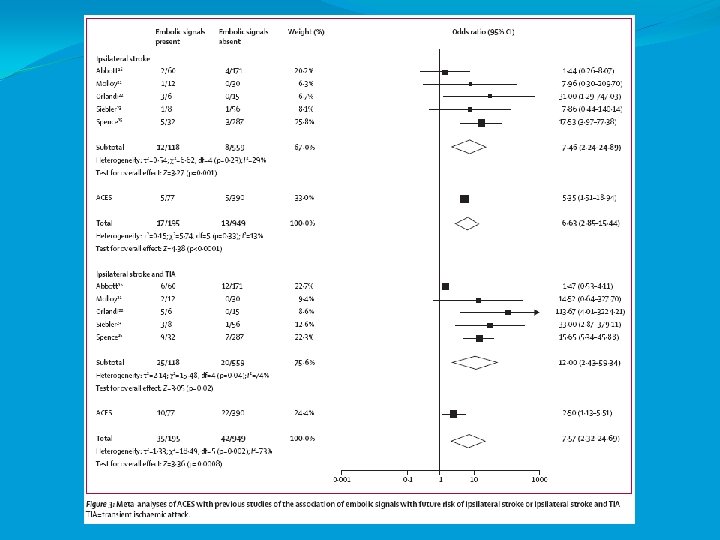

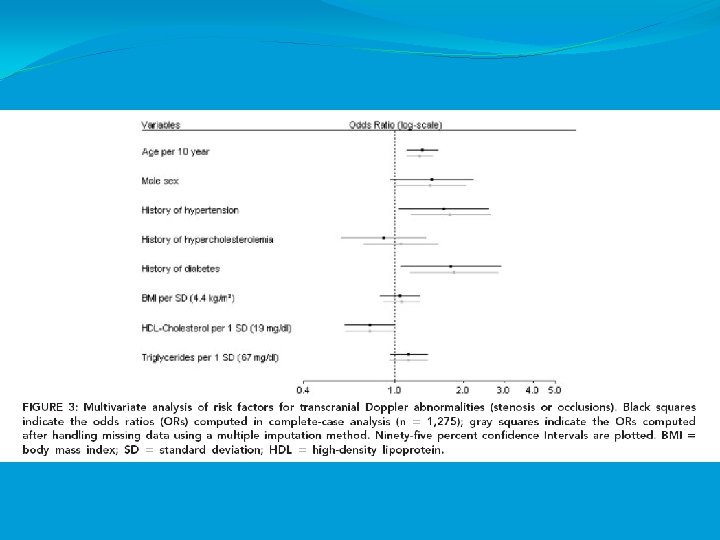

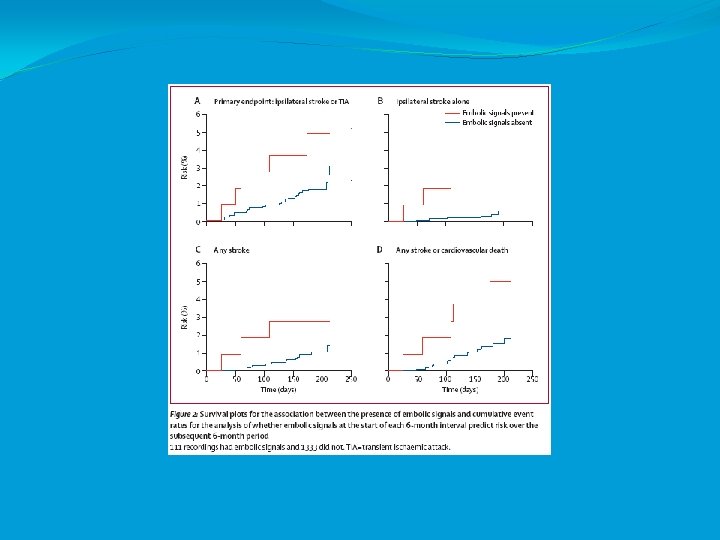

Summary of findings Detection of Cerebral Microemboli INDICATION Cerebral Microembolization SENSITIVITY SPECIFICITY (%) REFERENCE STANDARD Experimental model, pathology, magnetic resonance imaging, neuropsychological tests Recommendation: TCD is probably useful to detect cerebral microembolic signals in a wide variety of cardiovascular/ cerebrovascular disorders/procedures (Type B, Class II-IV evidence). However, data at present do not support the use of TCD for diagnosis or for monitoring response to antithrombotic therapy in ischemic cerebrovascular disease in these settings(Type U).

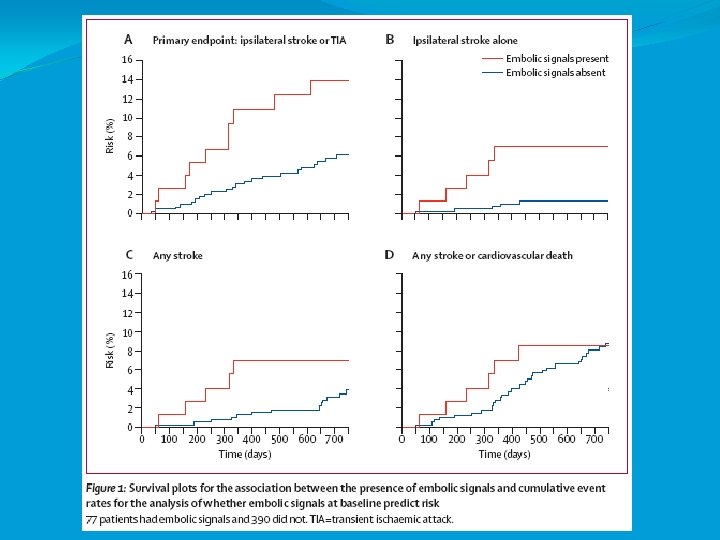

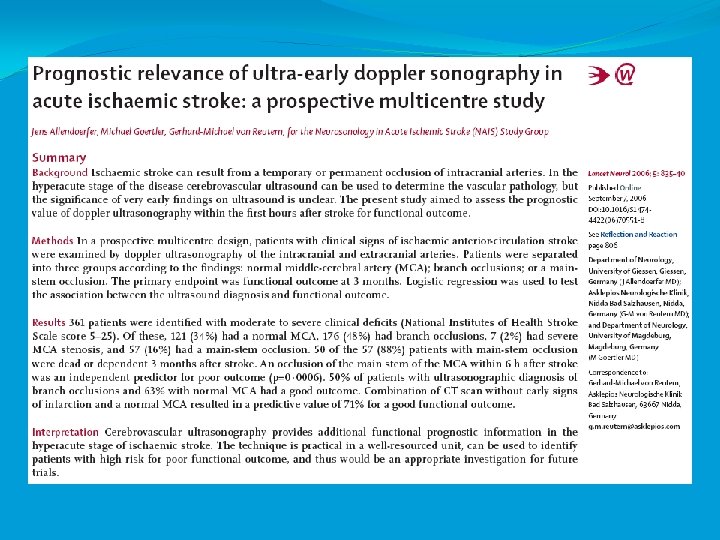

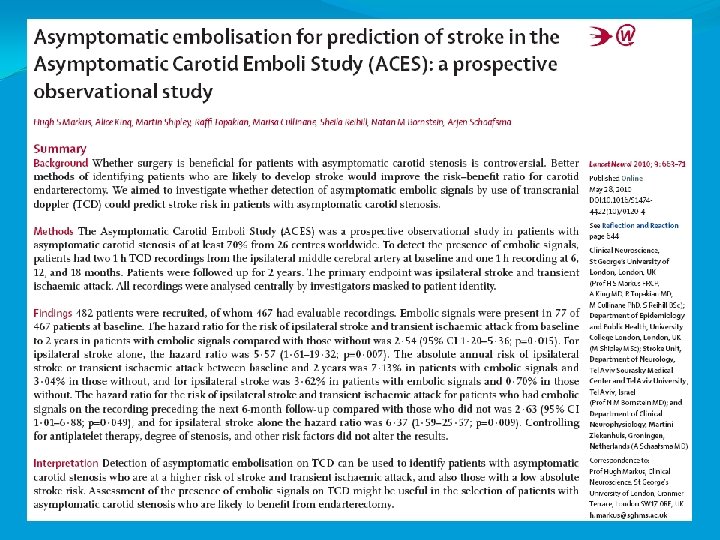

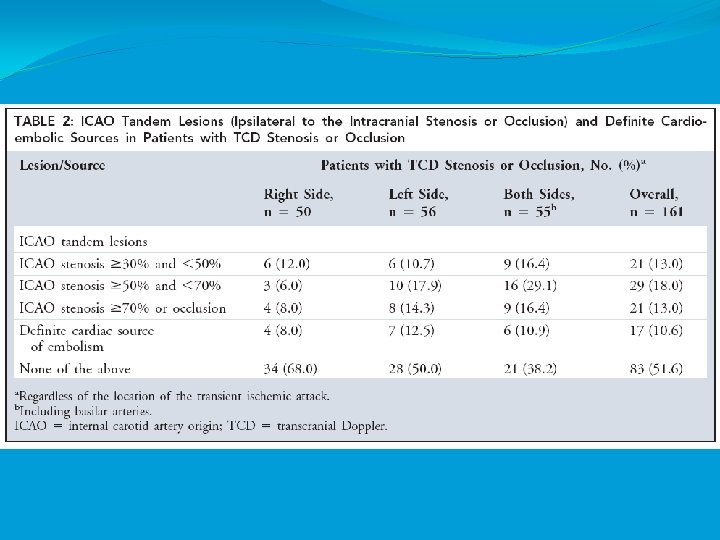

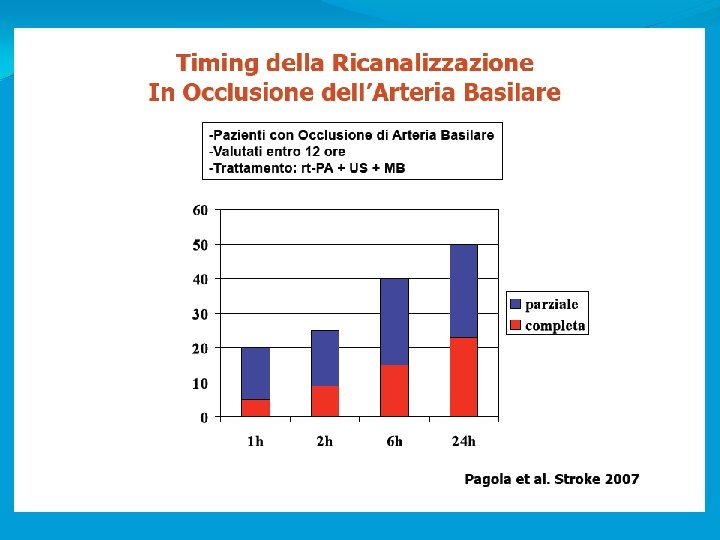

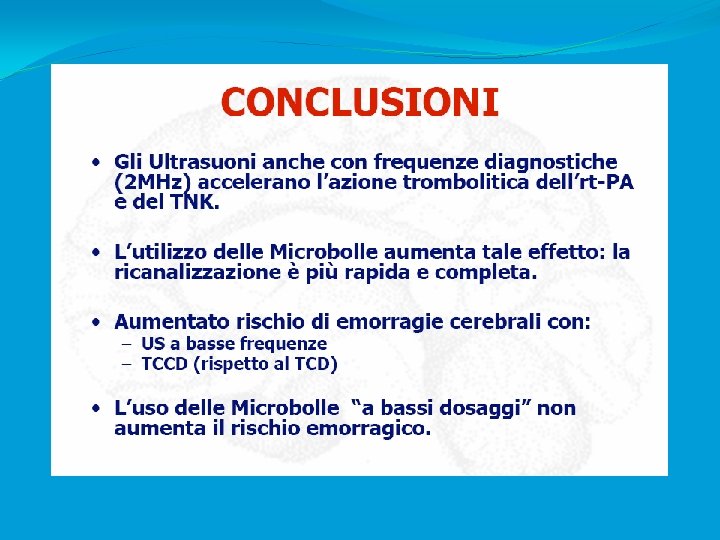

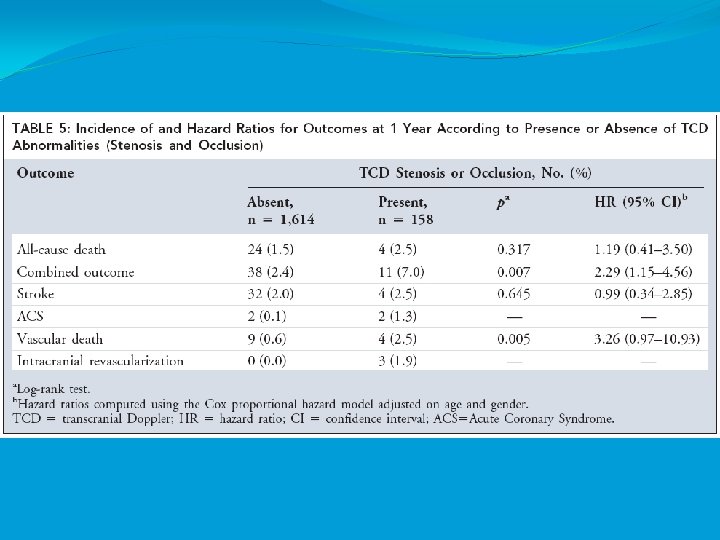

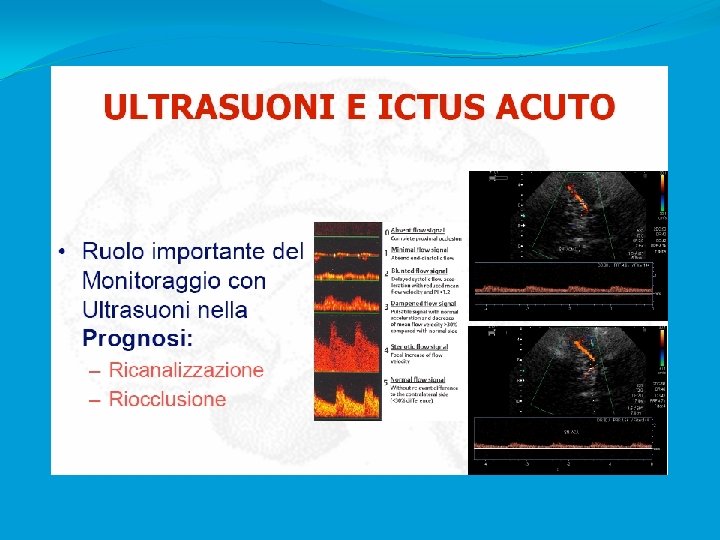

TCD in fase acuta Conclusioni �Utile nell’approccio diagnostico in fase acuta �Consente il monitoraggio dei vasi intracranici sia in fase acuta che a lungo termine �Migliora la trombolisi sia farmacologica che spontanea �Consente il monitoraggio dell’interventistica cardiocerebrovascolare �Ha valore prognostico in fase acuta del TIA (stenosi e microemboli) e dell’ictus acuto (stenosi)
