ICT Platform for Object Oriented Knowledge Håvard Bell, Ph. D. Norwegian Building Research Institute 10. 09. 2020 1

10. 09. 2020 2

10. 09. 2020 3

IFC IFG 10. 09. 2020 4 IFD

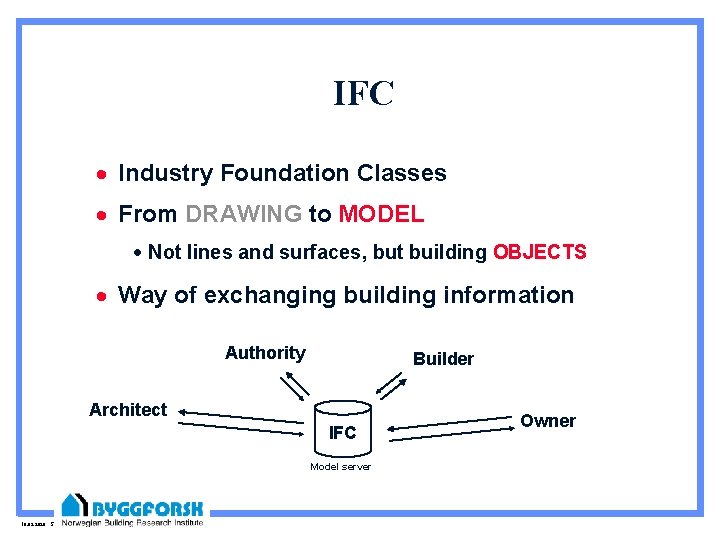

IFC · Industry Foundation Classes · From DRAWING to MODEL · Not lines and surfaces, but building OBJECTS · Way of exchanging building information Authority Builder Architect IFC Model server 10. 09. 2020 5 Owner

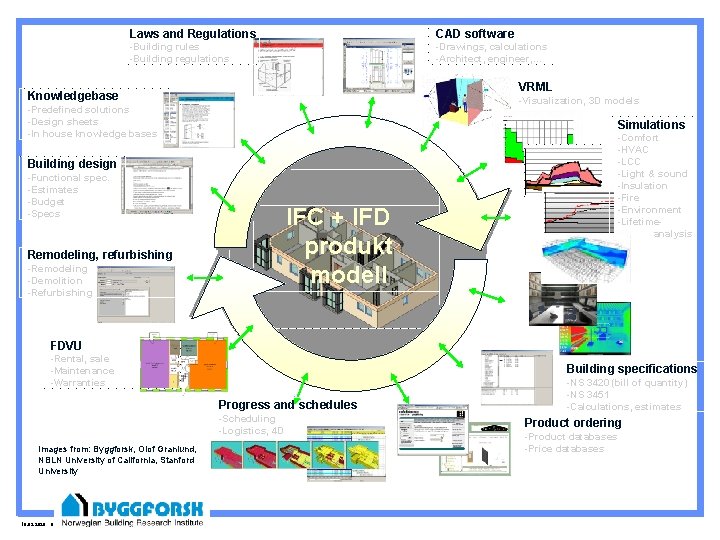

Laws and Regulations CAD software -Building rules -Building regulations -Drawings, calculations -Architect, engineer, … VRML Knowledgebase -Visualization, 3 D models -Predefined solutions -Design sheets -In house knowledge bases Simulations Building design -Functional spec. -Estimates -Budget -Specs IFC + IFD produkt modell Remodeling, refurbishing -Remodeling -Demolition -Refurbishing -Comfort -HVAC -LCC -Light & sound -Insulation -Fire -Environment -Lifetimeanalysis FDVU -Rental, sale -Maintenance -Warranties Building specifications Progress and schedules -Scheduling -Logistics, 4 D Images from: Byggforsk, Olof Granlund, NBLN University of California, Stanford University 10. 09. 2020 6 -NS 3420 (bill of quantity) -NS 3451 -Calculations, estimates Product ordering -Product databases -Price databases

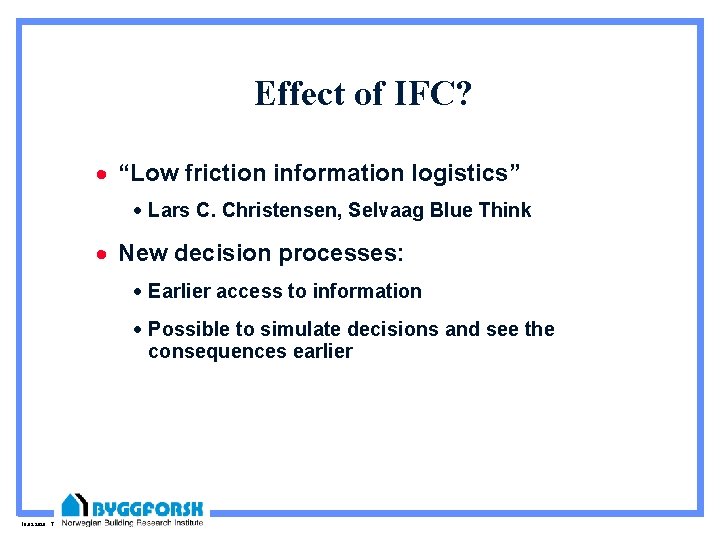

Effect of IFC? · “Low friction information logistics” · Lars C. Christensen, Selvaag Blue Think · New decision processes: · Earlier access to information · Possible to simulate decisions and see the consequences earlier 10. 09. 2020 7

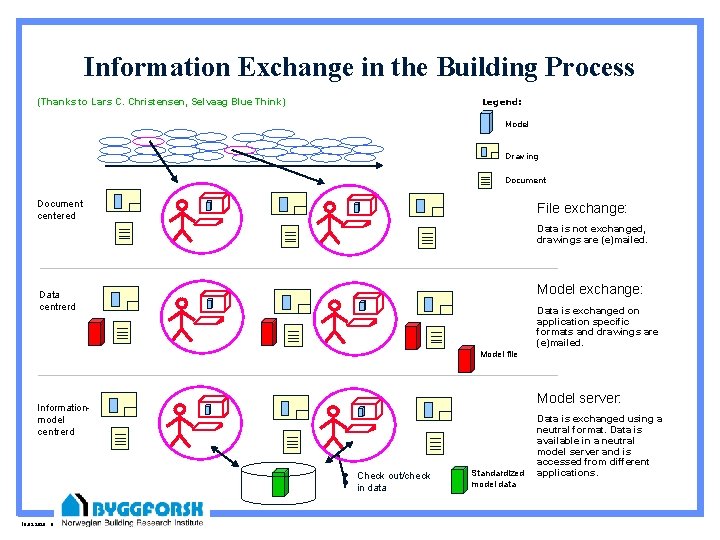

Information Exchange in the Building Process Legend: (Thanks to Lars C. Christensen, Selvaag Blue Think) Model Drawing Document centered File exchange: Data is not exchanged, drawings are (e)mailed. Model exchange: Data centrerd Model file Model server: Informationmodel centrerd Check out/check in data 10. 09. 2020 8 Data is exchanged on application specific formats and drawings are (e)mailed. Standardized model data Data is exchanged using a neutral format. Data is available in a neutral model server and is accessed from different applications.

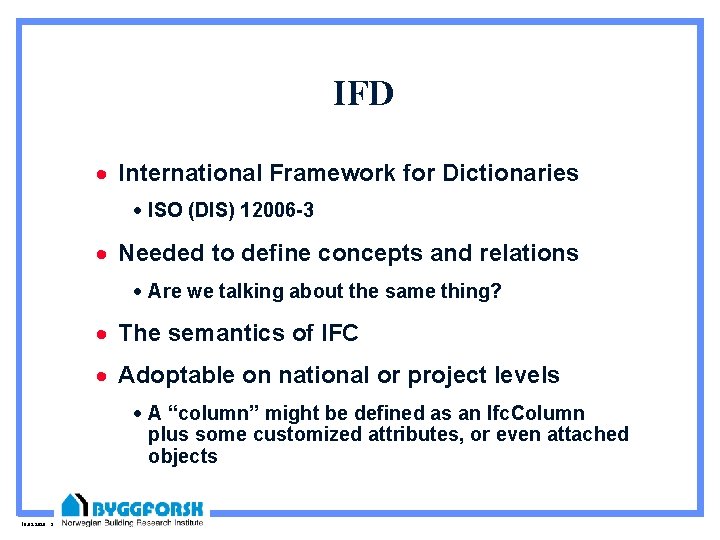

IFD · International Framework for Dictionaries · ISO (DIS) 12006 -3 · Needed to define concepts and relations · Are we talking about the same thing? · The semantics of IFC · Adoptable on national or project levels · A “column” might be defined as an Ifc. Column plus some customized attributes, or even attached objects 10. 09. 2020 9

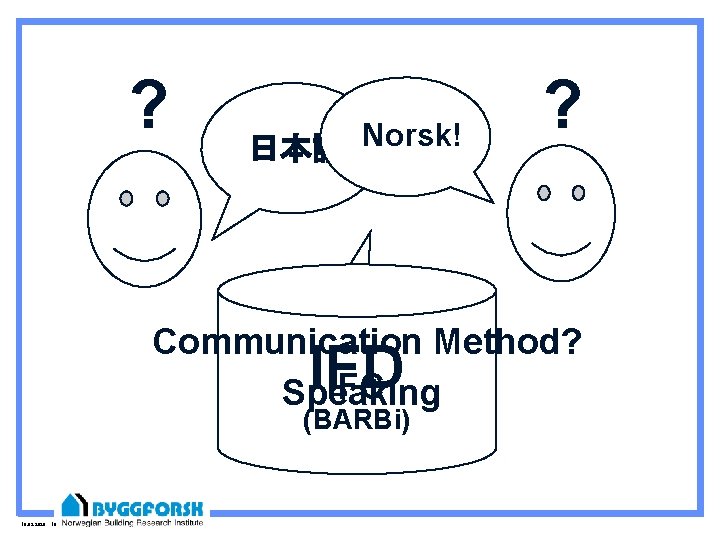

? 日本語！Norsk! ? Communication Method? IFC Speaking English! IFD (BARBi) 10. 09. 2020 10

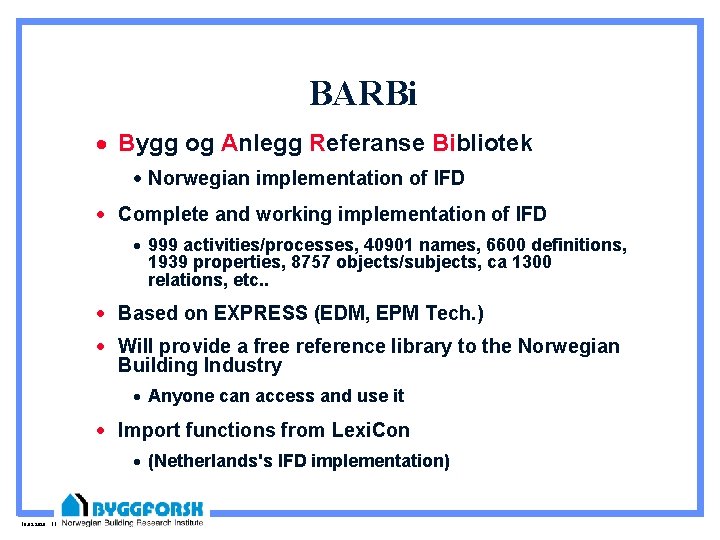

BARBi · Bygg og Anlegg Referanse Bibliotek · Norwegian implementation of IFD · Complete and working implementation of IFD · 999 activities/processes, 40901 names, 6600 definitions, 1939 properties, 8757 objects/subjects, ca 1300 relations, etc. . · Based on EXPRESS (EDM, EPM Tech. ) · Will provide a free reference library to the Norwegian Building Industry · Anyone can access and use it · Import functions from Lexi. Con · (Netherlands's IFD implementation) 10. 09. 2020 11

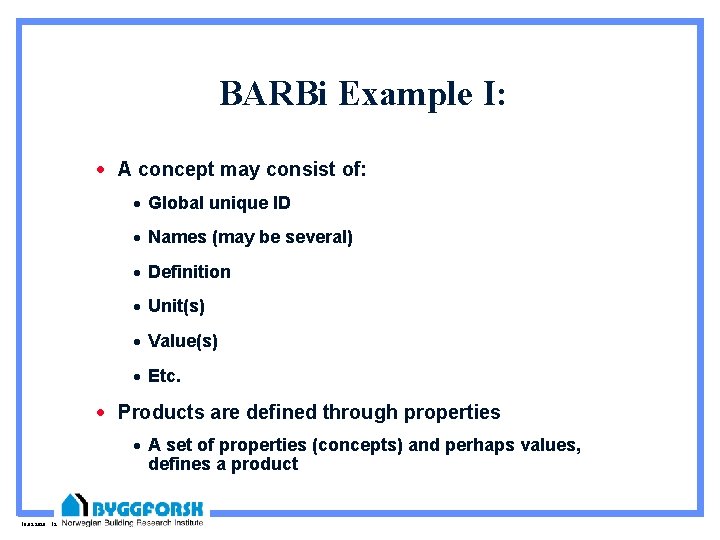

BARBi Example I: · A concept may consist of: · Global unique ID · Names (may be several) · Definition · Unit(s) · Value(s) · Etc. · Products are defined through properties · A set of properties (concepts) and perhaps values, defines a product 10. 09. 2020 12

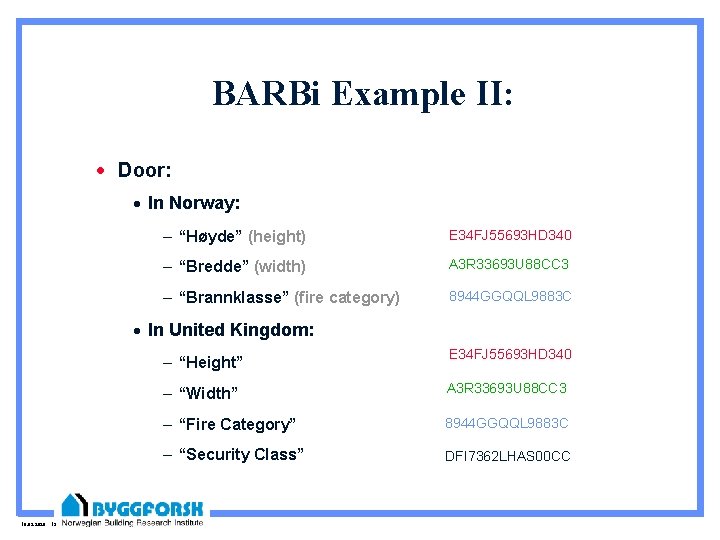

BARBi Example II: · Door: · In Norway: – “Høyde” (height) E 34 FJ 55693 HD 340 – “Bredde” (width) A 3 R 33693 U 88 CC 3 – “Brannklasse” (fire category) 8944 GGQQL 9883 C · In United Kingdom: 10. 09. 2020 13 – “Height” E 34 FJ 55693 HD 340 – “Width” A 3 R 33693 U 88 CC 3 – “Fire Category” 8944 GGQQL 9883 C – “Security Class” DFI 7362 LHAS 00 CC

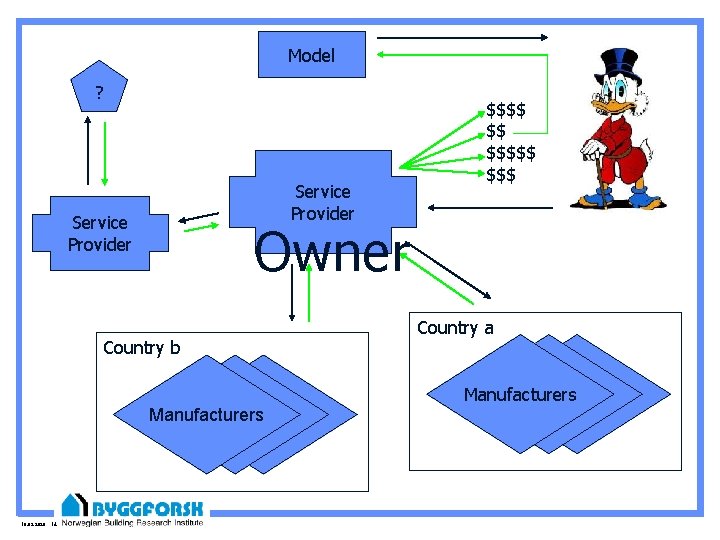

Model ? Service Provider Owner Country b Produkt Manufacturers leverandør 10. 09. 2020 14 $$$$ $$ $$$ Country a Produkt Manufacturers leverandør

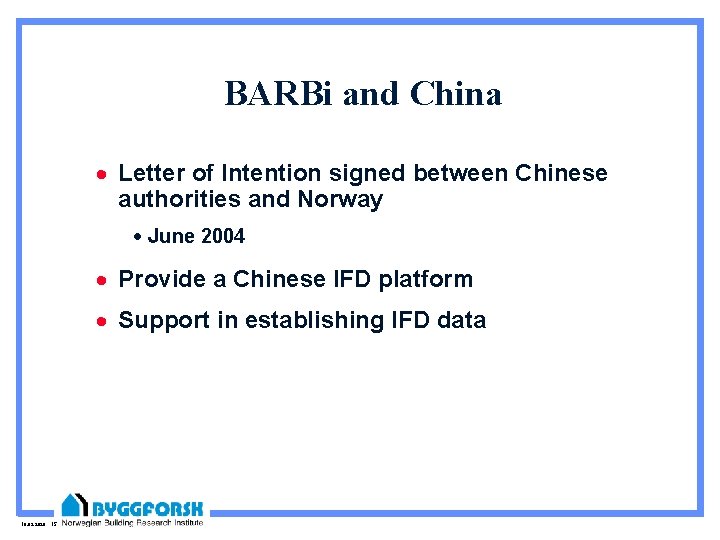

BARBi and China · Letter of Intention signed between Chinese authorities and Norway · June 2004 · Provide a Chinese IFD platform · Support in establishing IFD data 10. 09. 2020 15

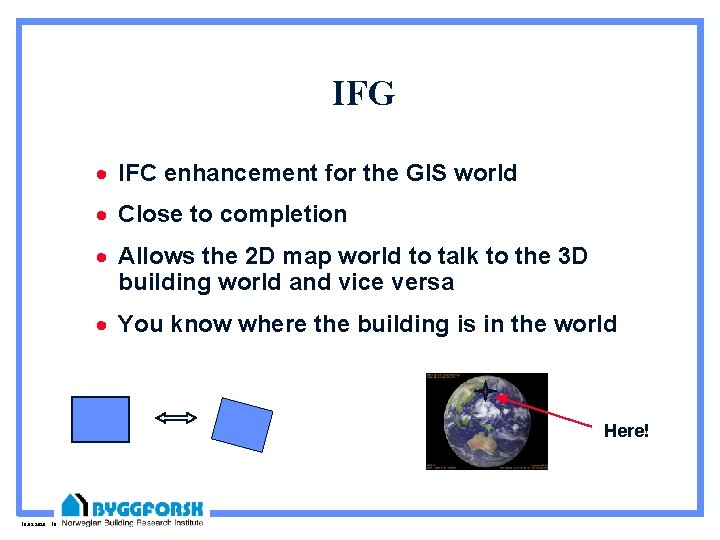

IFG · IFC enhancement for the GIS world · Close to completion · Allows the 2 D map world to talk to the 3 D building world and vice versa · You know where the building is in the world Here! 10. 09. 2020 16

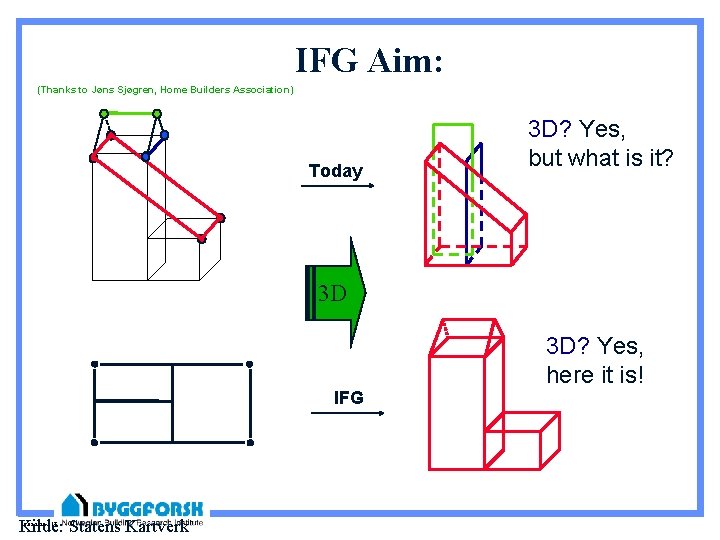

IFG Aim: (Thanks to Jøns Sjøgren, Home Builders Association) Today 3 D? Yes, but what is it? 3 D 3 D? Yes, here it is! IFG Kilde: Statens Kartverk 10. 09. 2020 17

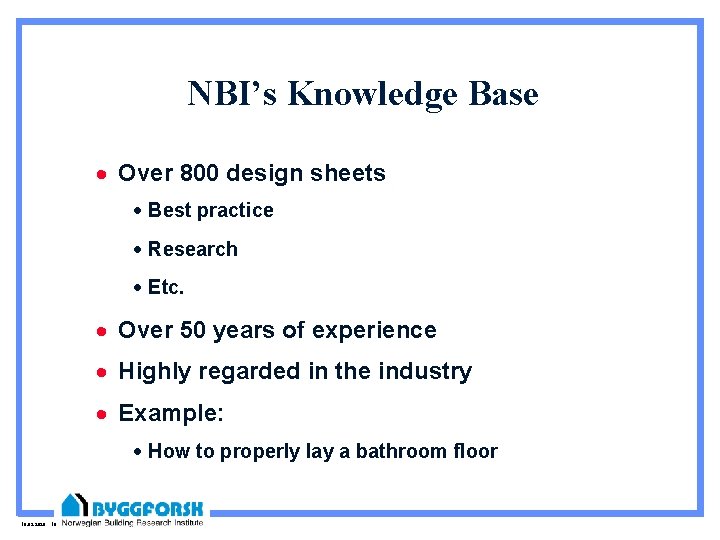

NBI’s Knowledge Base · Over 800 design sheets · Best practice · Research · Etc. · Over 50 years of experience · Highly regarded in the industry · Example: · How to properly lay a bathroom floor 10. 09. 2020 18

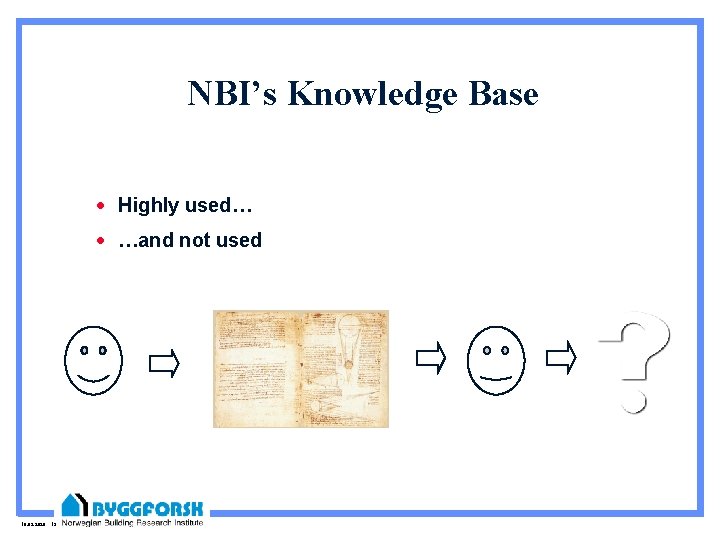

NBI’s Knowledge Base · Highly used… · …and not used 10. 09. 2020 19

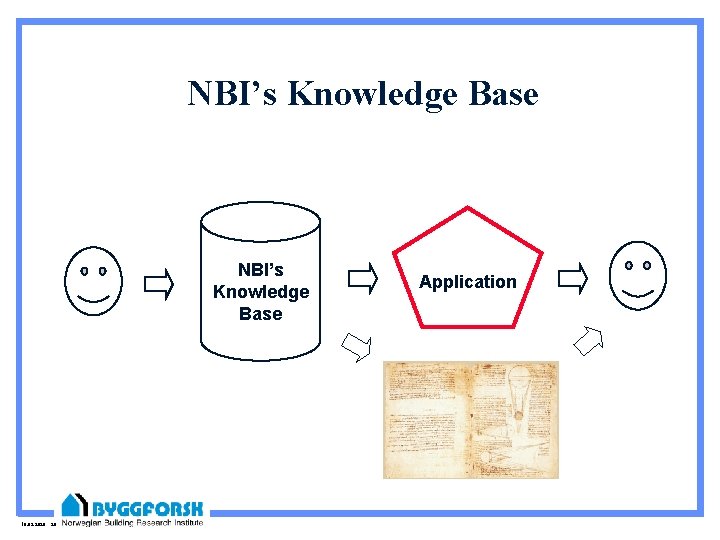

NBI’s Knowledge Base 10. 09. 2020 20 Application

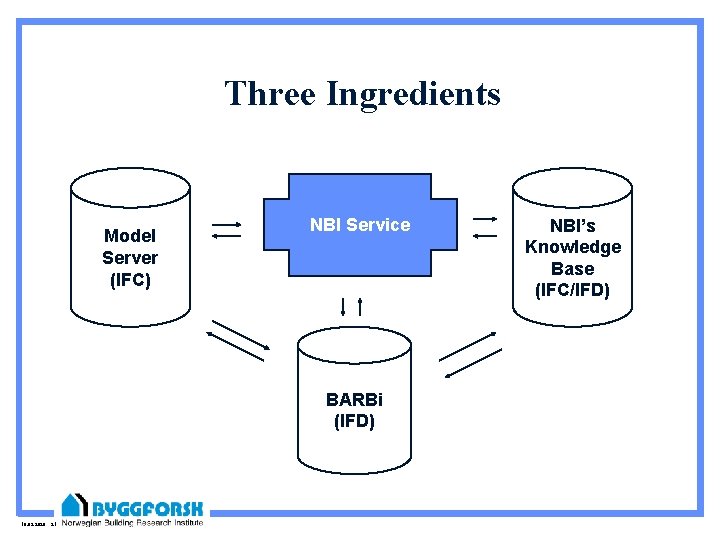

Three Ingredients Model Server (IFC) NBI Service BARBi (IFD) 10. 09. 2020 21 NBI’s Knowledge Base (IFC/IFD)

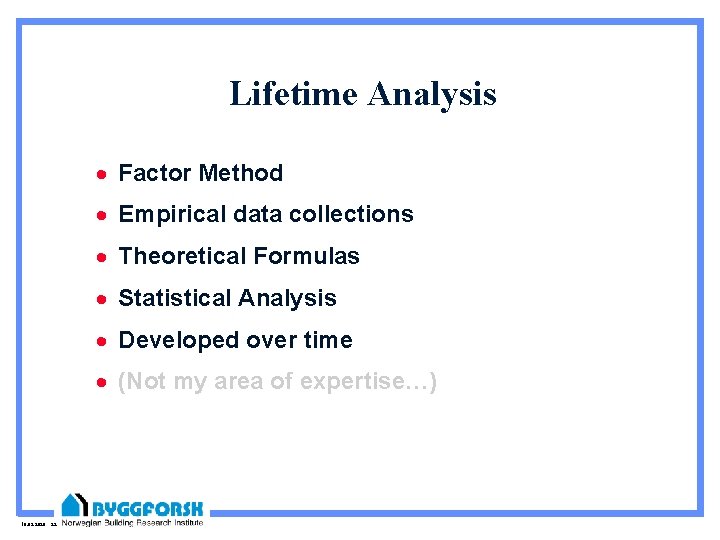

Lifetime Analysis · Factor Method · Empirical data collections · Theoretical Formulas · Statistical Analysis · Developed over time · (Not my area of expertise…) 10. 09. 2020 22

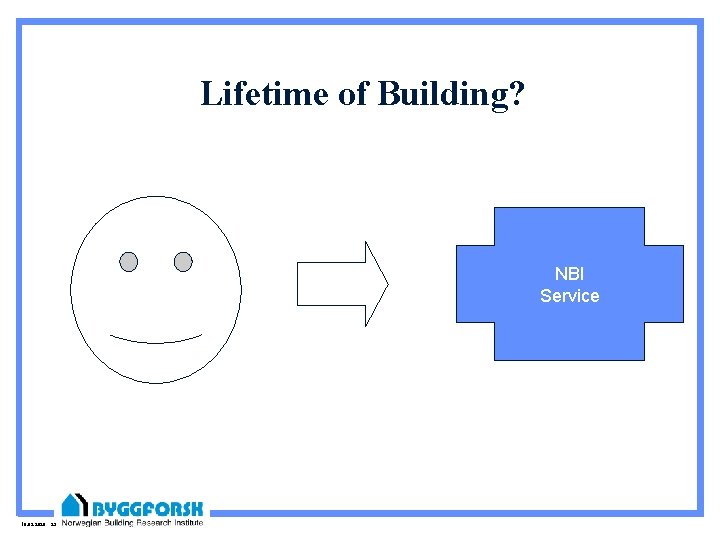

Lifetime of Building? NBI Service 10. 09. 2020 23

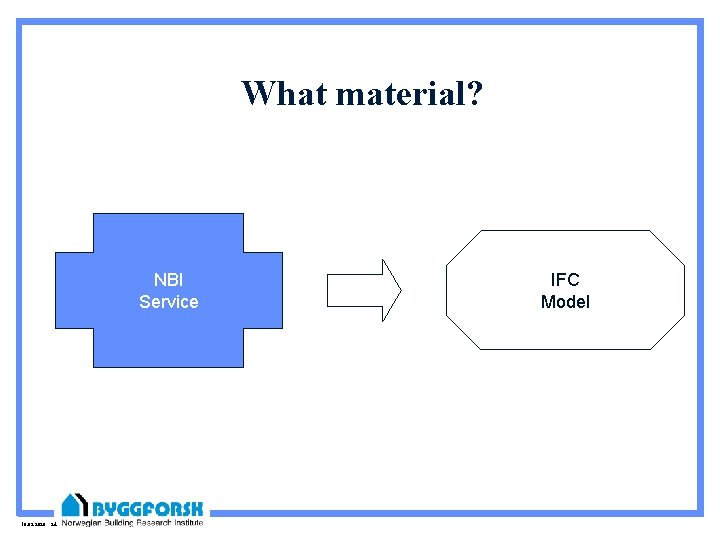

What material? NBI Service 10. 09. 2020 24 IFC Model

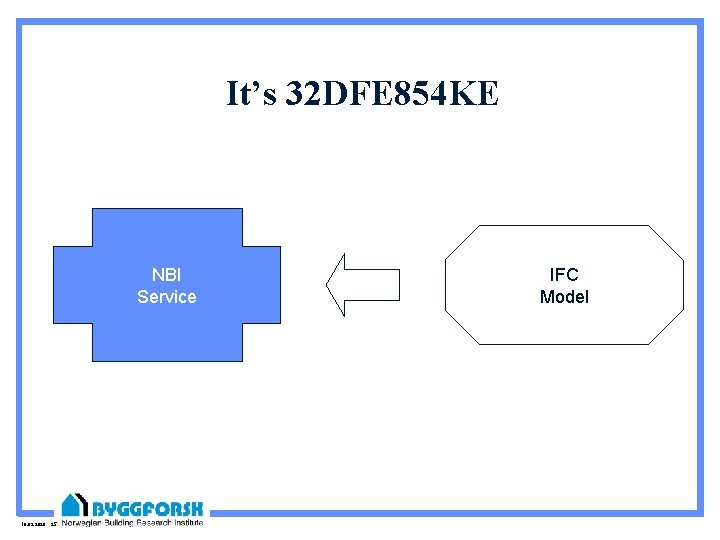

It’s 32 DFE 854 KE NBI Service 10. 09. 2020 25 IFC Model

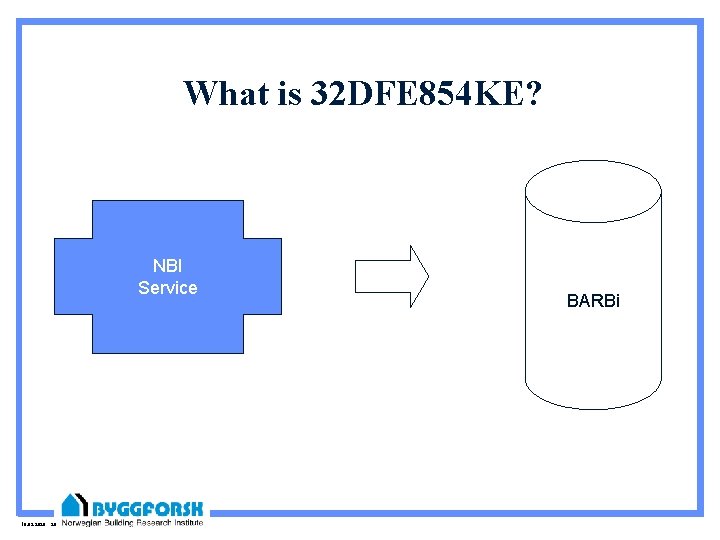

What is 32 DFE 854 KE? NBI Service 10. 09. 2020 26 BARBi

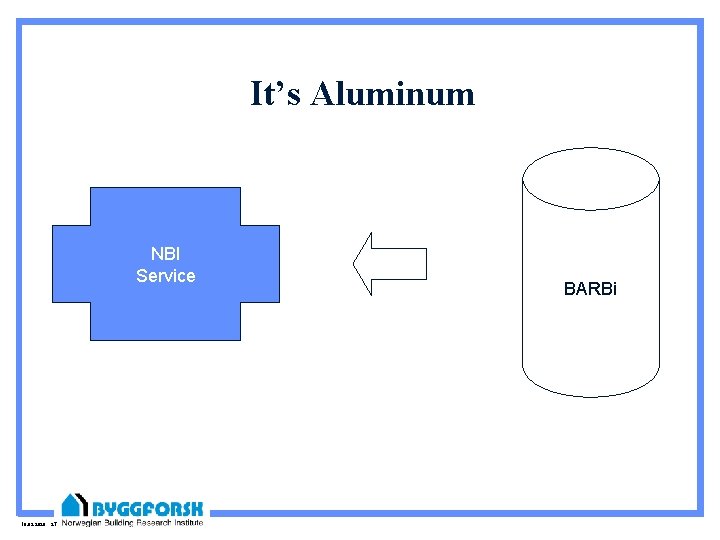

It’s Aluminum NBI Service 10. 09. 2020 27 BARBi

OR… 10. 09. 2020 28

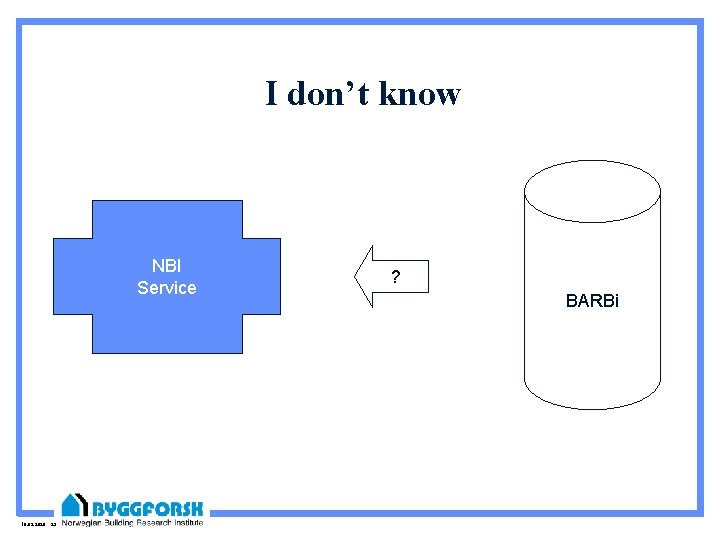

I don’t know NBI Service 10. 09. 2020 29 ? BARBi

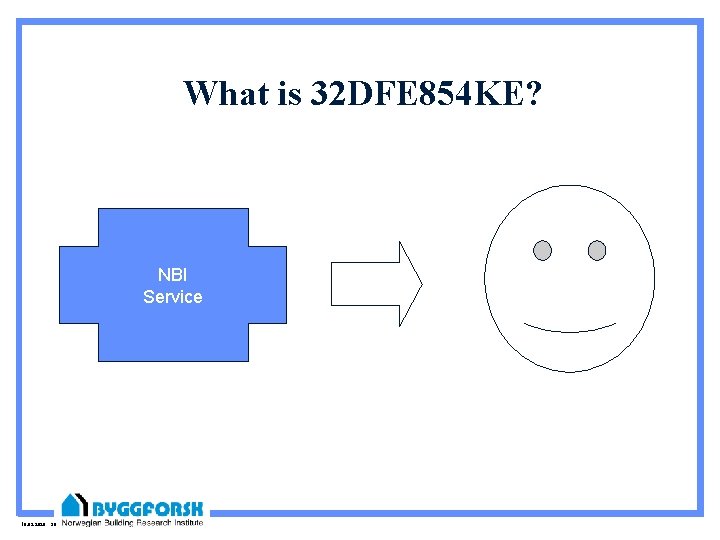

What is 32 DFE 854 KE? NBI Service 10. 09. 2020 30

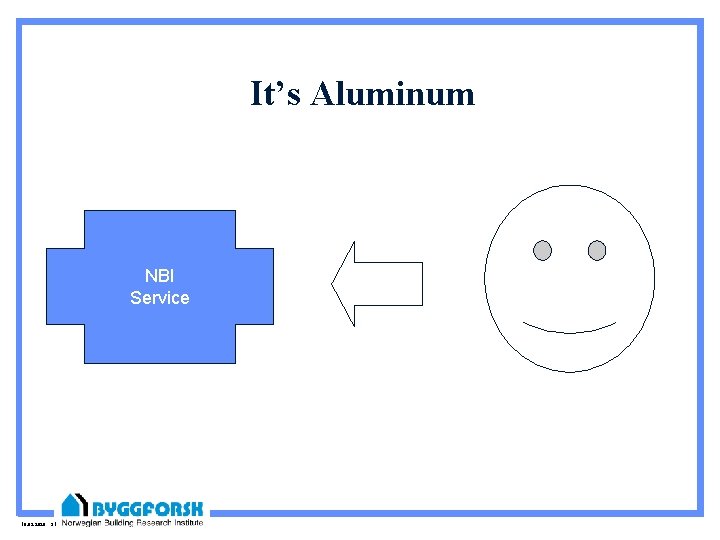

It’s Aluminum NBI Service 10. 09. 2020 31

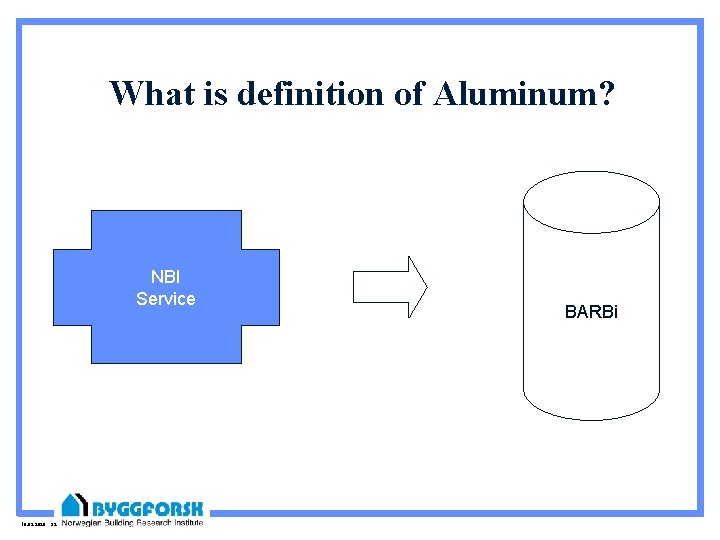

What is definition of Aluminum? NBI Service 10. 09. 2020 32 BARBi

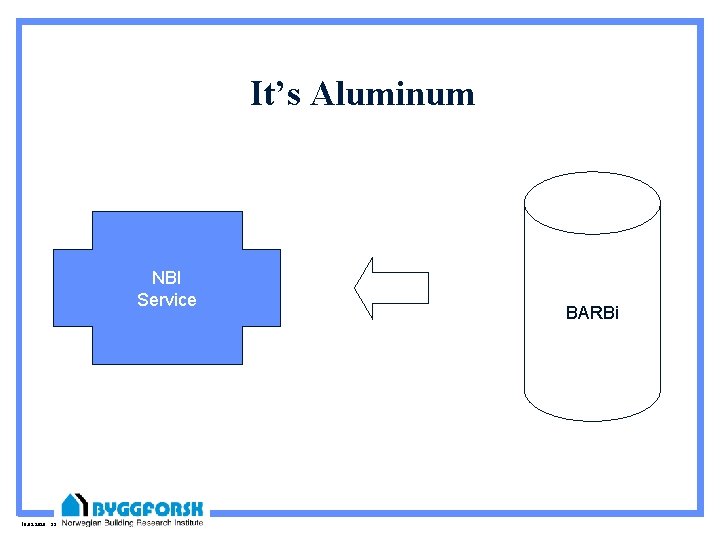

It’s Aluminum NBI Service 10. 09. 2020 33 BARBi

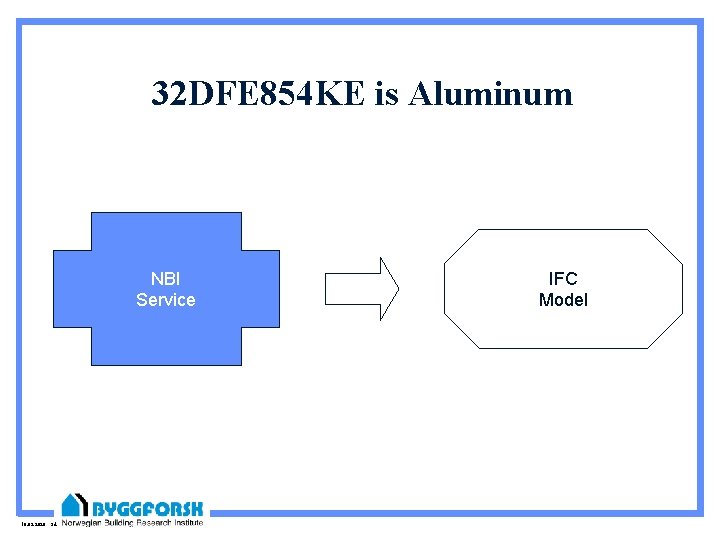

32 DFE 854 KE is Aluminum NBI Service 10. 09. 2020 34 IFC Model

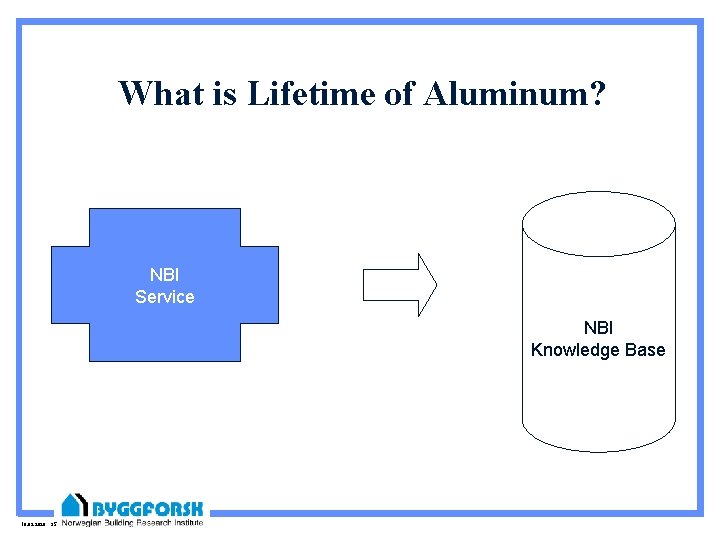

What is Lifetime of Aluminum? NBI Service NBI Knowledge Base 10. 09. 2020 35

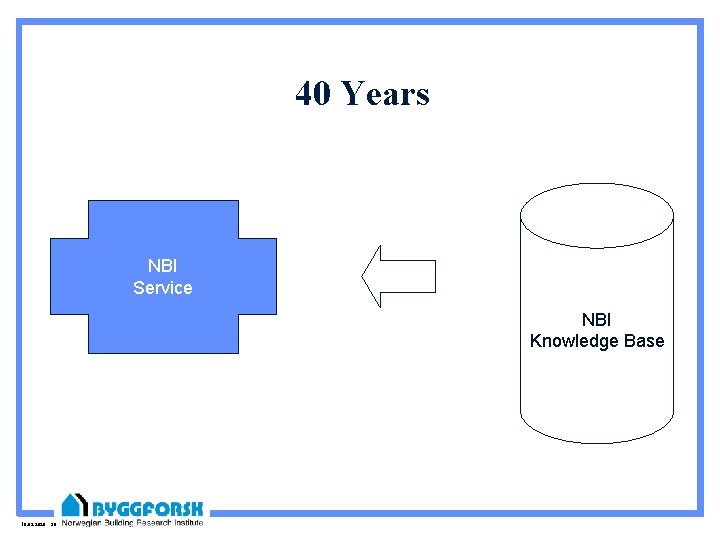

40 Years NBI Service NBI Knowledge Base 10. 09. 2020 36

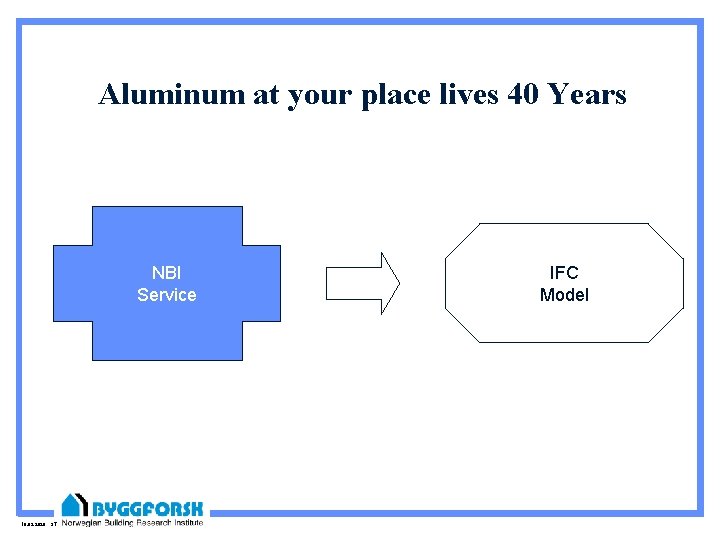

Aluminum at your place lives 40 Years NBI Service 10. 09. 2020 37 IFC Model

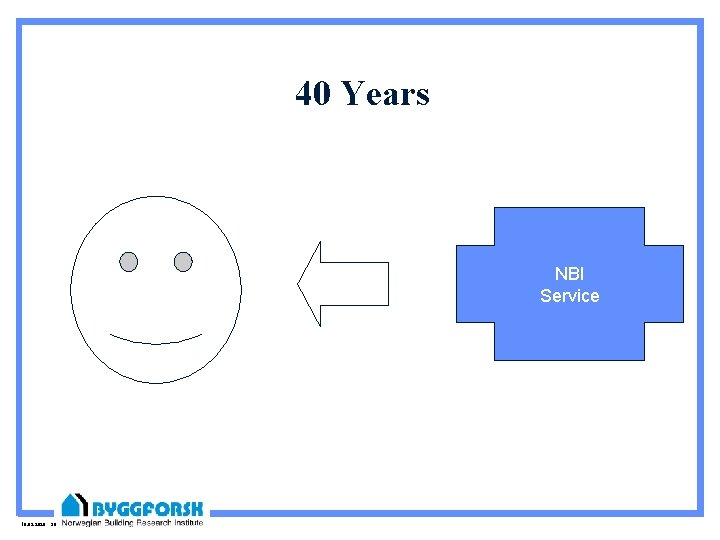

40 Years NBI Service 10. 09. 2020 38

Thanks! NBI Service 10. 09. 2020 39

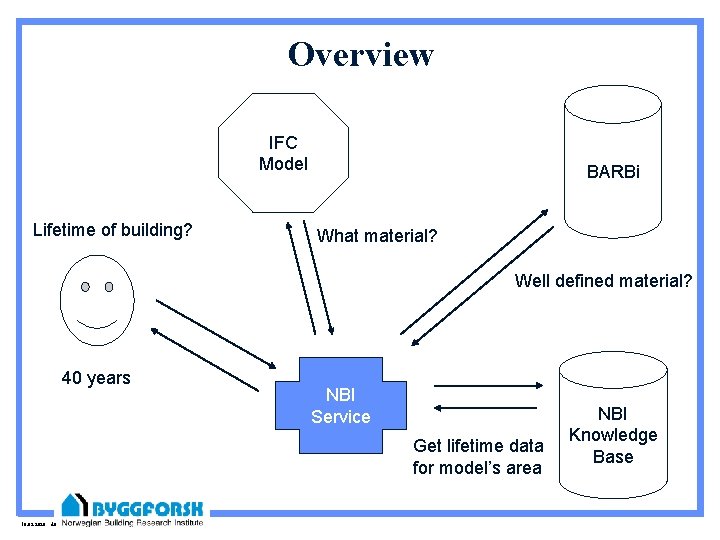

Overview IFC Model Lifetime of building? BARBi What material? Well defined material? 40 years NBI Service Get lifetime data for model’s area 10. 09. 2020 40 NBI Knowledge Base

Demo… 10. 09. 2020 41

Questions? havard. bell@byggforsk. no 10. 09. 2020 42
