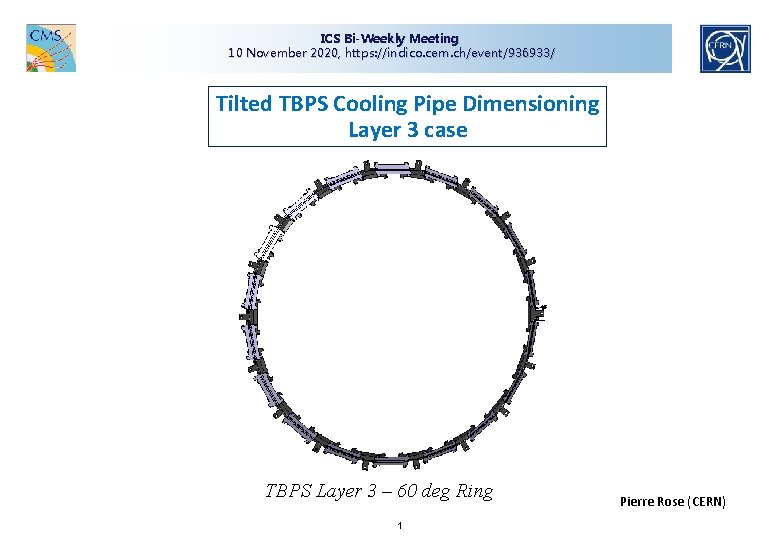

ICS Bi-Weekly Meeting 10 November 2020, https: //indico. cern. ch/event/936933/ Tilted TBPS Cooling Pipe Dimensioning Layer 3 case TBPS Layer 3 – 60 deg Ring 1 Pierre Rose (CERN)
![Introduction Layer 3 Ring : 36 PS Modules to cool down in one loop Introduction Layer 3 Ring : 36 PS Modules to cool down in one loop](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-2.jpg)

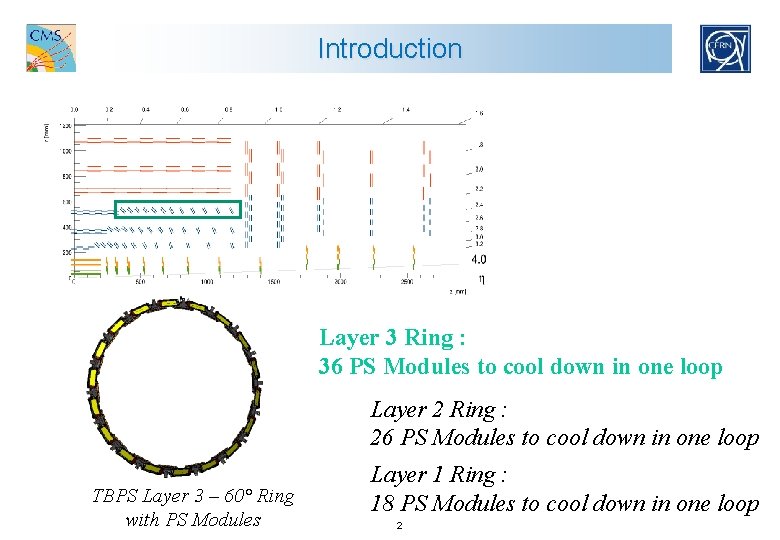

Introduction Layer 3 Ring : 36 PS Modules to cool down in one loop Layer 2 Ring : 26 PS Modules to cool down in one loop TBPS Layer 3 – 60° Ring with PS Modules Layer 1 Ring : 18 PS Modules to cool down in one loop 2
![Layer 3 – Pipe Dimension Study 2. 35 2. 7 Chart from Tom, valid Layer 3 – Pipe Dimension Study 2. 35 2. 7 Chart from Tom, valid](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-3.jpg)

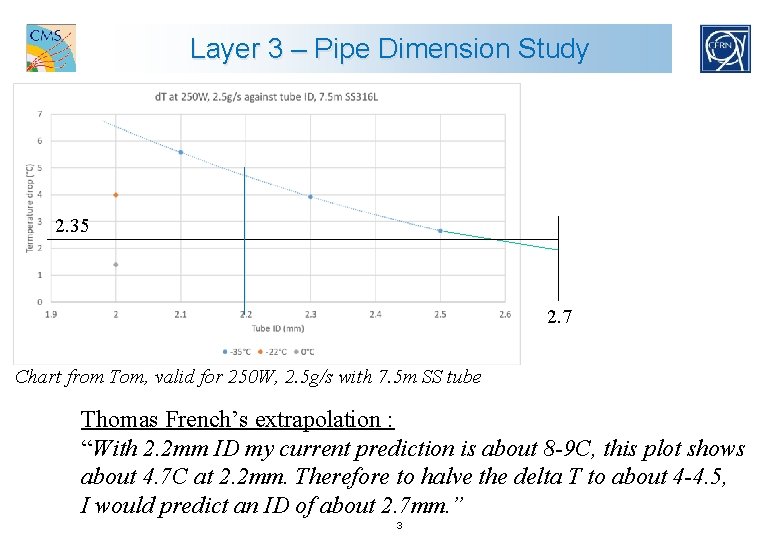

Layer 3 – Pipe Dimension Study 2. 35 2. 7 Chart from Tom, valid for 250 W, 2. 5 g/s with 7. 5 m SS tube Thomas French’s extrapolation : “With 2. 2 mm ID my current prediction is about 8 -9 C, this plot shows about 4. 7 C at 2. 2 mm. Therefore to halve the delta T to about 4 -4. 5, I would predict an ID of about 2. 7 mm. ” 3
![Layer 3 – Pipe Dimension Study Ring 60° Previous Tube Ø 2/2. 2 mm Layer 3 – Pipe Dimension Study Ring 60° Previous Tube Ø 2/2. 2 mm](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-4.jpg)

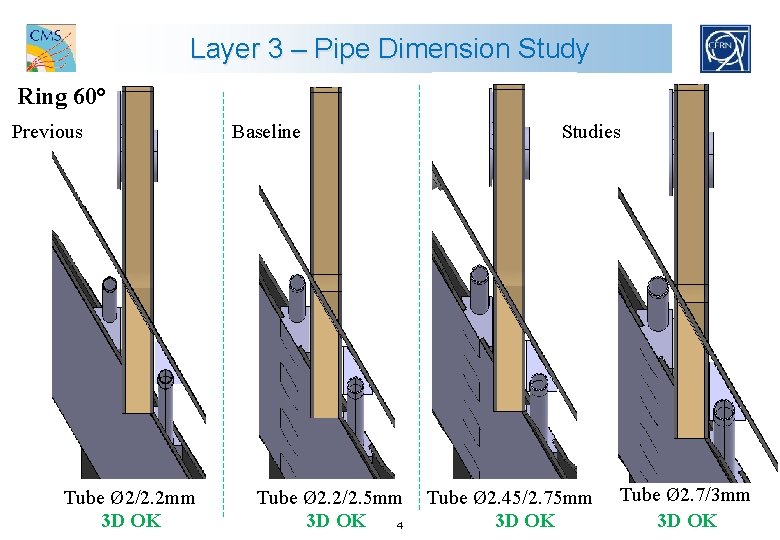

Layer 3 – Pipe Dimension Study Ring 60° Previous Tube Ø 2/2. 2 mm 3 D OK Baseline Tube Ø 2. 2/2. 5 mm 3 D OK 4 Studies Tube Ø 2. 45/2. 75 mm 3 D OK Tube Ø 2. 7/3 mm 3 D OK
![Layer 3 – Pipe Dimension Study Ring 60° +0. 5 mm d 5 Layer 3 – Pipe Dimension Study Ring 60° +0. 5 mm d 5](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-5.jpg)

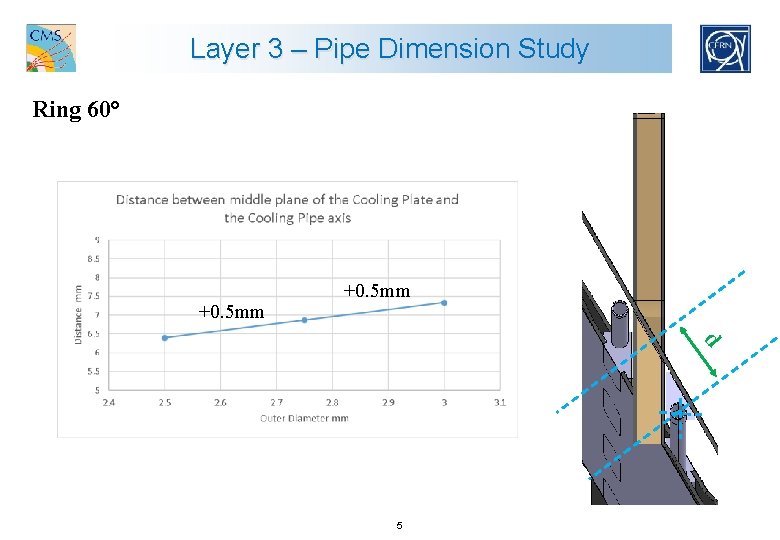

Layer 3 – Pipe Dimension Study Ring 60° +0. 5 mm d 5
![Layer 3 – Pipe Dimension Study Ring 60° 6 Layer 3 – Pipe Dimension Study Ring 60° 6](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-6.jpg)

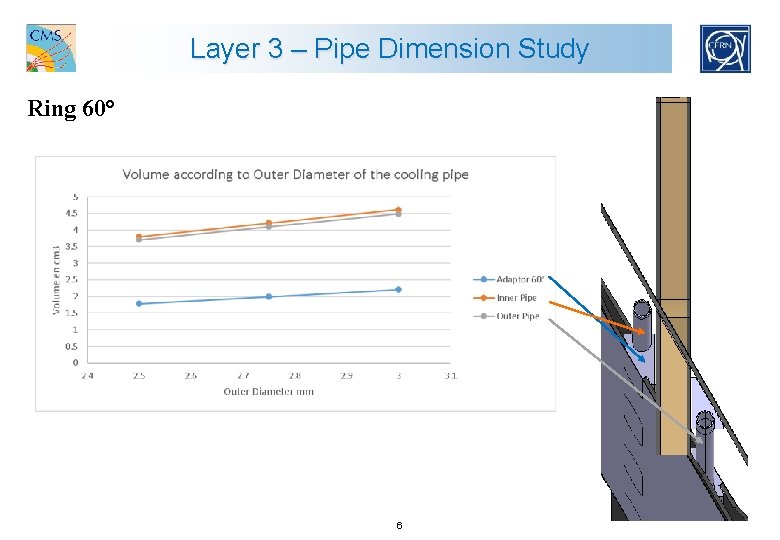

Layer 3 – Pipe Dimension Study Ring 60° 6
![Layer 3 – Pipe Dimension Study Ring 60° 36 adaptors 1 Inner Pipe 1 Layer 3 – Pipe Dimension Study Ring 60° 36 adaptors 1 Inner Pipe 1](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-7.jpg)

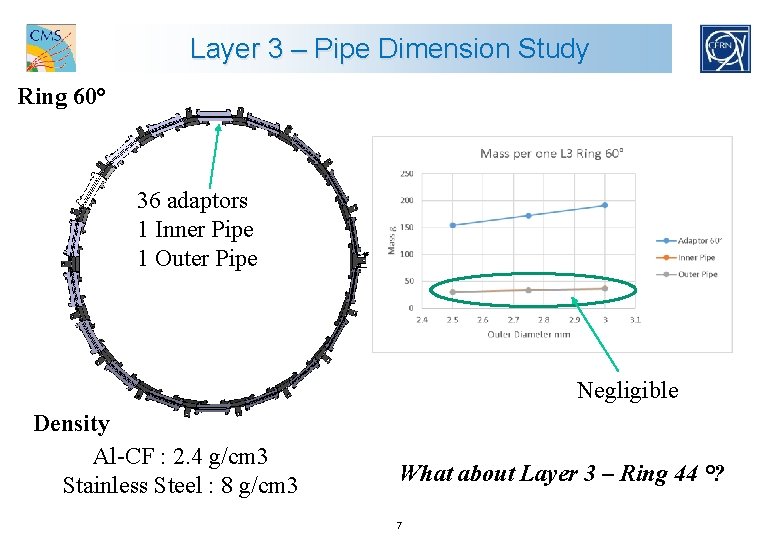

Layer 3 – Pipe Dimension Study Ring 60° 36 adaptors 1 Inner Pipe 1 Outer Pipe Negligible Density Al-CF : 2. 4 g/cm 3 Stainless Steel : 8 g/cm 3 What about Layer 3 – Ring 44 °? 7
![Layer 3 – Pipe Dimension Study Ring 44° Ring 60° 6. 4 mm d Layer 3 – Pipe Dimension Study Ring 44° Ring 60° 6. 4 mm d](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-8.jpg)

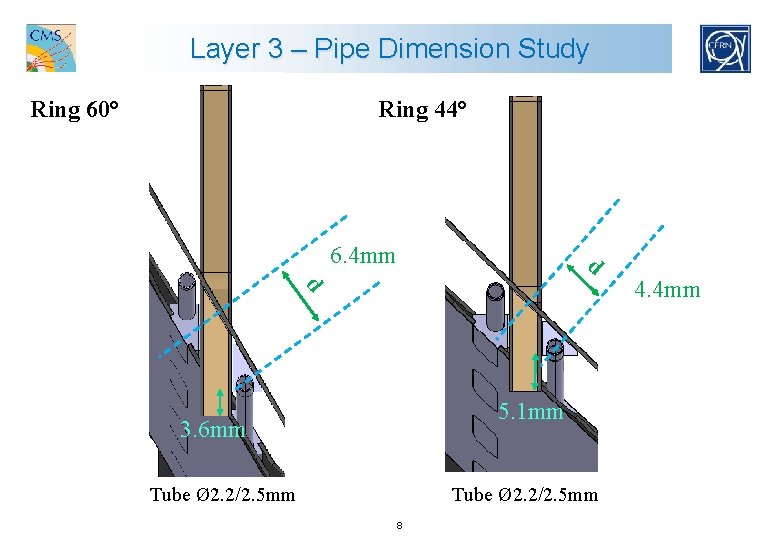

Layer 3 – Pipe Dimension Study Ring 44° Ring 60° 6. 4 mm d d 4. 4 mm 5. 1 mm 3. 6 mm Tube Ø 2. 2/2. 5 mm 8
![Layer 3 – Pipe Dimension Study Ring 60° Ring 44° 1 adaptor 36 adaptors Layer 3 – Pipe Dimension Study Ring 60° Ring 44° 1 adaptor 36 adaptors](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-9.jpg)

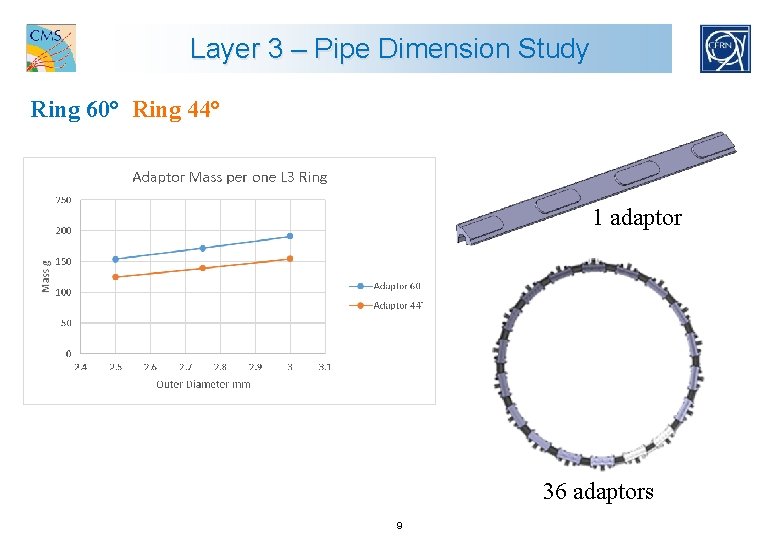

Layer 3 – Pipe Dimension Study Ring 60° Ring 44° 1 adaptor 36 adaptors 9
![Layer 3 – Pipe Dimension Study Ring 60° Ring 44° +215 +170 +230 +180 Layer 3 – Pipe Dimension Study Ring 60° Ring 44° +215 +170 +230 +180](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-10.jpg)

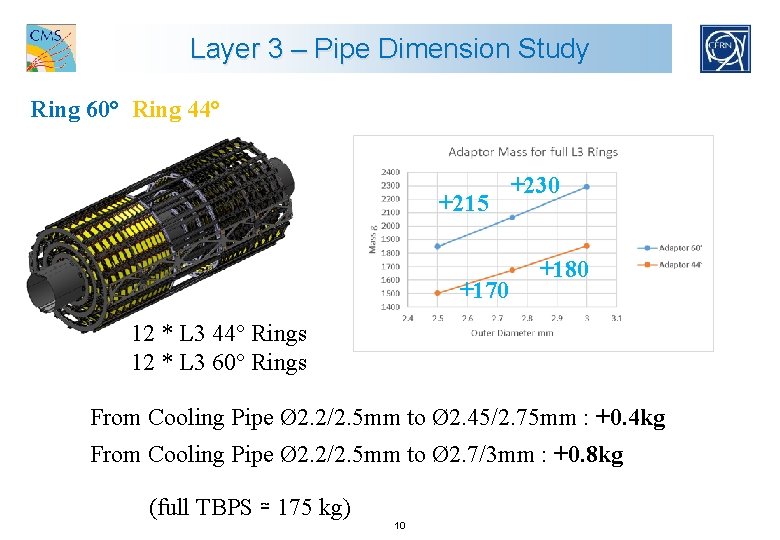

Layer 3 – Pipe Dimension Study Ring 60° Ring 44° +215 +170 +230 +180 12 * L 3 44° Rings 12 * L 3 60° Rings From Cooling Pipe Ø 2. 2/2. 5 mm to Ø 2. 45/2. 75 mm : +0. 4 kg From Cooling Pipe Ø 2. 2/2. 5 mm to Ø 2. 7/3 mm : +0. 8 kg (full TBPS ≃ 175 kg) 10
![Layer 3 – Pipe Dimension Study Conclusion - Going from Ø 2. 2/2. 5 Layer 3 – Pipe Dimension Study Conclusion - Going from Ø 2. 2/2. 5](http://slidetodoc.com/presentation_image_h2/74ebf923b80be90b336e9d05d48fa068/image-11.jpg)

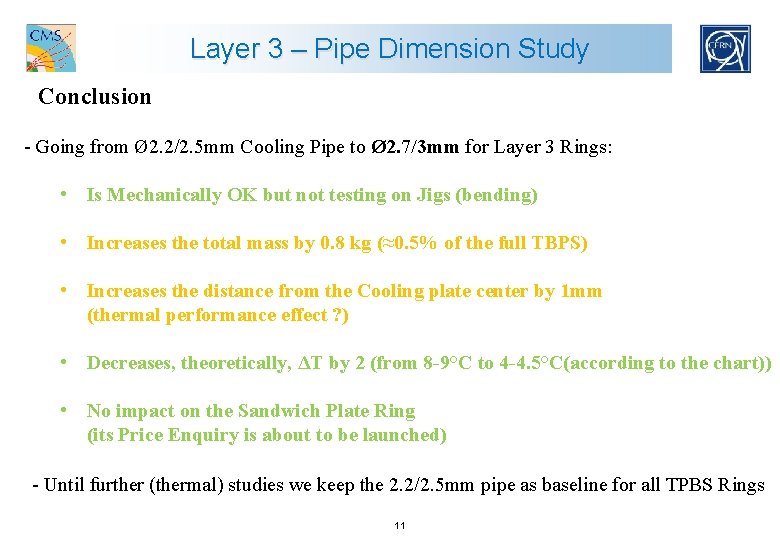

Layer 3 – Pipe Dimension Study Conclusion - Going from Ø 2. 2/2. 5 mm Cooling Pipe to Ø 2. 7/3 mm for Layer 3 Rings: • Is Mechanically OK but not testing on Jigs (bending) • Increases the total mass by 0. 8 kg (≈0. 5% of the full TBPS) • Increases the distance from the Cooling plate center by 1 mm (thermal performance effect ? ) • Decreases, theoretically, ΔT by 2 (from 8 -9°C to 4 -4. 5°C(according to the chart)) • No impact on the Sandwich Plate Ring (its Price Enquiry is about to be launched) - Until further (thermal) studies we keep the 2. 2/2. 5 mm pipe as baseline for all TPBS Rings 11
