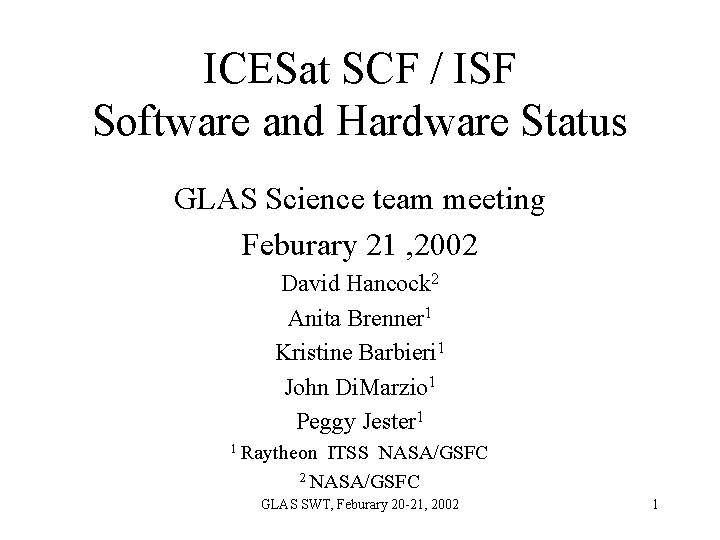

ICESat SCF / ISF Software and Hardware Status GLAS Science team meeting Feburary 21 , 2002 David Hancock 2 Anita Brenner 1 Kristine Barbieri 1 John Di. Marzio 1 Peggy Jester 1 1 Raytheon ITSS NASA/GSFC 2 NASA/GSFC GLAS SWT, Feburary 20 -21, 2002 1

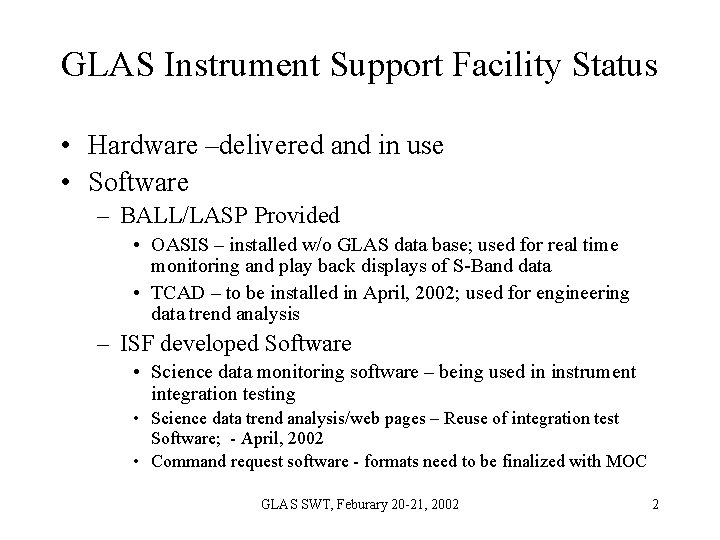

GLAS Instrument Support Facility Status • Hardware –delivered and in use • Software – BALL/LASP Provided • OASIS – installed w/o GLAS data base; used for real time monitoring and play back displays of S-Band data • TCAD – to be installed in April, 2002; used for engineering data trend analysis – ISF developed Software • Science data monitoring software – being used in instrument integration testing • Science data trend analysis/web pages – Reuse of integration test Software; - April, 2002 • Command request software - formats need to be finalized with MOC GLAS SWT, Feburary 20 -21, 2002 2

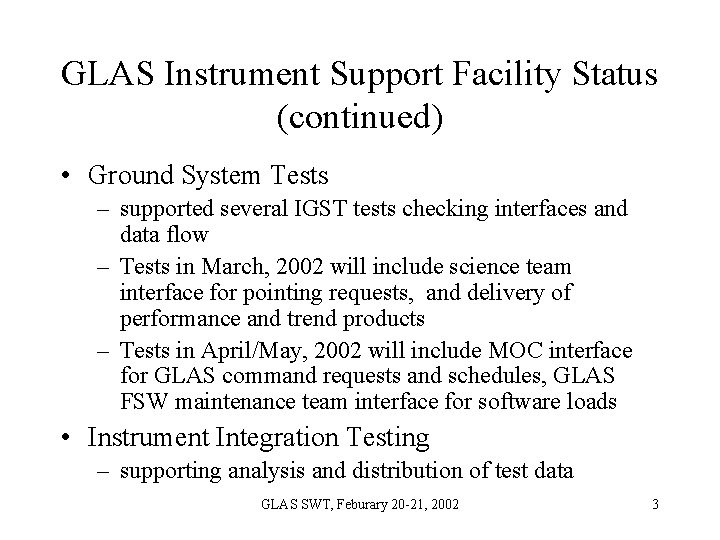

GLAS Instrument Support Facility Status (continued) • Ground System Tests – supported several IGST tests checking interfaces and data flow – Tests in March, 2002 will include science team interface for pointing requests, and delivery of performance and trend products – Tests in April/May, 2002 will include MOC interface for GLAS command requests and schedules, GLAS FSW maintenance team interface for software loads • Instrument Integration Testing – supporting analysis and distribution of test data GLAS SWT, Feburary 20 -21, 2002 3

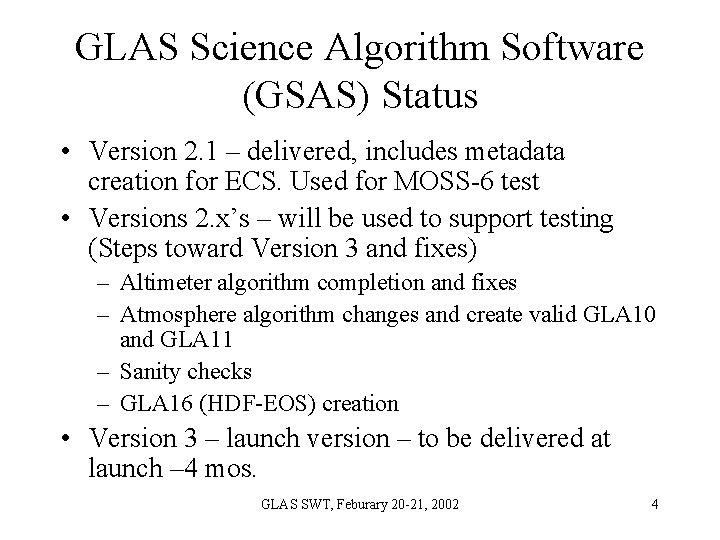

GLAS Science Algorithm Software (GSAS) Status • Version 2. 1 – delivered, includes metadata creation for ECS. Used for MOSS-6 test • Versions 2. x’s – will be used to support testing (Steps toward Version 3 and fixes) – Altimeter algorithm completion and fixes – Atmosphere algorithm changes and create valid GLA 10 and GLA 11 – Sanity checks – GLA 16 (HDF-EOS) creation • Version 3 – launch version – to be delivered at launch – 4 mos. GLAS SWT, Feburary 20 -21, 2002 4

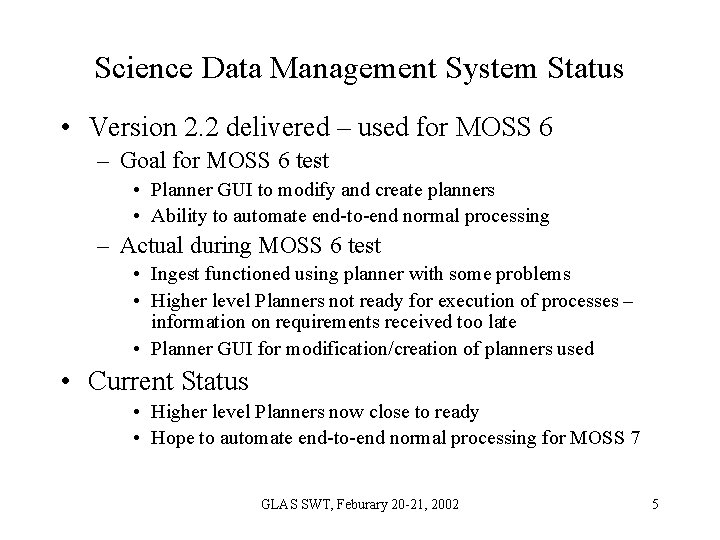

Science Data Management System Status • Version 2. 2 delivered – used for MOSS 6 – Goal for MOSS 6 test • Planner GUI to modify and create planners • Ability to automate end-to-end normal processing – Actual during MOSS 6 test • Ingest functioned using planner with some problems • Higher level Planners not ready for execution of processes – information on requirements received too late • Planner GUI for modification/creation of planners used • Current Status • Higher level Planners now close to ready • Hope to automate end-to-end normal processing for MOSS 7 GLAS SWT, Feburary 20 -21, 2002 5

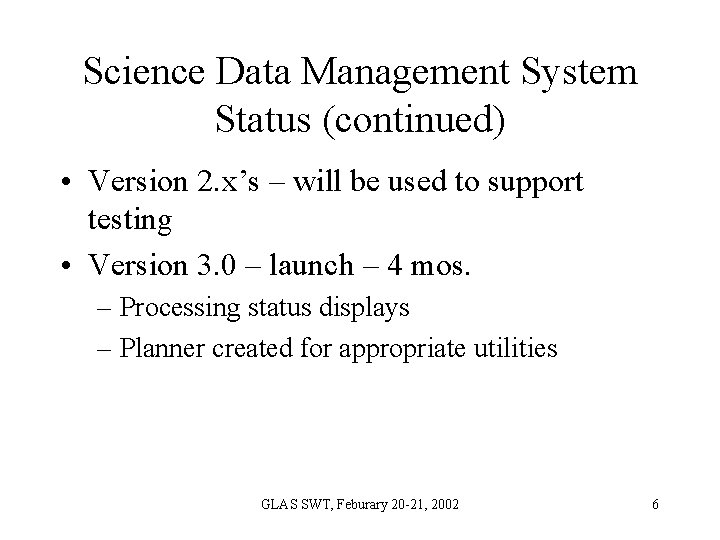

Science Data Management System Status (continued) • Version 2. x’s – will be used to support testing • Version 3. 0 – launch – 4 mos. – Processing status displays – Planner created for appropriate utilities GLAS SWT, Feburary 20 -21, 2002 6

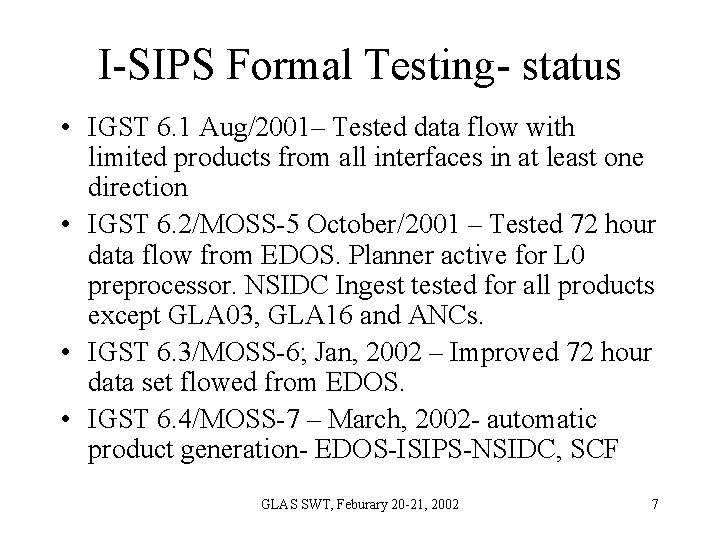

I-SIPS Formal Testing- status • IGST 6. 1 Aug/2001– Tested data flow with limited products from all interfaces in at least one direction • IGST 6. 2/MOSS-5 October/2001 – Tested 72 hour data flow from EDOS. Planner active for L 0 preprocessor. NSIDC Ingest tested for all products except GLA 03, GLA 16 and ANCs. • IGST 6. 3/MOSS-6; Jan, 2002 – Improved 72 hour data set flowed from EDOS. • IGST 6. 4/MOSS-7 – March, 2002 - automatic product generation- EDOS-ISIPS-NSIDC, SCF GLAS SWT, Feburary 20 -21, 2002 7

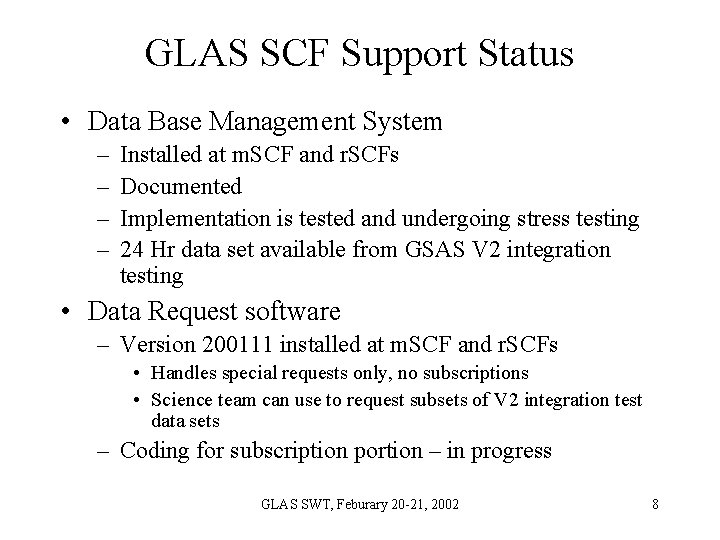

GLAS SCF Support Status • Data Base Management System – – Installed at m. SCF and r. SCFs Documented Implementation is tested and undergoing stress testing 24 Hr data set available from GSAS V 2 integration testing • Data Request software – Version 200111 installed at m. SCF and r. SCFs • Handles special requests only, no subscriptions • Science team can use to request subsets of V 2 integration test data sets – Coding for subscription portion – in progress GLAS SWT, Feburary 20 -21, 2002 8

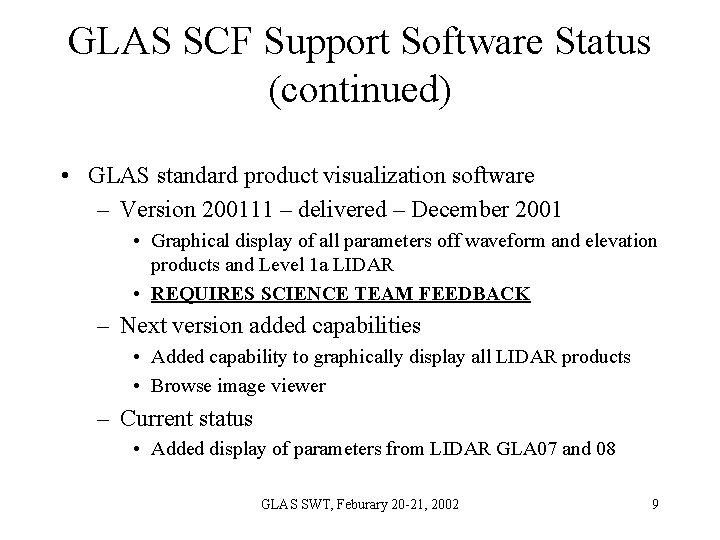

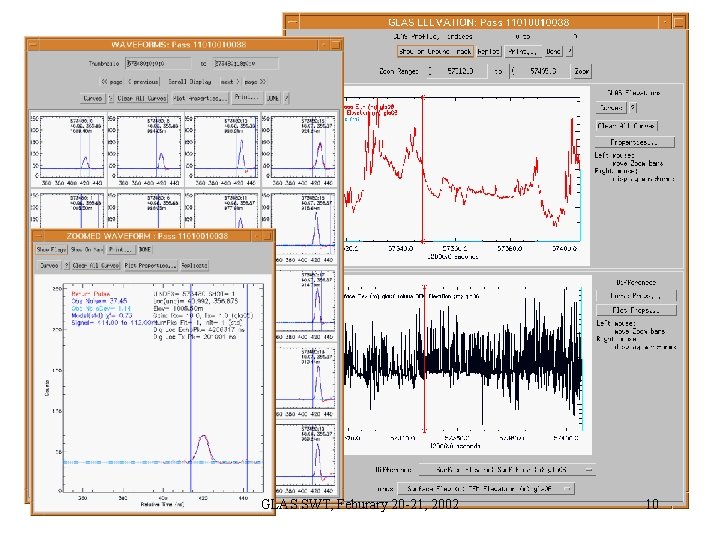

GLAS SCF Support Software Status (continued) • GLAS standard product visualization software – Version 200111 – delivered – December 2001 • Graphical display of all parameters off waveform and elevation products and Level 1 a LIDAR • REQUIRES SCIENCE TEAM FEEDBACK – Next version added capabilities • Added capability to graphically display all LIDAR products • Browse image viewer – Current status • Added display of parameters from LIDAR GLA 07 and 08 GLAS SWT, Feburary 20 -21, 2002 9

GLAS SWT, Feburary 20 -21, 2002 10

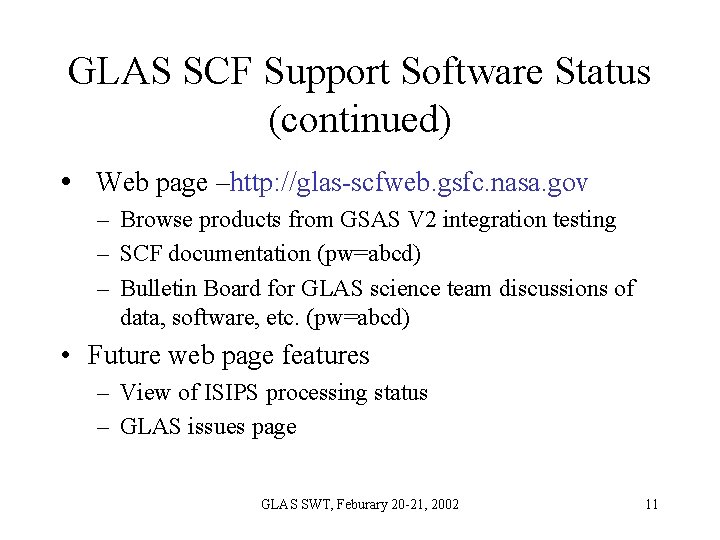

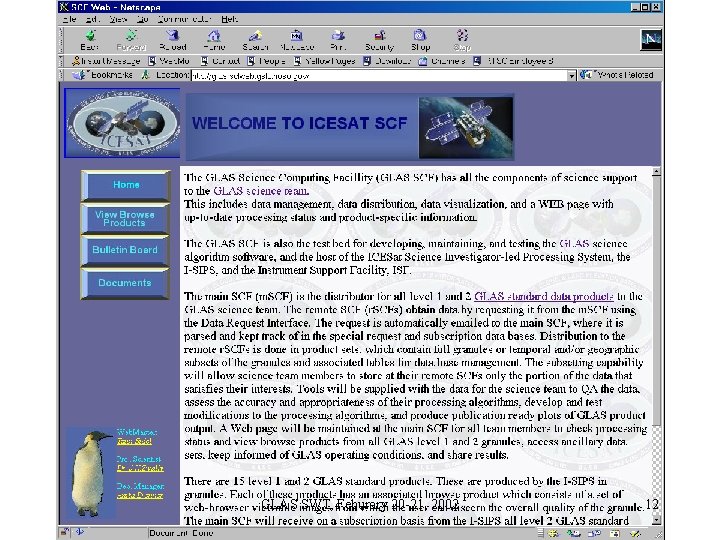

GLAS SCF Support Software Status (continued) • Web page –http: //glas-scfweb. gsfc. nasa. gov – Browse products from GSAS V 2 integration testing – SCF documentation (pw=abcd) – Bulletin Board for GLAS science team discussions of data, software, etc. (pw=abcd) • Future web page features – View of ISIPS processing status – GLAS issues page GLAS SWT, Feburary 20 -21, 2002 11

GLAS SWT, Feburary 20 -21, 2002 12

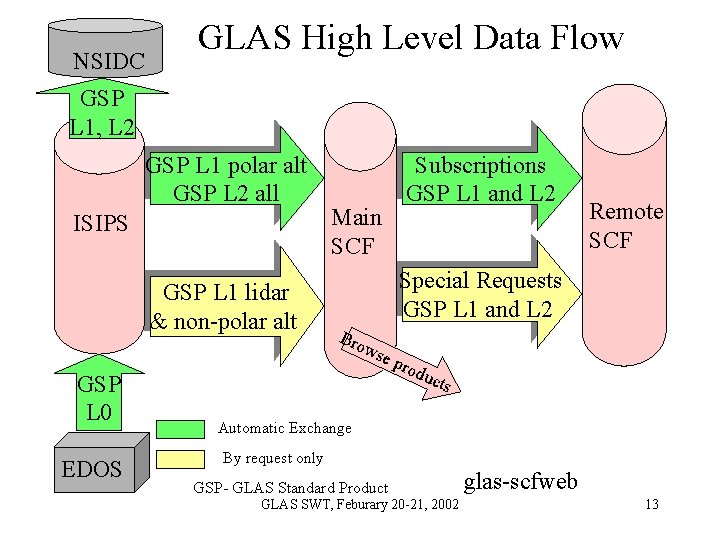

NSIDC GLAS High Level Data Flow GSP L 1, L 2 GSP L 1 polar alt GSP L 2 all ISIPS GSP L 1 lidar & non-polar alt Main SCF EDOS Remote SCF Special Requests GSP L 1 and L 2 Bro wse GSP L 0 Subscriptions GSP L 1 and L 2 pro duc ts Automatic Exchange By request only GSP- GLAS Standard Product GLAS SWT, Feburary 20 -21, 2002 glas-scfweb 13

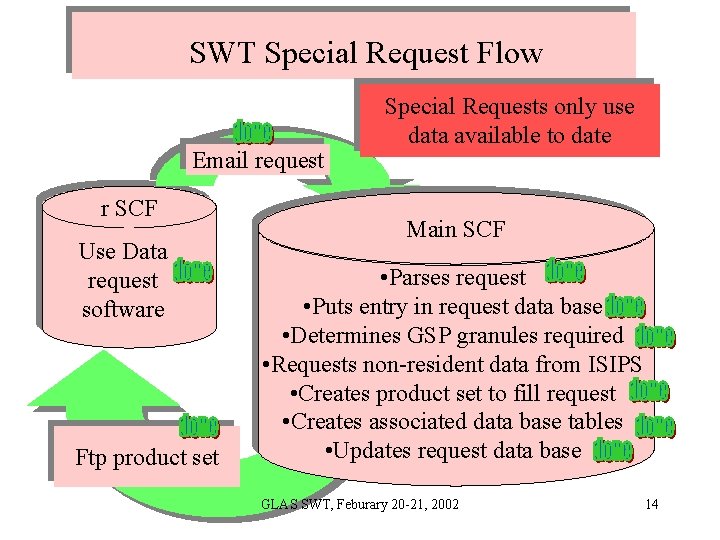

SWT Special Request Flow Email request r SCF Use Data request software Ftp product set Special Requests only use data available to date Main SCF • Parses request • Puts entry in request data base • Determines GSP granules required • Requests non-resident data from ISIPS • Creates product set to fill request • Creates associated data base tables • Updates request data base GLAS SWT, Feburary 20 -21, 2002 14

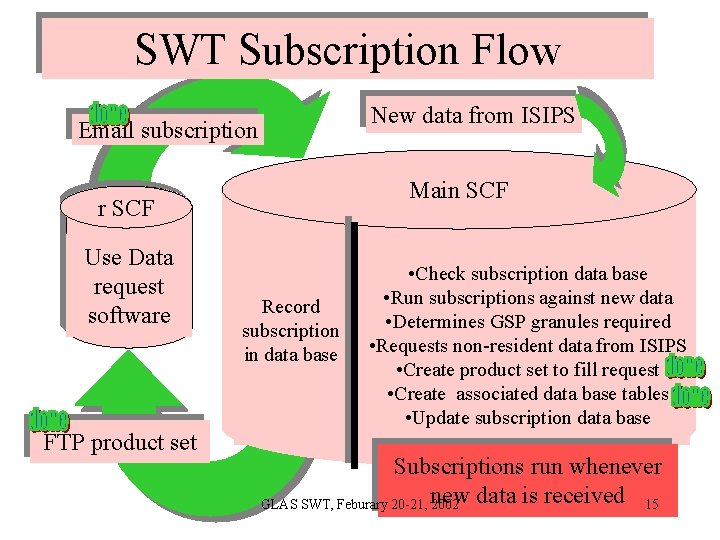

SWT Subscription Flow New data from ISIPS Email subscription Main SCF r SCF Use Data request software FTP product set Record subscription in data base • Check subscription data base • Run subscriptions against new data • Determines GSP granules required • Requests non-resident data from ISIPS • Create product set to fill request • Create associated data base tables • Update subscription data base Subscriptions run whenever GLAS SWT, Feburary 20 -21, new 2002 data is received 15

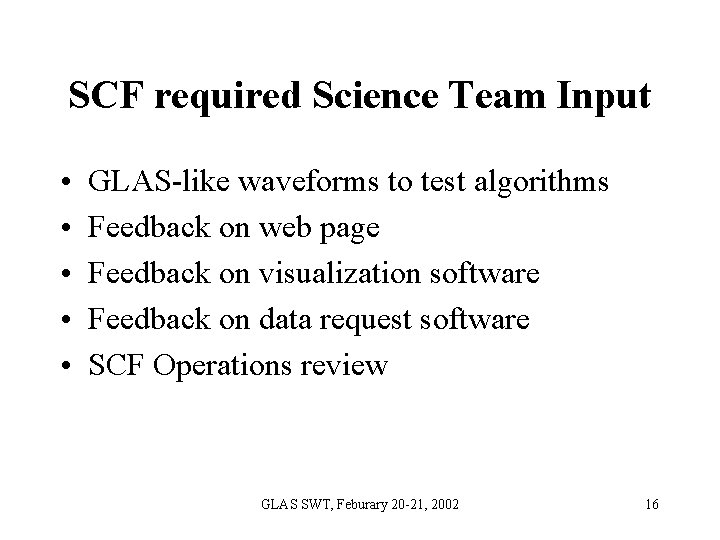

SCF required Science Team Input • • • GLAS-like waveforms to test algorithms Feedback on web page Feedback on visualization software Feedback on data request software SCF Operations review GLAS SWT, Feburary 20 -21, 2002 16

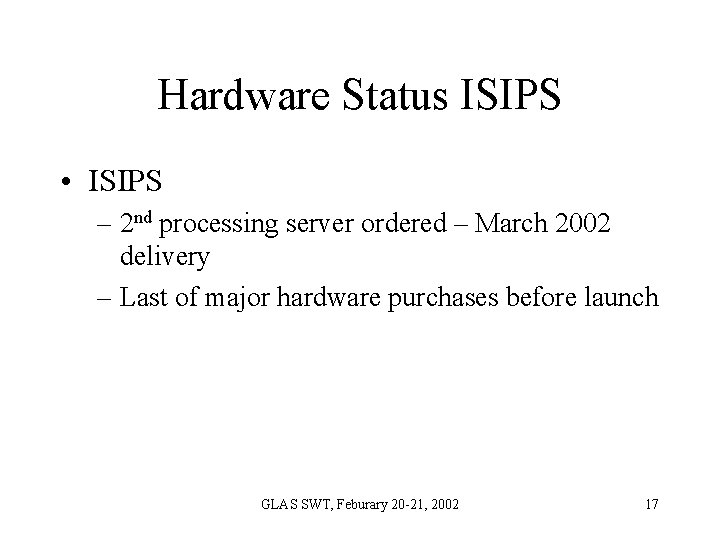

Hardware Status ISIPS • ISIPS – 2 nd processing server ordered – March 2002 delivery – Last of major hardware purchases before launch GLAS SWT, Feburary 20 -21, 2002 17

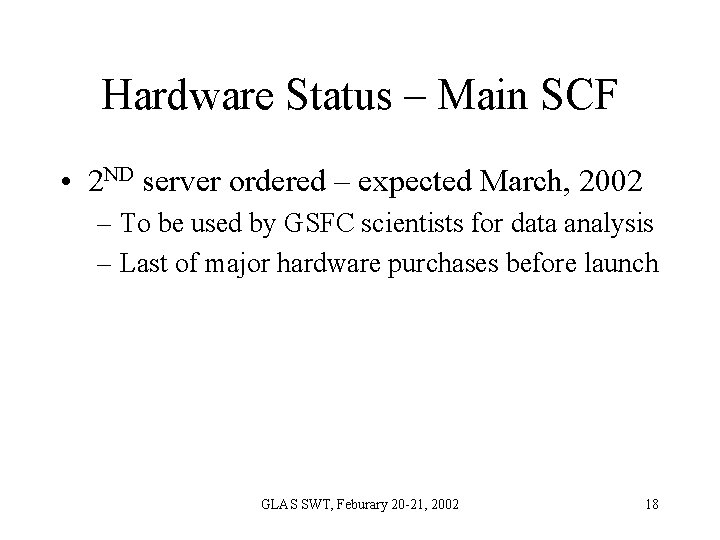

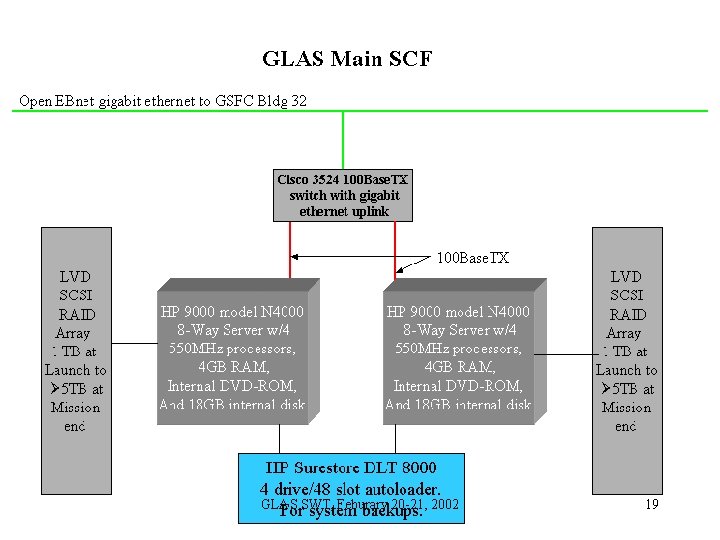

Hardware Status – Main SCF • 2 ND server ordered – expected March, 2002 – To be used by GSFC scientists for data analysis – Last of major hardware purchases before launch GLAS SWT, Feburary 20 -21, 2002 18

GLAS SWT, Feburary 20 -21, 2002 19

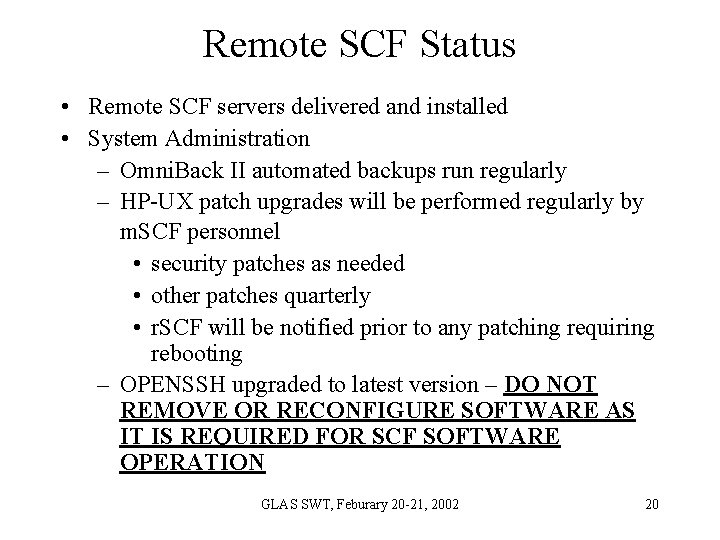

Remote SCF Status • Remote SCF servers delivered and installed • System Administration – Omni. Back II automated backups run regularly – HP-UX patch upgrades will be performed regularly by m. SCF personnel • security patches as needed • other patches quarterly • r. SCF will be notified prior to any patching requiring rebooting – OPENSSH upgraded to latest version – DO NOT REMOVE OR RECONFIGURE SOFTWARE AS IT IS REQUIRED FOR SCF SOFTWARE OPERATION GLAS SWT, Feburary 20 -21, 2002 20

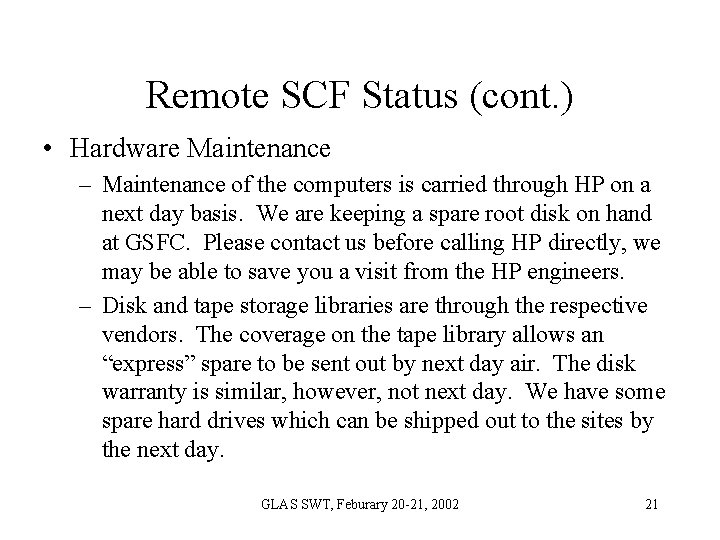

Remote SCF Status (cont. ) • Hardware Maintenance – Maintenance of the computers is carried through HP on a next day basis. We are keeping a spare root disk on hand at GSFC. Please contact us before calling HP directly, we may be able to save you a visit from the HP engineers. – Disk and tape storage libraries are through the respective vendors. The coverage on the tape library allows an “express” spare to be sent out by next day air. The disk warranty is similar, however, not next day. We have some spare hard drives which can be shipped out to the sites by the next day. GLAS SWT, Feburary 20 -21, 2002 21

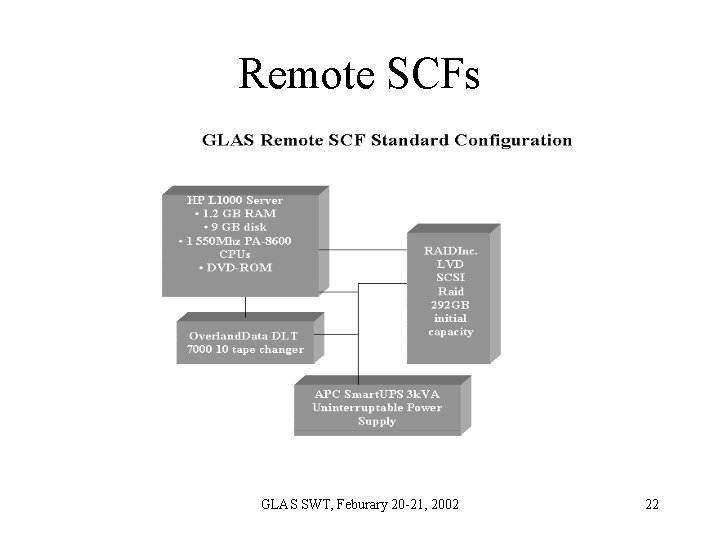

Remote SCFs GLAS SWT, Feburary 20 -21, 2002 22
