The Ice. Cube Detector ► Ice. Top: 80 Stations with 2 Tanks. 2 DOMs (HG and LG) per Ice-Cherenkov-Tank spacing: 10 m Station spacing: 125 m ► In. Ice: 80 Strings with 60 DOMs. Depth: 1450 – 2450 m Vertical spacing: ~17 m Expected completion in 2010/11 Tilo Waldenmaier RICAP Conference Rome June 21, 2007

Current Status (2007) ► 22 In. Ice Strings ► 26 Ice. Top Stations Data taking with new detector components started this month! Sunshades Station 56 Station 55 Station 46 Tilo Waldenmaier RICAP Conference Rome June 21, 2007

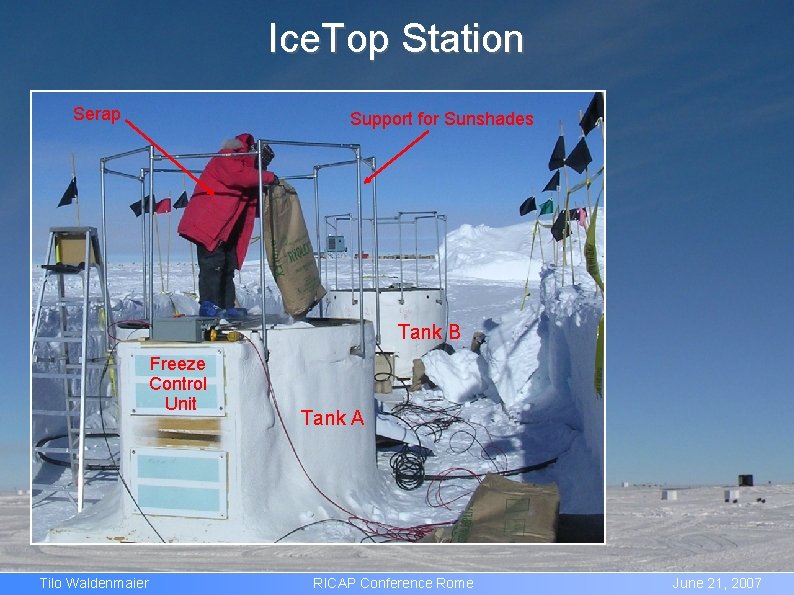

Ice. Top Station Serap Support for Sunshades Tank B Freeze Control Unit Tilo Waldenmaier Tank A RICAP Conference Rome June 21, 2007

Ice-Cherenkov Tanks Digital Optical Module Perlite LG DOM 0. 9 m HG DOM Array Charge Spectrum 0. 6 m Ice Diffuse reflective coating High Gain Low Gain 2. 0 m Tilo Waldenmaier RICAP Conference Rome June 21, 2007

Tank Calibration ► Vertical muons as “calibration light source” for tanks. ► Measurement of the tank charge spectra with special calibration runs. ► Determination of Full Spectrum Muon Peak. ► 1 Vertical Equivalent Muon (VEM) corresponds to ~ 95% of full spectrum peak charge. Photoelectrons Tilo Waldenmaier RICAP Conference Rome June 21, 2007

Air Shower Reconstruction Tilo Waldenmaier RICAP Conference Rome June 21, 2007

Angular & Core Resolution Sub-Array Analysis Tilo Waldenmaier RICAP Conference Rome ► Dividing array into two nearly identical subarrays of tanks A and B. ► Comparision of individual reconstructions. June 21, 2007

Angular & Core Resolution Sub-Array Analysis Measured and true σ's: Resolutions of 16 -stationarray for NStations > 5: ► Core: ~ 17 m ► Zenith Angle: ~ 1° ► Azimuth Angle: ~ 2° Precision will improve with larger array! Tilo Waldenmaier RICAP Conference Rome June 21, 2007

Lateral Distribution Signal fluctuations DLP-Function ICRC contribution of S. Klepser ► Lateral signal distribution in the tanks parametrized by Double Logarithmic Parabola (DLP). Tilo Waldenmaier Log-Likelihood fit RICAP Conference Rome assuming log-normally distributed signal fluctuations. June 21, 2007

Energy Estimation CORSIKA Simulation: ► Signal (S 100) at R 0=100 m is measure for the primary energy. ► CORSIKA simulations for different primary energies E 0 and zenith angles θ. Conversion formula: S 100(E 0, θ) → E 0(S 100, θ) Parameters pi follow from fit to simulation data. → ICRC Talk of S. Klepser Tilo Waldenmaier RICAP Conference Rome June 21, 2007

Raw Energy Spectrum Pr y ar in im el ICRC contribution of S. Klepser ► Not yet corrected for acceptance and detector response! ► Already reasonable values for absolute flux and spectral index. Tilo Waldenmaier RICAP Conference Rome June 21, 2007

Single Station – In. Ice Coincidences Single station rate for 16 station array: ~ 1. 2 Hz Providing tagged muons to test the detector performance and In. Ice reconstructions i. e. : Tilo Waldenmaier ► Detector timing ► In. Ice direction reconstruction. ► Measurement of muon background. RICAP Conference Rome June 21, 2007

Single Station – In. Ice Coincidences Detector timing: ► ► Direction reconstruction: Muon velocity from distances and time differences between station and In. Ice DOMs. Spread reflects timing, geometry and methodical uncertainties. → Timing better than 12 ns. (Measurement with flashers: 3 ns) Tilo Waldenmaier ICRC contribution of X. Bai ► Muon direction given by position of station and Center Of Gravity of In. Ice Signals. ► Comparison of In. Ice reconstruction to “known” muon direction. RICAP Conference Rome June 21, 2007

Ice. Top – In. Ice Coincidences Zenith Angle: 8. 6° Energy: ~ 7 Pe. V Tilo Waldenmaier RICAP Conference Rome June 21, 2007

Ice. Top – In. Ice Coincidences How to study composition with Ice. Cube Example plot from SPASE/AMANDA Simulation Reconstruction parameters: ► Ice. Top: S 100 Average signal at 100 m perp. distance to shower core. ► In. Ice: K 50 Average muon bundle light yield at 50 m perp. distance to shower axis at certain slant depth. ► Transformation into (A, E)plane or 2 D de-convolution enable composition study. from K. Rawlins Tilo Waldenmaier RICAP Conference Rome June 21, 2007

Summary & Outlook ► Ice. Top reconstruction works and improves steadily. ► Energy Spectrum still needs to be corrected for acceptance and detector response. ► Single station – In. Ice coincidences for detector and reconstruction checks. ► Ice. Top – In. Ice coincidences allow a study of the cosmic ray composition. ► Looking Tilo Waldenmaier forward to analyze 2007 data. RICAP Conference Rome June 21, 2007
