ICAO PBN Implementation Dave Van Ness PBN Implementation
ICAO PBN Implementation Dave Van. Ness PBN Implementation and Resource Development Coordinator ICAO Headquarters, Montreal 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 1

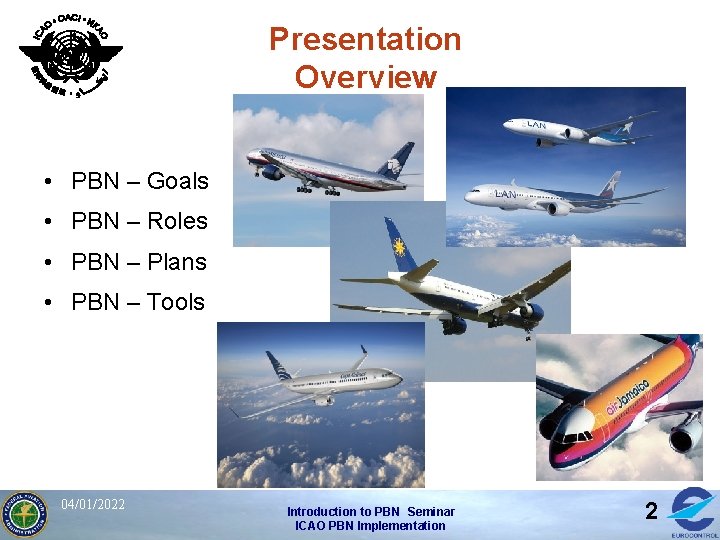

Presentation Overview • PBN – Goals • PBN – Roles • PBN – Plans • PBN – Tools 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 2
Setting The Framework Implementation of a Global ATM System Global Operational Outcomes and KPI GOO 5 : Optimized Airspace and Route Structures Demand vs. Capacity ? Cost CO 2 ? Emissions Directors, RDs and Chief of Offices Section / Unit Chiefs Airspace Organization and Management Programme Anx 6 Anx 11 PANS ATM AFI Project by Region ANP GM PIRG CAR/SAM PBN RNP-4 North South RNAV 5 route structure in enroute airspace APV approaches RNAV ot RNP SIDs/STARs Accountability Section / Unit Chiefs ASIA/PAC PBN RDs, TOs and ROs TCB Implementation Projects 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 3
Why Implement PBN? At a global level, • To reduce controlled flight into terrain (CFIT) • To increase efficiency • To increase capacity • To increase aerodrome access • To address environmental issues 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 4

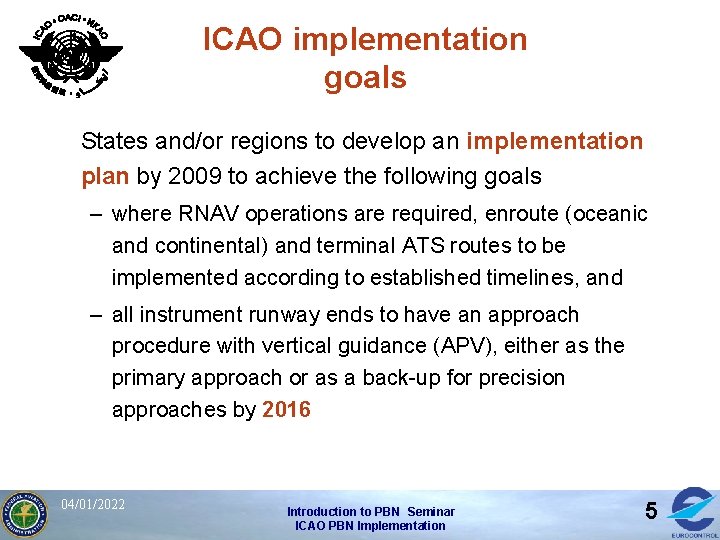

ICAO implementation goals States and/or regions to develop an implementation plan by 2009 to achieve the following goals – where RNAV operations are required, enroute (oceanic and continental) and terminal ATS routes to be implemented according to established timelines, and – all instrument runway ends to have an approach procedure with vertical guidance (APV), either as the primary approach or as a back-up for precision approaches by 2016 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 5
PBN implementation goals Enroute airspace (where RNAV ops required) Area of operation: Oceanic and remote airspace – Applicable navigation specifications: RNAV 10 and RNP 4 – Establish a timeline for implementation in accordance with State requirements Area of operation: Enroute continental – Applicable navigation specifications: RNAV 5, 2, and 1 – Establish a timeline for implementation in accordance with State requirements 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 6
PBN Implementation Goals Terminal airspace (where RNAV ops required) • Area of operation: Terminal area – Applicable navigation specifications: RNAV 1, 2 and Basic-RNP 1 – Establish a timeline for implementation in accordance with State requirements 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 7
PBN implementation goals Approach Area of operation: Approach (RNP) • Applicable navigation specifications: – RNP APCH – RNP AR APCH (if normal straight-in approach is operationally not feasible) • Implementation strategy: – All instrument runways: Ø RNP APCH with Baro-VNAV (or APV I/II) to all runway ends by 2016 Ø RNP APCH where RNP APCH with Baro-VNAV is operationally not possible – All other runways serving aircraft > 5700 kg Ø RNP APCH with Baro-VNAV (or APV I/II) to all runway ends according to an established timeline Ø RNP APCH where RNP APCH with Baro-VNAV is operationally not possible 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 8

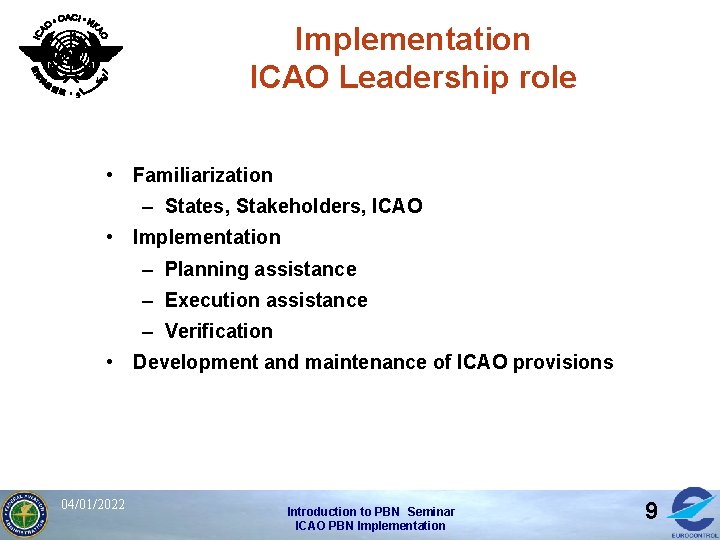

Implementation ICAO Leadership role • Familiarization – States, Stakeholders, ICAO • Implementation – Planning assistance – Execution assistance – Verification • Development and maintenance of ICAO provisions 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 9
Implementation Role: ICAO Headquarters • Organize seminars • Website for info/FAQ on PBN (www. icao. int/pbn) • Assist in PIRGs with setting PBN goals and developing regional PBN implementation plans “PBN Roadmaps” • Coordinate and assist in PBN implementation planning and execution – (sub) Regions – States and other stakeholders • Identify and address follow-on training needs and other potential obstacles to implementation 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 10

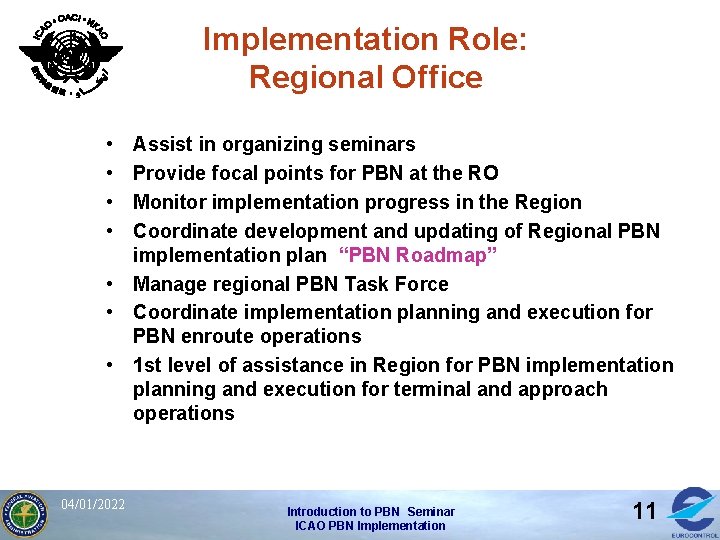

Implementation Role: Regional Office • • Assist in organizing seminars Provide focal points for PBN at the RO Monitor implementation progress in the Region Coordinate development and updating of Regional PBN implementation plan “PBN Roadmap” • Manage regional PBN Task Force • Coordinate implementation planning and execution for PBN enroute operations • 1 st level of assistance in Region for PBN implementation planning and execution for terminal and approach operations 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 11
Implementation Role: States • Participate in development and refinement of Regional PBN implementation plan “PBN Roadmap” • Develop State PBN implementation plan by the end of 2009 • Provide focal point for PBN implementation • Involve other stakeholders in PBN implementation • Identify issues or “Showstoppers” that could delay implementation, and relay to ICAO • WGS 84 is a “Showstopper” if not done 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 13
State PBN Implementation Plan This guidance to stakeholders should: • Address the planned evolution of navigation, as one of the key systems supporting air traffic management, • Describe the RNAV and RNP navigation applications that should be implemented in at least the short and medium term, in the State 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 14

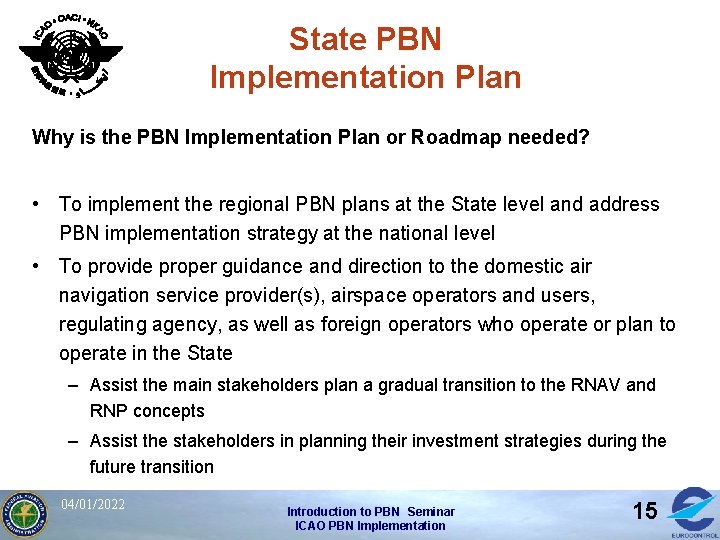

State PBN Implementation Plan Why is the PBN Implementation Plan or Roadmap needed? • To implement the regional PBN plans at the State level and address PBN implementation strategy at the national level • To provide proper guidance and direction to the domestic air navigation service provider(s), airspace operators and users, regulating agency, as well as foreign operators who operate or plan to operate in the State – Assist the main stakeholders plan a gradual transition to the RNAV and RNP concepts – Assist the stakeholders in planning their investment strategies during the future transition 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 15
Implementation Role: Stakeholders • Cooperate with States in their planning and implementation • Commit the resources necessary to carry out their part of the strategy for regional and State implementation 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 16

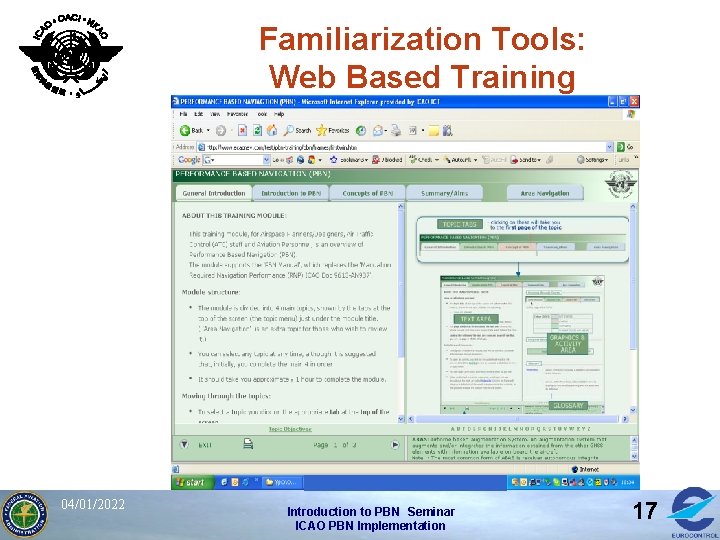

Familiarization Tools: Web Based Training 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 17
Familiarization Tools: “Introduction to PBN” Seminars Montreal June 07 Santo Domingo 23 -26 June 2008 Lima 17 -20 June 2008 04/01/2022 Paris April 08 Baku April 08 Cairo Nov 2007 Abuja Jan 08 Bangkok Sept 2007 New Delhi Sept 07 Nairobi? 8 -11 Sept 08 Introduction to PBN Seminar ICAO PBN Implementation 18

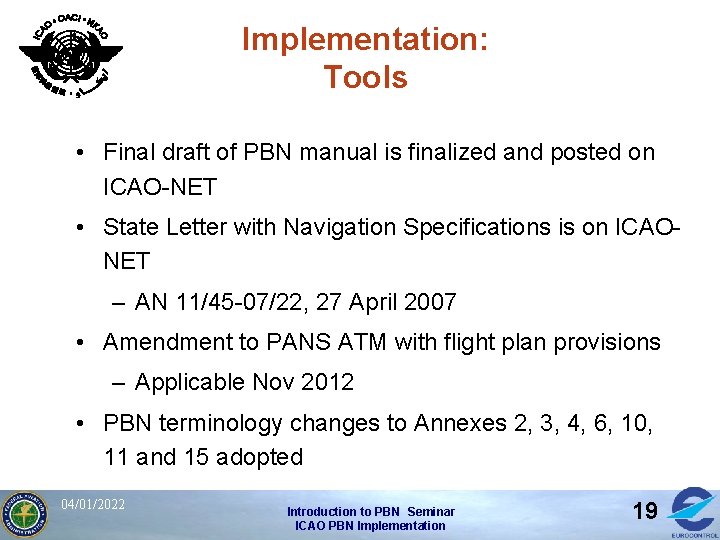

Implementation: Tools • Final draft of PBN manual is finalized and posted on ICAO-NET • State Letter with Navigation Specifications is on ICAONET – AN 11/45 -07/22, 27 April 2007 • Amendment to PANS ATM with flight plan provisions – Applicable Nov 2012 • PBN terminology changes to Annexes 2, 3, 4, 6, 10, 11 and 15 adopted 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 19
Implementation: Tools • Draft ICAO RNP AR Procedure Design Manual (Doc 9905) on ICAO-NET and public PBN web site now • ICAO Quality Assurance Manual for Flight Procedure Design (Doc 9906) - consists of four volumes (3 on the ICAO-NET and PBN public web site now: – Volume 1 – Flight Procedure Design Quality Assurance System; – Volume 2 – Flight Procedure Designer Training; – Volume 3 – Flight Procedure Design Software Validation; • State implementation plan template • Implementation checklist 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 20

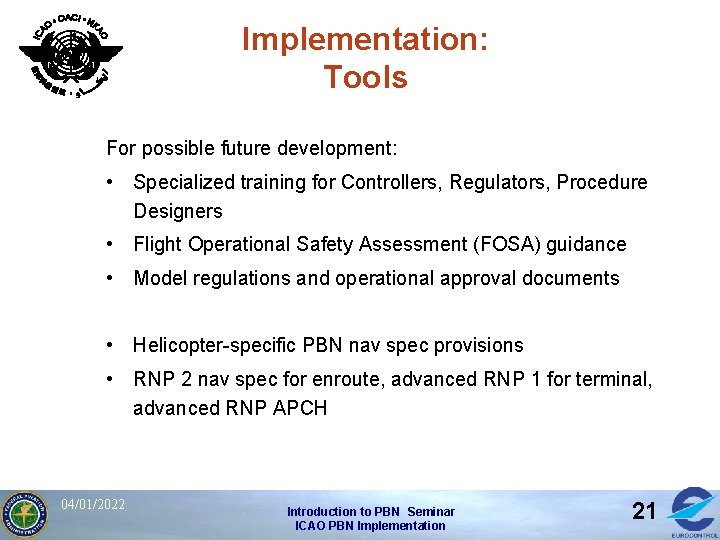

Implementation: Tools For possible future development: • Specialized training for Controllers, Regulators, Procedure Designers • Flight Operational Safety Assessment (FOSA) guidance • Model regulations and operational approval documents • Helicopter-specific PBN nav spec provisions • RNP 2 nav spec for enroute, advanced RNP 1 for terminal, advanced RNP APCH 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 21

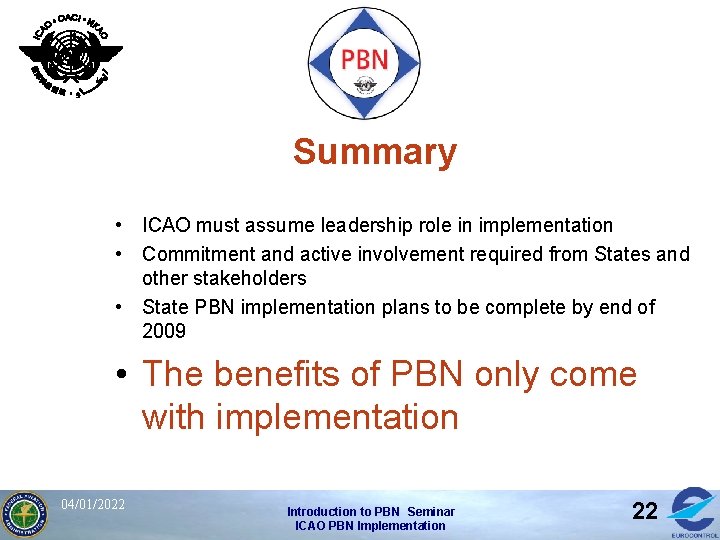

Summary • ICAO must assume leadership role in implementation • Commitment and active involvement required from States and other stakeholders • State PBN implementation plans to be complete by end of 2009 • The benefits of PBN only come with implementation 04/01/2022 Introduction to PBN Seminar ICAO PBN Implementation 22
