ICAO Aviation Language Proficiency Requirements The Background Captain
ICAO Aviation Language Proficiency Requirements – The Background Captain Daniel Maurino Flight Safety and Human Factors, ICAO ASPA/ICAO CAR/SAM Regional Seminar on Safety Management Systems (SMS) Mexico City, 14 to 16 March 2005
Resolution A 32 -16 (1998) “…Council & Commission… strengthen provisions. . . obligating Contracting States to take steps to ensure that air traffic controllers and flight crews involved in flight operations in airspace where the use of the English language is required, are proficient in conducting and comprehending radiotelephony
Air-Ground Communications A long standing safety concern Ø Conventional wisdom – Two pillars ü standardized phraseology ü development of R/T speech based on simplified English Ø Moderate success

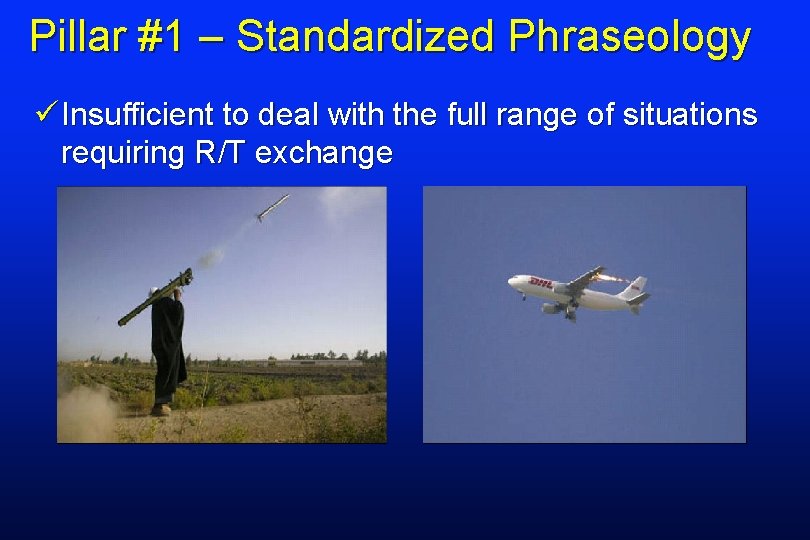

Pillar #1 – Standardized Phraseology ü Insufficient to deal with the full range of situations requiring R/T exchange
Pillar # 2 – R/T Based Upon Simplified English Annex 1, pre-1998 ØATCO’s: “… speak the languages designated for use in air traffic control without accent or impediment which could adversely affect communication” ØPilots: nothing
Air-Ground Communications Revisited A 32 -16 – The need for a fresh view Ø Development of Standards ü strengthening the use of standard phraseology ü clarifying usage of English in aviation operations ü establishing language proficiency requirements Ø The Price SG

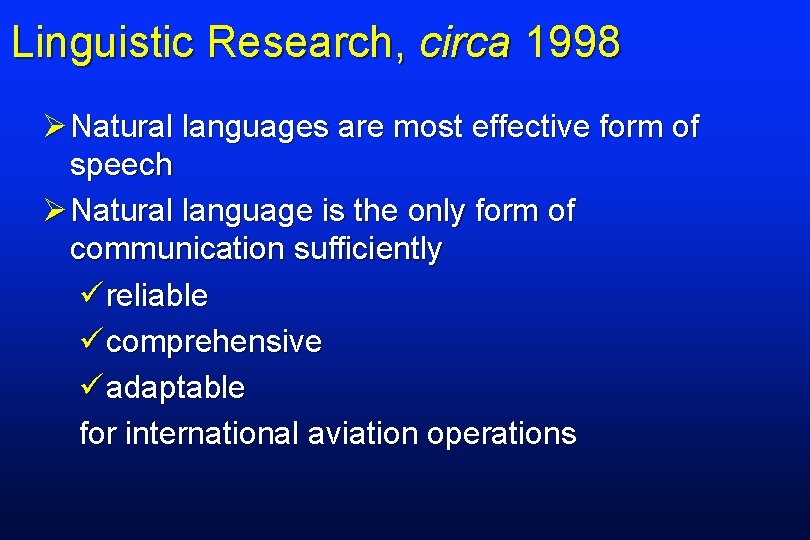

Linguistic Research, circa 1998 ØNatural languages are most effective form of speech ØNatural language is the only form of communication sufficiently ü reliable ü comprehensive ü adaptable for international aviation operations
PRICE Study Group – Premises 1. Make Standards acceptable to the target group(s)? 2. Allocate responsibility to airline operators and air navigation service providers? 3. Optimize interface between Standards and input from commercial training & testing providers? 4. Frame Standards that can be easily integrated into State regulatory frame works?
PRICE SG conclusions (1) Ø Standardized phraseology – First line of defence Ø Plain language – Second line of defence [for the full range of aeronautical R/T communication] Ø Exchange of critical operational information requires ü understanding of the fundamentals of linguistics ü appreciation of the susceptibility of language to misapprehension
PRICE SG conclusions (2) ØUniversal availability of one means of radiotelephony communication – important for safety and efficiency ØLack of a language common to flight crew and ground stations – safety concern ØNeed to retain the language used by stations on the ground
PRICE SG conclusions (3) Ø Similar proficiency requirements for pilots and controllers Ø A single minimum standard for the entire target group Ø Airline operators/ATS providers responsible for ensuring target group proficiency requirements
PRICE SG conclusions (4) ØHeavy impact of the Standards in the aviation Ø“Do-able” if ü extensive guidance material ü education & awareness programs worldwide ü staff support activities by operators ü increased compliance with ICAO standardized phraseology ü commitment
Clarifying Usage of “Aviation” English ØNo silver bullet for all R/T communication problems ü blocked transmissions ü not all aircraft on frequency ü controllers hand-over blocks of airspace to third parties ü crews workload disallows constant monitoring ØEnhances management of the immediate operational context üIf everyone is English-proficient
“Aviation” English Ø Does not belong to a particular culture Ø A tool for controllers & pilots [as a matter of convenience] Ø Has no special inherent qualities Ø Most accessible of all second languages ü can be successfully integrated into training programs in
Language proficiency requirements Ø Ø Ø Annex 1 – Personnel Licensing Annex 6 – Operation of Aircraft Annex 10 – Aeronautical Communications Ø Annex 11 – Air Traffic Services
Annex 1 Personnel Licensing Ø Demonstrate the ability to speak and understand the language used for radiotelephony communications Ø The Rating Scale and Holistic Descriptors Ø The “speak and understand” ability shall be demonstrated to level 4 of the ICAO rating scale
Annex 1 Implementation Notes Ø Language proficiency requirements apply to pilots engaged in international flights Ø Recurrent testing shall be required for those below level 6 ü every 3 years for level 4 ü every 6 years for level 5 Ø Grandfather clause for licences issued before 5 March 2004 ü 5 March 2008
Annex 1 Other Aspects Ø Manual on the Implementation of ICAO Language Proficiency Requirements (Doc 9835) Ø Review of progress in the implementation of the Language proficiency Standards in 2006 Ø Consequences of non-compliance with the language proficiency Standards
Annex 6 – Operation of Aircraft, Parts I and III Ø Operators shall ensure that flight crews speak and understand the language used for radiotelephony communications
Annex 10 Aeronautical Telecommunications Ø Plain language shall be used only when standardized phraseology cannot serve an intended transmission Ø Communications shall be conducted in the language normally used by the station on the ground or in the English language Ø English shall be available, on request from any aircraft station, at all airports and routes used by international air services

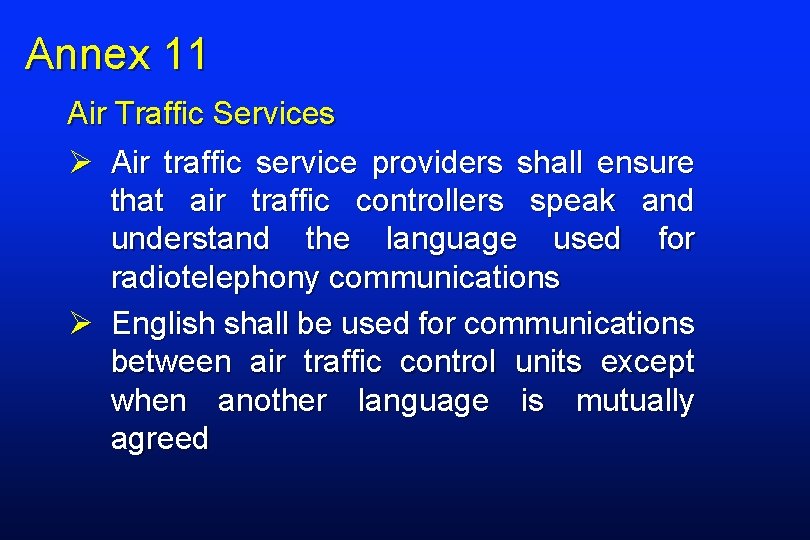

Annex 11 Air Traffic Services Ø Air traffic service providers shall ensure that air traffic controllers speak and understand the language used for radiotelephony communications Ø English shall be used for communications between air traffic control units except when another language is mutually agreed
ICAO Audits The ICAO Universal Safety Oversight Audit Programme Ø Language proficiency Standards in Annexes 1, 6, 10 and 11 starting in 2005
Language Proficiency: The Trail of Wreckage Ø Trident/DC-9 mid-air collision, Zagreb -1976 Ø Double B 747 runway collision, Tenerife 1977 Ø B 707 fuel exhaustation, JFK - 1990 Ø B 757 CFIT, Cali - 1995 Ø IL-76/B 747 mid-air collision, India - 1996 Ø MD 83/Shorts 330 runway collision, Paris/CDG -2000 Øü MD 80/Citation runway collision, Milan 2001 The common element: English language proficie Ø… Source: ADREP
From an SMS Perspective: A Hazard Passenger management ATC Terrain Cabin Crew Weather Similar call signs Time pressure Maintenance Ground Crew Flight diversions Heavy traffic Unfamiliar airports Automation events System malfunctions Missed approaches
