IBM zVM Module 13 System Integrity and High

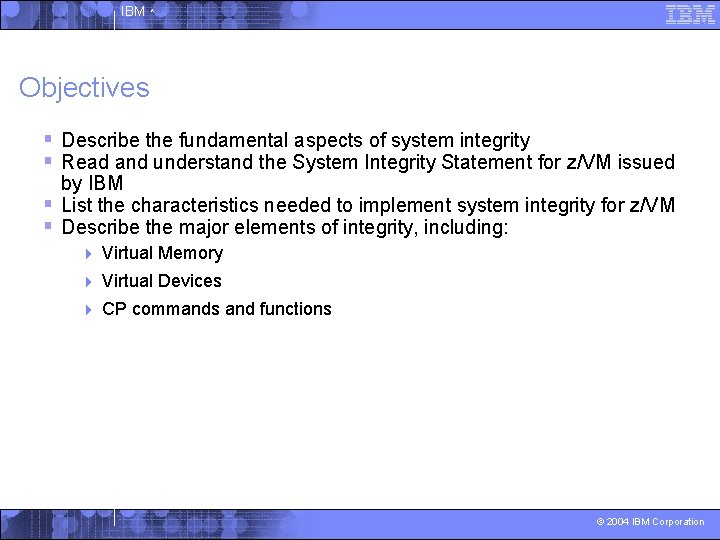

IBM ^ Objectives § Describe the fundamental aspects of system integrity § Read and understand the System Integrity Statement for z/VM issued by IBM § List the characteristics needed to implement system integrity for z/VM § Describe the major elements of integrity, including: 4 Virtual Memory 4 Virtual Devices 4 CP commands and functions © 2004 IBM Corporation

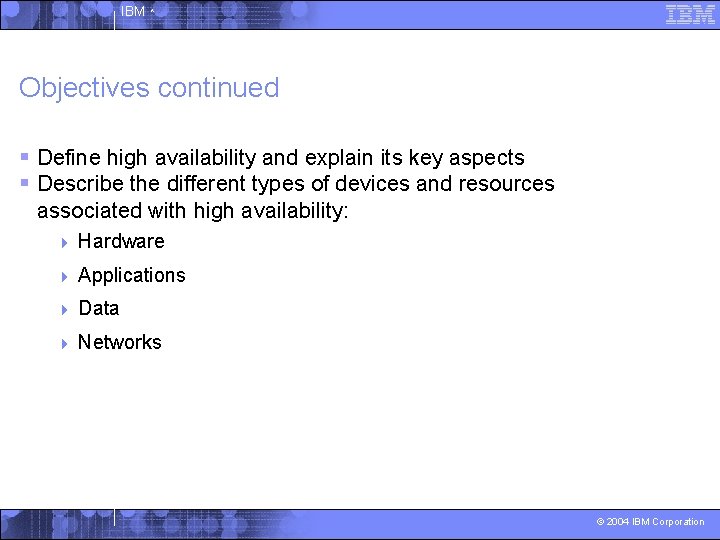

IBM ^ Objectives continued § Define high availability and explain its key aspects § Describe the different types of devices and resources associated with high availability: 4 Hardware 4 Applications 4 Data 4 Networks © 2004 IBM Corporation

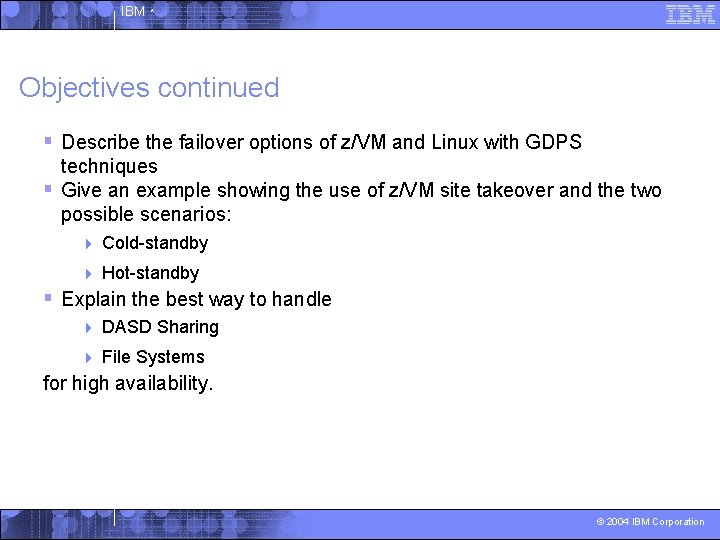

IBM ^ Objectives continued § Describe the failover options of z/VM and Linux with GDPS techniques § Give an example showing the use of z/VM site takeover and the two possible scenarios: 4 Cold-standby 4 Hot-standby § Explain the best way to handle 4 DASD Sharing 4 File Systems for high availability. © 2004 IBM Corporation

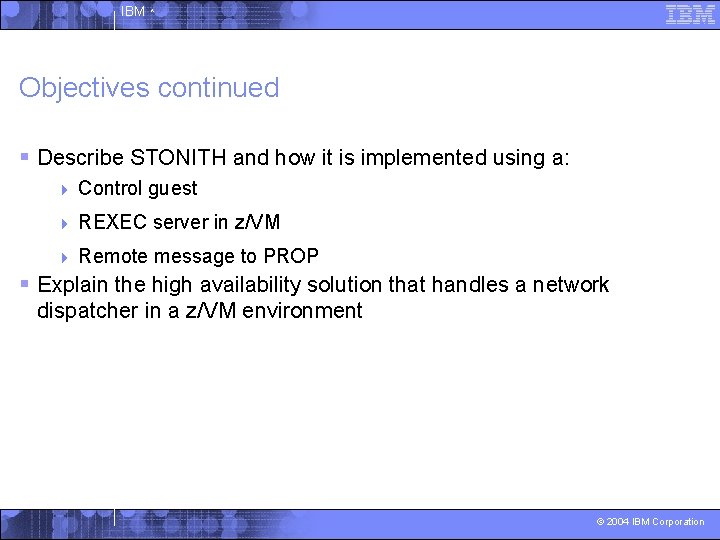

IBM ^ Objectives continued § Describe STONITH and how it is implemented using a: 4 Control guest 4 REXEC server in z/VM 4 Remote message to PROP § Explain the high availability solution that handles a network dispatcher in a z/VM environment © 2004 IBM Corporation

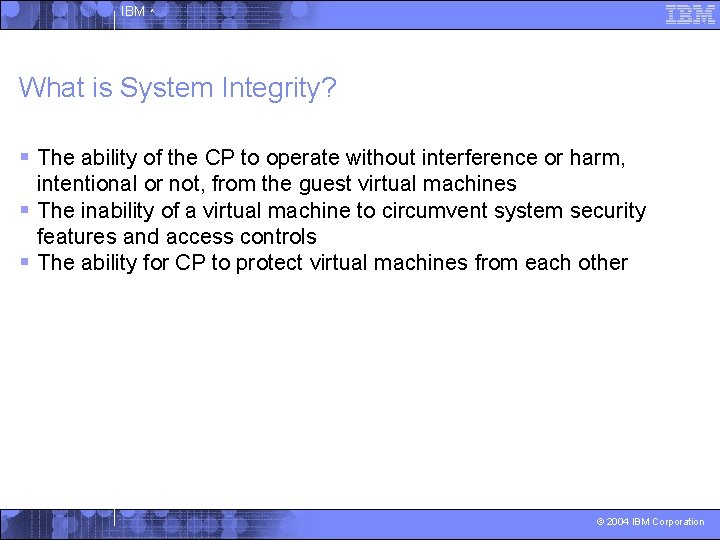

IBM ^ What is System Integrity? § The ability of the CP to operate without interference or harm, intentional or not, from the guest virtual machines § The inability of a virtual machine to circumvent system security features and access controls § The ability for CP to protect virtual machines from each other © 2004 IBM Corporation

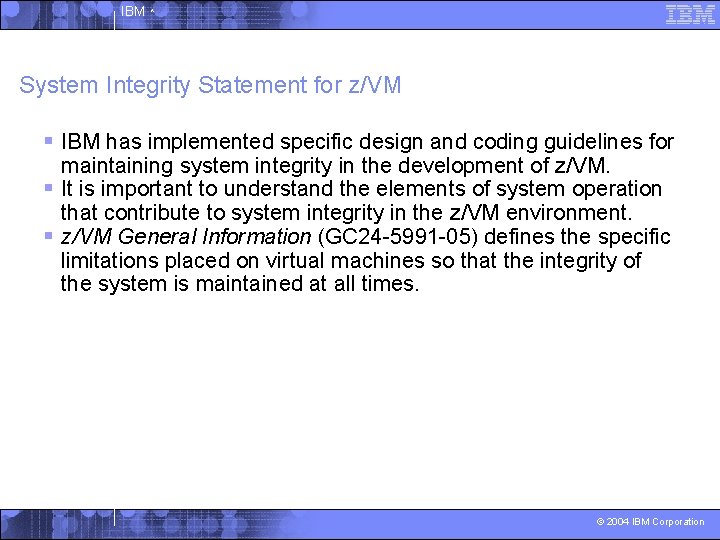

IBM ^ System Integrity Statement for z/VM § IBM has implemented specific design and coding guidelines for maintaining system integrity in the development of z/VM. § It is important to understand the elements of system operation that contribute to system integrity in the z/VM environment. § z/VM General Information (GC 24 -5991 -05) defines the specific limitations placed on virtual machines so that the integrity of the system is maintained at all times. © 2004 IBM Corporation

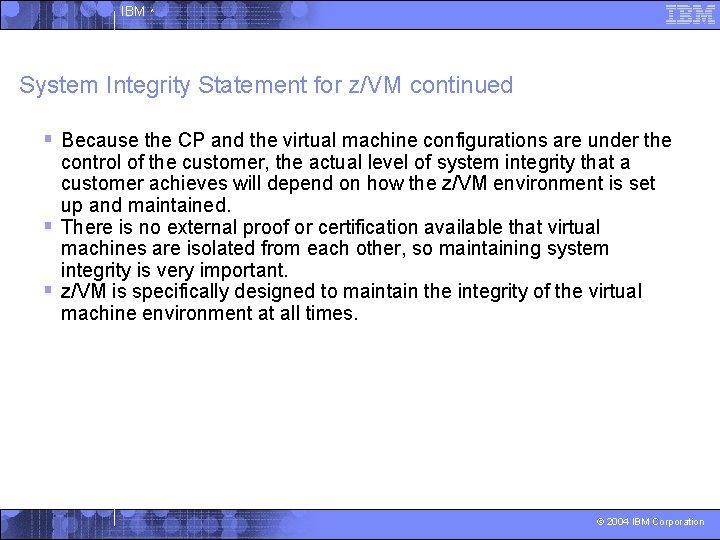

IBM ^ System Integrity Statement for z/VM continued § Because the CP and the virtual machine configurations are under the control of the customer, the actual level of system integrity that a customer achieves will depend on how the z/VM environment is set up and maintained. § There is no external proof or certification available that virtual machines are isolated from each other, so maintaining system integrity is very important. § z/VM is specifically designed to maintain the integrity of the virtual machine environment at all times. © 2004 IBM Corporation

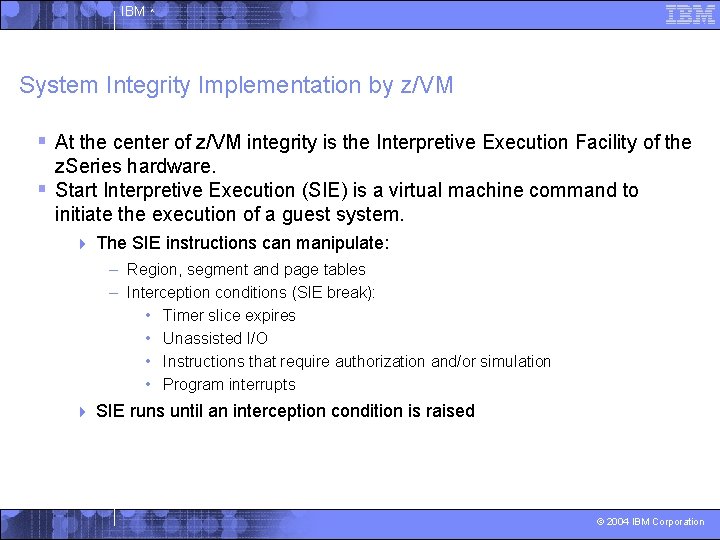

IBM ^ System Integrity Implementation by z/VM § At the center of z/VM integrity is the Interpretive Execution Facility of the z. Series hardware. § Start Interpretive Execution (SIE) is a virtual machine command to initiate the execution of a guest system. 4 The SIE instructions can manipulate: – Region, segment and page tables – Interception conditions (SIE break): • Timer slice expires • Unassisted I/O • Instructions that require authorization and/or simulation • Program interrupts 4 SIE runs until an interception condition is raised © 2004 IBM Corporation

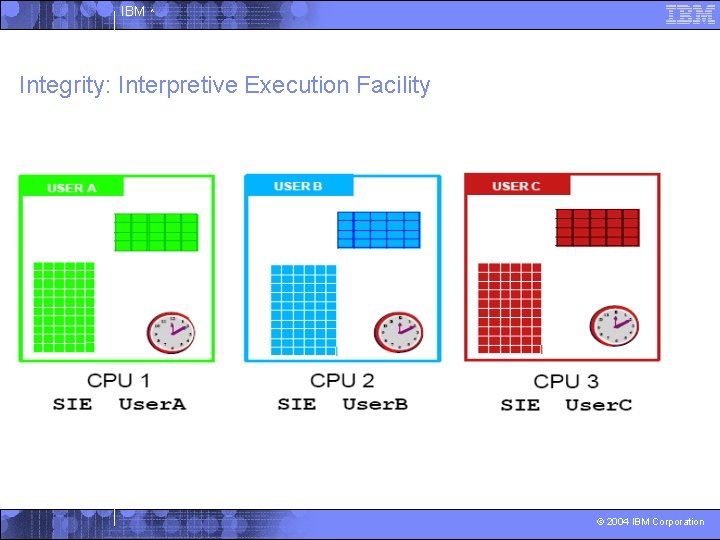

IBM ^ Integrity: Interpretive Execution Facility © 2004 IBM Corporation

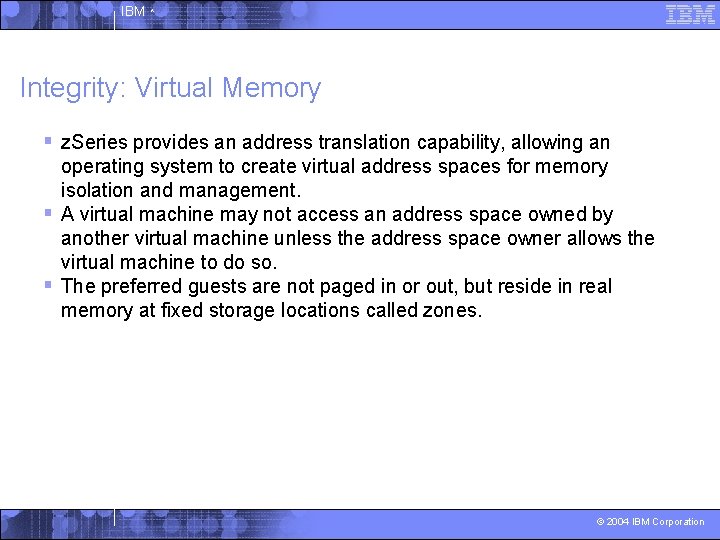

IBM ^ Integrity: Virtual Memory § z. Series provides an address translation capability, allowing an operating system to create virtual address spaces for memory isolation and management. § A virtual machine may not access an address space owned by another virtual machine unless the address space owner allows the virtual machine to do so. § The preferred guests are not paged in or out, but reside in real memory at fixed storage locations called zones. © 2004 IBM Corporation

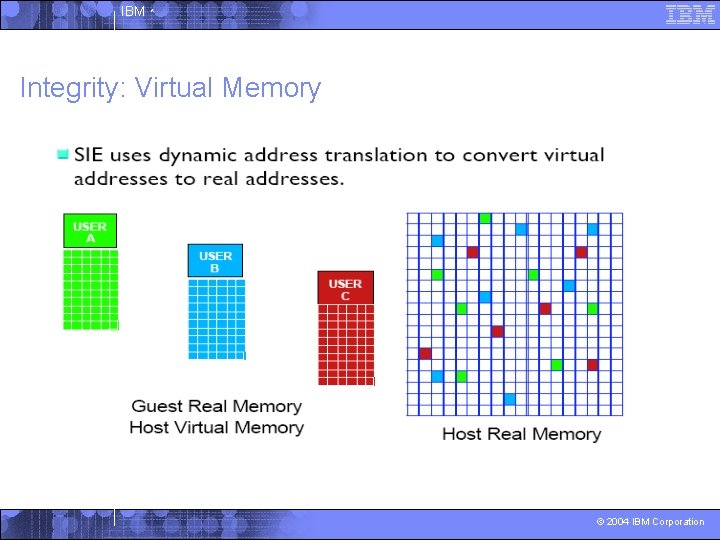

IBM ^ Integrity: Virtual Memory © 2004 IBM Corporation

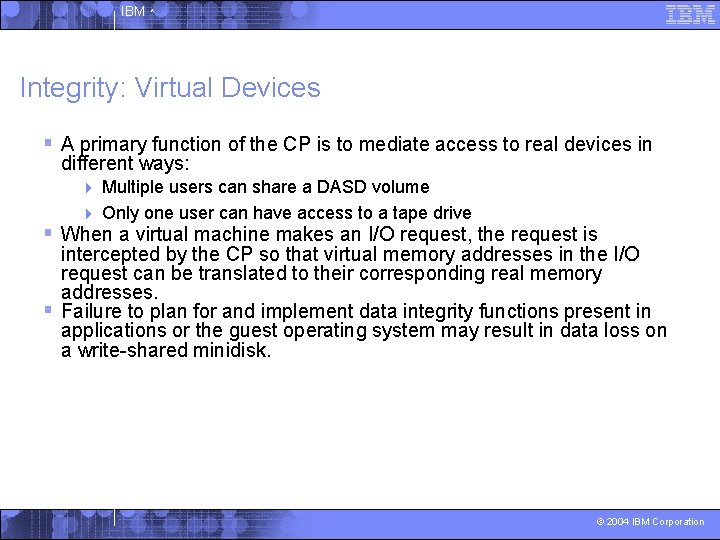

IBM ^ Integrity: Virtual Devices § A primary function of the CP is to mediate access to real devices in different ways: Multiple users can share a DASD volume 4 Only one user can have access to a tape drive 4 § When a virtual machine makes an I/O request, the request is intercepted by the CP so that virtual memory addresses in the I/O request can be translated to their corresponding real memory addresses. § Failure to plan for and implement data integrity functions present in applications or the guest operating system may result in data loss on a write-shared minidisk. © 2004 IBM Corporation

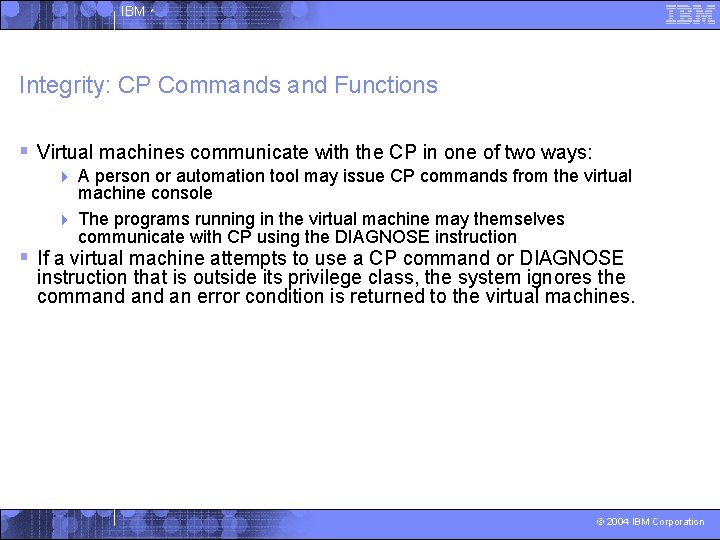

IBM ^ Integrity: CP Commands and Functions § Virtual machines communicate with the CP in one of two ways: A person or automation tool may issue CP commands from the virtual machine console 4 The programs running in the virtual machine may themselves communicate with CP using the DIAGNOSE instruction 4 § If a virtual machine attempts to use a CP command or DIAGNOSE instruction that is outside its privilege class, the system ignores the command an error condition is returned to the virtual machines. © 2004 IBM Corporation

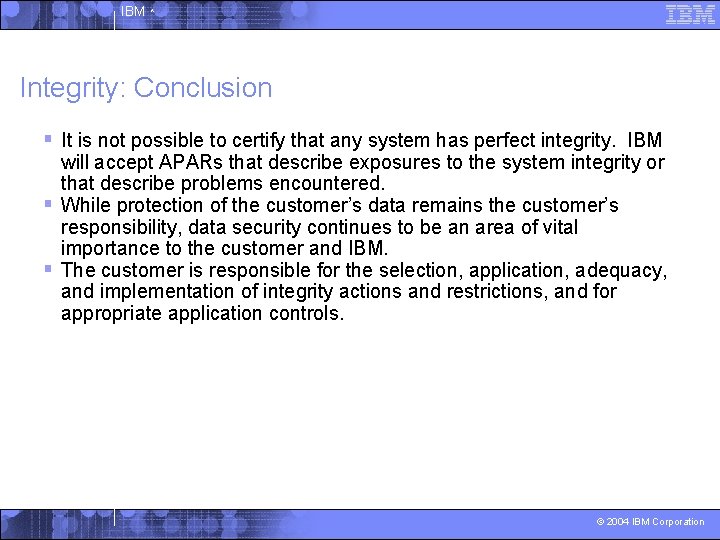

IBM ^ Integrity: Conclusion § It is not possible to certify that any system has perfect integrity. IBM will accept APARs that describe exposures to the system integrity or that describe problems encountered. § While protection of the customer’s data remains the customer’s responsibility, data security continues to be an area of vital importance to the customer and IBM. § The customer is responsible for the selection, application, adequacy, and implementation of integrity actions and restrictions, and for appropriate application controls. © 2004 IBM Corporation

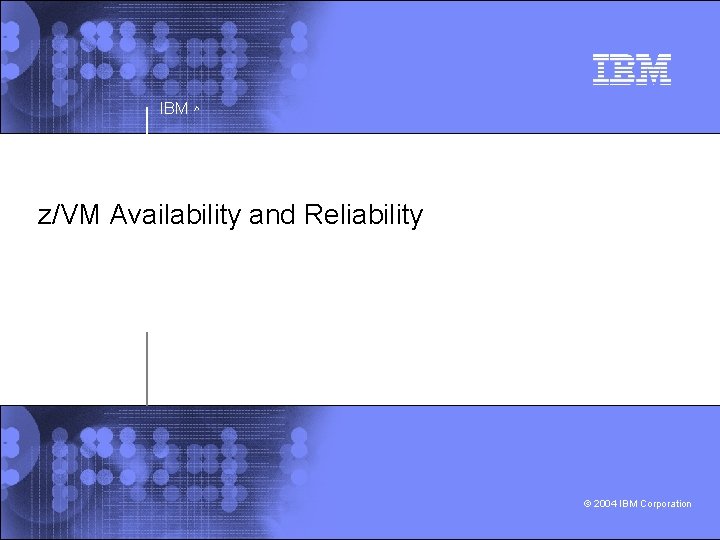

IBM ^ z/VM Availability and Reliability © 2004 IBM Corporation

IBM ^ Availability: Introduction § Maintaining maximum system uptime is becoming increasingly critical to business success. § Linux for z. Series inherits the hardware’s reliability, but software faults can still cause outages. § No high-availability products currently exist that cover both Linux and z/VM requirements; only Linux high availability products are available today. © 2004 IBM Corporation

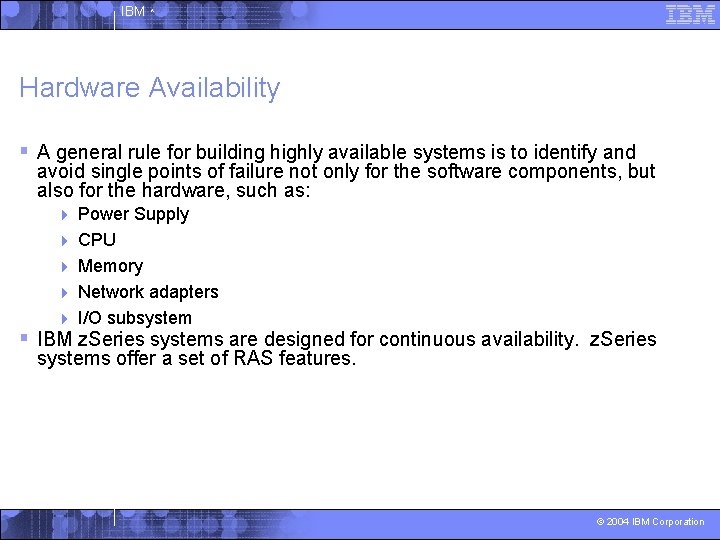

IBM ^ Hardware Availability § A general rule for building highly available systems is to identify and avoid single points of failure not only for the software components, but also for the hardware, such as: 4 4 4 Power Supply CPU Memory Network adapters I/O subsystem § IBM z. Series systems are designed for continuous availability. z. Series systems offer a set of RAS features. © 2004 IBM Corporation

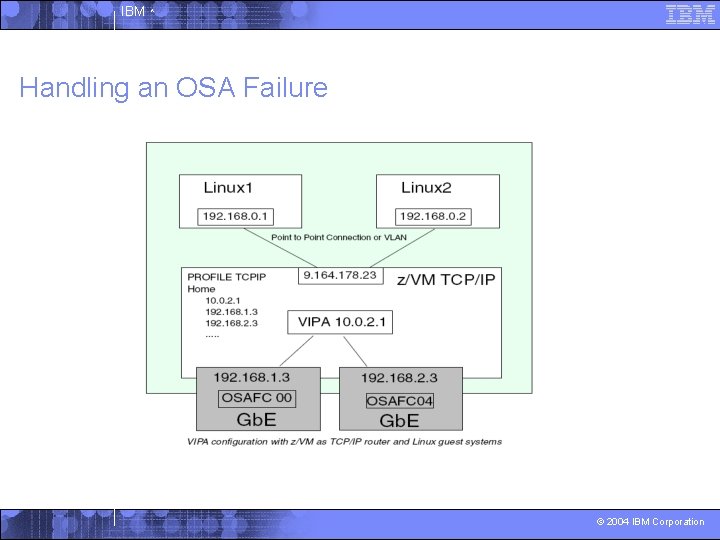

IBM ^ Handling an OSA Failure © 2004 IBM Corporation

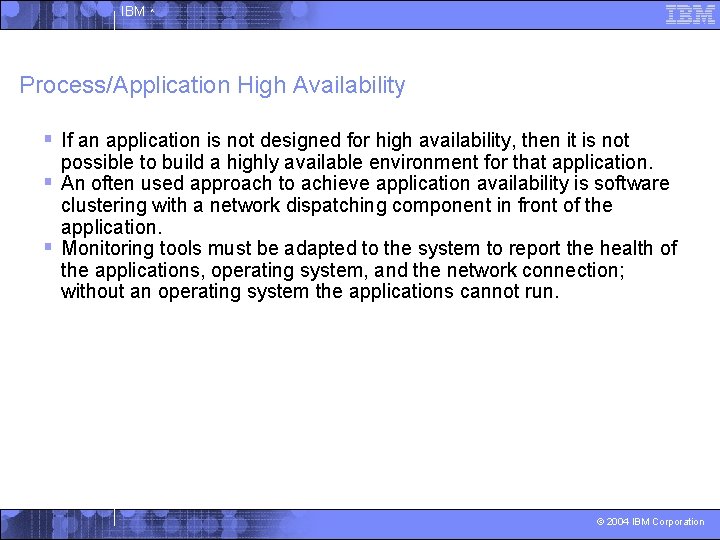

IBM ^ Process/Application High Availability § If an application is not designed for high availability, then it is not possible to build a highly available environment for that application. § An often used approach to achieve application availability is software clustering with a network dispatching component in front of the application. § Monitoring tools must be adapted to the system to report the health of the applications, operating system, and the network connection; without an operating system the applications cannot run. © 2004 IBM Corporation

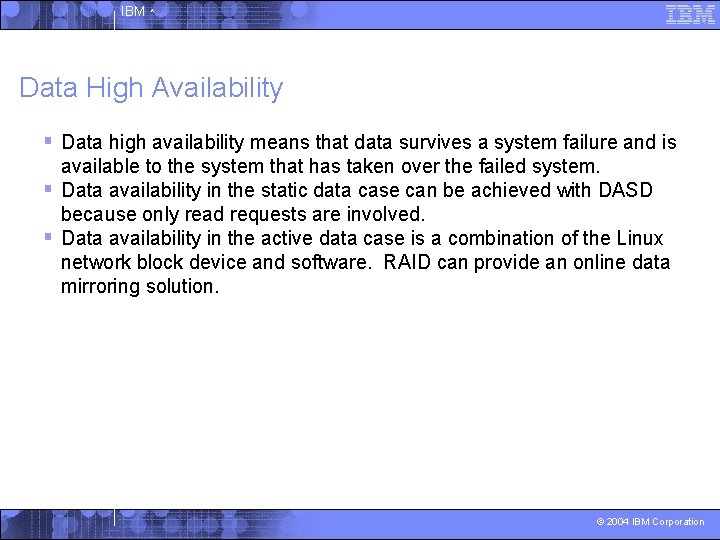

IBM ^ Data High Availability § Data high availability means that data survives a system failure and is available to the system that has taken over the failed system. § Data availability in the static data case can be achieved with DASD because only read requests are involved. § Data availability in the active data case is a combination of the Linux network block device and software. RAID can provide an online data mirroring solution. © 2004 IBM Corporation

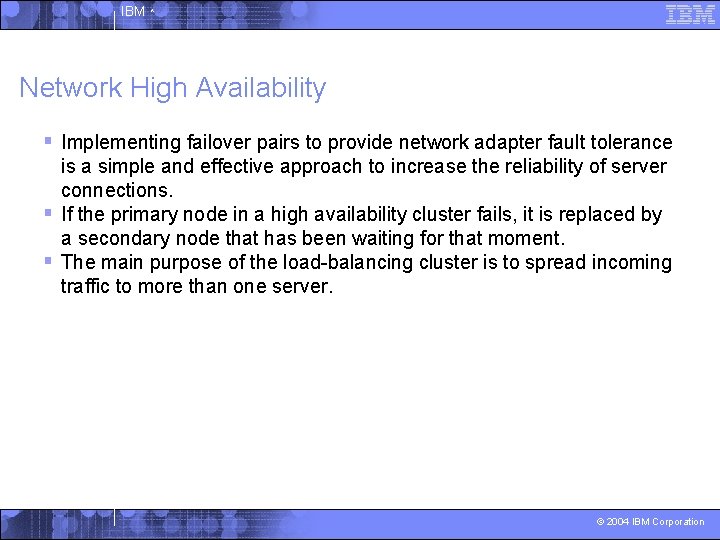

IBM ^ Network High Availability § Implementing failover pairs to provide network adapter fault tolerance is a simple and effective approach to increase the reliability of server connections. § If the primary node in a high availability cluster fails, it is replaced by a secondary node that has been waiting for that moment. § The main purpose of the load-balancing cluster is to spread incoming traffic to more than one server. © 2004 IBM Corporation

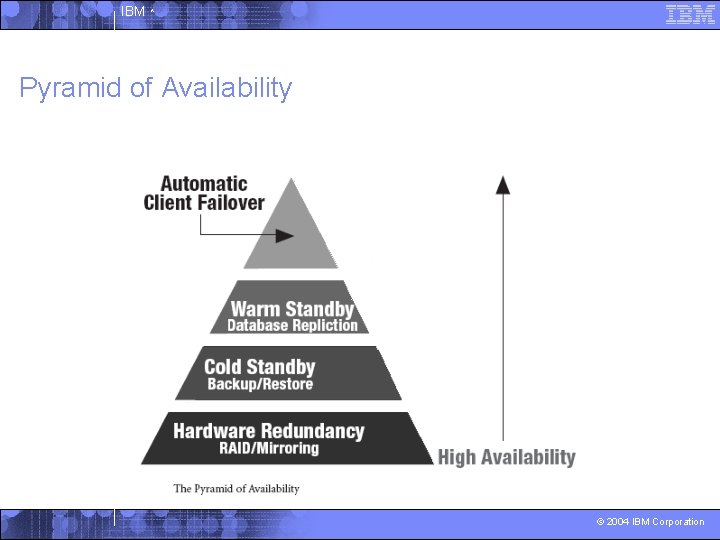

IBM ^ Pyramid of Availability © 2004 IBM Corporation

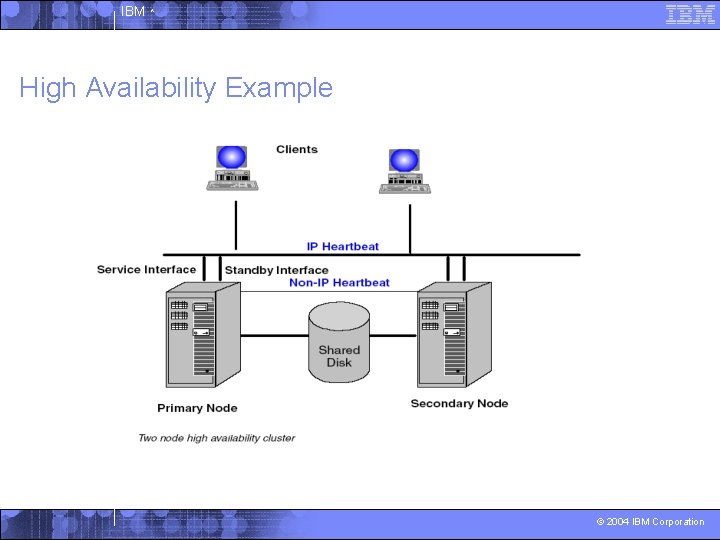

IBM ^ High Availability Example © 2004 IBM Corporation

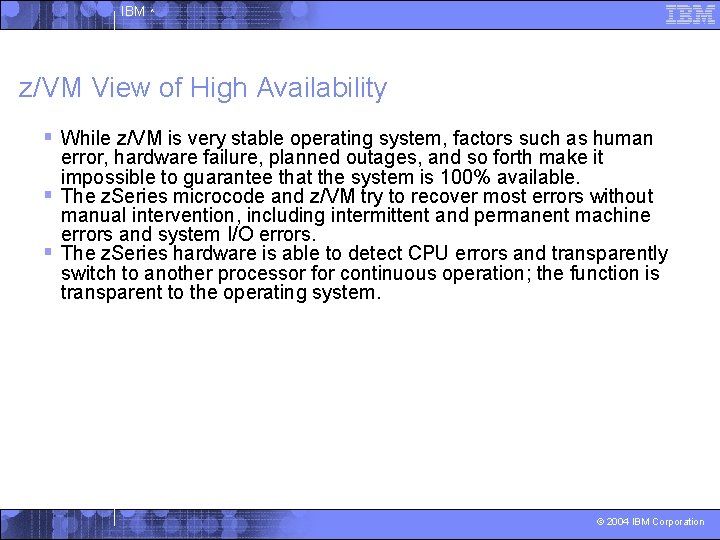

IBM ^ z/VM View of High Availability § While z/VM is very stable operating system, factors such as human error, hardware failure, planned outages, and so forth make it impossible to guarantee that the system is 100% available. § The z. Series microcode and z/VM try to recover most errors without manual intervention, including intermittent and permanent machine errors and system I/O errors. § The z. Series hardware is able to detect CPU errors and transparently switch to another processor for continuous operation; the function is transparent to the operating system. © 2004 IBM Corporation

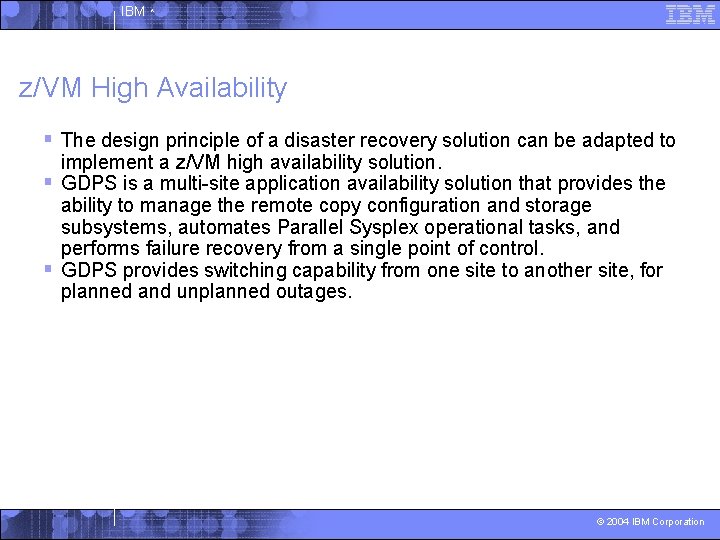

IBM ^ z/VM High Availability § The design principle of a disaster recovery solution can be adapted to implement a z/VM high availability solution. § GDPS is a multi-site application availability solution that provides the ability to manage the remote copy configuration and storage subsystems, automates Parallel Sysplex operational tasks, and performs failure recovery from a single point of control. § GDPS provides switching capability from one site to another site, for planned and unplanned outages. © 2004 IBM Corporation

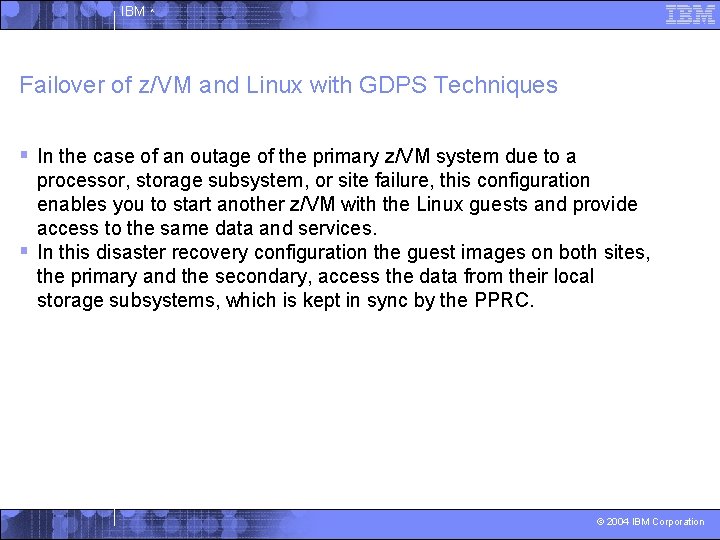

IBM ^ Failover of z/VM and Linux with GDPS Techniques § In the case of an outage of the primary z/VM system due to a processor, storage subsystem, or site failure, this configuration enables you to start another z/VM with the Linux guests and provide access to the same data and services. § In this disaster recovery configuration the guest images on both sites, the primary and the secondary, access the data from their local storage subsystems, which is kept in sync by the PPRC. © 2004 IBM Corporation

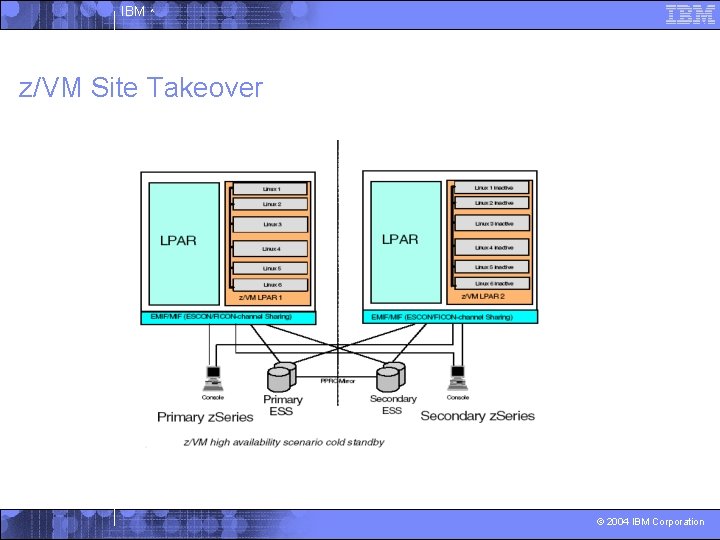

IBM ^ z/VM Site Takeover © 2004 IBM Corporation

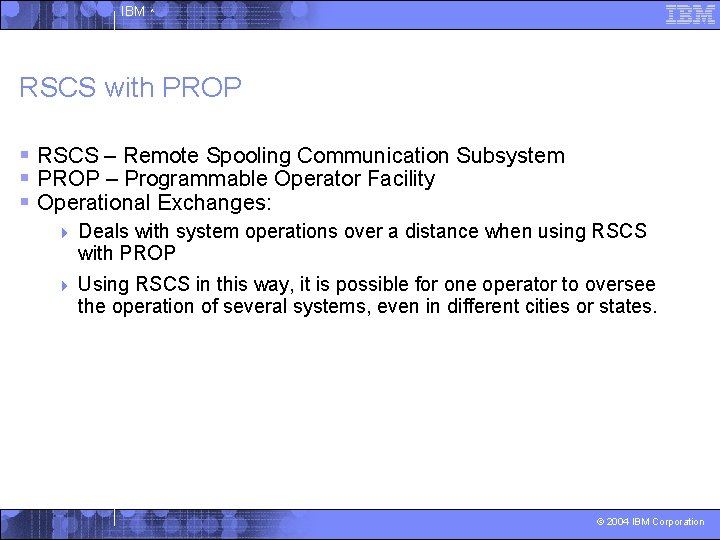

IBM ^ RSCS with PROP § RSCS – Remote Spooling Communication Subsystem § PROP – Programmable Operator Facility § Operational Exchanges: 4 Deals with system operations over a distance when using RSCS with PROP 4 Using RSCS in this way, it is possible for one operator to oversee the operation of several systems, even in different cities or states. © 2004 IBM Corporation

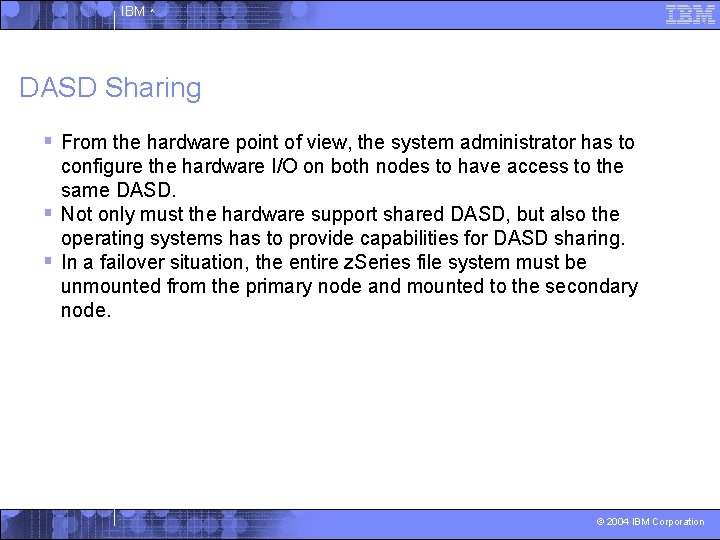

IBM ^ DASD Sharing § From the hardware point of view, the system administrator has to configure the hardware I/O on both nodes to have access to the same DASD. § Not only must the hardware support shared DASD, but also the operating systems has to provide capabilities for DASD sharing. § In a failover situation, the entire z. Series file system must be unmounted from the primary node and mounted to the secondary node. © 2004 IBM Corporation

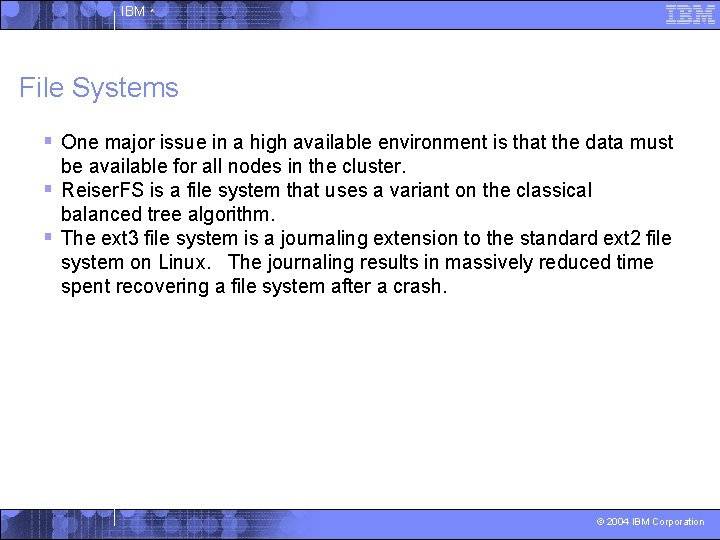

IBM ^ File Systems § One major issue in a high available environment is that the data must be available for all nodes in the cluster. § Reiser. FS is a file system that uses a variant on the classical balanced tree algorithm. § The ext 3 file system is a journaling extension to the standard ext 2 file system on Linux. The journaling results in massively reduced time spent recovering a file system after a crash. © 2004 IBM Corporation

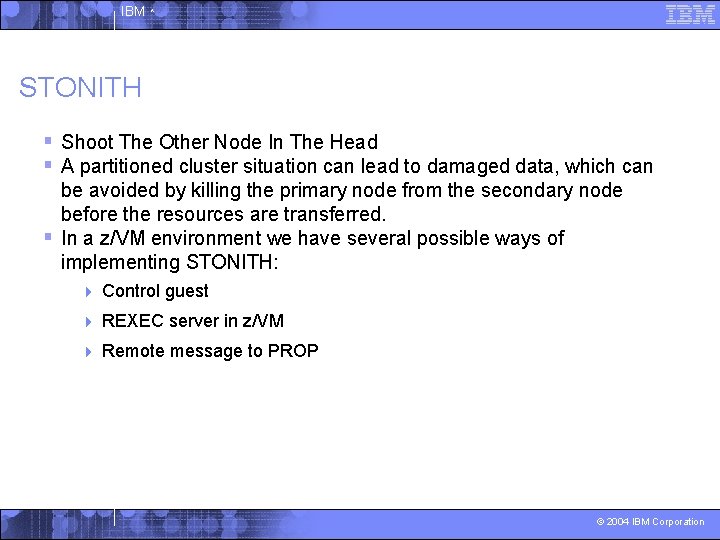

IBM ^ STONITH § Shoot The Other Node In The Head § A partitioned cluster situation can lead to damaged data, which can be avoided by killing the primary node from the secondary node before the resources are transferred. § In a z/VM environment we have several possible ways of implementing STONITH: 4 Control guest 4 REXEC server in z/VM 4 Remote message to PROP © 2004 IBM Corporation

IBM ^ Control Guest © 2004 IBM Corporation

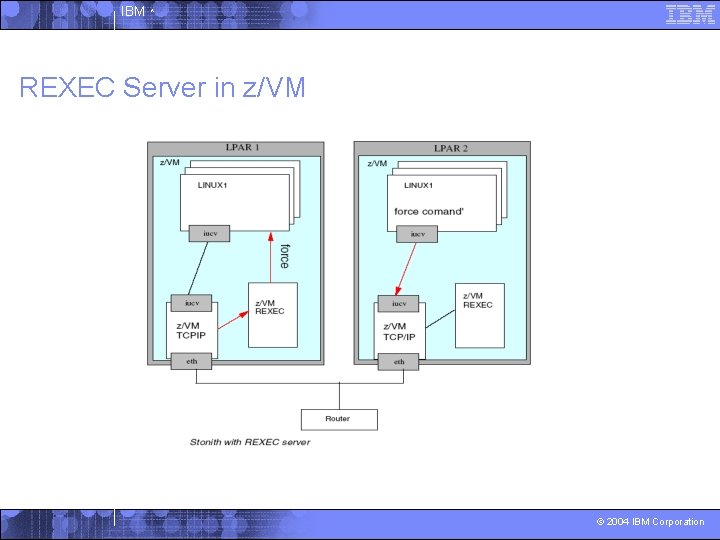

IBM ^ REXEC Server in z/VM © 2004 IBM Corporation

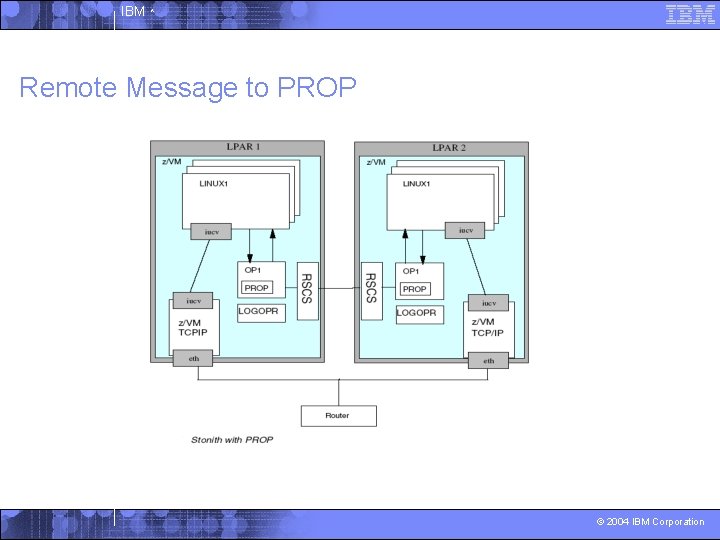

IBM ^ Remote Message to PROP © 2004 IBM Corporation

IBM ^ High Availability of z/VM with Network Dispatcher © 2004 IBM Corporation

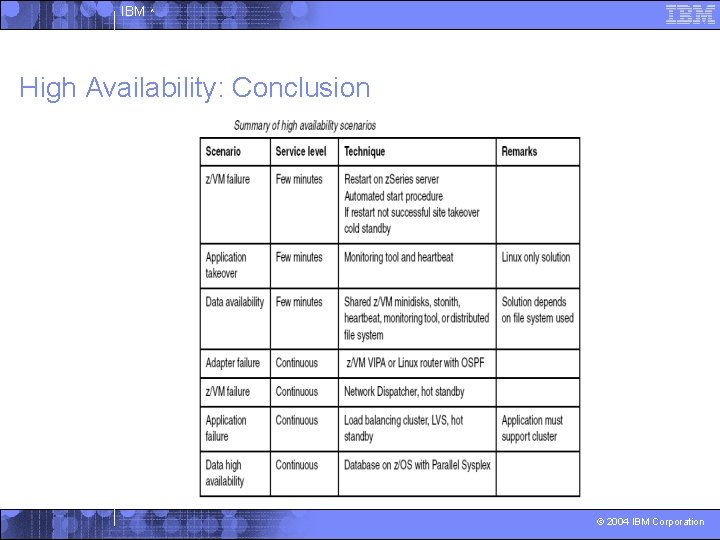

IBM ^ High Availability: Conclusion © 2004 IBM Corporation

IBM ^ Glossary Andrew File System (AFS) -- a distributed network file system without a single point of failure. The effort needed to set up and manage this file system is high. Address Resolution Protocol (ARP) -- Address Resolution Protocol; for mapping an IP address to a physical machine address. Cold Standby: -- A system in which the redundant component is in an inactive or idle state and must be initialized to bring it online. Continuous availability: -- a system with nonstop service (High availability does not equate to continuous availability. ) Data high availability: -- means that data survives a system failure and is available to the system that has taken over the failed system. EXT 3: -- a journaling extension to the standard ext 2 file system on Linux; it results in massively reducing time spent recovering a file system after a crash. © 2004 IBM Corporation

IBM ^ Glossary GDPS: (Geographically Dispersed Parallel Sysplex) is a multisite application availability solution that provides the ability to manage the remote copy configuration and storage. subsystem, automates Parallel Sysplex operational task, and performs failure recovery from a single point of control. High Availability: maintaining maximum system uptime. Hot Standby: is a scenario where the secondary components share some state with the active server; in case of a failure, the takeover time is reduced compared to a Cold Standby. RAID: Redundant Array of Inexpensive Disks. Reiser. FS: -- A file system using a plug-in based object-oriented variant on classical balanced tree algorithms. Start Interpretive Execution (SIE): -- a virtual machine command originally introduced for use by VM/XA, to initiate the execution of a guest system. © 2004 IBM Corporation

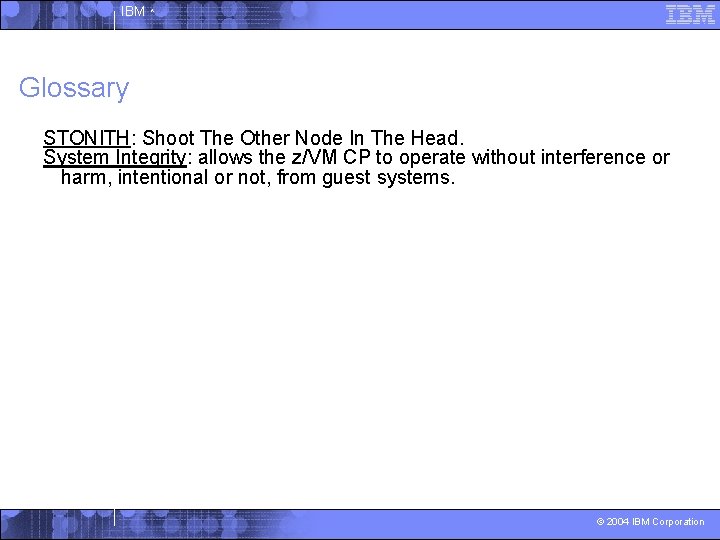

IBM ^ Glossary STONITH: Shoot The Other Node In The Head. System Integrity: allows

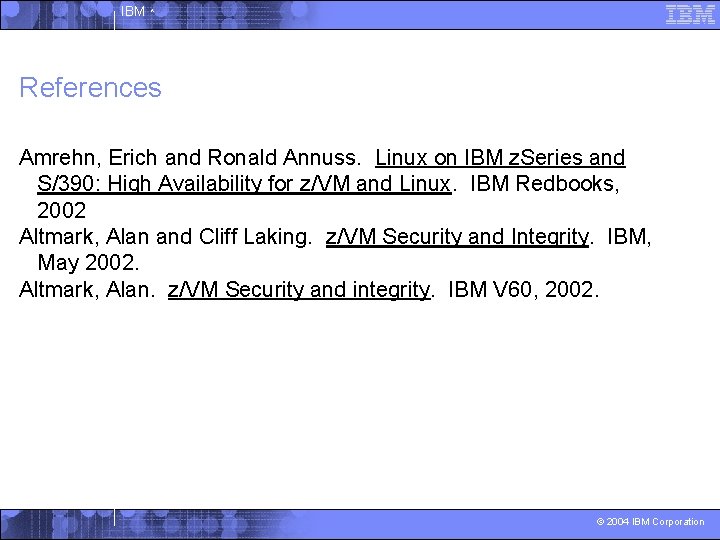

IBM ^ References Amrehn, Erich and Ronald Annuss. Linux on IBM z. Series and S/390: High Availability for z/VM and Linux. IBM Redbooks, 2002 Altmark, Alan and Cliff Laking. z/VM Security and Integrity. IBM, May 2002. Altmark, Alan. z/VM Security and integrity. IBM V 60, 2002. © 2004 IBM Corporation
