IBM TS 4500 Tape Library and Drives Reena
IBM TS 4500 Tape Library and Drives Reena Patel Data Retention and Tape Specialist rmaster@us. ibm. com © Copyright IBM Corporation 2017.
Agenda • Tape drives LTO 8 TS 1155 • Tape Automation TS 4500 • Resources 1 © Copyright IBM Corporation 2017 Accelerate with IBM Storage.
What Tape Does Best Long term storage: Infrequently accessed data Multiple copies: Near-line and offline data Protection: Security and compliance Cost Reduction: Reduce space and lower power Defensibility: Unaffected by viral attacks 2 © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

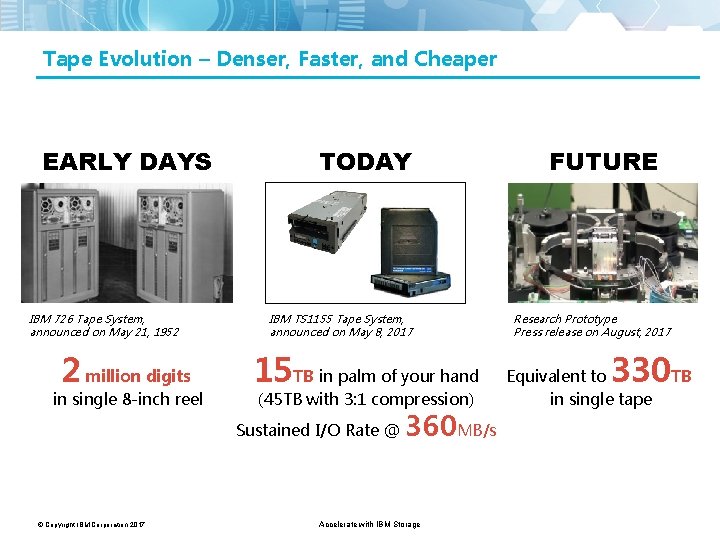

Tape Evolution – Denser, Faster, and Cheaper EARLY DAYS IBM 726 Tape System, announced on May 21, 1952 2 million digits in single 8 -inch reel TODAY IBM TS 1155 Tape System, announced on May 8, 2017 15 TB in palm of your hand (45 TB with 3: 1 compression) Sustained I/O Rate @ 360 MB/s © Copyright IBM Corporation 2017 Accelerate with IBM Storage. FUTURE Research Prototype Press release on August, 2017 330 TB Equivalent to in single tape

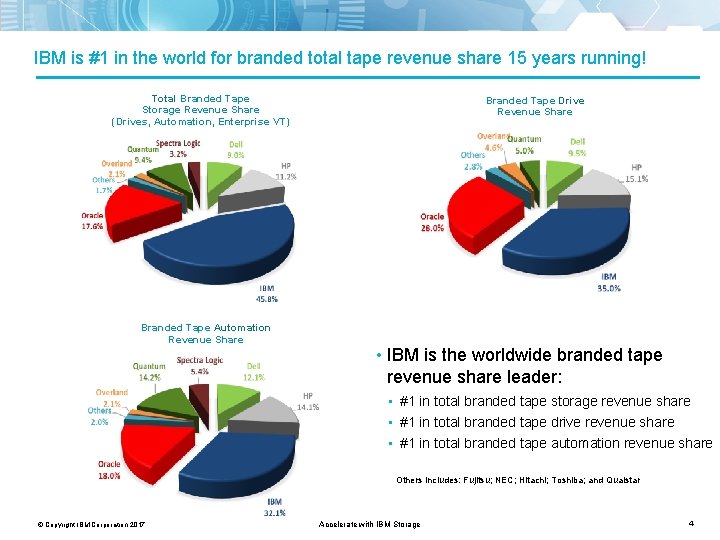

IBM is #1 in the world for branded total tape revenue share 15 years running! Total Branded Tape Storage Revenue Share (Drives, Automation, Enterprise VT) Branded Tape Automation Revenue Share Branded Tape Drive Revenue Share • IBM is the worldwide branded tape revenue share leader: • #1 in total branded tape storage revenue share • #1 in total branded tape drive revenue share • #1 in total branded tape automation revenue share Others includes: Fujitsu; NEC; Hitachi; Toshiba; and Qualstar © Copyright IBM Corporation 2017 Accelerate with IBM Storage. 4

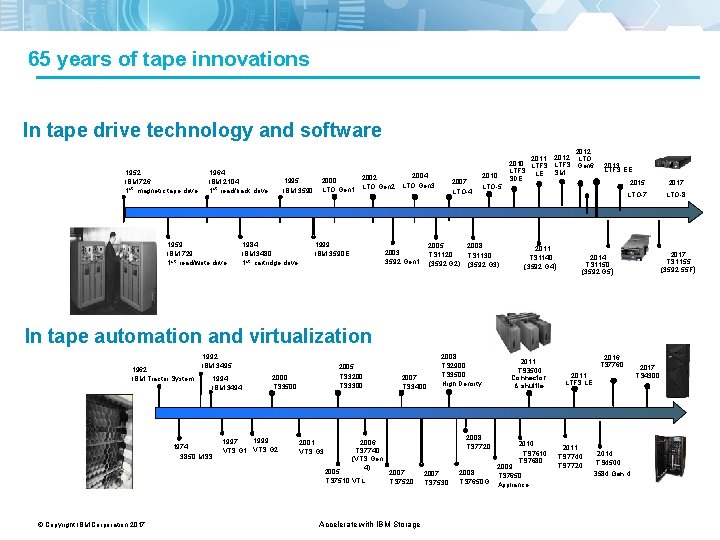

65 years of tape innovations In tape drive technology and software 1952 IBM 726 1 st magnetic tape drive 1964 IBM 2104 1 st read/back drive 1959 IBM 729 1 st read/write drive 1995 IBM 3590 1984 IBM 3480 1 st cartridge drive 2002 2000 LTO Gen 1 LTO Gen 2 1999 IBM 3590 E 2004 LTO Gen 3 2007 LTO-4 2005 TS 1120 (3592 G 2) 2003 3592 Gen 1 2010 2012 2011 2012 LTO 2010 LTFS Gen 6 LTFS LE SM SDE 2013 LTFS EE LTO-5 2008 TS 1130 (3592 G 3) 2011 TS 1140 (3592 G 4) 2015 2017 LTO-8 2017 TS 1155 (3592 55 F) 2014 TS 1150 (3592 G 5) In tape automation and virtualization 1962 IBM Tractor System 1992 IBM 3495 1994 IBM 3494 1974 3850 MSS 2005 TS 3200 TS 3300 2000 TS 3500 1999 1997 VTS G 1 VTS G 2 2001 VTS G 3 2006 TS 7740 (VTS Gen 4) 2005 TS 7510 VTL 2007 TS 3400 2008 TS 2900 TS 3500 High Density 2008 TS 7720 2007 TS 7520 © Copyright IBM Corporation 2017 Accelerate with IBM Storage. 2007 TS 7530 2008 TS 7650 G 2011 TS 3500 Connector & shuttle 2010 TS 7680 2009 TS 7650 Appliance 2016 TS 7760 2011 LTFS LE 2011 TS 7740 TS 7720 2014 TS 4500 3584 Gen 4 2017 TS 4300

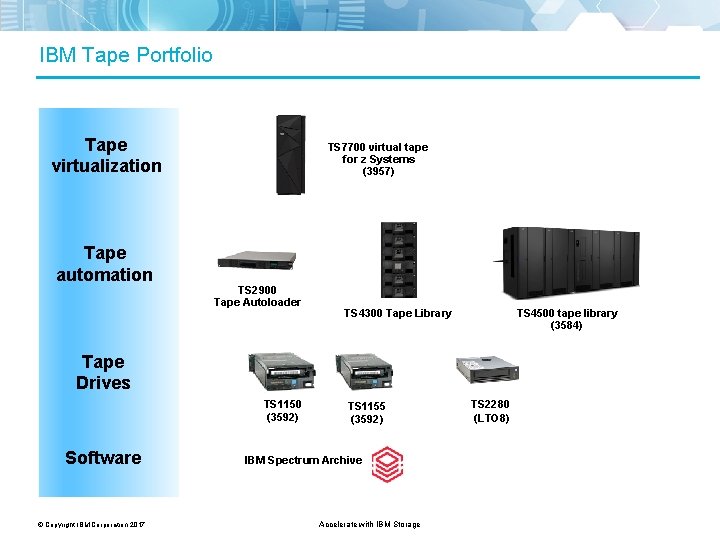

IBM Tape Portfolio Tape virtualization Tape automation TS 7700 virtual tape for z Systems (3957) TS 2900 Tape Autoloader TS 4500 tape library (3584) TS 4300 Tape Library Tape Drives TS 1150 (3592) Software TS 1155 (3592) IBM Spectrum Archive © Copyright IBM Corporation 2017 Accelerate with IBM Storage. TS 2280 (LTO 8)

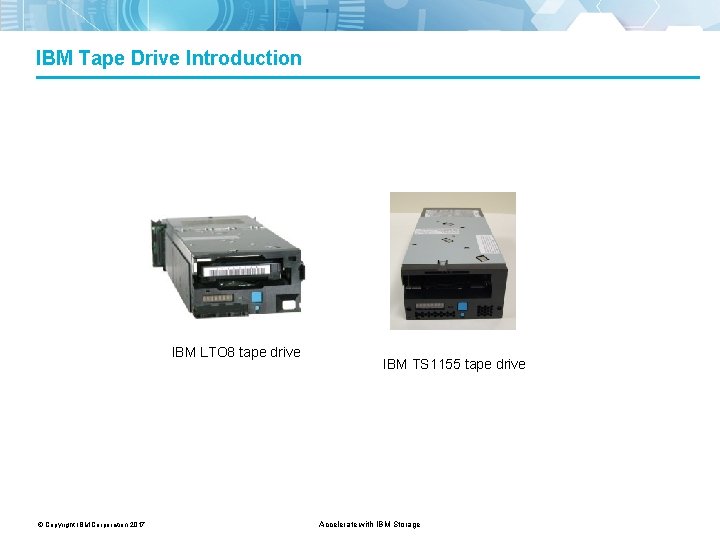

IBM Tape Drive Introduction IBM LTO 8 tape drive IBM TS 1155 tape drive © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

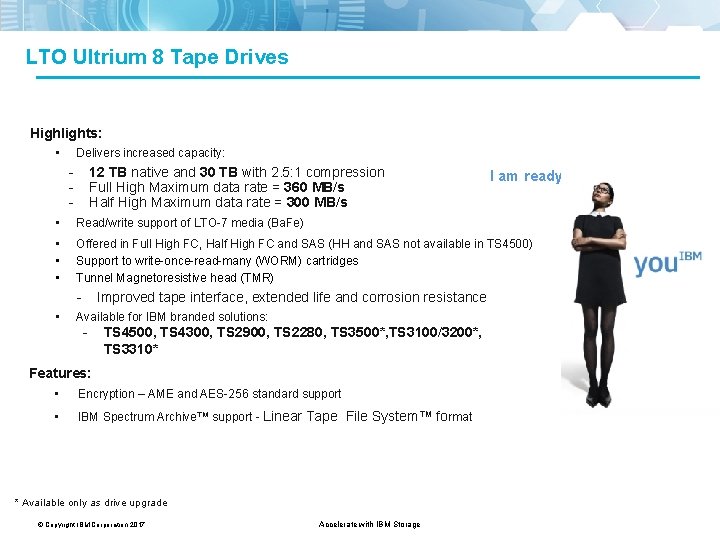

LTO Ultrium 8 Tape Drives Highlights: • Delivers increased capacity: - 12 TB native and 30 TB with 2. 5: 1 compression Full High Maximum data rate = 360 MB/s Half High Maximum data rate = 300 MB/s I am ready • Read/write support of LTO-7 media (Ba. Fe) • • • Offered in Full High FC, Half High FC and SAS (HH and SAS not available in TS 4500) Support to write-once-read-many (WORM) cartridges Tunnel Magnetoresistive head (TMR) • Improved tape interface, extended life and corrosion resistance Available for IBM branded solutions: - TS 4500, TS 4300, TS 2900, TS 2280, TS 3500*, TS 3100/3200*, TS 3310* Features: • Encryption – AME and AES-256 standard support • IBM Spectrum Archive™ support - Linear Tape File System™ format * Available only as drive upgrade © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

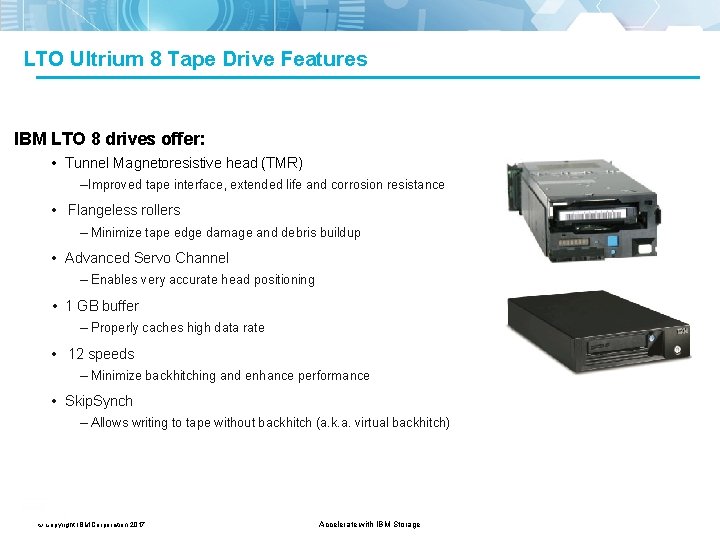

LTO Ultrium 8 Tape Drive Features IBM LTO 8 drives offer: • Tunnel Magnetoresistive head (TMR) – Improved tape interface, extended life and corrosion resistance • Flangeless rollers – Minimize tape edge damage and debris buildup • Advanced Servo Channel – Enables very accurate head positioning • 1 GB buffer – Properly caches high data rate • 12 speeds – Minimize backhitching and enhance performance • Skip. Synch – Allows writing to tape without backhitch (a. k. a. virtual backhitch) © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

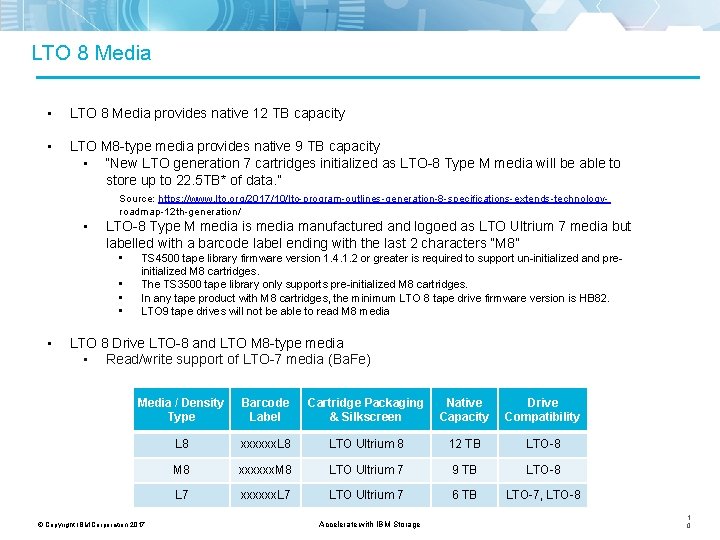

LTO 8 Media • LTO 8 Media provides native 12 TB capacity • LTO M 8 -type media provides native 9 TB capacity • “New LTO generation 7 cartridges initialized as LTO-8 Type M media will be able to store up to 22. 5 TB* of data. ” Source: https: //www. lto. org/2017/10/lto-program-outlines-generation-8 -specifications-extends-technologyroadmap-12 th-generation/ • LTO-8 Type M media is media manufactured and logoed as LTO Ultrium 7 media but labelled with a barcode label ending with the last 2 characters “M 8” • • • TS 4500 tape library firmware version 1. 4. 1. 2 or greater is required to support un-initialized and preinitialized M 8 cartridges. The TS 3500 tape library only supports pre-initialized M 8 cartridges. In any tape product with M 8 cartridges, the minimum LTO 8 tape drive firmware version is HB 82. LTO 9 tape drives will not be able to read M 8 media LTO 8 Drive LTO-8 and LTO M 8 -type media • Read/write support of LTO-7 media (Ba. Fe) Media / Density Type Barcode Label Cartridge Packaging & Silkscreen Native Capacity Drive Compatibility L 8 xxxxxx. L 8 LTO Ultrium 8 12 TB LTO-8 M 8 xxxxxx. M 8 LTO Ultrium 7 9 TB LTO-8 L 7 xxxxxx. L 7 LTO Ultrium 7 6 TB LTO-7, LTO-8 © Copyright IBM Corporation 2017 Accelerate with IBM Storage. 1 0

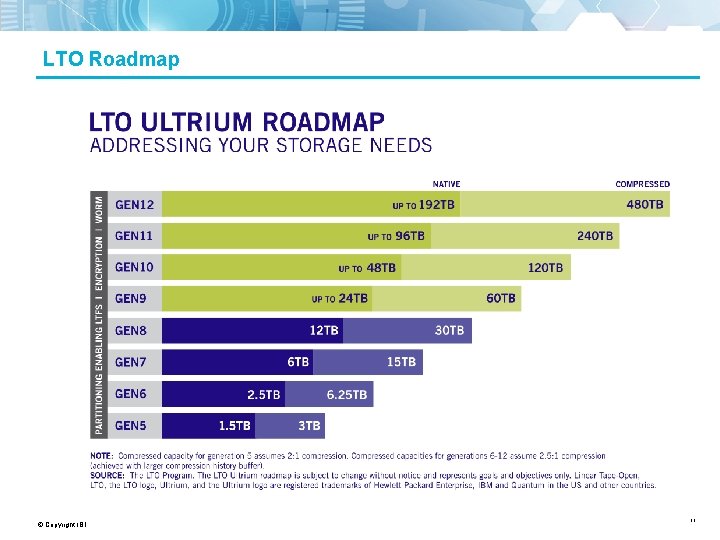

LTO Roadmap © Copyright IBM Corporation 2017 Accelerate with IBM Storage. 11

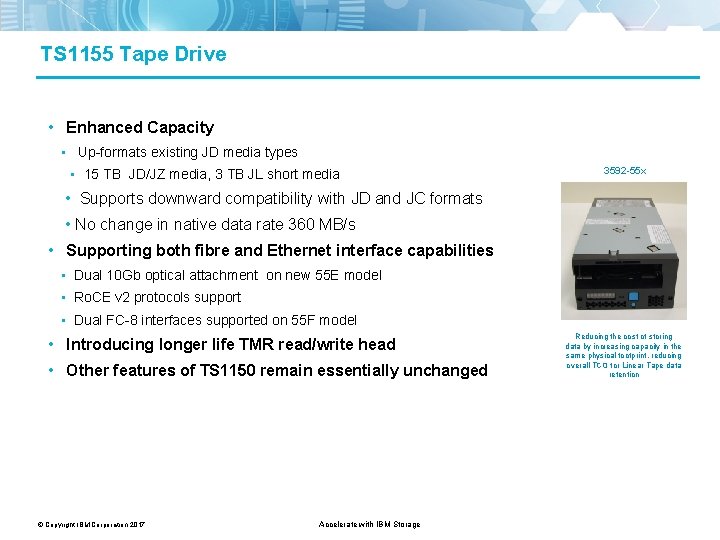

TS 1155 Tape Drive • Enhanced Capacity • Up-formats existing JD media types • 15 TB JD/JZ media, 3 TB JL short media 3592 -55 x • Supports downward compatibility with JD and JC formats • No change in native data rate 360 MB/s • Supporting both fibre and Ethernet interface capabilities • Dual 10 Gb optical attachment on new 55 E model • Ro. CE v 2 protocols support • Dual FC-8 interfaces supported on 55 F model • Introducing longer life TMR read/write head • Other features of TS 1150 remain essentially unchanged © Copyright IBM Corporation 2017 Accelerate with IBM Storage. Reducing the cost of storing data by increasing capacity in the same physical footprint, reducing overall TCO for Linear Tape data retention

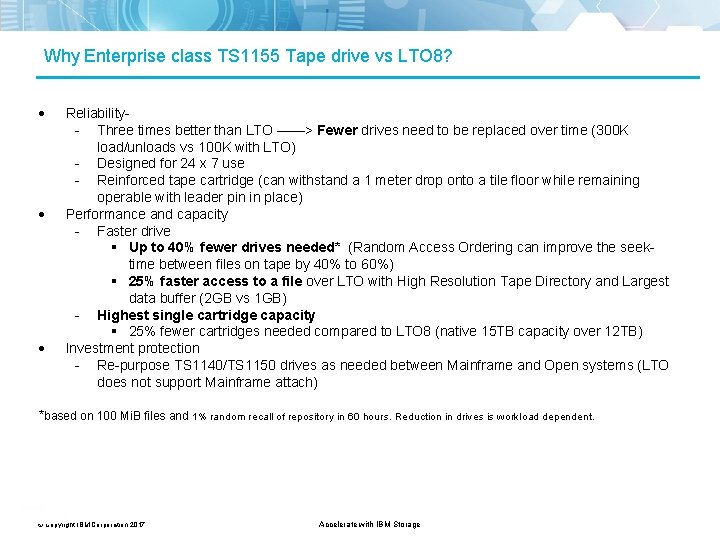

Why Enterprise class TS 1155 Tape drive vs LTO 8? Reliability- Three times better than LTO ——> Fewer drives need to be replaced over time (300 K load/unloads vs 100 K with LTO) - Designed for 24 x 7 use - Reinforced tape cartridge (can withstand a 1 meter drop onto a tile floor while remaining operable with leader pin in place) Performance and capacity - Faster drive Up to 40% fewer drives needed* (Random Access Ordering can improve the seektime between files on tape by 40% to 60%) 25% faster access to a file over LTO with High Resolution Tape Directory and Largest data buffer (2 GB vs 1 GB) - Highest single cartridge capacity 25% fewer cartridges needed compared to LTO 8 (native 15 TB capacity over 12 TB) Investment protection - Re-purpose TS 1140/TS 1150 drives as needed between Mainframe and Open systems (LTO does not support Mainframe attach) *based on 100 Mi. B files and 1% random recall of repository in 60 hours. Reduction in drives is workload dependent. © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

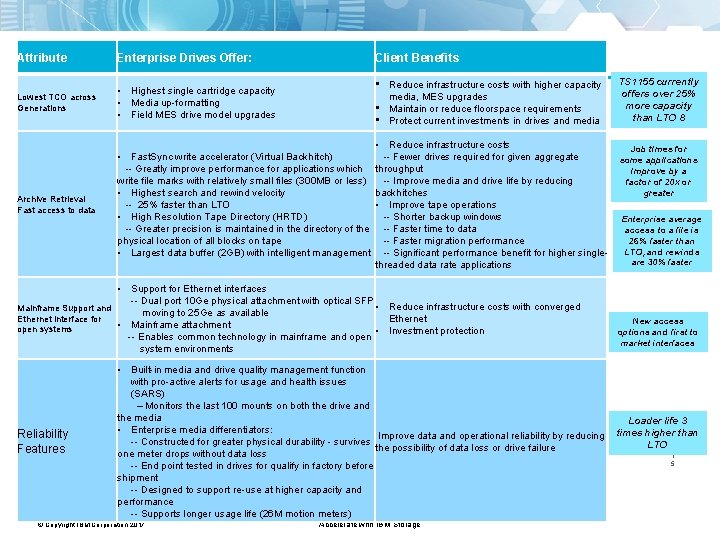

Attribute Enterprise Drives Offer: Client Benefits Lowest TCO across Generations • Highest single cartridge capacity • Media up-formatting • Field MES drive model upgrades Archive Retrieval Fast access to data • Reduce infrastructure costs • Fast. Sync write accelerator (Virtual Backhitch) -- Fewer drives required for given aggregate -- Greatly improve performance for applications which throughput write file marks with relatively small files (300 MB or less) -- Improve media and drive life by reducing • Highest search and rewind velocity backhitches -- 25% faster than LTO • Improve tape operations • High Resolution Tape Directory (HRTD) -- Shorter backup windows -- Greater precision is maintained in the directory of the -- Faster time to data physical location of all blocks on tape -- Faster migration performance • Largest data buffer (2 GB) with intelligent management -- Significant performance benefit for higher singlethreaded data rate applications • • • Reduce infrastructure costs with higher capacity media, MES upgrades Maintain or reduce floorspace requirements Protect current investments in drives and media • Support for Ethernet interfaces -- Dual port 10 Ge physical attachment with optical SFP • Reduce infrastructure costs with converged Mainframe Support and moving to 25 Ge as available Ethernet interface for Ethernet • Mainframe attachment open systems • Investment protection -- Enables common technology in mainframe and open system environments Reliability Features TS 1155 currently offers over 25% more capacity than LTO 8 Job times for some applications improve by a factor of 20 x or greater Enterprise average access to a file is 26% faster than LTO, and rewinds are 30% faster New access options and first to market interfaces • Built-in media and drive quality management function with pro-active alerts for usage and health issues (SARS) ‒ Monitors the last 100 mounts on both the drive and the media Loader life 3 • Enterprise media differentiators: Improve data and operational reliability by reducing times higher than -- Constructed for greater physical durability - survives LTO the possibility of data loss or drive failure one meter drops without data loss 1 5 -- End point tested in drives for qualify in factory before shipment -- Designed to support re-use at higher capacity and performance -- Supports longer usage life (26 M motion meters) © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

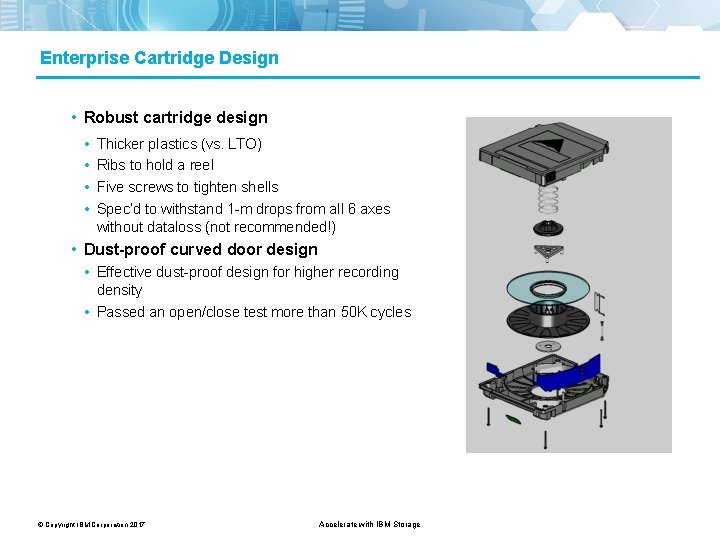

Enterprise Cartridge Design • Robust cartridge design • • Thicker plastics (vs. LTO) Ribs to hold a reel Five screws to tighten shells Spec’d to withstand 1 -m drops from all 6 axes without dataloss (not recommended!) • Dust-proof curved door design • Effective dust-proof design for higher recording density • Passed an open/close test more than 50 K cycles © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

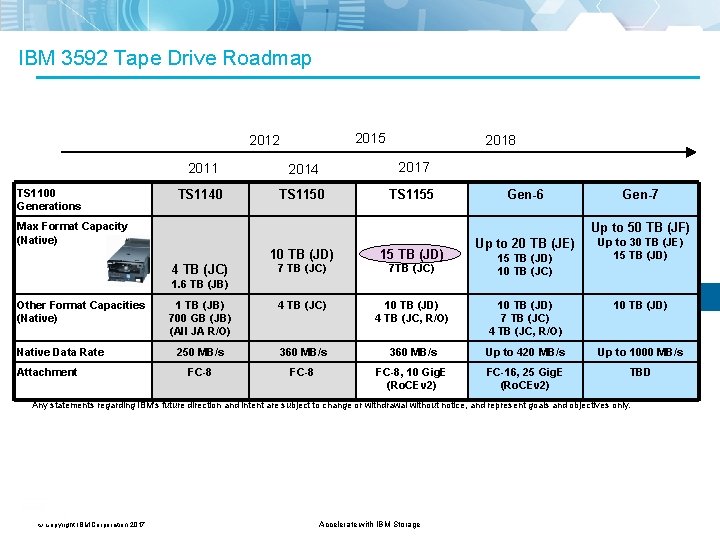

IBM 3592 Tape Drive Roadmap 2015 2012 TS 1100 Generations 2018 2011 2014 2017 TS 1140 TS 1155 Max Format Capacity (Native) Gen-6 Gen-7 Up to 50 TB (JF) Up to 20 TB (JE) Up to 30 TB (JE) 15 TB (JD) 10 TB (JD) 15 TB (JD) 7 TB (JC) 7 TB (JC) 1 TB (JB) 700 GB (JB) (All JA R/O) 4 TB (JC) 10 TB (JD) 4 TB (JC, R/O) 10 TB (JD) 7 TB (JC) 4 TB (JC, R/O) 10 TB (JD) 250 MB/s 360 MB/s Up to 420 MB/s Up to 1000 MB/s FC-8, 10 Gig. E (Ro. CEv 2) FC-16, 25 Gig. E (Ro. CEv 2) TBD 4 TB (JC) 15 TB (JD) 10 TB (JC) 1. 6 TB (JB) Other Format Capacities (Native) Native Data Rate Attachment Any statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

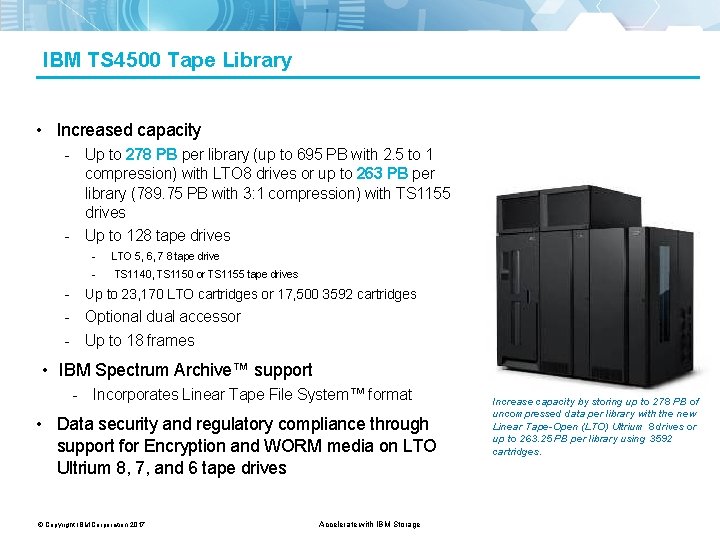

IBM TS 4500 Tape Library • Increased capacity - Up to 278 PB per library (up to 695 PB with 2. 5 to 1 compression) with LTO 8 drives or up to 263 PB per library (789. 75 PB with 3: 1 compression) with TS 1155 drives - Up to 128 tape drives - - LTO 5, 6, 7 8 tape drive - TS 1140, TS 1150 or TS 1155 tape drives Up to 23, 170 LTO cartridges or 17, 500 3592 cartridges - Optional dual accessor - Up to 18 frames • IBM Spectrum Archive™ support - Incorporates Linear Tape File System™ format • Data security and regulatory compliance through support for Encryption and WORM media on LTO Ultrium 8, 7, and 6 tape drives © Copyright IBM Corporation 2017 Accelerate with IBM Storage. Increase capacity by storing up to 278 PB of uncompressed data per library with the new Linear Tape-Open (LTO) Ultrium 8 drives or up to 263. 25 PB per library using 3592 cartridges.

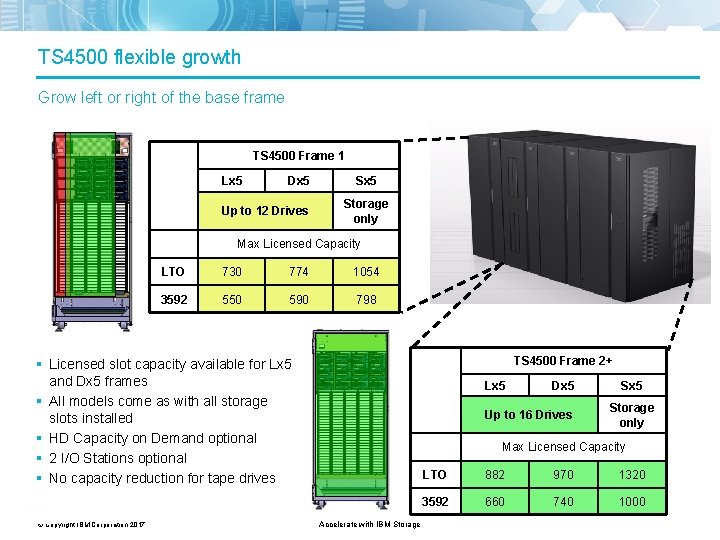

TS 4500 flexible growth Grow left or right of the base frame TS 4500 Frame 1 Lx 5 Dx 5 Up to 12 Drives Sx 5 Storage only Max Licensed Capacity LTO 730 774 1054 3592 550 590 798 TS 4500 Frame 2+ Licensed slot capacity available for Lx 5 and Dx 5 frames All models come as with all storage slots installed HD Capacity on Demand optional 2 I/O Stations optional No capacity reduction for tape drives Lx 5 Dx 5 Up to 16 Drives Sx 5 Storage only Max Licensed Capacity LTO 882 970 1320 3592 660 740 1000 © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

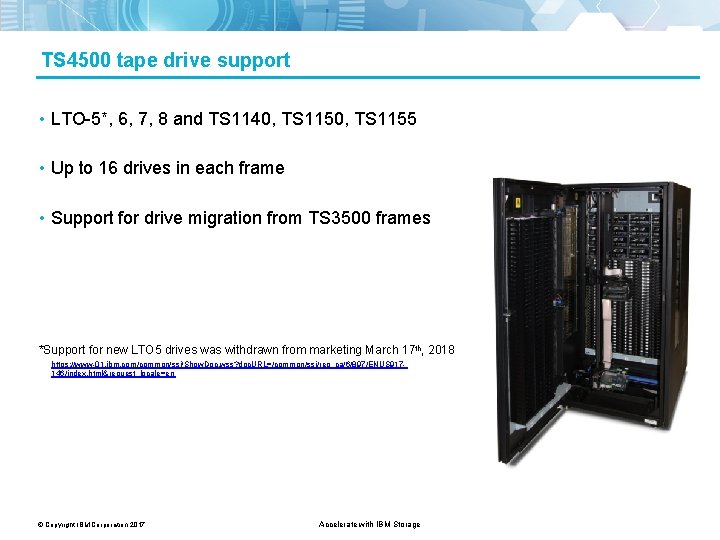

TS 4500 tape drive support • LTO-5*, 6, 7, 8 and TS 1140, TS 1155 • Up to 16 drives in each frame • Support for drive migration from TS 3500 frames *Support for new LTO 5 drives was withdrawn from marketing March 17 th, 2018 https: //www-01. ibm. com/common/ssi/Show. Doc. wss? doc. URL=/common/ssi/rep_ca/6/897/ENUS 917146/index. html&request_locale=en © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

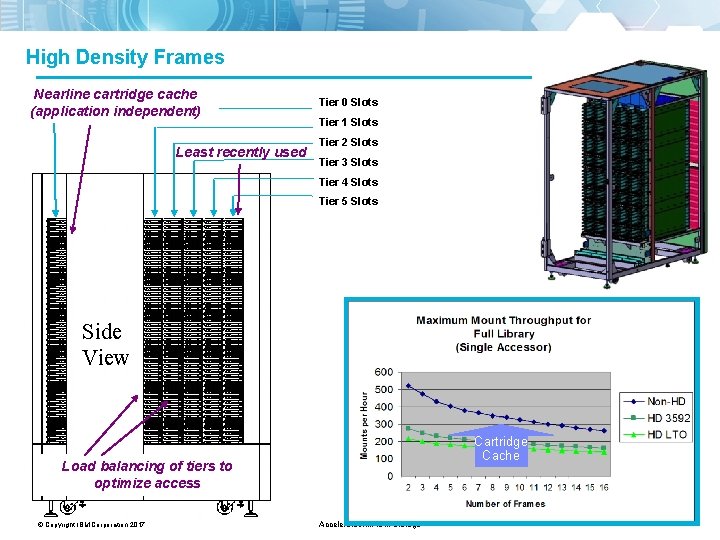

High Density Frames Nearline cartridge cache (application independent) Least recently used Tier 0 Slots Tier 1 Slots Tier 2 Slots Tier 3 Slots Tier 4 Slots Tier 5 Slots Side View Load balancing of tiers to optimize access © Copyright IBM Corporation 2017 Accelerate with IBM Storage. Cartridge Cache

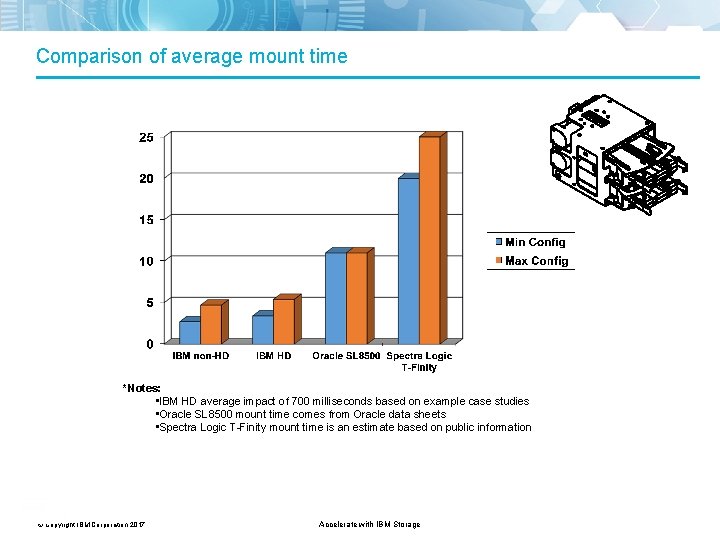

Comparison of average mount time *Notes: • IBM HD average impact of 700 milliseconds based on example case studies • Oracle SL 8500 mount time comes from Oracle data sheets • Spectra Logic T-Finity mount time is an estimate based on public information © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

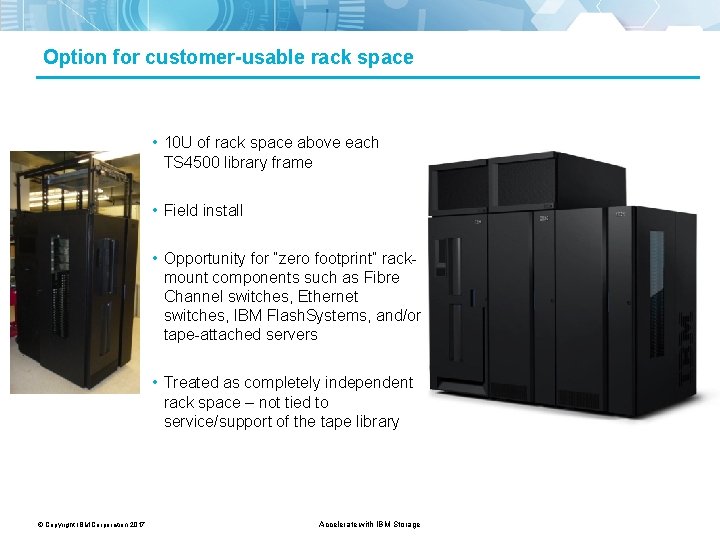

Option for customer-usable rack space • 10 U of rack space above each TS 4500 library frame • Field install • Opportunity for “zero footprint” rackmount components such as Fibre Channel switches, Ethernet switches, IBM Flash. Systems, and/or tape-attached servers • Treated as completely independent rack space – not tied to service/support of the tape library © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

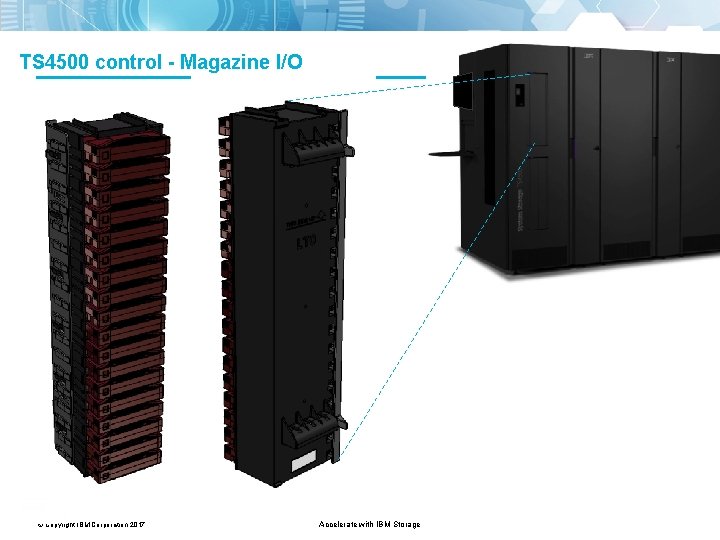

TS 4500 control - Magazine I/O © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

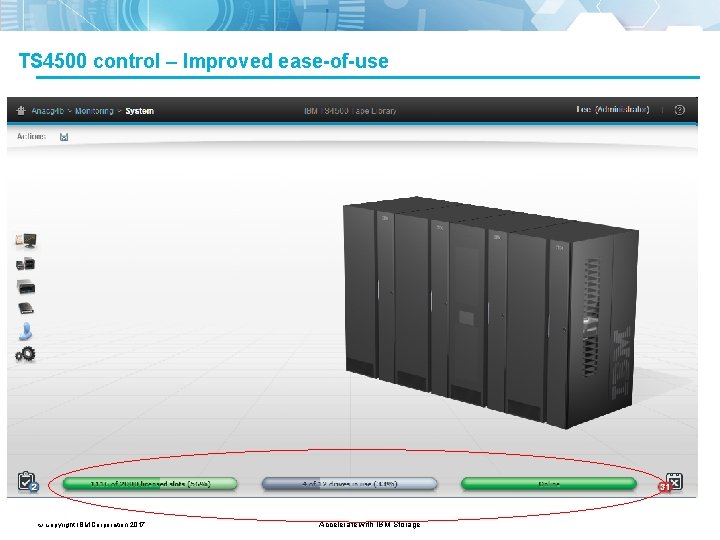

TS 4500 control – Improved ease-of-use © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

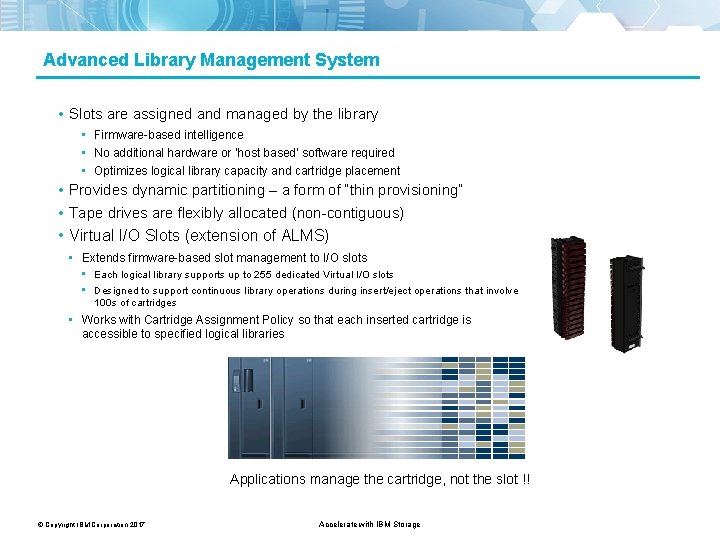

Advanced Library Management System • Slots are assigned and managed by the library • Firmware-based intelligence • No additional hardware or ‘host based’ software required • Optimizes logical library capacity and cartridge placement • Provides dynamic partitioning – a form of “thin provisioning” • Tape drives are flexibly allocated (non-contiguous) • Virtual I/O Slots (extension of ALMS) • Extends firmware-based slot management to I/O slots • Each logical library supports up to 255 dedicated Virtual I/O slots • Designed to support continuous library operations during insert/eject operations that involve 100 s of cartridges • Works with Cartridge Assignment Policy so that each inserted cartridge is accessible to specified logical libraries Applications manage the cartridge, not the slot !! © Copyright IBM Corporation 2017 Accelerate with IBM Storage.
With IBM’s Multi-Path Architecture, every tape drive is capable of providing a control path. Library Control System Eliminate: Sharing Software License & Maintenance Fees Sharing Server Maintenance Dedicated Control Paths Single Points of Failure Bottlenecks Library Control System Drive Host Application A Drive Host Application B Host Application Data Path and Control Path Drive Management and Control Path When the application or IBM device driver senses a control path failure it automatically switches to an alternate control path. © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

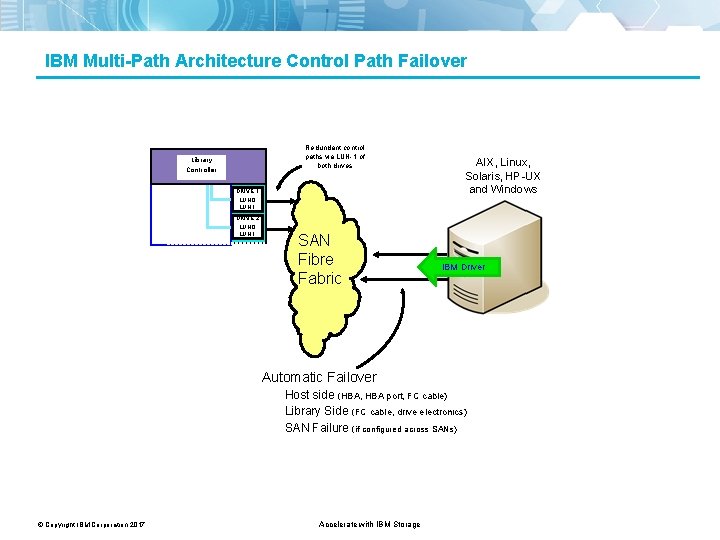

IBM Multi-Path Architecture Control Path Failover Redundant control paths via LUN-1 of both drives Library Controller DRIVE 1 LUN 0 LUN 1 DRIVE 2 LUN 0 LUN 1 SAN Fibre Fabric AIX, Linux, Solaris, HP-UX and Windows IBM Driver Automatic Failover Host side (HBA, HBA port, FC cable) Library Side (FC cable, drive electronics) SAN Failure (if configured across SANs) © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

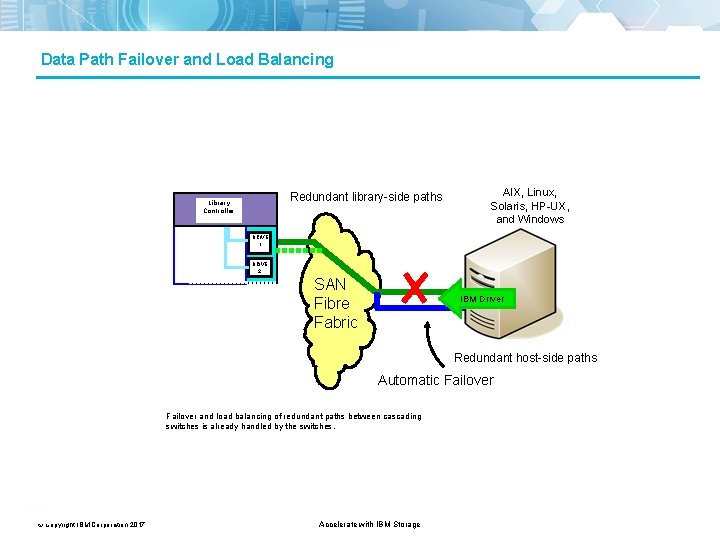

Data Path Failover and Load Balancing Redundant library-side paths Library Controller AIX, Linux, Solaris, HP-UX, and Windows DRIVE 1 DRIVE 2 SAN Fibre Fabric IBM Driver Redundant host-side paths Automatic Failover and load balancing of redundant paths between cascading switches is already handled by the switches. © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

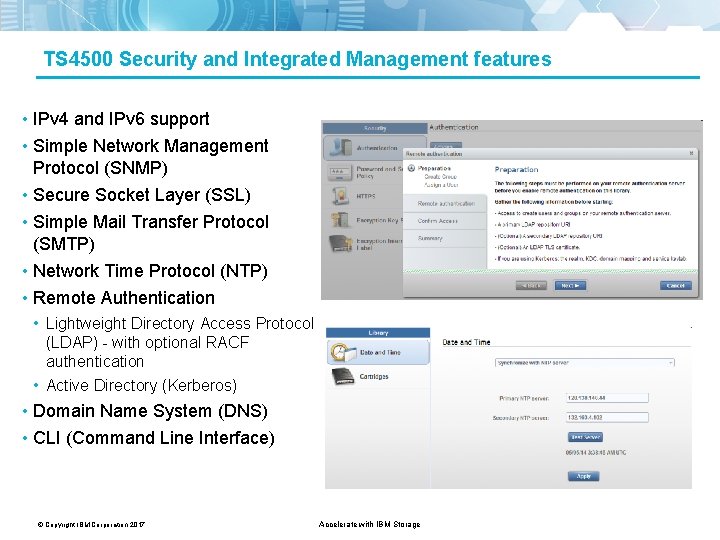

TS 4500 Security and Integrated Management features • IPv 4 and IPv 6 support • Simple Network Management Protocol (SNMP) • Secure Socket Layer (SSL) • Simple Mail Transfer Protocol (SMTP) • Network Time Protocol (NTP) • Remote Authentication • Lightweight Directory Access Protocol (LDAP) - with optional RACF authentication • Active Directory (Kerberos) • Domain Name System (DNS) • CLI (Command Line Interface) © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

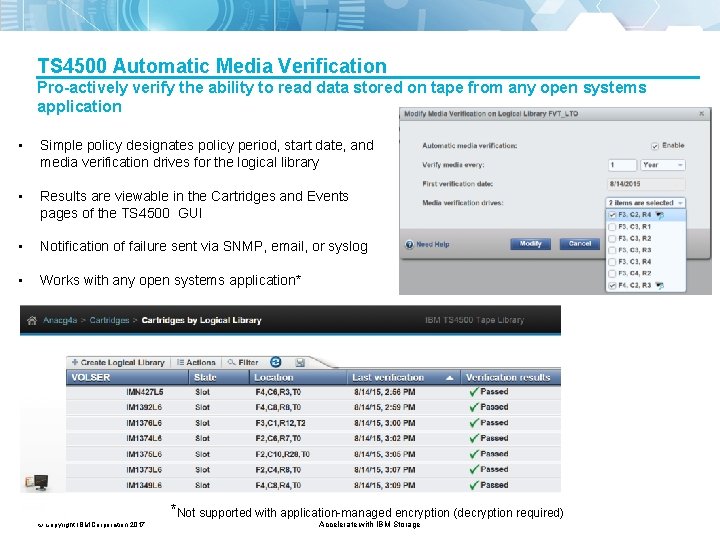

TS 4500 Automatic Media Verification Pro-actively verify the ability to read data stored on tape from any open systems application • Simple policy designates policy period, start date, and media verification drives for the logical library • Results are viewable in the Cartridges and Events pages of the TS 4500 GUI • Notification of failure sent via SNMP, email, or syslog • Works with any open systems application* *Not supported with application-managed encryption (decryption required) © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

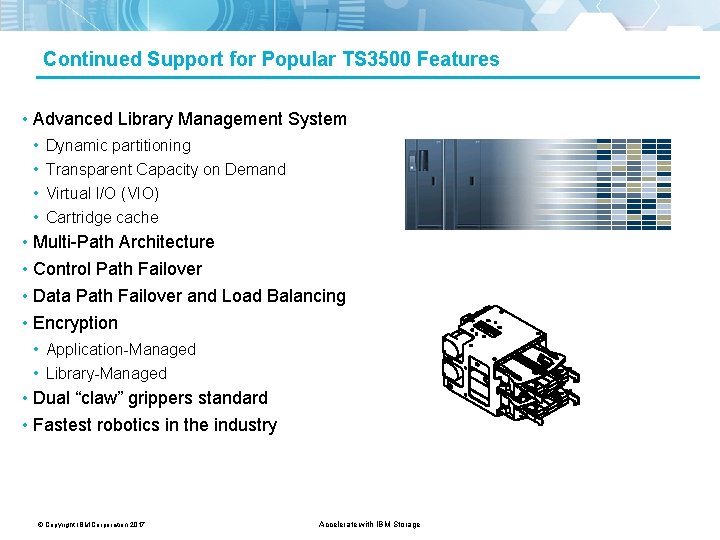

Continued Support for Popular TS 3500 Features • Advanced Library Management System • • Dynamic partitioning Transparent Capacity on Demand Virtual I/O (VIO) Cartridge cache • Multi-Path Architecture • Control Path Failover • Data Path Failover and Load Balancing • Encryption • Application-Managed • Library-Managed • Dual “claw” grippers standard • Fastest robotics in the industry © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

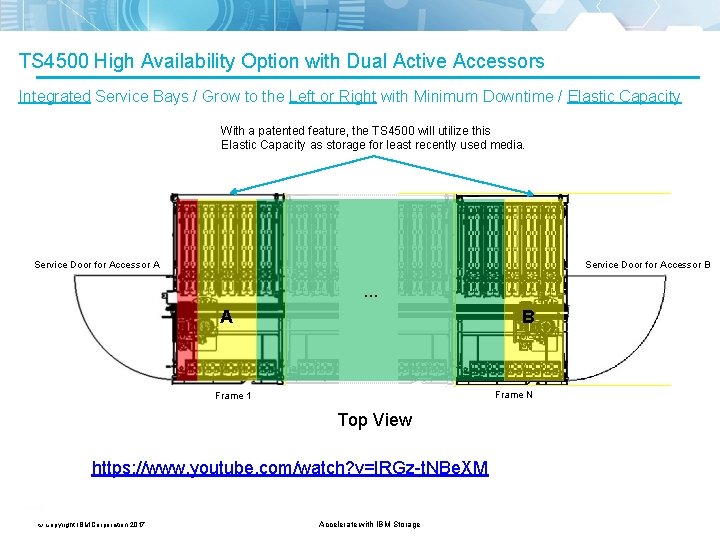

TS 4500 High Availability Option with Dual Active Accessors Integrated Service Bays / Grow to the Left or Right with Minimum Downtime / Elastic Capacity With a patented feature, the TS 4500 will utilize this Elastic Capacity as storage for least recently used media. Service Door for Accessor A Service Door for Accessor B . . . A B Frame N Frame 1 Top View https: //www. youtube. com/watch? v=IRGz-t. NBe. XM © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

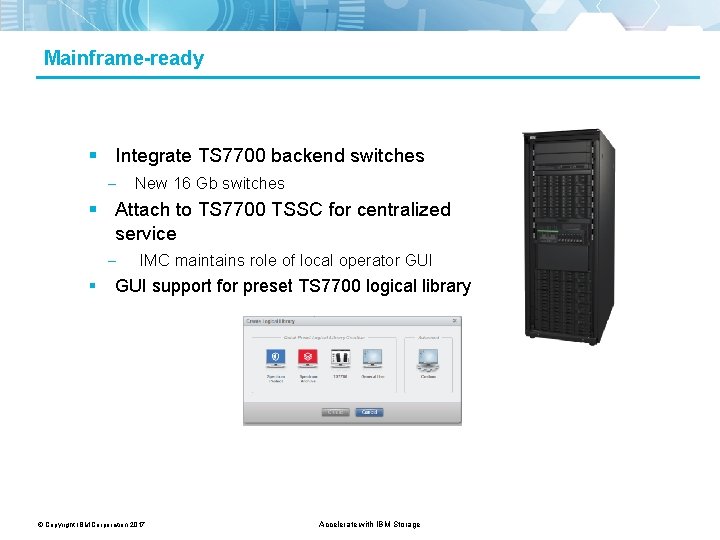

Mainframe-ready Integrate TS 7700 backend switches - New 16 Gb switches Attach to TS 7700 TSSC for centralized service - IMC maintains role of local operator GUI support for preset TS 7700 logical library © Copyright IBM Corporation 2017 Accelerate with IBM Storage.
IBM Tape Drive Encryption Clear Drive Firmware FC Port 0 ear #*4 ms. W Clear. C l FC Port 0 Compression Decompression AES Encryption AES Decryption @MA 8%w*q 03!k 3 i. Km 4*^Fj&fgtr. SIaasl • Built-in AES 256 -bit data encryption engine • Look-aside decryption & decompression help assure data integrity. • <1% performance and capacity impact • Authentication: SKLM queries drive certificate and uses public key to authenticate exchanges Processor Code Memory w*q 03!k 3 i. Km 4 Aw^1* Buffer ECC and Format Encoding Read/Write Electronics Read/Write Head Drive Certificate with Drive’s Public Key Tape Drive with Private Key Tape Media © Copyright IBM Corporation 2017 Accelerate with IBM Storage.
IBM Security Key Lifecycle Manager (SKLM) Self-Encrypting Devices • SKLM is a Key Distribution and Management software solution e. g. DS 8000, DS 5 xxx, IBM Spectrum Accelerate (XIV), … SKLM Enterprise Tape Libraries KMIP / IPP SKLM Background • Uses standard protocols (i. e. KMIP: Key Management Interoperability Protocol) Disk Storage Arrays e. g. TS 11 xx, TS 2 xxx, TS 3 xxx, Databases (e. g. DB 2) • Provides centralized key mgmt for self-encrypting drives (tape, disk) Network storage servers (Net. App) • Light-weight and highly-scalable Smart Meter Infrastructures • SKLM helps customers keep data private, compliant, and encryption keys well-managed Cloud file systems, Elastic Storage, Big Data / Data Warehouse (IBM Spectrum Scale • Expanding support for flash storage, cloud storage, network devices, etc. Netezza, etc. ) IBM Flash Storage Software: • VMware v. Sphere • Multi-Cloud Data Encryption © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

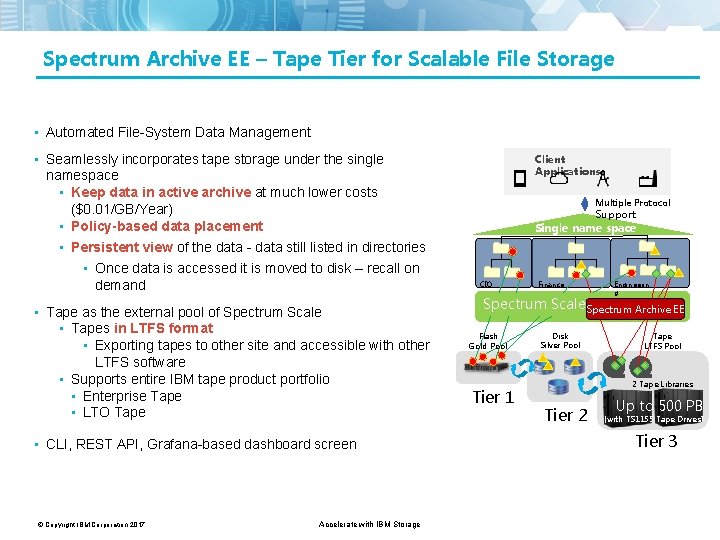

Spectrum Archive EE – Tape Tier for Scalable File Storage • Automated File-System Data Management • Seamlessly incorporates tape storage under the single namespace • Keep data in active archive at much lower costs ($0. 01/GB/Year) • Policy-based data placement • Persistent view of the data - data still listed in directories • Once data is accessed it is moved to disk – recall on demand • Tape as the external pool of Spectrum Scale • Tapes in LTFS format • Exporting tapes to other site and accessible with other LTFS software • Supports entire IBM tape product portfolio • Enterprise Tape • LTO Tape • CLI, REST API, Grafana-based dashboard screen © Copyright IBM Corporation 2017 Accelerate with IBM Storage. Client Applications Multiple Protocol Support Single name space CIO Finance Engineerin g Spectrum Scale. Spectrum Archive EE Flash Gold Pool Tier 1 Disk Silver Pool Tape LTFS Pool 2 Tape Libraries Tier 2 Up to 500 PB (with TS 1155 Tape Drives) Tier 3

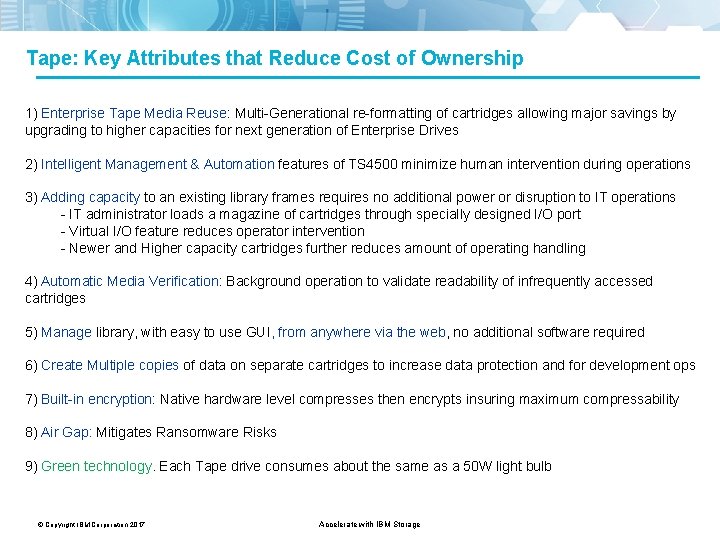

Tape: Key Attributes that Reduce Cost of Ownership 1) Enterprise Tape Media Reuse: Multi-Generational re-formatting of cartridges allowing major savings by upgrading to higher capacities for next generation of Enterprise Drives 2) Intelligent Management & Automation features of TS 4500 minimize human intervention during operations 3) Adding capacity to an existing library frames requires no additional power or disruption to IT operations - IT administrator loads a magazine of cartridges through specially designed I/O port - Virtual I/O feature reduces operator intervention - Newer and Higher capacity cartridges further reduces amount of operating handling 4) Automatic Media Verification: Background operation to validate readability of infrequently accessed cartridges 5) Manage library, with easy to use GUI, from anywhere via the web, no additional software required 6) Create Multiple copies of data on separate cartridges to increase data protection and for development ops 7) Built-in encryption: Native hardware level compresses then encrypts insuring maximum compressability 8) Air Gap: Mitigates Ransomware Risks 9) Green technology. Each Tape drive consumes about the same as a 50 W light bulb © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

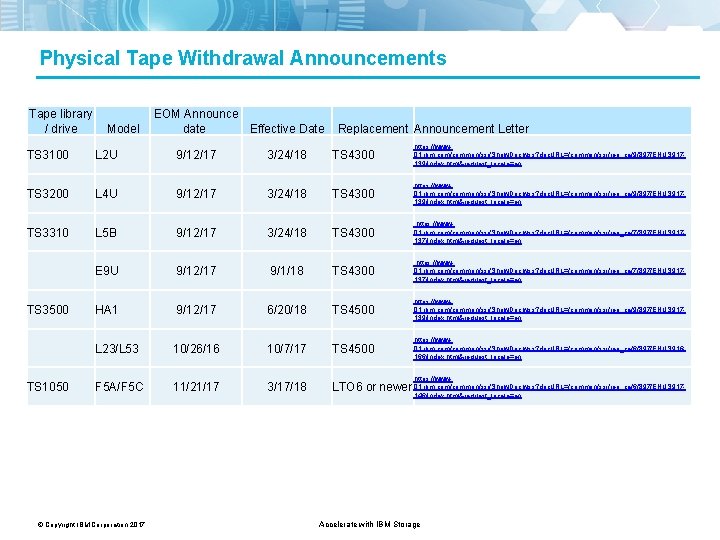

Physical Tape Withdrawal Announcements Tape library / drive Model EOM Announce date Effective Date Replacement Announcement Letter TS 3100 L 2 U 9/12/17 3/24/18 TS 4300 https: //www 01. ibm. com/common/ssi/Show. Doc. wss? doc. URL=/common/ssi/rep_ca/9/897/ENUS 917139/index. html&request_locale=en TS 3200 L 4 U 9/12/17 3/24/18 TS 4300 https: //www 01. ibm. com/common/ssi/Show. Doc. wss? doc. URL=/common/ssi/rep_ca/9/897/ENUS 917139/index. html&request_locale=en TS 3310 L 5 B 9/12/17 3/24/18 TS 4300 https: //www 01. ibm. com/common/ssi/Show. Doc. wss? doc. URL=/common/ssi/rep_ca/7/897/ENUS 917137/index. html&request_locale=en E 9 U 9/12/17 9/1/18 TS 4300 https: //www 01. ibm. com/common/ssi/Show. Doc. wss? doc. URL=/common/ssi/rep_ca/7/897/ENUS 917137/index. html&request_locale=en HA 1 9/12/17 6/20/18 TS 4500 https: //www 01. ibm. com/common/ssi/Show. Doc. wss? doc. URL=/common/ssi/rep_ca/9/897/ENUS 917139/index. html&request_locale=en L 23/L 53 10/26/16 10/7/17 TS 4500 https: //www 01. ibm. com/common/ssi/Show. Doc. wss? doc. URL=/common/ssi/rep_ca/6/897/ENUS 916166/index. html&request_locale=en F 5 A/F 5 C 11/21/17 3/17/18 LTO 6 or newer 01. ibm. com/common/ssi/Show. Doc. wss? doc. URL=/common/ssi/rep_ca/6/897/ENUS 917 - TS 3500 TS 1050 https: //www- 146/index. html&request_locale=en © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

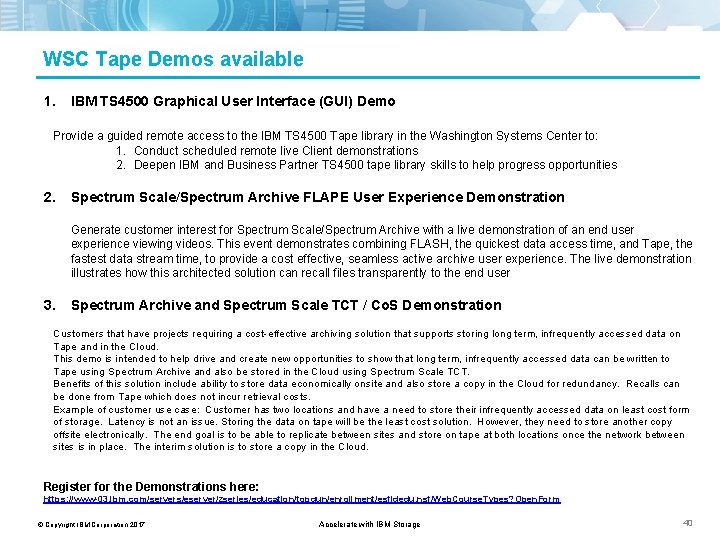

WSC Tape Demos available 1. IBM TS 4500 Graphical User Interface (GUI) Demo Provide a guided remote access to the IBM TS 4500 Tape library in the Washington Systems Center to: 1. Conduct scheduled remote live Client demonstrations 2. Deepen IBM and Business Partner TS 4500 tape library skills to help progress opportunities 2. Spectrum Scale/Spectrum Archive FLAPE User Experience Demonstration Generate customer interest for Spectrum Scale/Spectrum Archive with a live demonstration of an end user experience viewing videos. This event demonstrates combining FLASH, the quickest data access time, and Tape, the fastest data stream time, to provide a cost effective, seamless active archive user experience. The live demonstration illustrates how this architected solution can recall files transparently to the end user 3. Spectrum Archive and Spectrum Scale TCT / Co. S Demonstration Customers that have projects requiring a cost-effective archiving solution that supports storing long term, infrequently accessed data on Tape and in the Cloud. This demo is intended to help drive and create new opportunities to show that long term, infrequently accessed data can be written to Tape using Spectrum Archive and also be stored in the Cloud using Spectrum Scale TCT. Benefits of this solution include ability to store data economically onsite and also store a copy in the Cloud for redundancy. Recalls can be done from Tape which does not incur retrieval costs. Example of customer use case: Customer has two locations and have a need to store their infrequently accessed data on least cost form of storage. Latency is not an issue. Storing the data on tape will be the least cost solution. However, they need to store another copy offsite electronically. The end goal is to be able to replicate between sites and store on tape at both locations once the network between sites is in place. The interim solution is to store a copy in the Cloud. Register for the Demonstrations here: https: //www-03. ibm. com/servers/eserver/zseries/education/topgun/enrollment/esfldedu. nsf/Web. Course. Types? Open. Form © Copyright IBM Corporation 2017 Accelerate with IBM Storage. 40

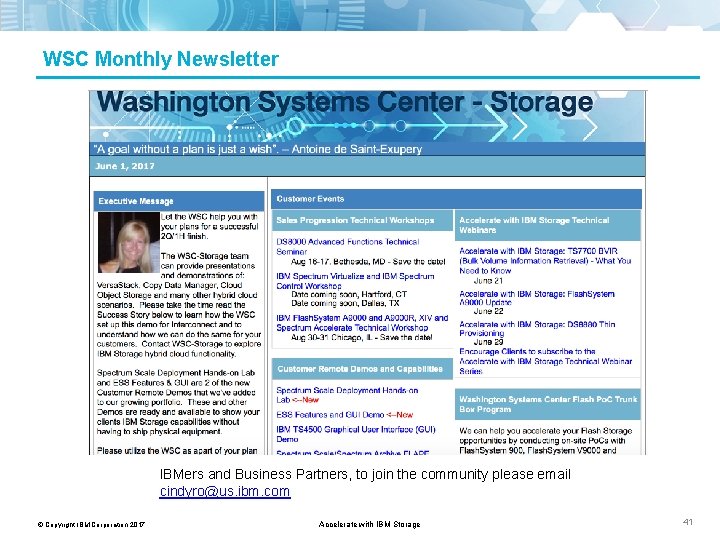

WSC Monthly Newsletter IBMers and Business Partners, to join the community please email cindyro@us. ibm. com © Copyright IBM Corporation 2017 Accelerate with IBM Storage. 41

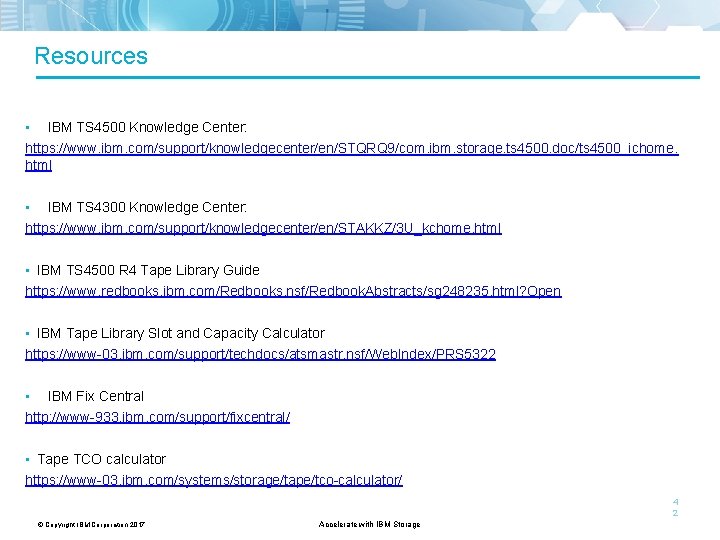

Resources • IBM TS 4500 Knowledge Center: https: //www. ibm. com/support/knowledgecenter/en/STQRQ 9/com. ibm. storage. ts 4500. doc/ts 4500_ichome. html • IBM TS 4300 Knowledge Center: https: //www. ibm. com/support/knowledgecenter/en/STAKKZ/3 U_kchome. html • IBM TS 4500 R 4 Tape Library Guide https: //www. redbooks. ibm. com/Redbooks. nsf/Redbook. Abstracts/sg 248235. html? Open • IBM Tape Library Slot and Capacity Calculator https: //www-03. ibm. com/support/techdocs/atsmastr. nsf/Web. Index/PRS 5322 • IBM Fix Central http: //www-933. ibm. com/support/fixcentral/ • Tape TCO calculator https: //www-03. ibm. com/systems/storage/tape/tco-calculator/ 4 2 © Copyright IBM Corporation 2017 Accelerate with IBM Storage.
Thank you!!! Questions? 4 3 © Copyright IBM Corporation 2017 Accelerate with IBM Storage.

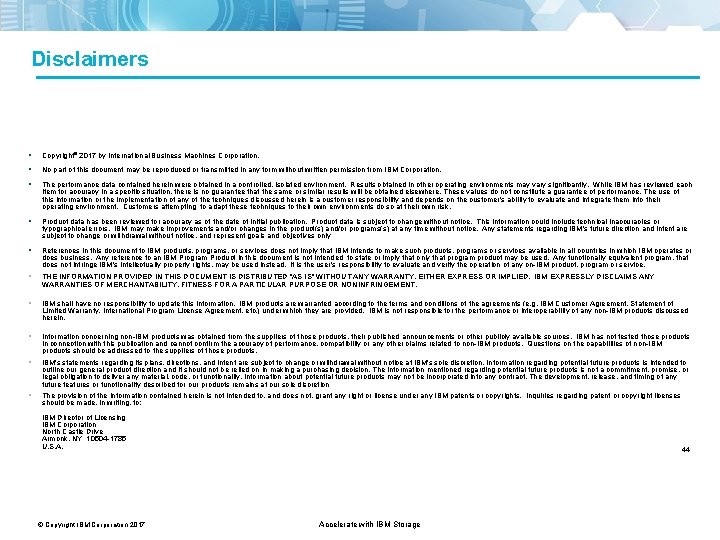

Disclaimers Copyright© 2017 by International Business Machines Corporation. No part of this document may be reproduced or transmitted in any form without written permission from IBM Corporation. The performance data contained herein were obtained in a controlled, isolated environment. Results obtained in other operating environments may vary significantly. While IBM has reviewed each item for accuracy in a specific situation, there is no guarantee that the same or similar results will be obtained elsewhere. These values do not constitute a guarantee of performance. The use of this information or the implementation of any of the techniques discussed herein is a customer responsibility and depends on the customer's ability to evaluate and integrate them into their operating environment. Customers attempting to adapt these techniques to their own environments do so at their own risk. Product data has been reviewed for accuracy as of the date of initial publication. Product data is subject to change without notice. This information could include technical inaccuracies or typographical errors. IBM may make improvements and/or changes in the product(s) and/or programs(s) at any time without notice. Any statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in which IBM operates or does business. Any reference to an IBM Program Product in this document is not intended to state or imply that only that program product may be used. Any functionally equivalent program, that does not infringe IBM's intellectually property rights, may be used instead. It is the user's responsibility to evaluate and verify the operation of any on-IBM product, program or service. THE INFORMATION PROVIDED IN THIS DOCUMENT IS DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED. IBM EXPRESSLY DISCLAIMS ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT. IBM shall have no responsibility to update this information. IBM products are warranted according to the terms and conditions of the agreements (e. g. IBM Customer Agreement, Statement of Limited Warranty, International Program License Agreement, etc. ) under which they are provided. IBM is not responsible for the performance or interoperability of any non-IBM products discussed herein. Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products in connection with this publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM's statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM's sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code, or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and timing of any future features or functionality described for our products remains at our sole discretion The provision of the information contained herein is not intended to, and does not, grant any right or license under any IBM patents or copyrights. Inquiries regarding patent or copyright licenses should be made, in writing, to: IBM Director of Licensing IBM Corporation North Castle Drive Armonk, NY 10504 -1785 U. S. A. © Copyright IBM Corporation 2017 Accelerate with IBM Storage. 44
Trademarks The following terms are trademarks or registered trademarks of the IBM Corporation in either the United States, other countries or both. – IBM, Spectrum Storage, Spectrum Archive, Spectrum Scale, , z Systems – Linear Tape File System, Linear Tape-Open, LTO, the LTO Logo, Ultrium, and the Ultrium logo are trademarks of HP, IBM Corp. and Quantum in the U. S. and other countries. Other company, product or service names may be trademarks or service marks of others 45 46019646 USEN-00 © Copyright IBM Corporation 2017 Accelerate with IBM Storage.
