IBM Systems Technology Group IBM Systems Director 6
IBM Systems & Technology Group IBM Systems Director 6. 1 소개 Your Department Your name Your email@kr. ibm. com © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | Contents IBM Systems Director 6. 1 소개 1 2 3 4 Confidential - Do Not Distribute IT System Management Background IBM Systems Director 6. 1 주요 기능 소개 고객을 위한 IBM systems Director 6. 1의 Value 1 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | Contents 1 System Management Background 1. 1 Datacenter 및 IT관리자의 고민 1. 2 IT Infrastructure Challenge Confidential - Do Not Distribute 2 © Copyright IBM Corporation 2009

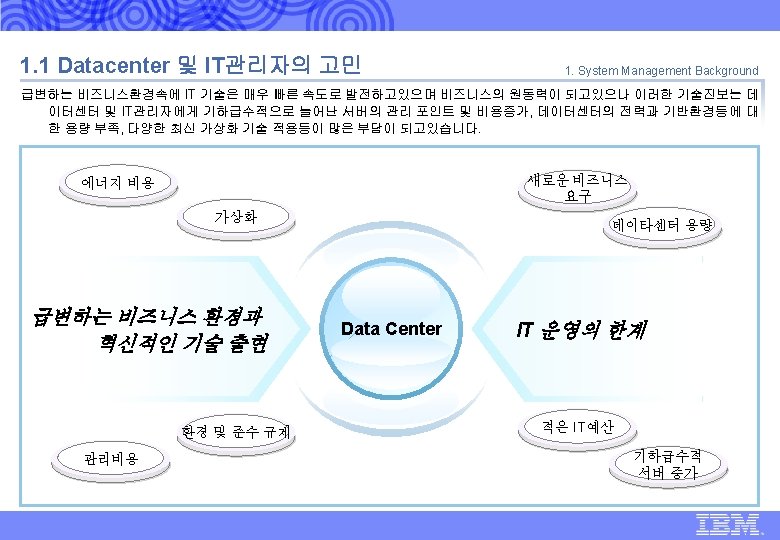

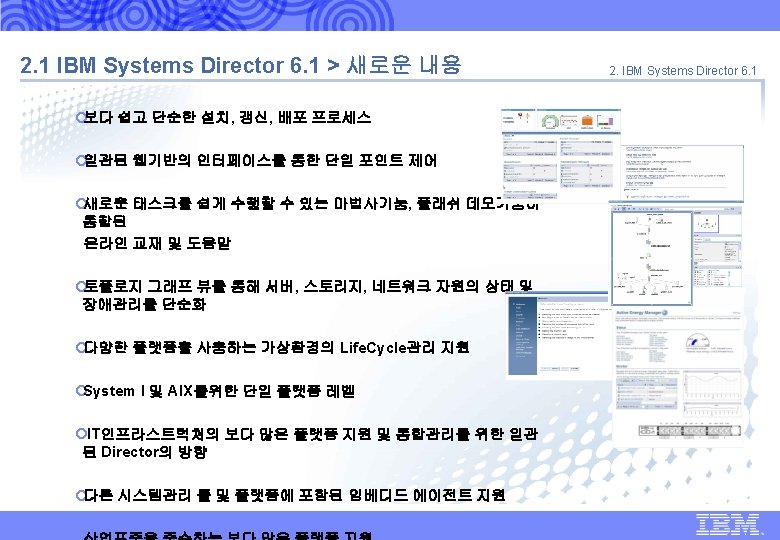

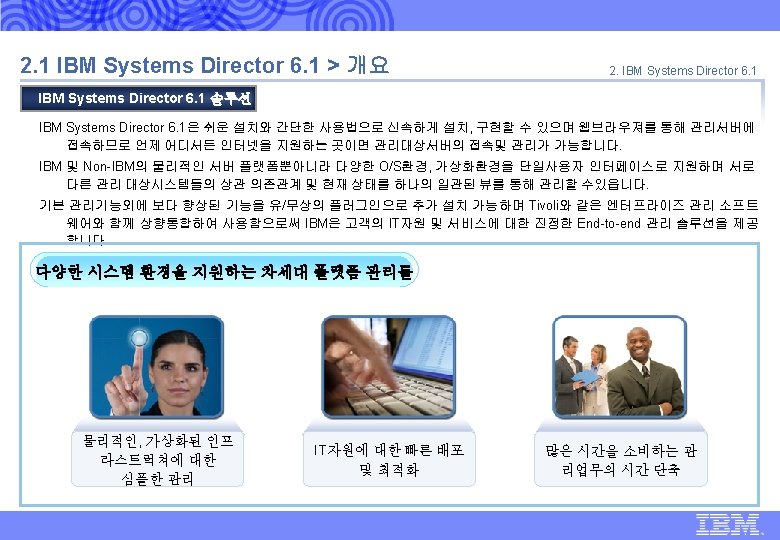

IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | Contents 2 IBM Systems Director 6. 1 2. 1 IBM Systems Director 6. 1 - 개요 - 주요 특징 - 새로운 내용 - Topology - 지원 시스템 Confidential - Do Not Distribute 5 © Copyright IBM Corporation 2009

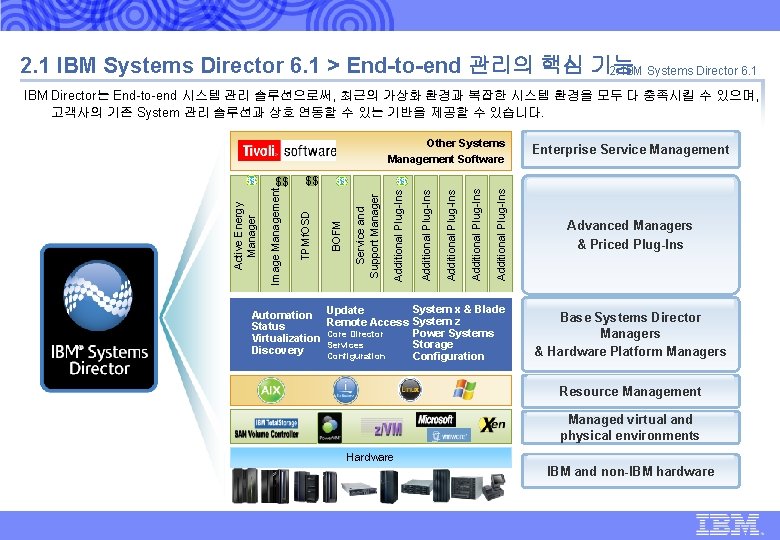

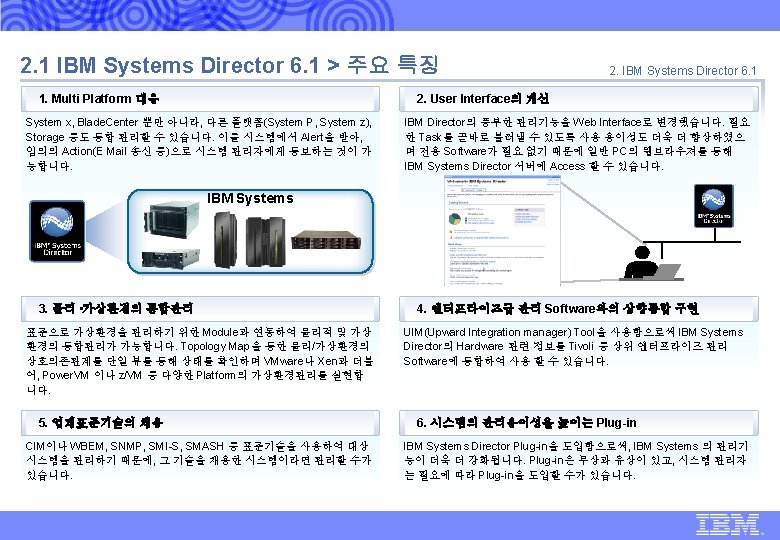

IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 2. 1 IBM Systems Director 6. 1 > End-to-end 관리의 핵심 기능 2. IBM Systems Director 6. 1 IBM Director는 End-to-end 시스템 관리 솔루션으로써, 최근의 가상화 환경과 복잡한 시스템 환경을 모두 다 충족시킬 수 있으며, 고객사의 기존 System 관리 솔루션과 상호 연동할 수 있는 기반을 제공할 수 있습니다. Other Systems Management Software Automation Status Virtualization Discovery Additional Plug-Ins Additional Plug-Ins $$ Service and Support Manager $$ $$ BOFM $$ TPMf. OSD $$ Image Management Active Energy Manager $$ Enterprise Service Management System x & Blade Update Remote Access System z Power Systems Core Director Services Storage Configuration Advanced Managers & Priced Plug-Ins Base Systems Director Managers & Hardware Platform Managers Resource Management Managed virtual and physical environments Hardware IBM and non-IBM hardware Confidential - Do Not Distribute 7 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 2. 1 IBM Systems Director 6. 1 > Topology 2. IBM Systems Director 6. 1 Management Consoles(인터넷 웹즈라우저) Non-IBM 산업표준 x 86시스템에서도 사 용가능한 IBM Director Agent IBM, Non-IBM System에 대한 단일 포인트 관리 기능 제 공 IBM Director Server Managed Non-IBM Objects Managed IBM Objects ¡Blade. Center ¡System x ¡System p ¡System i ¡System z ¡Retail Store Systems ¡Storage Confidential - Do Not Distribute 10 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 2. 1 IBM Systems Director 6. 1 > 지원 시스템 2. IBM Systems Director 6. 1 IBM Systems를 위한 중앙 제어 및 다양한 플랫폼 관리 솔루션 ¡System x 및 Blade. Center자원 관리 : - Bladecenter, Blade Server, IO모듈, System x - VMware ESX, VMware 3 i, MSVS, XEN - Windows, Linux ¡System P 자원 관리 : - HMC, IVM, Virtual I/O Server, System i/p Servers(FSP) - AIX, POWER Linux, IBM I ¡System Z 자원관리 : - Linux on z. Series - z/VM ¡Non-IBM x 86 servers ¡SNMP-기반 devices - Network, storage, power distribution units, etc. ¡CIM-기반 devices - CIM = Common Information Model ¡Storage resources - LSI(IRC), DS 3000, DS 4000, DS 6000 - SAS Switch(NSSM, RSSM), Brocade FC Switch, Qlogic FC Switch Confidential - Do Not Distribute 11 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 2. 1 IBM Systems Director 6. 1 > 지원 시스템 2. IBM Systems Director 6. 1 지원 범위 H/W IBM Systems Director Server지원 O/S Confidential - Do Not Distribute § IBM Blade. Center Chassis § IBM Blade Servers § IBM Power Systems(formerly System i® and System p® systems) § IBM System Storage™ Network Attached Storage(NAS) products § System x servers § System z systems § MS Windows 2003 Std, EE(R 2, SP 2) § MS Windows 2008 Std, EE(SP 1) § MS Windows 2003 x 64 Std, EE(R 2, SP 2) § MS Windows 2008 x 64 Std, EE(SP 1) § Redhat enterprise Linux AS 4(update 5, 6, 7) § Redhat enterprise Linux AS 5(update 1, 2) § Suse Linux Enterprise 9 x 86(sp 3, 4) § Suse Linux Enterprise 10 x 86(sp 1, 2) § VMWare ESX 3. 0~3. 5. 2 Guest O/S § Redhat enterprise Linux AS 4 x 64(update 5, 6, 7) § Redhat enterprise Linux AS 5 x 64(update 1, 2) § Suse Linux Enterprise 9 x 64(sp 3, 4) § Suse Linux Enterprise 10 x 64(sp 1, 2) 12 § AIX 5. 3(sp 4 or later) § AIX 6. 1(sp 1 or later) § Redhat enterprise Linux AS 4. 6, 4. 7 on Power § Redhat enterprise Linux AS 5. 1, 5. 2 on Power § Suse Linux Enterprise 9 on Power(sp 3, 4) § Suse Linux Enterprise 10 on Power(sp 1, 2) § Redhat enterprise Linux AS 4. 0 on System Z § Redhat enterprise Linux AS 5. 0 on System Z § Suse Linux Enterprise 9 on System Z(sp 4 or later) § Suse Linux Enterprise 10 on System Z(sp 2 or later) © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 2. 1 IBM Systems Director 6. 1 > 지원 시스템 2. IBM Systems Director 6. 1 지원 범위 Common Agent 지원 범위 가상화 솔루션 지원범위 Confidential - Do Not Distribute § MS Windows 2003, 2008 Std, EE, Dtc(x 86, x 64) § MS Windows Vista, XP Pro(x 86, x 64) § Redhat enterprise Linux AS, ES, WS 4, 5(update 5, 6, 7 x 86, x 64) § Redhat enterprise Linux AS, ES, WS 5(update 1, 2 x 86, x 64) § Suse Linux Enterprise 9(sp 3, 4 x 86, x 64) § Suse Linux Enterprise 10(sp 1, 2 x 86, x 64) § VMWare ESX 3. 0~3. 5. 2 Console, Guest O/S § AIX 5. 3(sp 4 or later) § AIX 6. 1(sp 1 or later) § Redhat enterprise Linux AS 4. 6, 4. 7 on Power § Redhat enterprise Linux AS 5. 1, 5. 2 on Power § Suse Linux Enterprise 9 on Power(sp 3, 4) § Suse Linux Enterprise 10 on Power(sp 1, 2) § Redhat enterprise Linux AS 4. 0 on System Z § Redhat enterprise Linux AS 5. 0 on System Z § Suse Linux Enterprise 9 on System Z(sp 4 or later) § Suse Linux Enterprise 10 on System Z(sp 2 or later) § Hardware Management Console(HMC) 7. 3. 3 SP 2 PTF MH 01146 Ver. 7. 3. 4 § Integrated Virtualization Manager(IVM) 1. 5. 2. 1 or later, 2. 1. 0. 10 fix pack 20. 1 or later § MS virtual Server 2005 R 2 SP 1 § Virtual IO Server 1. 5. 2. 1 or later(Agent-less) § Virtual IO Server 2. 1. 0. 10 fix pack 20. 1 or later § VMware ESX Server 3. 0. x, 3. 5. x Console § VMware ESXi 3. 5 update 2 or later § VMware Virtual. Center 2. 0. x, 2. 5. x § Red Hat Enterprise Linux 5. 0, with Xen 3. 0. 3 § Red Hat Enterprise Linux 5. 1, with Xen 3. 1 § Red Hat Enterprise Linux 5. 2, with Xen 3. 1. 2 § SUSE Linux Enterprise Server 10, with the Xen Virtual Machine Host Server option installed(XEN 3. 0) § SUSE Linux Enterprise Server 10 SP 1, with the Xen Virtual Machine Host Server option installed(XEN 3. 0. 4) § SUSE Linux Enterprise Server 10 SP 2, with the Xen Virtual Machine Host Server option installed(XEN 3. 2) § z/VM 5. 4 13 © Copyright IBM Corporation 2009

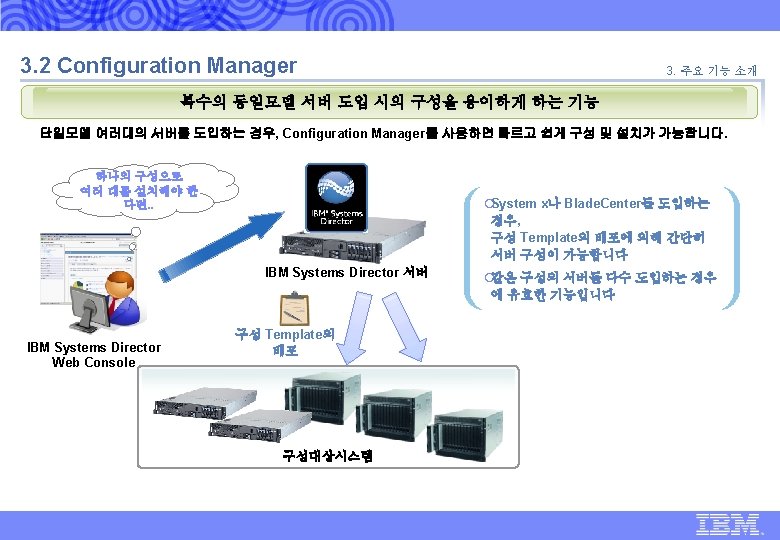

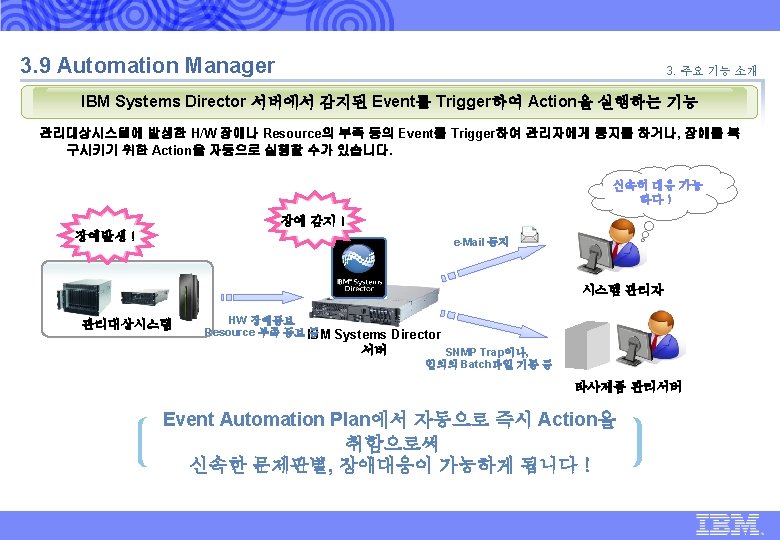

IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | Contents 3 주요 기능 소개 3. 1 Discovery Manager 3. 2 Configuration Manager 3. 3 Blade. Center/System x Manager 3. 4 Power Systems Manager 3. 5 Virtualization Manager 3. 6 Storage Manager 3. 7 SNMP Manager 3. 8 Status Manager 3. 9 Automation Manager 3. 10 Service and Support Manager(무상 Plugin) 3. 11 Remote Access Manager 3. 12 Update Manager 3. 13 Active Energy Manager(유상 Plugin) 3. 14 Upward integration Confidential - Do Not Distribute 14 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 1 Discovery Manager 3. 주요 기능 소개 관리가 가능한 다양한 시스템 및 스토리지, 스위치등을 검색하여 IBM Systems Director 서버로 등 록하는 기능 System x나 Blade. Center 뿐만 아니라, 다른 Platform(Power Systems이나 System z)이나 Storage나 SNMP 대응기기도 검 출하여 관리할 수가 있습니다. System x/Blade. Center/Power Systems 등 단일 콘솔 로 통합해 서 관리할 수 있는! 검출/등록 IBM Systems Director 서버 Storage Switch IBM Systems Director Web Console ¡다양한 시스템을 검출 및 등록 가능 ¡하나의 Web Console에서, 일관된 관리 및 감시 Confidential - Do Not Distribute 15 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 3 Blade. Center/System x Manager 3. 주요 기능 소개 등록된 Blade. Center/System x의 관리용 Portal ¡「시스템을 등록하고 싶다」「Threshold값의 설정을 하고 싶다」「Inventory 정보를 수집하고 싶다」등, 갖가지 Task를 여기서 실행할 수가 있습니다. ¡ 감시대상 시스템에 문제가 있는 경우에 Message가 표시됩니다. ¡Blade. Center/System x 관리를 위한 포탈 역할 - Inventory 수집 - Threshold값 설정 - Log 확인 - 전원관리 IBM Systems Director 서버 Confidential - Do Not Distribute - etc… 17 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 4 Power Systems Manager 3. 주요 기능 소개 Power Systems를 관리하기위한 다양한 Component를 포함하는 Portal IBM Systems Director 서버 IBM Systems Director Web Console Power Systems 서버 ¡하나의 Console에서 HMC 관리, 케이스 의 관리 O/S의 관리가 가능 ¡HMC나 IVM 등의 관리화면으로의 Access를 지원 ¡LPAR 조작을 실시가능 HMC IVM VIOS LPAR Operating System Confidential - Do Not Distribute 18 ¡HMC: Hardware 관리 Console ¡IVM: Integrated Virtualization Manager ¡VIOS: Virtual I/O Server ¡LPAR: 논리 파티션 © Copyright IBM Corporation 2009

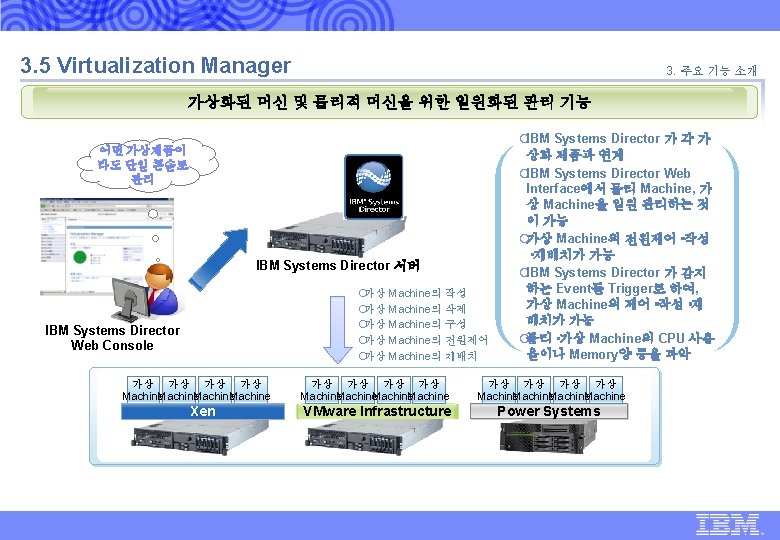

IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 5 Virtualization Manager 3. 주요 기능 소개 가상화된 머신 및 물리적 머신을 위한 일원화된 관리 기능 어떤 가상제품이 라도 단일 콘솔로 관리 IBM Systems Director 서버 ¡가상 Machine의 작성 ¡가상 Machine의 삭제 ¡가상 Machine의 구성 ¡가상 Machine의 전원제어 ¡가상 Machine의 재배치 IBM Systems Director Web Console 가상 가상 Machine Xen Confidential - Do Not Distribute ¡IBM Systems Director 가 각 가 상화 제품과 연계 ¡IBM Systems Director Web Interface에서 물리 Machine, 가 상 Machine을 일원 관리하는 것 이 가능 ¡가상 Machine의 전원제어・작성 ・재배치가 가능 ¡IBM Systems Director 가 감지 하는 Event를 Trigger로 하여, 가상 Machine의 제어・작성・재 배치가 가능 ¡물리・가상 Machine의 CPU 사용 율이나 Memory양 등을 파악 가상 가상 Machine Machine VMware Infrastructure Power Systems 19 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 6 Storage Manager 3. 주요 기능 소개 Storage Disk나 Switch, RAID Subsystem 등을 관리하는 기능 Storage 구성 Tool Storage Manager Serve. RAID Manager SMI-S Provid er Tivoli Productivity Center SMI-S Provid er Storage를 통합 해서 감시할 수 있 다! IBM Systems Director Web Console Confidential - Do Not Distribute Brocade Qlogic Switch DS 3000 DS 4000 DS 6000 Storage IBM Systems Director 서버 Blade. Center S ¡개별 관리 Tool이 없어도, Storage나 Switch의 상황을 감시할 수 있습니다 ¡장애감시는 Event Action과 연계할 수 있어 간단 ¡Blade. Center S의 Storage 구성 가능 ¡SNMP보다도 유연한 감시가 가능한 SMI-S 관리표준 ¡IBM Systems Director Web Console에서 Storage 구성 Tool 가 능 20 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 7 SNMP Manager 3. 주요 기능 소개 SNMP Device를 감시하는 기능 전자 Mail・SNMP 상위 시스템 관리 Software (Tivoli 등) 프로그램 실행 IBM Systems Director 서 버 ¡SNMP Trap ¡SNMP Get/Set SNMP Device Confidential - Do Not Distribute ¡IBM Systems Director 서버는 SNMP Agent를 등록 가능합 니다 ¡IBM Systems Director 서버는 SNMP Trap을 수신할 수 있 습니다 ¡SNMP Trap을 Trigger로 하여 여러 가지 Action을 설정 가 능 (메일 송신・프로그램 실행 등) ¡MIB File의 Compile도 가능합니다 21 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 8 Status Manager 3. 주요 기능 소개 관리대상 시스템의 상태를 신속하고 통합하여 관리 관리대상시스템에서 발생하고 있는 Critical Event나, System Resource, Process 및 Threshold값의 상태를 그래픽형태 로 쉽게 파악 IBM Systems Director 서버 ¡다수의 시스템이 도입되어 있는 환 경에서도 모든 시스템 상황을 한눈 에 파악하는 것이 가능합니다 IBM Systems Director Web Console 관리대상시스템 Confidential - Do Not Distribute 22 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 11 Remote Access Manager 3. 주요 기능 소개 IBM Systems Director Web Console에서 관리대상시스템을 원격 조작하는 기능 같은 조작으로 여러 시스템을 조작할 수 있다 ! ¡IBM Systems Director Web Console에서 여러 관리대상시스템에 Remote Access가 가능합니다 ¡Web Console ¡File 전송 - Windows(Remote Desktop 접속) IBM Systems Director 서버 - Linux/AIX(VNC・ SSH) - IBM i(Telnet) - Blade. Center 관리 Module. Web Command Line) ¡File 전송 - Remote 관리 Adapter IIWeb Command Line) - Baseboard 관리 Controller(Command IBM Systems Director ¡Remote Access Web Console ¡File 전송 Line) ¡Secure한 File 전송이 가능합니다 - Console - IBM Systems Director 서버 간 - Console - IBM Systems Director 공통 Agent간 - IBM Systems Director 서버 - IBM 관리대상시스템 Confidential - Do Not Distribute Systems Director 공통 Agent간 25 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 12 Update Manager 3. 주요 기능 소개 Device Driver나 Firmware 등의 갱신을 Remote로 일괄적으로 실행하는 기능 갱신 리스트 다수 시스템에 대량의 Deployment Driver File Firmware CD Version Check IBM Systems Director 서버 Package의 확보 ¡시스템 BIOS ¡각종 Firmware ¡O/S Batch ¡Systems Director Agent IBM Systems Director Web Console 인터넷으로 ¡한번의 Task 실행으로 대량 서버를 갱 신 BIOS 나 Device Driver 등) ¡낮은버전 사용하는 서버를 한 눈에 알 수 있는 Compliance 기능 ¡O/S Batch의 적용(Windows 제외) ¡BM Systems Director Agent의 Remote Install 및 patch 관리대상시스템 Confidential - Do Not Distribute 26 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 13 Active Energy Manager(유상 Plugin) 3. 주요 기능 소개 서버 전력사용량의 통합적인 Monitoring 및 Control을 실현하는 기능 IBM Systems Director 6. 1 Active Energy Manager서버 측정대상 서버 서버내 센서로 소비전력/온도를 계측 Blade. Center System x, Power Systems 등 Real-time으로 보고 Power Capping의 실행 소비전력 Event에 따라 서버를 제어 i. PDU(Intelligent PDU) Confidential - Do Not Distribute 27 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 3. 14 Upward integration 3. 주요 기능 소개 Systems Director는 상위 레벨의 관리 소프트웨어에 통합되어 더욱 세부적인 H/W정보를 제공합 니다. ¡Tivoli Enterprise™ - TEC 3. 8 & 3. 9 - ITM 5. 1. x - Configuration Manager 4. 2. x - Software Distribution - Provisioning Manager - Inventory - Security Operations Manager - Distributed Monitoring ¡Tivoli Net. View® 7. 1. x (Windows and Linux) ¡Tivoli Netcool(Netcool/Omnibus, Netcool/Precision IP(via SNMP), Netcool/Monitoring, Netcool/ISM, Netcool/AEM(via SNMP) HP Open. View ¡CA Unicenter NSM 3. 1 and R 11(Windows) ¡HP Open. View NNM 7. 0. 1 and 7. 5. 1(Windows and Linux) ¡HP Open. View Operations for windows 7. 5 x(Windows) ¡Microsoft Systems Management Server, Microsoft System Center Operations Manager, and Microsoft Operations Manager 2005 Confidential - Do Not Distribute 28 © Copyright IBM Corporation 2009

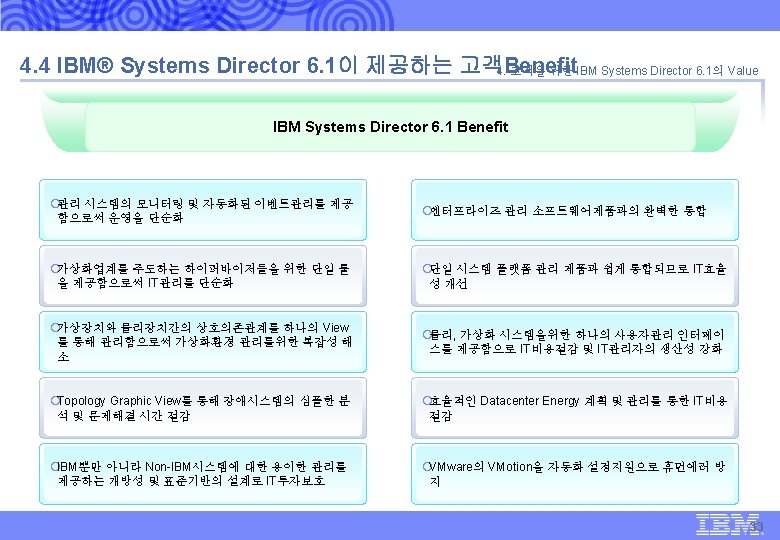

IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | Contents 4 고객을 위한 IBM Systems Director 6. 1의 Value 4. 1 System Life Cycle과 시스템 관리 4. 2 System Life Cycle 및 IT관리자의 고민 4. 3. IBM Systems Director 6. 1 제공 솔 루션 4. 4 IBM® Systems Director 6. 1의 Benefit 4. 5 추가 자료 Reference Confidential - Do Not Distribute 29 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 4. 1 System Life Cycle과 시스템 관리 계획 4. 고객을 위한 IBM Systems Director 6. 1의 Value 도입 ¡Capacity Planning ¡시설계획 ¡전력계산 ¡BIOS/Firmware 적용 ¡O/S 설치 및 배포 ¡Device Driver 적용 ¡Application 설치 및 환경구성 ¡정기 Reboot ¡Device Driver 갱신 ¡BIOS/Firmware 갱신 ¡O/S Patch 적용 ¡Log 갱신 유지보수 Confidential - Do Not Distribute 운용 30 ¡Hardware 장애 감시 ¡Resource 사욜량 감시 ¡프로세스/서비스 감시 ¡Remote Access ¡사용전력량 감시 ¡기존 Tool과의 연계 ¡이벤트 자동 통보 ¡가상 머신 관리 © Copyright IBM Corporation 2009
IBM Global Technology Services | IBM Systems Director 6. 1 표준 제안 | 4. 5 IBM Systems Director 6. 1 추가 자료 4. 고객을 위한 IBM Systems Director 6. 1의 Value References IBM Director Download Site – http: //www 14. software. ibm. com/webapp/iwm/web/reg/pick. do? source=dmp&lang=en_US IBM Director Documentation (education, tutorials, articles) – http: //publib. boulder. ibm. com/infocenter/systems/director IBM Director FORUM – http: //www. ibm. com/developerworks/forums/dw_forum. jsp? forum=759&cat=53 IBM Director Extensions Download Site – http: //www. ibm. com/systems/management/director/downloads. html IBM Hardware Systems Management Web Site – http: //www. ibm. com/systems/management Confidential - Do Not Distribute 34 © Copyright IBM Corporation 2009
