IBM System x 3755 Copyright IBM Corporation 2006
IBM System x 3755 제품소개 © Copyright IBM Corporation 2006
IBM Systems Group 서버 시장의 흐름(1) *Source: IDC Q 405 Server forecaster IBM System x 1 © Copyright IBM Corporation 2005

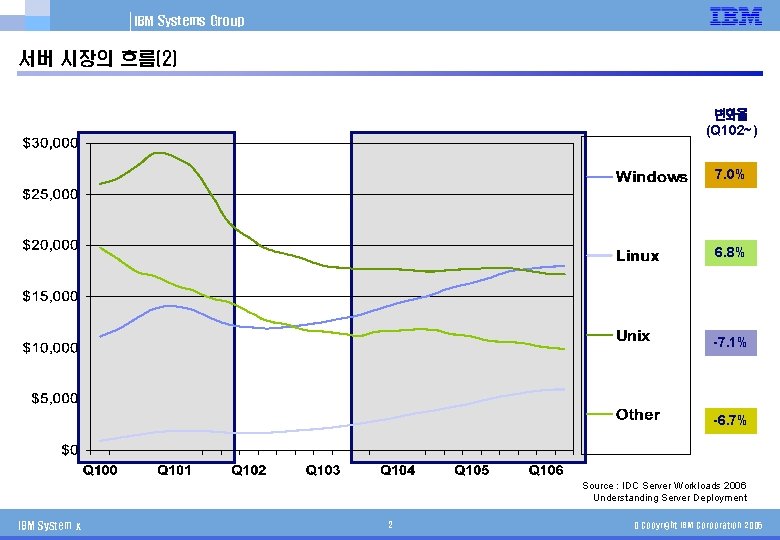

IBM Systems Group 서버 시장의 흐름(2) 변화율 (Q 102~) 7. 0% 6. 8% -7. 1% -6. 7% Source : IDC Server Workloads 2006 Understanding Server Deployment IBM System x 2 © Copyright IBM Corporation 2005

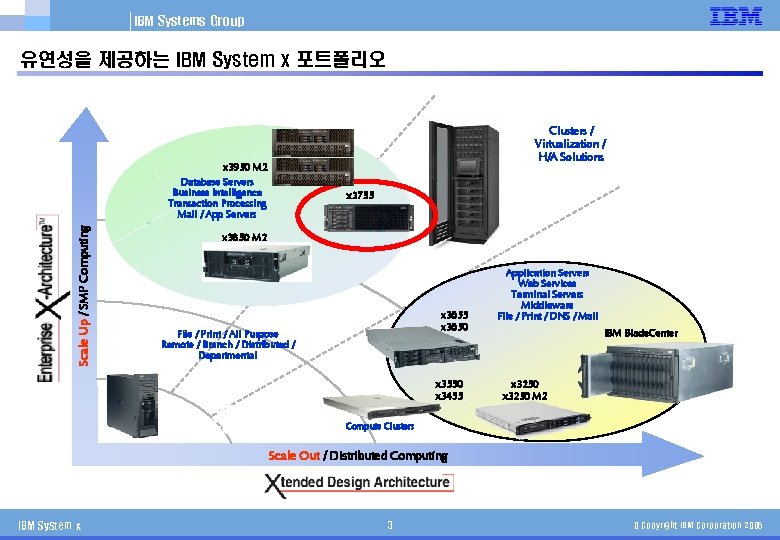

IBM Systems Group 유연성을 제공하는 IBM System x 포트폴리오 Clusters / Virtualization / H/A Solutions Scale Up / SMP Computing x 3950 M 2 Database Servers Business Intelligence Transaction Processing Mail / App Servers x 3755 x 3850 M 2 x 3655 x 3650 File / Print / All Purpose Remote / Branch / Distributed / Departmental x 3550 x 3455 x 3400 x 3500 X 3200/ x 3250 M 2 Application Servers Web Services Terminal Servers Middleware File / Print / DNS / Mail IBM Blade. Center x 3250 M 2 Compute Clusters Scale Out / Distributed Computing IBM System x 3 © Copyright IBM Corporation 2005

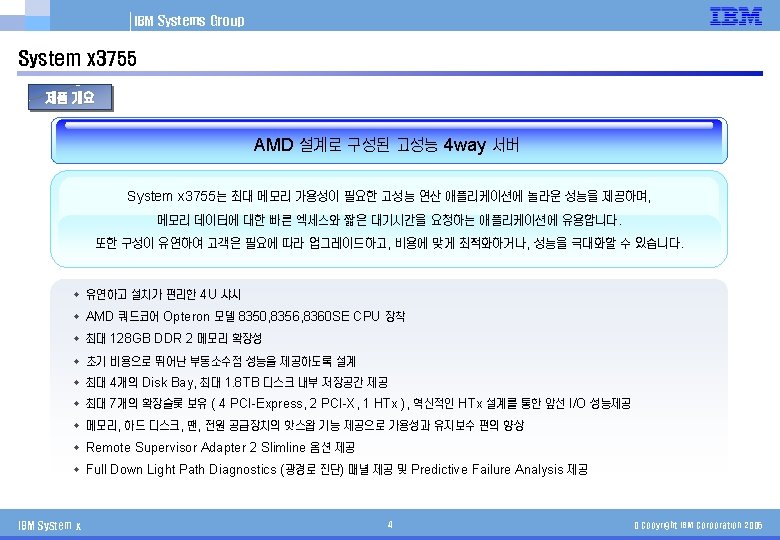

IBM Systems Group System x 3755 제품 주요 사양 Chipset Broadcom HT 1000/HT 2100 Memory DDR 2 667 / 8 DIMM per CPU / 128 GB maximum Processors Cache Controller Gigabit Ethernet System Management PCI Slots Internal Tape Support Hard disk drives AMD Quad core (8000 series) 2 Mb L 2 (max) Adaptec AIC-9580 W / RAID 0. 1. 10 support Integrated Dual Gigabit Ethernet (Broadcom 5708 C) Integrated BMC IPMI 2. 0; RSA II Slim. Line option Standard: 4 PCI-E (1) x 16; (2) x 8; (1) x 4 and 2 PCI-X (133/100 Mhz); 1 HTX (Half Length) External Tape Only 4 x 3. 5” H/S SAS HDD Standard RAID Integrated RAID 0, 1, 10 Std RAID 5 Option (Serve. RAID 8 k) USB and video 3 USB (2 Front/1 Rear) 1 Video; 1 Serial; 1 PS/2 Keyboard 1 PS/2 mouse Power Cooling IBM System x Hot-swap/redundant power supplies (1500 w) Hot-swap/redundant fans (3 fans with single power supply, 6 with dual) 5 © Copyright IBM Corporation 2005
IBM Systems Group System x 3755 시스템 성능 : AMD Opteron 프로세서의 주요 특징 w 전통적인 x 86 Architecture w AMD 64의 Direct Connect Architecture • 20년 동안 사용된 Front-Side-Bus Architecture로서 • 산업 표준의 AMD 64 Technology • CPUs, Memory, IO에서 동일한 버스를 공유함으로 • AMD의 혁신적인 Direct Connect Architecture는 FSB 병목 현상을 완전히 제거함 • 병목현상이 발생하여 성능이 저하됨 • Hyper. Transport Technology를 통해 상호 연결되어 고대역 폭 및 낮은 Latency를 제공함 • 빠른 CPU, 더많은 CPU는 성능과 직결되지 않음 IBM System x 6 © Copyright IBM Corporation 2005

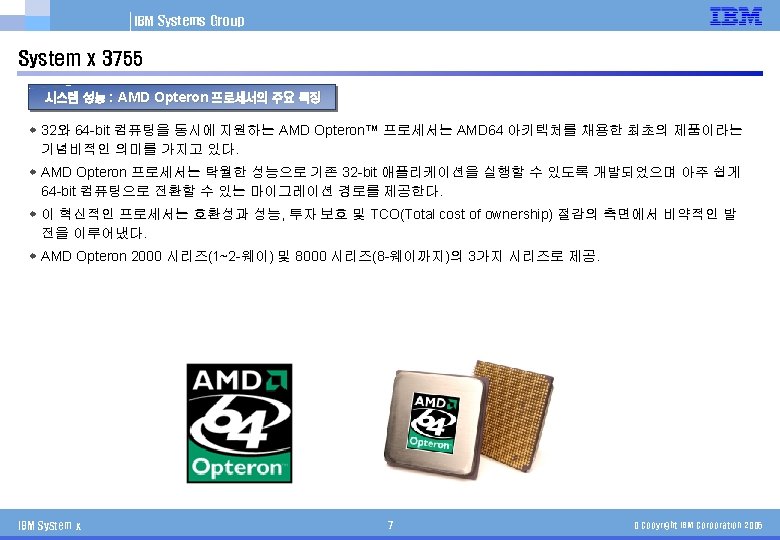

IBM Systems Group System x 3755 시스템 성능 : x 3755 차별화 IBM System x 3755만의 CPU Pass-Thru Card를 사용하여 CPU 확장성 및 1, 2, 3, 4, CPU 확장 구성의 유연성을 제공하며 특히 메모리를 집중적으로 사용하는 어플리케이션일수록 HTX Bypass Module을 장착한 3 socket CPU구성 시스템은 뛰어난 성능 향상을 제공한다. x 3755 Memory Performance CPU Pass-Thru Card 3 -way with pass-through up to 37% faster than standard 3 -way with pass-through up to 9% faster than 4 -way Opteron c. HT Opteron Source: x. Series Performance Measurements IBM System x 9 © Copyright IBM Corporation 2005

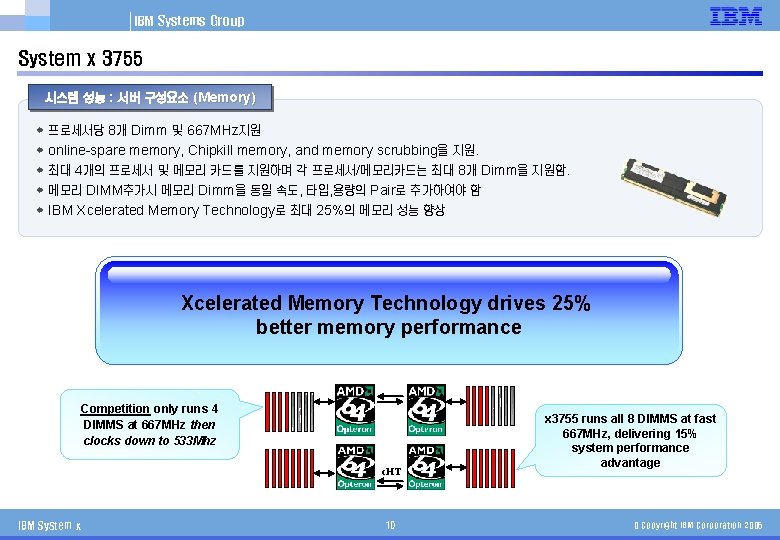

IBM Systems Group System x 3755 시스템 성능 : 서버 구성요소 (Memory) w w w 프로세서당 8개 Dimm 및 667 MHz지원 online-spare memory, Chipkill memory, and memory scrubbing을 지원. 최대 4개의 프로세서 및 메모리 카드를 지원하며 각 프로세서/메모리카드는 최대 8개 Dimm을 지원함. 메모리 DIMM추가시 메모리 Dimm을 동일 속도, 타입, 용량의 Pair로 추가하여야 함 IBM Xcelerated Memory Technology로 최대 25%의 메모리 성능 향상 Xcelerated Memory Technology drives 25% better memory performance Competition only runs 4 DIMMS at 667 MHz then clocks down to 533 Mhz c. HT IBM System x 10 x 3755 runs all 8 DIMMS at fast 667 MHz, delivering 15% system performance advantage © Copyright IBM Corporation 2005
IBM Systems Group System x 3755 시스템 성능 : 서버 구성요소 (Memory) Opteron IBM’s x 3755 Xcelerated Memory Technology 프로 세서당 8개 667 MHz DIMM 지원 Opteron HTX Opteron I/O IBM System x c. HT 총 32개 DIMM슬롯을 제공하여 2 GB DIMM사용시 64 GB 메모 리 구성 – 4 GB DIMM 16개 사 용시보다 40% 비용절감 효과 Opteron I/O 11 © Copyright IBM Corporation 2005
IBM Systems Group System x 3755 새로운 SCSI 기술적용 : Serial Attach SCSI (SAS) w 단순화된 cabling • Controller와 각각의 HDD가 독립적으로 연결 • 얇은 cable과 작은 connector가 더 쉬운 cable routing을 가능하게 함 • 더 효과적인 cooling으로 airflow를 향상시킴 w 더 큰 throughput으로 다중의 지속적인 읽기쓰기가 가능해짐 w 이 전의 SCSI보다 더 큰 scalability 와 더 높은 performance를 제공 (각 채널당 300 MB/S) w 내장된 H/W Base의 Serveraid 8 ki 컨트롤러는 TAID 0/1/10을 기본 제공하며 32 MB, PC 2 -4200 DDRII cache Memory를 사용 w 옵션 Serveraid 8 S컨트롤러는 256 MB Battery-backup cache 및 RAID 0/1/10/1 E/5/6을 제공함 SAS HDDs SAS Backplane SAS Controller IBM System x 13 © Copyright IBM Corporation 2005

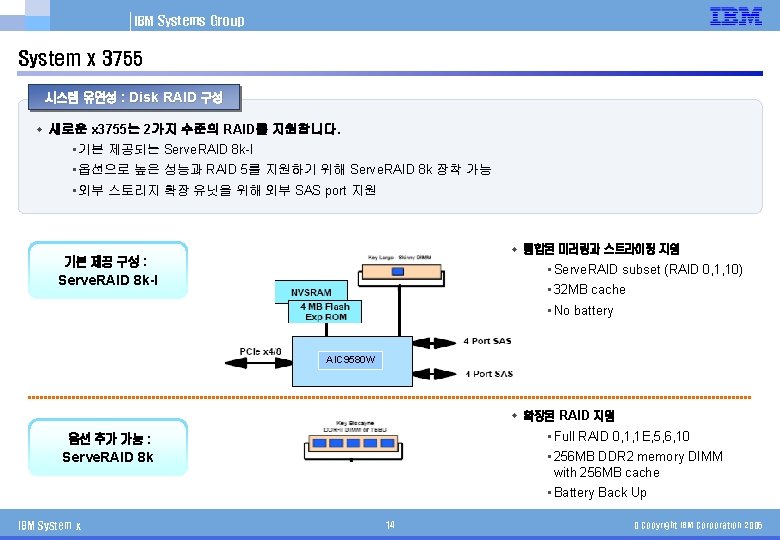

IBM Systems Group System x 3755 시스템 유연성 : Disk RAID 구성 w 새로운 x 3755는 2가지 수준의 RAID를 지원합니다. • 기본 제공되는 Serve. RAID 8 k-l • 옵션으로 높은 성능과 RAID 5를 지원하기 위해 Serve. RAID 8 k 장착 가능 • 외부 스토리지 확장 유닛을 위해 외부 SAS port 지원 w 통합된 미러링과 스트라이핑 지원 기본 제공 구성 : Serve. RAID 8 k-l • Serve. RAID subset (RAID 0, 1, 10) • 32 MB cache • No battery AIC 9580 W w 확장된 RAID 지원 • Full RAID 0, 1, 1 E, 5, 6, 10 옵션 추가 가능 : Serve. RAID 8 k • 256 MB DDR 2 memory DIMM with 256 MB cache • Battery Back Up IBM System x 14 © Copyright IBM Corporation 2005

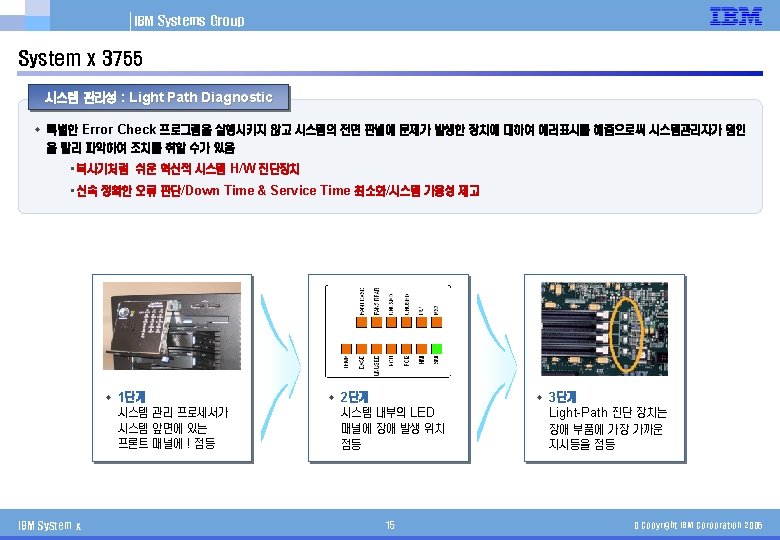

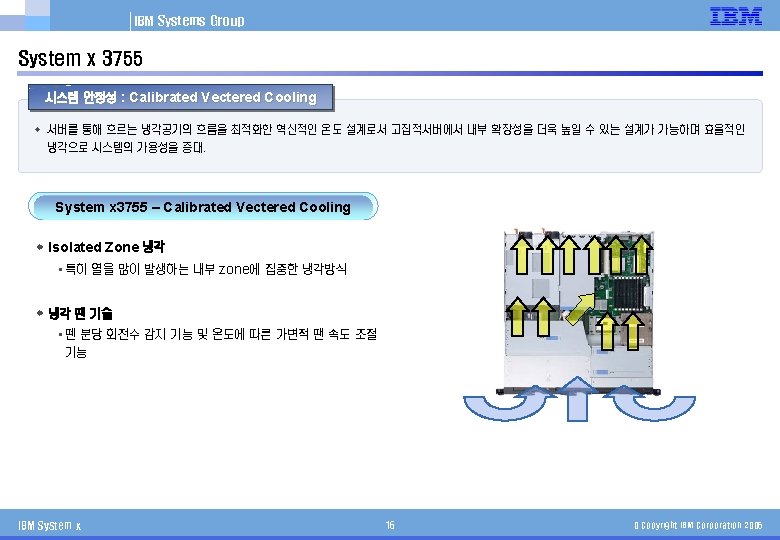

IBM Systems Group System x 3755 X 3755 서버의 솔루션 Area IBM System x 17 © Copyright IBM Corporation 2005
IBM Systems Group System x 3755 전면부 외관 Cover Latch Carrying Handles Power Button Status LEDs Hot-Swap Redundant Fans USB Ports CD-RW/DVD Combo Drive Hot-Swap SAS Drive Empty Hot-Swap SAS Drive Bays 3. 5” IBM System x Pop-Out Light Path Diagnostics Panel 18 © Copyright IBM Corporation 2005
IBM Systems Group System x 3755 Redundant H/S Power Supply Bays 후면부 외관 10/100 Ethernet Port for BMC Serial Port KVM Ports USB Port Gb Ethernet Ports Hexagonal Ventilation Holes HTX Slot PCI-E Slots PCI-X slots s SP Ethernet 10/100 link LED s Power-supply connector: Connect the power cord to this connector. s Gigabit Ethernet 1 link LED s Gigabit Ethernet 1 activity LED s Gigabit Ethernet 2 link LED s Gigabit Ethernet 2 activity LED s Power-on LED: When this LED is lit and not flashing, it indicates that the server is turned on. s Locator LED: When this LED is lit, it has been lit remotely by the system administrator to aid in visually locating the server. IBM System x s System-error LED: When this LED is lit, it indicates that there is a fault or condition in the server and that light path diagnostics might light an additional LED to help isolate the condition. s Gigabit Ethernet 2 connector: to connect the server to a network. s Gigabit Ethernet 1 connector: to connect the server to a network. s USB connector: Connect a USB device to this connector. s Video connector: Connect a monitor to this connector. s Mouse connector: Connect a mouse or other device to this connector. s Keyboard connector: Connect a keyboard to this connector. s Serial connector: Connect a 9 -pin serial device to this connector. The serial port is shared with the baseboard management controller (BMC). The BMC can take control of the shared serial port to perform text console redirection and to redirect serial traffic, using Serial over LAN (SOL). 19 © Copyright IBM Corporation 2005
IBM Systems Group 경쟁사 비교 : IBM x 3755 vs. HP DL 585 G 5 IBM x 3755 HP DL 585 G 5 CPU Opteron 8 xxx series Socket type Revision F Number of sockets 1 to 4 Number of memory DIMMS 8 per socket, 128 GB max (800 Mhz) Memory speed 667 MHz (533 MHz if 4 banks populated) Expansion slot supported HTX, PCI-E, PCI-X Total # of expansion slots 7 8 (9 with slot required by P 400 controller) # of HTX slots 1 0 # of PCI-E x 16 1 0 # of PCI-E x 8 2 2 (3 with the one occupied by P 400) # of PCI-E x 4 1 4 2@100 MHz (or 1@133 MHz) 2@100 MHz HD controller SAS SATA/SAS Onboard RAID 0, 1, 10 / 5 optional in dedicated card/slot 0, 1, 5 (P 400 256 MB), 6 option with P 400 512 MB BBWC) Disks 4 x 3, 5” SAS h/s 8 x 2, 5” SAS h/s or SATA Max disk capacity and speed 540 GB 15 k, 300 GB 15 k 146 GB 10 k (SAS) or 60 GB 5, 4 k (SATA) Power management Power. Executive Power regulator requires optional license # of PCI-X IBM System x 20 © Copyright IBM Corporation 2005
IBM Systems Group 경쟁사 비교 : IBM x 3755 vs. SUN x 4600 IBM x 3755 SUN x 4440 CPU Opteron 8 xxx series Opteron 8 xx series Socket type Revision F Revision E Number of sockets 1 to 4 Number of memory DIMMS 8 per socket Memory speed 667 MHz Expansion slot supported HTX, PCI-E, PCI-X Total # of expansion slots 7 8 # of HTX slots 1 0 # of PCI-E x 16 1 1 # of PCI-E x 8 2 4 # of PCI-E x 4 1 1 2@100 MHz (or 1@133 MHz) 0 HD controller SAS Onboard RAID 0, 1, 10 0, 1, 5, 6 Disks 4 x 3, 5” SAS h/s 8 x 2, 5” SAS hot swap Max disk capacity and speed 450 GB 15 k, 300 GB 15 k Onboard Gb Ethernet 2 ports (TOE) 4 ports (no TOE) Power management Power. Executive N/A # of PCI-X IBM System x 21 © Copyright IBM Corporation 2005
