IBM System p 520 Express 2008 3 1

IBM System p 520 Express 서버 표준 제안서 2008. 3. 1 한국 IBM 시스템 & 테크놀러지 그룹 (STG) (TSS, Techline)

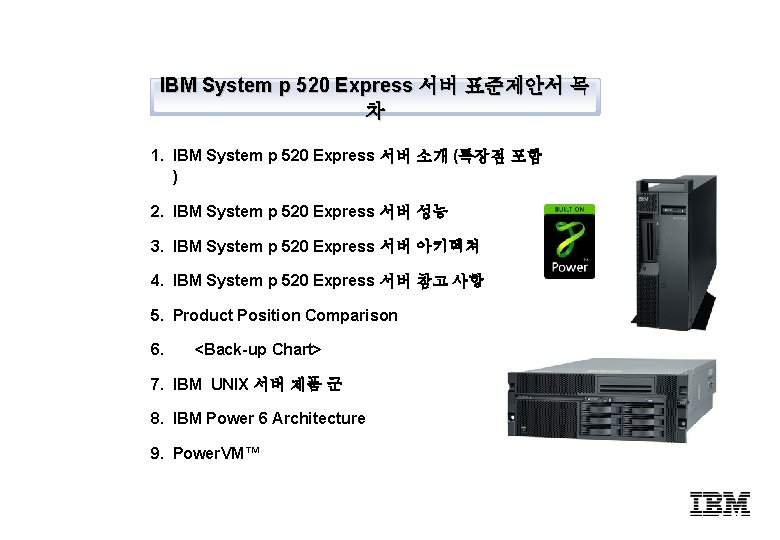

IBM System p 520 Express 서버 표준제안서 목 차 1. IBM System p 520 Express 서버 소개 (특장점 포함 ) 2. IBM System p 520 Express 서버 성능 3. IBM System p 520 Express 서버 아키텍쳐 4. IBM System p 520 Express 서버 참고 사항 5. Product Position Comparison 6. <Back-up Chart> 7. IBM UNIX 서버 제품 군 8. IBM Power 6 Architecture 9. Power. VM™

IBM System p 520 Express 표준제안서 1. IBM System p 520 Express 서버 소개 IBM System p 520 Express 서버 사양 요약 1 p 520 Rack & Tower Architecture DDR 2 Memory Internal SAS Disks Expansion Integrated SAS / SATA AIX 5. 3 6 DASD ( 3. 5”) § PCIe: 3 Slots § PCI-X 266: 2 Slots § GX Bus: 2 Slots –Shared with PCIe 1 slots Yes Optional: RAID support 3 USB, 2 Serial, 2 HMC Optional: SAS port Integrated Virtual Ethernet § Dual Port 10/1000 Ethernet § Optional: Quad 1 Gbt or Dual 10 Gbt Media Bays Dynamic LPAR Redundant Power Redundant Cooling OS Support © Copyright IBM Corporation 2008 Up to 64 GB (Buffered ) Integrated Ports Remote IO Drawers Linux 1, 2, or 4 cores @ 4. 2 GHz L 3 Cache: N/A 3 1 Slim-line DVD 1 Half High Tape Yes / Max: 8 GX Bus connection: RIO 2 / Infini. Band Up to 40 partitions Optional Yes AIX 5. 3. AIX 6. 1 and Linux

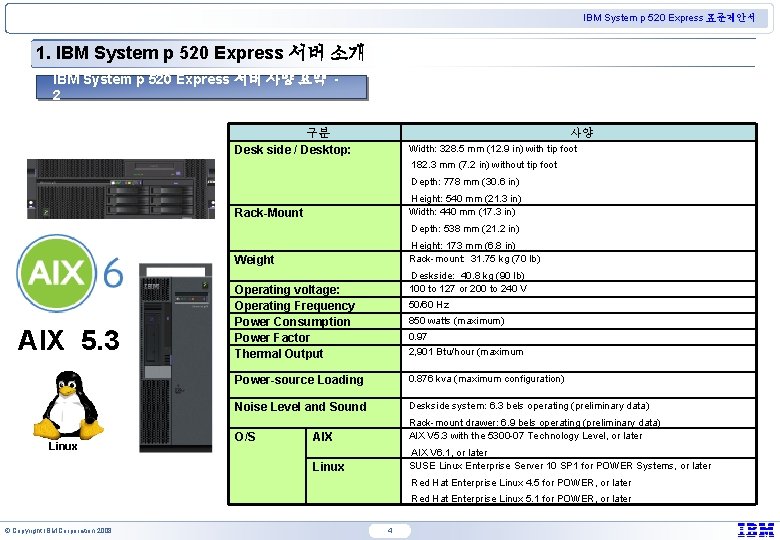

IBM System p 520 Express 표준제안서 1. IBM System p 520 Express 서버 소개 IBM System p 520 Express 서버 사양 요약 2 구분 Desk side / Desktop: 사양 Width: 328. 5 mm (12. 9 in) with tip foot 182. 3 mm (7. 2 in) without tip foot Depth: 778 mm (30. 6 in) Height: 540 mm (21. 3 in) Width: 440 mm (17. 3 in) Rack-Mount Depth: 538 mm (21. 2 in) Height: 173 mm (6. 8 in) Rack-mount: 31. 75 kg (70 lb) Weight AIX 5. 3 Linux Deskside: 40. 8 kg (90 lb) 100 to 127 or 200 to 240 V Operating voltage: Operating Frequency Power Consumption Power Factor Thermal Output 50/60 Hz 850 watts (maximum) 0. 97 2, 901 Btu/hour (maximum Power-source Loading 0. 876 kva (maximum configuration) Noise Level and Sound Deskside system: 6. 3 bels operating (preliminary data) O/S AIX Rack-mount drawer: 6. 9 bels operating (preliminary data) AIX V 5. 3 with the 5300 -07 Technology Level, or later Linux AIX V 6. 1, or later SUSE Linux Enterprise Server 10 SP 1 for POWER Systems, or later Red Hat Enterprise Linux 4. 5 for POWER, or later Red Hat Enterprise Linux 5. 1 for POWER, or later © Copyright IBM Corporation 2008 4

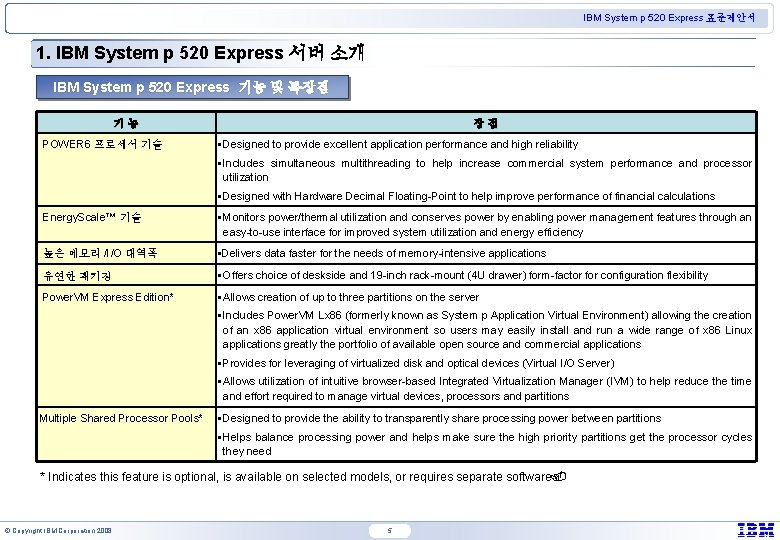

IBM System p 520 Express 표준제안서 1. IBM System p 520 Express 서버 소개 IBM System p 520 Express 기능 및 특장점 기능 POWER 6 프로세서 기술 장점 § Designed to provide excellent application performance and high reliability § Includes simultaneous multithreading to help increase commercial system performance and processor utilization § Designed with Hardware Decimal Floating-Point to help improve performance of financial calculations Energy. Scale™ 기술 § Monitors power/thermal utilization and conserves power by enabling power management features through an easy-to-use interface for improved system utilization and energy efficiency 높은 메모리 /I/O 대역폭 §Delivers data faster for the needs of memory-intensive applications 유연한 패키징 § Offers choice of deskside and 19 -inch rack-mount (4 U drawer) form-factor for configuration flexibility Power. VM Express Edition* § Allows creation of up to three partitions on the server § Includes Power. VM Lx 86 (formerly known as System p Application Virtual Environment) allowing the creation of an x 86 application virtual environment so users may easily install and run a wide range of x 86 Linux applications greatly the portfolio of available open source and commercial applications § Provides for leveraging of virtualized disk and optical devices (Virtual I/O Server) § Allows utilization of intuitive browser-based Integrated Virtualization Manager (IVM) to help reduce the time and effort required to manage virtual devices, processors and partitions Multiple Shared Processor Pools* § Designed to provide the ability to transparently share processing power between partitions § Helps balance processing power and helps make sure the high priority partitions get the processor cycles they need * Indicates this feature is optional, is available on selected models, or requires separate software. © Copyright IBM Corporation 2008 5

IBM System p 520 Express 표준제안서 1. IBM System p 520 Express 서버 소개 IBM System p 520 Express 기능 및 특장점 기능 Micro-Partitioning* 장점 § Allows each processor core in the shared processor pool to be split into as many as 10 partitions § Fine tunes processing power to match workloads 가상 I/O Server* (VIOS) § Helps save cost and ease systems administration by sharing expensive resources 가상 LAN § Helps speed internal communication between partitions at memory speeds Dynamic logical partitioning § Allows reallocation of system resources without rebooting affected partitions § Offers greater flexibility in using available capacity and more rapidly matching resources to changing business requirements Live Partition Mobility § Helps optimize system utilization and improve application availability § Helps balance critical workloads across multiple POWER 6 processor-based systems Mainframe에 기반한 RAS 기능 § Delivers exceptional system availability using features including service processor, concurrent AIX software and firmware updates IBM Chipkill™ memory, First Failure Data Capture, dynamic deallocation of selected system resources, hot-plug PCI-X and PCIe slots, hot-swappable disk bays, redundant hot-plug power and cooling, hot-add I/O drawers, and more Processor Instruction Retry § Provides for the continuous monitoring of processor status with the capability to restart a processor if errors are detected 다양한 Operation System 지원 § Allows clients the flexibility to select the right operating system and the right application to meet their needs § Provides the ability to expand applications choices to include many open source applications * Indicates this feature is optional, is available on selected models, or requires separate software. © Copyright IBM Corporation 2008 6

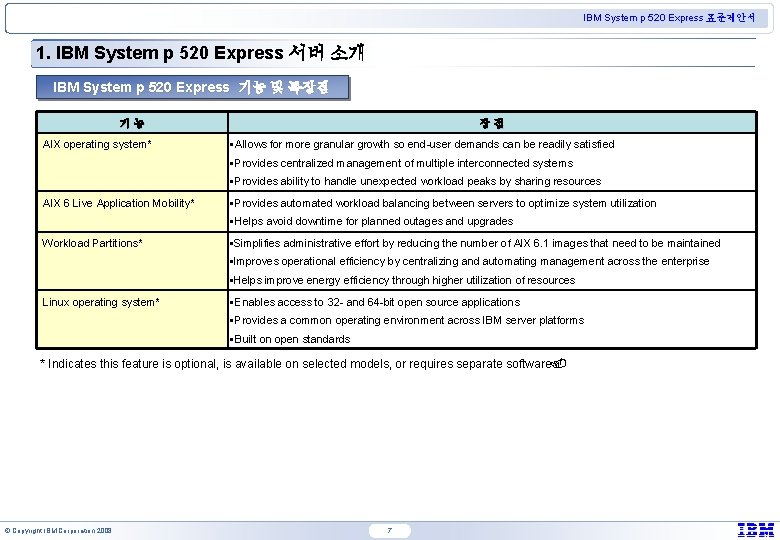

IBM System p 520 Express 표준제안서 1. IBM System p 520 Express 서버 소개 IBM System p 520 Express 기능 및 특장점 기능 AIX operating system* 장점 § Allows for more granular growth so end-user demands can be readily satisfied § Provides centralized management of multiple interconnected systems § Provides ability to handle unexpected workload peaks by sharing resources AIX 6 Live Application Mobility* § Provides automated workload balancing between servers to optimize system utilization § Helps avoid downtime for planned outages and upgrades Workload Partitions* §Simplifies administrative effort by reducing the number of AIX 6. 1 images that need to be maintained §Improves operational efficiency by centralizing and automating management across the enterprise §Helps improve energy efficiency through higher utilization of resources Linux operating system* § Enables access to 32 - and 64 -bit open source applications § Provides a common operating environment across IBM server platforms § Built on open standards * Indicates this feature is optional, is available on selected models, or requires separate software. © Copyright IBM Corporation 2008 7

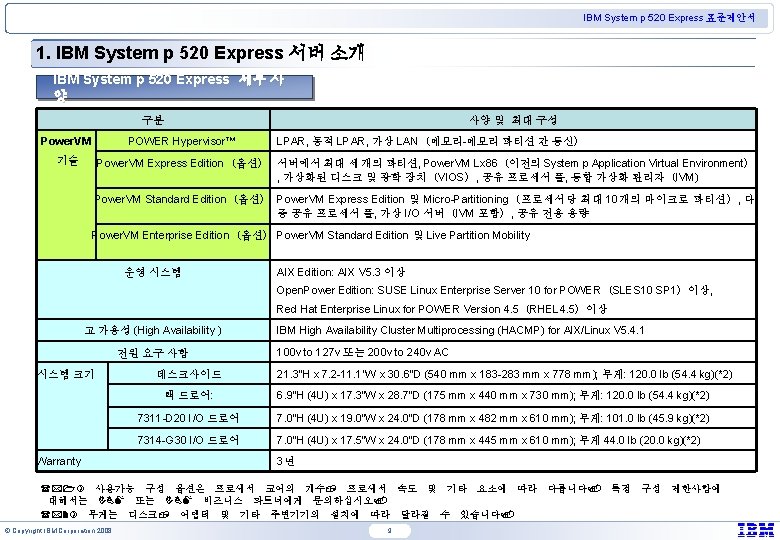

IBM System p 520 Express 표준제안서 1. IBM System p 520 Express 서버 소개 IBM System p 520 Express 세부 사 양 구분 Power. VM 사양 및 최대 구성 POWER Hypervisor™ 기술 LPAR, 동적 LPAR, 가상 LAN（메모리-메모리 파티션 간 통신） Power. VM Express Edition（옵션） 서버에서 최대 세 개의 파티션, Power. VM Lx 86（이전의 System p Application Virtual Environment） , 가상화된 디스크 및 광학 장치（VIOS）, 공유 프로세서 풀, 통합 가상화 관리자（IVM) Power. VM Standard Edition（옵션） Power. VM Express Edition 및 Micro-Partitioning（프로세서당 최대 10개의 마이크로 파티션）, 다 중 공유 프로세서 풀, 가상 I/O 서버（IVM 포함）, 공유 전용 용량 Power. VM Enterprise Edition（옵션） Power. VM Standard Edition 및 Live Partition Mobility 운영 시스템 AIX Edition: AIX V 5. 3 이상 Open. Power Edition: SUSE Linux Enterprise Server 10 for POWER（SLES 10 SP 1）이상, Red Hat Enterprise Linux for POWER Version 4. 5（RHEL 4. 5）이상 고 가용성 (High Availability ) 전원 요구 사항 시스템 크기 Warranty 데스크사이드 IBM High Availability Cluster Multiprocessing (HACMP) for AIX/Linux V 5. 4. 1 100 v to 127 v 또는 200 v to 240 v AC 21. 3"H x 7. 2 -11. 1"W x 30. 6"D (540 mm x 183 -283 mm x 778 mm); 무게: 120. 0 lb (54. 4 kg)(*2) 랙 드로어: 6. 9"H (4 U) x 17. 3"W x 28. 7"D (175 mm x 440 mm x 730 mm); 무게: 120. 0 lb (54. 4 kg)(*2) 7311 -D 20 I/O 드로어 7. 0"H (4 U) x 19. 0"W x 24. 0"D (178 mm x 482 mm x 610 mm); 무게: 101. 0 lb (45. 9 kg)(*2) 7314 -G 30 I/O 드로어 7. 0"H (4 U) x 17. 5"W x 24. 0"D (178 mm x 445 mm x 610 mm); 무게 44. 0 lb (20. 0 kg)(*2) 3년 (*1) 사용가능 구성 옵션은 프로세서 코어의 개수, 프로세서 속도 및 기타 요소에 따라 대해서는 IBM 또는 IBM 비즈니스 파트너에게 문의하십시오. (*2) 무게는 디스크, 어댑터 및 기타 주변기기의 설치에 따라 달라질 수 있습니다. © Copyright IBM Corporation 2008 9 다릅니다. 특정 구성 제한사항에

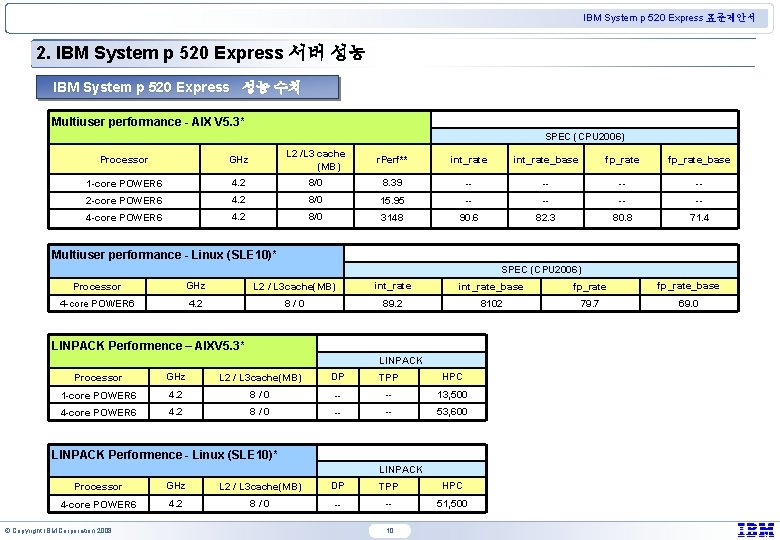

IBM System p 520 Express 표준제안서 2. IBM System p 520 Express 서버 성능 IBM System p 520 Express 성능 수치 Multiuser performance - AIX V 5. 3* SPEC (CPU 2006) Processor GHz L 2 /L 3 cache (MB) r. Perf** int_rate_base fp_rate_base 1 -core POWER 6 4. 2 8/0 8. 39 -- -- 2 -core POWER 6 4. 2 8/0 15. 95 -- -- 4 -core POWER 6 4. 2 8/0 3148 90. 6 82. 3 80. 8 71. 4 Multiuser performance - Linux (SLE 10)* SPEC (CPU 2006) Processor GHz L 2 / L 3 cache(MB) int_rate_base fp_rate_base 4 -core POWER 6 4. 2 8/0 89. 2 8102 79. 7 69. 0 LINPACK Performence – AIXV 5. 3* LINPACK Processor GHz L 2 / L 3 cache(MB) DP TPP HPC 1 -core POWER 6 4. 2 8/0 -- -- 13, 500 4 -core POWER 6 4. 2 8/0 -- -- 53, 600 LINPACK Performence - Linux (SLE 10)* LINPACK Processor GHz L 2 / L 3 cache(MB) DP TPP HPC 4 -core POWER 6 4. 2 8/0 -- -- 51, 500 © Copyright IBM Corporation 2008 10

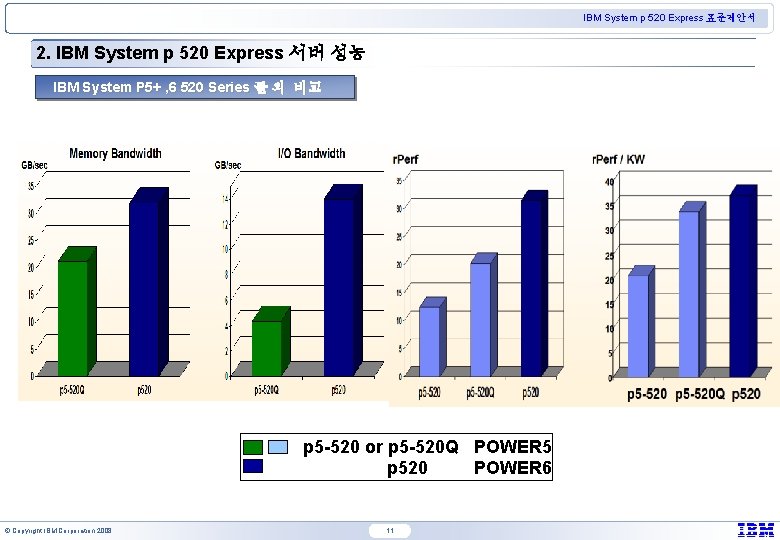

IBM System p 520 Express 표준제안서 2. IBM System p 520 Express 서버 성능 IBM System P 5+ , 6 520 Series 들 의 비교 p 5 -520 or p 5 -520 Q POWER 5 p 520 POWER 6 © Copyright IBM Corporation 2008 11

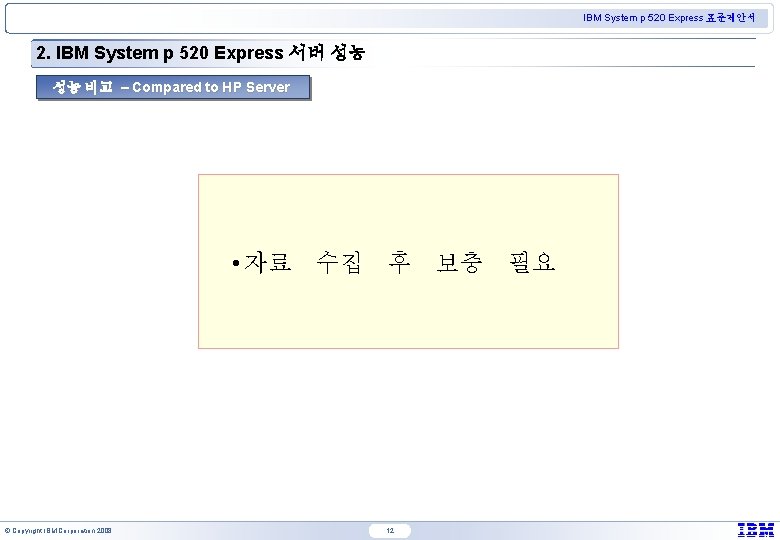

IBM System p 520 Express 표준제안서 2. IBM System p 520 Express 서버 성능 성능 비교 – Compared to HP Server • 자료 수집 후 보충 필요 © Copyright IBM Corporation 2008 12

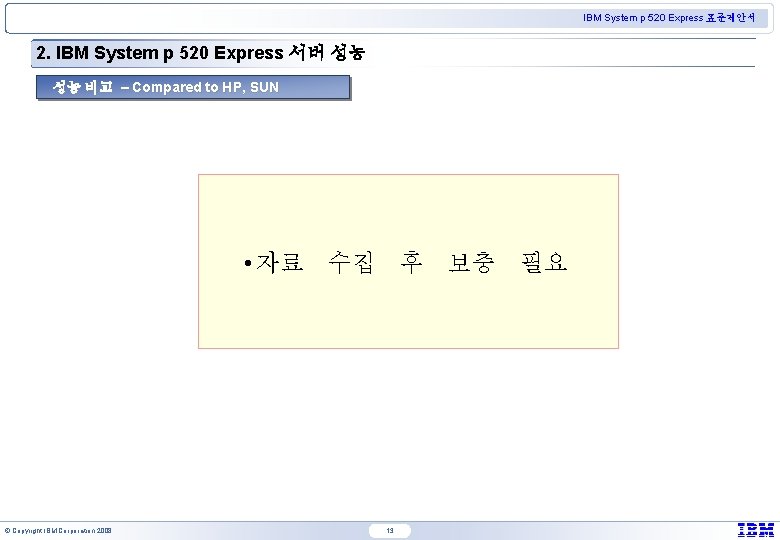

IBM System p 520 Express 표준제안서 2. IBM System p 520 Express 서버 성능 성능 비교 – Compared to HP, SUN • 자료 수집 후 보충 필요 © Copyright IBM Corporation 2008 13

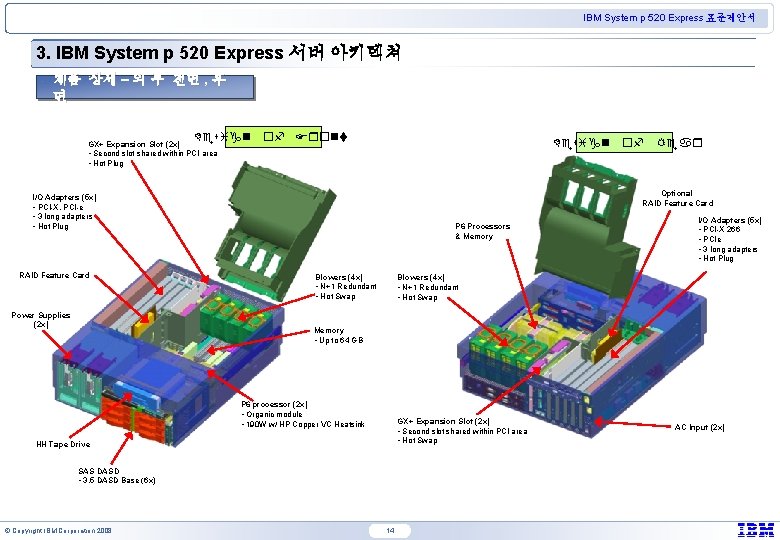

IBM System p 520 Express 표준제안서 3. IBM System p 520 Express 서버 아키텍쳐 제품 상세 – 외 부 전면 , 후 면 Design GX+ Expansion Slot (2 x) • Second slot shared within PCI area • Hot Plug of Front Design Power Supplies (2 x) Rear Optional RAID Feature Card I/O Adapters (5 x) • PCI-X, PCI-e • 3 long adapters • Hot Plug RAID Feature Card of P 6 Processors & Memory Blowers (4 x) • N+1 Redundant • Hot Swap I/O Adapters (5 x) • PCI-X 266 • PCIe • 3 long adapters • Hot Plug Blowers (4 x) • N+1 Redundant • Hot Swap Memory • Up to 64 GB P 6 processor (2 x) • Organic module • 190 W w/ HP Copper VC Heatsink GX+ Expansion Slot (2 x) • Second slot shared within PCI area • Hot Swap HH Tape Drive SAS DASD • 3. 5 DASD Base (6 x) © Copyright IBM Corporation 2008 14 AC Input (2 x)

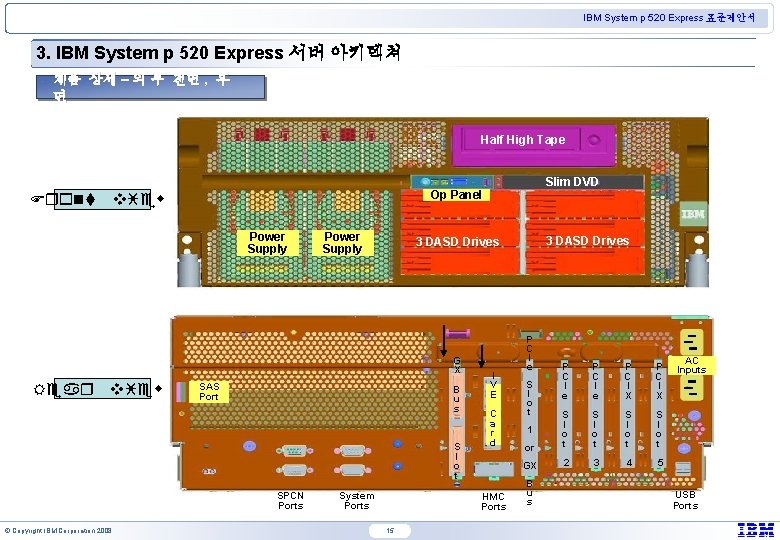

IBM System p 520 Express 표준제안서 3. IBM System p 520 Express 서버 아키텍쳐 제품 상세 – 외 부 전면 , 후 면 Half High Tape Front view Power Supply view SAS Port B u s S l o t SPCN Ports © Copyright IBM Corporation 2008 3 DASD Drives G X Rear Slim DVD Op Panel System Ports I V E C a r d HMC Ports 15 P C I e P C I X or S l o t GX 2 3 4 5 S l o t 1 B u s AC Inputs USB Ports

IBM System p 520 Express 표준제안서 3. IBM System p 520 Express 서버 아키텍쳐 제품 Top 상세 – 상면 뷰 와 Processor-Memory Structure Processor view Memory Structure TPMD POWER 6 RAID Nova Anchor Card Nova POWER 6 Memory DIMMS GX Slot IVE PCI-X Slots Nova PCIe Slots Memory Bandwidth: 16 GB / sec © Copyright IBM Corporation 2008 16

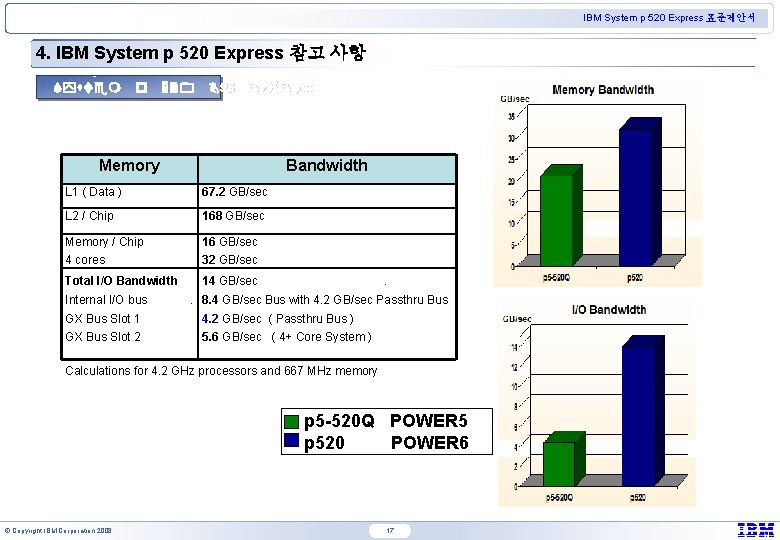

IBM System p 520 Express 표준제안서 4. IBM System p 520 Express 참고 사항 System p 520 Bandwidth Memory Bandwidth L 1 ( Data ) 67. 2 GB/sec L 2 / Chip 168 GB/sec Memory / Chip 4 cores 16 GB/sec 32 GB/sec Total I/O Bandwidth 14 GB/sec Internal I/O bus . . 8. 4 GB/sec Bus with 4. 2 GB/sec Passthru Bus GX Bus Slot 1 4. 2 GB/sec ( Passthru Bus ) GX Bus Slot 2 5. 6 GB/sec ( 4+ Core System ) Calculations for 4. 2 GHz processors and 667 MHz memory p 5 -520 Q POWER 5 p 520 POWER 6 © Copyright IBM Corporation 2008 17

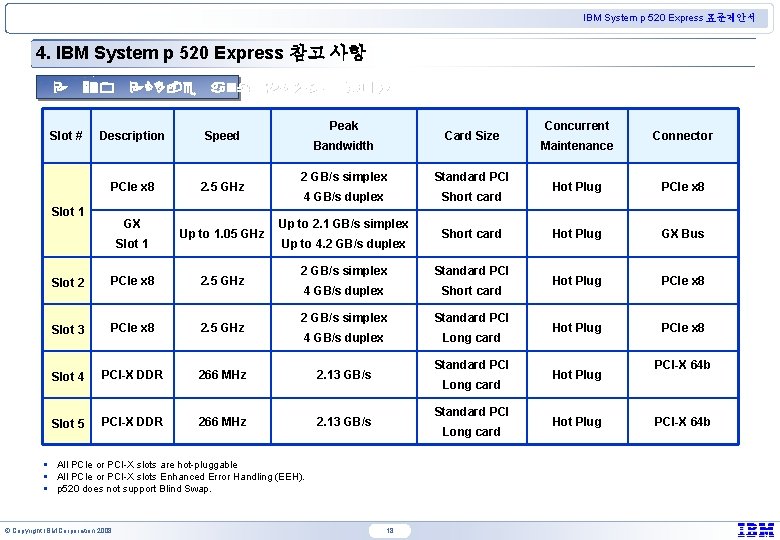

IBM System p 520 Express 표준제안서 4. IBM System p 520 Express 참고 사항 P 520 PCI-e and PCI-X Slots Slot # Description Speed PCIe x 8 2. 5 GHz Slot 1 GX Slot 1 Up to 1. 05 GHz Peak Card Size Bandwidth 2 GB/s simplex Standard PCI 4 GB/s duplex Short card Up to 2. 1 GB/s simplex Up to 4. 2 GB/s duplex 2 GB/s simplex Standard PCI 4 GB/s duplex Short card 2 GB/s simplex Standard PCI 4 GB/s duplex Long card Slot 2 PCIe x 8 2. 5 GHz Slot 3 PCIe x 8 2. 5 GHz Slot 4 PCI-X DDR 266 MHz 2. 13 GB/s Slot 5 PCI-X DDR 266 MHz 2. 13 GB/s Standard PCI Long card § All PCIe or PCI-X slots are hot-pluggable § All PCIe or PCI-X slots Enhanced Error Handling (EEH). § p 520 does not support Blind Swap. © Copyright IBM Corporation 2008 Short card 18 Concurrent Maintenance Connector Hot Plug PCIe x 8 Hot Plug GX Bus Hot Plug PCIe x 8 Hot Plug PCI-X 64 b

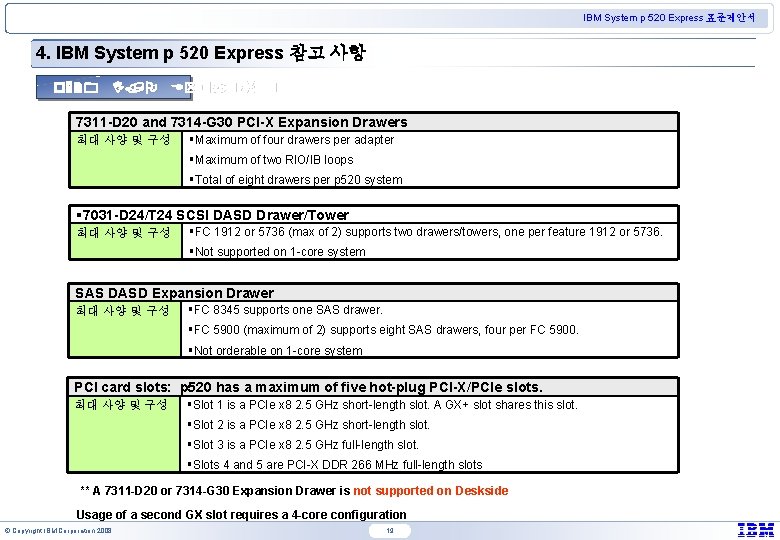

IBM System p 520 Express 표준제안서 4. IBM System p 520 Express 참고 사항 p 520 I/O Expansion 7311 -D 20 and 7314 -G 30 PCI-X Expansion Drawers 최대 사양 및 구성 §Maximum of four drawers per adapter §Maximum of two RIO/IB loops §Total of eight drawers per p 520 system § 7031 -D 24/T 24 SCSI DASD Drawer/Tower 최대 사양 및 구성 §FC 1912 or 5736 (max of 2) supports two drawers/towers, one per feature 1912 or 5736. §Not supported on 1 -core system SAS DASD Expansion Drawer 최대 사양 및 구성 §FC 8345 supports one SAS drawer. §FC 5900 (maximum of 2) supports eight SAS drawers, four per FC 5900. §Not orderable on 1 -core system PCI card slots: p 520 has a maximum of five hot-plug PCI-X/PCIe slots. 최대 사양 및 구성 §Slot 1 is a PCIe x 8 2. 5 GHz short-length slot. A GX+ slot shares this slot. §Slot 2 is a PCIe x 8 2. 5 GHz short-length slot. §Slot 3 is a PCIe x 8 2. 5 GHz full-length slot. §Slots 4 and 5 are PCI-X DDR 266 MHz full-length slots ** A 7311 -D 20 or 7314 -G 30 Expansion Drawer is not supported on Deskside Usage of a second GX slot requires a 4 -core configuration © Copyright IBM Corporation 2008 19

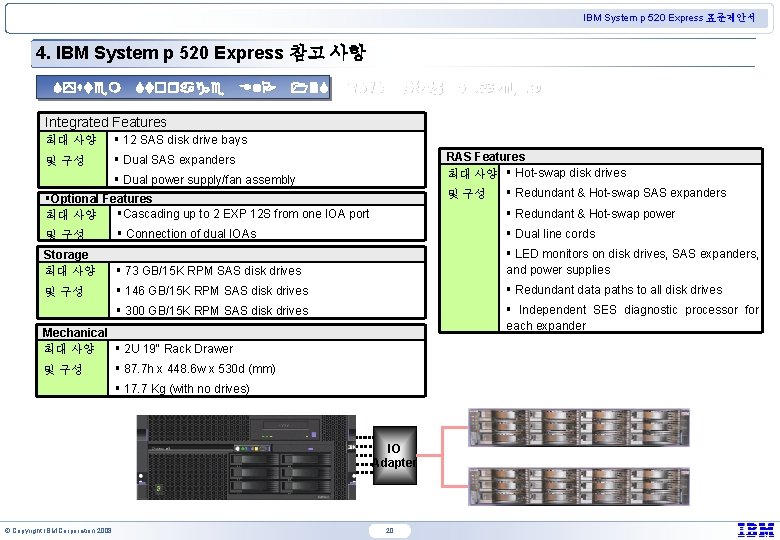

IBM System p 520 Express 표준제안서 4. IBM System p 520 Express 참고 사항 System Storage EXP 12 S (SAS Disk Drawer) Integrated Features 최대 사양 § 12 SAS disk drive bays 및 구성 § Dual SAS expanders RAS Features 최대 사양 § Hot-swap disk drives § Dual power supply/fan assembly §Optional Features §Cascading up to 2 EXP 12 S from one IOA port 최대 사양 및 구성 § Redundant & Hot-swap SAS expanders § Redundant & Hot-swap power § Connection of dual IOAs § Dual line cords Storage 최대 사양 § 73 GB/15 K RPM SAS disk drives § LED monitors on disk drives, SAS expanders, and power supplies 및 구성 § 146 GB/15 K RPM SAS disk drives § Redundant data paths to all disk drives § 300 GB/15 K RPM SAS disk drives § Independent SES diagnostic processor for each expander 및 구성 Mechanical § 2 U 19" Rack Drawer 최대 사양 및 구성 § 87. 7 h x 448. 6 w x 530 d (mm) § 17. 7 Kg (with no drives) IO Adapter © Copyright IBM Corporation 2008 20

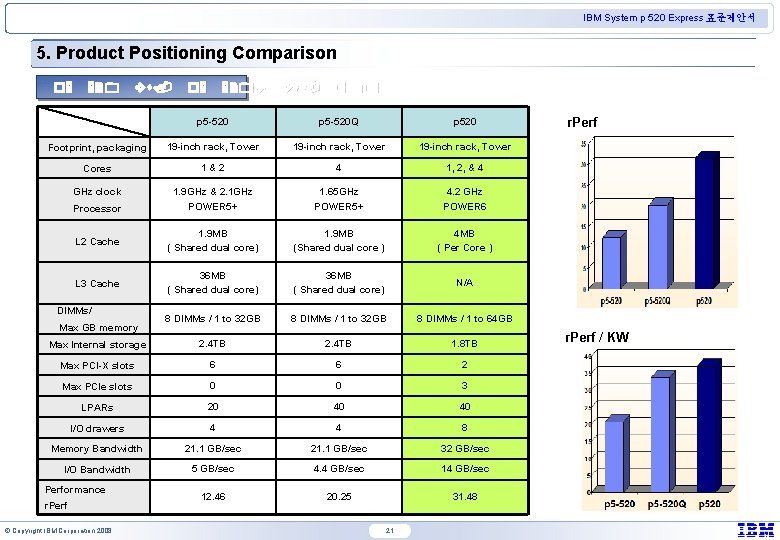

IBM System p 520 Express 표준제안서 5. Product Positioning Comparison p 5 520 vs. p 5 520 Q vs. p 520 p 5 -520 Q p 520 Footprint, packaging 19 -inch rack, Tower Cores 1&2 4 1, 2, & 4 GHz clock 1. 9 GHz & 2. 1 GHz POWER 5+ 1. 65 GHz POWER 5+ 4. 2 GHz POWER 6 L 2 Cache 1. 9 MB ( Shared dual core) 1. 9 MB (Shared dual core ) 4 MB ( Per Core ) L 3 Cache 36 MB ( Shared dual core) N/A 8 DIMMs / 1 to 32 GB 8 DIMMs / 1 to 64 GB Max Internal storage 2. 4 TB 1. 8 TB Max PCI-X slots 6 6 2 Max PCIe slots 0 0 3 LPARs 20 40 40 I/O drawers 4 4 8 Memory Bandwidth 21. 1 GB/sec 32 GB/sec I/O Bandwidth 5 GB/sec 4. 4 GB/sec 12. 46 20. 25 31. 48 Processor DIMMs/ Max GB memory Performance r. Perf © Copyright IBM Corporation 2008 21 r. Perf / KW

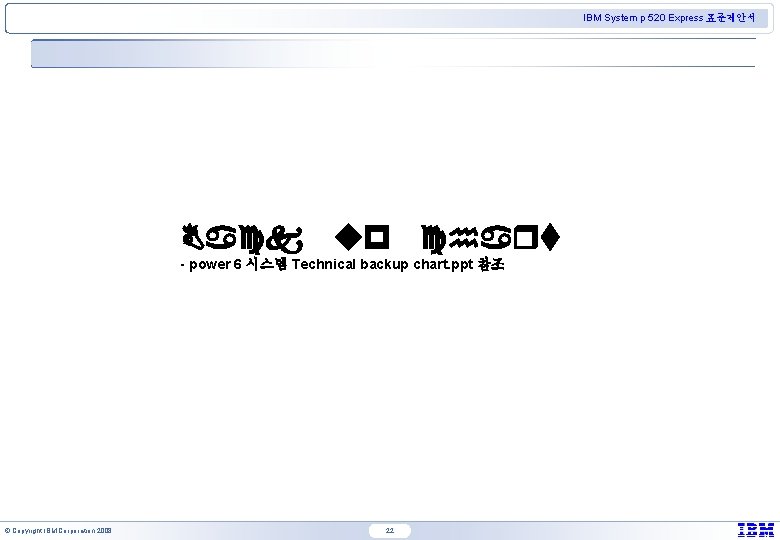

IBM System p 520 Express 표준제안서 Back up chart - power 6 시스템 Technical backup chart. ppt 참조 © Copyright IBM Corporation 2008 22
