IBM System i i Series Navigator System i
IBM System i™ i. Series Navigator : System i를 쉽고 강력하게 관리하기 YOOJIN PARK System I / ISS peg@kr. ibm. com i want stress free IT. i want control. i want an i. © 2006 IBM Corporation
IBM System i Agenda 1. Overview 2. Work Management 3. Navigator in multiple system with Management Central 4. Database Management in Navigator update : New function in V 5 R 4 5. Performance Management in Navigator 2 i want an i. © 2006 IBM Corporation
IBM System i Back to the Basic-Overview 3 i want an i. © 2006 IBM Corporation
IBM System i What is i. Series Navigator? § i. Series Navigator is a powerful graphical interface to easily work with the i. Series server for windows client. § Network상에서 시스템을 쉽게 관리할 수 있게 해줌. § Windows skill만 있으면 손쉽게 사용가능. ( Drag and drop / Explorer view / context menus) § Wizard기능을 이용하여 명령어 를 알지 못해도 쉽게 사용 가능. 4 i want an i. © 2006 IBM Corporation

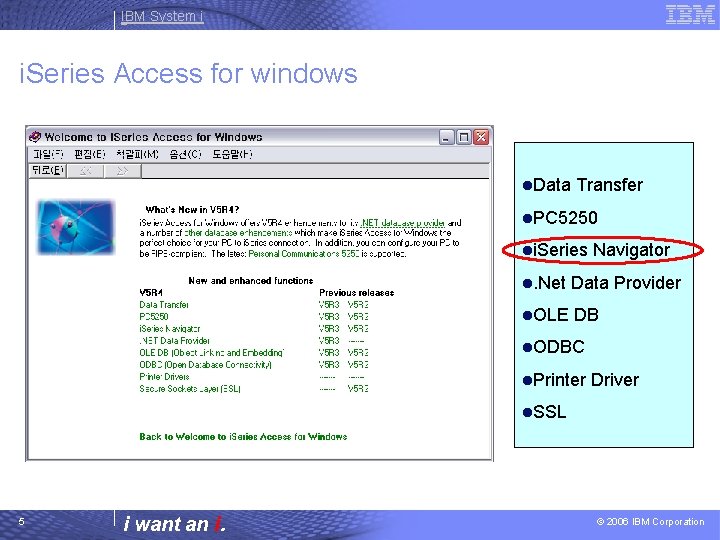

IBM System i i. Series Access for windows l. Data Transfer l. PC 5250 li. Series Navigator l. Net Data Provider l. OLE DB l. ODBC l. Printer Driver l. SSL 5 i want an i. © 2006 IBM Corporation

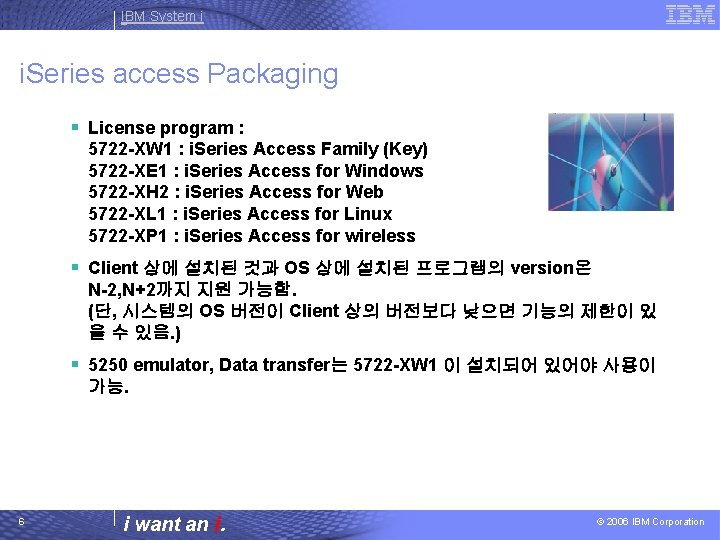

IBM System i i. Series access Packaging § License program : 5722 -XW 1 : i. Series Access Family (Key) 5722 -XE 1 : i. Series Access for Windows 5722 -XH 2 : i. Series Access for Web 5722 -XL 1 : i. Series Access for Linux 5722 -XP 1 : i. Series Access for wireless § Client 상에 설치된 것과 OS 상에 설치된 프로그램의 version은 N-2, N+2까지 지원 가능함. (단, 시스템의 OS 버전이 Client 상의 버전보다 낮으면 기능의 제한이 있 을 수 있음. ) § 5250 emulator, Data transfer는 5722 -XW 1 이 설치되어 있어야 사용이 가능. 6 i want an i. © 2006 IBM Corporation

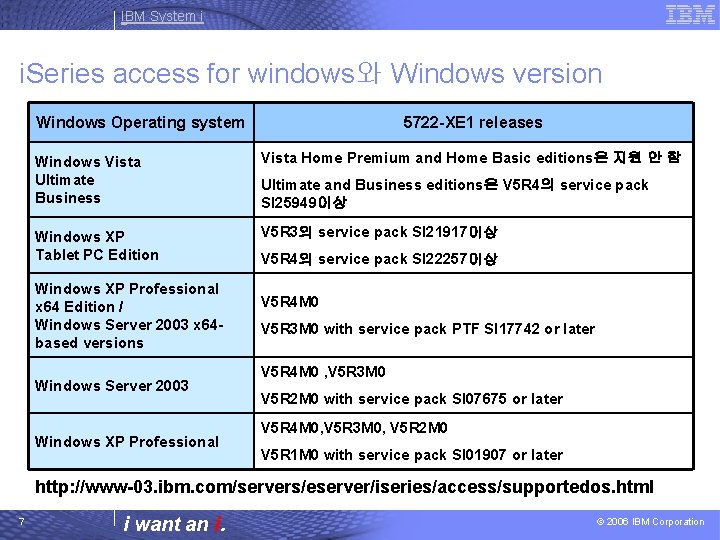

IBM System i i. Series access for windows와 Windows version Windows Operating system 5722 -XE 1 releases Windows Vista Ultimate Business Vista Home Premium and Home Basic editions은 지원 안 함 Windows XP Tablet PC Edition V 5 R 3의 service pack SI 21917이상 Windows XP Professional x 64 Edition / Windows Server 2003 x 64 based versions Windows Server 2003 Windows XP Professional Ultimate and Business editions은 V 5 R 4의 service pack SI 25949이상 V 5 R 4의 service pack SI 22257이상 V 5 R 4 M 0 V 5 R 3 M 0 with service pack PTF SI 17742 or later V 5 R 4 M 0 , V 5 R 3 M 0 V 5 R 2 M 0 with service pack SI 07675 or later V 5 R 4 M 0, V 5 R 3 M 0, V 5 R 2 M 0 V 5 R 1 M 0 with service pack SI 01907 or later http: //www-03. ibm. com/servers/eserver/iseries/access/supportedos. html 7 i want an i. © 2006 IBM Corporation
IBM System i Installation § i. Series Navigator의 요소들은 선택설치가 가능함. § Typical은 Basic operation 만 사용 가능하여 설치를 더 원하는 것이 있 으면, custom/full이나 선택설치를 하여야 함. § 버전에 맞는 최신 service pack을 설치하는 것을 권장. § Service pack: http: //www-03. ibm. com/servers/eserver/iseries/access/casp. html 8 i want an i. © 2006 IBM Corporation
IBM System i Work Management 9 i want an i. © 2006 IBM Corporation
IBM System i Overview Taskpad § Windows 사용자들에게 친숙한 화면으로 구성되어 있음. § Task pad 기능이 있어 관련 Task에 대한 도움 기능을 제공. 10 i want an i. © 2006 IBM Corporation
IBM System i What can we do using i. Series navigator? < Basic support > § § § Basic operations Work management Configuration and Services Network Security File Systems < Expanded – Management Central> § § 11 Users and Groups Command Packages and Products Monitors i want an i. © 2006 IBM Corporation
IBM System i Basic Operations-overview § Typical install (메시지나 프린 터 등 기본적 기능) § Printer output의 priority 조정 가능 § Drag and drop의 기능을 이용 하여 print output을 다른 queue로 이동하거나 PC로 down가능. § AFP view를 이용하여 output을 볼 수 있음. 1. Message outq 2. Print output 를 이용하여 PDF 형식으로 변환 가능. § Netserver Print 로 구성하여 시 3. Printer 4. User jobs 12 § i. Series output을 PDF wizard i want an i. 스템의 print를 desktop print로 사용 가능. © 2006 IBM Corporation

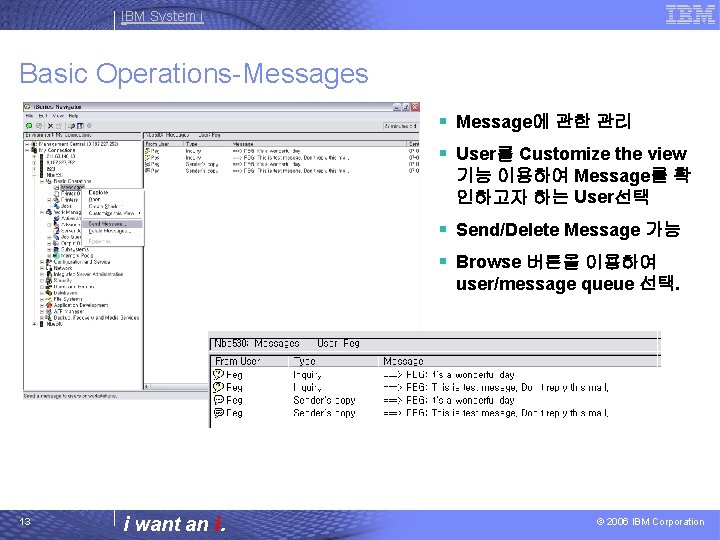

IBM System i Basic Operations-Messages § Message에 관한 관리 § User를 Customize the view 기능 이용하여 Message를 확 인하고자 하는 User선택 § Send/Delete Message 가능 § Browse 버튼을 이용하여 user/message queue 선택. 13 i want an i. © 2006 IBM Corporation
IBM System i Basic Operations-Printer Output § User들의 Print file들을 보여 줌. § WRKSPLF § Column Heading을 click하면 데이터 sort 가능. § Output file을 Doubleclick하면 AFP view를 통하여 프린터 내용을 볼 수 있음. § Output 보기를 원하는 날짜와 시간, Status 선 택가능. 14 i want an i. © 2006 IBM Corporation
IBM System i Basic Operations-Jobs § Job의 Properties 성능을 포함 하여 상세하게 볼 수 있음. § Joblog / Printer output을 볼 수 있으며, Printer output의 경우에는 Priority 변경도 가능. 15 i want an i. © 2006 IBM Corporation
IBM System i Basic Operations-Printers § Printer writer의 start/stop 가능. § Advanced : OUTPUT Hold/Release Device Available 가능 16 i want an i. © 2006 IBM Corporation
IBM System i Basic Operations-Prints detail i. Series의 spool file을 PDF형식으로 변환이 가능한 것을 알고 계십니까? § Infoprint server의 기능을 이용 하여 spool file을 text 형식 뿐 만 아니라 e-mail이나 PDF형식 으로 출력 가능. § 5722 -IP 1의 라이센스 필요 § V 5 R 2 부터 가능. § Print Output -> Right-click -> Convert to PDF 17 i want an i. © 2006 IBM Corporation

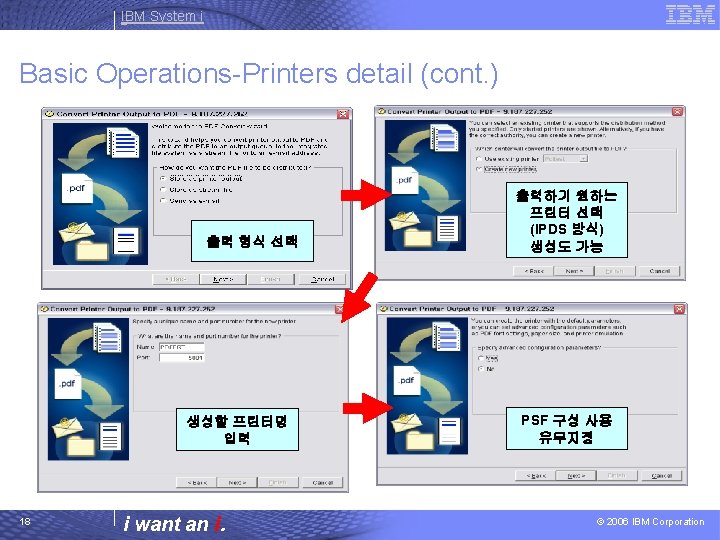

IBM System i Basic Operations-Printers detail (cont. ) 출력 형식 선택 생성할 프린터명 입력 18 i want an i. 출력하기 원하는 프린터 선택 (IPDS 방식) 생성도 가능 PSF 구성 사용 유무지정 © 2006 IBM Corporation

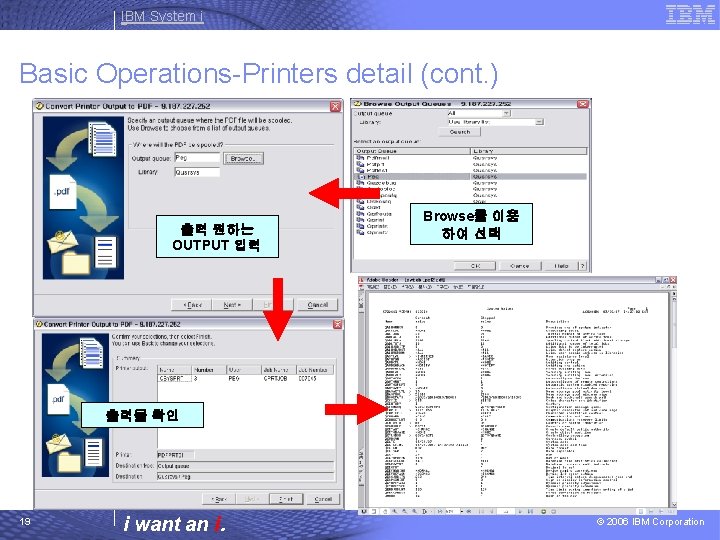

IBM System i Basic Operations-Printers detail (cont. ) 출력 원하는 OUTPUT 입력 Browse를 이용 하여 선택 출력물 확인 19 i want an i. © 2006 IBM Corporation
IBM System i Work Management § 복잡한 OS/400 명령어를 쉽게 사용할 수 있게 해줌. § Active job List는 WRKACTJOB과 유사해 보이지 만 실제로 더 강력한 기능을 제 공. § 시스템의 resource를 많이 사용 하는 job을 쉽게 찾을 수 있으며, operator의 응답을 기다리는 job에 대해서 mouse 몇 번만으 로 도 쉽게 관리 가능 함. 1. Active jobs/Server jobs 2. Job Queues/Output Queues 3. Memory pools 4. Subsystems 20 i want an i. © 2006 IBM Corporation
IBM System i Work Management – active jobs detail § Active job List는 현재 시스템 의 활성중인 job을 한눈에 볼 수 있음. § 각 job의 CPU 사용률, Priority 등을 보기 쉽게 되어 있고 간단 하게 sort 가능. § 각 job의 detail 정보를 보면 Call stack, Locked Objects, Thread등을 알 수 있다. § Details에서 Last SQL statement도 알 수가 있으므로, 문제가 되는 SQL이 어떤 것인 지 쉽게 알 수 있다. 21 i want an i. © 2006 IBM Corporation

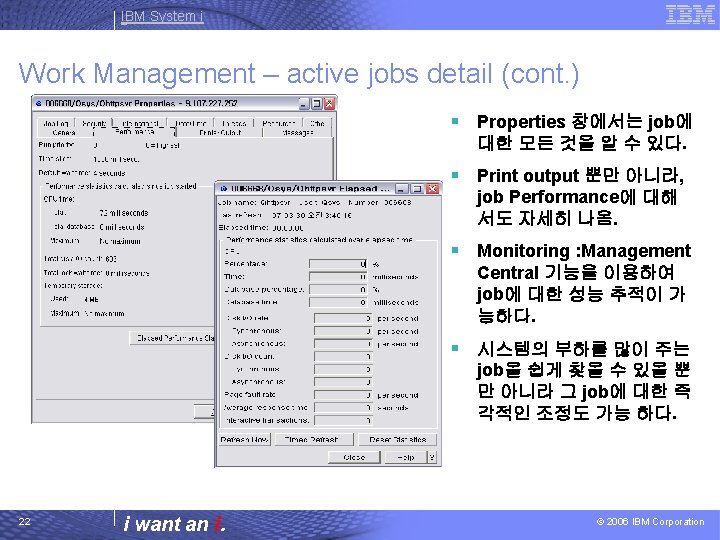

IBM System i Configuration and Service § System value, History Log, Hardware configuration 등 을 볼 수 있음. § 단, H/W configuration을 보 려면 system service tool(SST) 권한이 있어야 함. 23 i want an i. © 2006 IBM Corporation

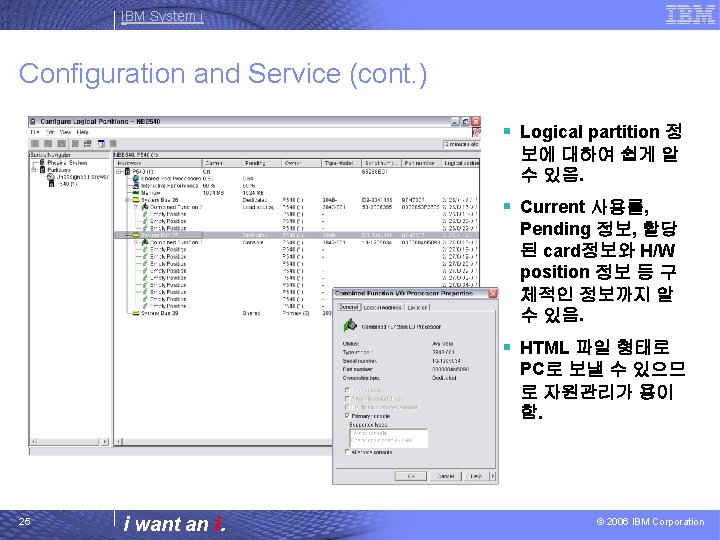

IBM System i Configuration and Service (cont. ) § Logical partition 정 보에 대하여 쉽게 알 수 있음. § Current 사용률, Pending 정보, 할당 된 card정보와 H/W position 정보 등 구 체적인 정보까지 알 수 있음. § HTML 파일 형태로 PC로 보낼 수 있으므 로 자원관리가 용이 함. 25 i want an i. © 2006 IBM Corporation
IBM System i Network § Green emulator에서는 서버의 상태를 한눈에 알기 힘들었지만 Navigator를 사용하면 TCP/IP 관리를 쉽게 할 수 있음. § Netstat 정보를 Graphic하게 보여줌 : connection 정보, interfaces, route 정보 등을 보여줌. 29 i want an i. © 2006 IBM Corporation
IBM System i Navigator in multiple system With Management Central 30 i want an i. © 2006 IBM Corporation
IBM System i Management Central Introduction § 한 개나 그 이상의 시스템을 GUI 환경으로 쉽게 관리할 수 있도록 해줌. § 특히 여러 대의 서버나 파티션을 관리할 때 효 과적임. § Performance Monitor, collection 서비스 등을 제공 함. § Management Central server management : STRTCPSVR SERVERS(*MGTC) EDNTCPSVR SERVERS(*MGTC) § QSYSWRK subsystem 아래 QYPSSRV job이 active하고 있는지 확인 또는 My connections -> Network->Servers-> TCP/IP ->Management Central 이 Active 상 태인지 확인. 31 i want an i. © 2006 IBM Corporation
IBM System i Management Central Component § Task Activity § Scheduled Tasks § Definitions § Monitors § Endpoint Systems § System Groups § Extreme Support § Advanced Job Scheduler § Systems with Partitions § Clusters 32 i want an i. © 2006 IBM Corporation
IBM System i Central system 설정 § Central system은 PC와 연결되는 main system이며, Endpoint 시스템과 연결되 어 communication 하게 되는 시스템 임. § Central system은 필요에 따라 change가 가능함. § Verify connection을 이용하여 통신여부 를 확인가능. 33 i want an i. © 2006 IBM Corporation
IBM System i Endpoint system 설정하기 § Endpoint 시스템을 New로 추가할 수 있음. § Discovery system 항목을 이용하여 subnet내의 접근 가능한 시스템 여부를 search 할 수도 있음. 34 i want an i. © 2006 IBM Corporation

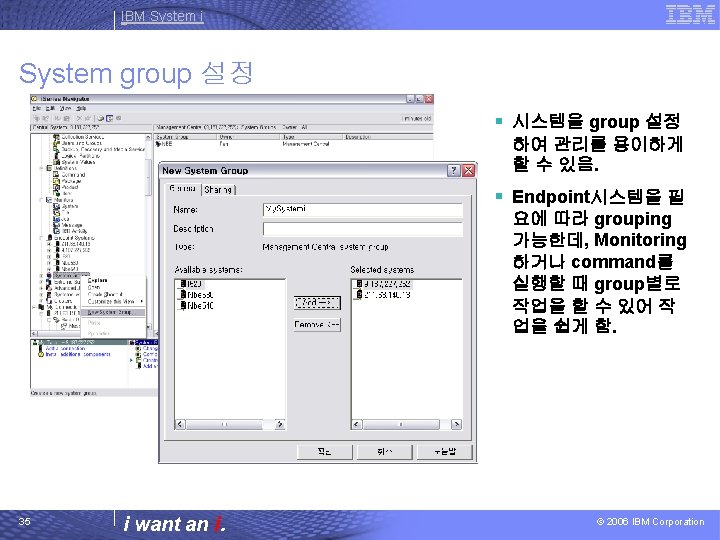

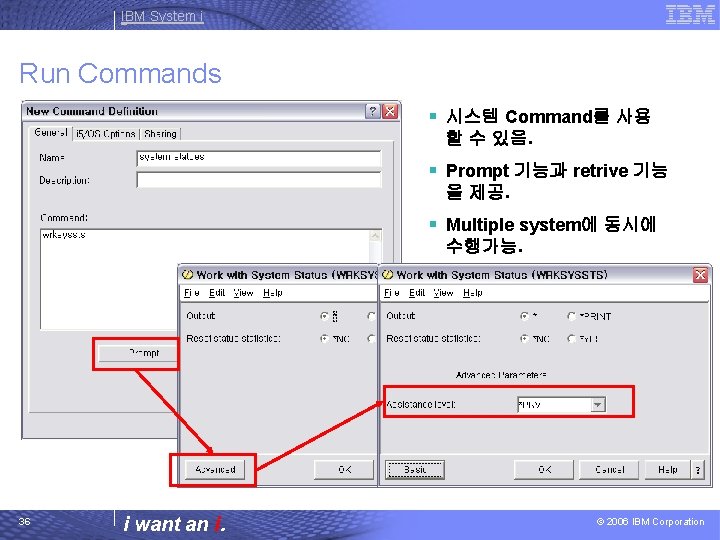

IBM System i Run Commands § 시스템 Command를 사용 할 수 있음. § Prompt 기능과 retrive 기능 을 제공. § Multiple system에 동시에 수행가능. 36 i want an i. © 2006 IBM Corporation

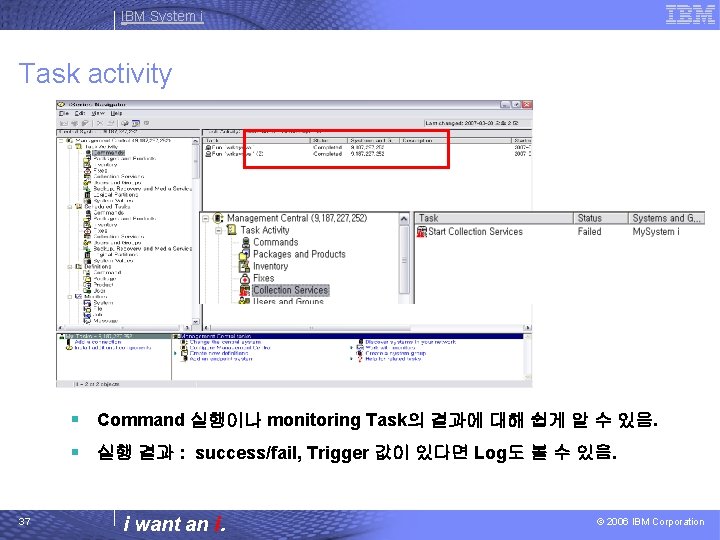

IBM System i Task activity § Command 실행이나 monitoring Task의 결과에 대해 쉽게 알 수 있음. § 실행 결과 : success/fail, Trigger 값이 있다면 Log도 볼 수 있음. 37 i want an i. © 2006 IBM Corporation
IBM System i Definition § Endpoint system으로 Command를 실행하거나 user 생성 관리 등을 정의하고 수행 할 수 있음. § Package와 Product 생성. § 수행 결과는 Task activity에서 확인가능 함. 38 i want an i. © 2006 IBM Corporation

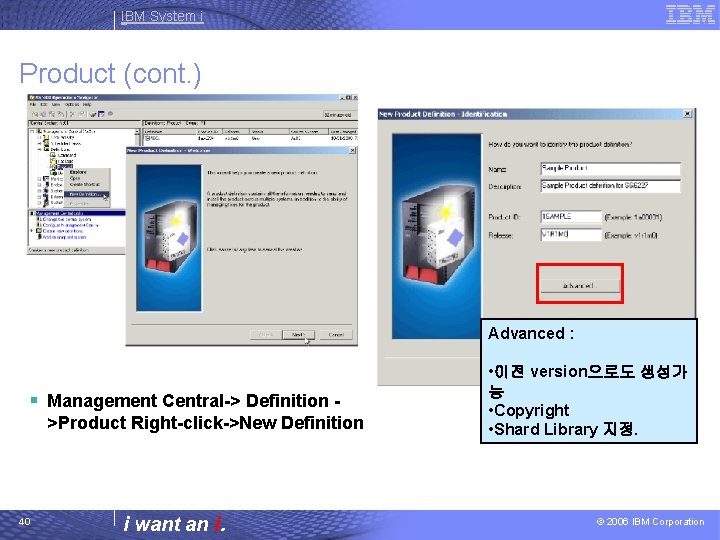

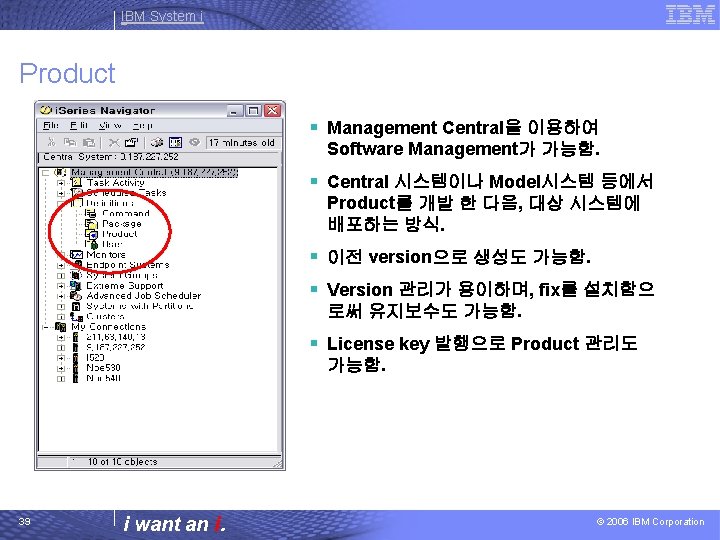

IBM System i Product (cont. ) Advanced : § Management Central-> Definition >Product Right-click->New Definition 40 i want an i. • 이전 version으로도 생성가 능 • Copyright • Shard Library 지정. © 2006 IBM Corporation

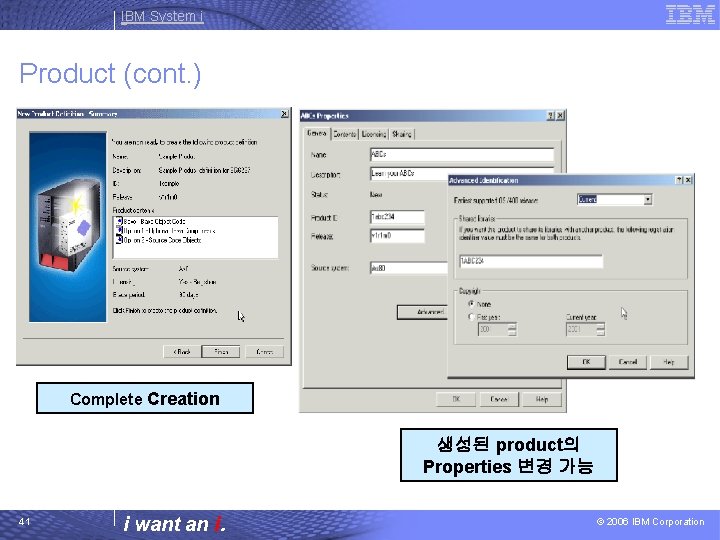

IBM System i Product (cont. ) Complete Creation 생성된 product의 Properties 변경 가능 41 i want an i. © 2006 IBM Corporation
IBM System i Product (cont. ) Product install 42 i want an i. © 2006 IBM Corporation

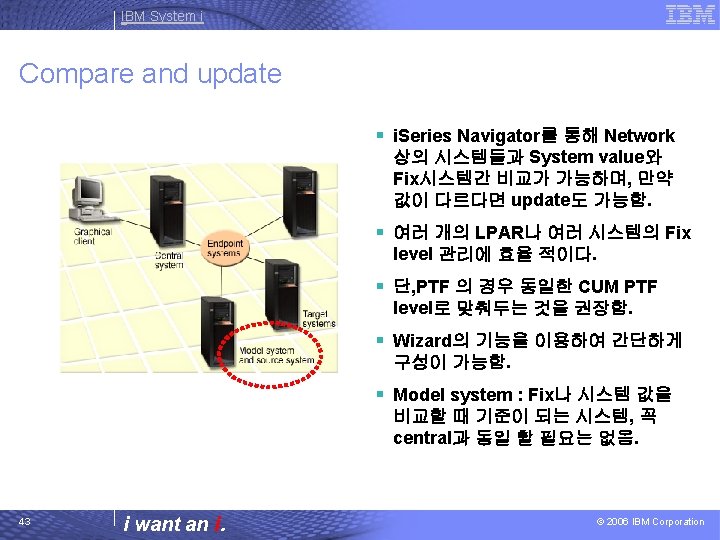

IBM System i Compare and update (cont. ) § 대상 시스템에서 Compare and update>Management Central -> Expand Endpoint systems ->Right-Click Fixes-> Compare and update § Inventory collection이 선 행이 되어야 함. § System value, Configurations, Fixes, Software license program 등을 비교, update 가능 함. § Fixes의 경우는 source 시스 템에 save file들이 존재하여 야 함. 44 i want an i. © 2006 IBM Corporation

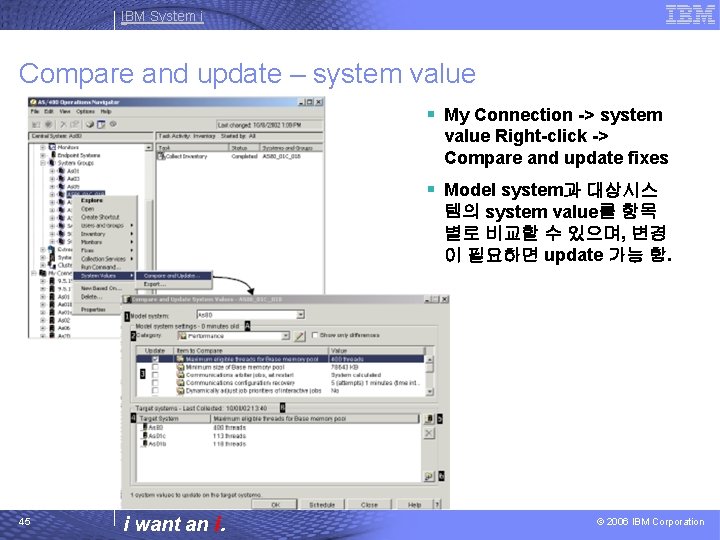

IBM System i Compare and update – system value § My Connection -> system value Right-click -> Compare and update fixes § Model system과 대상시스 템의 system value를 항목 별로 비교할 수 있으며, 변경 이 필요하면 update 가능 함. 45 i want an i. © 2006 IBM Corporation
IBM System i Monitors § Management Central 을 이용하여 시스 템 성능에 대한 Monitoring이 가능함. § System monitors § File monitors § Message monitors § Job monitors등 § Management Central을 통하면 실시간 시스템 Monitoring이 가능. Session 이 종료되면 job도 끝남. § Historical data를 보려면 PM/400 또는 PT/400이 있어야 가능함. 46 i want an i. © 2006 IBM Corporation

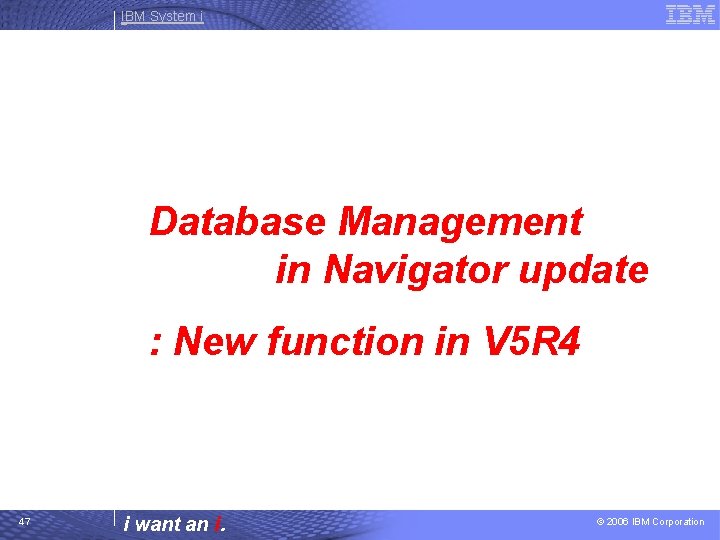

IBM System i Database Management in Navigator update : New function in V 5 R 4 47 i want an i. © 2006 IBM Corporation

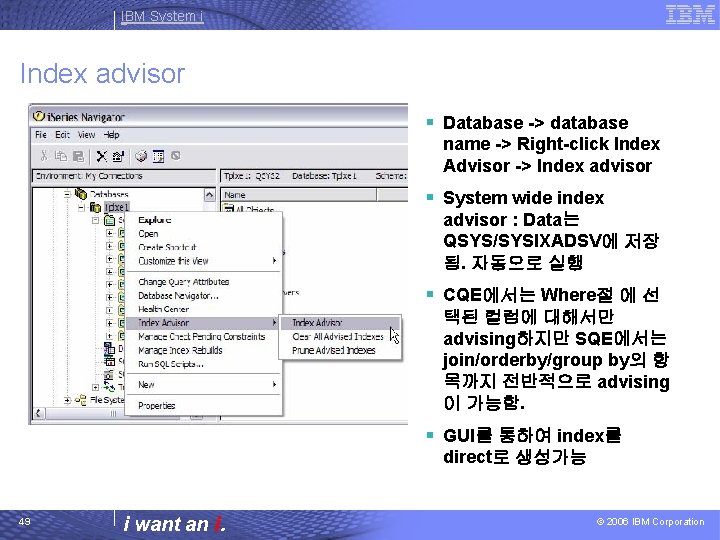

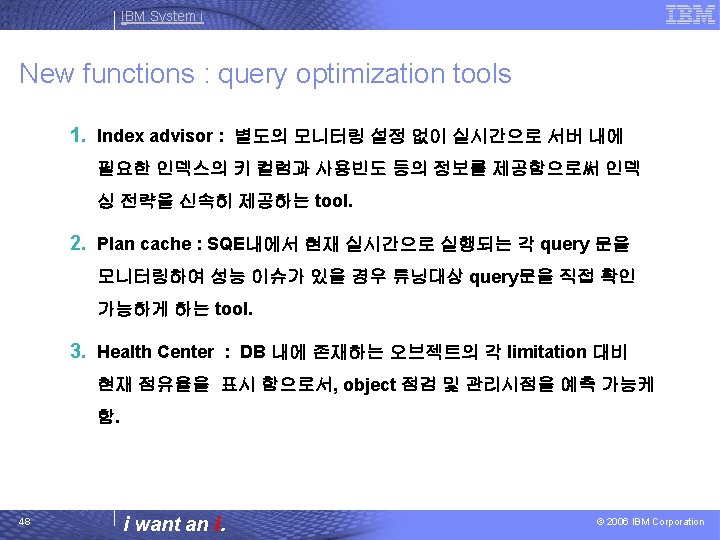

IBM System i Index advisor § Database -> database name -> Right-click Index Advisor -> Index advisor § System wide index advisor : Data는 QSYS/SYSIXADSV에 저장 됨. 자동으로 실행 § CQE에서는 Where절 에 선 택된 컬럼에 대해서만 advising하지만 SQE에서는 join/orderby/group by의 항 목까지 전반적으로 advising 이 가능함. § GUI를 통하여 index를 direct로 생성가능 49 i want an i. © 2006 IBM Corporation

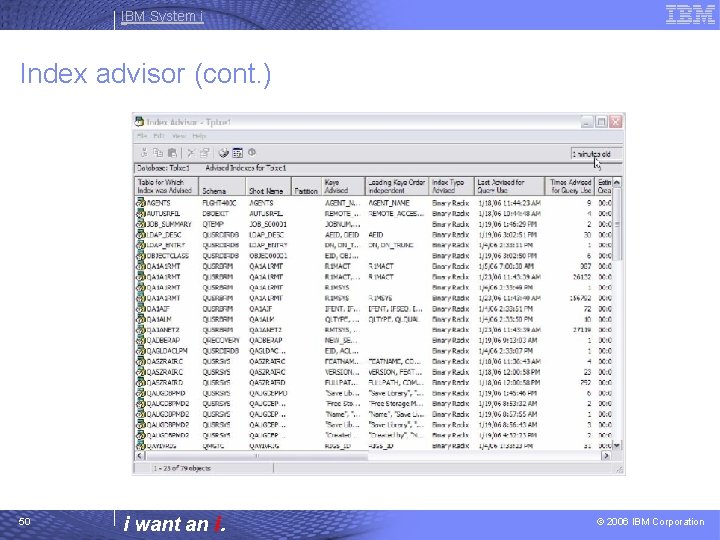

IBM System i Index advisor (cont. ) 50 i want an i. © 2006 IBM Corporation

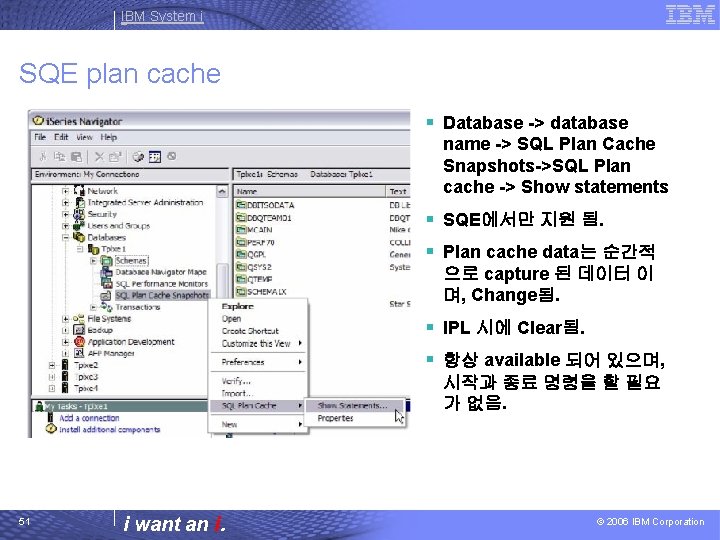

IBM System i SQE plan cache § Database -> database name -> SQL Plan Cache Snapshots->SQL Plan cache -> Show statements § SQE에서만 지원 됨. § Plan cache data는 순간적 으로 capture 된 데이터 이 며, Change됨. § IPL 시에 Clear됨. § 항상 available 되어 있으며, 시작과 종료 명령을 할 필요 가 없음. 51 i want an i. © 2006 IBM Corporation

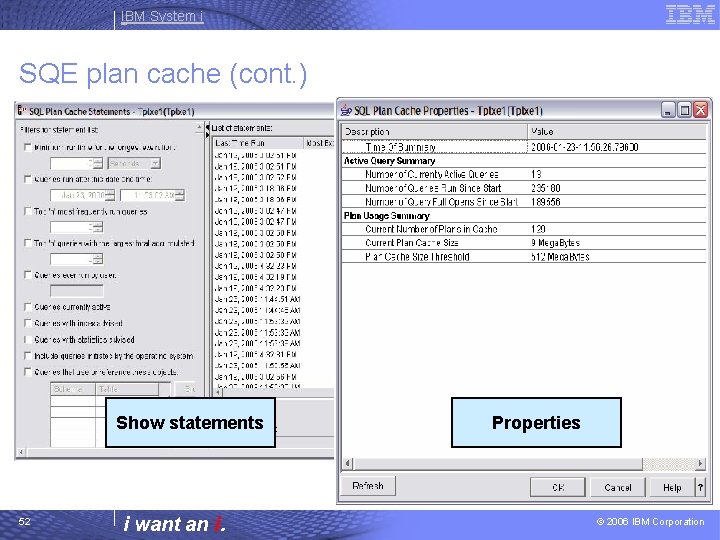

IBM System i SQE plan cache (cont. ) Show statements 52 i want an i. Properties © 2006 IBM Corporation
IBM System i SQE plan cache snapshot § Database -> database name -> SQL Plan Cache Snapshots-> New->Snapshots § SQE에서만 지원 됨. § Plan cache snapshot data는 소멸되지 않는 data임. § 예전 값과 현재 값 비교 가능. § 항상 available 되어 있으며, 시 작과 종료 명령을 할 필요가 없 음. § SQL Interface : Call QSYS 2/DUMP_PLAN_CACHE 53 i want an i. © 2006 IBM Corporation

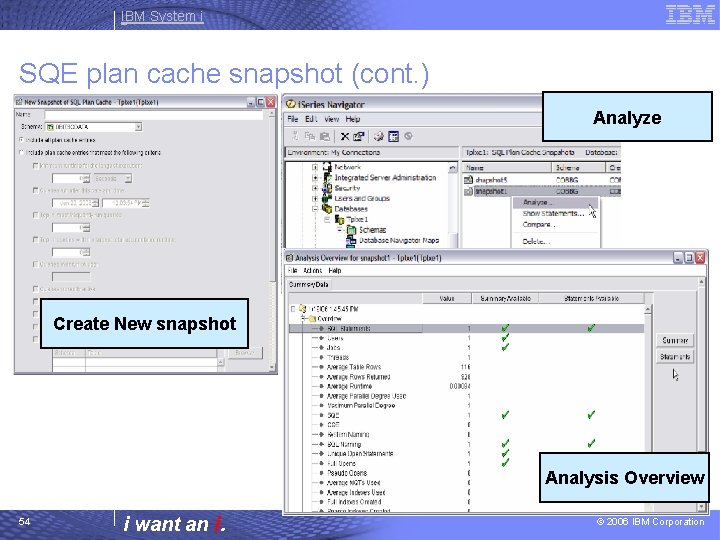

IBM System i SQE plan cache snapshot (cont. ) Analyze Create New snapshot Analysis Overview 54 i want an i. © 2006 IBM Corporation

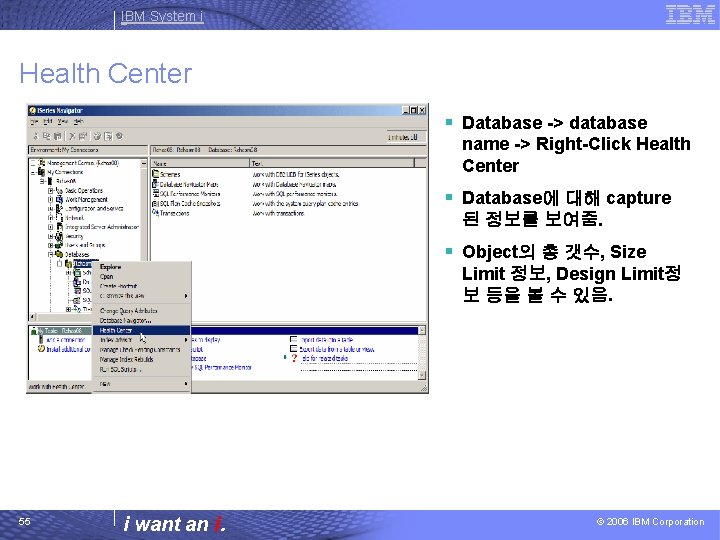

IBM System i Health Center § Database -> database name -> Right-Click Health Center § Database에 대해 capture 된 정보를 보여줌. § Object의 총 갯수, Size Limit 정보, Design Limit정 보 등을 볼 수 있음. 55 i want an i. © 2006 IBM Corporation

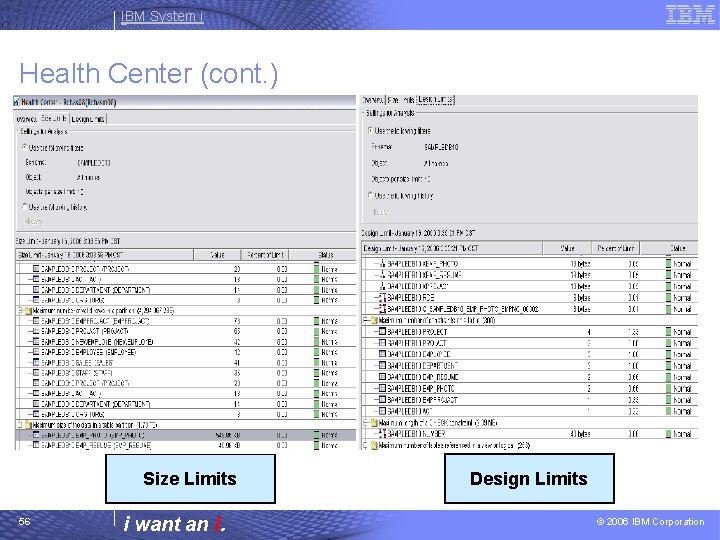

IBM System i Health Center (cont. ) Size Limits 56 i want an i. Design Limits © 2006 IBM Corporation
IBM System i Performance Management in Navigator 57 i want an i. © 2006 IBM Corporation

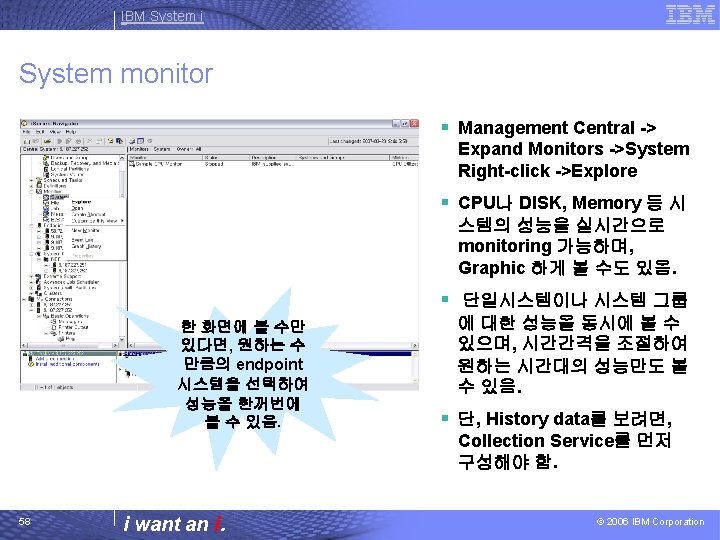

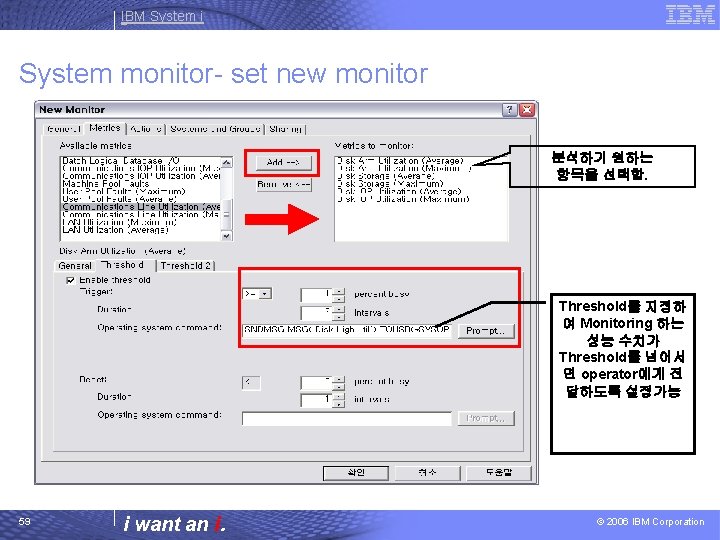

IBM System i System monitor- set new monitor 분석하기 원하는 항목을 선택함. Threshold를 지정하 여 Monitoring 하는 성능 수치가 Threshold를 넘어서 면 operator에게 전 달하도록 설정가능 59 i want an i. © 2006 IBM Corporation
IBM System i System monitor- start Right mouse click만 으로 쉽게 start START Monitoring 하고자 하 는 시스템을 선택할 수 있음. 60 i want an i. © 2006 IBM Corporation

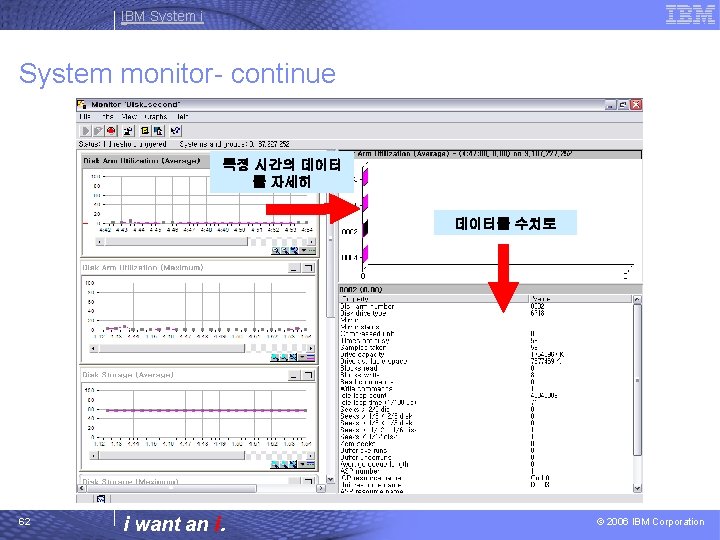

IBM System i System monitor- continue 특정 시간의 데이터 를 자세히 데이터를 수치로 62 i want an i. © 2006 IBM Corporation

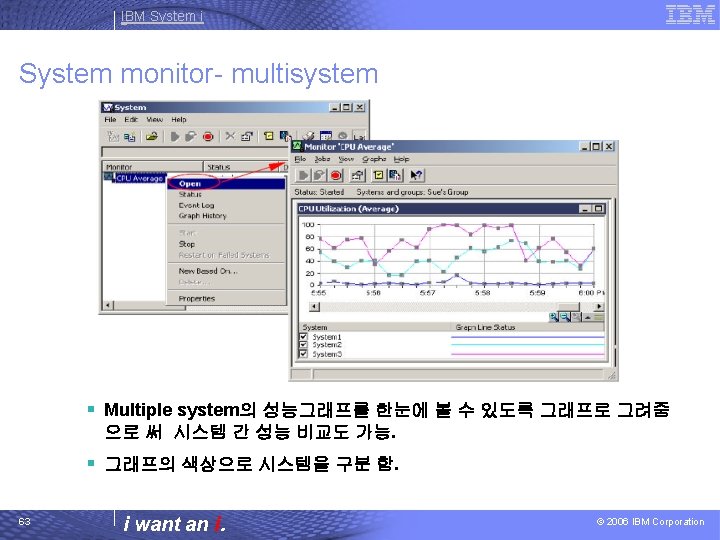

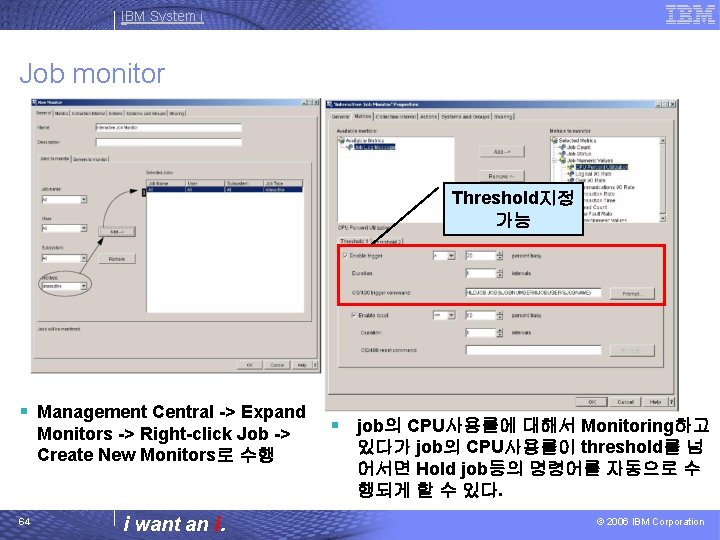

IBM System i Job monitor Threshold지정 가능 § Management Central -> Expand Monitors -> Right-click Job -> Create New Monitors로 수행 64 i want an i. § job의 CPU사용률에 대해서 Monitoring하고 있다가 job의 CPU사용률이 threshold를 넘 어서면 Hold job등의 명령어를 자동으로 수 행되게 할 수 있다. © 2006 IBM Corporation
IBM System i Job monitor (cont. ) start 대상 시스템 선택 여러 시스템도 동시 에 가능 Monitoring 결과 65 i want an i. © 2006 IBM Corporation
IBM System i File monitor § 시스템 로그나 특정한 file을 monitoring 가능함. § File의 size, status and Text에 대해 monitoring. § File과 Message monitor는 Trigger Reset 기능이 있음. 66 i want an i. © 2006 IBM Corporation
IBM System i Message monitor § Management Central ->Expand Monitors->Message 선택 § Message queue에서 Monitoring원하는 message ID를 지정하여 해당 message가 발생하면 event Log 로 남기거나 Reply하는 등의 action을 취할 수 있음. § 시스템의 예상하지 못한 상황에 대하여 관리가 가능함. 67 i want an i. © 2006 IBM Corporation

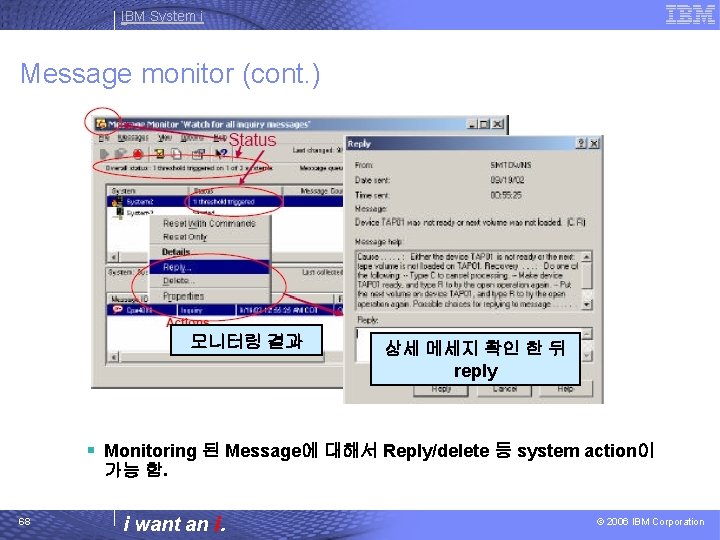

IBM System i Message monitor (cont. ) 모니터링 결과 상세 메세지 확인 한 뒤 reply § Monitoring 된 Message에 대해서 Reply/delete 등 system action이 가능 함. 68 i want an i. © 2006 IBM Corporation

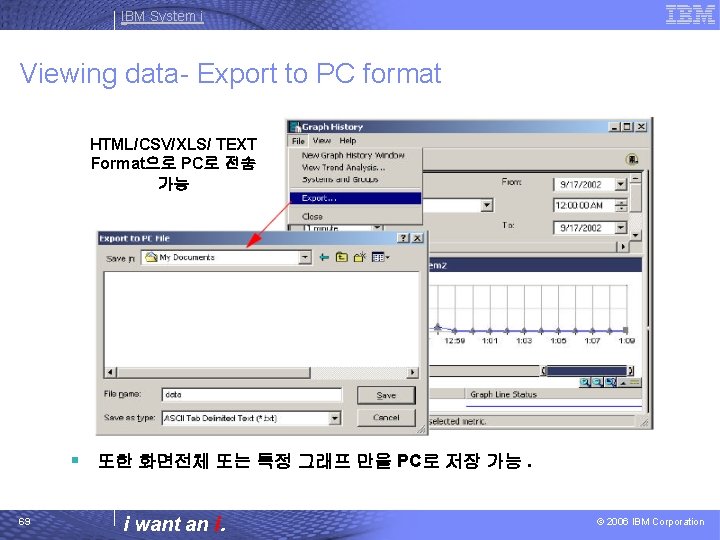

IBM System i Viewing data- Export to PC format HTML/CSV/XLS/ TEXT Format으로 PC로 전송 가능 § 또한 화면전체 또는 특정 그래프 만을 PC로 저장 가능. 69 i want an i. © 2006 IBM Corporation
IBM System i Start collection services 71 i want an i. © 2006 IBM Corporation

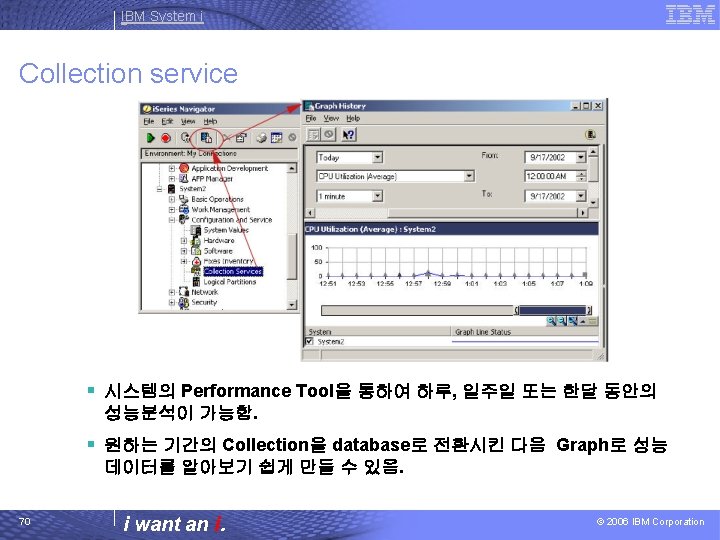

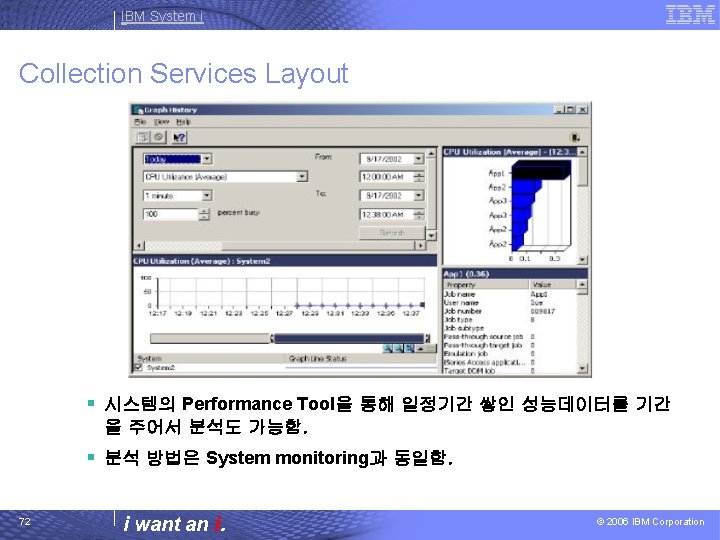

IBM System i Collection Services Layout § 시스템의 Performance Tool을 통해 일정기간 쌓인 성능데이터를 기간 을 주어서 분석도 가능함. § 분석 방법은 System monitoring과 동일함. 72 i want an i. © 2006 IBM Corporation

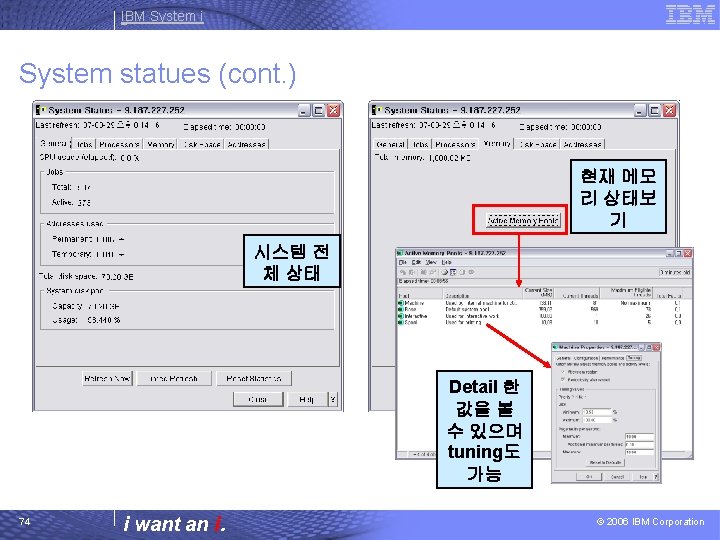

IBM System i System statues (cont. ) 현재 메모 리 상태보 기 시스템 전 체 상태 Detail 한 값을 볼 수 있으며 tuning도 가능 74 i want an i. © 2006 IBM Corporation
IBM System i System statues (cont. ) 디스크 pool 상태를 Graphic하게 볼 수 있음 75 i want an i. © 2006 IBM Corporation

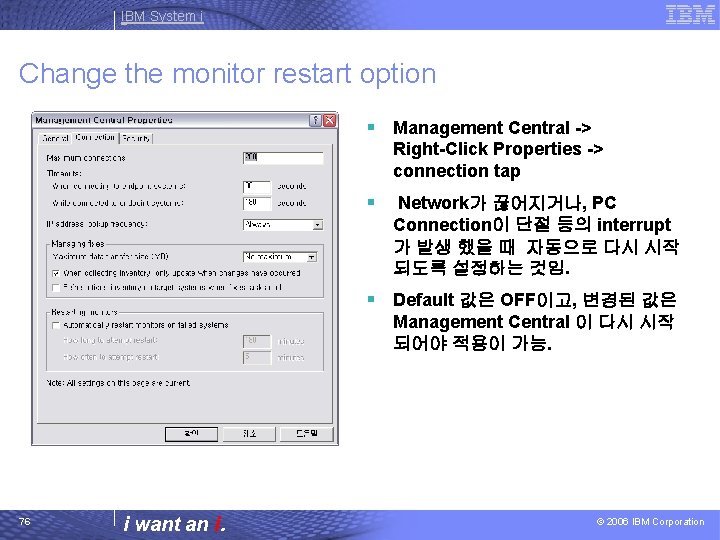

IBM System i Change the monitor restart option § Management Central -> Right-Click Properties -> connection tap § Network가 끊어지거나, PC Connection이 단절 등의 interrupt 가 발생 했을 때 자동으로 다시 시작 되도록 설정하는 것임. § Default 값은 OFF이고, 변경된 값은 Management Central 이 다시 시작 되어야 적용이 가능. 76 i want an i. © 2006 IBM Corporation
IBM System i Appendix 77 i want an i. © 2006 IBM Corporation

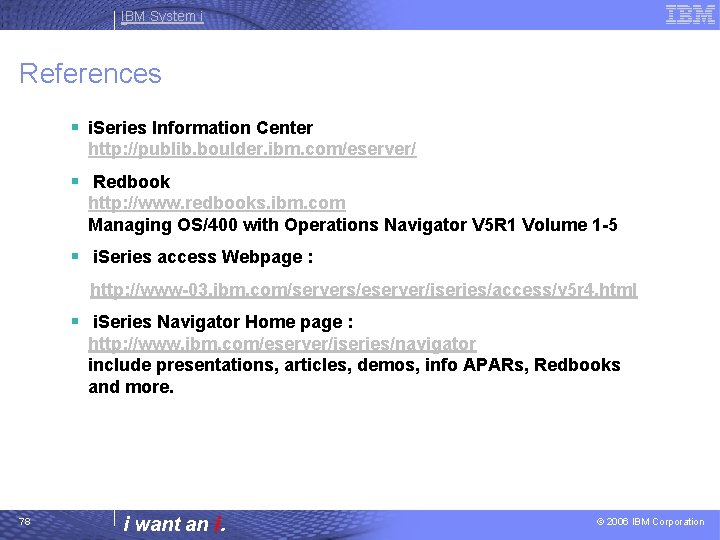

IBM System i References § i. Series Information Center http: //publib. boulder. ibm. com/eserver/ § Redbook http: //www. redbooks. ibm. com Managing OS/400 with Operations Navigator V 5 R 1 Volume 1 -5 § i. Series access Webpage : http: //www-03. ibm. com/servers/eserver/iseries/access/v 5 r 4. html § i. Series Navigator Home page : http: //www. ibm. com/eserver/iseries/navigator include presentations, articles, demos, info APARs, Redbooks and more. 78 i want an i. © 2006 IBM Corporation
