IBM Power Systems Technical University — Las Vegas, NV Why Capacity on Demand I need flexibility. My business is dynamic and I need to be able quickly respond to new demands. (And by the way, I only request funds from the board once a year. ) My budget is very tight. I don’t want to pay for something until I actually use it. 2 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Why Capacity on Demand I am championing a new computer application that will hopefully save my company a huge amount of money over time. But I need help getting it off the ground. We’re out of computing resource, but I still need to find a way to run a test. We need an offsite computer in case of disaster. It has to be able to support the key production workload at the home site, but we can’t afford to pay full price for a computer which will hopefully rarely be used. 3 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Co. D Delivers Value § Pay as you grow § Non-disruptive growth § Improved availability – Dynamic processor sparing § Payment flexibility + – On/Off Co. D § Try it before you buy it – Trial Co. D § Insurance against unexpected growth 4 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Peak Workloads and General Growth Peaks General growth • Peaks can often be difficult to predict, especially their magnitude. • General growth is more predictable and usually easier to plan. • There may also be step functions when new applications are brought on line and the green line abruptly shifts upward. 5 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Permanent & Temporary Co. D Temporary Permanent § Permanent Capacity on Demand – Planned Growth. . . pay when purchased, no premium – Usually takes a few days to order/ship/install § Temporary Capacity on Demand – – Pay by processor day or processor minute Users can avoid/delay cost of permanent activation Quick response to peak needs Can pay after use § Special Purpose. . . Free trials 6 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Co. D for POWER 6 & POWER 7 Systems POWER 7 POWER 6 Permanent Activations CUo. D Processors & Memory Temporary Activations On/Off Co. D Processors & Memory Utility Co. D Processors Trial Co. D Processors or Memory 7 Temporary Activations day te minu h mont Taking Advantage of Capacity on Demand Improved ! On/Off Co. D Processors & Memory Utility Co. D Processors Improved ! day te minu Improved ! Trial Co. D h mont Processors or Memory © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Permanent Activations Provided on These Models Permanent activations in this context means optional activations elected to be done by the client outside of IBM Manufacturing. POWER 6 proc mem POWER 7 POWER 6 Blades POWER 7 Blades 520 8203 -E 4 A * 710/730 8231 -E 2 B 550 8204 -E 8 A * 720 8202 -E 4 B 560 8234 -EMA 740 8205 -E 6 B 575 9125 -F 2 A 750 8233 -E 8 B 570 9117 -MMA ** 755 8236 -E 8 C 595 9119 -FHA 770 9117 -MMB proc mem 780 9179 -MHB * The Power 520 (9408 -M 25) and Power 550 (9409 -M 50) with System i feature codes had some processor activation capability, but are withdrawn from marketing, but Co. D options are still orderable ** The Power 570 (9406 -MMA) with System i feature codes has full processor and memory Co. D capability. It is withdrawn from marketing, but Co. D options are still orderable. 8 Taking Advantage of Capacity on Demand 795 9119 -FHB © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Permanent Activations (CUo. D) Mechanics § Initial purchase – IBM activates the quantity of processors and memory prior to customer shipment 1 GB § MES orders – Activation codes specific to server a) shipped to client and b) posted on Co. D Web page – Customer or Service Representative enters code into server via HMC or ASMI interface 1 Proc Underlying infrastructure – – 9 VPD anchor card in server maintains knowledge of activations Activation codes are specific to a server Movement of physical parts does not move Co. D activations Co. D MES orders are specific to a single server Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV CUo. D Upgrade Process 1. Place order for activation feature (quantity n) 2. Unique activation code posted to web & mailed. Code will activate the quantity of resource on only that server serial number. HMC Status Screen 5. HMC provides activations status Web Interface VPD Anchor Card 3. Retrieve code from the web & enter using the HMC menu or ASMI interface HMC Entry Screen HMC V 7 screens 10 Taking Advantage of Capacity on Demand 4. Code sent to VPD anchor card and server dynamically modifies configuration © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Temporary Co. D 11 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Temporary Co. D for POWER 5 & POWER 6 Systems Remember, all temporary activations require an HMC POWER 6 or POWER 7 On/Off Co. D Processors & Memory 12 day Utility Co. D Processors minu Trial Co. D Processors or Memory h mont Taking Advantage of Capacity on Demand te © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV On/Off Co. D 13 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV On/Off Co. D Provided on These Models POWER 6 proc mem POWER 7 POWER 6 Blades POWER 7 Blades 520 8203 -E 4 A 710/730 8231 -E 2 B 550 8204 -E 8 A 720 8202 -E 4 B 560 8234 -EMA 740 8205 -E 6 B 575 9125 -F 2 A 750 8233 -E 8 B 570 9117 -MMA * 755 8236 -E 8 C 595 9119 -FHA 770 9117 -MMB proc mem 780 9179 -MHB 795 9119 -FHB * The Power 570 (9406 -MMA) with System i feature codes has full processor and memory Co. D capability. It is withdrawn from marketing, but Co. D options are still orderable. 14 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV “Processor Day” Definition § Continuous 24 -hour powered on period for one processor core = 1 processor day § Usually correlates to 24 -hour clock time period, but can be longer if the system is powered down § If more than one processor core is turned on, then more than one processor day is used per continuous 24 -hour period – Example: turn on 3 processors for 3 days = 9 processor days used – Example: turn on 2 processor for 1 day = 2 processor days used – Example: turn on 2 processors for ½ day = 2 processor days used – (round up) Same basic definition applies to Memory GB day 15 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV “Processor Day” Definition TEST For all of the following, assume the system is never powered down and that processor cores are returned to the system when finished. – Q: Turn on 2 processor cores for 30 hours. How many processor days are used? – A: 4 processor days – Q: Turn on 1 processor core for 4 hours on Tuesday 10 pm. Turn it off for 8 hours. Turn it back on for 4 hours on Wednesday 10 am. How many processor days are used? – A: 1 processor day – Q: Turn on 4 processors cores for 48 hours. 24 hours after the first 4 processors cores were turned on, add two more processor cores for 12 hours. How many processor days used? – A: 10 processor days 16 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV On/Off Co. D Overview 1. Client registers and obtains no-charge activation code to ‘enable’ On/Off function * 2. Client uses HMC interface to activate desired resources 3. Client reports usage to IBM (Monthly) 4. IBM processes usage data and provides Sales Channel details to be used for billing (quarterly) 5. Sales Channel generates MES order to bill for usage using feature codes specific to server model and speed. 6. Client pays for usage billed via MES order 7. Participation in program continues until termination requested * If not already in place and if a business partner, business partner must also register 17 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV On/Off Implementation: End to End 1) Planning 2) Sales Channel Registration 3) Contract Requirements 4) System Enablement 5) Usage 6) Reporting 7) Billing 8) Terminating * If not already in place and if a business partner, business partner must also register 18 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV 1) Planning § Assure hardware and software support for On/Off Co. D – Is this a server which supports On/Off? – An HMC is required. Is it present? § Review contractual obligations 19 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Registration/Contracts On-Line Help Registration Contracts § Online help is available for Registration/Contracts http: //www-912. ibm. com/supporthome. nsf/document/28640809 § Additional documentation at http: //publib. boulder. ibm. com/infocenter/systems/scope/hw/topic/ipha 2. pdf 20 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV 2) Sales Channel Registration Provide sales/partner profile/pairing Register specific machine Will receive quarterly reports Register via web interface http: //www-912. ibm. com/supporthome. nsf/document/28640809 One time registration, Requires ID setup Additional servers can be added under same profile 21 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV 3) Contract Requirements § Contracts obtained from CSO/BPSO Support Teams § Client contracts required for On/Off Co. D: – If the client has an IBM Customer Agreement (ICA) on file, they must sign: – Attachment for Temporary Capacity on Demand (Z 125 -6813 -02) – Supplement for Temporary Capacity on Demand (Z 125 -6814 -01) – If there is no ICA on file, the customer must sign the following: – Agreement for Temporary Capacity on Demand (Z 125 -6815 -03) – Supplement for Temporary Capacity on Demand (Z 125 -6814 -01) § Optionally, if the client chooses to report usage data manually, they must also sign – Addendum for Temporary Capacity Manual Report (Z 125 -6837) § Business Partners are required to sign once (covering all On/Off Co. D engagements) the appropriate partner contract – Distributor: IBM Business Partner Agreement - Distributor Attachment for Temporary Capacity on Demand (BPTCOD-dist) – Solution Provider or Systems Integrator: IBM Business Partner Agreement - Attachment for Temporary Capacity on Demand (Z 125 -6846) – Solution Provider (Tier 2) IBM Business Partner Agreement - Attachment for Temporary Capacity on Demand, 2 nd Tier (BPTCOD-2 t) Online help is available : http: //www-912. ibm. com/supporthome. nsf/document/28640809 22 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV 4) System Enablement codes activate the On/Off function – – Must be ordered as an MES No charge for enablement Memory enablement must be separately ordered Will not ship until registration complete and contracts submitted to pcod@us. ibm. com Processor enablement = 360 Processor days 360 Memory enablement = 999 GB days 999 23 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV 5) Usage Request the number of days and request the number of processors or GB memory The system will remind you of your planned end date, but will not take back the resource HMC V 7 screen Client uses GUI menus to activate temporary activation 24 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Usage Comments § Turn the processor/memory on …. It’s ok to turn on & off within a processor day, but there is no savings on a per-processor basis. There are no partial day credits. One hours usage or 24 hours usage cost the same. See the Capacity on Demand User's Guide. § A processor day can be longer than 24 -hours if the entire system is powered off. § You must not only stop using the On/Off activated processor, you MUST return it to system else “the meter keeps running”. § The actual system which calculates/measures the processor day does some rounding, ESPECIALLY when changing your request, and can be a little confusing. See the Capacity on Demand User's Guide for insights/examples. Use the report generated by the system. 25 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV 6) Monthly Reporting: Electronic or Manual By the client contract described back in step 3), you, the client must report billing data to IBM, at least once per month, regardless of whether you have used temporary capacity during the period. You can use several methods to report information about your requests for temporary capacity provided, using IBM Electronic Service Agent™ (preferred), fax, or e-mail. You can view Co. D billing information and save it to a file on a remote system or to a file on removable media. If you choose to manually report the billing information, use the Co. D Billing Information window on the HMC to save the billing information. Then you can either attach the file to an e-mail or print it and fax it to your Co. D administrator. To view and save Co. D code-generation information: On/Off Use (in days) 1. In the navigation area of the HMC window, expand Systems Management. 2. Select Servers. 3. In the contents area, select the server on which you want to view and save the Co. D code information. 4. Select Tasks. Capacity on Demand 29 5 Select Capacity on Demand (Co. D). 6. Select Processors (or Memory). 7. Select the Co. D offering you want to view or save. 8. Select View Code Information. 9. In the Co. D Code Information window, click Save to save the Co. D code information to a file on a remote system or to a file on removable media. 10. In the Save Co. D Code Information panel, select one of these options, and then perform the tasks associated with that option HMC V 7 26 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Reporting Comments § If you (client) fail to report, IBM can assume you used 90 processor days and/or 90 Memory Days that month. 27 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV 7) Billing: Jan/Apr/Jul/Oct Reports sent quarterly to registered sales channel le p m sa Sales Channel: If this report indicates there is billable usage, you are obligated, per the attachment you signed for Temporary Capacity on Demand, to process an MES order within the next 30 days. 28 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV 8) Terminating On/Off Co. D § If the machine is sold * § If Co. D is no longer desired § To obtain the termination code, send a request for an On/Off Co. D termination code to the Co. D Administrator: pcod@us. ibm. com § Confirmation of the entry of the termination code will end the contractual obligation of the On/Off Co. D program. * note, If you sell the machine to someone else and neglect to terminate CUo. D capabilities, you (the client who signed the contract) are liable in most countries to pay for temporary hours if the new owner is not willing or able to pay. 29 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Co. D Billing Features (Since April 2008) § On/Off Co. D: 2 hardware features for each GHz’s one processor day -- one for running with IBM i & one for running without IBM i – Because licensing cost of IBM i vs AIX/Linux is so different § Utility Co. D: 2 hardware features for each GHz’s 100 processor minutes-- one for running with IBM i & one for running without IBM i § The above billing features for On/Off or Utility also provides: – Permission to use IBM Power Systems controlled software and 5250 OLTP § Does not cover non-IBM software § Does not cover other IBM Software Group processor-based products 30 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Example On/Off Co. D Prices AIX/Linux environment IBM i environment Power 770 – 3. 1 GHz 1 add’l core + 8 GB memory 1 add’l cores licensing for other IBM Power System’s controlled software 1 add’l core’s worth of 5250* Only $16 per day Only $179 per day Prices are USA list price as of October 2010 and are subject to change Reseller prices may vary. Note if 3. 5 GHz 770 core used, list price would be slightly higher. Add’l memory is $1 per GB. * 5250 inclusion assumes at least one 5250 Enterprise Enablement already on the server. 31 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Example: Power 770 & 780 On Demand Features 770 3. 5 GHz #4980 770 3. 1 GHz #4981 780 3. 86/4. 14 GHz #4982 n/a n/a 1 processor CUo. D (permanent) activation 5459 5468 5469 On/Off (temporary) enablement 7951 1 On/Off processor day billing (without IBM i) 7644 7648 7635 100 minutes On/Off utility billing (without IBM i) 7642 7646 7633 1 On/Off processor day billing 7645 7649 7636 7643 7647 7634 On/Off 1 GB-1 Day Billing 7377 Memory enablement feature (for On/Off) 7954 100 GB Memory activation (to server, not to DIMMs) 8213 3213 1 GB activation (to server, not to memory DIMMs) 8212 Enablement (1 add’l processor’s worth) 4992 Full Enterprise Enablement 4997 Processor 1 processor base activation (no charge) (with IBM i) 100 minutes On/Off utility billing (with IBM i) Memory 5250 Enterprise Enablement (5250 OLTP) 32 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Example: 9117 -MMA On Demand Features Processor 1 processor base activation (no charge) 1 processor CUo. D (permanent) activation On/Off (temporary) enablement 30 processor days pre-paid (Reserve Co. D) 1 On/Off processor day billing (without IBM i) 100 minutes On/Off utility billing (without IBM i) 1 On/Off processor day billing (with IBM i) 100 minutes On/Off utility billing (with IBM i) 3. 5 GHz 4. 2 GHz 4. 7 GHz #5620 #5621/5622 #7380 n/a 5670 7951 n/a 5650 5640 5483 5481 n/a 5671/5672 7951 n/a 5653 5641 5484 5482 n/a 5403 7951 n/a 5656 5404 5485 5480 5691 7954 8478 5680 7272 7276 4990 4991 Memory On/Off 1 GB-1 Day Billing Memory enablement feature (for On/Off) 256 GB Memory activation (to server, not to DIMMs) 1 GB activation (to server, not to memory DIMMs) 2 GB, 4 GB, 8 GB, 16 GB, 32 GB activation features 5250 Enterprise Enablement (5250 OLTP) Enablement (1 add’l processor’s worth) Full Enterprise Enablement 33 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Example: 9117 -MMA On Demand Features Processors continued (Oct 2008 announcement) 1 processor base activation (no charge) 1 processor CUo. D (permanent) activation On/Off (temporary) enablement 30 processor days pre-paid (Reserve Co. D) 1 On/Off processor day billing (without IBM i) 100 minutes On/Off utility billing (without IBM i) 1 On/Off processor day billing (with IBM i) 100 minutes On/Off utility billing (with IBM i) 4. 4 GHz 5. 0 GHz 4. 2 GHz #7387 #7388 #5740 n/a 7719 7951 n/a 7745 7726 7744 7743 n/a 7306 7951 n/a 7333 7332 7346 7334 n/a 7700 7951 n/a 7702 7701 7709 7706 Use the same memory & 5250 features as on previous chart 34 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Software Licensing for the Temporary Activation § Use of IBM Power Systems controlled software (AIX, IBM i, Power. VM, Power. HA, CSM, GPFS) is included in the billing features. – Note that Co. D does not ship any software. Software has to be ordered/installed initially on the server. It ONLY covers software which is in addition to the existing software and is running on the additionally activated processor cores. § IBM i 5250 OLTP usage on the temporarily activated processor is also included for IBM i assuming there is at least one 5250 Enterprise Enablement feature already installed on the system. § OTHER SOFTWARE IS NOT INCLUDED – Other IBM software which uses processor based licensing, for example Web. Sphere – Non-IBM software – The user should consult the organizations who own/control the software licensing terms and conditions to determine if there is a requirement for additional licensing. 35 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV POWER 6 On/Off Co. D Economics !! On/Off is NOT “rent-to-own” !! (no credit toward purchase price) Rule of thumb: If activating 1 processor at a time … it can range from 40 to 150+ days for a break even point depending on your environment and cost elements included. 120 days often quoted as a ball-park estimate. Break even means it would have been better to purchase the processor versus use On/Off. NOTE this break even point may not apply if activating more than 1 processor at a time. How to calculate this for your situation: – – Price of processor day for your environment (with i /without i) : ddd Price of a permanent processor activation: ppp Price of maintenance on newly activated processor: ser Price of operating system for an additional processor entitlement plus its SW Maintenance: osos – If needed, the price of an IBM i 5250 Enterprise Enablement: tptp – If needed, the price of Power. VM and other software: misc ddd x (number days break even) = (ppp + ser + ? osos? + ? tptp? + ? misc? ) 36 * Different operating system options, and the different software/operational requirements may change this calculation for your company. Prices/numbers will vary by country and are subject to change Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV POWER 7 On/Off Co. D Economics !! On/Off is NOT “rent-to-own” !! (no credit toward purchase price) Rule of thumb: If activating 1 processor at a time … it can range from 120 to 450+ days for a break even point depending on your environment and cost elements included. 360 days often quoted as a ball-park estimate. Break even means it would have been better to purchase the processor versus use On/Off. NOTE this break even point may not apply if activating more than 1 processor at a time. How to calculate this for your situation: – – Price of processor day for your environment (with i /without i) : ddd Price of a permanent processor activation: ppp Price of maintenance on newly activated processor: ser Price of operating system for an additional processor entitlement plus its SW Maintenance: osos – If needed, the price of an IBM i 5250 Enterprise Enablement: tptp – If needed, the price of Power. VM and other software: misc ddd x (number days break even) = (ppp + ser + ? osos? + ? tptp? + ? misc? ) 37 * Different operating system options, and the different software/operational requirements may change this calculation for your company. Prices/numbers will vary by country and are subject to change Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV On/Off Co. D Economics with multiple temporary activations !! On/Off is NOT “rent-to-own” !! (no credit toward purchase price) Scenario: your peak workload very high and requires several processor activations. Buying one permanent processor activation does not meet the workload needs. You need to buy enough processor activations to meet the workload needs. How to calculate this for your situation: – – Price of processor day for your environment (with i /without i) : ddd Price of a permanent processor activation: ppp Price of maintenance on newly activated processor: ser Price of operating system for an additional processor entitlement plus its SW Maintenance: osos – If needed, the price of an IBM i 5250 Enterprise Enablement: tptp – If needed, the price of Power. VM and other software: misc – Max number of processors activated during your peaks: nnn ddd x (number days break even) = (ppp + ser + ? osos? + ? tptp? + ? misc? ) x nnn 38 * Different operating system options, and the different software/operational requirements may change this calculation for your company. Prices/numbers will vary by country and are subject to change Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Utility Co. D 39 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Utility Co. D Provided on These Models POWER 6 proc mem POWER 7 POWER 6 Blades POWER 7 Blades 520 8203 -E 4 A 710/730 8231 -E 2 B 550 8204 -E 8 A 720 8202 -E 4 B 560 8234 -EMA 740 8205 -E 6 B 575 9125 -F 2 A 750 8233 -E 8 B 570 9117 -MMA * 755 8236 -E 8 C 595 9119 -FHA 770 9117 -MMB proc mem 780 9179 -MHB 795 9119 -FHB * The Power 570 (9406 -MMA) with System i feature codes has full processor and memory Co. D capability. It is withdrawn from marketing, but Co. D options are still orderable. 40 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Utility Co. D – By the Processor Minute Temporary Permanent VERY Temporary Great for short bursts of processing power requirements, especially ones which would benefit by an automated, instantaneous response. Example: 1 processor for 10 minutes plus another processor for 7 minutes = 17 processor minutes 41 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Utility Co. D automatically provides additional processor capacity on a temporary basis within the shared processor pool. Usage is measured in processor minute increments and is reported by the client via a web interface. Billing is based on the reported usage. For clients with unpredictable, short workload spikes who need an automated and affordable way to help assure adequate server performance is available as needed. • If permanent activation of processors is not cost efficient • If manual administrator of resources (like On/Off Co. D) is too slow or operator resource is not available Note that adequate memory resource should be made available to achieve best processor utilization. On/Off memory resource is not part of Utility Co. D. *planned USA list price. Subject to change. Will vary by country 42 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Utility Co. D Flow Web Enablement Read / Accept T’s&C’s Request Enablement code HMC V 7 Enablement code Sales Channel generates MES Order to bill for usage Enter enablement code Assign resources Report Usage Configure Reported Usage code 43 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Utility Co. D Details - Set Up & Usage Set up 1. Client “Click to Accept” T & C’s on Co. D website www. ibm. com/systems/power/hardware/cod 2. Utility Co. D enablement code provided by website 3. Client enters code into the system 4. Assign quantity of inactive processors to shared processor pool using HMC 5. Set condition/state parameters for automated activation using HMC Note – enablement code must be renewed every year on Co. D website Usage 1. When system recognizes that the base processors assigned across uncapped partitions is 100% utilized AND at least 10% of one processor is needed, THEN additional processor resource is automatically applied and chargeable processor minutes start accruing. 2. Minutes stop accruing when the utilization level drops and the base processors assigned can handle the workload. 3. As needed, report usage to Co. D website, receive reporting authorization codes, enter reporting codes into the system Note – only processors, not memory, activations are automated 44 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV System i Utility Co. D Details - Payment Customer Steps 1. Client goes to Co. D website 2. Report minutes usage on Co. D website – Report in blocks of 100 minutes 3. Co. D websites provides reported usage code 4. Client enters usage code into system * To prepay, report usage not yet incurred Sales Steps IBM sends statement of reported usage to sales organization associated with client 1. Receive information from IBM Co. D organization on usage 2. Order one appropriate billing feature for each 100 processor minutes * Reporting insight: There is a limited quantity of processor minutes enabled on the system. If the client forgets to enter their usage code, the system will stop providing utility Co. D function when the limit is reached. Once entered, the reported usage code extends the number of processor minutes available. 45 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Utility Co. D Reporting Limits Number of inactive (standby) processors on the server Reporting Limit Reporting limit (client should report by this quantity or earlier) (system will not go past this without reporting) 1– 4 500 minutes 1000 minutes 5 – 16 1000 minutes 2000 minutes > 16 5000 minutes 10000 minutes Client can establish numerous controls to limit/control maximum usage 46 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Example: 9119 -FHA On Demand Features Processor 1 processor base activation (no charge) 1 processor CUo. D (permanent) activation On/Off (temporary) enablement 30 processor days pre-paid (Reserve Co. D) 1 On/Off processor day billing (without IBM i) 100 minutes On/Off utility billing (without IBM i) 1 On/Off processor day billing (with IBM i) 100 minutes On/Off utility billing (with IBM i) 4. 2 GHz* 5. 0 GHz* #4694 #4695/#4705 n/a 4754 7971 n/a 7234 5941 5945 5943 n/a 4755 7971 n/a 7244 5942 5946 5944 5691 7973 5680 8493 8471 8472 4995 4996 Memory On/Off 1 GB-1 Day Billing Memory enablement feature (for On/Off) 1 GB activation (to server, not to memory DIMMs) 256 GB Memory activation (to server, not to DIMMs) 1 GB base activation for 4500/4501/4502/4503 256 GB base activation for 4500/4501/4502/4503 5250 Enterprise Enablement (5250 OLTP) Enablement (1 add’l processor’s worth) Full Enterprise Enablement * CBU for DR processor features are #7569 (4. 2 GHz) and #7571 (5. 0 GHz). The rest of the features are the same. 47 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV POWER 6 Utility Co. D Economics vs. Perm Activation !! Utility Co. D is NOT “rent-to-own” !! (no credit toward purchase price) Rule of thumb: If activating 1 processor at a time, after about 2400* to 9200* processor minutes it might have been better to purchase the processor activations. NOTE this break even point does not apply if activating more than 1 processor at a time. How to calculate this for your situation: – – Price of 100 processor minutes for your environment (with i /without i) : mmm Price of a permanent processor activation: ppp Price of maintenance on newly activated processor: serv Price of operating system for an additional processor entitlement plus its SW Maintenance: osos – If needed, the price of an IBM i 5250 Enterprise Enablement: tptp – If needed, the price of Power. VM and other software: misc mmm x (number 100 min break even) = (ppp + serv + osos + ? tptp? + ? misc? ) If more than one processor activated, multiple the break even number of minutes by the maximum number of processors activated. 48 * Different operating system options, and the different software/operational requirements may change this calculation for your company. Prices/numbers will vary by country and are subject to change Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV POWER 7 Utility Co. D Economics vs. Perm Activation !! Utility Co. D is NOT “rent-to-own” !! (no credit toward purchase price) Rule of thumb: If activating 1 processor at a time, after about 7200* to 25000* processor minutes it might have been better to purchase the processor activations. NOTE this break even point does not apply if activating more than 1 processor at a time. How to calculate this for your situation: – – Price of 100 processor minutes for your environment (with i /without i) : mmm Price of a permanent processor activation: ppp Price of maintenance on newly activated processor: serv Price of operating system for an additional processor entitlement plus its SW Maintenance: osos – If needed, the price of an IBM i 5250 Enterprise Enablement: tptp – If needed, the price of Power. VM and other software: misc mmm x (number 100 min break even) = (ppp + serv + osos + ? tptp? + ? misc? ) If more than one processor activated, multiple the break even number of minutes by the maximum number of processors activated. 49 * Different operating system options, and the different software/operational requirements may change this calculation for your company. Prices/numbers will vary by country and are subject to change Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Utility Co. D Economics vs. On/Off Processor Day !! Utility Co. D is NOT “rent-to-own” !! (no credit toward purchase price) If you are going to run Utility for 60* minutes in a day, it is about the same price as buying 1 On/Off processor day. How to calculate this for your situation : – Price of 100 processor minutes for your environment (with i /without i) : mmm – Price of a processor day for your environment (with i/without i) : ddd – ddd / mmm = decimal ratio (USA 9117 example: ratio = 0. 60 indicating breakeven less than 100 minutes) – Decimal ratio x 100 minutes = number minutes breakeven assuming max of 1 processor activated during Utility Co. D If a variable number of processors is activated using Utility Co. D, then the breakeven point is calculated by – Variable adjustment factor = vaf = (peak number of processors activated) minus (minimum number of processors activated) – Break even = ( ddd / mmm ) x 100 x vaf 50 * Different operating system options, and the different software/operational requirements may change this calculation for your company. Prices/numbers will vary by country and are subject to change Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Trial Co. D 51 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Trial Co. D Provided on These Models POWER 6 proc mem POWER 7 POWER 6 Blades POWER 7 Blades 520 8203 -E 4 A 710/730 8231 -E 2 B 550 8204 -E 8 A 720 8202 -E 4 B 560 8234 -EMA 740 8205 -E 6 B 575 9125 -F 2 A 750 8233 -E 8 B 570 9117 -MMA * 755 8236 -E 8 C 595 9119 -FHA 770 9117 -MMB proc mem 780 9179 -MHB 795 9119 -FHB * The Power 570 (9406 -MMA) with System i feature codes has full processor and memory Co. D capability. It is withdrawn from marketing, but Co. D options are still orderable. 52 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Power 770/780/795 Trial Co. D § 30 -day use of – Up to 8 processor activations and/or Up to 64 GB memory activations – Can be done once per purchase of processor activation. – Example: new machine installed July. October try 4 processor activations. December purchase a processor activation. With purchase, “reset” and can request another 30 -day Trial Co. D. – No charge §One time option for life of server (MTM – machine type model) – Activate all processors and all memory for 30 days. (user can assign only a portion of these if so desired) – Purchase of processor activation does not “reset” – Requires exception request. See https: //www-912. ibm. com/pcod_reg. nsf/Trial. Cod? Open. Form 53 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Power 570/595 Trial Co. D 30 -day use of – Up to 2 processor activations and/or Up to 4 GB memory activations – Can be done once per purchase of processor/memory activation. – Example: new machine installed July. October try 2 processor activations. December purchase a processor activation. With purchase, “reset” and can request another Trial Co. D. – No charge One time option for life of server (MTM – machine type model) – Activate all processors and all memory for 30 days. (user can assign only a portion of these if so desired) – Purchase of processor/memory activations does not “reset” – Requires exception request. See https: //www-912. ibm. com/tcod_reg. nsf/Trial. Cod? Open. Form 54 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Special Situations 55 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Special Options § Power 795 CBU – 32 -core processor book options: 4/64 core, 8/128 core, 12/192 core or 16/256 core with a 1800 processor day credit per book – 24 -core processor book options: either 3/48 core, 6/96 core, 9/144 core or 12/192 core with a 1360 processor day credit per book – Intended primarily for Disaster Recovery (DR) site scenario § Power 595 CBU – 4/32 core and 4/64 core configuration with 1800 or 3600 processor days credit – Intended primarily for Disaster Recovery (DR) site scenario § Enterprise mobility (Mobile Co. D) – Very manual way to address the needs of moving processor and memory activations from machine to machine within an enterprise – Only available within the same enterprise – Only within the same kind of machines -- all 5 GHz 595 s for example § Power 795 Power Flex 56 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Power Flex Examples…. § Special RPQ offering for 4. 0/4. 24 GHz Power 795 (specific pre-reqs apply) within a client enterprise § Uses a more flexible set of mobile Co. D options and processor day credits to implement the offering System A System B 64 Inactive System A Maint Actions 64 Active System B 64 Active System A System B 64 Inactive 64 Active Tempora ry 64 Active Planned Maintenance System A 32 Inactive 32 Active 64 Active System B 64 Inactive 64 Active System A System B 48 Inactive 16 Active 64 Active Resource Re-balancing 57 57 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Co. D for POWER 6 & POWER 7 Systems POWER 7 POWER 6 Permanent Activations CUo. D Processors & Memory Temporary Activations On/Off Co. D Processors & Memory Utility Co. D Processors Trial Co. D Processors or Memory 58 Temporary Activations day te minu h mont Taking Advantage of Capacity on Demand Improved ! On/Off Co. D Processors & Memory Utility Co. D Processors Improved ! day te minu Improved ! Trial Co. D h mont Processors or Memory © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Key Reference § Co. D Web Site – www. ibm. com/systems/power/hardware/cod § Planning Guide on the Web Site § Contacts to admin team (see the web site) 59 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV THANKS, Questions? 8 1 N W : s n o i t a u l a v E 60 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Additional Information History of Billing features POWER 5 structure 61 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Co. D Billing Features (pre-April 2008) Two ways of doing business System i Co. D billing structure System p Co. D billing structure § 1 hardware feature for each GHz one § § § § 62 processor day 1 hardware feature for each GHz 100 processor minutes Permission to use IBM i processor license entitlement during the usage (price included in hardware feature) Permission to use 5250 Enterprise Enablement if 5250 capability on the machine (price in hardware feature) Permission to use HASM and other IBM i LPPs software. (price in hardware feature) Does not cover non-IBM software Does not cover other IBM Software Group processor-based products Taking Advantage of Capacity on Demand § § processor day 1 hardware features for each GHz 100 processor minutes AIX licensing needed if spare processor entitlements not available for AIX partition. 1 software feature for one license day HACMP™, CMS, VIOS, etc (AIX LPPs) additional licensing needed if spare processor license entitlements not available. 1 software feature for one license day per software product. Does not cover non-IBM software Does not cover other IBM Software Group processor-based products © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Enhanced Co. D Billing Features (post-April 2008) One way of doing business Power Systems Co. D billing structure § 2 hardware features* for each GHz’s one processor day -- one for running with IBM i & one for running without IBM i § 2 hardware features* for each GHz’s 100 processor minutes-- one for running with IBM i & one for running without IBM i Sim r e l p r to ie s a E t r e d r oo d n ta s r de n u § Permission to use IBM i & 5250 OLTP or AIX processor license entitlement during the temporary usage (price included in hardware feature) § Permission to use Power. VM, HACMP, HASM, CSM and other IBM i/AIX LPPs software. (price in hardware feature) § Does not cover non-IBM software § Does not cover other IBM Software Group processor-based products * Applies to the 9117 -MMA and 9119 -FHA. Does not apply to the 940 x 63 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV POWER 5 Information POWER 5 servers Co. D capability very similar to POWER 6 and POWER 7 servers Many of POWER 5 Co. D features have been withdrawn from marketing due to disuse, but are usually available upon request for those clients who have already enabled Co. D. New enablement features for On/Off Co. D and Reserve Co. D are withdrawn and are no longer available. 64 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV POWER 6 POWER 5 Permanent CUo. D Processors (1 processor increments) Memory (1 GB increments ) Temporary On/Off Co. D Manual control of activations Utilization Reporting Required (Contract) Post-pay Integrated into Capacity Back. Up offering Reserve Co. D Autonomic (charges based on measured workload) No Contracts Pre-pay usage blocks of time Optimizes processor use within the shared pool Trial Co. D new Autonomic (charges based on measured workload) No Paper Contracts (web based registration) Post pay (or pre-pay blocks of time) Optimizes processor use within the shared pool Trial Co. D Standard Exception Web based distribution 65 Utility Co. D Taking Advantage of Capacity on Demand Standard Exception Web based distribution © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Permanent Activations Provided on These POWER 5 Models POWER 5/POWER 5+ proc mem 515 9407 -515 Permanent activations in this context means activations outside of IBM Manufacturing when requested by the client. 520 9111 -520 9405 -520 9406 -520 525 9406 -525 * 550 9113 -550 9406 -550 560 9116 -561 575 9118 -575 570 9117 -570 9406 -570 595 9119 -590/595 9406 -595 66 Selected 9406 -520 * Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Temporary Co. D for POWER 5 Systems Remember, all temporary activations require an HMC POWER 5 67 On/Off Co. D Processors & Memory day Reserve Co. D Processors day Trial Co. D Processors or Memory mont h Taking Advantage of Capacity on Demand © 2010 IBM Corporation

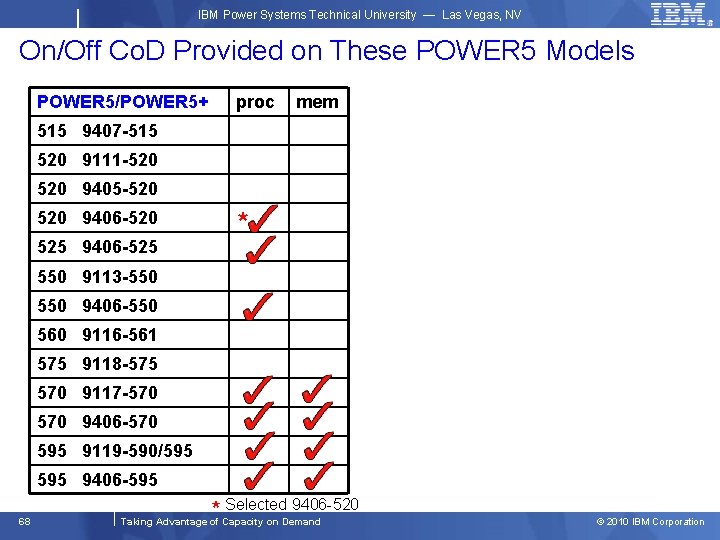

IBM Power Systems Technical University — Las Vegas, NV On/Off Co. D Provided on These POWER 5 Models POWER 5/POWER 5+ proc mem 515 9407 -515 520 9111 -520 9405 -520 9406 -520 525 9406 -525 * 550 9113 -550 9406 -550 560 9116 -561 575 9118 -575 570 9117 -570 9406 -570 595 9119 -590/595 9406 -595 68 Selected 9406 -520 * Taking Advantage of Capacity on Demand © 2010 IBM Corporation

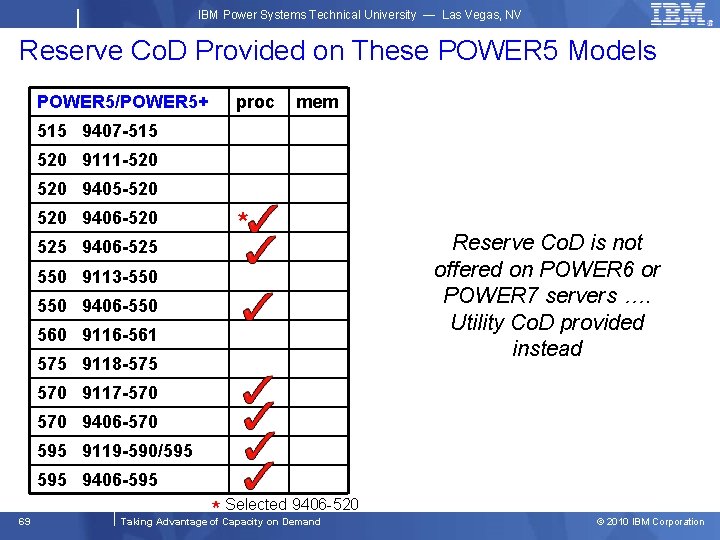

IBM Power Systems Technical University — Las Vegas, NV Reserve Co. D Provided on These POWER 5 Models POWER 5/POWER 5+ proc mem 515 9407 -515 520 9111 -520 9405 -520 9406 -520 525 9406 -525 * 550 9113 -550 9406 -550 560 9116 -561 575 9118 -575 Reserve Co. D is not offered on POWER 6 or POWER 7 servers …. Utility Co. D provided instead 570 9117 -570 9406 -570 595 9119 -590/595 9406 -595 69 Selected 9406 -520 * Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Utility Co. D Provided on These POWER 5 Models POWER 5/POWER 5+ proc mem 515 9407 -515 520 9111 -520 9405 -520 9406 -520 525 9406 -525 550 9113 -550 9406 -550 560 9116 -561 POWER 5 servers use Reserved Co. D, instead of Utility Co. D 575 9118 -575 570 9117 -570 9406 -570 595 9119 -590/595 9406 -595 70 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Reserve & Utility Co. D Compared Reserve (POWER 5) and Utility (POWER 6/7) Co. D similarities – Both are an automatic way to activate temporary capacity. Inactive processors are placed into the shared processor pool. When the server recognizes that the number of base (purchased/active) processors assigned across uncapped partitions has been 100% utilized, and at least 10% of an additional processor is needed, then that standby capacity is used. Reserve and Utility Co. D differences: – Reserve Co. D: You buy processor days in advance. Usage not reported to IBM. No contracts required. – Utility Co. D: You buy processor minutes either after using or in advance. Usage reported to IBM when you decide it is needed via the Web. Contracts handled via the Web. 71 Taking Advantage of Capacity on Demand © 2010 IBM Corporation

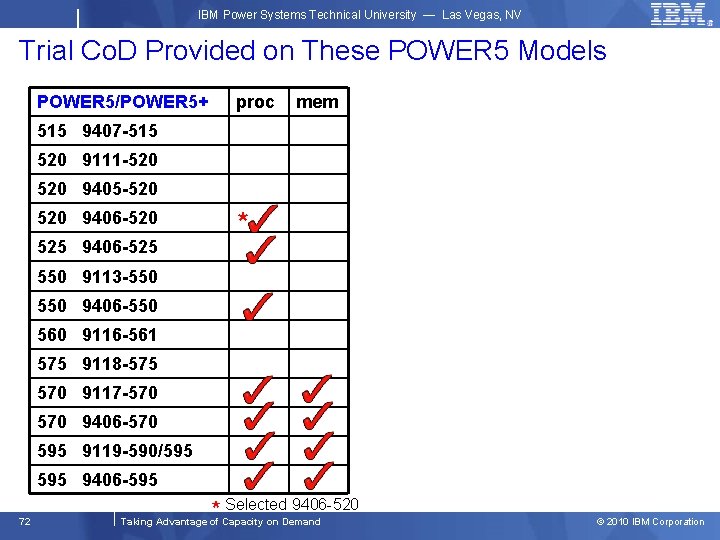

IBM Power Systems Technical University — Las Vegas, NV Trial Co. D Provided on These POWER 5 Models POWER 5/POWER 5+ proc mem 515 9407 -515 520 9111 -520 9405 -520 9406 -520 525 9406 -525 * 550 9113 -550 9406 -550 560 9116 -561 575 9118 -575 570 9117 -570 9406 -570 595 9119 -590/595 9406 -595 72 Selected 9406 -520 * Taking Advantage of Capacity on Demand © 2010 IBM Corporation
IBM Power Systems Technical University — Las Vegas, NV Trademarks The following are trademarks of the International Business Machines Corporation in the United States, other countries, or both. Not all common law marks used by IBM are listed on this page. Failure of a mark to appear does not mean that IBM does not use the mark nor does it mean that the product is not actively marketed or is not significant within its relevant market. Those trademarks followed by ® are registered trademarks of IBM in the United States; all others are trademarks or common law marks of IBM in the United States. For a complete list of IBM Trademarks, see www. ibm. com/legal/copytrade. shtml: *, AS/400®, e business(logo)®, DBE, ESCO, e. Server, FICON, IBM®, IBM (logo)®, i. Series®, MVS, OS/390®, p. Series®, RS/6000®, S/30, VM/ESA®, VSE/ESA, Web. Sphere®, x. Series®, z/OS®, z. Series®, z/VM®, System i 5, System p 5, System x, System z 9®, Blade. Center® The following are trademarks or registered trademarks of other companies. Adobe, the Adobe logo, Post. Script, and the Post. Script logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries. Cell Broadband Engine is a trademark of Sony Computer Entertainment, Inc. in the United States, other countries, or both and is used under license therefrom. Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both. Microsoft, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both. Intel, Intel logo, Intel Inside logo, Intel Centrino logo, Celeron, Intel Xeon, Intel Speed. Step, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. UNIX is a registered trademark of The Open Group in the United States and other countries. Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. ITIL is a registered trademark, and a registered community trademark of the Office of Government Commerce, and is registered in the U. S. Patent and Trademark Office. IT Infrastructure Library is a registered trademark of the Central Computer and Telecommunications Agency, which is now part of the Office of Government Commerce. * All other products may be trademarks or registered trademarks of their respective companies. Notes: Performance is in Internal Throughput Rate (ITR) ratio based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput that any user will experience will vary depending upon considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve throughput improvements equivalent to the performance ratios stated here. IBM hardware products are manufactured from new parts, or new and serviceable used parts. Regardless, our warranty terms apply. All customer examples cited or described in this presentation are presented as illustrations of the manner in which some customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics will vary depending on individual customer configurations and conditions. This publication was produced in the United States. IBM may not offer the products, services or features discussed in this document in other countries, and the information may be subject to change without notice. Consult your local IBM business contact for information on the product or services available in your area. All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. Information about non-IBM products is obtained from the manufacturers of those products or their published announcements. IBM has not tested those products and cannot confirm the performance, compatibility, or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. Prices subject to change without notice. Contact your IBM representative or Business Partner for the most current pricing in your geography. 73 Taking Advantage of Capacity on Demand © 2010 IBM Corporation

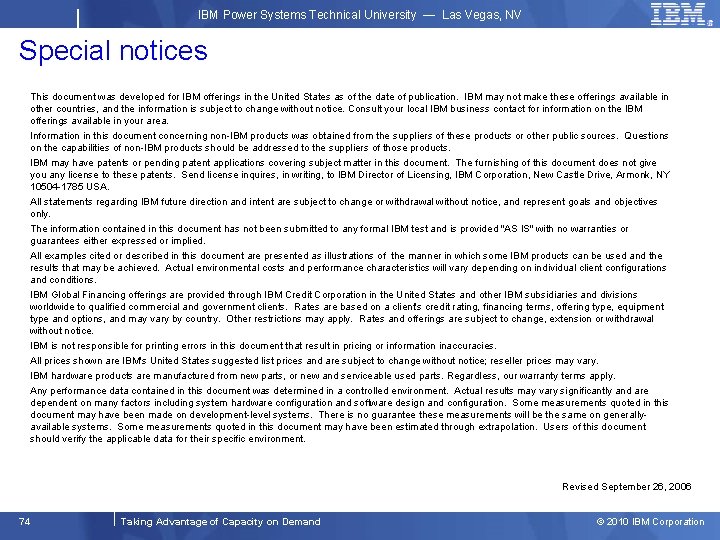

IBM Power Systems Technical University — Las Vegas, NV Special notices This document was developed for IBM offerings in the United States as of the date of publication. IBM may not make these offerings available in other countries, and the information is subject to change without notice. Consult your local IBM business contact for information on the IBM offerings available in your area. Information in this document concerning non-IBM products was obtained from the suppliers of these products or other public sources. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not give you any license to these patents. Send license inquires, in writing, to IBM Director of Licensing, IBM Corporation, New Castle Drive, Armonk, NY 10504 -1785 USA. All statements regarding IBM future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. The information contained in this document has not been submitted to any formal IBM test and is provided "AS IS" with no warranties or guarantees either expressed or implied. All examples cited or described in this document are presented as illustrations of the manner in which some IBM products can be used and the results that may be achieved. Actual environmental costs and performance characteristics will vary depending on individual client configurations and conditions. IBM Global Financing offerings are provided through IBM Credit Corporation in the United States and other IBM subsidiaries and divisions worldwide to qualified commercial and government clients. Rates are based on a client's credit rating, financing terms, offering type, equipment type and options, and may vary by country. Other restrictions may apply. Rates and offerings are subject to change, extension or withdrawal without notice. IBM is not responsible for printing errors in this document that result in pricing or information inaccuracies. All prices shown are IBM's United States suggested list prices and are subject to change without notice; reseller prices may vary. IBM hardware products are manufactured from new parts, or new and serviceable used parts. Regardless, our warranty terms apply. Any performance data contained in this document was determined in a controlled environment. Actual results may vary significantly and are dependent on many factors including system hardware configuration and software design and configuration. Some measurements quoted in this document may have been made on development-level systems. There is no guarantee these measurements will be the same on generallyavailable systems. Some measurements quoted in this document may have been estimated through extrapolation. Users of this document should verify the applicable data for their specific environment. Revised September 26, 2006 74 Taking Advantage of Capacity on Demand © 2010 IBM Corporation
