IBM Power Systems IBM i and Open Storage 4 Q 2009 Update Mike Schambureck Vess Natchev IBM Lab Services, Rochester © 2009 IBM Corporation
IBM Power Systems Agenda § October 2009 enhancements – DS 5100 and DS 5300 direct attachment to IBM i – NPIV support for DS 8000 and Fibre Channel (FC) tape libraries – Redundant VIOS support with client-side MPIO – End-to-end device mapping – SSD analyzer improvements § Previous 2009 enhancements – XIV support – VIOS configuration in HMC – Active Memory Sharing (AMS) – SAN support summary with direct attachment – SAN support summary with VIOS – Let IBM Lab Services help you with IBM i and open storage! 2 © 2009 IBM Corporation
IBM i Direct Support for DS 5100 and DS 5300 Overview IBM Power Systems § IBM i supports direct attachment to DS 5100 and DS 5300 storage to enable simpler SAN planning and leverage midrange open storage § DS 5100 and DS 5300 benefits – Multiple RAID levels, including RAID 6 – Custom XOR processor for RAID calculations – Consolidated storage for IBM i, Unix, Linux, Windows applications – Can use FC or SATA drives § DS 5100 and DS 5300 currently supported § New support does not require Power. VM Virtual I/O Server (VIOS) – Power. VM may be required for shared processors, Active Memory Sharing § IBM i LPAR owns Fibre Channel adapter(s) – Two adapters required for redundancy § New IBM i host kit required on DS 5100 and DS 5300 – Feature code #7735 § IBM i supports Multi-path I/O with direct attachment to DS 5100 and DS 5300 – No additional software required on DS 5100 and DS 5300 – Round-robin algorithm used with Multi-path I/O in IBM i Power Hypervisor * All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. 3 © 2009 IBM Corporation

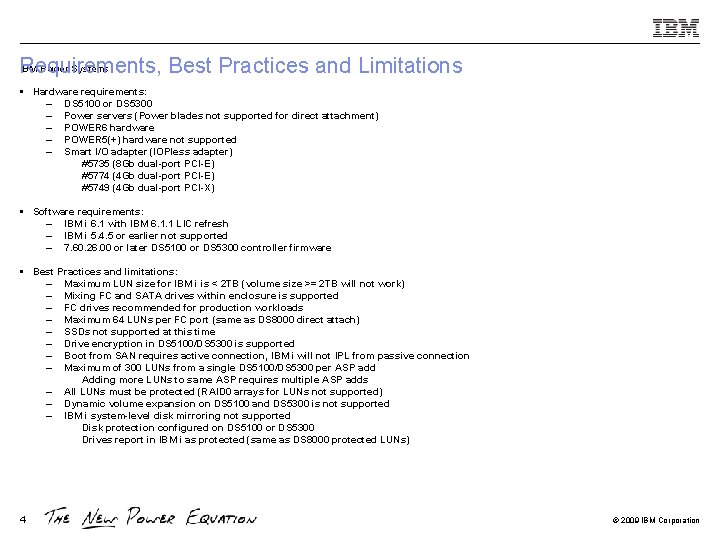

IBM Power Systems Requirements, Best Practices and Limitations § Hardware requirements: – DS 5100 or DS 5300 – Power servers (Power blades not supported for direct attachment) – POWER 6 hardware – POWER 5(+) hardware not supported – Smart I/O adapter (IOPless adapter) #5735 (8 Gb dual-port PCI-E) #5774 (4 Gb dual-port PCI-E) #5749 (4 Gb dual-port PCI-X) § Software requirements: – IBM i 6. 1 with IBM 6. 1. 1 LIC refresh – IBM i 5. 4. 5 or earlier not supported – 7. 60. 26. 00 or later DS 5100 or DS 5300 controller firmware § Best Practices and limitations: – Maximum LUN size for IBM i is < 2 TB (volume size >= 2 TB will not work) – Mixing FC and SATA drives within enclosure is supported – FC drives recommended for production workloads – Maximum 64 LUNs per FC port (same as DS 8000 direct attach) – SSDs not supported at this time – Drive encryption in DS 5100/DS 5300 is supported – Boot from SAN requires active connection, IBM i will not IPL from passive connection – Maximum of 300 LUNs from a single DS 5100/DS 5300 per ASP add Adding more LUNs to same ASP requires multiple ASP adds – All LUNs must be protected (RAID 0 arrays for LUNs not supported) – Dynamic volume expansion on DS 5100 and DS 5300 is not supported – IBM i system-level disk mirroring not supported Disk protection configured on DS 5100 or DS 5300 Drives report in IBM i as protected (same as DS 8000 protected LUNs) 4 © 2009 IBM Corporation
Configuring DS 5100 and DS 5300 for IBM i Direct Attachment – Storage IBM Power Systems § Step 1: Perform sizing – Use Disk Magic for DDM/array sizing, use PCRM* for LUN sizing – Number of physical drives is still most important – Separate LUNs for production and development workloads on different RAID arrays – Array and LUN configuration for IBM i is different from that for AIX direct or for AIX through VIOS – Leverage service vouchers for assistance (see later in this presentation) § Step 2: Use DS 5100 and DS 5300 Redbook (SG-247676) to perform initial DS 5100 and DS 5300 setup § Step 3: Create RAID 5, RAID 6 or RAID 10 array § Step 4: Create 512 B LUNs based on Disk Magic sizing § Step 5: Create new host, type IBM i § Step 6: Map LUNs to new host § Make sure there are no hosts in default host group on DS 5100/DS 5300 DS Storage Manager – Storage partitioning recommended – IBM i will see LUNs attached to any host in the default host group in addition to its own hosts without storage partitioning * http: //www. ibm. com/systems/i/advantages/perfmgmt/resource. html 5 © 2009 IBM Corporation
Configuring IBM Power Systems DS 5100 and DS 5300 for IBM i Direct Attachment – Power System § Create IBM i LPAR, assign supported FC adapter(s), OR § Assign supported FC adapters to existing IBM i LPAR § Perform zoning – Zone each port on the FC adapter to connect to controller A or B – Maximizes redundancy and performance § Connect FC adapters to SAN fabric – See note on default host group on DS 5100/DS 5300 before performing this step 6 © 2009 IBM Corporation

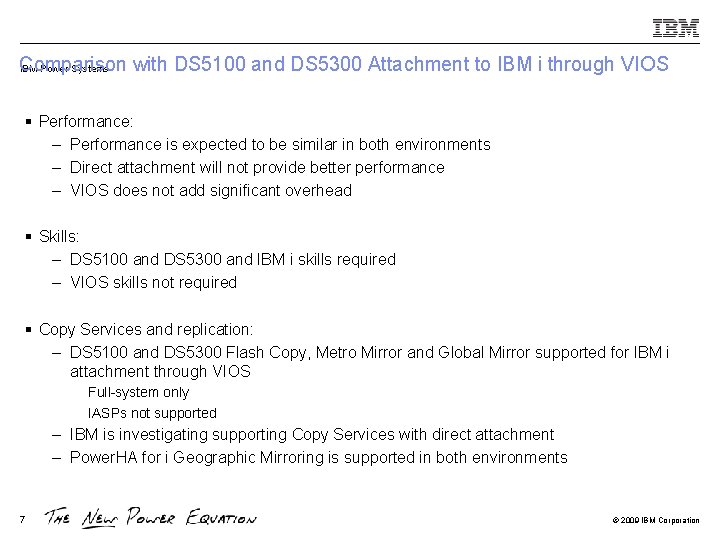

Comparison with DS 5100 and DS 5300 Attachment to IBM i through VIOS IBM Power Systems § Performance: – Performance is expected to be similar in both environments – Direct attachment will not provide better performance – VIOS does not add significant overhead § Skills: – DS 5100 and DS 5300 and IBM i skills required – VIOS skills not required § Copy Services and replication: – DS 5100 and DS 5300 Flash Copy, Metro Mirror and Global Mirror supported for IBM i attachment through VIOS Full-system only IASPs not supported – IBM is investigating supporting Copy Services with direct attachment – Power. HA for i Geographic Mirroring is supported in both environments 7 © 2009 IBM Corporation

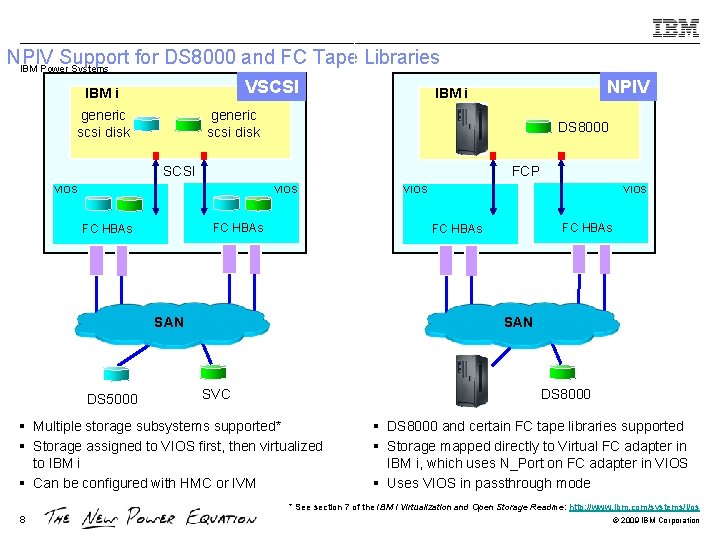

NPIV Support for DS 8000 and FC Tape Libraries IBM Power Systems VSCSI IBM i generic scsi disk EMC SCSI VIOS FC HBAs SAN DS 5000 DS 8000 FCP VIOS FC HBAs NPIV IBM i SAN SVC DS 8000 § Multiple storage subsystems supported* § Storage assigned to VIOS first, then virtualized to IBM i § Can be configured with HMC or IVM § DS 8000 and certain FC tape libraries supported § Storage mapped directly to Virtual FC adapter in IBM i, which uses N_Port on FC adapter in VIOS § Uses VIOS in passthrough mode * See section 7 of the IBM i Virtualization and Open Storage Readme: http: //www. ibm. com/systems/i/os 8 © 2009 IBM Corporation
IBM Power Systems NPIV Benefits for IBM i § Sharing dual-port 8 Gb FC adapters among multiple partitions – One port from 2 separate adapters can be shared to same client partition, allowing for adapter redundancy § Support for FC tape libraries in VIOS environment – Tape library recognized with device-specific machine-type and model (MTM) in IBM i and all library functions supported § Support for DS 8000 storage – Volumes recognized with device-specific MTM and as protected or unprotected § Support for DS 8000 Copy Services with Power. HA in a VIOS environment – Similar to natively attached DS 8000 today 9 © 2009 IBM Corporation

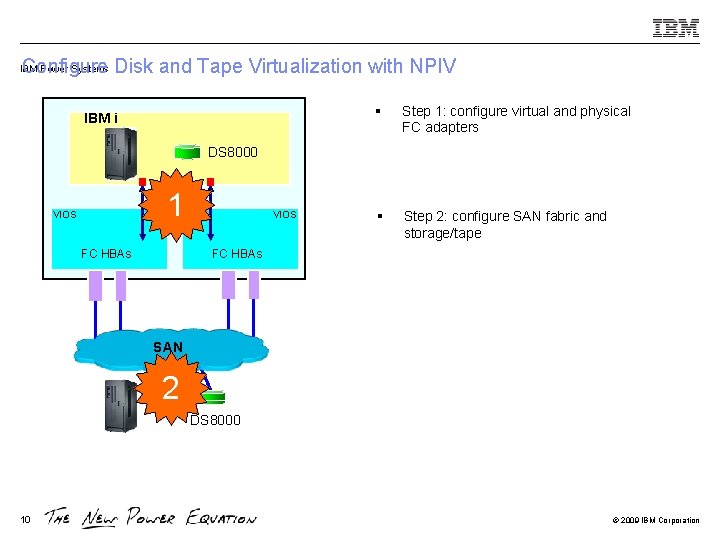

Configure Disk and Tape Virtualization with NPIV IBM Power Systems IBM i EMC § Step 1: configure virtual and physical FC adapters § Step 2: configure SAN fabric and storage/tape DS 8000 1 FCP VIOS FC HBAs SAN 2 DS 8000 10 © 2009 IBM Corporation
Configure IBM Power Systems Disk and Tape Virtualization with NPIV VIOS § 11 1 IBM i Use HMC to create Virtual FC (VFC) server and client adapters © 2009 IBM Corporation
Configure IBM Power Systems Disk and Tape Virtualization with NPIV 1 § Use HMC to assign IBM i LPAR and VFC adapter pair to physical FC port 12 © 2009 IBM Corporation
Configure IBM Power Systems Disk and Tape Virtualization with NPIV 2 § Use DS 8000 or tape library UI and Redbook to assign LUNs or tape drives to the WWPN from the VFC client adapter in i LPAR 13 © 2009 IBM Corporation
Redundant VIOS Support with Client-side MPIO IBM Power Systems § Redundant VIOS Support – Enables IBM i 6. 1 partitions to utilize redundant VIOS partitions with 1 set of storage LUNs – Improves availability of virtualized environment – Can assign two paging VIOS partitions to a shared memory pool to provide redundant access to the paging devices. – Available on Power servers only, not on Power blades VIOS Power Hypervisor 14 © 2009 IBM Corporation

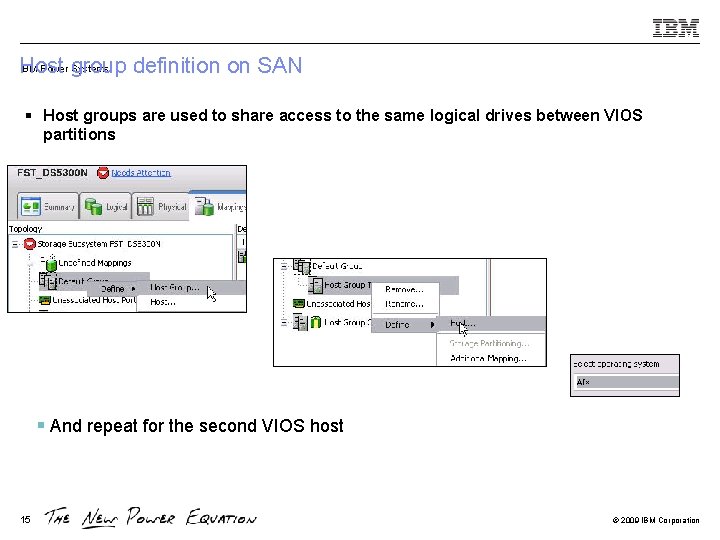

IBM Power group Systems Host definition on SAN § Host groups are used to share access to the same logical drives between VIOS partitions § And repeat for the second VIOS host 15 © 2009 IBM Corporation
IBM Power Systems 16 © 2009 IBM Corporation
End-to-end Device Mapping IBM Power Systems In HMC: Server->Partitions->VIOS LPAR->Hardware Information-> Virtual I/O Adapters->SCSI § § 17 Allows direct mapping of LUNs attached to VIOS (hdisk. X) to disk units in IBM i (DD 0 xx) Facilitates configuration changes and troubleshooting © 2009 IBM Corporation

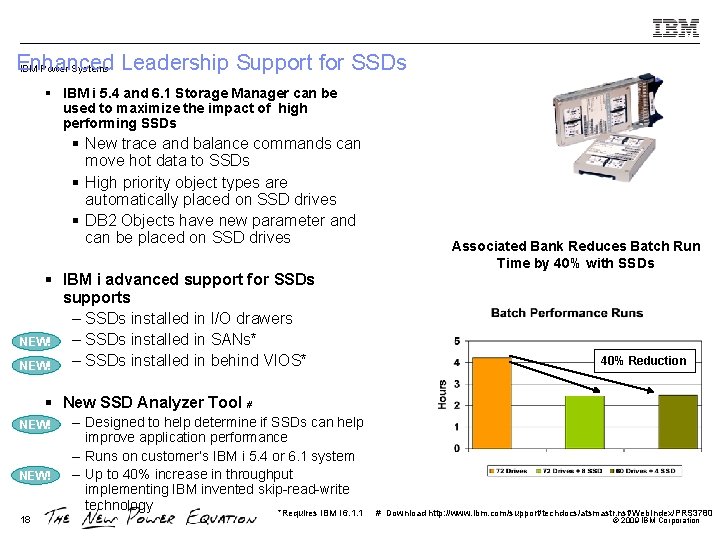

Enhanced IBM Power Systems Leadership Support for SSDs § IBM i 5. 4 and 6. 1 Storage Manager can be used to maximize the impact of high performing SSDs § New trace and balance commands can move hot data to SSDs § High priority object types are automatically placed on SSD drives § DB 2 Objects have new parameter and can be placed on SSD drives § IBM i advanced support for SSDs supports – SSDs installed in I/O drawers – SSDs installed in SANs* NEW! – SSDs installed in behind VIOS* NEW! Associated Bank Reduces Batch Run Time by 40% with SSDs 40% Reduction § New SSD Analyzer Tool # NEW! 18 – Designed to help determine if SSDs can help improve application performance – Runs on customer’s IBM i 5. 4 or 6. 1 system – Up to 40% increase in throughput implementing IBM invented skip-read-write technology *Requires IBM i 6. 1. 1 # Download http: //www. ibm. com/support/techdocs/atsmastr. nsf/Web. Index/PRS 3780 © 2009 IBM Corporation
IBM Power Analyzer Systems SSD Tool SSD ANALYZER TOOL (ANZSSDDTA) Type choices, press Enter. PERFORMANCE MEMBER. . . . LIBRARY. . . *DEFAULT Name, *DEFAULT Name Additional Parameters REPORT TYPE. . . . TIME PERIOD: : START TIME AND DATE: : BEGINNING TIME. . . BEGINNING DATE. . . END TIME AND DATE: : ENDING TIME. . . . ENDING DATE. . . . DETAIL REPORT SORT ORDER. . NUMBER OF RECORDS IN REPORT F 3=Exit F 4=Prompt F 24=More keys 19 *SUMMARY *DETAIL, *SUMMARY, *BOTH . . *AVAIL *BEGIN Time, *AVAIL Date, *BEGIN . . *AVAIL *END *DISKTOT 50 Time, *AVAIL Date, *END *JOBNAME, *CPUTOT. . . 0 - 9999, *ALL F 5=Refresh . . . F 12=Cancel Bottom F 13=How to use this display Available via www. ibm. com/support/techdocs in Presentations & tools. Search using keyword SSD © 2009 IBM Corporation

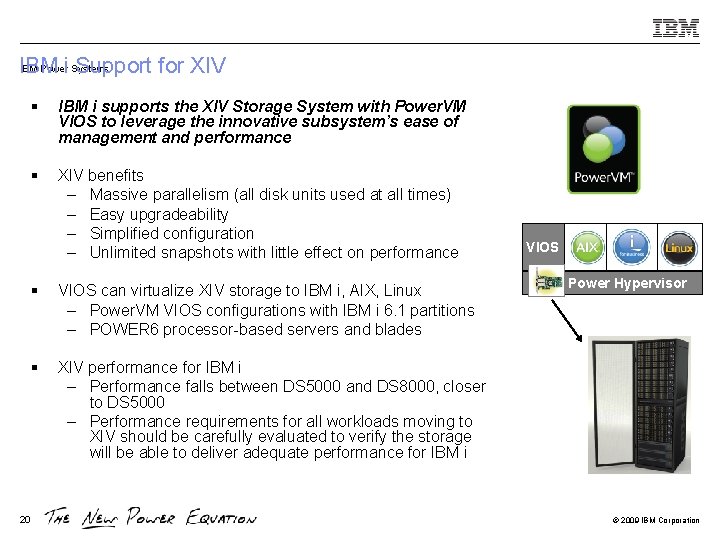

IBM Poweri Systems IBM Support for XIV 20 § IBM i supports the XIV Storage System with Power. VM VIOS to leverage the innovative subsystem’s ease of management and performance § XIV benefits – Massive parallelism (all disk units used at all times) – Easy upgradeability – Simplified configuration – Unlimited snapshots with little effect on performance § VIOS can virtualize XIV storage to IBM i, AIX, Linux – Power. VM VIOS configurations with IBM i 6. 1 partitions – POWER 6 processor-based servers and blades § XIV performance for IBM i – Performance falls between DS 5000 and DS 8000, closer to DS 5000 – Performance requirements for all workloads moving to XIV should be carefully evaluated to verify the storage will be able to deliver adequate performance for IBM i VIOS Power Hypervisor © 2009 IBM Corporation
VIOS Configuration: HMC System IBM Power Systems 1) Assign volumes to FC adapters in VIOS using WWPNs 2) In HMC: Server->Configuration->Virtual Resources->Virtual Storage Management § § § 21 No need to use VIOS command line Assign volume to correct IBM i LPAR Volume then becomes available to IBM i as DDxx © 2009 IBM Corporation
VIOS Configuration: IVM System IBM Power Systems 1) Assign volumes to FC adapters in VIOS using WWPNs 2) In IVM: View/Modify Virtual Storage Physical Volumes § § § 22 No need to use VIOS command line Assign volume to correct IBM i LPAR Volume then becomes available to IBM i as DDxx © 2009 IBM Corporation
Power. VM IBM Power Systems active memory sharing (AMS) § Available with Power. VM Enterprise Edition – No additional cost § System requirements: – IBM Power Systems server or blade with POWER 6 processors – Virtual I/O Server (VIOS) 2. 1. 1 – Firmware level: e. FW 3. 4. 2 – HMC v 7. 342 § Active memory Sharing is optionally configurable on a partition basis – – Shared Memory Partitions must be defined in shared processor mode Shared Memory Partitions must be “pure virtual”, ie all I/O devices are accessed via the VIOS Virtual SCSI Client Adapters Virtual Ethernet Adapters Virtual Serial Server Adapters Memory Usage (GB) Innovative solution for more efficient utilization of memory resources Time Workloads § Operating systems supported: – AIX 6. 1 TL 3 – IBM i 6. 1 plus PTFs – SUSE Linux Enterprise Server 11 White paper on AMS: http: //www. ibm. com/systems/power/software/virtualization/whitepapers/ams. html 23 © 2009 IBM Corporation
IVM example: working with AMS – define a pool IBM Power Systems 24 © 2009 IBM Corporation
IVM example: working with AMS – pool definition IBM Power Systems 25 © 2009 IBM Corporation
IVM example: working with AMS – partition properties IBM Power Systems 26 © 2009 IBM Corporation
HMC working with AMS – define a pool IBM Power example: Systems § Select the System i to work with -> Tasks -> Virtual Resources -> Configuration -> Shared memory pool management 27 © 2009 IBM Corporation

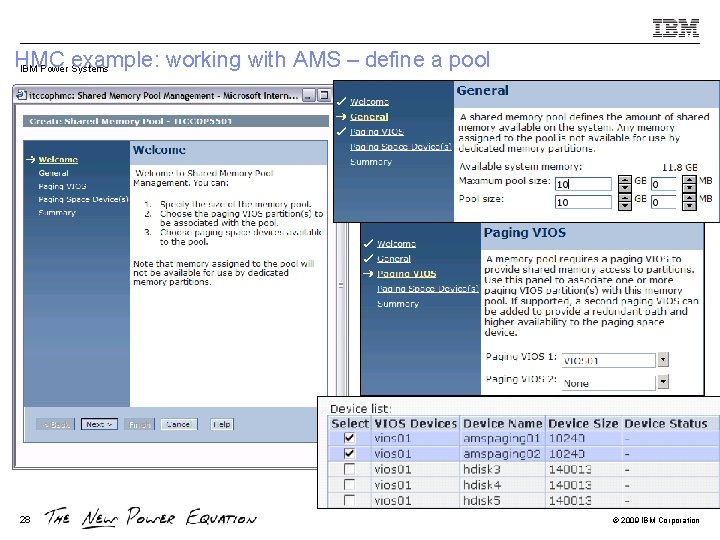

HMC working with AMS – define a pool IBM Power example: Systems 28 © 2009 IBM Corporation
HMC example: working with AMS – partition properties IBM Power Systems 29 © 2009 IBM Corporation
IBM Power. Systems IBM Storage Support for IBM i Direct Attach DS 5100 DS 5300 DS 6800 DS 8100 DS 8300 DS 8700 POWER 6* POWER 5/6* Ports (max) Fibre -16 Fibre - 8 Fibre - 64 Fibre - 128 # of drives (max) Up to 480 FC/SATA 128 FC, FATA 384 FC, FATA 1024 FC, FATA Cache (max) Up to 64 GB 4 GB 128 GB 256 GB 384 GB RAID 1, 3, 5, 6, 10 5, 6, 10 5, 6, 10 Systems System Storage Managed Flash. Copy ** ** Yes Yes Metro Mirror ** ** Yes Yes Global Mirror ** ** Yes Yes Metro Mirror No No Yes Yes Global Mirror No No Yes Yes Geo Mirror Yes Yes Yes Power. HA Managed Logical Replication i. Cluster & Other • DS 5100, DS 5300, DS 8100, DS 8300, and DS 8700 are also supported via VIOS for POWER 6 and Blade. Center H Source: http: //www-03. ibm. com/systems/storage/disk/product-compare. html 30 • IBM is investigating supporting Copy Services with direct attach DS 5100 and DS 5300 © 2009 IBM Corporation
IBM Power. Systems IBM Storage Support for IBM i Power. VM VIOS Attach Systems DS 3200 DS 3400 DS 4700 DS 4800 DS 5020 DS 5100 DS 5300 XIV Blade. Center S and H POWER 6 Blade. Center H POWER 6 Blade. Center H Yes Yes Yes Optional Yes SAS - 4 Fibre - 8 Fibre - 4 Fibre -8 Fibre -16 Fibre -24 48 SAS/SATA 112 FC/SATA 224 FC/SATA 112 FC/SATA Up to 480 FC/SATA 180 SATA 1 GB 4 GB 16 GB 2 GB 8 GB 16 GB 120 GB 0, 1, 3, 5, 6, 10 0, 1, 3, 5, 6, 10 Mirrored VIOS Ports (max) # of drives (max) Cache (max) RAID System Storage Managed Flash. Copy Yes Yes Metro Mirror No No Yes Yes Yes Global Mirror No No Yes Yes Yes No Metro Mirror No No Global Mirror No No Geo Mirror Yes Yes Yes Yes Power. HA Managed Logical Replication i. Cluster & Other 31 Source: http: //www-03. ibm. com/systems/storage/disk/product-compare. html © 2009 IBM Corporation
IBM Power. Systems IBM Lab Services Virtualization Program § What is it? – Free presales technical assistance from Lab Services – Help with virtualization solutions: Open storage (such as DS 5100 and DS 5300) Power blades IBM Systems Director VMControl Other Power. VM technologies – Design solution, hold Q&A session with client, verify hardware configuration – Does not cover implementation § Who can use it? – IBMers, Business Partners, clients § How do I use it? – Contact Lab Services for nomination form – brow@us. ibm. com – Send in form – Participate in assessment call with Virtualization Program team – Work with dedicated Lab Services technical resource to design solution before the sale 32 © 2009 IBM Corporation
IBM Power Systems Service Vouchers • Getting-started implementation services • 8 hours of services with each voucher • Any additional services are billable • http: //www. ibm. com/systems/i/hardware/editions/services. html 33 © 2009 IBM Corporation
IBM Power Systems Resources § IBM i Virtualization and Open Storage Read-me First: http: //www. ibm. com/systems/i/os § IBM i and storage performance information: http: //www. ibm. com/systems/i/advantages/perfmgmt/resource. html § Service vouchers: http: //www. ibm. com/systems/i/hardware/editions/services. html 34 © 2009 IBM Corporation
