IBM Power Systems™ Agenda Key: Session Number: Web Services and SOA for the RPG Developer on IBM i IBM Integrated Web services for i Dan Hiebert IBM dhiebert@us. ibm. com

IBM Power Systems Agenda • • • Introduction to SOA & Web Services Creating RPG Web Service Business Logic. Deploying/Testing RPG Web Services. Consumption of Web Services. Presentation Layer of Web Services. © 2008 IBM Corporation

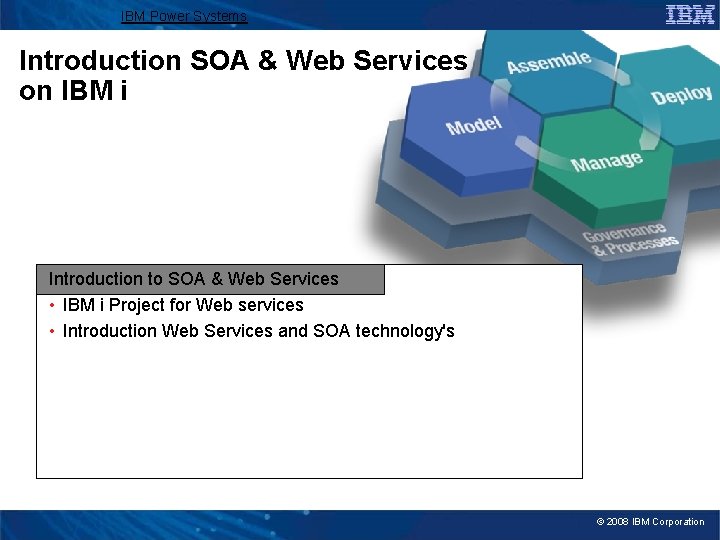

IBM Power Systems Introduction SOA & Web Services on IBM i Introduction to SOA

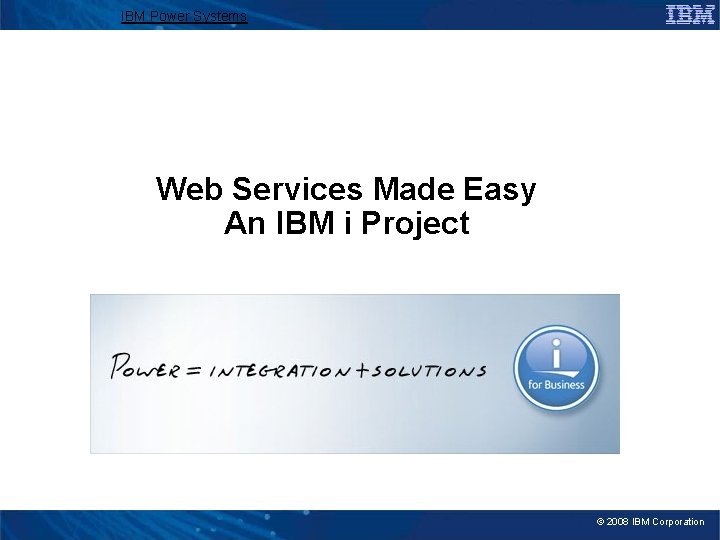

IBM Power Systems Web Services Made Easy An IBM i Project © 2008 IBM

IBM Power Systems Web Services Made Easy – An IBM i Project • IBM Integrated Web Services for i – “An Easy Step to starting with SOA on System i” • • Simplify the process of externalizing RPG/COBOL business logic as a service. Externalize various RPG/COBOL business tasks as services. Abstracts the hidden complexities of Web services for IBM i. Provide RPG/COBOL Developer easy to use Web interface, not requiring additional tools or skills http: //www. ibm. com/systems/i/software/iws/ © 2008 IBM Corporation

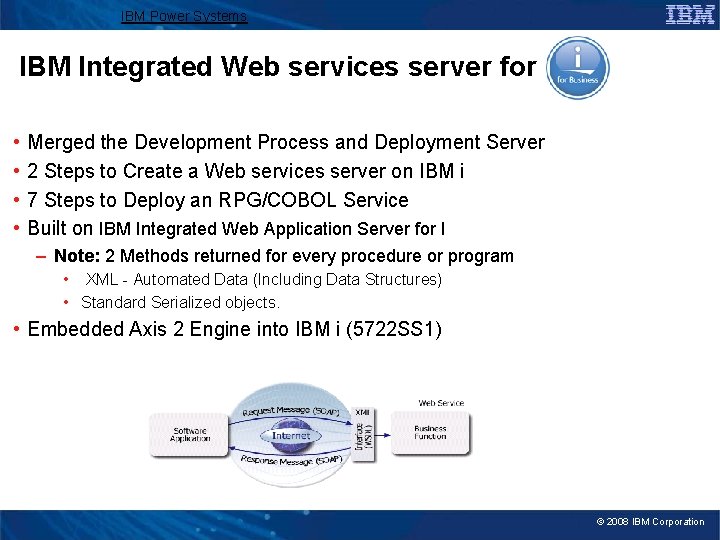

IBM Power Systems IBM Integrated Web services server for i • • Merged the Development Process and Deployment Server 2 Steps to Create a Web services server on IBM i 7 Steps to Deploy an RPG/COBOL Service Built on IBM Integrated Web Application Server for I – Note: 2 Methods returned for every procedure or program • XML - Automated Data (Including Data Structures) • Standard Serialized objects. • Embedded Axis 2 Engine into IBM i (5722 SS 1) © 2008 IBM Corporation

IBM Power Systems Introduction to Web services and SOA © 2008 IBM Corporation

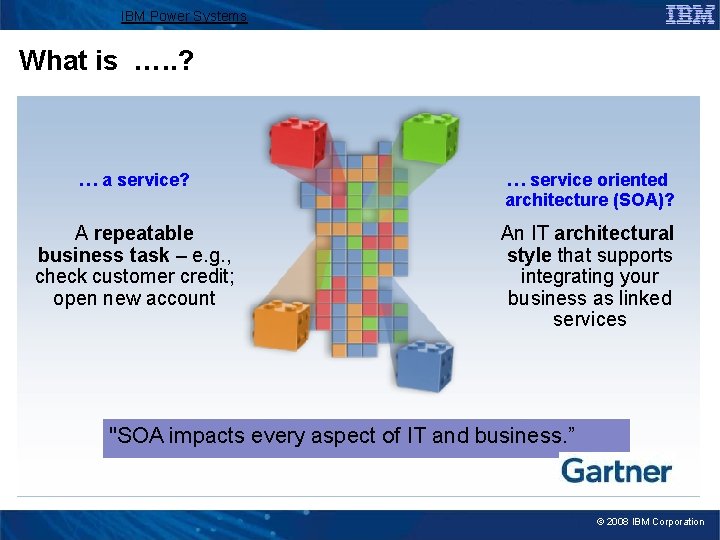

IBM Power Systems What is …. . ? … a service? … service oriented architecture (SOA)? A repeatable business task – e. g. , check customer credit; open new account An IT architectural style that supports integrating your business as linked services "SOA impacts every aspect of IT and business. ” © 2008 IBM Corporation

IBM Power Systems Web Service Definition (from the Wikipedia. com) “A 'Web service' (also Web Service) is defined by the W 3 C as "a software system designed to support interoperable machine-to-machine interaction over a network"[1]. Web services are frequently just Web APIs that can be accessed over a network, such as the Internet, and executed on a remote system hosting the requested services. ” © 2008 IBM Corporation

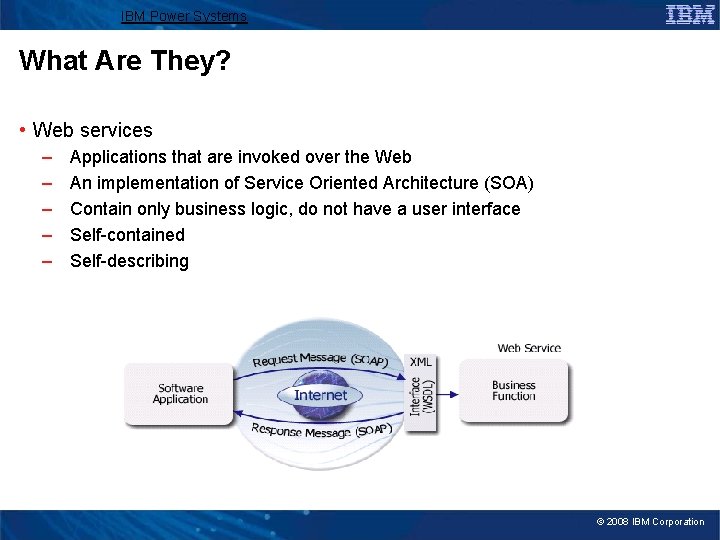

IBM Power Systems What Are They? • Web services – – – Applications that are invoked over the Web An implementation of Service Oriented Architecture (SOA) Contain only business logic, do not have a user interface Self-contained Self-describing © 2008 IBM Corporation

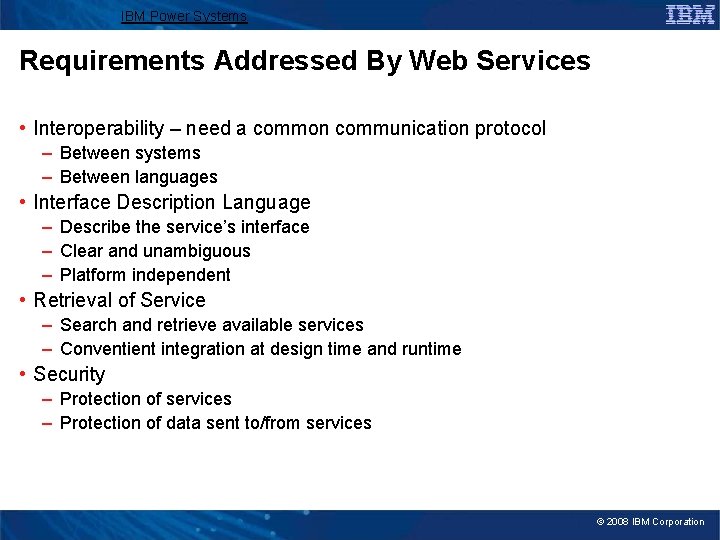

IBM Power Systems Requirements Addressed By Web Services • Interoperability – need a common communication protocol – Between systems – Between languages • Interface Description Language – Describe the service’s interface – Clear and unambiguous – Platform independent • Retrieval of Service – Search and retrieve available services – Conventient integration at design time and runtime • Security – Protection of services – Protection of data sent to/from services © 2008 IBM Corporation

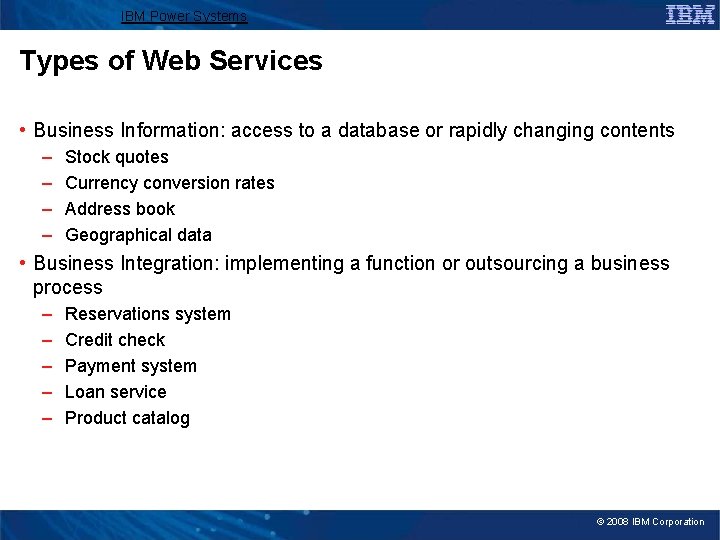

IBM Power Systems Types of Web Services • Business Information: access to a database or rapidly changing contents – – Stock quotes Currency conversion rates Address book Geographical data • Business Integration: implementing a function or outsourcing a business process – – – Reservations system Credit check Payment system Loan service Product catalog © 2008 IBM Corporation

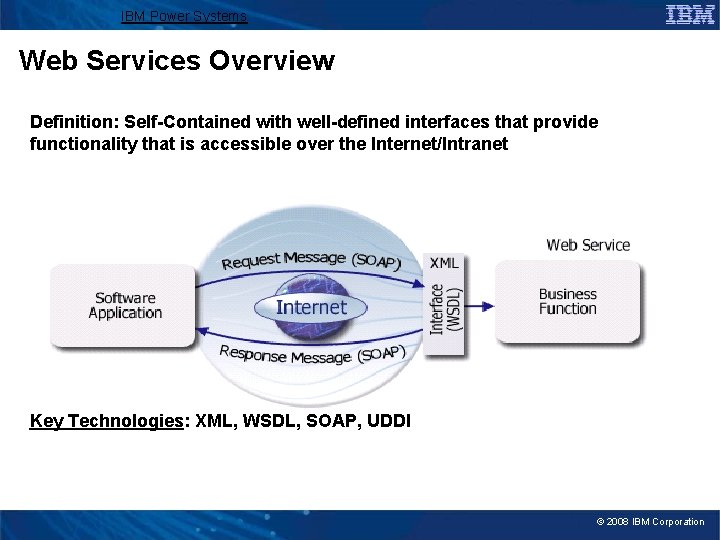

IBM Power Systems Web Services Overview Definition: Self-Contained with well-defined interfaces that provide functionality that is accessible over the Internet/Intranet Key Technologies: XML, WSDL, SOAP, UDDI © 2008 IBM Corporation

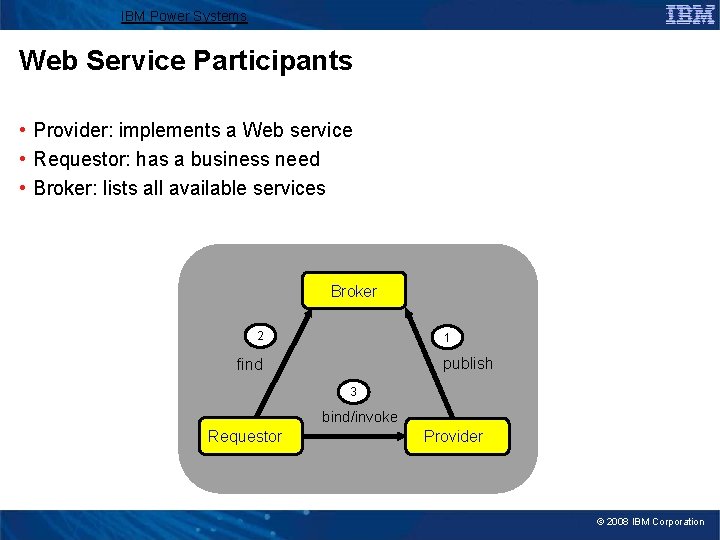

IBM Power Systems Web Service Participants • Provider: implements a Web service • Requestor: has a business need • Broker: lists all available services Broker 2 1 publish find 3 bind/invoke Requestor Provider © 2008 IBM Corporation

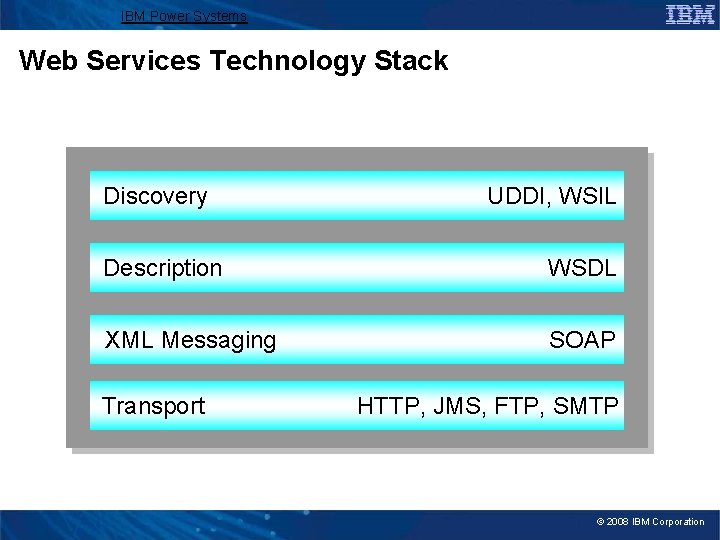

IBM Power Systems Web Services Technology Stack Discovery UDDI, WSIL Description WSDL XML Messaging

IBM Power Systems What is …. . ? … a service? … service oriented architecture (SOA)? A repeatable business task – e. g. , check customer credit; open new account An IT architectural style that supports integrating your business as linked services "SOA impacts every aspect of IT and business. ” © 2008 IBM Corporation

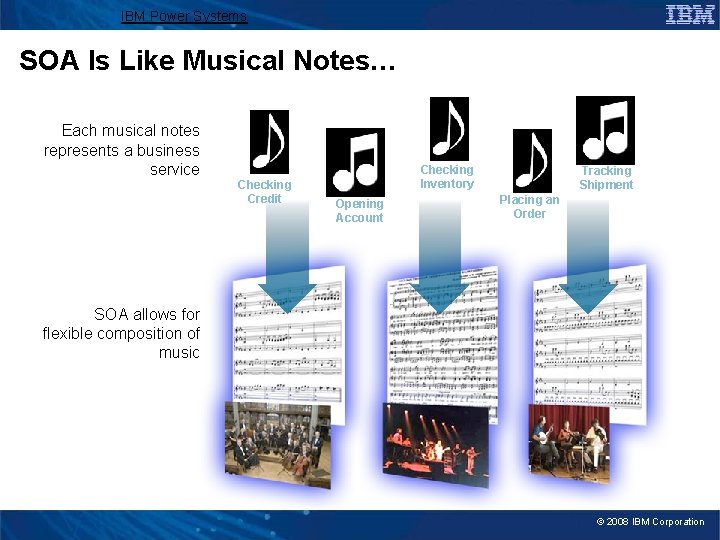

IBM Power Systems SOA Is Like Musical Notes… Each musical notes represents a business service Checking Credit Checking Inventory Opening Account Tracking Shipment Placing an Order SOA allows for flexible composition of music © 2008 IBM Corporation

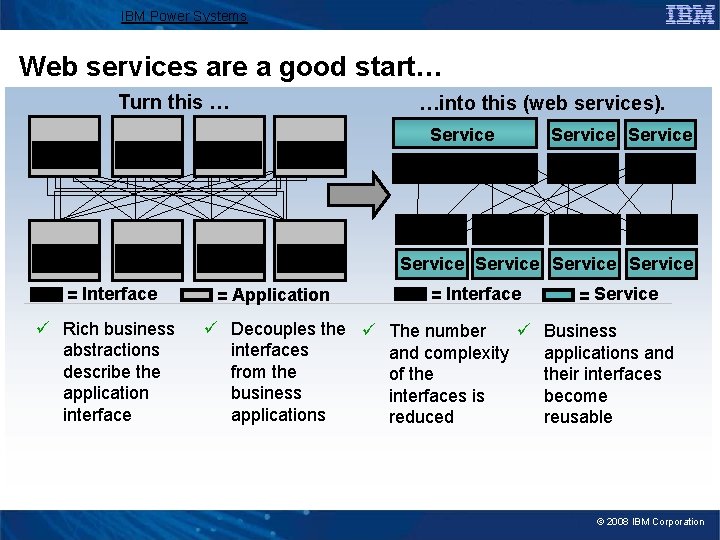

IBM Power Systems Web services are a good start… Turn this … …into this (web services). Service Service = Interface ü Rich business abstractions describe the application interface = Application = Interface = Service ü Decouples the ü The number ü Business interfaces and complexity applications and from the of their interfaces business interfaces is become applications reduced reusable © 2008 IBM Corporation

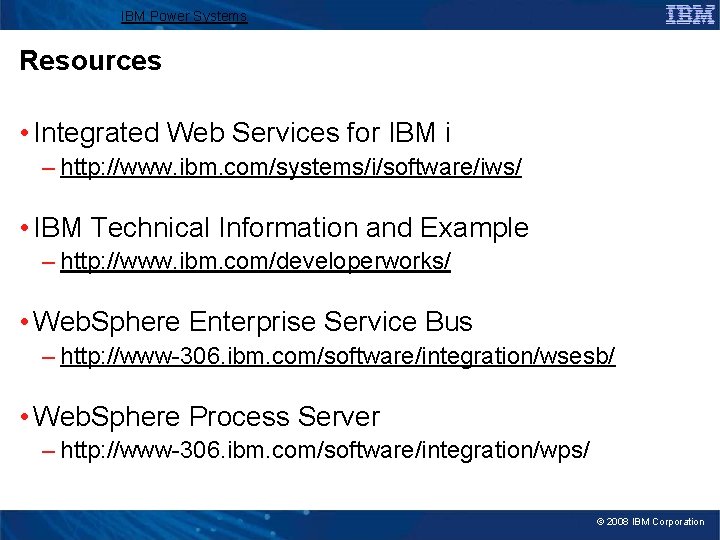

IBM Power Systems Resources • Integrated Web Services for IBM i – http: //www. ibm. com/systems/i/software/iws/ • IBM Technical Information and Example – http: //www. ibm. com/developerworks/ • Web. Sphere Enterprise Service Bus – http: //www-306. ibm. com/software/integration/wsesb/ • Web. Sphere Process Server – http: //www-306. ibm. com/software/integration/wps/ © 2008 IBM Corporation

IBM Power Systems™ Agenda Key: Session Number: Creating RPG Web Service Business Logic Web Services and SOA for the RPG Developer on IBM i Dan Hiebert IBM dhiebert@us. ibm. com

IBM Power Systems Agenda • Introduction to SOA & Web Services • Creating RPG Web Service Business Logic. – Lab Time • Consumption of Web Services. – Lab Time • Deploying/Testing RPG Web Services. – Lab Time • Presentation Layer of Web Services. – Lab Time © 2008 IBM Corporation

IBM Power Systems Creating RPG Web Service Business Logic • ILE RPG Best Programming Practices • RPG Style Web Service – – – Encapsulated Reusable Stateless Event driven Loosely coupled • RPG Traditional vs Modular - Example © 2008 IBM Corporation

IBM Power Systems RPG Developer – Misconceptions • The RPG language is outdated and does not work with the Web Services paradigm. • I need to modernize my “Monolithic” application. • I have to re-write my entire application to code for RPG Web Services. © 2008 IBM Corporation

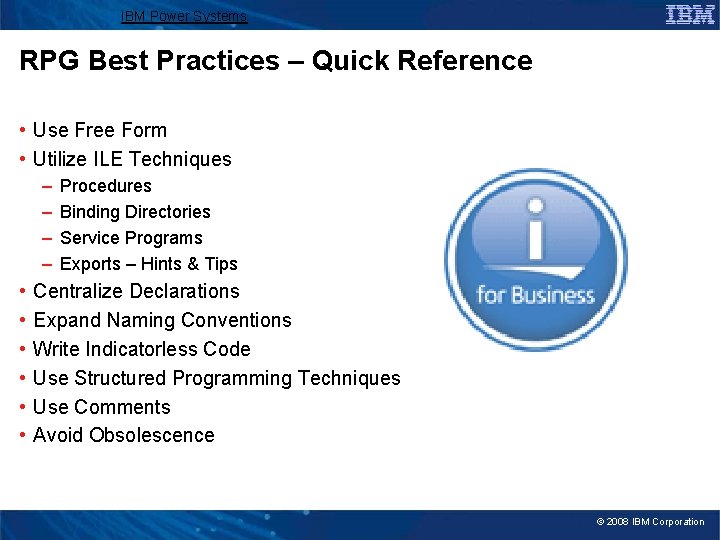

IBM Power Systems RPG Best Practices – Quick Reference • Use Free Form • Utilize ILE Techniques – – • • • Procedures Binding Directories Service Programs Exports – Hints & Tips Centralize Declarations Expand Naming Conventions Write Indicatorless Code Use Structured Programming Techniques Use Comments Avoid Obsolescence © 2008 IBM Corporation

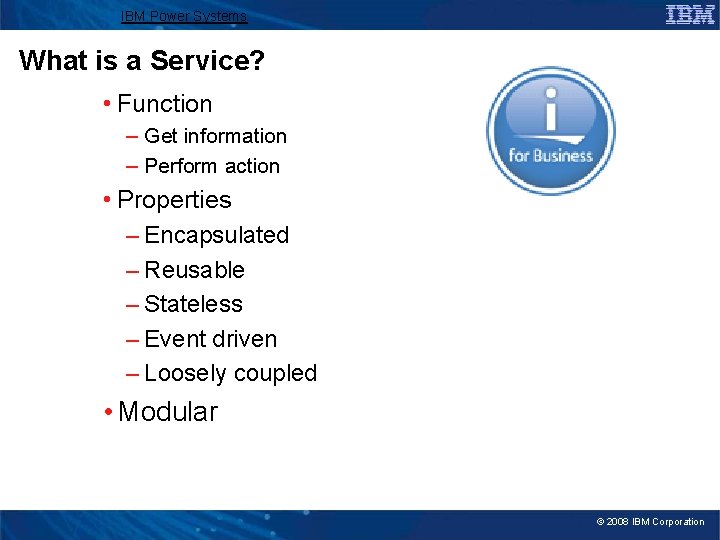

IBM Power Systems What is a Service? • Function – Get information – Perform

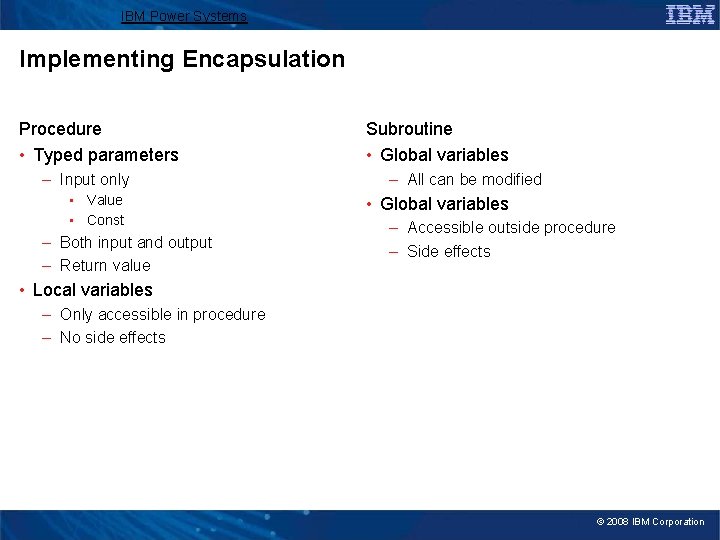

IBM Power Systems Implementing Encapsulation Procedure • Typed parameters – Input only • Value • Const – Both input and output – Return value Subroutine • Global variables – All can be modified • Global variables – Accessible outside procedure – Side effects • Local variables – Only accessible in procedure – No side effects © 2008 IBM Corporation

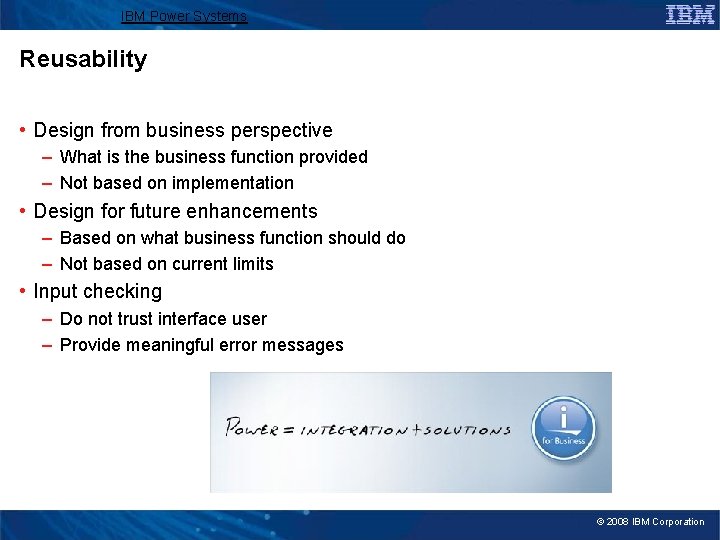

IBM Power Systems Reusability • Design from business perspective – What is the business function provided – Not based on implementation • Design for future enhancements – Based on what business function should do – Not based on current limits • Input checking – Do not trust interface user – Provide meaningful error messages © 2008 IBM Corporation

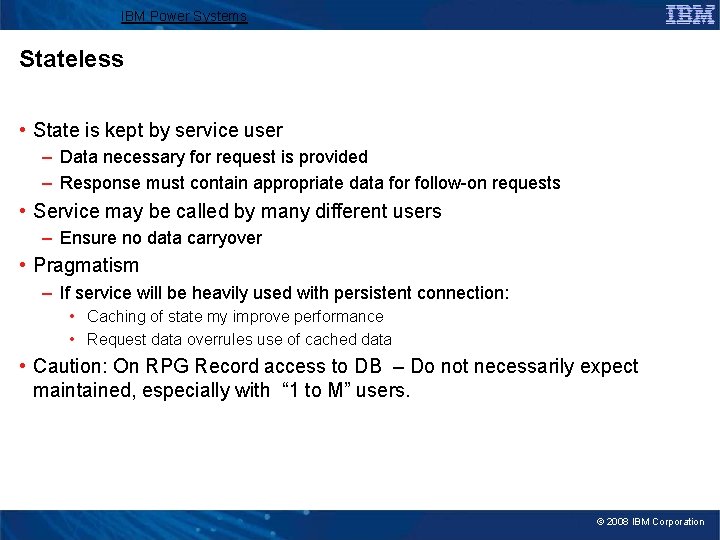

IBM Power Systems Stateless • State is kept by service user – Data necessary for request is provided – Response must contain appropriate data for follow-on requests • Service may be called by many different users – Ensure no data carryover • Pragmatism – If service will be heavily used with persistent connection: • Caching of state my improve performance • Request data overrules use of cached data • Caution: On RPG Record access to DB – Do not necessarily expect maintained, especially with “ 1 to M” users. © 2008 IBM Corporation

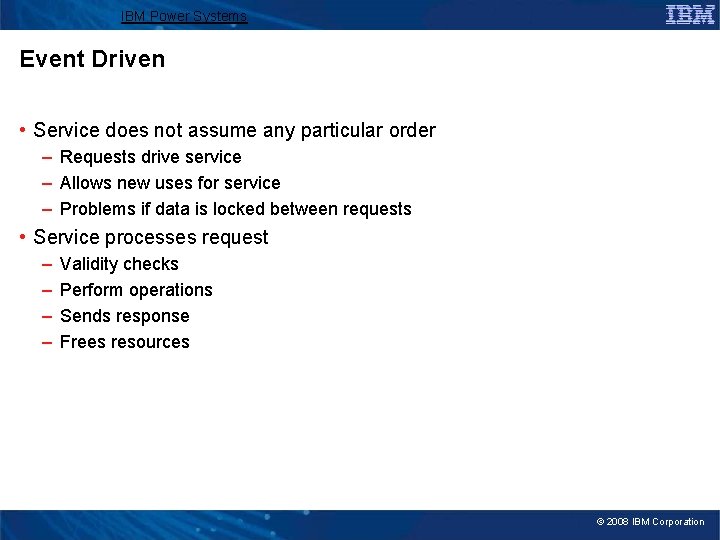

IBM Power Systems Event Driven • Service does not assume any particular order – Requests drive service – Allows new uses for service – Problems if data is locked between requests • Service processes request – – Validity checks Perform operations Sends response Frees resources © 2008 IBM Corporation

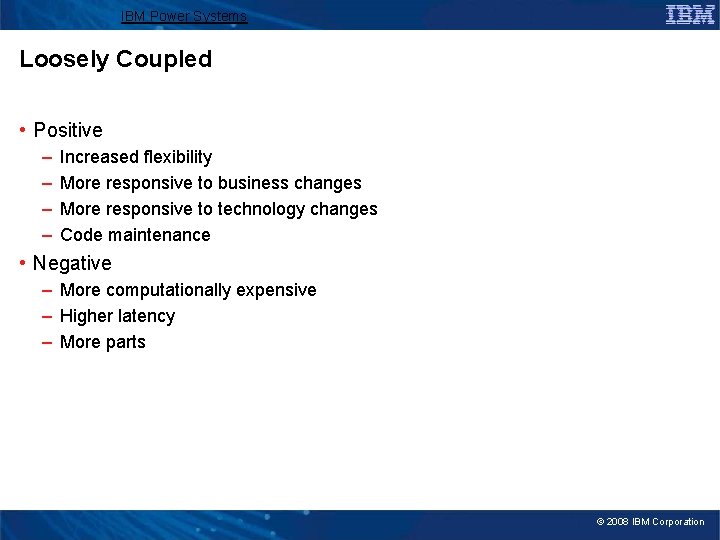

IBM Power Systems Loosely Coupled • Positive – – Increased flexibility More responsive to business changes More responsive to technology changes Code maintenance • Negative – More computationally expensive – Higher latency – More parts © 2008 IBM Corporation

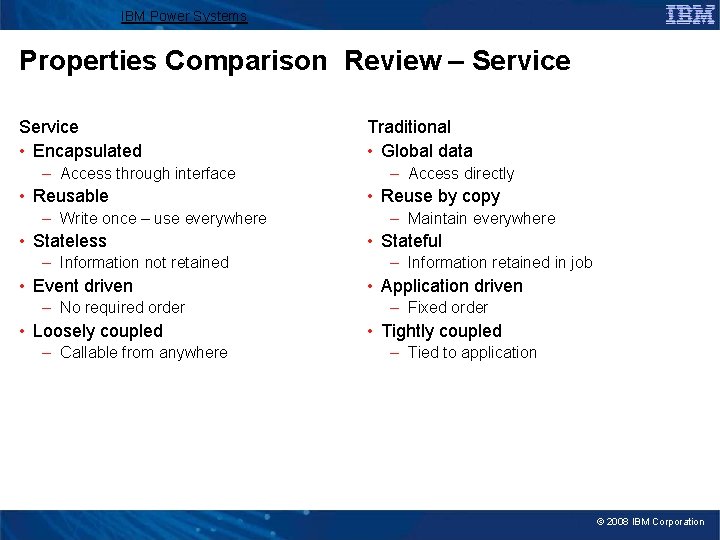

IBM Power Systems Properties Comparison Review – Service • Encapsulated – Access through interface • Reusable – Write once – use everywhere • Stateless – Information not retained • Event driven – No required order • Loosely coupled – Callable from anywhere Traditional • Global data – Access directly • Reuse by copy – Maintain everywhere • Stateful – Information retained in job • Application driven – Fixed order • Tightly coupled – Tied to application © 2008 IBM Corporation

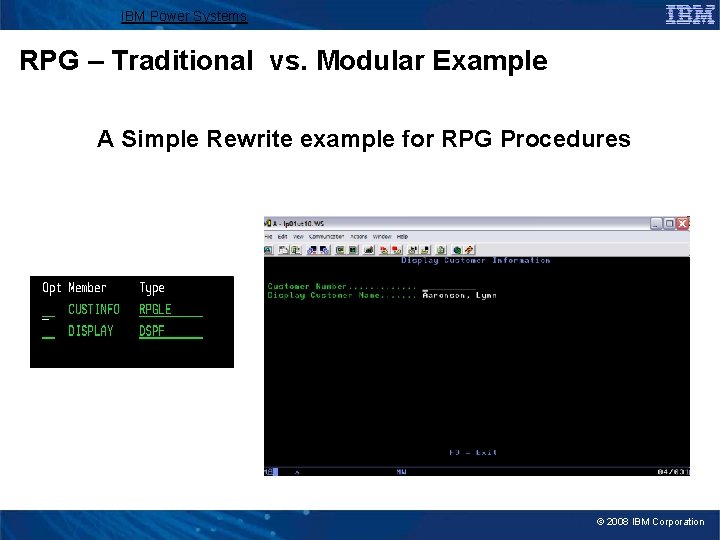

IBM Power Systems RPG – Traditional vs. Modular Example A Simple Rewrite example for

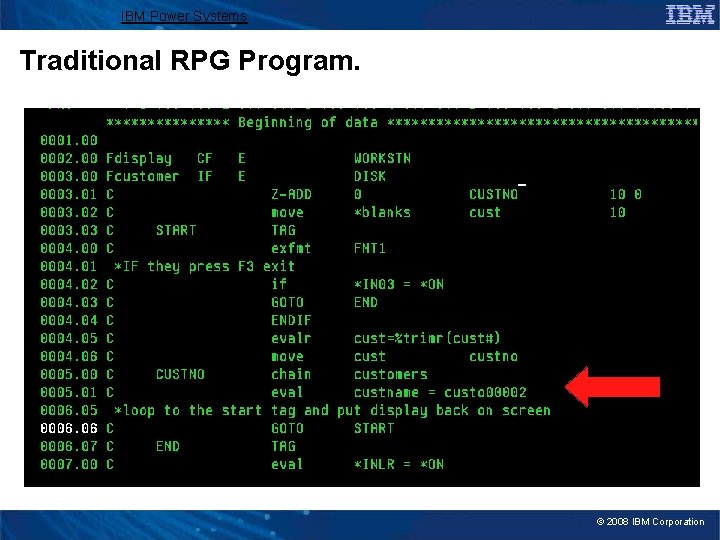

IBM Power Systems Traditional RPG Program. © 2008 IBM Corporation

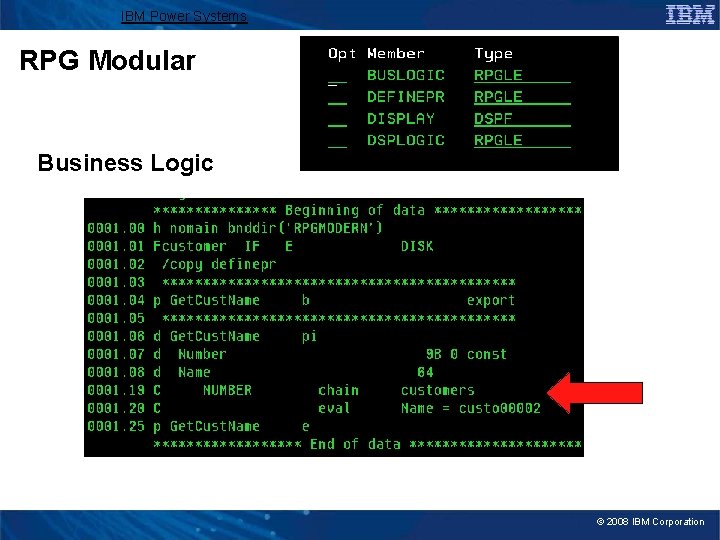

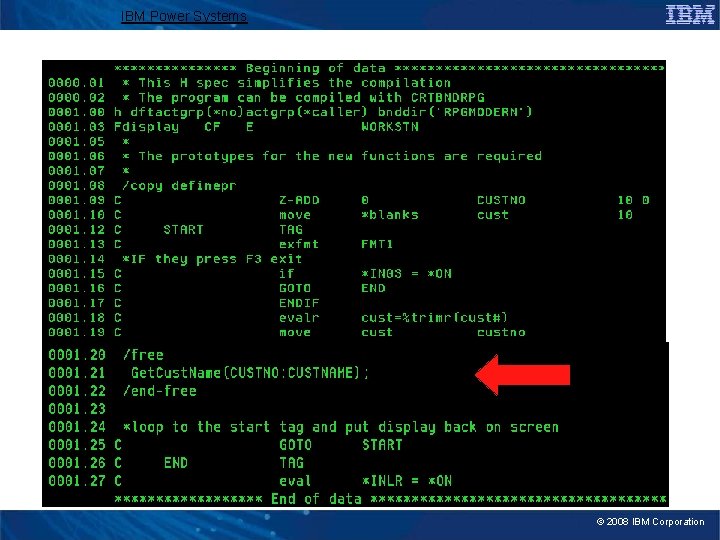

IBM Power Systems RPG Modular Business Logic © 2008 IBM Corporation

IBM Power Systems © 2008 IBM Corporation

IBM Power Systems™ Agenda Key: Session Number: Deploy RPG Web Service Business Logic Web Services and SOA for the RPG Developer on IBM i Dan Hiebert IBM dhiebert@us. ibm. com

IBM Power Systems Agenda • Introduction to SOA & Web Services • Creating RPG Web Service Business Logic. – Lab Time • Deploying/Testing RPG Web Services. – Lab Time • Consumption of Web Services. – Lab Time • Presentation Layer of Web Services. – Lab Time © 2008 IBM Corporation

IBM Power Systems Deploy RPG Web Service Business Logic • • • Introducing – IBM Web Services Server on i Recent Enhancements Embedding WS information in Program/Service Program Demo – WS-Server (that easy) Deep Dive & Scripts © 2008 IBM Corporation

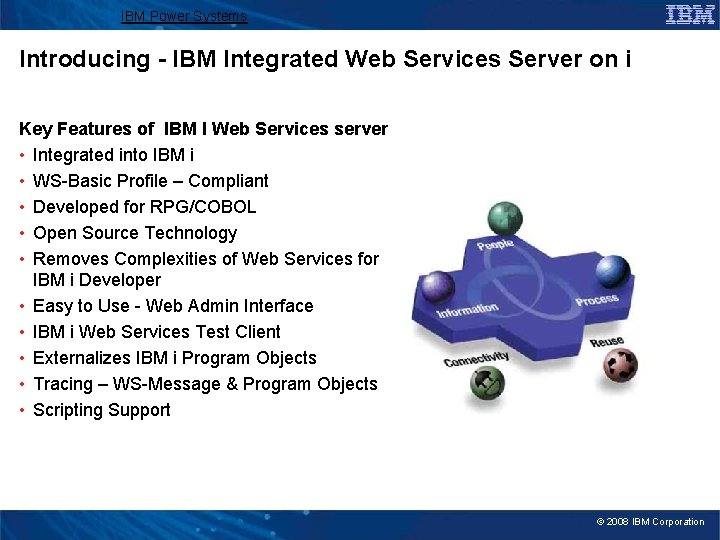

IBM Power Systems Introducing - IBM Integrated Web Services Server on i Key Features of IBM I Web Services server • Integrated into IBM i • WS-Basic Profile – Compliant • Developed for RPG/COBOL • Open Source Technology • Removes Complexities of Web Services for IBM i Developer • Easy to Use - Web Admin Interface • IBM i Web Services Test Client • Externalizes IBM i Program Objects • Tracing – WS-Message & Program Objects • Scripting Support © 2008 IBM Corporation

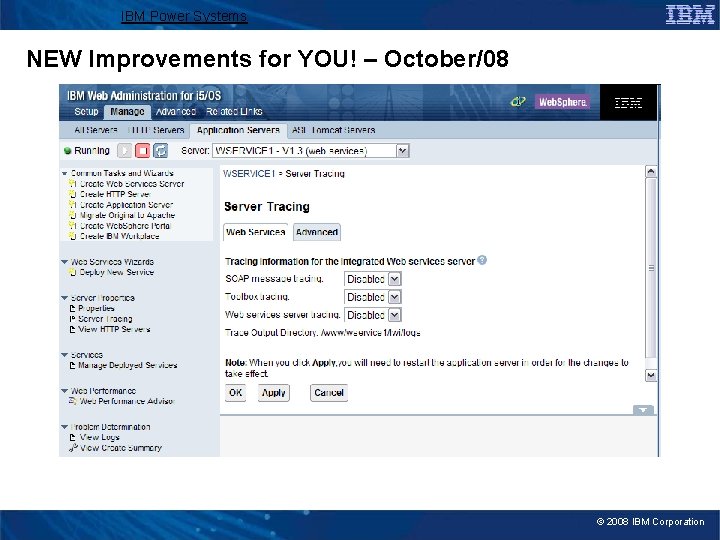

IBM Power Systems NEW Improvements for YOU! – October/08 © 2008 IBM Corporation

IBM Power Systems Embedding Web services information with RPG on IBM i © 2008

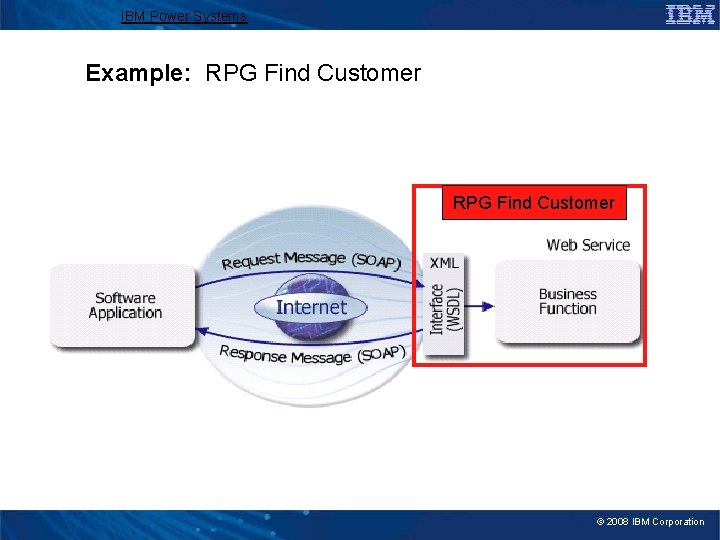

IBM Power Systems Example: RPG Find Customer © 2008 IBM Corporation

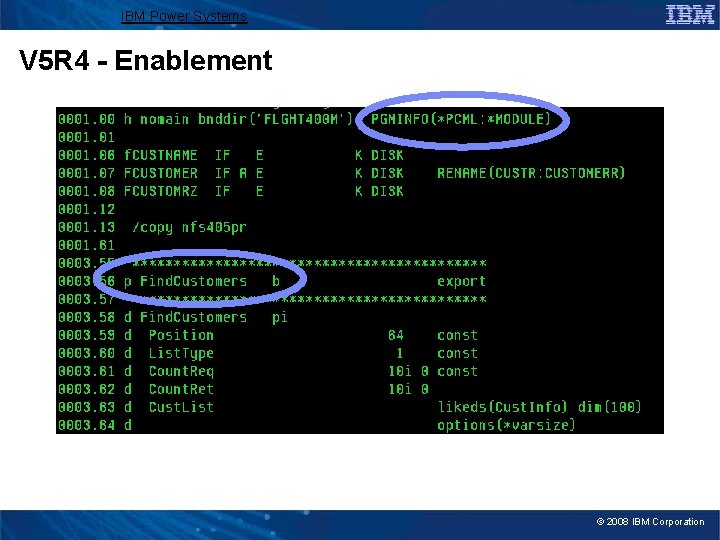

IBM Power Systems V 5 R 4 - Enablement © 2008 IBM Corporation

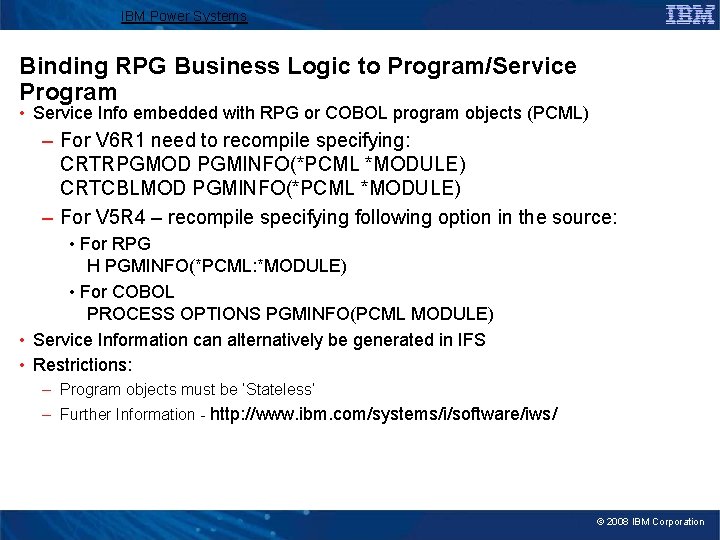

IBM Power Systems Binding RPG Business Logic to Program/Service Program • Service Info embedded with RPG or COBOL program objects (PCML) – For V 6 R 1 need to recompile specifying: CRTRPGMOD PGMINFO(*PCML *MODULE) CRTCBLMOD PGMINFO(*PCML *MODULE) – For V 5 R 4 – recompile specifying following option in the source: • For RPG H PGMINFO(*PCML: *MODULE) • For COBOL PROCESS OPTIONS PGMINFO(PCML MODULE) • Service Information can alternatively be generated in IFS • Restrictions: – Program objects must be ‘Stateless’ – Further Information - http: //www. ibm. com/systems/i/software/iws/ © 2008 IBM Corporation

IBM Power Systems Externalizing Web services with RPG on IBM i (Demo) - Simplification

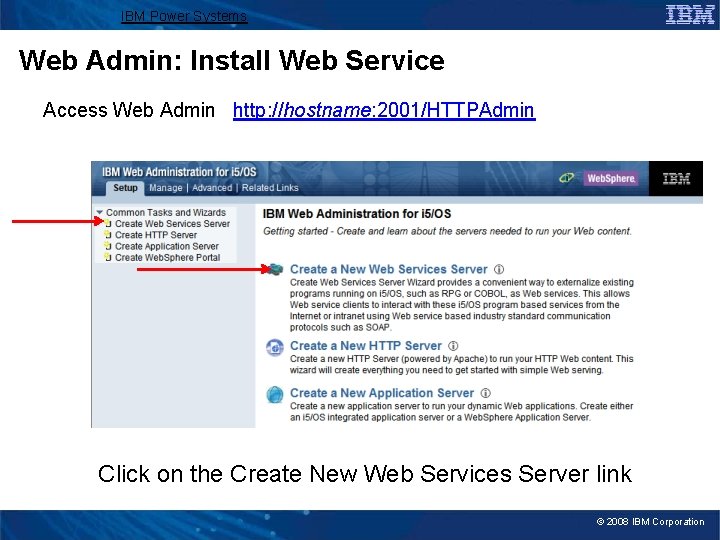

IBM Power Systems Web Admin: Install Web Service Access Web Admin http: //hostname: 2001/HTTPAdmin

IBM Power Systems IWS – Deep Dive © 2008 IBM Corporation

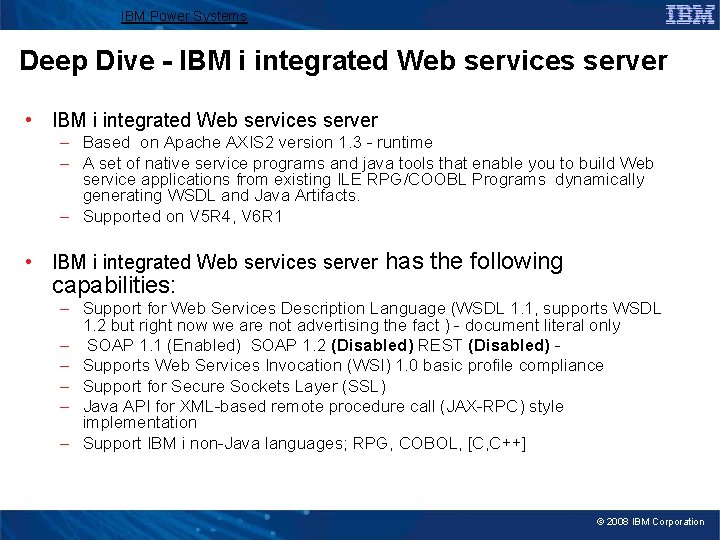

IBM Power Systems Deep Dive - IBM i integrated Web services server • IBM i integrated Web services server – Based on Apache AXIS 2 version 1. 3 - runtime – A set of native service programs and java tools that enable you to build Web service applications from existing ILE RPG/COOBL Programs dynamically generating WSDL and Java Artifacts. – Supported on V 5 R 4, V 6 R 1 • IBM i integrated Web services server has the following capabilities: – Support for Web Services Description Language (WSDL 1. 1, supports WSDL 1. 2 but right now we are not advertising the fact ) - document literal only – SOAP 1. 1 (Enabled) SOAP 1. 2 (Disabled) REST (Disabled) – Supports Web Services Invocation (WSI) 1. 0 basic profile compliance – Support for Secure Sockets Layer (SSL) – Java API for XML-based remote procedure call (JAX-RPC) style implementation – Support IBM i non-Java languages; RPG, COBOL, [C, C++] © 2008 IBM Corporation

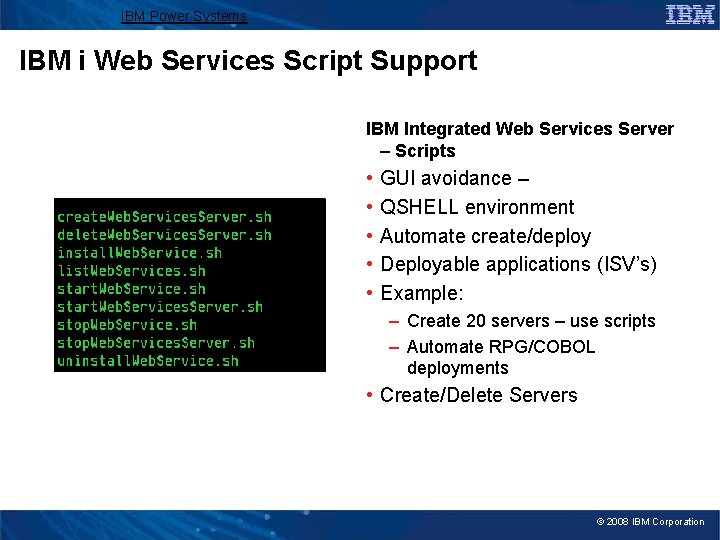

IBM Power Systems IBM i Web Services Script Support IBM Integrated Web Services Server – Scripts • • • GUI avoidance – QSHELL environment Automate create/deploy Deployable applications (ISV’s) Example: – Create 20 servers – use scripts – Automate RPG/COBOL deployments • Create/Delete Servers © 2008 IBM Corporation

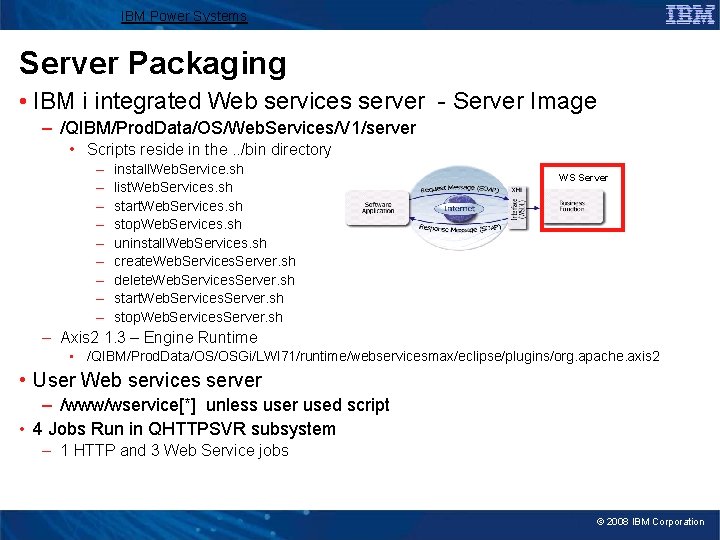

IBM Power Systems Server Packaging • IBM i integrated Web services server - Server Image – /QIBM/Prod. Data/OS/Web. Services/V 1/server • Scripts reside in the. . /bin directory – – – – – install. Web. Service. sh list. Web. Services. sh start. Web. Services. sh stop. Web. Services. sh uninstall. Web. Services. sh create. Web. Services. Server. sh delete. Web. Services. Server. sh start. Web. Services. Server. sh stop. Web. Services. Server. sh WS Server – Axis 2 1. 3 – Engine Runtime • /QIBM/Prod. Data/OS/OSGi/LWI 71/runtime/webservicesmax/eclipse/plugins/org. apache. axis 2 • User Web services server – /www/wservice[*] unless user used script • 4 Jobs Run in QHTTPSVR subsystem – 1 HTTP and 3 Web Service jobs © 2008 IBM Corporation

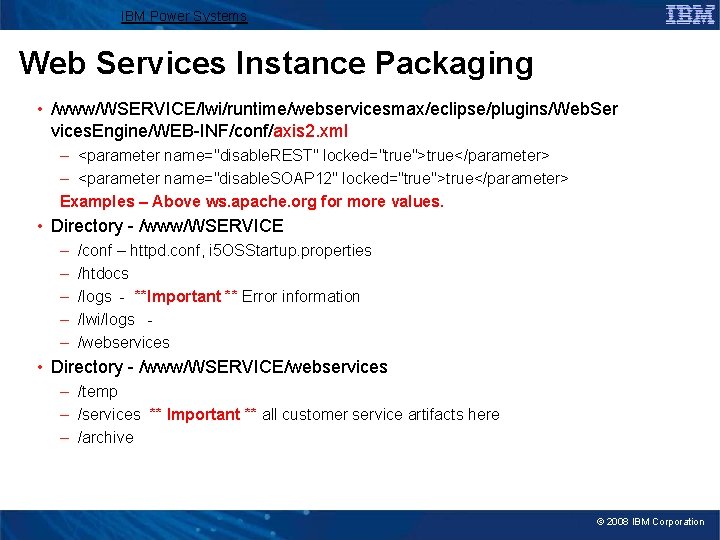

IBM Power Systems Web Services Instance Packaging • /www/WSERVICE/lwi/runtime/webservicesmax/eclipse/plugins/Web. Ser vices. Engine/WEB-INF/conf/axis 2. xml – <parameter name="disable. REST" locked="true">true</parameter> – <parameter name="disable. SOAP 12" locked="true">true</parameter> Examples – Above ws. apache. org for more values. • Directory - /www/WSERVICE – – – /conf – httpd. conf, i 5 OSStartup. properties /htdocs /logs - **Important ** Error information /lwi/logs /webservices • Directory - /www/WSERVICE/webservices – /temp – /services ** Important ** all customer service artifacts here – /archive © 2008 IBM Corporation

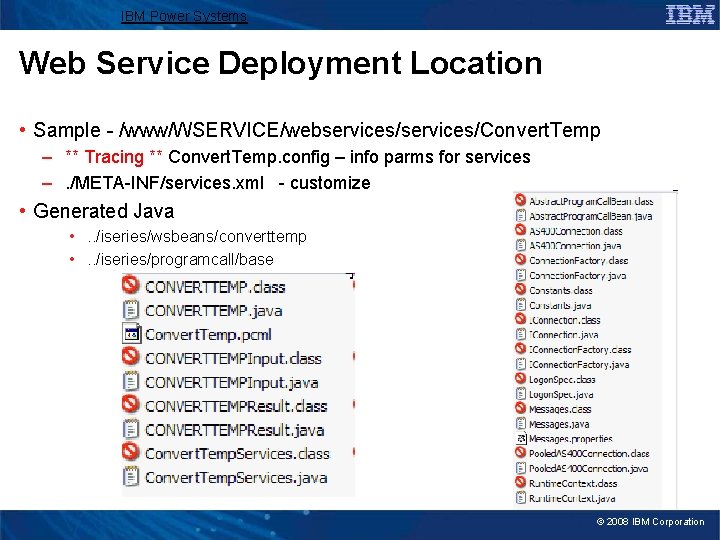

IBM Power Systems Web Service Deployment Location • Sample - /www/WSERVICE/webservices/Convert. Temp – ** Tracing ** Convert. Temp. config – info parms for services –. /META-INF/services. xml - customize • Generated Java • . . /iseries/wsbeans/converttemp • . . /iseries/programcall/base © 2008 IBM Corporation

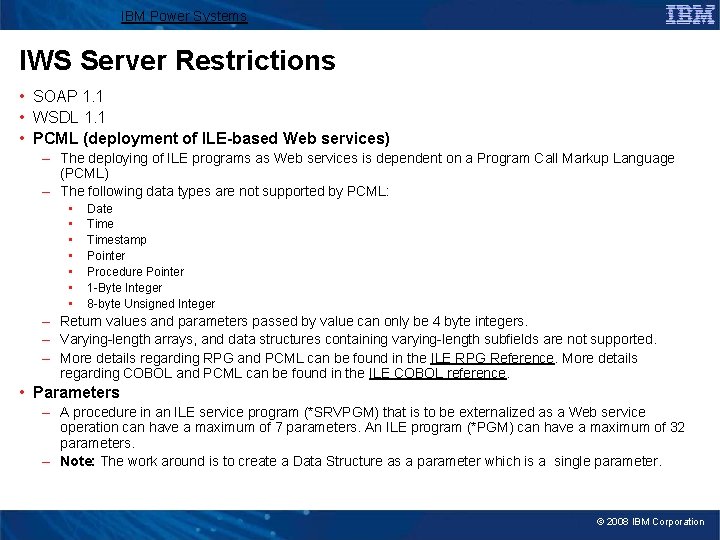

IBM Power Systems IWS Server Restrictions • SOAP 1. 1 • WSDL 1. 1 • PCML (deployment of ILE-based Web services) – The deploying of ILE programs as Web services is dependent on a Program Call Markup Language (PCML) – The following data types are not supported by PCML: • • Date Timestamp Pointer Procedure Pointer 1 -Byte Integer 8 -byte Unsigned Integer – Return values and parameters passed by value can only be 4 byte integers. – Varying-length arrays, and data structures containing varying-length subfields are not supported. – More details regarding RPG and PCML can be found in the ILE RPG Reference. More details regarding COBOL and PCML can be found in the ILE COBOL reference. • Parameters – A procedure in an ILE service program (*SRVPGM) that is to be externalized as a Web service operation can have a maximum of 7 parameters. An ILE program (*PGM) can have a maximum of 32 parameters. – Note: The work around is to create a Data Structure as a parameter which is a single parameter. © 2008 IBM Corporation

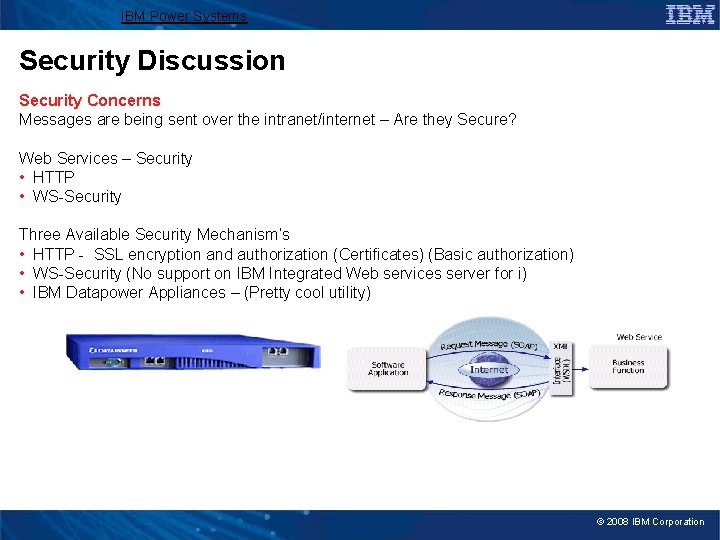

IBM Power Systems Security Discussion Security Concerns Messages are being sent over the intranet/internet – Are they Secure? Web Services – Security • HTTP • WS-Security Three Available Security Mechanism’s • HTTP - SSL encryption and authorization (Certificates) (Basic authorization) • WS-Security (No support on IBM Integrated Web services server for i) • IBM Datapower Appliances – (Pretty cool utility) © 2008 IBM Corporation

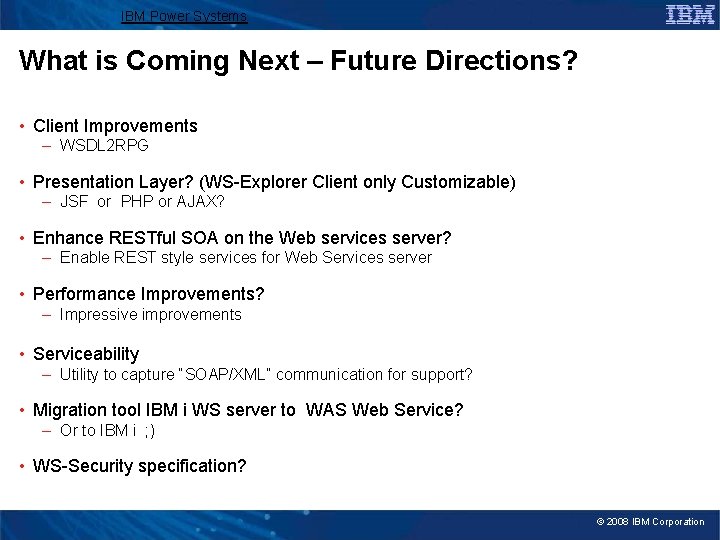

IBM Power Systems What is Coming Next – Future Directions? • Client Improvements – WSDL 2 RPG • Presentation Layer? (WS-Explorer Client only Customizable) – JSF or PHP or AJAX? • Enhance RESTful SOA on the Web services server? – Enable REST style services for Web Services server • Performance Improvements? – Impressive improvements • Serviceability – Utility to capture “SOAP/XML” communication for support? • Migration tool IBM i WS server to WAS Web Service? – Or to IBM i ; ) • WS-Security specification? © 2008 IBM Corporation

IBM Power Systems™ Agenda Key: Session Number: Consuming RPG Web Service Business Logic Web Services and SOA for the RPG Developer on IBM i Dan Hiebert IBM dhiebert@us. ibm. com

IBM Power Systems Agenda • Introduction to SOA & Web Services • Creating RPG Web Service Business Logic. – Lab Time • Deploying/Testing RPG Web Services. – Lab Time • Consumption of Web Services. – Lab Time • Presentation Layer of Web Services. – Lab Time © 2008 IBM Corporation

IBM Power Systems RPG Consuming Web Service Business Logic IBM Integrated Web Services client • IWS Client / Process • WSDL • Stub Generation and Header Files • Building / Compiling RPG and C code • Review Process • Deep Dive © 2008 IBM Corporation

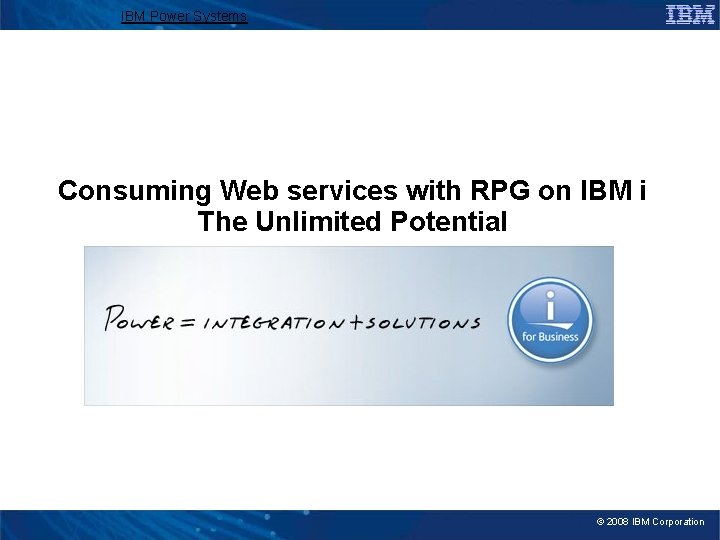

IBM Power Systems Consuming Web services with RPG on IBM i The Unlimited Potential

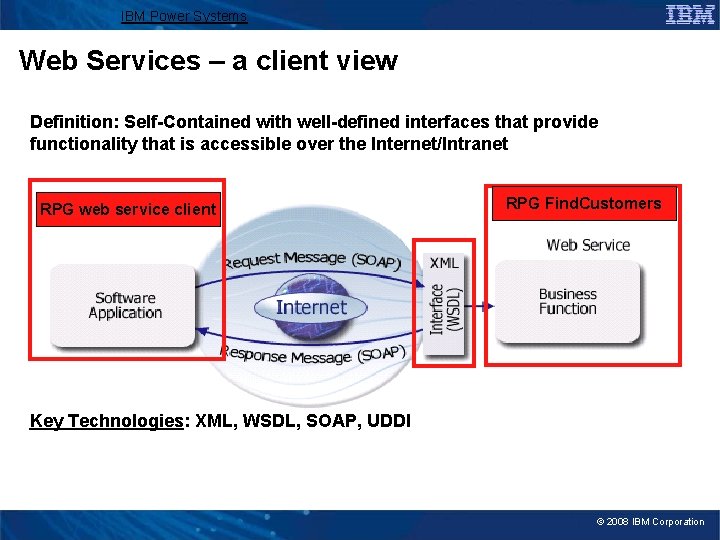

IBM Power Systems Web Services – a client view Definition: Self-Contained with well-defined interfaces that provide functionality that is accessible over the Internet/Intranet RPG web service client RPG Find. Customers Key Technologies: XML, WSDL, SOAP, UDDI © 2008 IBM Corporation

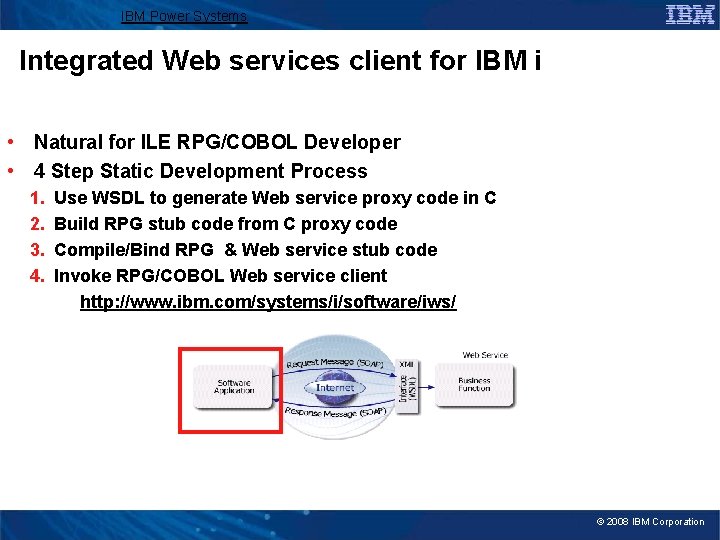

IBM Power Systems Integrated Web services client for IBM i • Natural for ILE RPG/COBOL Developer • 4 Step Static Development Process 1. 2. 3. 4. Use WSDL to generate Web service proxy code in C Build RPG stub code from C proxy code Compile/Bind RPG & Web service stub code Invoke RPG/COBOL Web service client http: //www. ibm. com/systems/i/software/iws/ © 2008 IBM Corporation

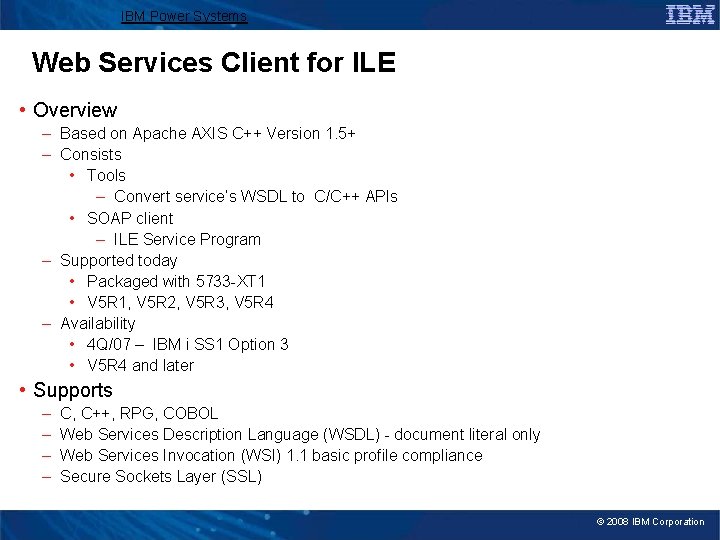

IBM Power Systems Web Services Client for ILE • Overview – Based on Apache AXIS C++ Version 1. 5+ – Consists • Tools – Convert service’s WSDL to C/C++ APIs • SOAP client – ILE Service Program – Supported today • Packaged with 5733 -XT 1 • V 5 R 1, V 5 R 2, V 5 R 3, V 5 R 4 – Availability • 4 Q/07 – IBM i SS 1 Option 3 • V 5 R 4 and later • Supports – – C, C++, RPG, COBOL Web Services Description Language (WSDL) - document literal only Web Services Invocation (WSI) 1. 1 basic profile compliance Secure Sockets Layer (SSL) © 2008 IBM Corporation

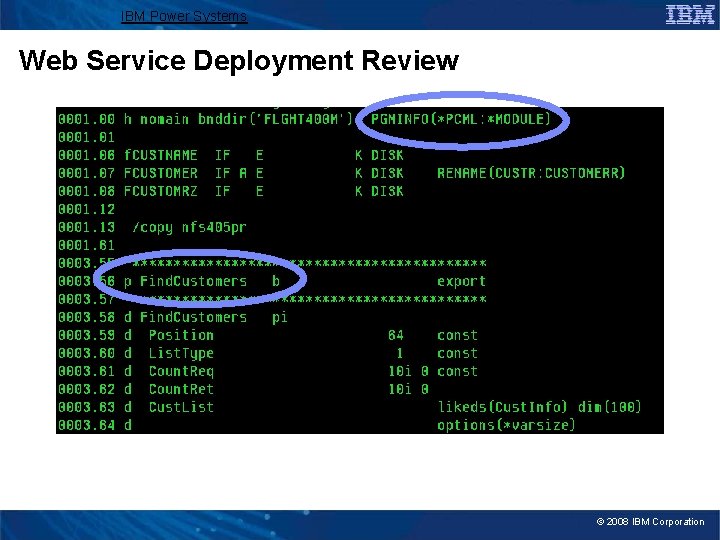

IBM Power Systems Web Service Deployment Review © 2008 IBM Corporation

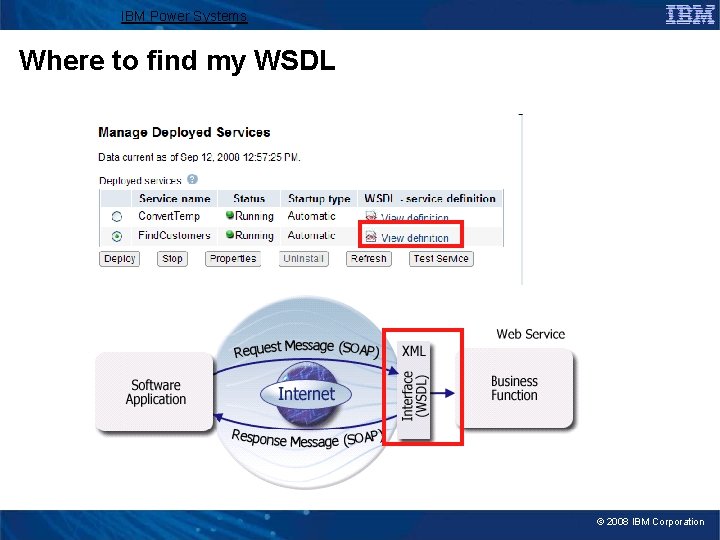

IBM Power Systems Where to find my WSDL © 2008 IBM Corporation

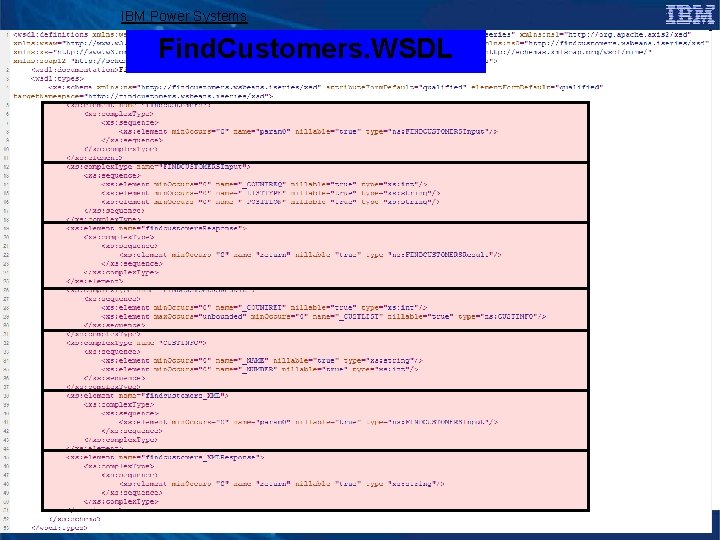

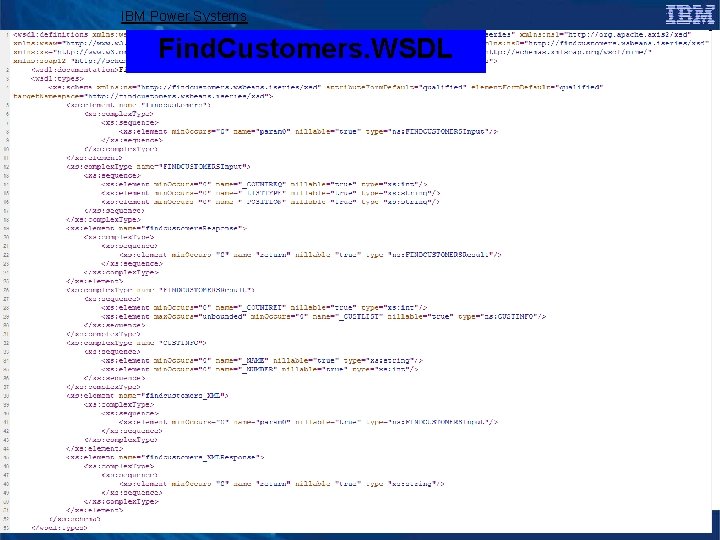

IBM Power Systems Find. Customers. WSDL © 2008 IBM Corporation

IBM Power Systems Find. Customers. WSDL Find. Customers. wsdl © 2008 IBM Corporation

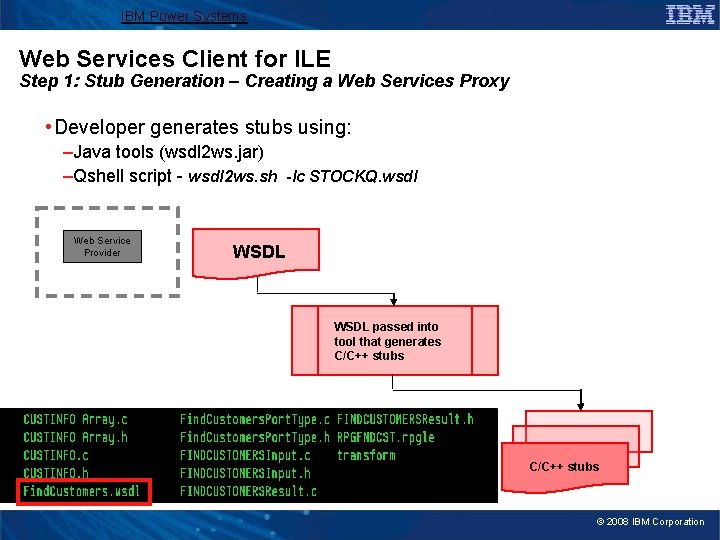

IBM Power Systems Web Services Client for ILE Step 1: Stub Generation – Creating a Web Services Proxy • Developer generates stubs using: –Java tools (wsdl 2 ws. jar) –Qshell script - wsdl 2 ws. sh -lc STOCKQ. wsdl Web Service Provider WSDL passed into tool that generates C/C++ stubs © 2008 IBM Corporation

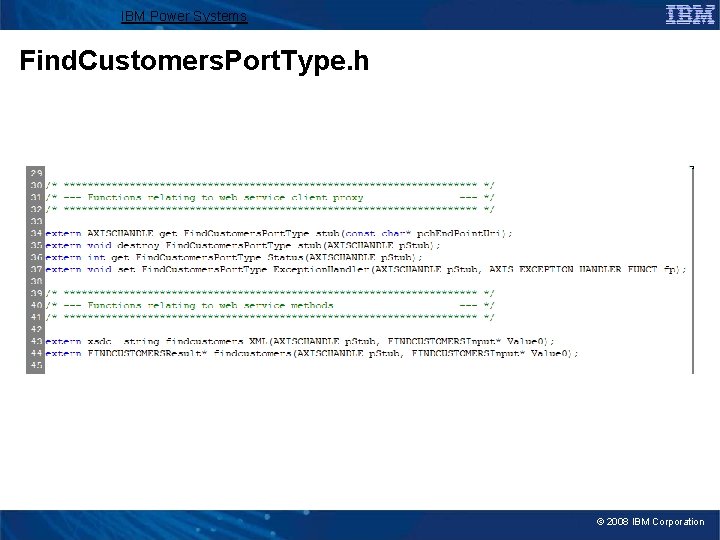

IBM Power Systems Find. Customers. Port. Type. h © 2008 IBM Corporation

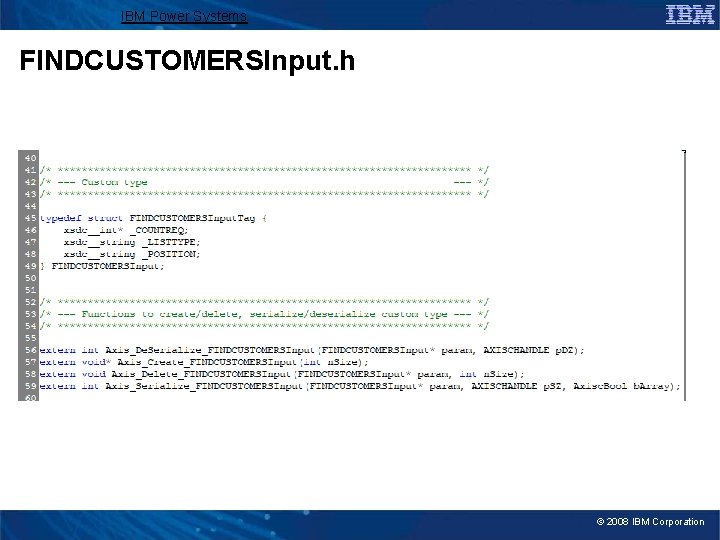

IBM Power Systems FINDCUSTOMERSInput. h © 2008 IBM Corporation

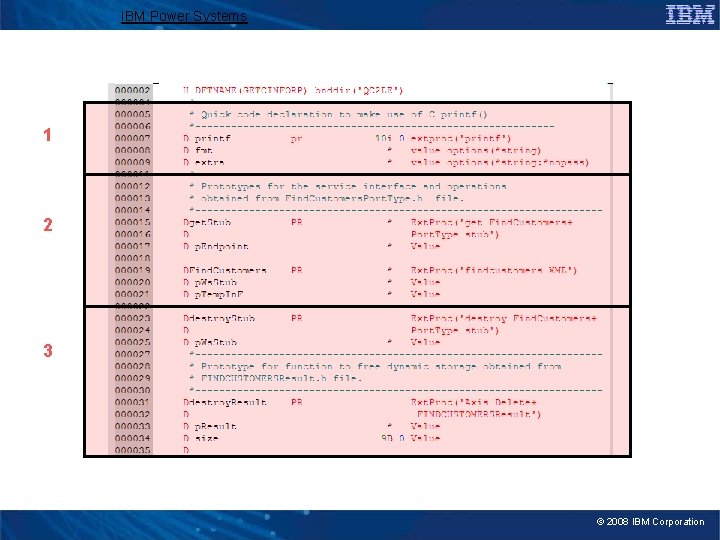

IBM Power Systems 1 2 3 © 2008 IBM Corporation

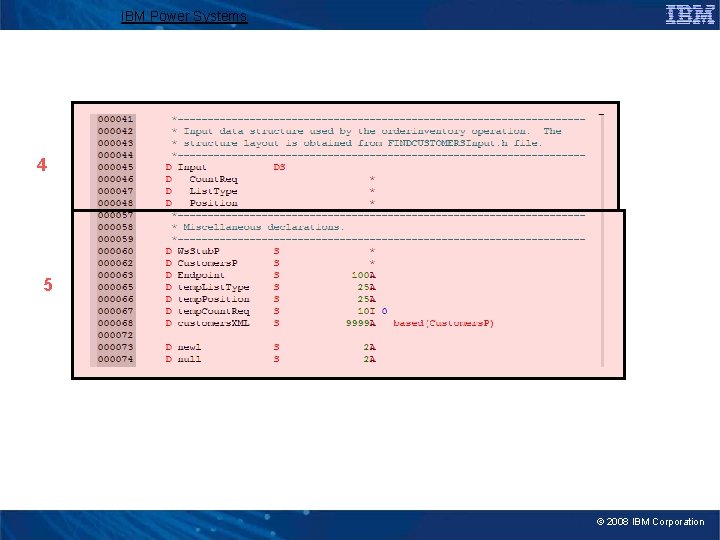

IBM Power Systems 4 5 © 2008 IBM Corporation

IBM Power Systems 6 7 8 9 10 © 2008 IBM Corporation

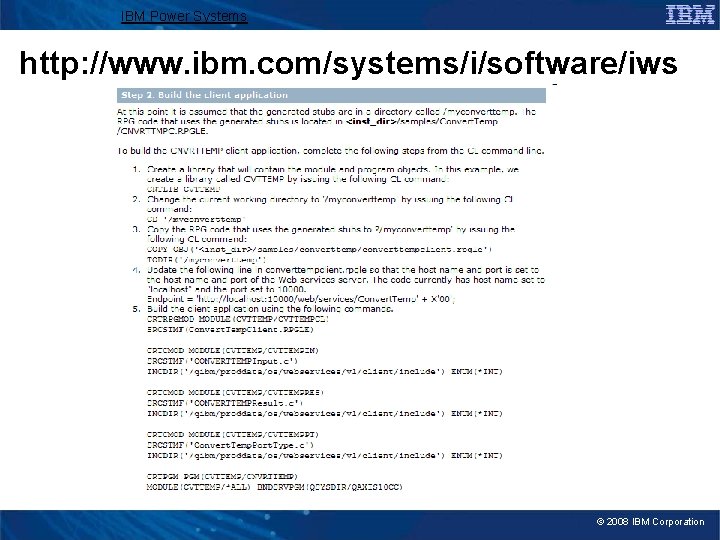

IBM Power Systems http: //www. ibm. com/systems/i/software/iws © 2008 IBM Corporation

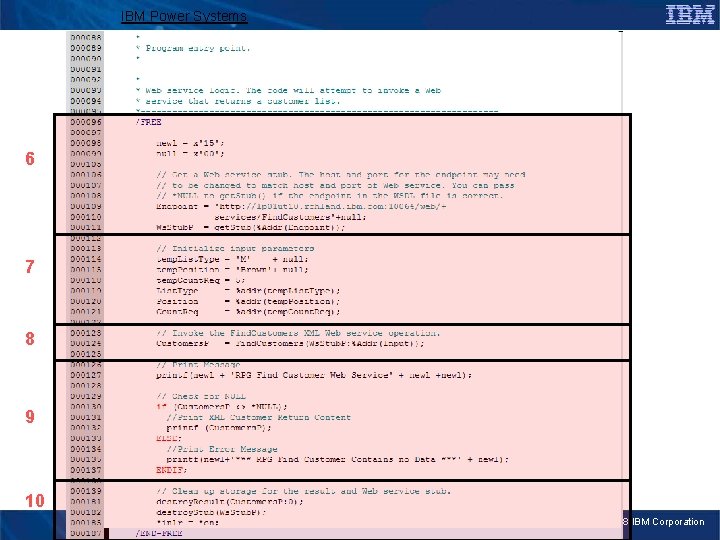

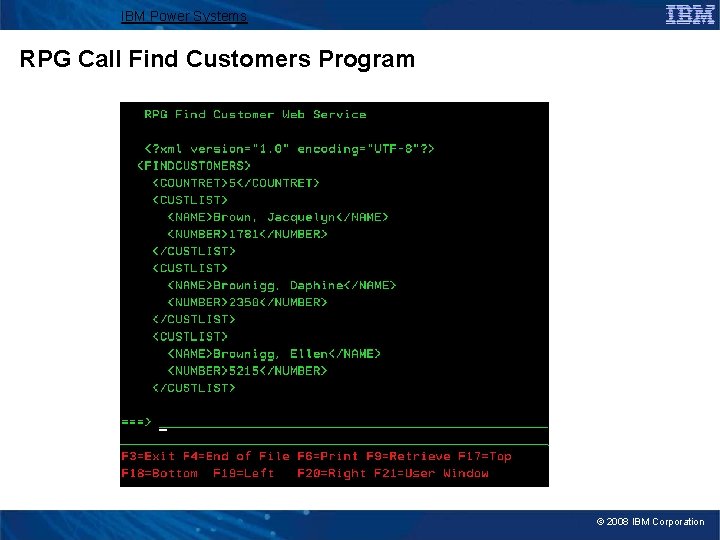

IBM Power Systems RPG Call Find Customers Program © 2008 IBM Corporation

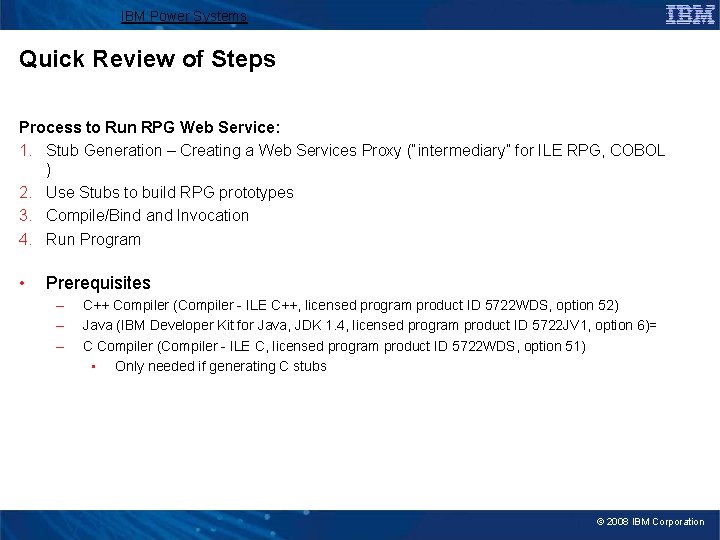

IBM Power Systems Quick Review of Steps Process to Run RPG Web Service: 1. Stub Generation – Creating a Web Services Proxy (“intermediary” for ILE RPG, COBOL ) 2. Use Stubs to build RPG prototypes 3. Compile/Bind and Invocation 4. Run Program • Prerequisites – – – C++ Compiler (Compiler - ILE C++, licensed program product ID 5722 WDS, option 52) Java (IBM Developer Kit for Java, JDK 1. 4, licensed program product ID 5722 JV 1, option 6)= C Compiler (Compiler - ILE C, licensed program product ID 5722 WDS, option 51) • Only needed if generating C stubs © 2008 IBM Corporation

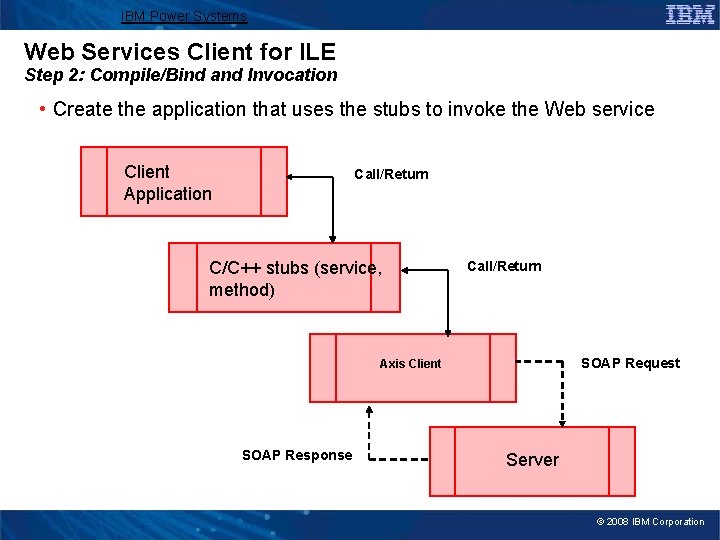

IBM Power Systems Web Services Client for ILE Step 2: Compile/Bind and Invocation • Create the application that uses the stubs to invoke the Web service Client Application Call/Return C/C++ stubs (service, method) Call/Return SOAP Request Axis Client SOAP Response Server © 2008 IBM Corporation

IBM Power Systems IBM Web Services Client – Deep Dive - Configuration © 2008

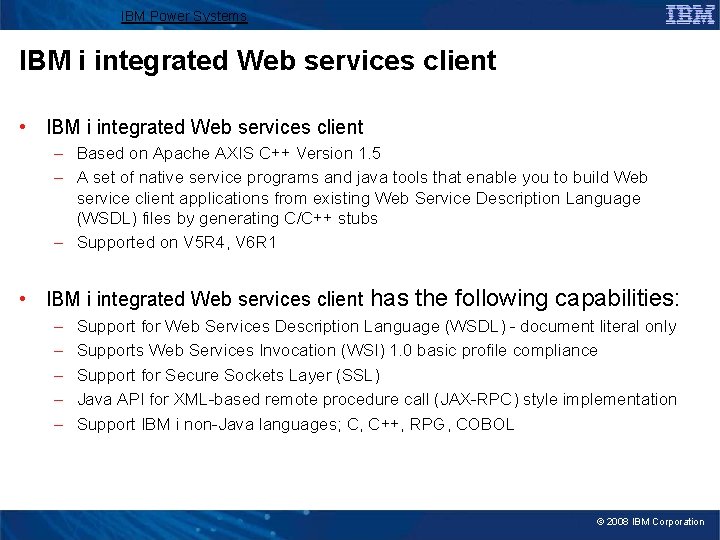

IBM Power Systems IBM i integrated Web services client • IBM i integrated Web services client – Based on Apache AXIS C++ Version 1. 5 – A set of native service programs and java tools that enable you to build Web service client applications from existing Web Service Description Language (WSDL) files by generating C/C++ stubs – Supported on V 5 R 4, V 6 R 1 • IBM i integrated Web services client has the following capabilities: – – – Support for Web Services Description Language (WSDL) - document literal only Supports Web Services Invocation (WSI) 1. 0 basic profile compliance Support for Secure Sockets Layer (SSL) Java API for XML-based remote procedure call (JAX-RPC) style implementation Support IBM i non-Java languages; C, C++, RPG, COBOL © 2008 IBM Corporation

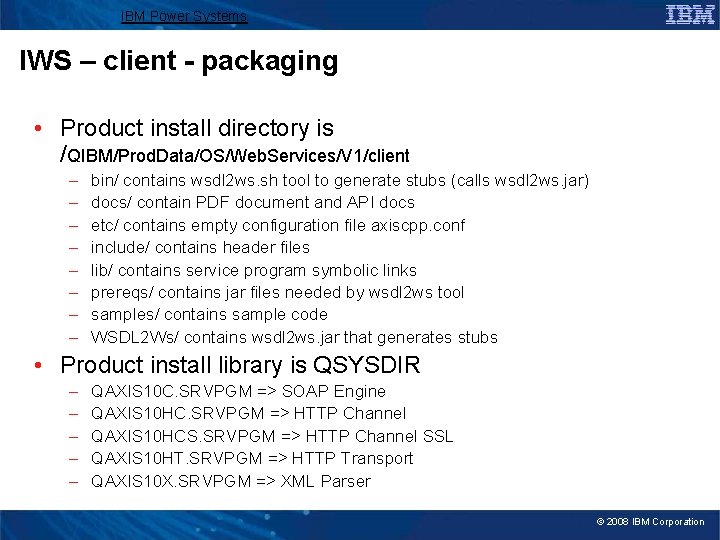

IBM Power Systems IWS – client - packaging • Product install directory is /QIBM/Prod. Data/OS/Web. Services/V 1/client – – – – bin/ contains wsdl 2 ws. sh tool to generate stubs (calls wsdl 2 ws. jar) docs/ contain PDF document and API docs etc/ contains empty configuration file axiscpp. conf include/ contains header files lib/ contains service program symbolic links prereqs/ contains jar files needed by wsdl 2 ws tool samples/ contains sample code WSDL 2 Ws/ contains wsdl 2 ws. jar that generates stubs • Product install library is QSYSDIR – – – QAXIS 10 C. SRVPGM => SOAP Engine QAXIS 10 HC. SRVPGM => HTTP Channel QAXIS 10 HCS. SRVPGM => HTTP Channel SSL QAXIS 10 HT. SRVPGM => HTTP Transport QAXIS 10 X. SRVPGM => XML Parser © 2008 IBM Corporation

IBM Power Systems Questions? © 2008 IBM Corporation

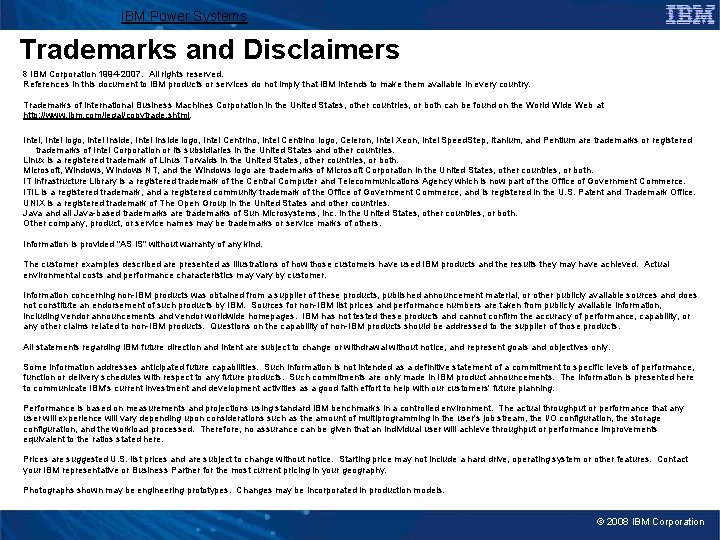

IBM Power Systems Trademarks and Disclaimers 8 IBM Corporation 1994 -2007. All rights reserved. References in this document to IBM products or services do not imply that IBM intends to make them available in every country. Trademarks of International Business Machines Corporation in the United States, other countries, or both can be found on the World Wide Web at http: //www. ibm. com/legal/copytrade. shtml. Intel, Intel logo, Intel Inside logo, Intel Centrino logo, Celeron, Intel Xeon, Intel Speed. Step, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. Microsoft, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both. IT Infrastructure Library is a registered trademark of the Central Computer and Telecommunications Agency which is now part of the Office of Government Commerce. ITIL is a registered trademark, and a registered community trademark of the Office of Government Commerce, and is registered in the U. S. Patent and Trademark Office. UNIX is a registered trademark of The Open Group in the United States and other countries. Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others. Information is provided "AS IS" without warranty of any kind. The customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics may vary by customer. Information concerning non-IBM products was obtained from a supplier of these products, published announcement material, or other publicly available sources and does not constitute an endorsement of such products by IBM. Sources for non-IBM list prices and performance numbers are taken from publicly available information, including vendor announcements and vendor worldwide homepages. IBM has not tested these products and cannot confirm the accuracy of performance, capability, or any other claims related to non-IBM products. Questions on the capability of non-IBM products should be addressed to the supplier of those products. All statements regarding IBM future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. Some information addresses anticipated future capabilities. Such information is not intended as a definitive statement of a commitment to specific levels of performance, function or delivery schedules with respect to any future products. Such commitments are only made in IBM product announcements. The information is presented here to communicate IBM's current investment and development activities as a good faith effort to help with our customers' future planning. Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will experience will vary depending upon considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve throughput or performance improvements equivalent to the ratios stated here. Prices are suggested U. S. list prices and are subject to change without notice. Starting price may not include a hard drive, operating system or other features. Contact your IBM representative or Business Partner for the most current pricing in your geography. Photographs shown may be engineering prototypes. Changes may be incorporated in production models. © 2008 IBM Corporation
