IBM MAINFRAMES CICS Training Class-06 www. mainframes-online-training. weebly. com Polsani Anil Kumar

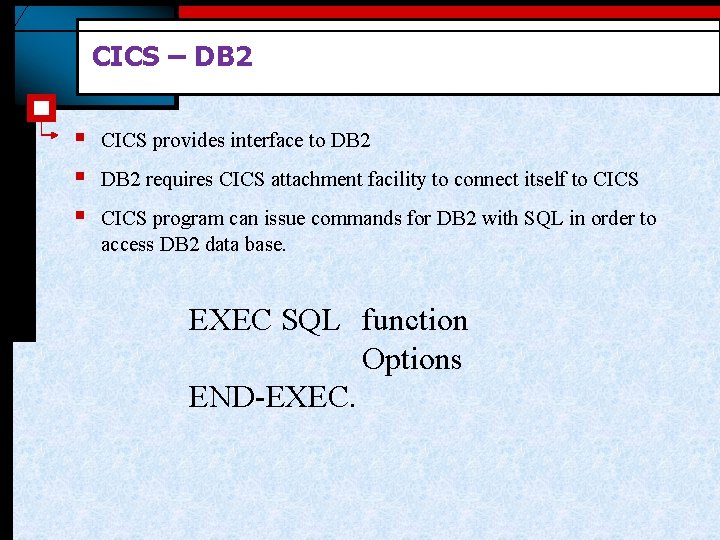

CICS – DB 2 § § § CICS provides interface to DB 2 requires CICS attachment facility to connect itself to CICS program can issue commands for DB 2 with SQL in order to access DB 2 data base. EXEC SQL function Options END-EXEC.

DB 2 database access by CICS Operating System CICS DB 2 Region Application Program CICS attachment facility Terminal DATASETS DATABASE

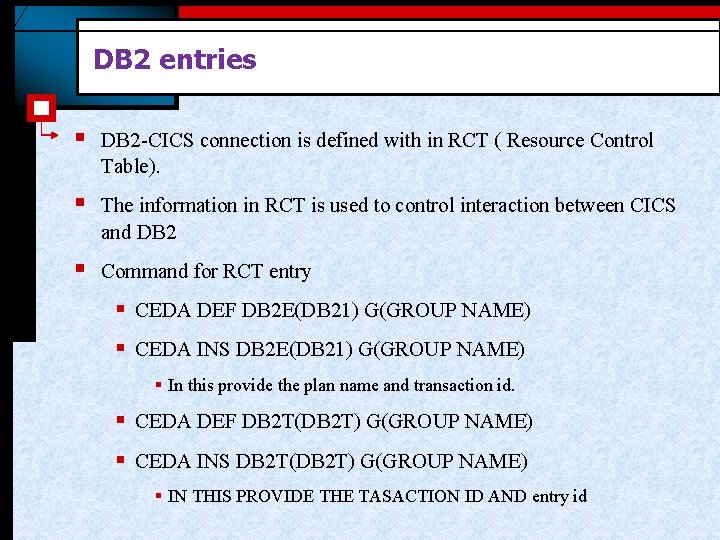

DB 2 entries § DB 2 -CICS connection is defined with in RCT ( Resource Control Table). § The information in RCT is used to control interaction between CICS and DB 2 § Command for RCT entry § CEDA DEF DB 2 E(DB 21) G(GROUP NAME) § CEDA INS DB 2 E(DB 21) G(GROUP NAME) § In this provide the plan name and transaction id. § CEDA DEF DB 2 T(DB 2 T) G(GROUP NAME) § CEDA INS DB 2 T(DB 2 T) G(GROUP NAME) § IN THIS PROVIDE THE TASACTION ID AND entry id

Preparation COBOL-CICS-DB 2 program SOURCE PROGRAM CICS TRANSLATION DB 2 PRE COMPILATION DBRM MEMBER COBOL COMPILATION BIND PROCESS LINK EDIT LOAD MODULE PLAN PACKAGE

Interval and Task control www. mainframes-online-training. weebly. com Polsani Anil Kumar

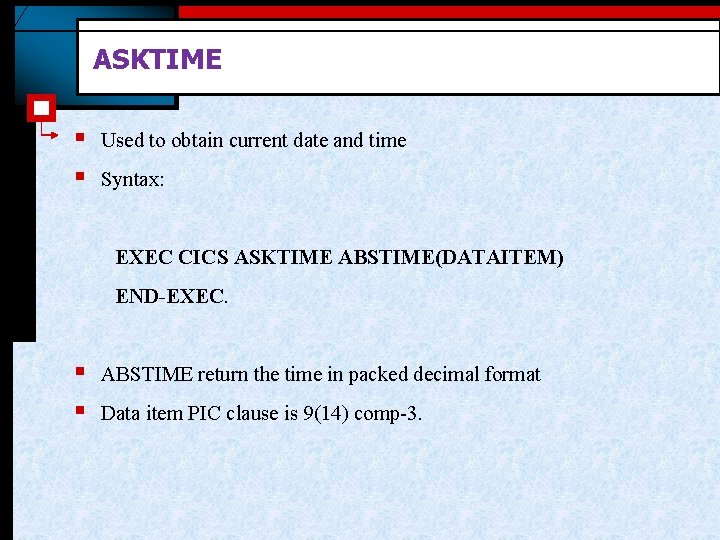

ASKTIME § § Used to obtain current date and time Syntax: EXEC CICS ASKTIME ABSTIME(DATAITEM) END-EXEC. § § ABSTIME return the time in packed decimal format Data item PIC clause is 9(14) comp-3.

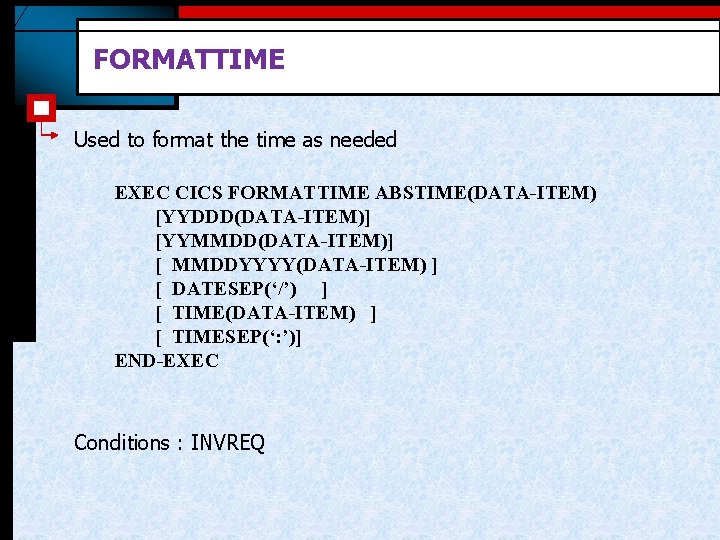

FORMATTIME Used to format the time as needed EXEC CICS FORMATTIME ABSTIME(DATA-ITEM) [YYDDD(DATA-ITEM)] [YYMMDD(DATA-ITEM)] [ MMDDYYYY(DATA-ITEM) ] [ DATESEP(‘/’) ] [ TIME(DATA-ITEM) ] [ TIMESEP(‘: ’)] END-EXEC Conditions : INVREQ

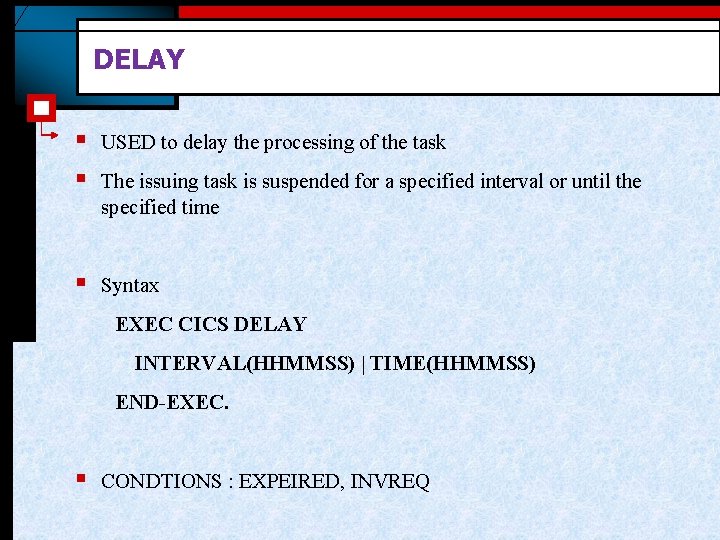

DELAY § § USED to delay the processing of the task § Syntax The issuing task is suspended for a specified interval or until the specified time EXEC CICS DELAY INTERVAL(HHMMSS) | TIME(HHMMSS) END-EXEC. § CONDTIONS : EXPEIRED, INVREQ

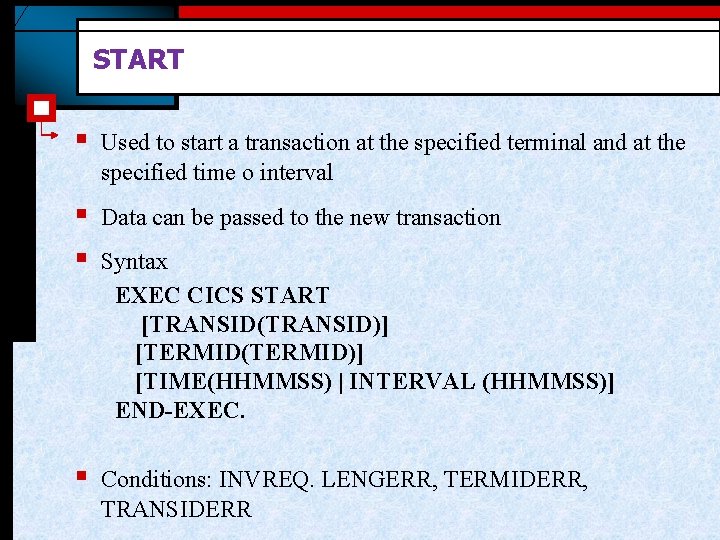

START § Used to start a transaction at the specified terminal and at the specified time o interval § § Data can be passed to the new transaction § Conditions: INVREQ. LENGERR, TERMIDERR, TRANSIDERR Syntax EXEC CICS START [TRANSID(TRANSID)] [TERMID(TERMID)] [TIME(HHMMSS) | INTERVAL (HHMMSS)] END-EXEC.

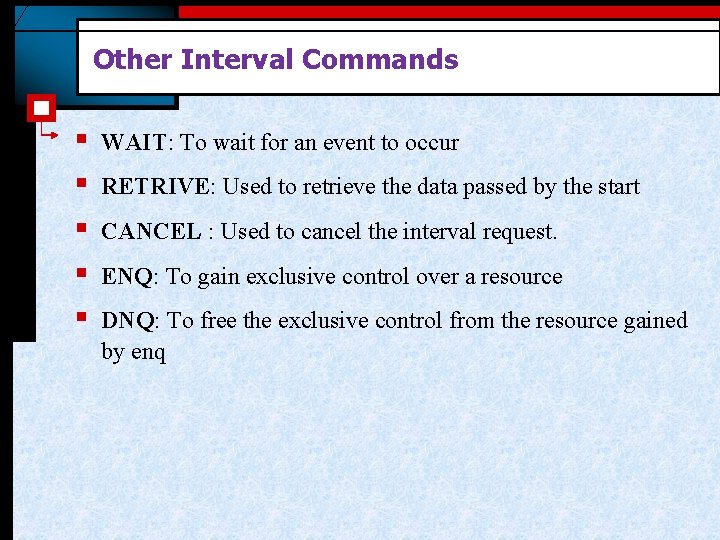

Other Interval Commands § § § WAIT: To wait for an event to occur RETRIVE: Used to retrieve the data passed by the start CANCEL : Used to cancel the interval request. ENQ: To gain exclusive control over a resource DNQ: To free the exclusive control from the resource gained by enq

CICS SUPPLIED TRANSACTIONS www. mainframes-online-training. weebly. com Polsani Anil Kumar

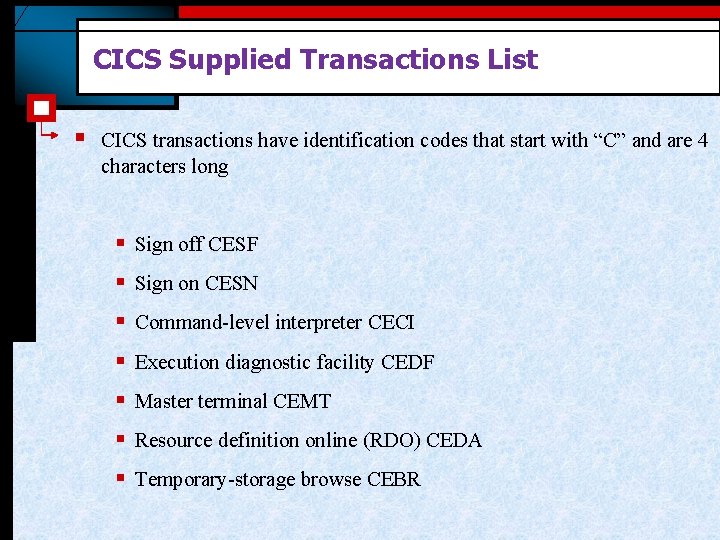

CICS Supplied Transactions List § CICS transactions have identification codes that start with “C” and are 4 characters long § Sign off CESF § Sign on CESN § Command-level interpreter CECI § Execution diagnostic facility CEDF § Master terminal CEMT § Resource definition online (RDO) CEDA § Temporary-storage browse CEBR

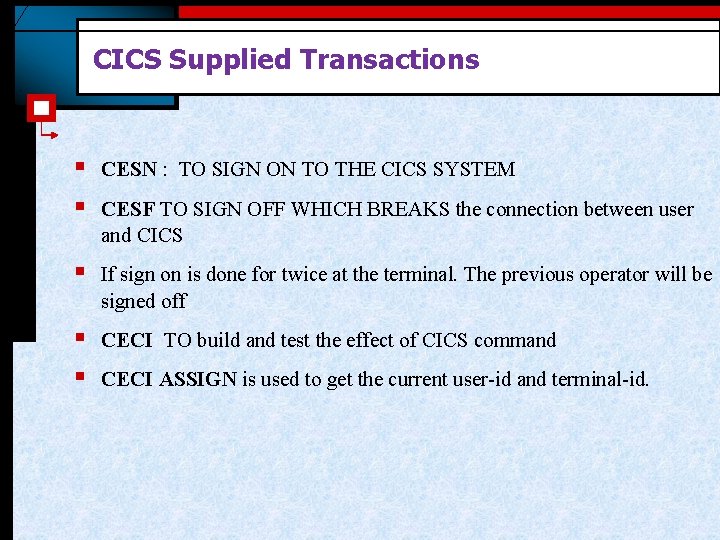

CICS Supplied Transactions § § CESN : TO SIGN ON TO THE CICS SYSTEM § If sign on is done for twice at the terminal. The previous operator will be signed off § § CECI TO build and test the effect of CICS command CESF TO SIGN OFF WHICH BREAKS the connection between user and CICS CECI ASSIGN is used to get the current user-id and terminal-id.

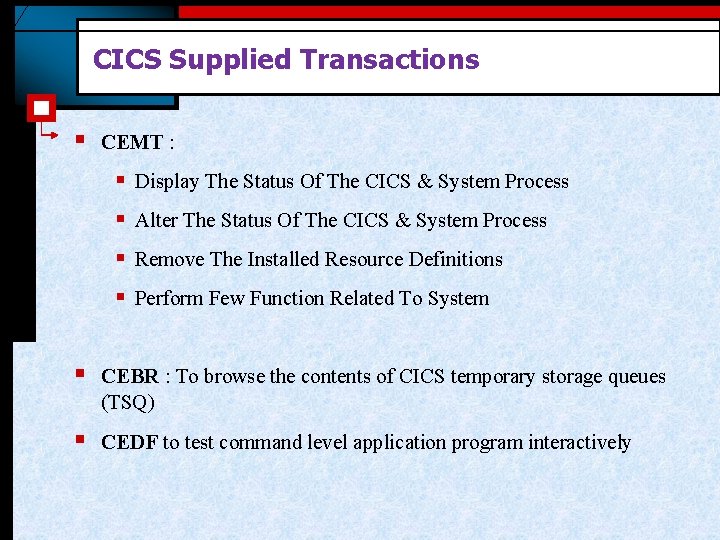

CICS Supplied Transactions § CEMT : § Display The Status Of The CICS & System Process § Alter The Status Of The CICS & System Process § Remove The Installed Resource Definitions § Perform Few Function Related To System § CEBR : To browse the contents of CICS temporary storage queues (TSQ) § CEDF to test command level application program interactively

Thanks You Polsani Anil Kumar www. mainframes-online-training. weebly. com Polsani Anil Kumar
