IB BIOLOGY QUARTER 1 EXAM REVIEW IB topics

IB BIOLOGY QUARTER 1 EXAM REVIEW IB topics 1 (statistical analysis) & 2. 1 (cell theory)

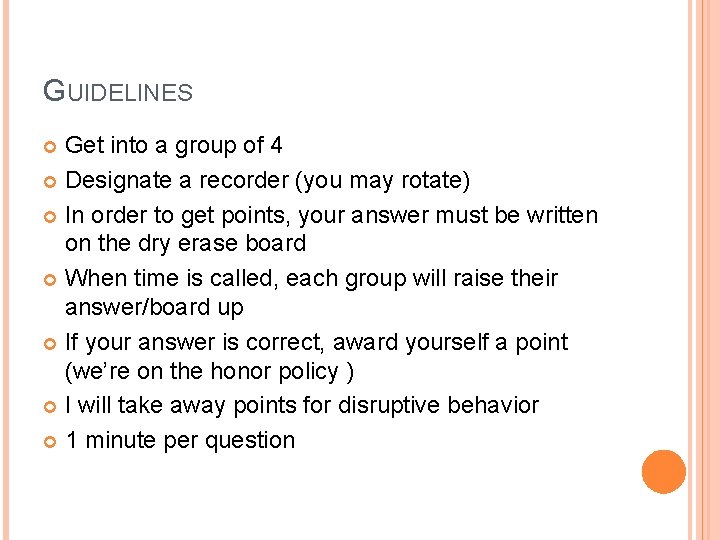

GUIDELINES Get into a group of 4 Designate a recorder (you may rotate) In order to get points, your answer must be written on the dry erase board When time is called, each group will raise their answer/board up If your answer is correct, award yourself a point (we’re on the honor policy ) I will take away points for disruptive behavior 1 minute per question

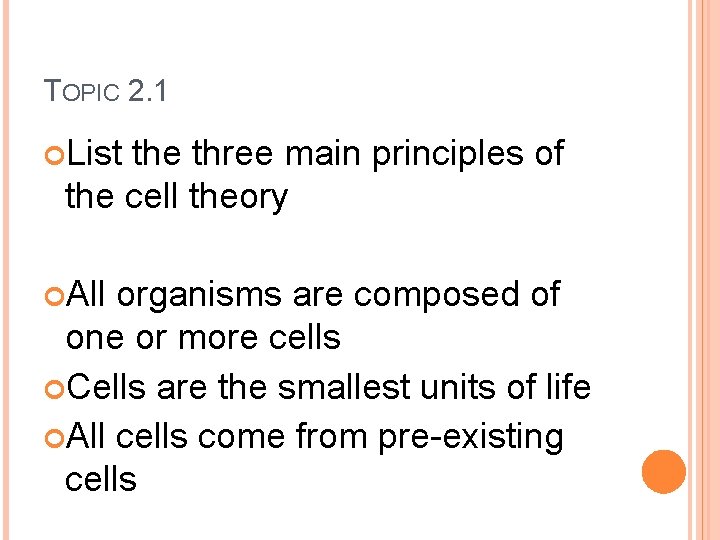

TOPIC 2. 1 List the three main principles of the cell theory All organisms are composed of one or more cells Cells are the smallest units of life All cells come from pre-existing cells

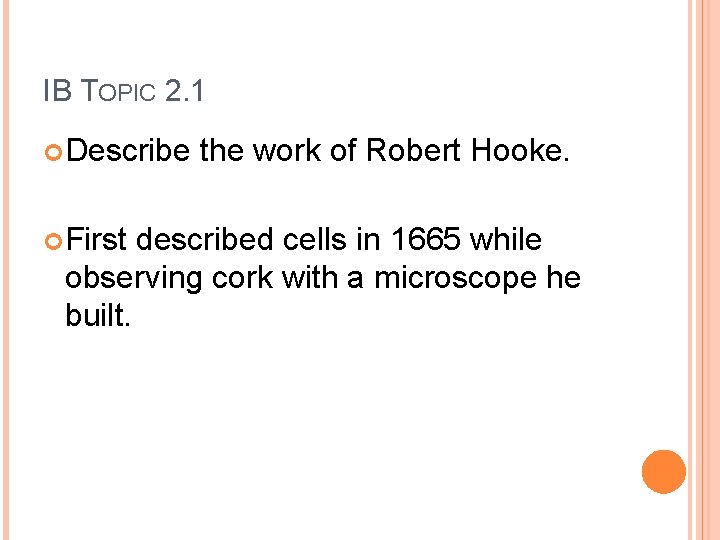

IB TOPIC 2. 1 Describe First the work of Robert Hooke. described cells in 1665 while observing cork with a microscope he built.

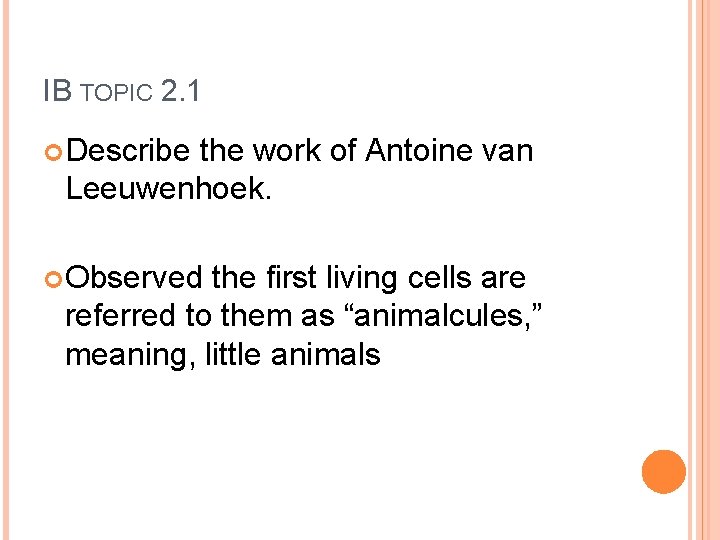

IB TOPIC 2. 1 Describe the work of Antoine van Leeuwenhoek. Observed the first living cells are referred to them as “animalcules, ” meaning, little animals

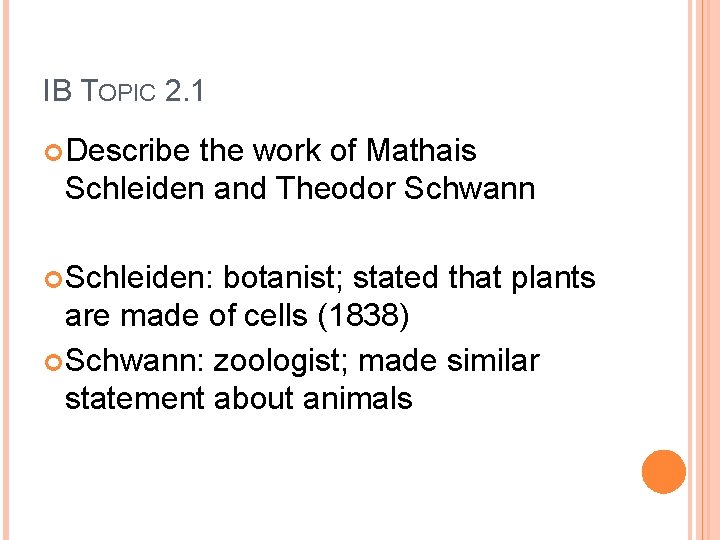

IB TOPIC 2. 1 Describe the work of Mathais Schleiden and Theodor Schwann Schleiden: botanist; stated that plants are made of cells (1838) Schwann: zoologist; made similar statement about animals

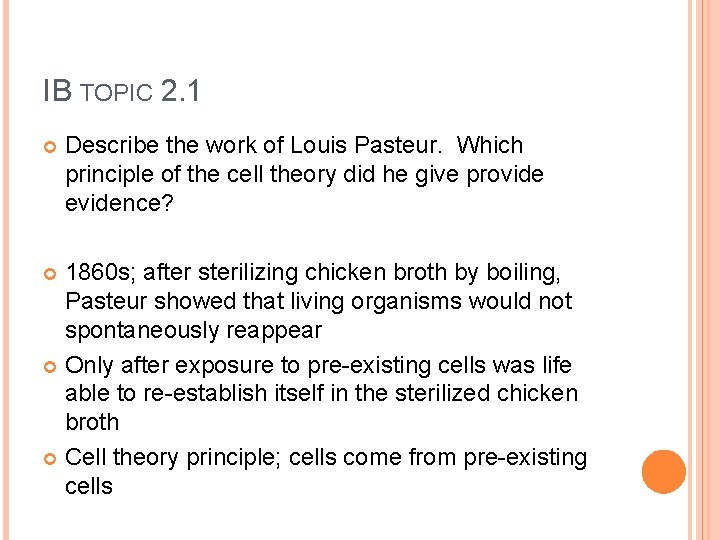

IB TOPIC 2. 1 Describe the work of Louis Pasteur. Which principle of the cell theory did he give provide evidence? 1860 s; after sterilizing chicken broth by boiling, Pasteur showed that living organisms would not spontaneously reappear Only after exposure to pre-existing cells was life able to re-establish itself in the sterilized chicken broth Cell theory principle; cells come from pre-existing cells

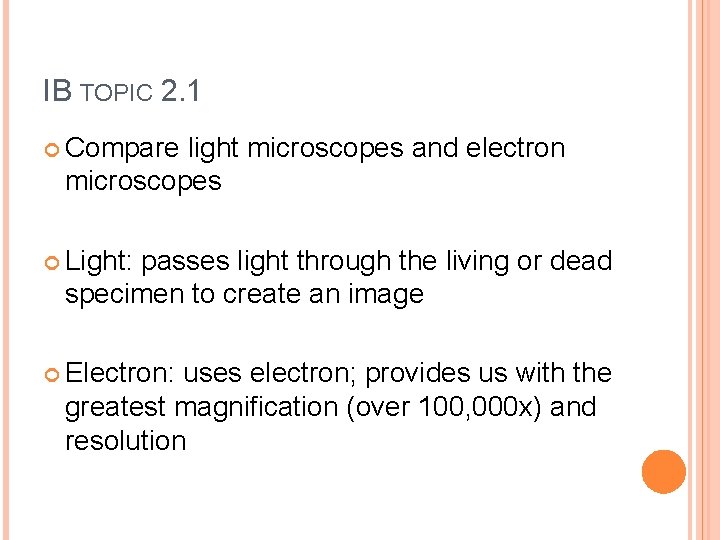

IB TOPIC 2. 1 Compare light microscopes and electron microscopes Light: passes light through the living or dead specimen to create an image Electron: uses electron; provides us with the greatest magnification (over 100, 000 x) and resolution

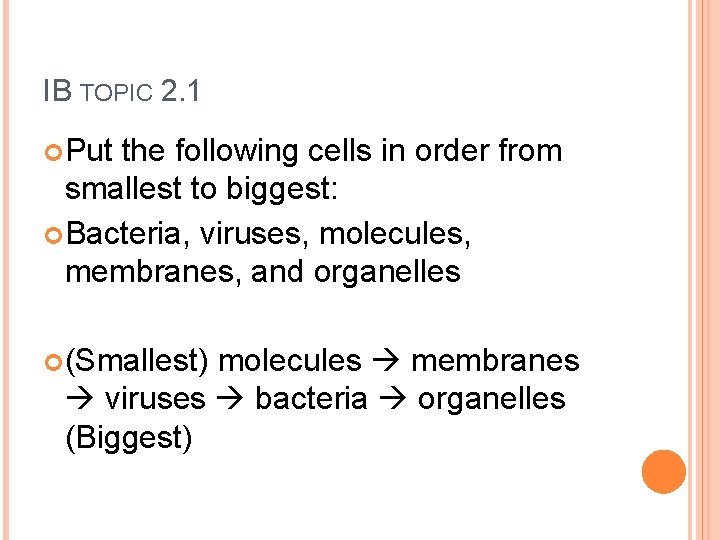

IB TOPIC 2. 1 Put the following cells in order from smallest to biggest: Bacteria, viruses, molecules, membranes, and organelles (Smallest) molecules membranes viruses bacteria organelles (Biggest)

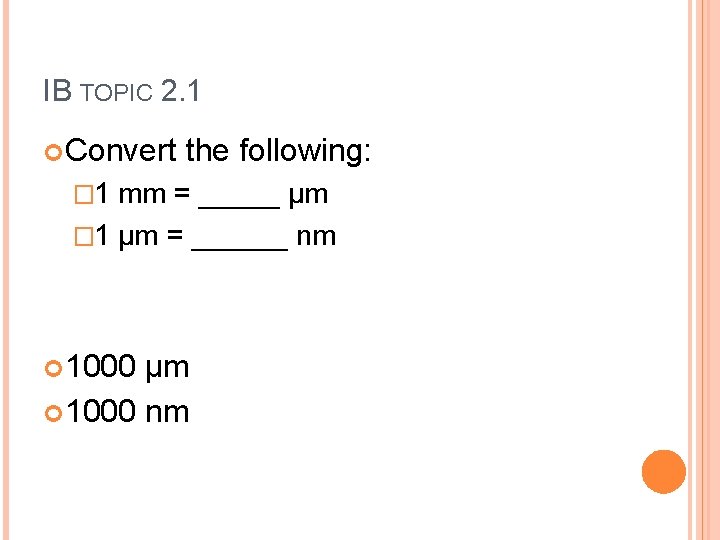

IB TOPIC 2. 1 Convert the following: � 1 mm = _____ µm � 1 µm = ______ nm 1000 µm 1000 nm

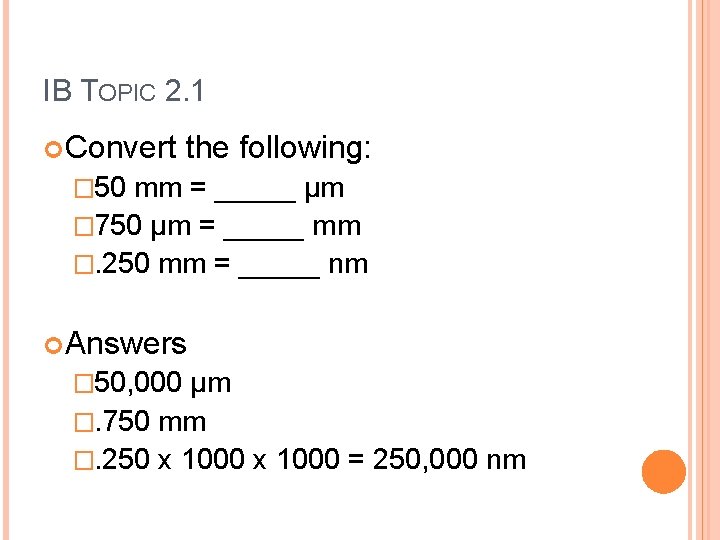

IB TOPIC 2. 1 Convert the following: � 50 mm = _____ µm � 750 µm = _____ mm �. 250 mm = _____ nm Answers � 50, 000 µm �. 750 mm �. 250 x 1000 = 250, 000 nm

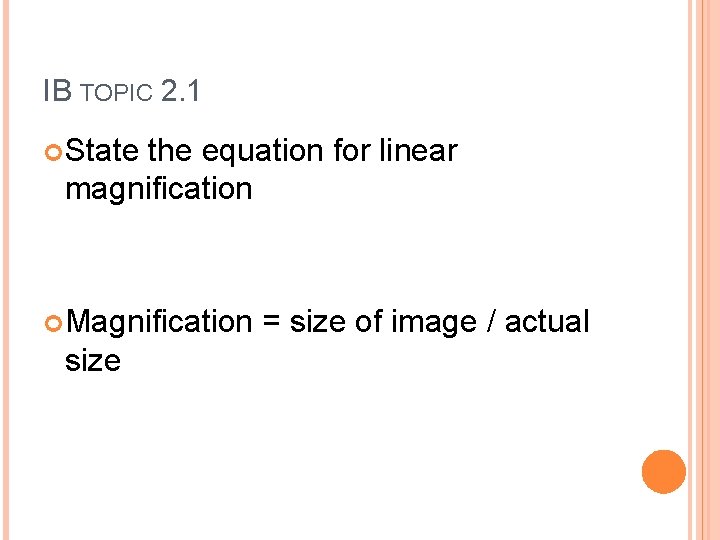

IB TOPIC 2. 1 State the equation for linear magnification Magnification size = size of image / actual

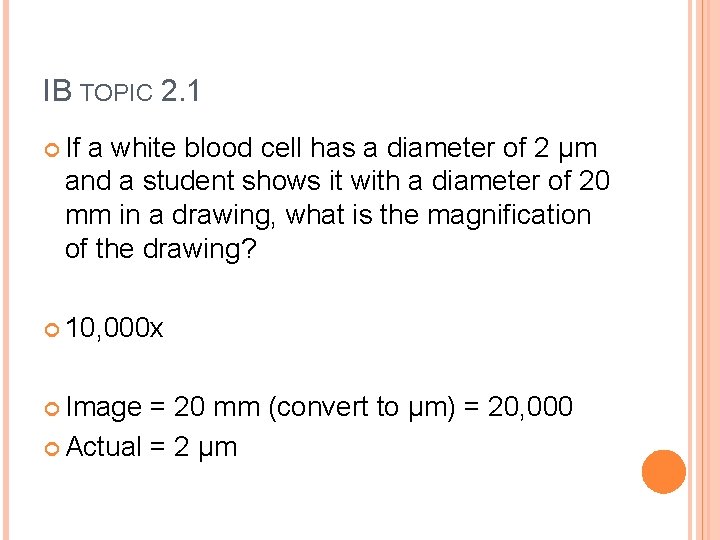

IB TOPIC 2. 1 If a white blood cell has a diameter of 2 µm and a student shows it with a diameter of 20 mm in a drawing, what is the magnification of the drawing? 10, 000 x Image = 20 mm (convert to µm) = 20, 000 Actual = 2 µm

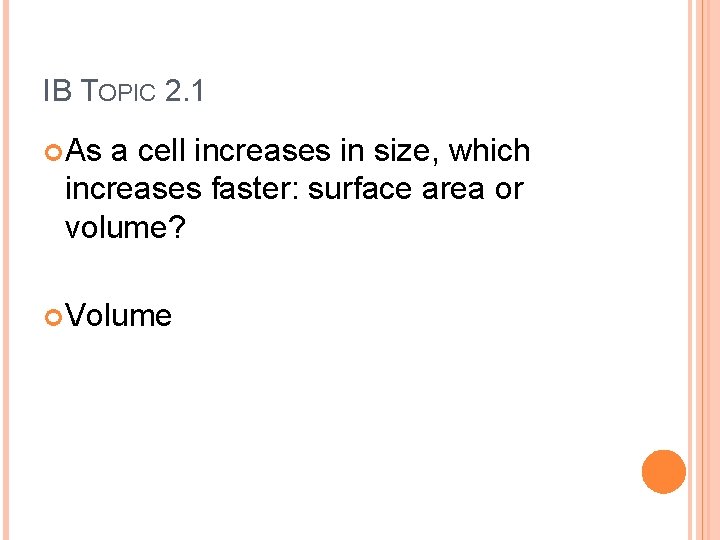

IB TOPIC 2. 1 As a cell increases in size, which increases faster: surface area or volume? Volume

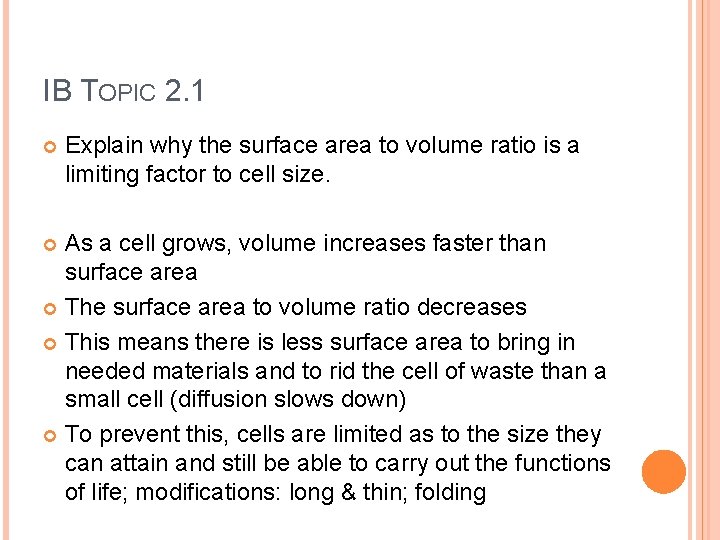

IB TOPIC 2. 1 Explain why the surface area to volume ratio is a limiting factor to cell size. As a cell grows, volume increases faster than surface area The surface area to volume ratio decreases This means there is less surface area to bring in needed materials and to rid the cell of waste than a small cell (diffusion slows down) To prevent this, cells are limited as to the size they can attain and still be able to carry out the functions of life; modifications: long & thin; folding

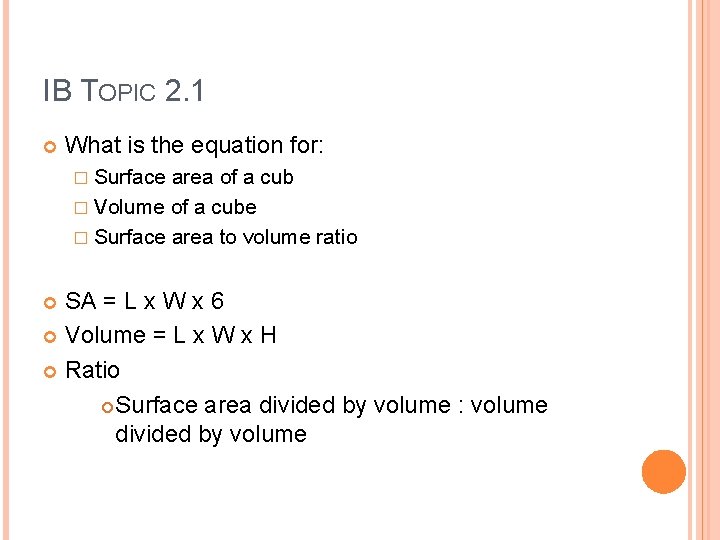

IB TOPIC 2. 1 What is the equation for: � Surface area of a cub � Volume of a cube � Surface area to volume ratio SA = L x W x 6 Volume = L x W x H Ratio Surface area divided by volume : volume divided by volume

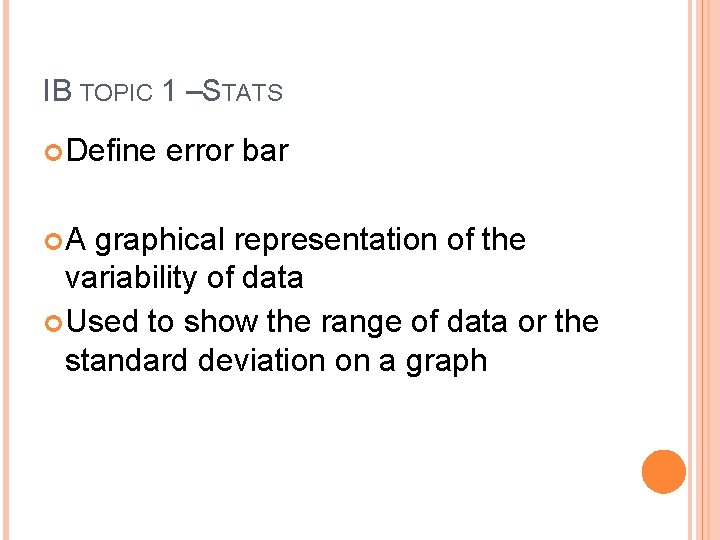

IB TOPIC 1 –STATS Define A error bar graphical representation of the variability of data Used to show the range of data or the standard deviation on a graph

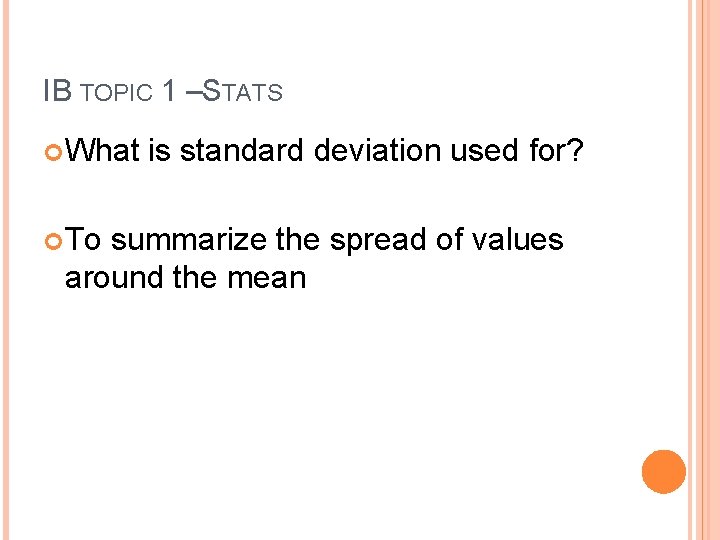

IB TOPIC 1 –STATS What To is standard deviation used for? summarize the spread of values around the mean

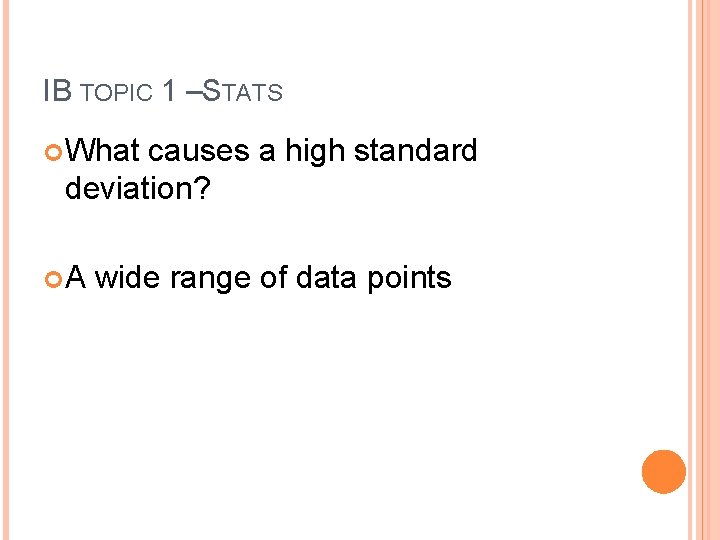

IB TOPIC 1 –STATS What causes a high standard deviation? A wide range of data points

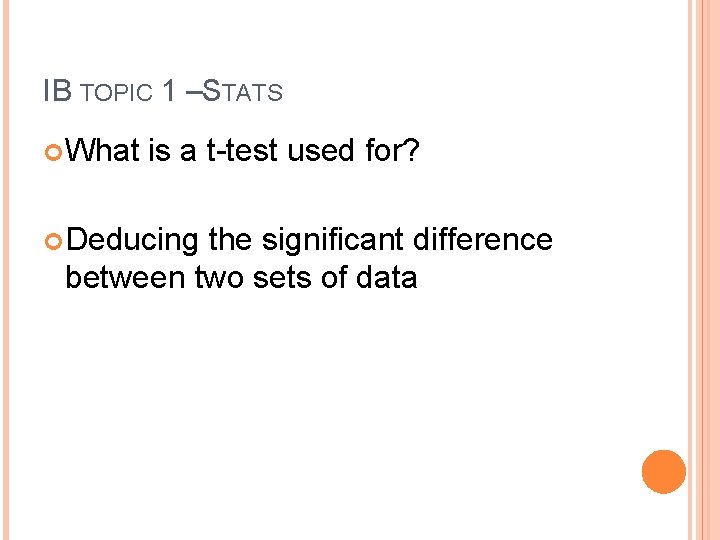

IB TOPIC 1 –STATS What is a t-test used for? Deducing the significant difference between two sets of data

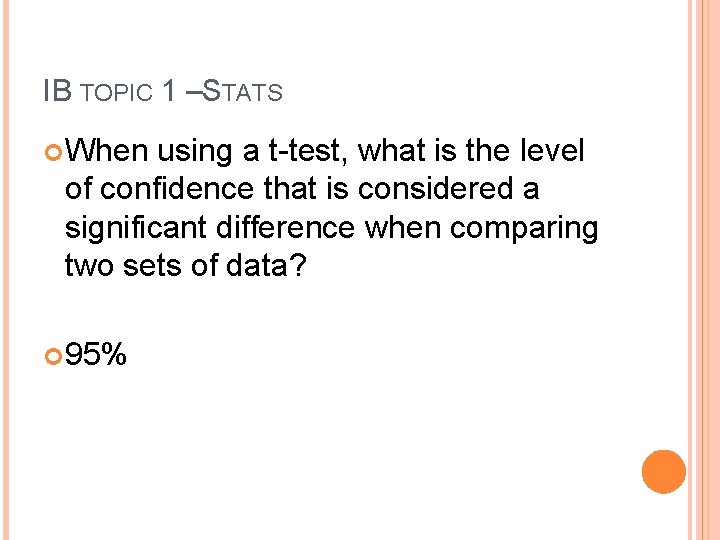

IB TOPIC 1 –STATS When using a t-test, what is the level of confidence that is considered a significant difference when comparing two sets of data? 95%

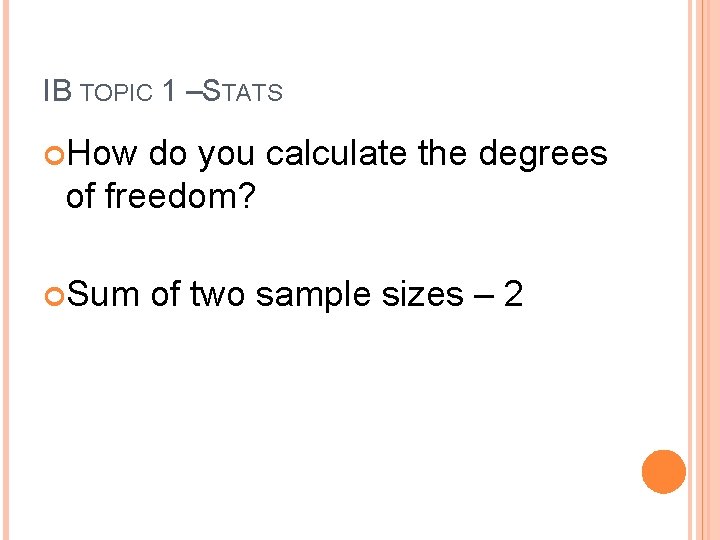

IB TOPIC 1 –STATS How do you calculate the degrees of freedom? Sum of two sample sizes – 2

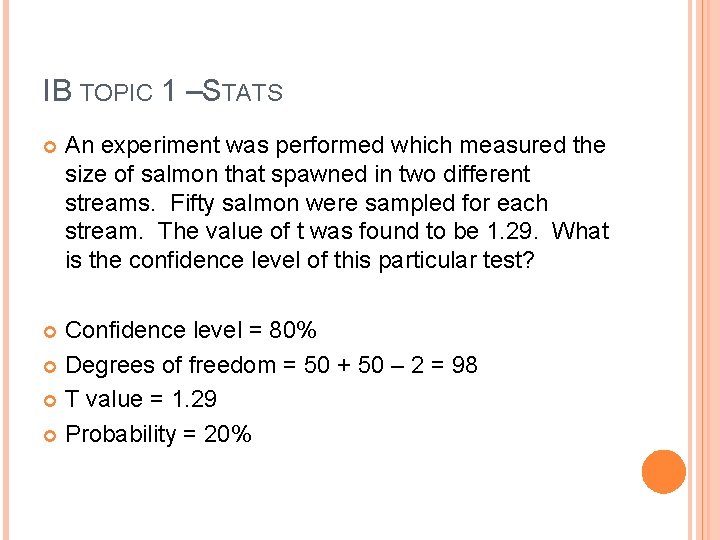

IB TOPIC 1 –STATS An experiment was performed which measured the size of salmon that spawned in two different streams. Fifty salmon were sampled for each stream. The value of t was found to be 1. 29. What is the confidence level of this particular test? Confidence level = 80% Degrees of freedom = 50 + 50 – 2 = 98 T value = 1. 29 Probability = 20%

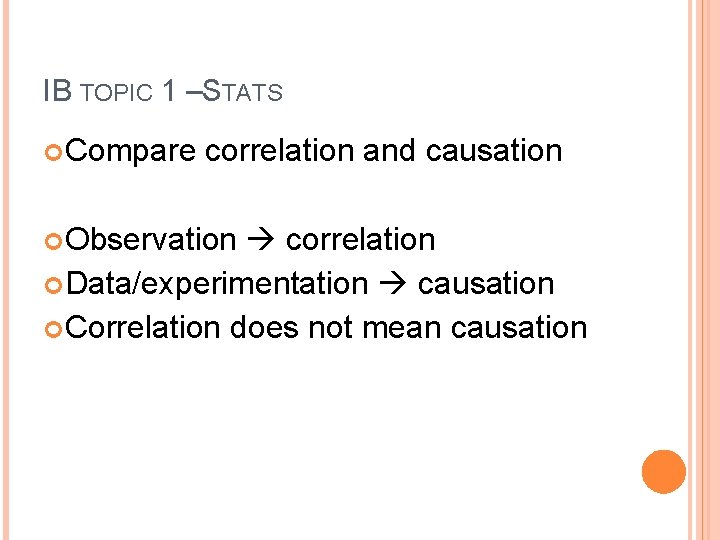

IB TOPIC 1 –STATS Compare correlation and causation Observation correlation Data/experimentation causation Correlation does not mean causation

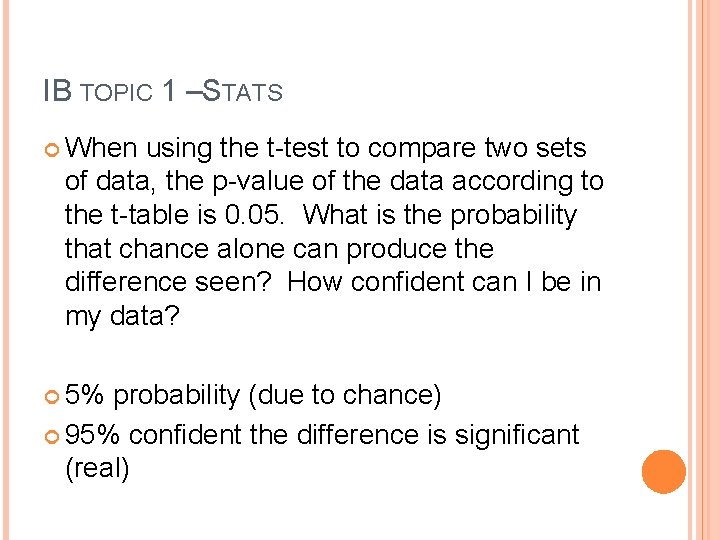

IB TOPIC 1 –STATS When using the t-test to compare two sets of data, the p-value of the data according to the t-table is 0. 05. What is the probability that chance alone can produce the difference seen? How confident can I be in my data? 5% probability (due to chance) 95% confident the difference is significant (real)

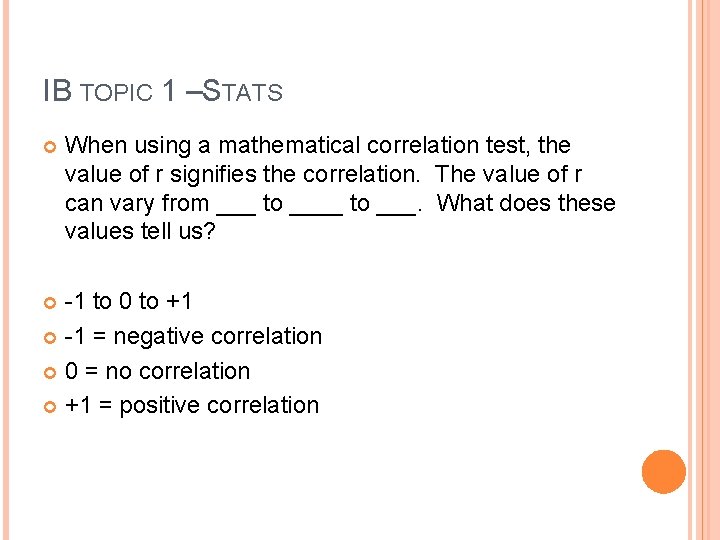

IB TOPIC 1 –STATS When using a mathematical correlation test, the value of r signifies the correlation. The value of r can vary from ___ to ___. What does these values tell us? -1 to 0 to +1 -1 = negative correlation 0 = no correlation +1 = positive correlation

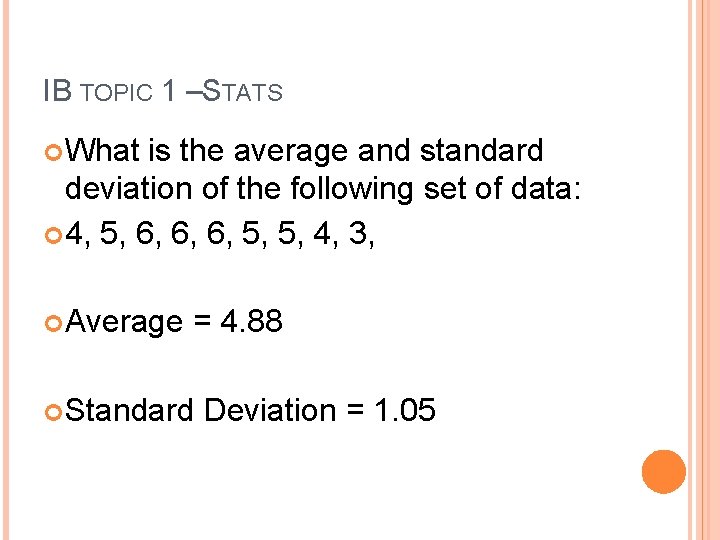

IB TOPIC 1 –STATS What is the average and standard deviation of the following set of data: 4, 5, 6, 6, 6, 5, 5, 4, 3, Average = 4. 88 Standard Deviation = 1. 05

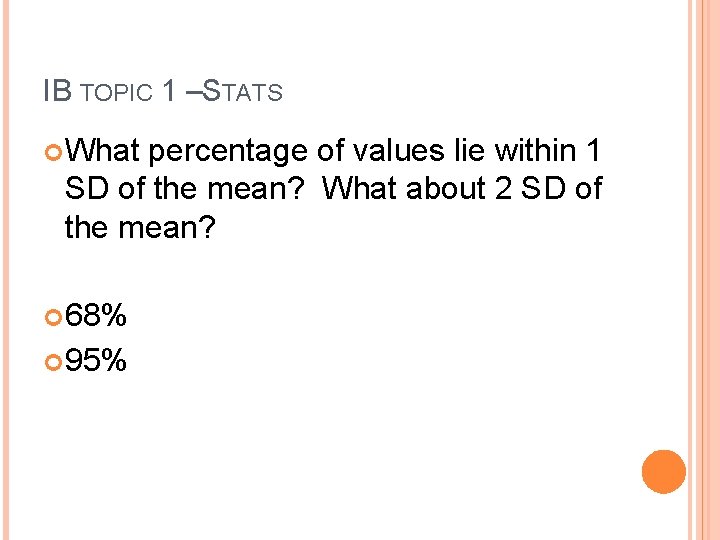

IB TOPIC 1 –STATS What percentage of values lie within 1 SD of the mean? What about 2 SD of the mean? 68% 95%

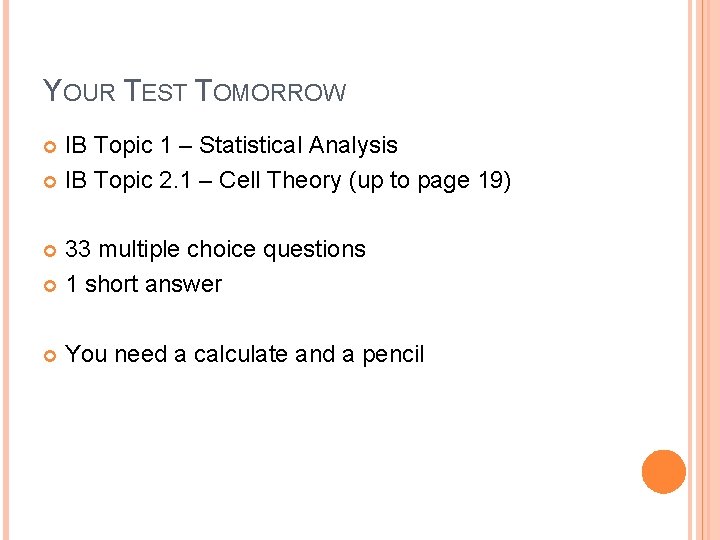

YOUR TEST TOMORROW IB Topic 1 – Statistical Analysis IB Topic 2. 1 – Cell Theory (up to page 19) 33 multiple choice questions 1 short answer You need a calculate and a pencil
