IA64 Architecture Think Intel Itanium also known as

IA-64 Architecture (Think Intel Itanium) also known as (EPIC – Extremely Parallel Instruction Computing) a new kind of superscalar computer HW 5 - Due 12/4 Please clean up boards in lab by Dec 3 * Put good wires in the box * Take chips off of the board using chip puller * Put parts away in the proper bins. * THANKS!

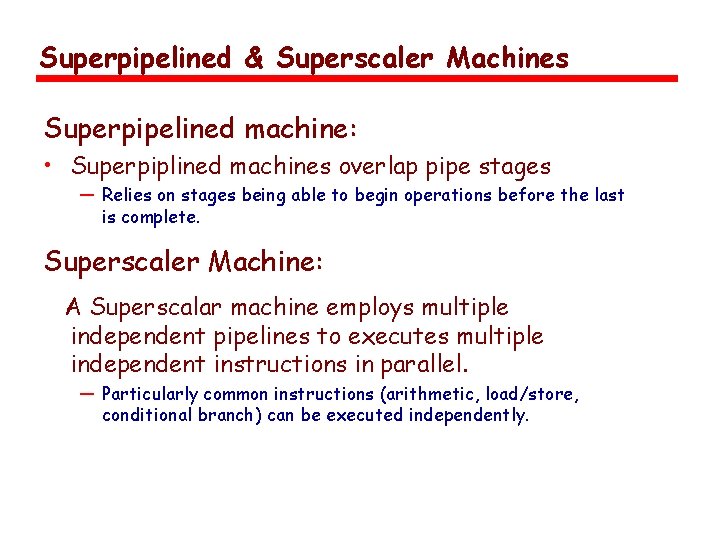

Superpipelined & Superscaler Machines Superpipelined machine: • Superpiplined machines overlap pipe stages — Relies on stages being able to begin operations before the last is complete. Superscaler Machine: A Superscalar machine employs multiple independent pipelines to executes multiple independent instructions in parallel. — Particularly common instructions (arithmetic, load/store, conditional branch) can be executed independently.

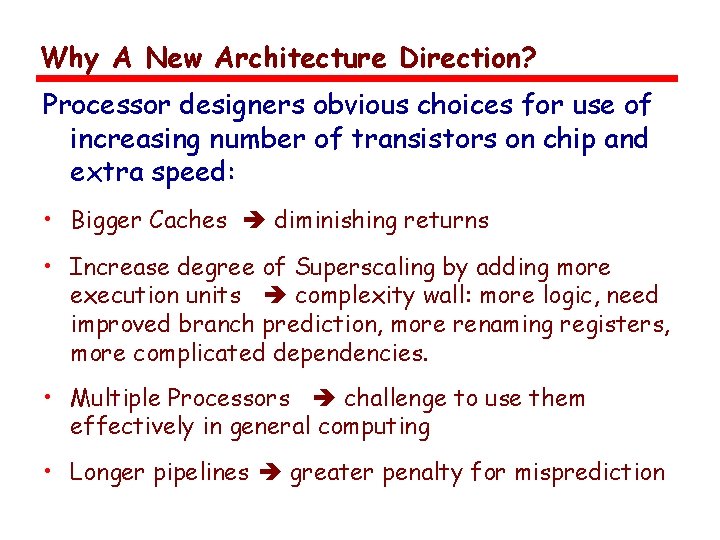

Why A New Architecture Direction? Processor designers obvious choices for use of increasing number of transistors on chip and extra speed: • Bigger Caches diminishing returns • Increase degree of Superscaling by adding more execution units complexity wall: more logic, need improved branch prediction, more renaming registers, more complicated dependencies. • Multiple Processors challenge to use them effectively in general computing • Longer pipelines greater penalty for misprediction

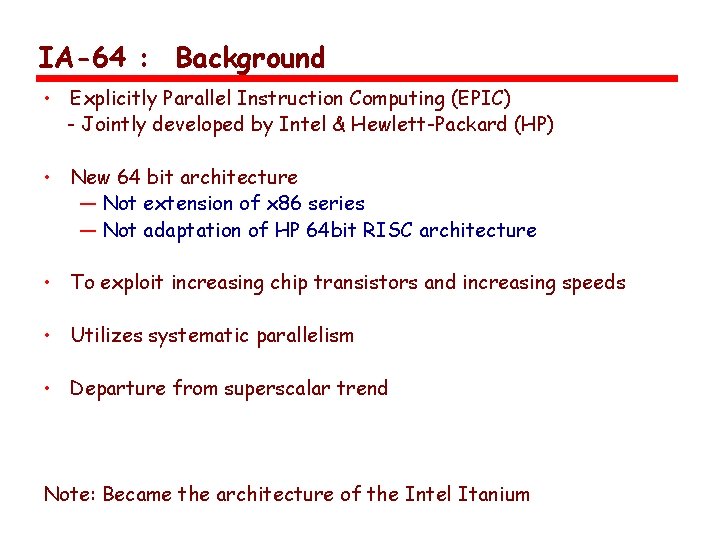

IA-64 : Background • Explicitly Parallel Instruction Computing (EPIC) - Jointly developed by Intel & Hewlett-Packard (HP) • New 64 bit architecture — Not extension of x 86 series — Not adaptation of HP 64 bit RISC architecture • To exploit increasing chip transistors and increasing speeds • Utilizes systematic parallelism • Departure from superscalar trend Note: Became the architecture of the Intel Itanium

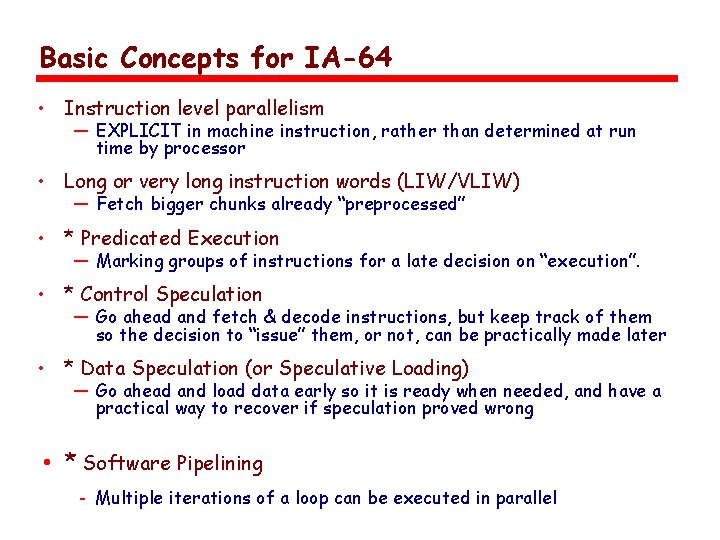

Basic Concepts for IA-64 • Instruction level parallelism — EXPLICIT in machine instruction, rather than determined at run time by processor • Long or very long instruction words (LIW/VLIW) — Fetch bigger chunks already “preprocessed” • * Predicated Execution — Marking groups of instructions for a late decision on “execution”. • * Control Speculation — Go ahead and fetch & decode instructions, but keep track of them so the decision to “issue” them, or not, can be practically made later • * Data Speculation (or Speculative Loading) — Go ahead and load data early so it is ready when needed, and have a practical way to recover if speculation proved wrong • * Software Pipelining - Multiple iterations of a loop can be executed in parallel

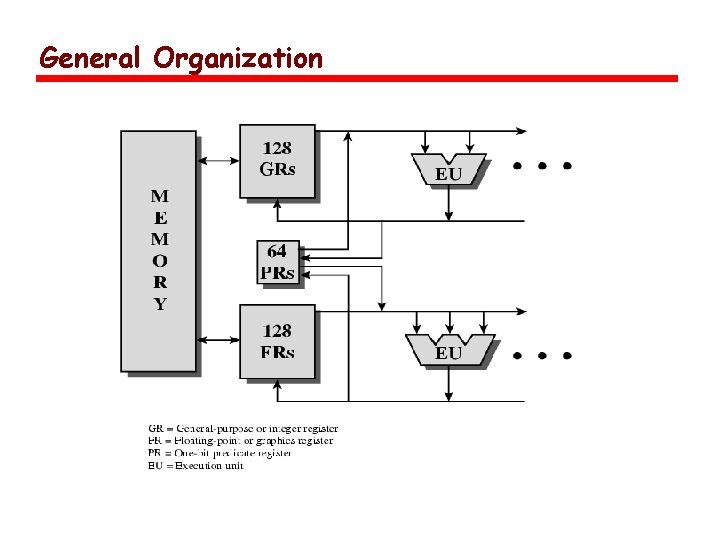

General Organization

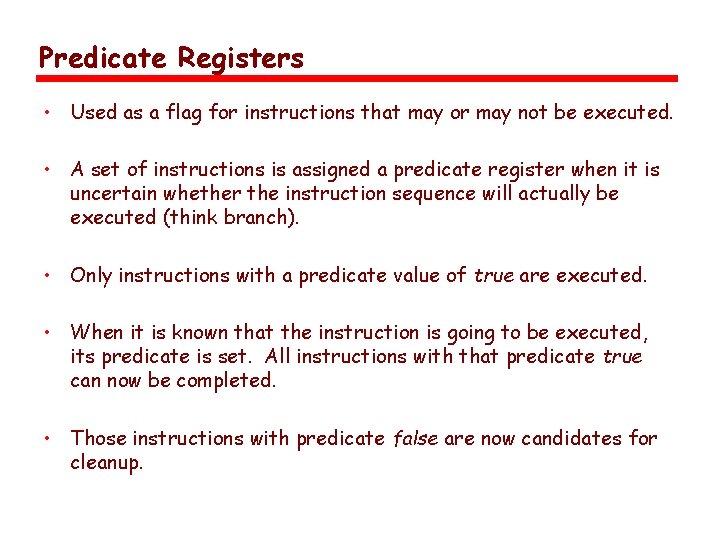

Predicate Registers • Used as a flag for instructions that may or may not be executed. • A set of instructions is assigned a predicate register when it is uncertain whether the instruction sequence will actually be executed (think branch). • Only instructions with a predicate value of true are executed. • When it is known that the instruction is going to be executed, its predicate is set. All instructions with that predicate true can now be completed. • Those instructions with predicate false are now candidates for cleanup.

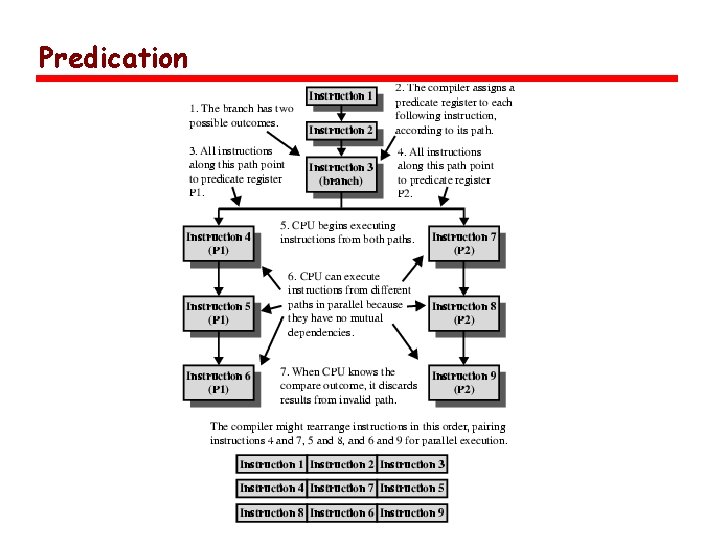

Predication

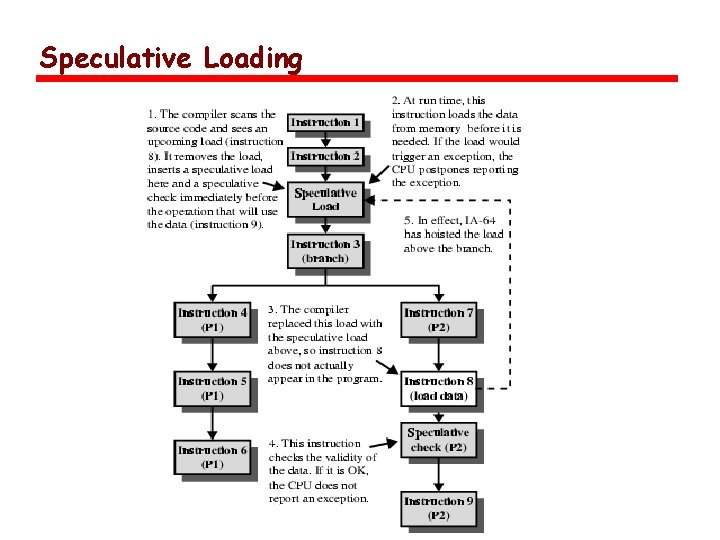

Speculative Loading

General Organization

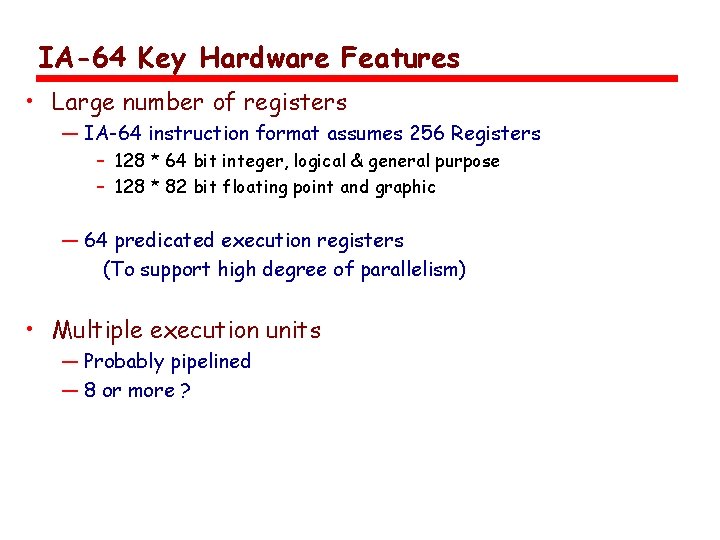

IA-64 Key Hardware Features • Large number of registers — IA-64 instruction format assumes 256 Registers – 128 * 64 bit integer, logical & general purpose – 128 * 82 bit floating point and graphic — 64 predicated execution registers (To support high degree of parallelism) • Multiple execution units — Probably pipelined — 8 or more ?

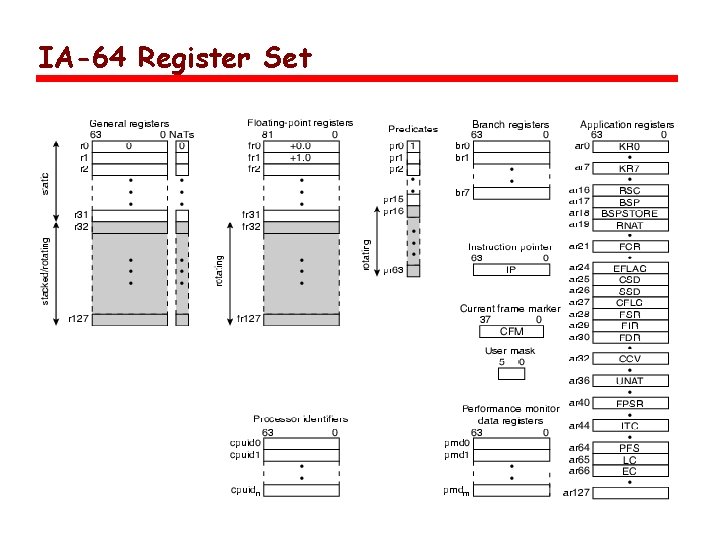

IA-64 Register Set

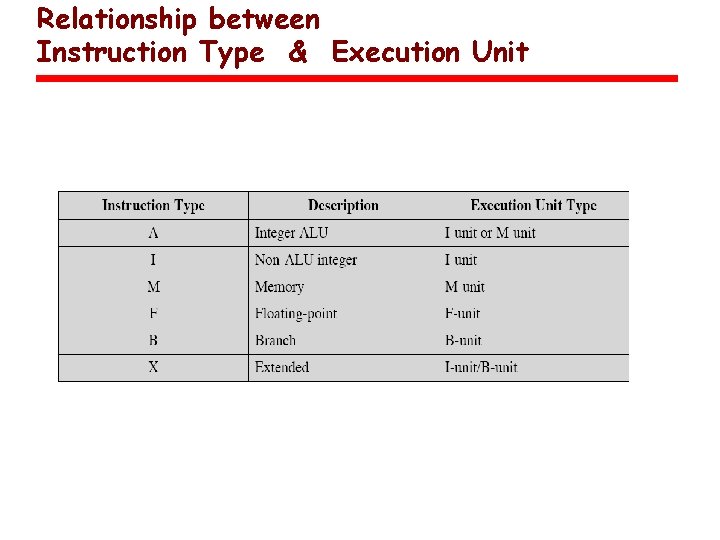

Relationship between Instruction Type & Execution Unit

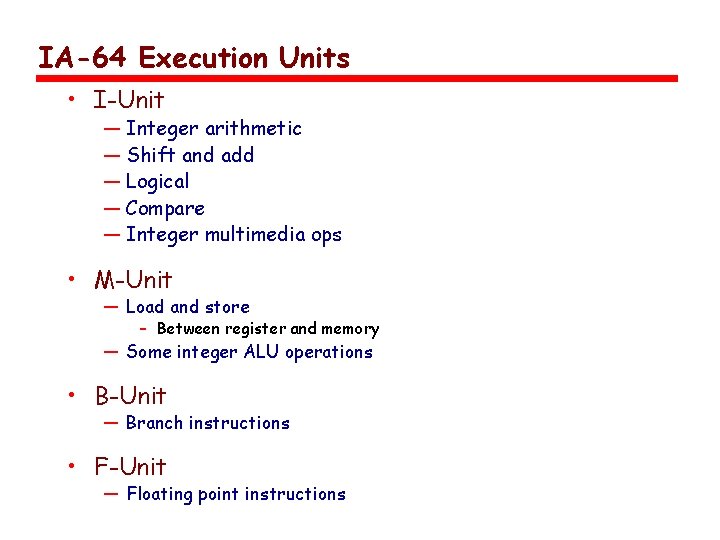

IA-64 Execution Units • I-Unit — Integer arithmetic — Shift and add — Logical — Compare — Integer multimedia ops • M-Unit — Load and store – Between register and memory — Some integer ALU operations • B-Unit — Branch instructions • F-Unit — Floating point instructions

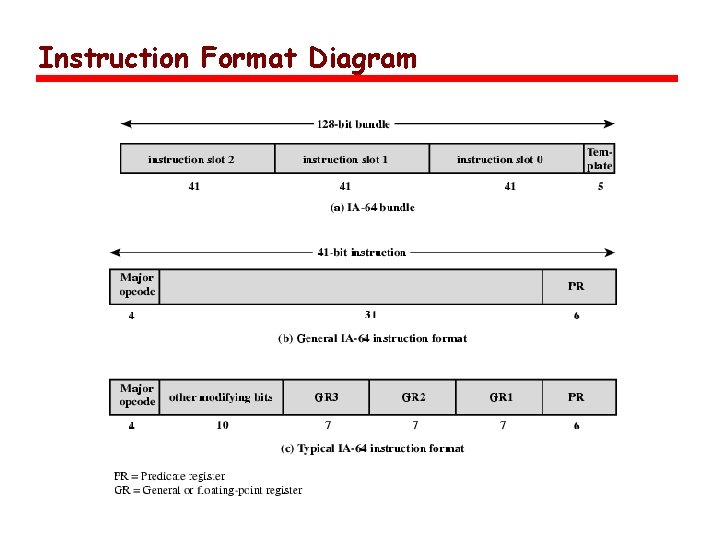

Instruction Format Diagram

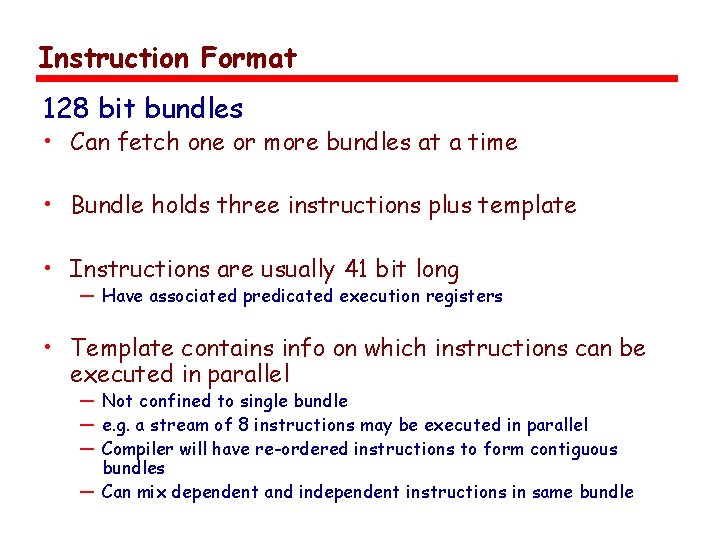

Instruction Format 128 bit bundles • Can fetch one or more bundles at a time • Bundle holds three instructions plus template • Instructions are usually 41 bit long — Have associated predicated execution registers • Template contains info on which instructions can be executed in parallel — Not confined to single bundle — e. g. a stream of 8 instructions may be executed in parallel — Compiler will have re-ordered instructions to form contiguous bundles — Can mix dependent and independent instructions in same bundle

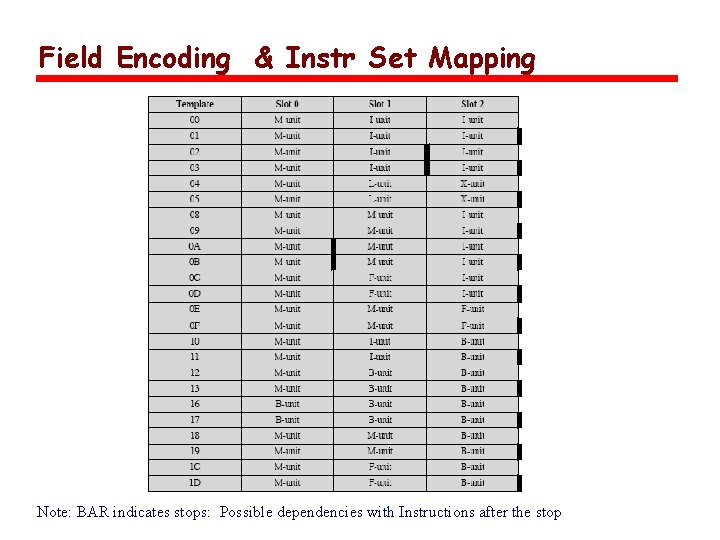

Field Encoding & Instr Set Mapping Note: BAR indicates stops: Possible dependencies with Instructions after the stop

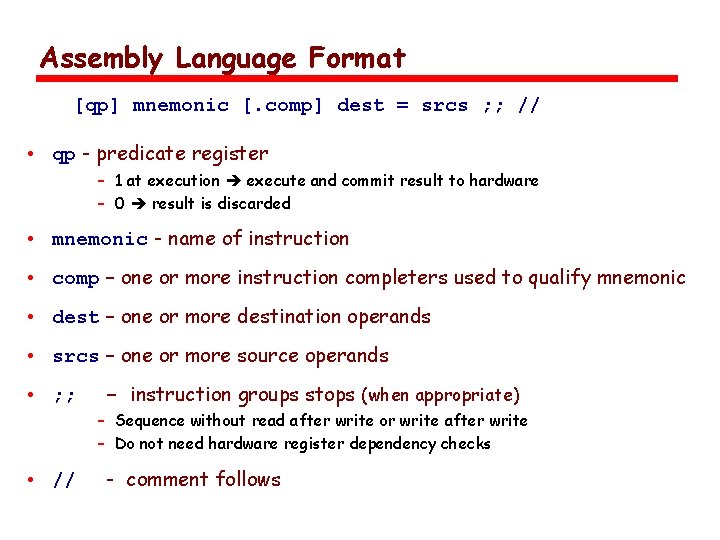

Assembly Language Format [qp] mnemonic [. comp] dest = srcs ; ; // • qp - predicate register – 1 at execution execute and commit result to hardware – 0 result is discarded • mnemonic - name of instruction • comp – one or more instruction completers used to qualify mnemonic • dest – one or more destination operands • srcs – one or more source operands • ; ; - instruction groups stops (when appropriate) – Sequence without read after write or write after write – Do not need hardware register dependency checks • // - comment follows

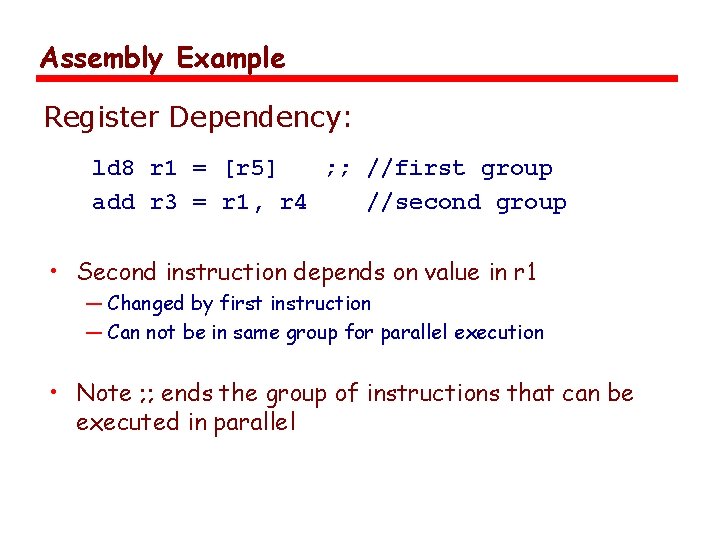

Assembly Example Register Dependency: ld 8 r 1 = [r 5] ; ; //first group add r 3 = r 1, r 4 //second group • Second instruction depends on value in r 1 — Changed by first instruction — Can not be in same group for parallel execution • Note ; ; ends the group of instructions that can be executed in parallel

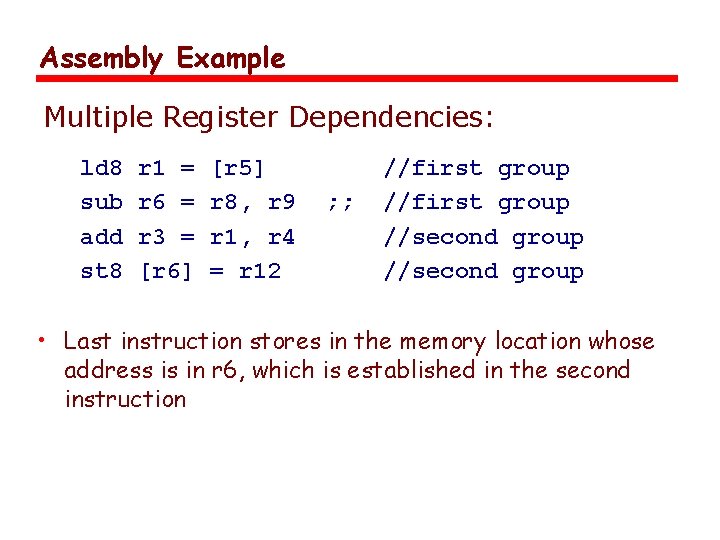

Assembly Example Multiple Register Dependencies: ld 8 sub add st 8 r 1 = r 6 = r 3 = [r 6] [r 5] r 8, r 9 r 1, r 4 = r 12 ; ; //first group //second group • Last instruction stores in the memory location whose address is in r 6, which is established in the second instruction

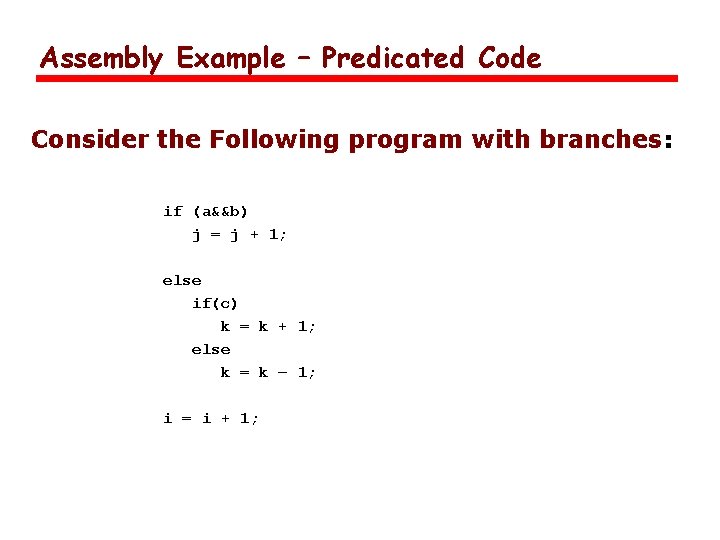

Assembly Example – Predicated Code Consider the Following program with branches: if (a&&b) j = j + 1; else if(c) k = k + 1; else k = k – 1; i = i + 1;

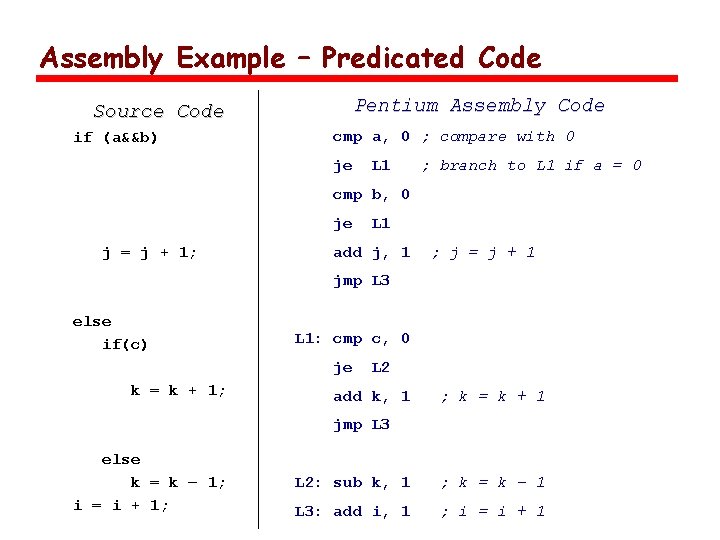

Assembly Example – Predicated Code Pentium Assembly Code Source Code if (a&&b) cmp a, 0 ; compare with 0 je L 1 ; branch to L 1 if a = 0 cmp b, 0 je j = j + 1; L 1 add j, 1 ; j = j + 1 jmp L 3 else if(c) L 1: cmp c, 0 je k = k + 1; L 2 add k, 1 ; k = k + 1 jmp L 3 else k = k – 1; i = i + 1; L 2: sub k, 1 ; k = k – 1 L 3: add i, 1 ; i = i + 1

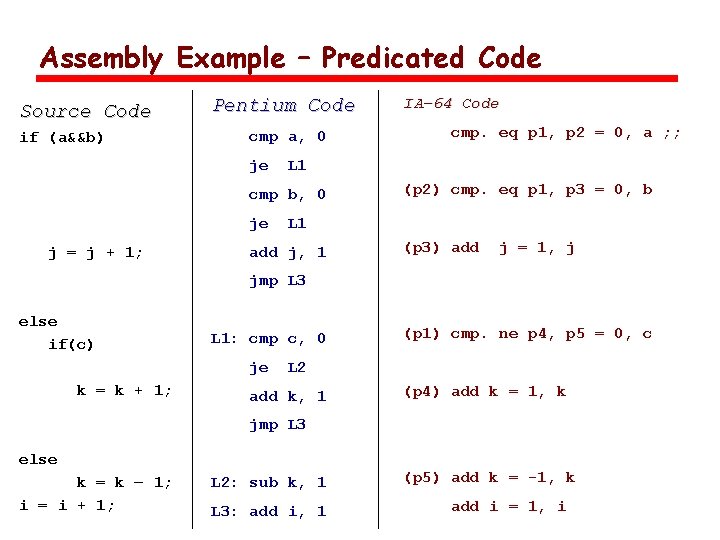

Assembly Example – Predicated Code Source Code if (a&&b) Pentium Code cmp a, 0 je j = j + 1; cmp. eq p 1, p 2 = 0, a ; ; L 1 cmp b, 0 je IA-64 Code (p 2) cmp. eq p 1, p 3 = 0, b L 1 add j, 1 (p 3) add j = 1, j jmp L 3 else if(c) L 1: cmp c, 0 je k = k + 1; (p 1) cmp. ne p 4, p 5 = 0, c L 2 add k, 1 (p 4) add k = 1, k jmp L 3 else k = k – 1; i = i + 1; L 2: sub k, 1 L 3: add i, 1 (p 5) add k = -1, k add i = 1, i

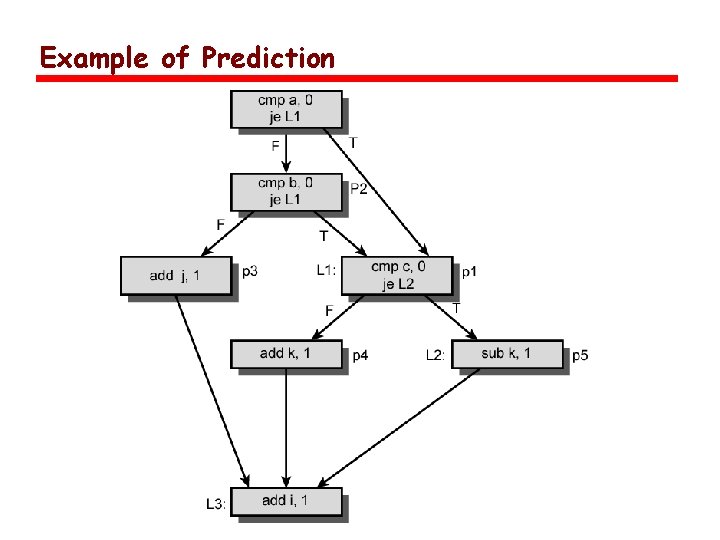

Example of Prediction

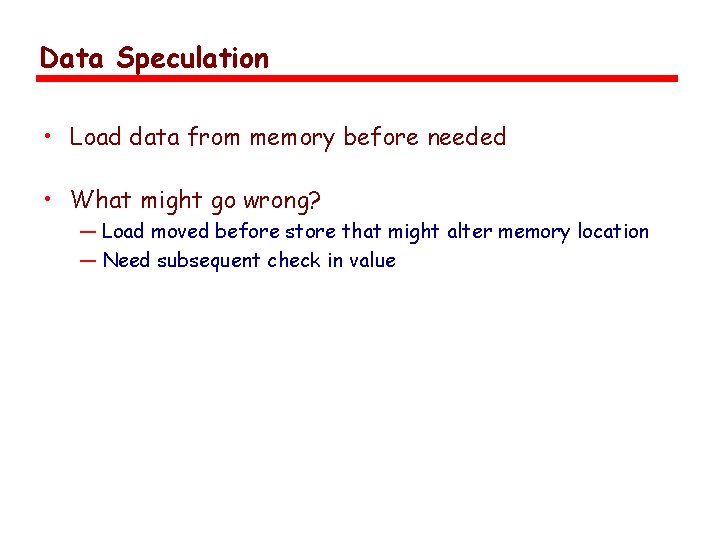

Data Speculation • Load data from memory before needed • What might go wrong? — Load moved before store that might alter memory location — Need subsequent check in value

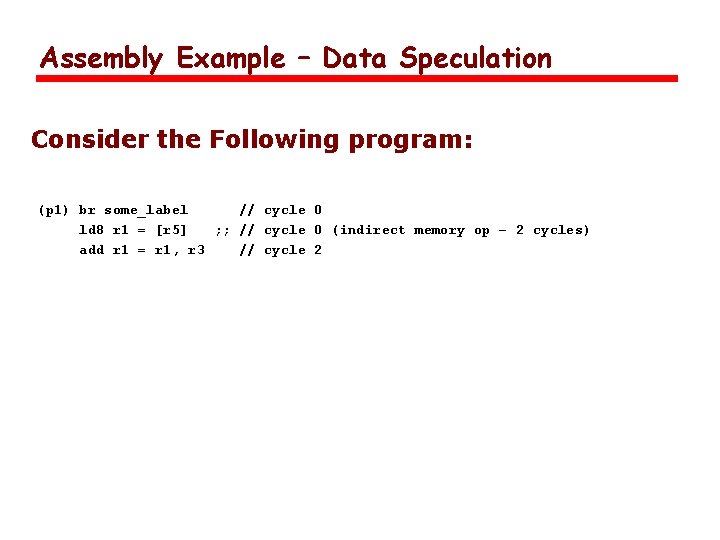

Assembly Example – Data Speculation Consider the Following program: (p 1) br some_label // cycle 0 ld 8 r 1 = [r 5] ; ; // cycle 0 (indirect memory op – 2 cycles) add r 1 = r 1, r 3 // cycle 2

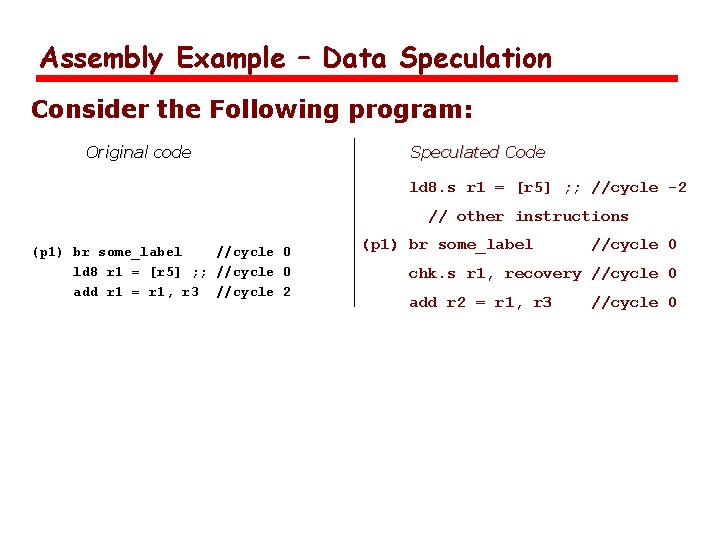

Assembly Example – Data Speculation Consider the Following program: Original code Speculated Code ld 8. s r 1 = [r 5] ; ; //cycle -2 // other instructions (p 1) br some_label //cycle 0 ld 8 r 1 = [r 5] ; ; //cycle 0 add r 1 = r 1, r 3 //cycle 2 (p 1) br some_label //cycle 0 chk. s r 1, recovery //cycle 0 add r 2 = r 1, r 3 //cycle 0

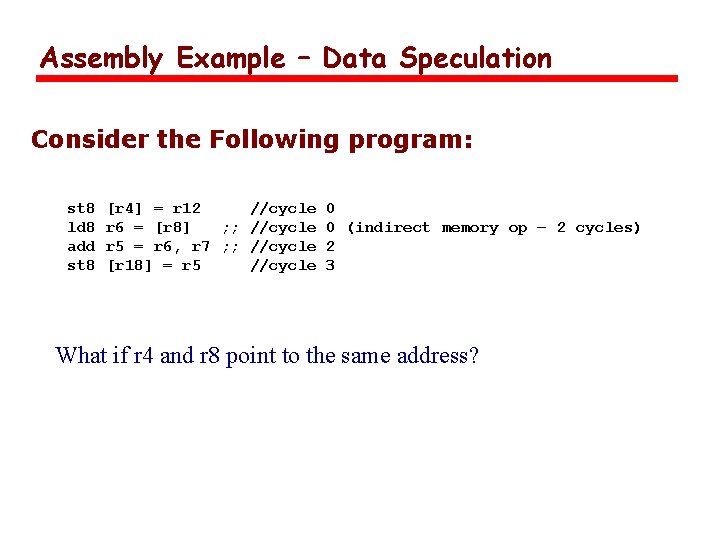

Assembly Example – Data Speculation Consider the Following program: st 8 ld 8 add st 8 [r 4] = r 12 //cycle 0 r 6 = [r 8] ; ; //cycle 0 (indirect memory op – 2 cycles) r 5 = r 6, r 7 ; ; //cycle 2 [r 18] = r 5 //cycle 3 What if r 4 and r 8 point to the same address?

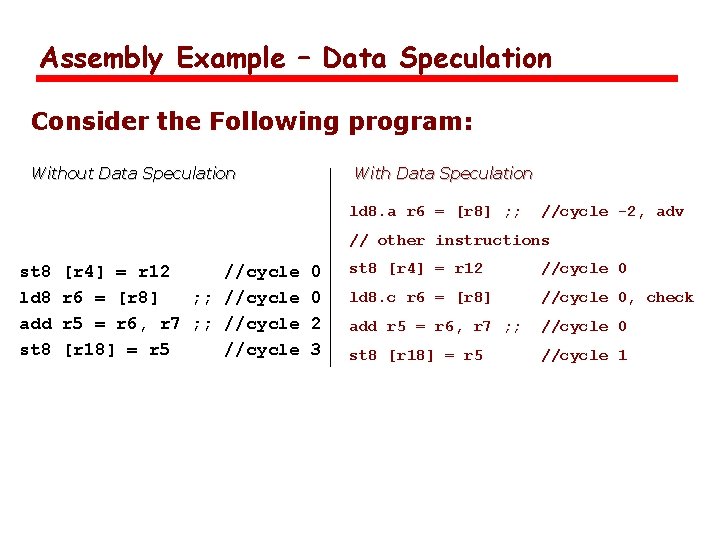

Assembly Example – Data Speculation Consider the Following program: Without Data Speculation With Data Speculation ld 8. a r 6 = [r 8] ; ; //cycle -2, adv // other instructions st 8 ld 8 add st 8 [r 4] = r 12 //cycle 0 r 6 = [r 8] ; ; //cycle 0 r 5 = r 6, r 7 ; ; //cycle 2 [r 18] = r 5 //cycle 3 st 8 [r 4] = r 12 //cycle 0 ld 8. c r 6 = [r 8] //cycle 0, check add r 5 = r 6, r 7 ; ; //cycle 0 st 8 [r 18] = r 5 //cycle 1

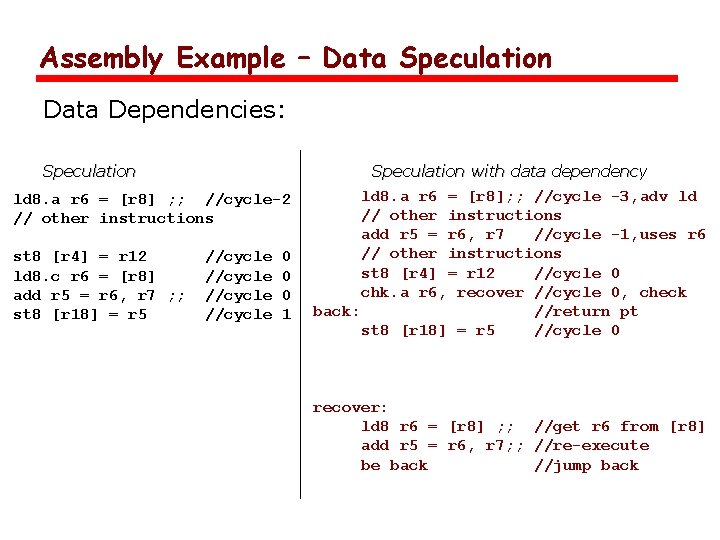

Assembly Example – Data Speculation Data Dependencies: Speculation ld 8. a r 6 = [r 8] ; ; //cycle-2 // other instructions st 8 [r 4] = r 12 ld 8. c r 6 = [r 8] add r 5 = r 6, r 7 ; ; st 8 [r 18] = r 5 //cycle 0 0 0 1 Speculation with data dependency ld 8. a r 6 = [r 8]; ; //cycle -3, adv ld // other instructions add r 5 = r 6, r 7 //cycle -1, uses r 6 // other instructions st 8 [r 4] = r 12 //cycle 0 chk. a r 6, recover //cycle 0, check back: //return pt st 8 [r 18] = r 5 //cycle 0 recover: ld 8 r 6 = [r 8] ; ; //get r 6 from [r 8] add r 5 = r 6, r 7; ; //re-execute be back //jump back

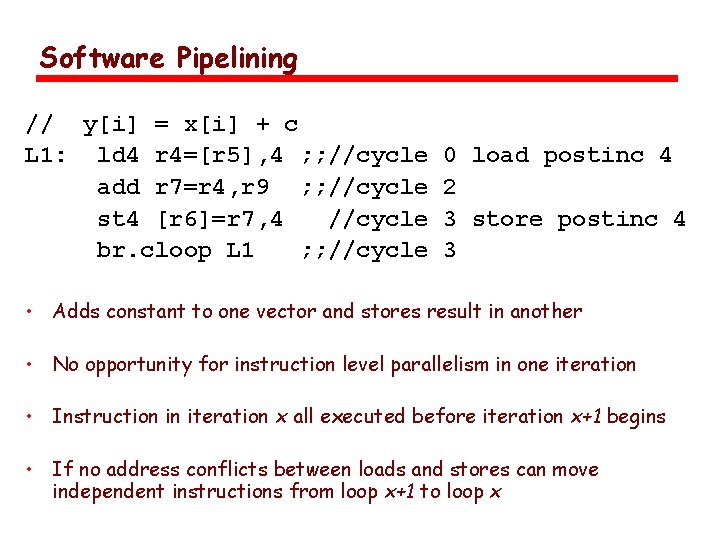

Software Pipelining // y[i] = x[i] + c L 1: ld 4 r 4=[r 5], 4 ; ; //cycle add r 7=r 4, r 9 ; ; //cycle st 4 [r 6]=r 7, 4 //cycle br. cloop L 1 ; ; //cycle 0 load postinc 4 2 3 store postinc 4 3 • Adds constant to one vector and stores result in another • No opportunity for instruction level parallelism in one iteration • Instruction in iteration x all executed before iteration x+1 begins • If no address conflicts between loads and stores can move independent instructions from loop x+1 to loop x

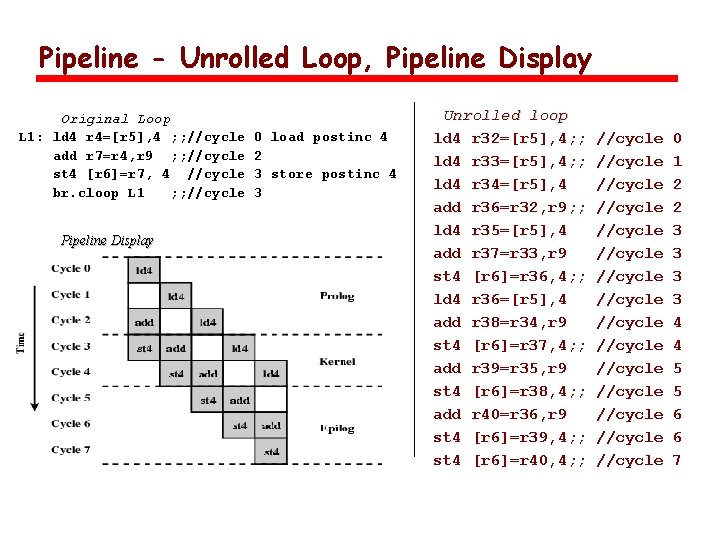

Pipeline - Unrolled Loop, Pipeline Display Original Loop L 1: ld 4 r 4=[r 5], 4 ; ; //cycle add r 7=r 4, r 9 ; ; //cycle st 4 [r 6]=r 7, 4 //cycle br. cloop L 1 ; ; //cycle Pipeline Display 0 load postinc 4 2 3 store postinc 4 3 Unrolled loop ld 4 r 32=[r 5], 4; ; ld 4 r 33=[r 5], 4; ; ld 4 r 34=[r 5], 4 add r 36=r 32, r 9; ; ld 4 r 35=[r 5], 4 add r 37=r 33, r 9 st 4 [r 6]=r 36, 4; ; ld 4 r 36=[r 5], 4 add r 38=r 34, r 9 st 4 [r 6]=r 37, 4; ; add r 39=r 35, r 9 st 4 [r 6]=r 38, 4; ; add r 40=r 36, r 9 st 4 [r 6]=r 39, 4; ; st 4 [r 6]=r 40, 4; ; //cycle //cycle //cycle //cycle 0 1 2 2 3 3 4 4 5 5 6 6 7

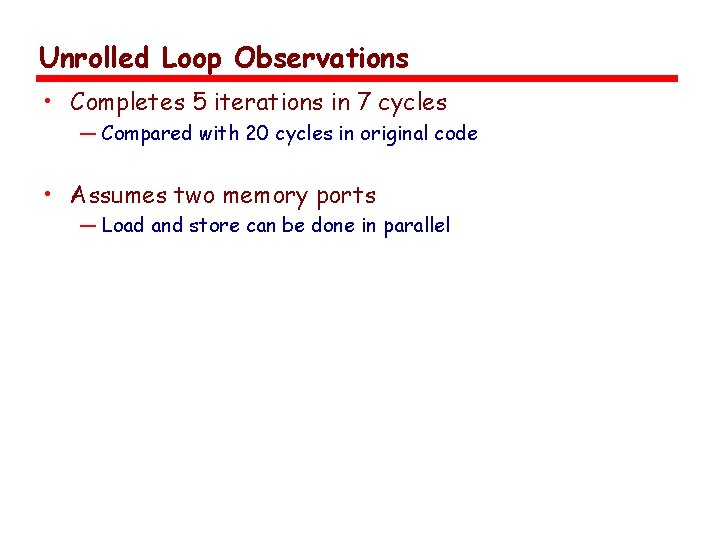

Unrolled Loop Observations • Completes 5 iterations in 7 cycles — Compared with 20 cycles in original code • Assumes two memory ports — Load and store can be done in parallel

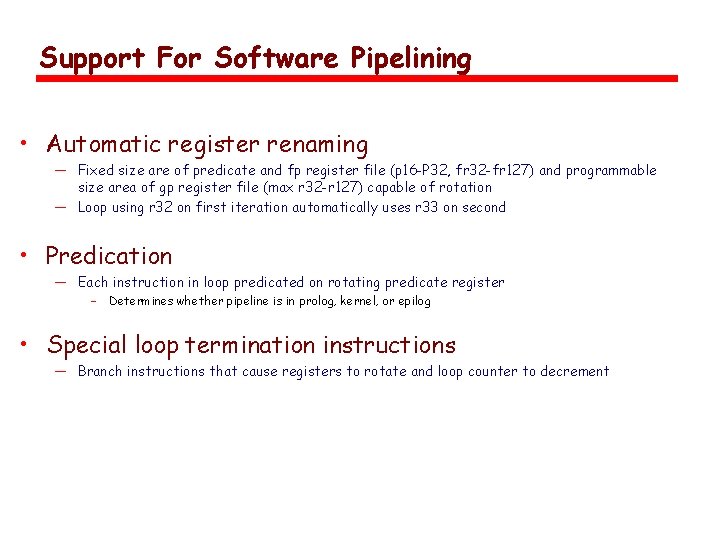

Support For Software Pipelining • Automatic register renaming — Fixed size are of predicate and fp register file (p 16 -P 32, fr 32 -fr 127) and programmable size area of gp register file (max r 32 -r 127) capable of rotation — Loop using r 32 on first iteration automatically uses r 33 on second • Predication — Each instruction in loop predicated on rotating predicate register – Determines whether pipeline is in prolog, kernel, or epilog • Special loop termination instructions — Branch instructions that cause registers to rotate and loop counter to decrement

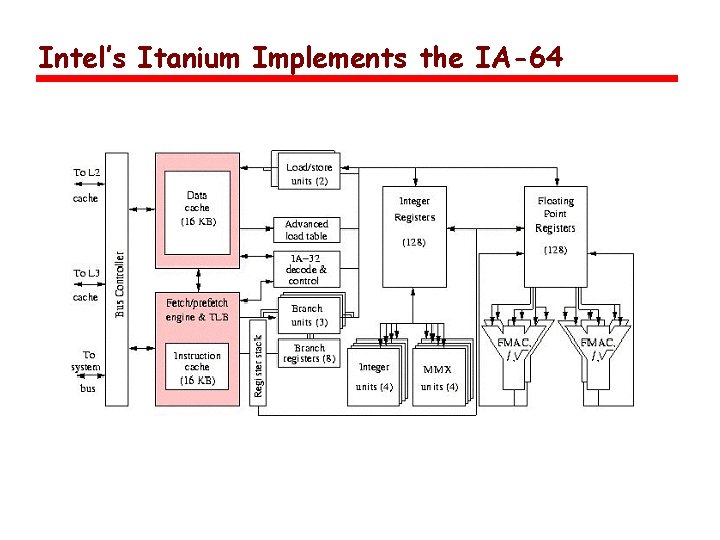

Intel’s Itanium Implements the IA-64
