I Microbial growth II Environmental effects on microbial
I. Microbial growth II. Environmental effects on microbial growth

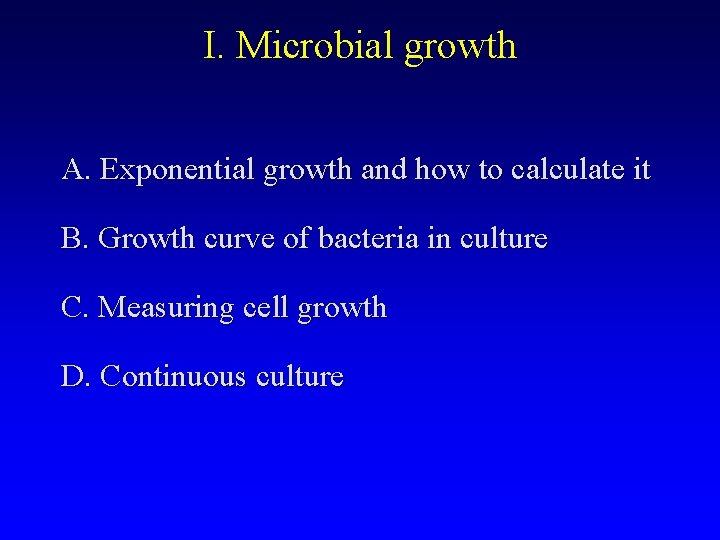

I. Microbial growth A. Exponential growth and how to calculate it B. Growth curve of bacteria in culture C. Measuring cell growth D. Continuous culture
I. Microbial growth A. Exponential growth and how to calculate it
Exponential growth
Text Fig. 7. 16
Generation time (g) (or Doubling time) -- the time required for a population of cells to ______. Or: the time required for one cell to become ______. For this example, g = ______
Estimating generation times ___ hr
Estimating generation times (cont. ) ___ hr

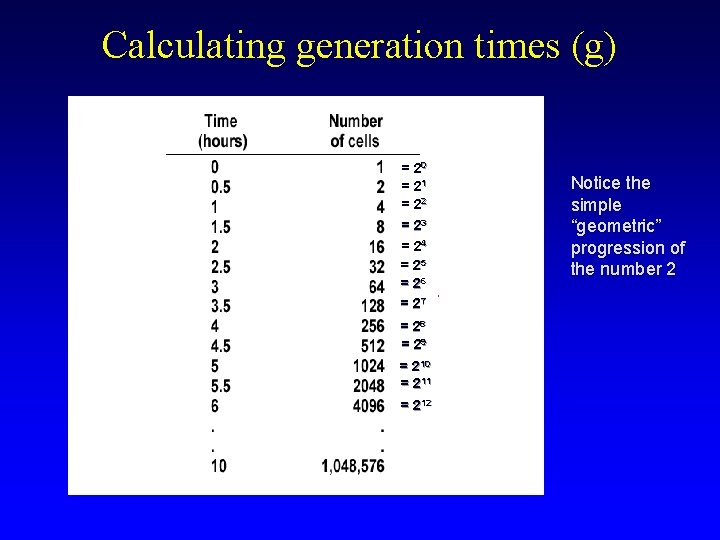

Calculating generation times (g) = 20 = 21 = 22 = 23 = 24 = 25 = 26 = 27 = 28 = 29 = 210 = 211 = 212 Notice the simple “geometric” progression of the number 2

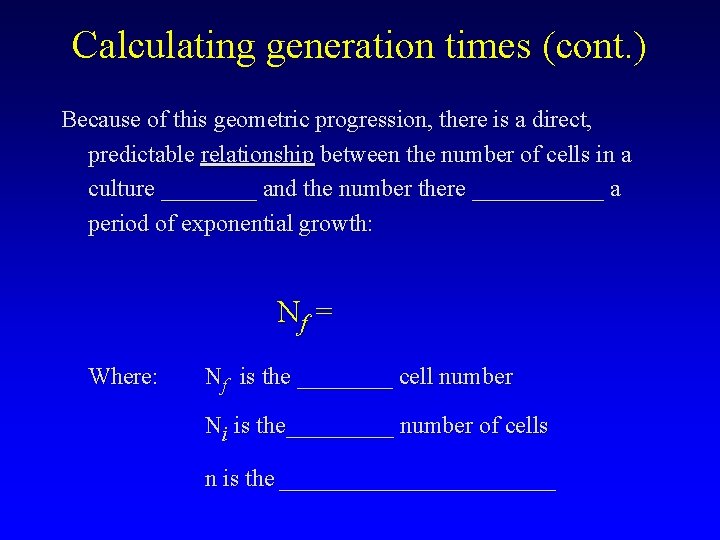

Calculating generation times (cont. ) Because of this geometric progression, there is a direct, predictable relationship between the number of cells in a culture ____ and the number there ______ a period of exponential growth: Nf = Where: Nf is the ____ cell number Ni is the_____ number of cells n is the ____________
Calculating generation times (cont. ) Nf = (Ni)2 n So, if we start with 20 Salmonella cells in a potato salad sitting on your warm kitchen counter, with a 30 minute generation time, how many cells will there be after 8 hours? To get the # of generations (n), divide 8 hours by 30 minutes to get 16: Nf = (20)2 ___ Nf = (20)(_______) = 1, 310, 720 cells
A single bacterium with a generation time of 20 minutes would, growing exponentially for 48 hours, produce a population weighing approx. 4000 times the weight of the earth! (And a single bacterium weighs approx. one-trillionth of a gram) Why haven’t bacteria, then, grown to fill the entire earth? Why aren’t we knee deep in them? Answer: eventually something _____ their _____. Such as? --lack of _____, build up of ______, environmental conditions, predation, etc.
The Bacterial Growth Curve
Text Fig. 7. 17 _____ phase -- period after inoculation of a culture before growth begins. Exponential phase -- period of exponential growth ________ phase -- period in which growth ceases Death phase -- period in which cells die off

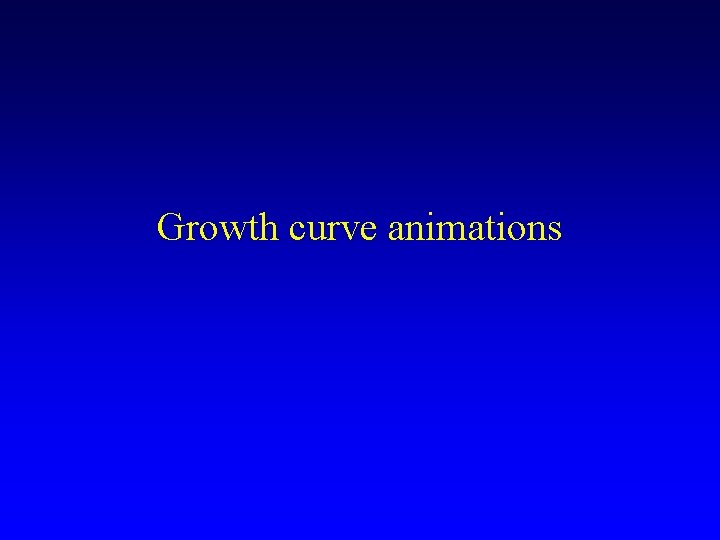

Growth curve animations
How do we measure growth? • Total cells count (or “direct microscopic counts” or just “______”) • Viable counts (also called “______” or “colony counts”) • Measurements of cell mass and _______
a. k. a “direct counts”, “total cells counts” Text Fig. 7. 16
Viable count Sample pipetted onto agar surface Sample spread evenly over surface Incubation Typical results _______ plate method Sample pipetted into sterile plate Sterile medium added and mixed well with inoculum Incubation Typical results
Viable counts using ___________
Measurements of cell mass and turbidity 1. Measuring __________ : centrifuge organisms and _____ them (usually dried). Cell mass is proportional to cell number 2. Measuring ________ : measure cloudiness of a cell suspension by light scattering. Turbidity is proportional to cell number, also

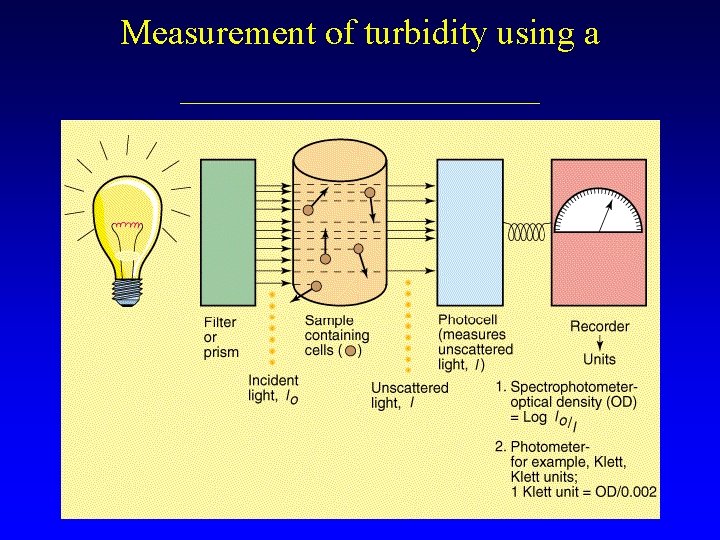

Measurement of turbidity using a __________

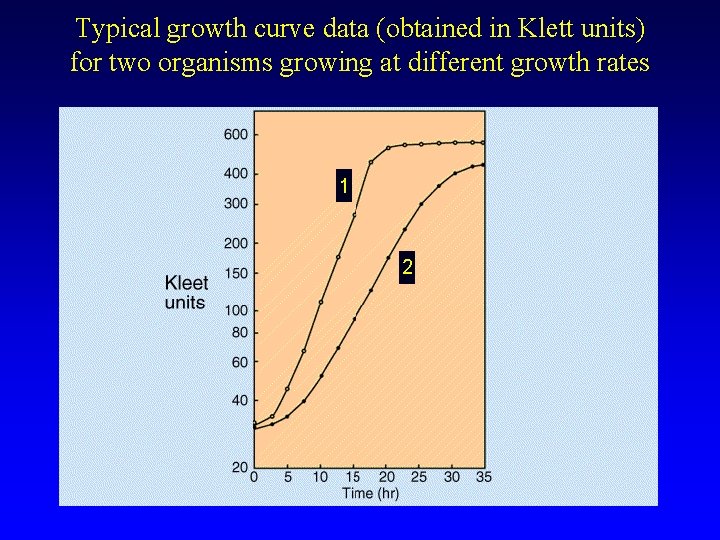

Typical growth curve data (obtained in Klett units) for two organisms growing at different growth rates 1 2
Cell number or dry weight and turbidity are __________ In other words, once you know one, you can figure out the other if you know their relationship
Chemostat -- a device for continuous culture
Effect of environmental factors on microorganisms 1) Important to distinguish between effects on _______ (whether the cells survive) and effects on ______ (including reproduction). 2) Important factors: _____________ oxygen availability
Effect of temperature on growth rate • • Each microorganism has a minimum, maximum, and ______ Organisms can be classified by temperature Text Fig. 7. 16
Effect of temperature on growth rate
Boulder Spring, a boiling spring in Yellowstone National Park
Growth of thermophilic cyanobacteria in Grand Prismatic Spring, Yellowstone
Photomicrograph of a bacterial _________ which developed on a microscope slide immersed in a boiling spring

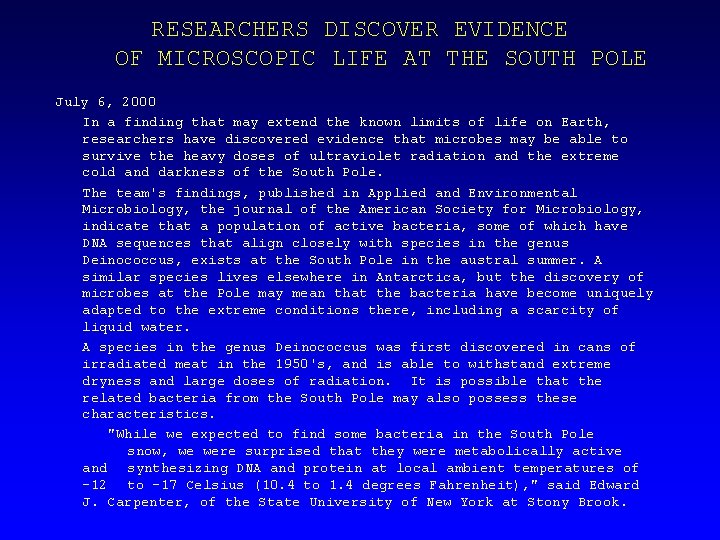

RESEARCHERS DISCOVER EVIDENCE OF MICROSCOPIC LIFE AT THE SOUTH POLE July 6, 2000 In a finding that may extend the known limits of life on Earth, researchers have discovered evidence that microbes may be able to survive the heavy doses of ultraviolet radiation and the extreme cold and darkness of the South Pole. The team's findings, published in Applied and Environmental Microbiology, the journal of the American Society for Microbiology, indicate that a population of active bacteria, some of which have DNA sequences that align closely with species in the genus Deinococcus, exists at the South Pole in the austral summer. A similar species lives elsewhere in Antarctica, but the discovery of microbes at the Pole may mean that the bacteria have become uniquely adapted to the extreme conditions there, including a scarcity of liquid water. A species in the genus Deinococcus was first discovered in cans of irradiated meat in the 1950's, and is able to withstand extreme dryness and large doses of radiation. It is possible that the related bacteria from the South Pole may also possess these characteristics. "While we expected to find some bacteria in the South Pole snow, we were surprised that they were metabolically active and synthesizing DNA and protein at local ambient temperatures of -12 to -17 Celsius (10. 4 to 1. 4 degrees Fahrenheit), " said Edward J. Carpenter, of the State University of New York at Stony Brook.
Effects of p. H ________ Cytoplasmic p. H ________
Effects of salt (sodium ion concentration) on ___________ of various microorganisms
Text Fig. 7. 16

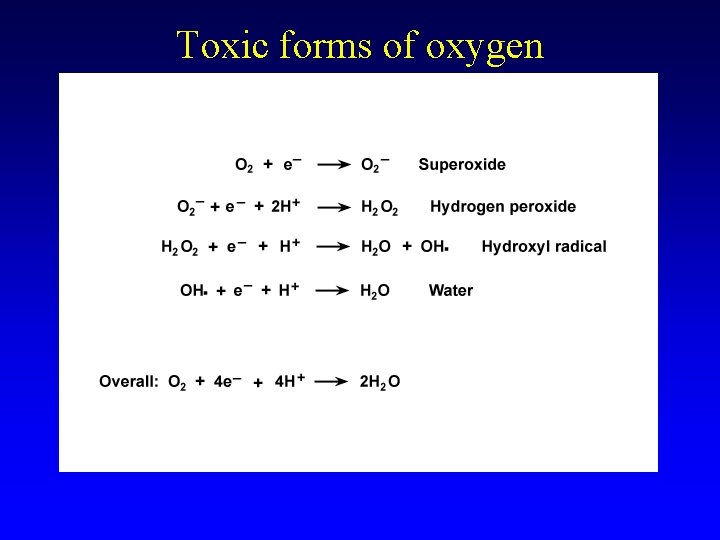

Toxic forms of oxygen
Enzymes acting on toxic oxygen species
Method for testing a microbial culture for the presence of ______
