I Electric Charge Electric charge an electric property

  • Slides: 32
Download presentation

I. Electric Charge § Electric charge – an electric property of matter that creates

I. Electric Charge § Electric charge – an electric property of matter that creates a force between objects

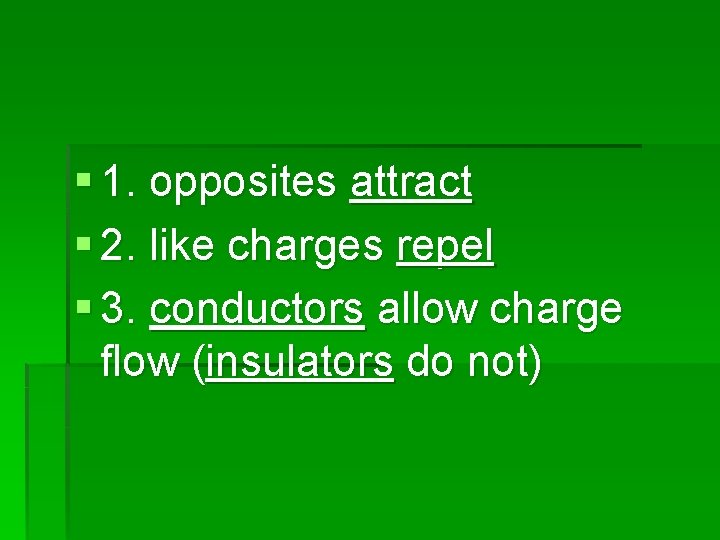

§ 1. opposites attract § 2. like charges repel § 3. conductors allow charge

§ 1. opposites attract § 2. like charges repel § 3. conductors allow charge flow (insulators do not)

3. Conductors allow charges flow (insulators do not) § Ex. Appliance Cords 4. Objects

3. Conductors allow charges flow (insulators do not) § Ex. Appliance Cords 4. Objects can be charged by the transfer of electrons Ex. You slide across the fabric car seat some electrons can be transferred form on material to another (charged by friction)

II. Electric Force § Force of attraction or repulsion between objects due to charge

II. Electric Force § Force of attraction or repulsion between objects due to charge § 1. Electric force depends on charge and distance § 2. Electric force acts through a field § Electric field – the region around a charged object in which other charged objects experience

Like charges field lines

Like charges field lines

Opposite charges

Opposite charges

D. Static Electricity and Charging § Charge can be transferred by friction, by contact,

D. Static Electricity and Charging § Charge can be transferred by friction, by contact, and by induction § Law of conservation of charge : The total charge in an isolated system is constant

1. Charging by friction

1. Charging by friction

2. Charge by contact

2. Charge by contact

3. Charge by induction

3. Charge by induction

Current § I. Voltage and Current § Electrical potential energy – potential energy of

Current § I. Voltage and Current § Electrical potential energy – potential energy of a charged object due to its position in an electric field § 1. Potential Difference is measured in volts (often called voltage)

2. There is voltage across the terminals of a battery

2. There is voltage across the terminals of a battery

3. Cell § Device that is a source of electric current § They convert

3. Cell § Device that is a source of electric current § They convert chemical energy to electrical energy § They contain electrolytes( conduct electricity) § They contain 2 electrodes with different conducting materials

4. Voltage § Sets charges in motion § Current – rate that electric charges

4. Voltage § Sets charges in motion § Current – rate that electric charges move through a conductor § SI unit for current = Ampere (Amp)

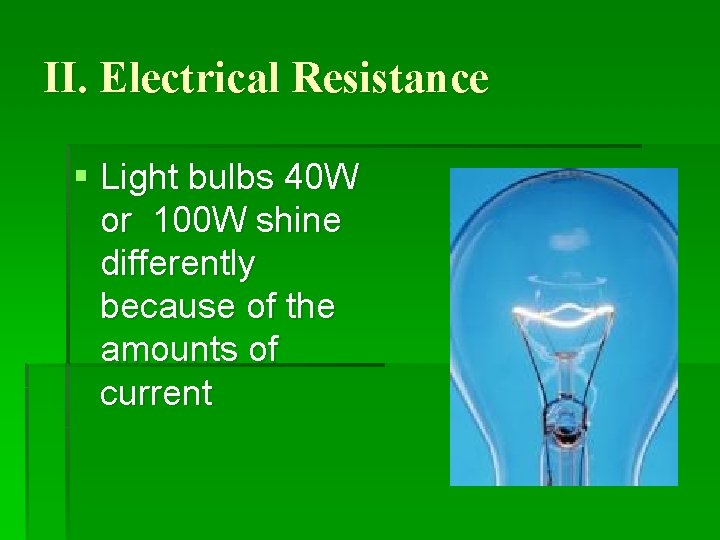

II. Electrical Resistance § Light bulbs 40 W or 100 W shine differently because

II. Electrical Resistance § Light bulbs 40 W or 100 W shine differently because of the amounts of current

1. Different current is due to their resistance § Resistance- ratio of the voltage

1. Different current is due to their resistance § Resistance- ratio of the voltage across a conductor to the current it carries § R = V/ I or Resistance = voltage/current § SI units § Resistance= ohm (Ω) § Voltage = Volts (V) § Current = Amperes ( amp)

Example 1. § What resistance would produce a current of 150 ampere with a

Example 1. § What resistance would produce a current of 150 ampere with a potential difference of 5000 volts? R=V/I § R = 5000/50 § R = 33. 3Ω

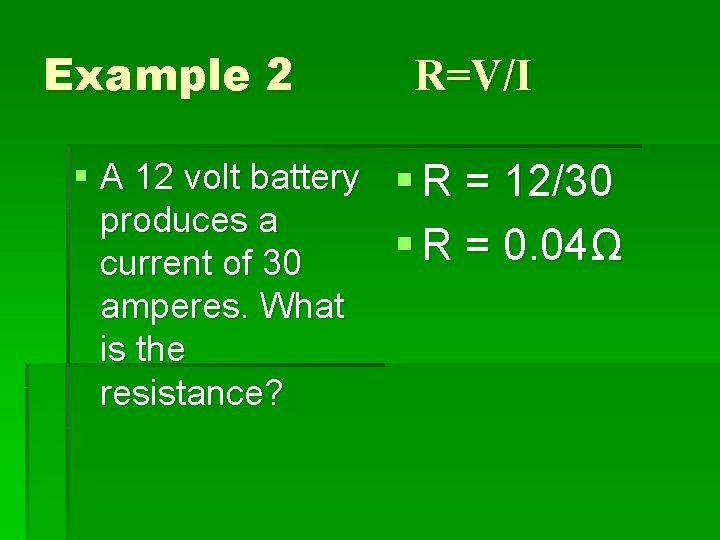

Example 2 § A 12 volt battery produces a current of 30 amperes. What

Example 2 § A 12 volt battery produces a current of 30 amperes. What is the resistance? R=V/I § R = 12/30 § R = 0. 04Ω

Example 3 § Find the current when a 12 -volt battery is connected through

Example 3 § Find the current when a 12 -volt battery is connected through a resistance of 36 ohms. R=V/I § § § I = V/R I = 12/36 I=. 333 amps

3. Conductors have low resistance § 4. Some materials become superconductors below a certain

3. Conductors have low resistance § 4. Some materials become superconductors below a certain temperature. § Critical temperature- falls below a -272°C and -123°C § Superconductor : niobium, tin, mercury, oxygen

5. Insulators have high resistance § Grounding is an important part of electrical safety.

5. Insulators have high resistance § Grounding is an important part of electrical safety. (provide a pathway for the current to leave the charged object) § 6. Semiconductors- in pure state they are insulators

I. Circuits § Electric circuit- device connected so that it provides one or more

I. Circuits § Electric circuit- device connected so that it provides one or more complete paths for movement

II. Series Circuits § Seriesdescribes a circuit or portion of circuit that provides a

II. Series Circuits § Seriesdescribes a circuit or portion of circuit that provides a single conducting path

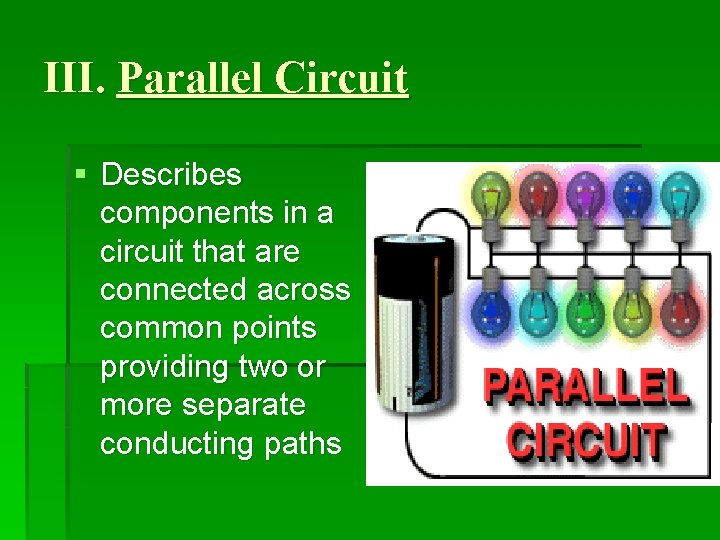

III. Parallel Circuit § Describes components in a circuit that are connected across common

III. Parallel Circuit § Describes components in a circuit that are connected across common points providing two or more separate conducting paths

Identify the following as series or parallel

Identify the following as series or parallel

IV. Electric Power and Electric Energy § § § 1. Power = Current x

IV. Electric Power and Electric Energy § § § 1. Power = Current x Voltage Or P = IV SI UNITS: Power = Watts Current = amperes Voltage = Volts

Example 1. P = IV § A 6 - volt battery § P =

Example 1. P = IV § A 6 - volt battery § P = 6 x 0. 05 produces a current § P = 0. 3 of 0. 05 amps. What is the power in the circuit?

§ 2. Electric companies measure energy consumed in kilowatts and hours § 1 k.

§ 2. Electric companies measure energy consumed in kilowatts and hours § 1 k. W x hour = 3. 6 x 106 J § V. Fuses and Circuits Breakers § Two or more wires touch = short circuit

V. Fuses and Circuits Breakers Two or more wires touch = short circuit §

V. Fuses and Circuits Breakers Two or more wires touch = short circuit § 1. Fuses – an electrical device containing a metal strip that melts when current becomes too great

2. Circuit Breaker § Device that protects a circuit from current overloads

2. Circuit Breaker § Device that protects a circuit from current overloads

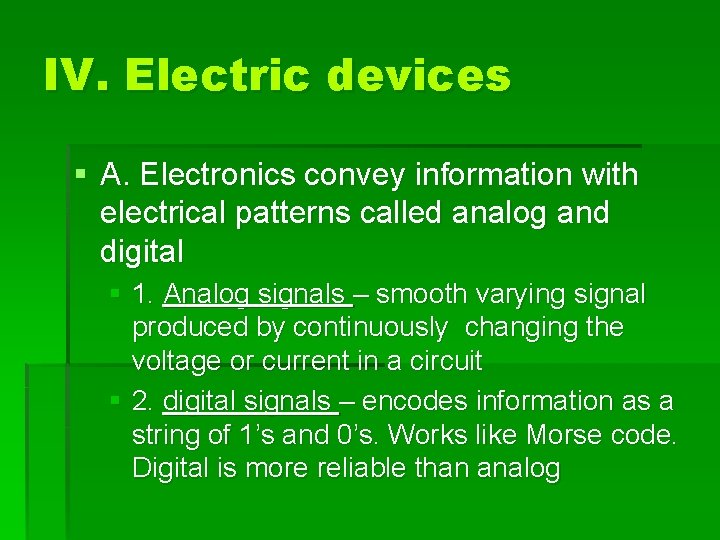

IV. Electric devices § A. Electronics convey information with electrical patterns called analog and

IV. Electric devices § A. Electronics convey information with electrical patterns called analog and digital § 1. Analog signals – smooth varying signal produced by continuously changing the voltage or current in a circuit § 2. digital signals – encodes information as a string of 1’s and 0’s. Works like Morse code. Digital is more reliable than analog
