i DCS 100 Cabinet construction based on existing
i. DCS 100 • Cabinet construction based on existing Compact 2 • 3 Expansion slots in main cabinet • 2 types of expansion cabinet – Expn A – Expn B

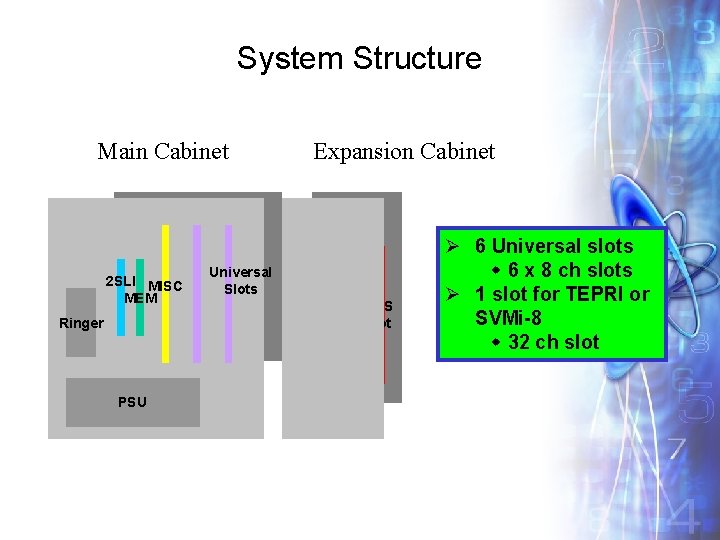

System Structure Main Cabinet 2 SLI MISC MEM Ringer PSU Universal Slots Expansion Cabinet Universal Slots DCS slot Ø 6 Universal slots w 6 x 8 ch slots Ø 1 slot for TEPRI or SVMi-8 w 32 ch slot
Basic Cabinet 2 SLI MISC MEM Ringer PSU Slots for expansion cards Ø Expanded memory size from 2 MB to 3 MB Ø Support both existing cards and new cards (Backward Compatibility)

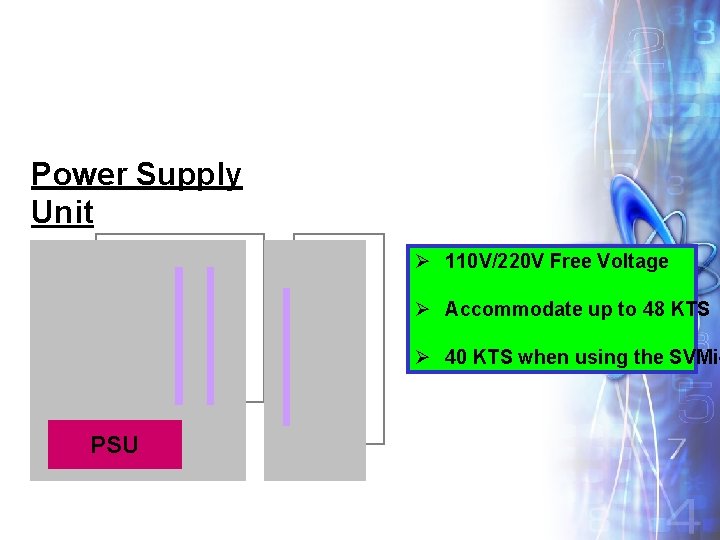

Power Supply Unit Ø 110 V/220 V Free Voltage Ø Accommodate up to 48 KTS Ø 40 KTS when using the SVMi- PSU
Expansion Cabinet A Slots for CII & i. DCS 100 cards Slot for DCS card Ø Highway channel relocation First 3 Slots support 8 port cards Last Slot(4 th) supports 32 po cards – PRI, TEPRI or SVMi-8 Ø Support both existing cards and new cards (Backward Compatibility)
Expansion Cabinet B Slots for CII & i. DCS 100 cards Slot for DCS card Ø Highway channel relocation First 2 Slots support 8 port cards Slot 3 for SVMi-8 Last Slot(4 th) supports 32 po cards – PRI or TEPRI Ø Support both existing cards and new cards (Backward Compatibility)
Memory Cards Ø Memory Card - Two Options: w MEM 3 (EPROM) - 3 MB w MEM 4 (flash memory) - 8 MB plus LAN and SIO interface Windows Vo. IP PCMMC MEM 3 YES 3 MB EPROM MEM 4 Flash memory YES w/ LAN TEPRI Q-SIG LAN SIO S/W MISC Upload YES NO NO NO 9. 6 K NO YES YES 19. 2 K YES

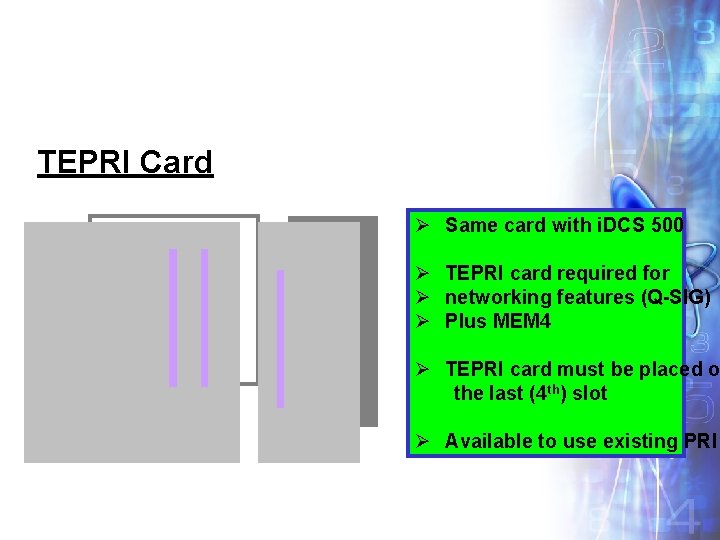

TEPRI Card Ø Same card with i. DCS 500 T E P R I Ø TEPRI card required for Ø networking features (Q-SIG) Ø Plus MEM 4 Ø TEPRI card must be placed o the last (4 th) slot Ø Available to use existing PRI
Vo. IP Board I T M 3 Minimize i. DCS 100 Sized Card Ø New ITM 3 card for i. DCS 100 Ø H. 323 V 3 Ø 8 Channels maximum
System Capacities • • Total Capacity - approximately 100 ports Extensions Digital - 48 max Analogue - 48 max OPX – 2 PSTN trunks – 36 BRI - 24 channels PRI - 30 channels Vo. IP - 8 channels
System Capacities • Auto Attendant - 4 channels – 12 levels – ACD group comfort messages • I/O ports – 2 serial on MISC card – LAN 10/100 base T plus extra I/O port- MEM 4 Card required – Internal Modem for remote system access • Voicemail – SVMi-4 (Flash memory) - 4 ports – SVMi-8 (HDD) - 8 ports • takes up last slot in Expansion cabinet
System Capacities • DECT – 3 Base Stations – 24 Handsets • Miscellaneous – MOH • 1 internal, 2 External, Voicemail – – Internal Paging - 4 groups External Paging - 4 groups Common Bell Alarm Contact
Motherboard • • 8 Digital keyphone Interfaces [2 B + D] 1 External MOH port 1 Internal MOH source 1 Paging Port 3 Universal Slots Provision for PLL board Provision for Ringer Module
Interface Cards • • • 2 SLI Memory Board Misc. 1 Card Misc. 2 Card Modem Card PLL
Interface Cards • • • 3 TRK - loop start + 2 PFT 6 TRK - loop start + 2 PFT 8 DLI [1 B + D] 8 SLI AA Card

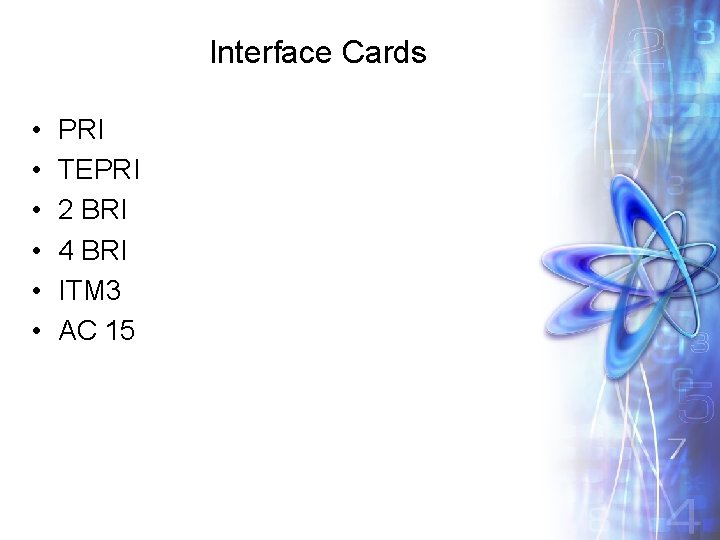

Interface Cards • • • PRI TEPRI 2 BRI 4 BRI ITM 3 AC 15

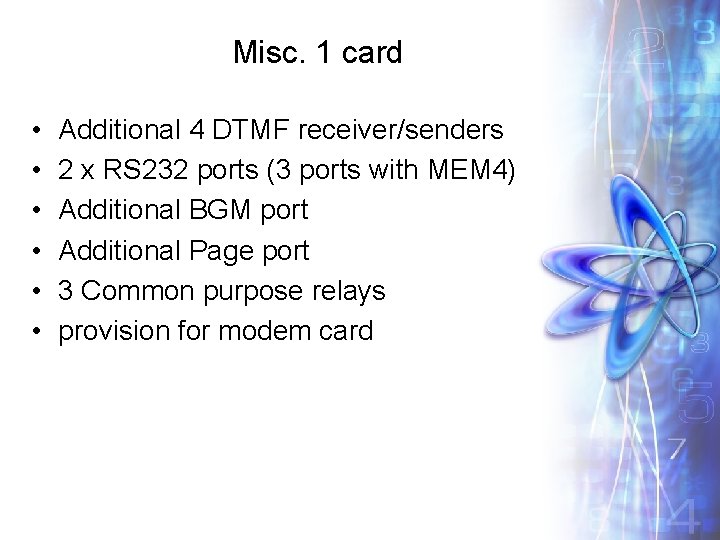

Misc. 1 card • • • Additional 4 DTMF receiver/senders 2 x RS 232 ports (3 ports with MEM 4) Additional BGM port Additional Page port 3 Common purpose relays provision for modem card
Misc. 2 card • As per the Miscellaneous 1 • Plus a 4 port AA

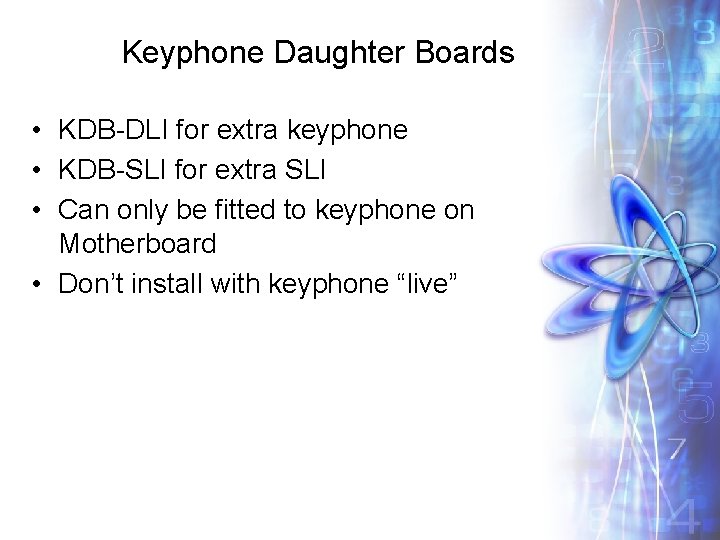

Keyphone Daughter Boards • KDB-DLI for extra keyphone • KDB-SLI for extra SLI • Can only be fitted to keyphone on Motherboard • Don’t install with keyphone “live”
i. DCS 100 Installation • P 1 for connections on motherboard
i. DCS 100 Installation • P 2 for connections on the 3 expansion slots
i. DCS 100 Installation • Ringer Unit required for any SLI extensions

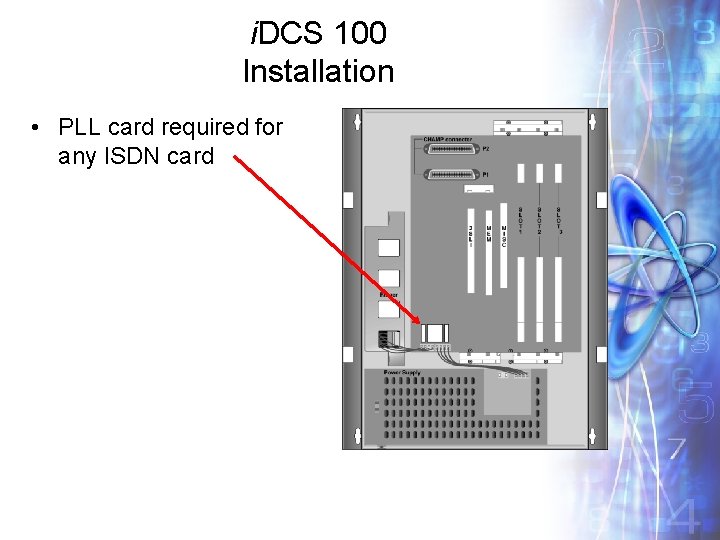

i. DCS 100 Installation • PLL card required for any ISDN card

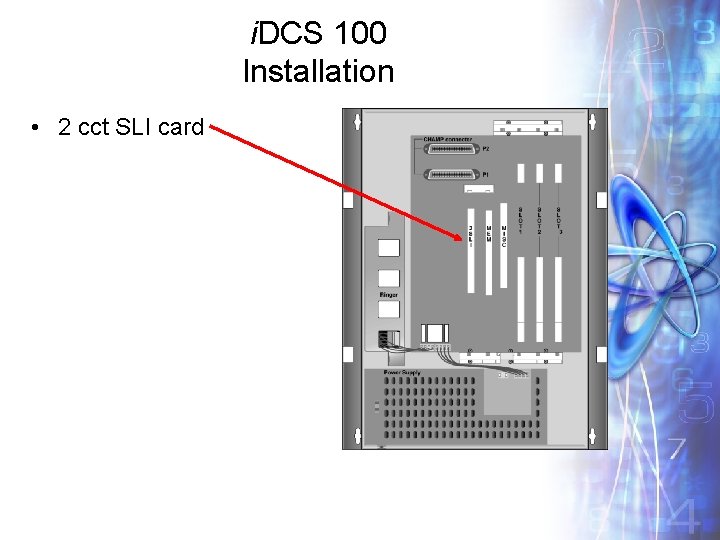

i. DCS 100 Installation • 2 cct SLI card

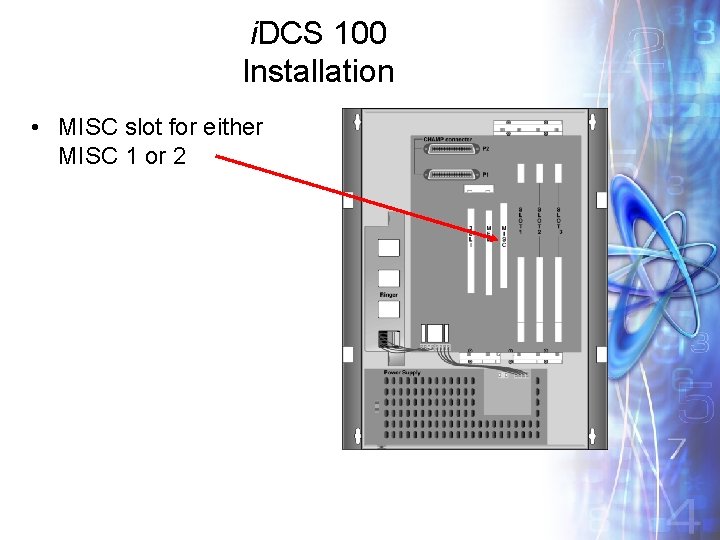

i. DCS 100 Installation • MISC slot for either MISC 1 or 2

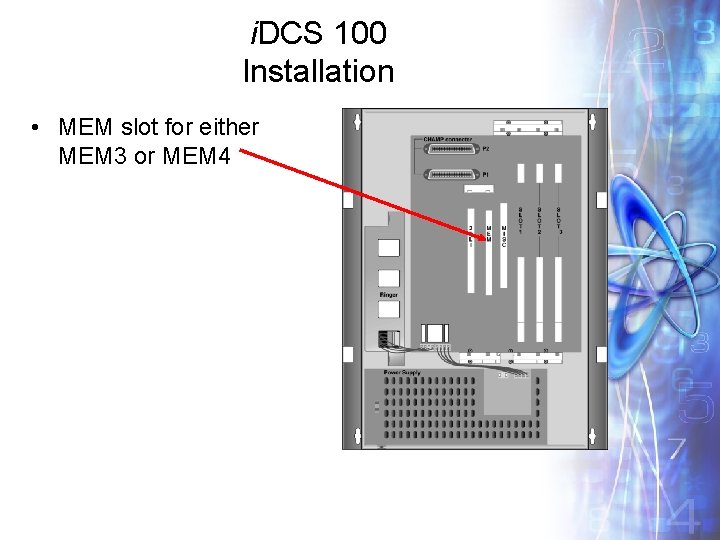

i. DCS 100 Installation • MEM slot for either MEM 3 or MEM 4
i. DCS 100 Installation • 3 expansion slots for DLI card, SLI card, BRI card etc

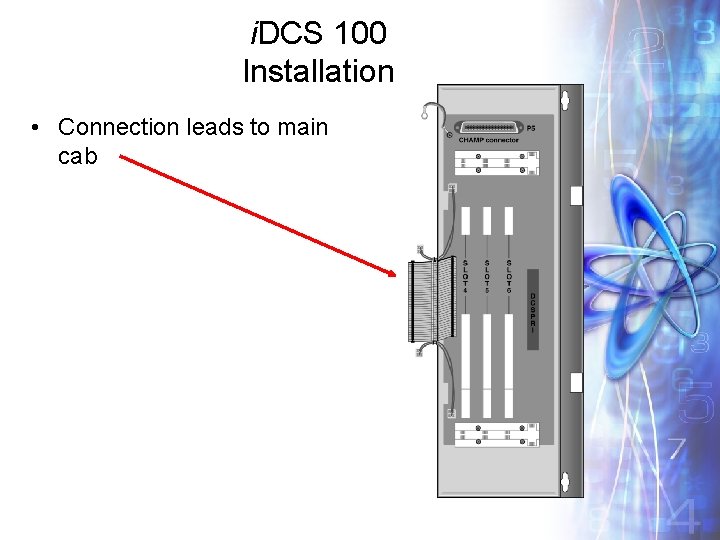

i. DCS 100 Installation • Connection leads to main cab

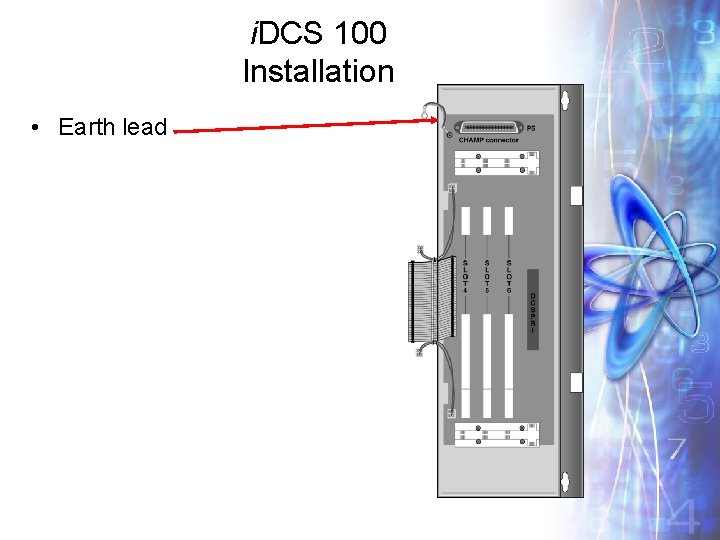

i. DCS 100 Installation • Earth lead

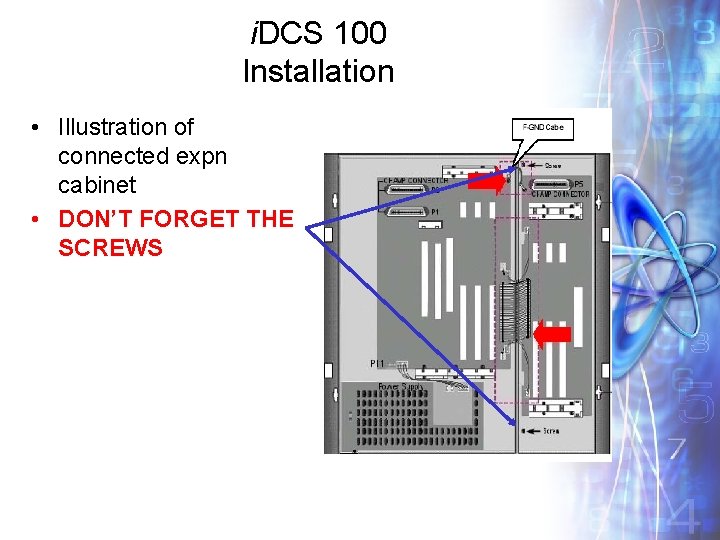

i. DCS 100 Installation • Illustration of connected expn cabinet • DON’T FORGET THE SCREWS
i. DCS 100 Installation • P 5 for connections on 3 expansion cards
Doorphone Interface Module • DPIM can be fitted to all systems • Connects to DLI port
24 Button Display Keyphone

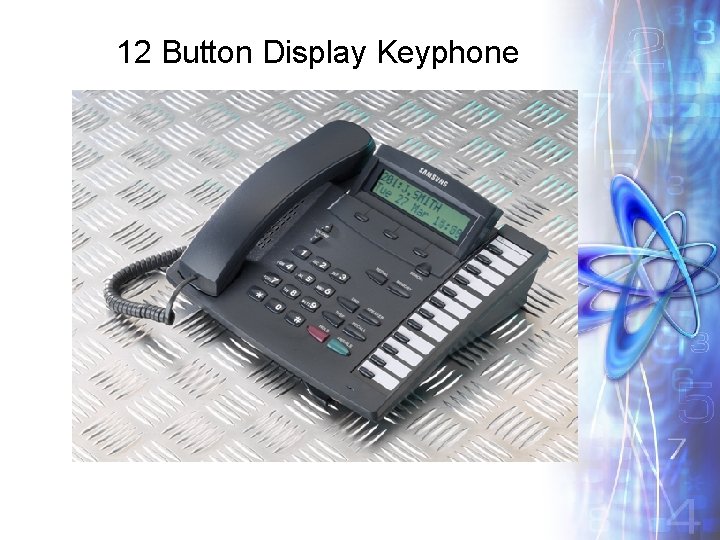

12 Button Display Keyphone
6 Button Display Keyphone
6 Button Basic Keyphone
DS 2100 B
48 Button AOM
The End
