Hytec 1 U IOC Darrell Nineham Hytec Electronics

Hytec 1 U IOC Darrell Nineham Hytec Electronics Ltd Provisional Hytec Electronic Ltd www. hytec-electronics. co. uk

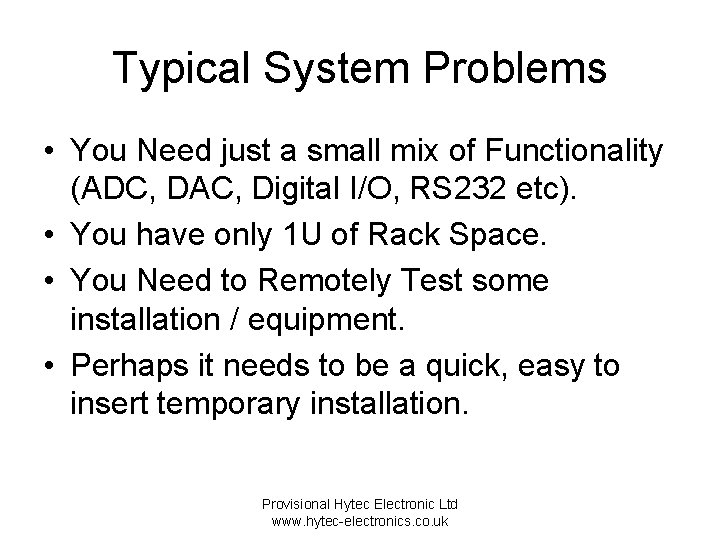

Typical System Problems • You Need just a small mix of Functionality (ADC, DAC, Digital I/O, RS 232 etc). • You have only 1 U of Rack Space. • You Need to Remotely Test some installation / equipment. • Perhaps it needs to be a quick, easy to insert temporary installation. Provisional Hytec Electronic Ltd www. hytec-electronics. co. uk

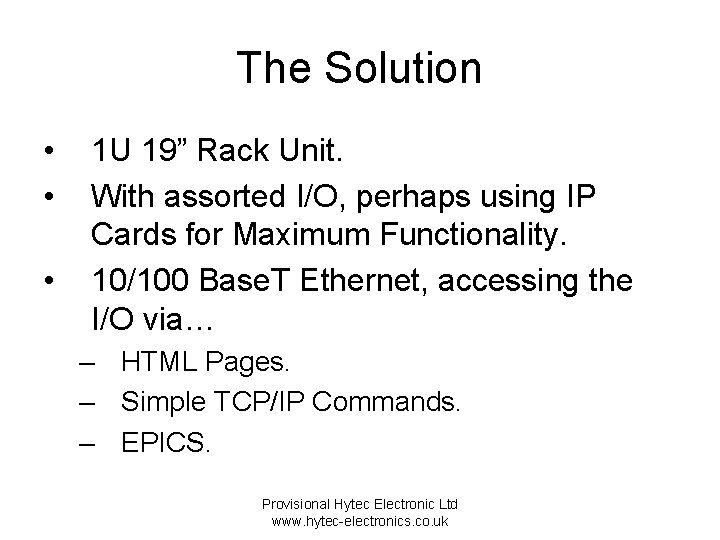

The Solution • • • 1 U 19” Rack Unit. With assorted I/O, perhaps using IP Cards for Maximum Functionality. 10/100 Base. T Ethernet, accessing the I/O via… – HTML Pages. – Simple TCP/IP Commands. – EPICS. Provisional Hytec Electronic Ltd www. hytec-electronics. co. uk

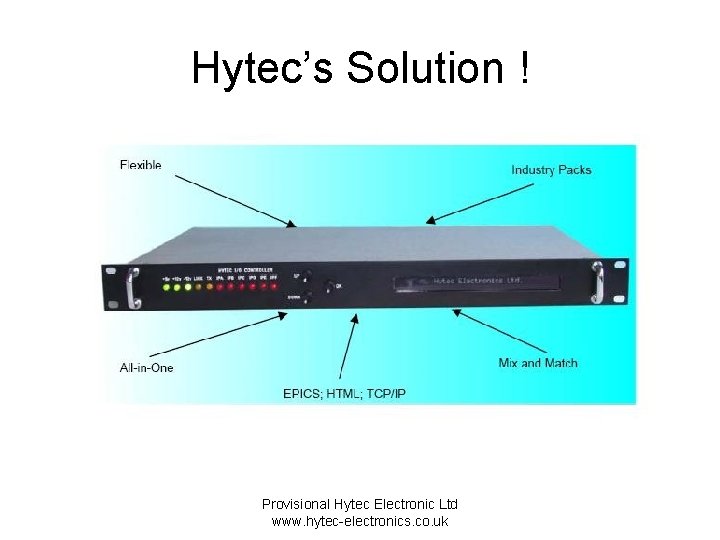

Hytec’s Solution ! Provisional Hytec Electronic Ltd www. hytec-electronics. co. uk

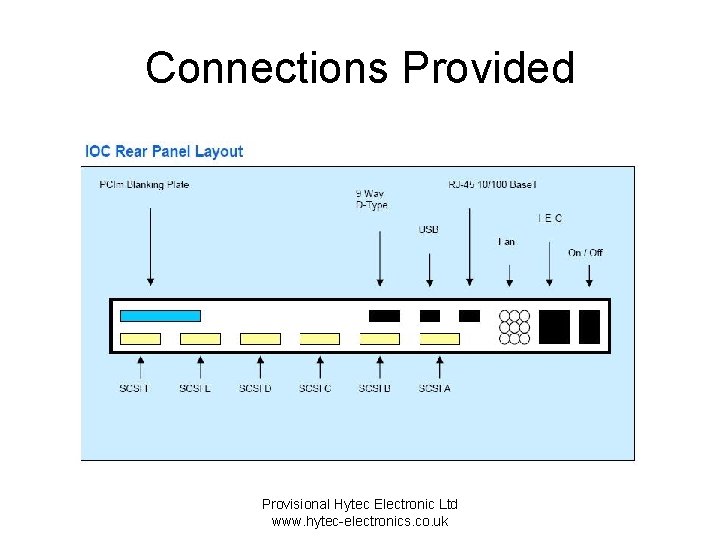

Connections Provided Provisional Hytec Electronic Ltd www. hytec-electronics. co. uk

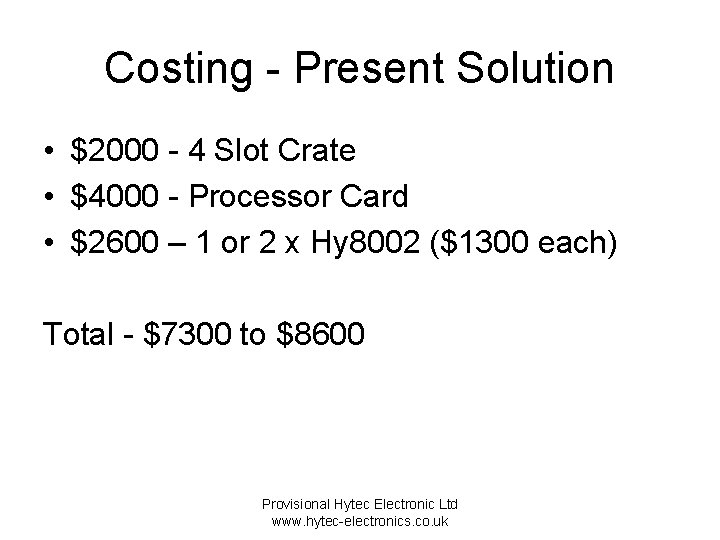

Costing - Present Solution • $2000 - 4 Slot Crate • $4000 - Processor Card • $2600 – 1 or 2 x Hy 8002 ($1300 each) Total - $7300 to $8600 Provisional Hytec Electronic Ltd www. hytec-electronics. co. uk

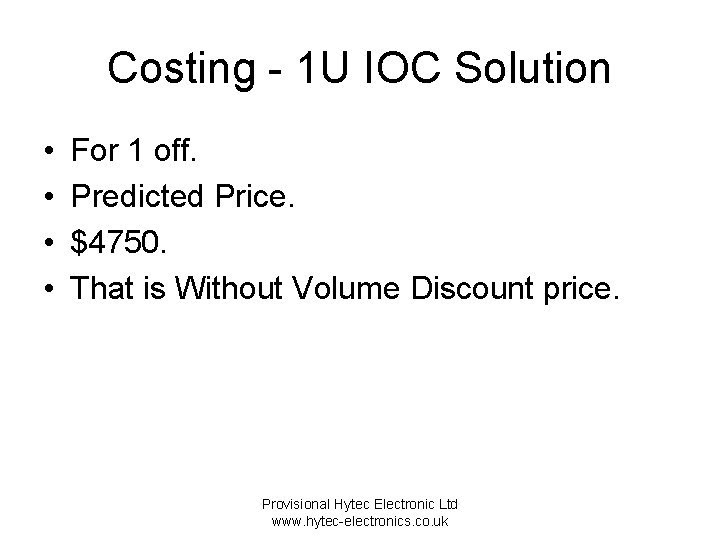

Costing - 1 U IOC Solution • • For 1 off. Predicted Price. $4750. That is Without Volume Discount price. Provisional Hytec Electronic Ltd www. hytec-electronics. co. uk

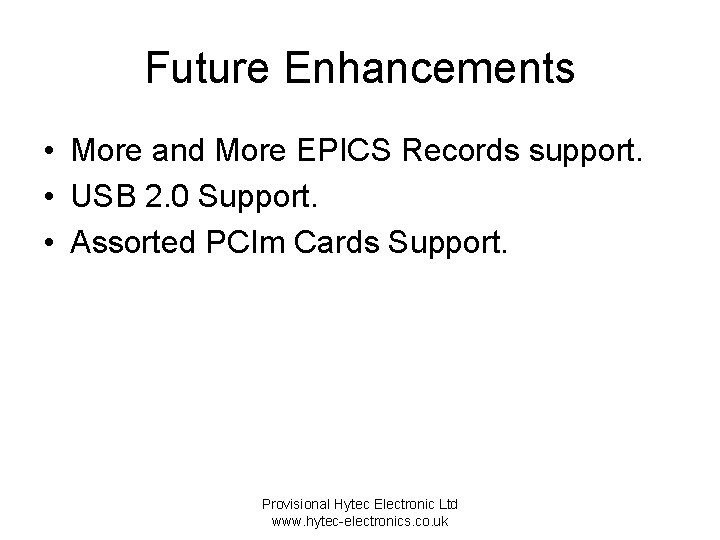

Future Enhancements • More and More EPICS Records support. • USB 2. 0 Support. • Assorted PCIm Cards Support. Provisional Hytec Electronic Ltd www. hytec-electronics. co. uk

What we need from You ! • Do you thinks there any missing Hardware Support or Enhancements ? • Suggestions for a Suitable Name. . ‘The IOC Blade’ is the present trade marked lead contender. Provisional Hytec Electronic Ltd www. hytec-electronics. co. uk
