HYMOS INSTALLATION COMPONENTS NEEDED FOR FIRST INSTALLATION CD

HYMOS INSTALLATION COMPONENTS NEEDED FOR FIRST INSTALLATION: – CD WITH HYMOS INSTALL PROGRAM: ‘SETUP. EXE’ – HARDKEY – LICENSE FILE WITH SAME NUMBER AS HARDKEY: ‘HYMOS. DAT’ – MANUAL OF HYMOS

HYMOS INSTALLATION HOW TO INSTALL HYMOS FOR THE FIRST TIME: – CHECK IF THE COMPUTER IS CAPABLE OF RUNNING HYMOS: * * WINDOWS 95, 98 OR NT CD-ROM DRIVE MINIMUM OF 64 MB INTERNAL MEMORY 100 MB OF HARDDISK SPACE – INSERT HARDKEY IN PRINTER PORT – RUN PROGAM “SETUP. EXE” FROM CD

HYMOS INSTALLATION PROGRAM “SETUP. EXE”: – INSTALL HYMOS PREFERABLY IN: * C: PROGRAM FILESHYMOS 4 – INSTALL HYMOS DATABASES PREFERABLY IN: * C: HYMOS DATABASES – IN EVERY INSTALLATION STEP, MAKE A CHOICE, READ THE TEXT CAREFULLY AND PRESS “NEXT>” OR “OK”

HYMOS INSTALLATION WHAT IS AVAILABLE AFTER INSTALLATION – – ALL PROGRAMS NECESSARY TO RUN HYMOS LICENSE FILE FOR USING HYMOS TUTORIAL DATABASE “KHAI TUTORIAL” INSTALLATION LOG FILE WITH INFORMATION ABOUT INSTALLED FILES AND ENCOUNTERED PROBLEMS

HYMOS INSTALLATION HOW TO START HYMOS AFTER FIRST INSTALL – SELECT HYMOS ICON FROM DEKTOP OR FROM TASKBAR – LOGON WITH: * USERNAME: ADMINISTRATOR * PASSWORD: HELLO – FROM DATABASE MANAGER ESTABLISH A LINK TO EXISTING DATABASES, ie. “KHAI TUTORIAL” – FOLLOW TUTORIAL TO LEARN FIRST STEPS IN USING HYMOS

HYMOS SECURITY HOW ARE HYMOS DATABASES PROTECTED – HYMOS IS PROTECTED AGAINST UNREGISTERED USERS THROUGH HARDKEY – DATABASES ARE PROTECTED WITH PASSWORDS: * EACH USER IS ASSIGNED A USER LEVEL * USER LEVELS HAVE DIFFERENT FUNCTIONALITIES * NOT ALL USERS ARE ALLOWED TO WORK WITH ALL DATABASES

HYMOS DATABASES WHAT DATA IS STORED IN HYMOS DATABASE – TIME - INDEPENDENT DATA (META-DATA) * MICROSOFT ACCESS DATABASE – TIME - DEPENDENT DATA (TIME SERIES) * BINARY FILE AND MICROSOFT ACCESS DATABASE – GEOGRAPHICAL MAPS * MAPPER MPL FORMAT

HYMOS DATABASES TIME - INDEPENDENT DATA – – – – MEASUREMENT STATIONS CATCHMENT DATA MEASURING INSTRUMENTS STRUCTURES SERIES RELATIONS STAGE-DISCHARGE CURVES PARAMETERS. . .

HYMOS DATABASES TIME - DEPENDENT DATA – EQUIDISTANT TIME SERIES * TIME INTERVAL CONSTANT FOR 1 SERIES (HOUR, DAY, MONTH, DECADE, …) * PRECIPITATION, WATER LEVELS, DISCHARGES, EVAPORATION, … – NON - EQUIDISTANT TIME SERIES * TIME INTERVAL IS VARIABLE * WATER QUALITY DATA, . . .

HYMOS DATABASES WHERE IS A HYMOS DATABASE LOCATED – HYMOS DATABASESBHIMADB * * META-DATA: ‘HYMOS. MDB’ NON-EQUIDISTANT DATA: ‘NEDATA. MDB’ EQUIDISTANT DATA: ‘ADMIN’ AND ‘HIS 01’ STATION NETWORK ON MAP: ‘HYMOS. NTW’ – HYMOS DATABASESBHIMAMAPS * INFORMATION ON GIS LAYERS: ‘COUNTY. MAP’ * GIS MAP LAYERS: ‘NAME. MPL’

HYMOS COMPONENTS HYMOS IS A COLLECTION OF MANY INDIVIDUAL COMPONENTS NETTER Graph Server User Interface: Database. Manager Database HYMOS ODS Server Database Server

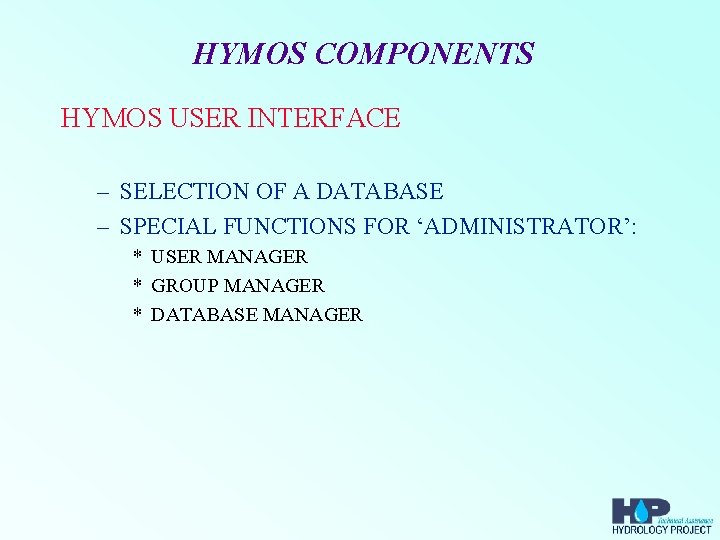

HYMOS COMPONENTS HYMOS USER INTERFACE – SELECTION OF A DATABASE – SPECIAL FUNCTIONS FOR ‘ADMINISTRATOR’: * USER MANAGER * GROUP MANAGER * DATABASE MANAGER

HYMOS COMPONENTS USER MANAGER – MANAGEMENT OF USERS * * NAME PASSWORD GROUP LEVEL

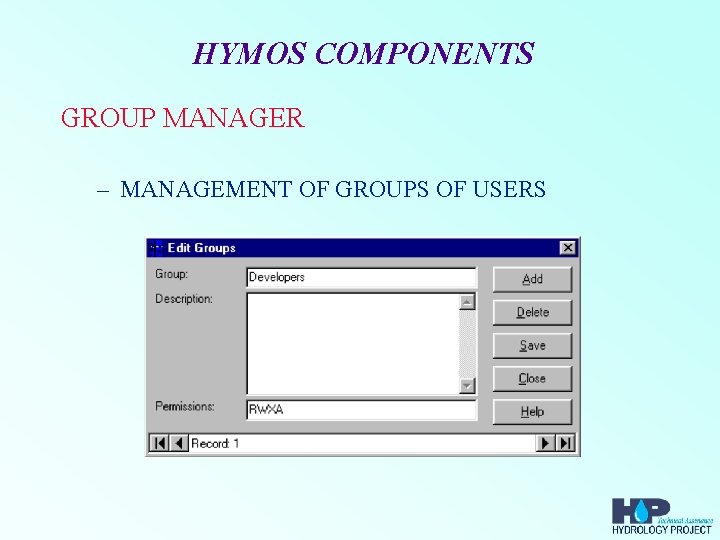

HYMOS COMPONENTS GROUP MANAGER – MANAGEMENT OF GROUPS OF USERS

HYMOS COMPONENTS DATABASE MANAGER – MANAGEMENT OF AREAS – MANAGEMENT OF DATABASES * NAME * LOCATION * ACCESS RIGHTS

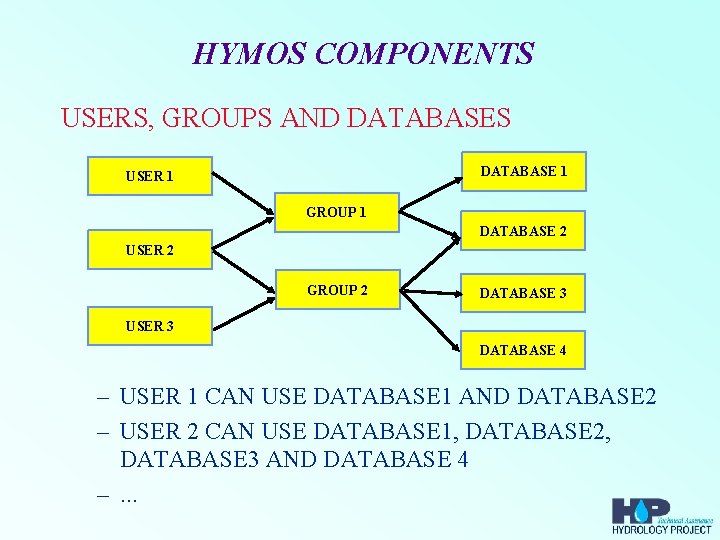

HYMOS COMPONENTS USERS, GROUPS AND DATABASES DATABASE 1 USER 1 GROUP 1 DATABASE 2 USER 2 GROUP 2 DATABASE 3 USER 3 DATABASE 4 – USER 1 CAN USE DATABASE 1 AND DATABASE 2 – USER 2 CAN USE DATABASE 1, DATABASE 2, DATABASE 3 AND DATABASE 4 –. . .

HYMOS COMPONENTS MAPS AND NETWORK EDITOR: NETTER – – – USED FOR GEOGRAPHICAL ORIENTATION PRESENTATION OF MEASUREMENT STATIONS PRESENTATION OF GIS LAYERS PRESENTATION OF THIESSEN MAPS GIS MAPS CAN BE ADDED: FIRST CONVERT WITH ‘MAPLINK’ PROGRAM

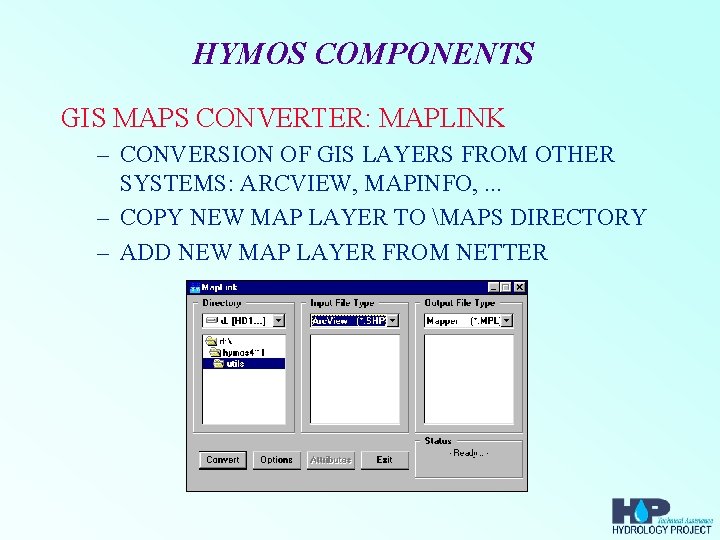

HYMOS COMPONENTS GIS MAPS CONVERTER: MAPLINK – CONVERSION OF GIS LAYERS FROM OTHER SYSTEMS: ARCVIEW, MAPINFO, . . . – COPY NEW MAP LAYER TO MAPS DIRECTORY – ADD NEW MAP LAYER FROM NETTER

HYMOS COMPONENTS FUNCTION INTERFACE: HYMOS MAIN – – SELECTION OF TIME SERIES SELECTION OF FUNCTIONS MANY FORMS FOR FUNCTION INPUT PRESENTATION OF RESULTS * GRAPHS * REPORTS

HYMOS COMPONENTS GRAPHICS PROGRAM: GRAPH SERVER – TIME SERIES GRAPHS – FUNCTION RESULTS, ie. RATING CURVE – USES PREDEFINED TEMPLATES FOR EACH FUNCTION – USER CAN MAKE AND USE HIS OWN TEMPLATES – TEMPLATES ARE LOCATED IN DIRECTORY: * PROGRAM FILESHYMOS 4SYSTEMTEMPLATE

HYMOS COMPONENTS IMPORT/EXPORT PROGRAM: ‘ODS SERVER’ – IMPORT OF TIME SERIES: * SWDES TIME SERIES * ASCII DATA – IMPORT OF STAGE - DISCHARGE DATA – EXPORT OF TIME SERIES * EXCEL * MANY DATABASE FORMATS * ASCII DATA – EXPORT OF STAGE - DISCHARGE DATA

HYMOS CONFIGURATION HOW TO CONFIGURE HYMOS – BY DEFAULT HYMOS IS CONFIGURED FOR NORMAL USE – FUNCTIONS LIST LAYOUT CAN BE CHANGED BY EDITING ‘FUNCTIONS. INI’ FILE – SOME OPTIONS CAN BE CONFIGURED BY EDITING ‘SHYMOS. INI’

HYMOS DATABASE BACKUP HOW TO MAKE A BACKUP OF HYMOS DATABASES – FROM DATABASE MANAGER * USE COPY AND PASTE FROM THE DATABASE MANAGER – WITH WINDOWS EXPLORER * COPY A DATABASE TO CD OR NETWORK DRIVE
