Hydrology Measurement Solutions with Smart Sensing Komoline Aerospace

Hydrology Measurement Solutions with Smart Sensing Komoline Aerospace Limited INDIA www. komoline. com KEPL Meteorological Products 1

Products § Hydro-Meteorology § Upper Air Sounding § Emergency Search And Rescue § Aerospace and Defense § Navigation and Tracking Hydro-Meteorology Products 2

Komoline – A Single Roof Solution • Turn-Key Hydromet Data Networks • Hydromet Measurement Stations • Sensors, Data Loggers, System Customization • Satellite Transmitters and Earth Stations • GSM/GPRS Connectivity Modules • Central Data Station Equipment / Software Hydro-Meteorology Products 3

CLIENTS Hydro-Meteorology Products 4

What is a Smart Sensor ? Smart Sensors, also called “Intelligent sensors”, have a microprocessor inside Hydro-Meteorology Products 5

Why a Smart Sensor ? The digital character and “smartness” of sensors is advantageous in many ways. • Cable length independent performance with RS 485 (Digital) output • Multiple sensors on the same bus • flexibility to add new sensors/parameters at any point of time without any changes to Data Logger / System (channels etc). • Ready to use calibrated data in engineering units - not error prone voltage or current signals that need to be interpreted. • Calibration corrects sensor itself- no need to correct readings externally. Field Calibration possible. • Multi-point calibration possible Hydro-Meteorology Products 6

Multi-Point Calibration Allows extension of best accuracy possible over given range of measurement. Analog sensor performance (single point setting); also natural deviation characteristic of any sensor from one point calibration. + Deviation Maximum Uncertainity after calibration: Multi-Point calibrated smart sensor performance MAX(1) MAX(N) Zero Error Line > MAX(N) – multi-point, Allows extension of best accuracy possible over given range of measurement. MAX(1) – single-point - Deviation Lower Limit of Measurement Hydro-Meteorology Products Upper Limit of Measured Parameter Value Measurement 7

Effect of Averaging on Variance KDS series sensors allows user definable averaging (upto minutes) for best measurements in different field conditions. • Parametric Values always have a noise riding on a background level (Target of Measurement) 26 • Averaging > Low-pass filtering > Reduced Variance 26 • Digital domain averaging > high time constants (up to minutes) > Stable and accurate readings 24 SWA = Sliding window average Std. Dev. = Standard Deviation Featured Measurement : Temperature ( C) Hydro-Meteorology Products 25 No Averaging (Std. Dev. = 0. 28) 24 0 20 40 60 80 100 25 5 -Point SWA (Std. Dev. = 0. 10) 0 20 40 60 80 100 26 25. 5 25 20 -Point SWA (Std. Dev. = 0. 05) 24. 5 24 0 20 40 60 80 100 8

e-Stilling Well Algorithm • Komoline water level sensors provide for a user-configurable internal signal processing function to extract very accurate background water levels • Komoline calls this function the “e-Stilling Well”. Its like an electronic version of the stilling well. And is made possible by the smart sensor architecture of Komoline water level sensors - gauge pressure, absolute pressure, ultrasonic or radar based water level sensors. It may however be noted however that shaft encoder based level sensors in surface water applications need stilling wells for physical reasons. Hydro-Meteorology Products 9

Automatic Hydro-Met Stations • Seamless integration with KDS sensors • User Programmable Data polling scheme • Multiple IP address / SMS configurable for redundant transmission • INSAT/GSM/GPRS/VSAT for transmission redundancy • Online Graphical/Tabular Representation of present/historic Data on Web Portal • Data validation at each level as per WMO guidelines Hydro-Meteorology Products 10

Automatic Hydro-Met Stations • MODBUS/SCADA RS 485 Compatible digital Sensors • Ultra Low Power longest Battery operation • 15 years obsolesce protected upgradable indigenous technology. • Auto Parameter Threshold triggers SMS to registered users • On the fly remote configuration through SMS • Past 1 Year data storage in solid state memory. Hydro-Meteorology Products 11

Automatic Hydro-Met Stations • Auto Parameter Threshold triggers SMS to registered users • Auto Daily XLS data file emails to registered users • On the fly remote configuration through SMS • Past 1 Year data storage in solid state memory retains data upto 100 years in the data-loggers without any external power. Hydro-Meteorology Products 12

Very Wide Range of Sensors Any of which can be added in any station at any time because of the universal RS 485 interface ! Water Level/Tide • Gauge/Absolute Pressure • Radar • Ultrasonic • Shaft Encoder • Bubbler Temperature • Atmospheric (With Humidity) • Water • Ocean • Leaf/Surface • Soil, levels Atmospheric Pressure Rain/Rate Water Conductivity Solar Panel Energy Physical Orientation Water Flow Leaf-Wetness • Faraday (Electromagnetic) Radiation • Silicon Pyranometer Heading Wind • Thermopile Pyranometer Lightening • Conventional • DNI • Ultrasonic • PAR Evaporation/Rate • One-Dimensional (Vertical) • Sunshine Duration • Solar Brightness (Visible) Multi-Parameter Hydro-Meteorology Products 13

Radar Based Water Level Sensor KDS-178 • Sensor Type: Radar • Range: 0. 5 to 25 m • Resolution: 0. 1 mm • Accuracy: ± 0. 03% • Output: RS 485 • Supply: +8 to +16 Vdc • Environmental: -40 to +60 ºC Hydro-Meteorology Products 14

Ultrasonic Water Level Sensor - KDS -118 • Sensor Type: Ultrasonic • Range: 0. 5 to 10 m • Resolution: 3 mm • Accuracy: ± 0. 02% • Output: RS 485 • Supply: +8 to +16 Vdc • Environmental: -40 to +60 ºC Hydro-Meteorology Products 15

Bubbler Based Water Level Sensor-KDS-181 Gauge Pressure Water Level sensor- KDS-128 • • • Sensor Type: Pressure Sensor Range: Up to 50 m Resolution: 0. 1 mm Accuracy: 0. 1 %FS Output: RS 485 Supply: +12 to +28 Vdc Environmental: -40 to +60 ºC Calibration: NPL/NIST Traceable Hydro-Meteorology Products • • Sensor Type: Hydrostatic Pressure Measuring Range: Up to 100 m Resolution: 0. 01 %FS Accuracy: 0. 1 %FS Output: RS 485 Supply: +4 to +28 Vdc Environmental: -40 to +75ºC Calibration: NPL/NIST Traceable 16

Shaft Encoder and Gate Position Sensor - KDS-128 Shaft Encoder Based Water Level Sensor- KDS-191 • • Sensor Type: Shaft Encoder with Float-Pully System Range: Up to 40 m Resolution: 0. 5 mm Accuracy: 1 mm Output: RS 485 Supply: +4 to +28 Vdc Environmental: -40 to +60 ºC Calibration: NPL Traceable Hydro-Meteorology Products • • Sensor Type: Shft Encoder (Hall Effect / Optical) Range: Unlimited Resolution: 226, 256, 512 or 4096 PPR Accuracy: ± 2 Pulses Output: RS 485 Supply: +4 to +28 Vdc Environmental: -40 to +80ºC 17

Digital Water Level Recorder Model No: KDSR-4128 • • • Sensor Type: Hydrostatic Pressure Measuring Water Level Sensor Range: 0 -0. 3, 0 -100 m Resolution: 0. 01 %FS Accuracy: 0. 1 %FS Output: RS 485 Power Autonomy: >5 Years with 1 Min. Interval Storage Capacity: 1, 38, 000 Interval: 10 sec to 24 hr Output: RS 232/RS 485 Environmental: 0 to +75ºC Calibration: NPL/NIST Traceable Hydro-Meteorology Products 18

Evaporation Quantum Sensor Model No: KDS-22 x • Sensor Type: Optical Shaft Encoder with Float / Pressure sensor • Range: 0 to 300 / 0 to 1000 mm • Resolution: 0. 1 mm • Accuracy: 0. 25 / 0. 5 %FS • Output: RS 485 • Supply: +4 to +28 Vdc • Environmental: -40 to +85 ºC Hydro-Meteorology Products 19

Air Temperature And Relative Humidity Sensor Model No. : KDS-011 • Air Temperature • • Range: -40 to +85 ºC Accuracy: 0. 05 ºC Resolution: 0. 01 ºC Output Units: ºC, K, ºF • Relative Humidity • • Range: 0 to 100% Accuracy: ± 2% Resolution: 0. 1% Output Units: % • Calibration : NPL, IMD, NIST Traceable Hydro-Meteorology Products

Soil Temperature Sensor KDS-03 x • • Ocean Surface Temperature Sensor KDS -081 Sensor Type: Precision RTD Range: -40 to +75 ºC / -40 to +125 ºC Accuracy: ± 0. 05 ºC Output: RS 485 Supply: +6 to +28 Vdc Calibration: IMD/NIST Traceable Up to 8 levels, Up to 1 m depth Hydro-Meteorology Products • • • Sensor Type: Glass Encapsulated Super Stable High Precision RTD Range: -20 to +55 ºC Accuracy : ± 0. 05 ºC Output: RS 485 Supply: +4 to +14 Vdc Calibration: IMD/NIST Traceable Leaf Temperature Sensor KDS-161 • • • Sensor Type: Low Thermal Mass Precision RTD Range: -40 to +75 ºC Accuracy: ± 0. 1 ºC Output: RS 485 Supply: +4 to +28 Vdc Calibration: IMD/NIST Traceable 21

Wind Speed and Direction Sensor Wind Speed • Sensor Type: Contactless IR/Magnetic Quadrature Encoder/Ultrasonic • Range: 0 to 60 m/s • Accuracy: ± 2 % for 0 to 35 m/s Wind Direction • Sensor Type: Non-Contact Hall-Effect Encoder / Ultrasonic • Range: 0 to 359 Deg • Accuracy: ± 2 Deg. • Supply: +6 to +28 Vdc • Output: RS 485 • Environmental: -20 to +65 ºC Hydro-Meteorology Products 22

Atmospheric Pressure Sensor Model No. : KDS-021 • Sensor Type: Ceramic (Absolute Pressure) • Range: 100 -1200 h. Pa • Accuracy: ± 0. 2 h. Pa • Output: RS 485 • Supply: +6 to +28 Vdc • Deployment: Indoor • Calibration: IMD/NIST Traceable Hydro-Meteorology Products 23

Global Radiation Sensors • Sensor Type: Photodiode • Range: 0 -2000 W/m 2 • Spectral : 350 -1100 nm • Accuracy: 5 %FS • Calibration: IMD/WRR Traceable • Sensor Type: Thermopile • Range: 0 to +2000 W/m 2 • Spectral : 300 -3000 nm • Accuracy: 3 %FS • Calibration: IMD/WRR Traceable Output: RS 485 / Supply: +4 to +28 Vdc / Deployment: Outdoor Hydro-Meteorology Products 24

Digital Multiparameter Sensor Psychrometric Multiparameter Sensor - KDS 615 • AT-RH, Wind Sp. /Dir. , Atm. PR Wind Chill, Heat index, DP, Humidity Ratio, Barometric Altitude, Wet Bulb Temperature etc. . Multiparameter Sensor- KDS 631 • • • Air Temperature Relative Humidity Atm. Pressure Psychrometric Multiparameter Sensor- KDS 616 AT-RH, Ultrasonic Wind Sp. /Dir. , Atm. PR, Wind Chill, Heat index, DP, Humidity Ratio, Barometric Altitude, Wet Bulb Temperature etc. . ) Output: RS 485 / Supply: 4 to 18 Vdc / Environmental: -40 to +60 ºC, Hydro-Meteorology Products 25

Rain Tipping Bucket Sensor Model No. : KDS-071 • Sensor Type: Tipping Bucket • Resolution: 0. 5 mm • Accuracy: Better than 1% • Output: Contact closure • Construction: Corrosion-Proof, UV Cured Engineering Plastic • Calibration: IMD Traceable Hydro-Meteorology Products 26

Conductivity and Temperature Sensor Model No : KDS-311 • Conductivity • Sensor Type: Conductivity Sensor • Range: 0 to 80 m. S/cm • Accuracy: ± 0. 05 m. S/cm • Temperature • • • Sensor Type: Titanium-Housed PRT • Range: • Accuracy: 0. 05 ºC Supply: -10 to +40 ºC +4 to +18 Vdc Output: RS 485 Environmental: -40 to +65 ºC Calibration: In-house Hydro-Meteorology Products 27

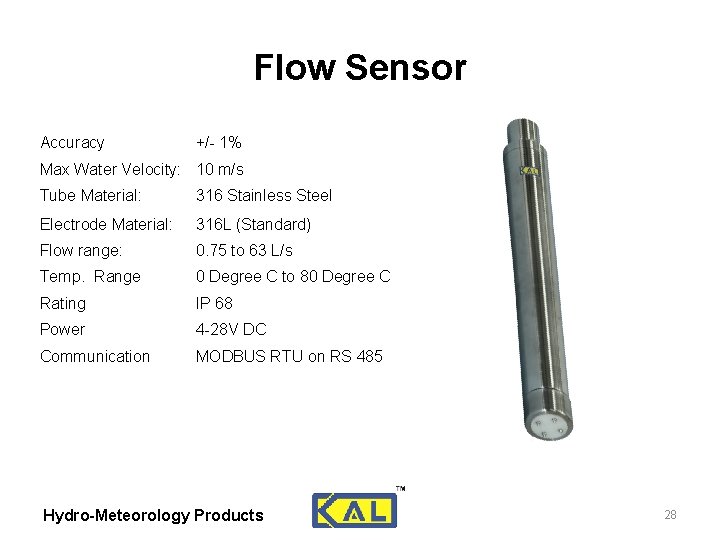

Flow Sensor Accuracy +/- 1% Max Water Velocity: 10 m/s Tube Material: 316 Stainless Steel Electrode Material: 316 L (Standard) Flow range: 0. 75 to 63 L/s Temp. Range 0 Degree C to 80 Degree C Rating IP 68 Power 4 -28 V DC Communication MODBUS RTU on RS 485 Hydro-Meteorology Products 28

SNOW HEIGHT SENSOR Model No: KDS-111 Sensor Type: Ultrasonic Range: 0. 5 m to 10 m Accuracy: +/- 1 cm Resolution: 0. 2 mm Output: RS 485 Hydro-Meteorology Products 29

Field Calibrators Available Temperature Pressure and Humidity Based Water-Level, Atmospheric Pressure etc Hydro-Meteorology Products Wind Rain Also Many Other Parameters/Sensors 30

Hydro-Met Stations Hydro-Meteorology Products 31

Hydro-Met Stations ARS for WRI (22) AWS for WRI (50) Hydro-Meteorology Products AWS for Collector Office, Bharuch (12) 32

Data Logger Hydro-Meteorology Products 33

Data Logger Specifications • 20/16/08 X Sensor Channels • Data Transmission • 4/1 X Sensor Power Control • UHF Transmitter • Standby Current ~1 m. A • GSM/ GPRS/ CDMA Modem • 1 MB Data Memory • RS 232 • Built-In GPS Receiver • Ethernet • Sensor Interface • Single/Differential ended analog Channels • RS 232/RS-485/SDI-12 • Counter/Frequency Hydro-Meteorology Products • Onsite Data Backup through USB Pen Drive in CSV file • Built –In Solar Battery Charger • Built –In GSM/ GPRS Modem • 16 X 2 Standard LCD • Industrial Grade Keypad • Battery Health Monitoring 34

Data Logger Hydro-Meteorology Products 35

UHF Transmitter KTXUHF 07 • • • Carrier Freq. : 402. 5± 500 KHz Modulator: PCM – PSK Data Rate: 4. 8 kbps Frequency Stability: ± 1 ppm/yr. Power Output: 3 -10 Watts Spurious: -60 db or better Interface: RS 485 Current Consumption: 2. 7 A During Transmission Environmental: -40 to +60 ºC Hydro-Meteorology Products ISM Band Transmitter KTXRFT 01 • • Modulator: GMSK Data Rate: 19. 2 kbps Frequency Stability: ± 1 ppm/yr. Power Output: 3 -10 Watts Spurious: -60 db or better Interface: RS 232 Current Consumption: 2. 7 A During Transmission Environmental: -30 to +60 ºC GSM/GPRS MODEM KTXGSM 01 • Quad Band: 850/900/1800/1900 • Output Power : 2 Watt • Supply Voltage; 9 to 16 V • Environmental Temperature: -30 to +60 ºC Humidity: - 0 to 100% 36

Antenna UHF Crossed Yagi Antenna. KANCY-011 • Carrier Freq: 402. 5± 500 KHz • Gain: 11 d. Bi • Polarization: RHCP or LHCP (Field selectable) • VSWR: 1. 5 • 3 d. B Beam width: 40 Deg. • Axial Ratio: 5 d. B • Connector: N-Type Female Hydro-Meteorology Products UHF Planner Antenna. KANPL 011 • • • Frequency: 402. 5± 500 KHz Bandwidth: 2% Return Loss: Better than 18 db Gain: 11 d. Bm Min. Polarization: LHCP/RHCP (Field selectable) • Input Impedance: 50 Ω • Transmission Power: 10 W Max. • Connector: N-Type Male 37

Accessories Solar Battery Charger Model No: KSCDL 030 • Lead Acid Battery Rating: . 5 to 100 AH • Max. Solar Panel Voltage (Open circuit): +26 VDC • Max. Solar Panel Power: 4 to 75 W • Max. Load Current: 20 A • Battery reverse polarity protected • Over charge/discharge protection • Operating Temperature: -10 to +60 ºC • Environment protection IP 65 Hydro-Meteorology Products 38

Accessories Display Unit Hydro-Meteorology Products 39

Web Portal Hydro-Meteorology Products

Web Portal Hydro-Meteorology Products

Web Portal Hydro-Meteorology Products 42

THANKS ! www. komoline. com 43
