Hydrogen in Israel Gideon Friedmann Acting Chief Scientist

Hydrogen in Israel Gideon Friedmann Acting Chief Scientist

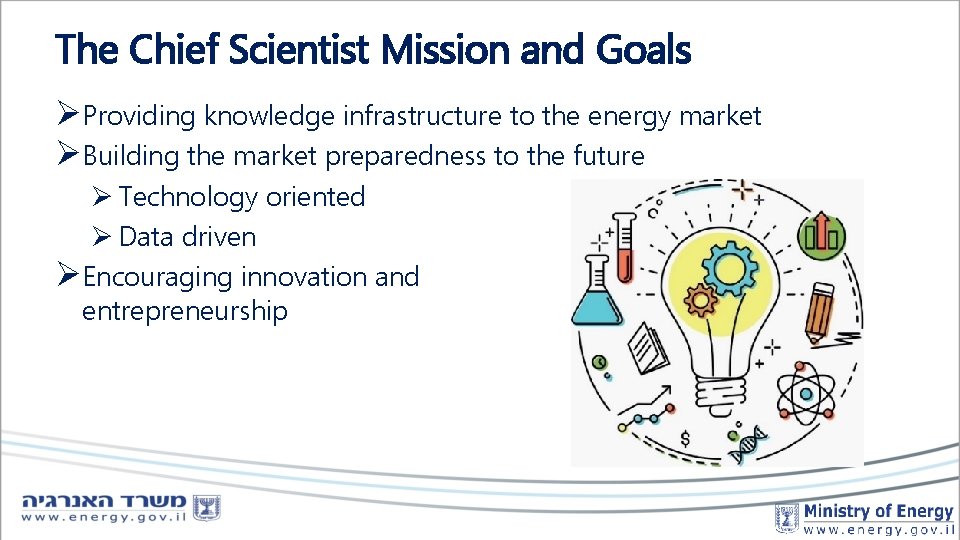

The Chief Scientist Mission and Goals ØProviding knowledge infrastructure to the energy market ØBuilding the market preparedness to the future Ø Technology oriented Ø Data driven ØEncouraging innovation and entrepreneurship

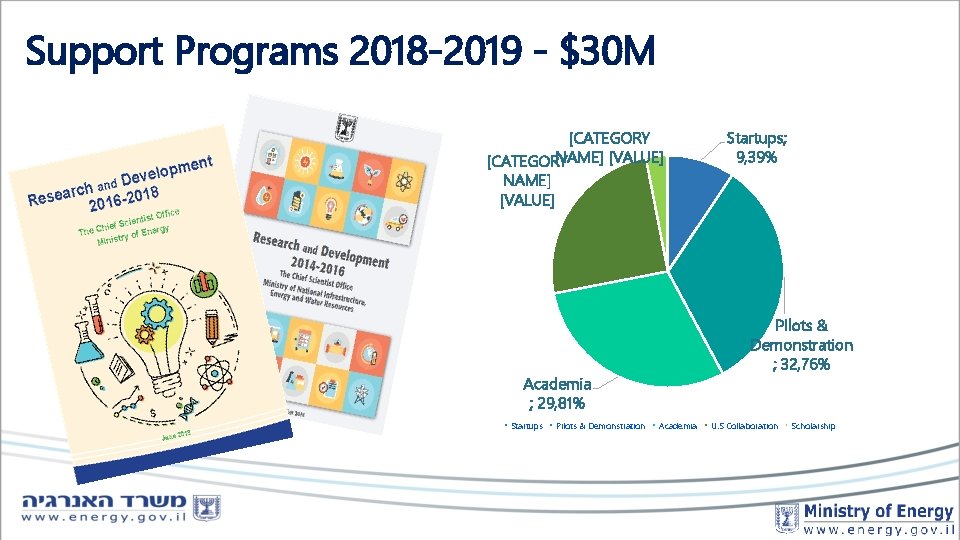

Support Programs 2018 -2019 - $30 M [CATEGORY NAME] [VALUE] Pilots & Demonstration ; 32, 76% Academia ; 29, 81% Startups Pilots & Demonstration Startups; 9, 39% Academia U. S Collaboration Scholarship

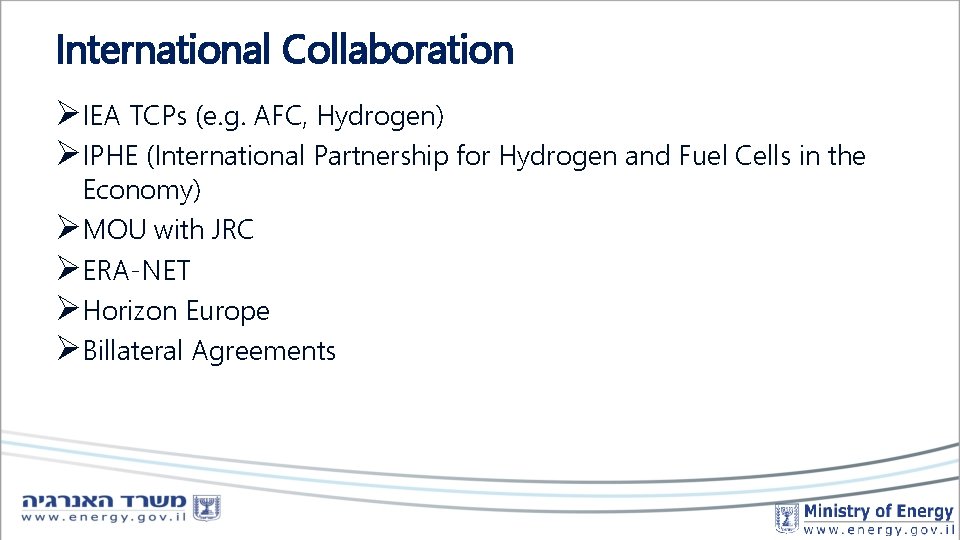

International Collaboration ØIEA TCPs (e. g. AFC, Hydrogen) ØIPHE (International Partnership for Hydrogen and Fuel Cells in the Economy) ØMOU with JRC ØERA-NET ØHorizon Europe ØBillateral Agreements

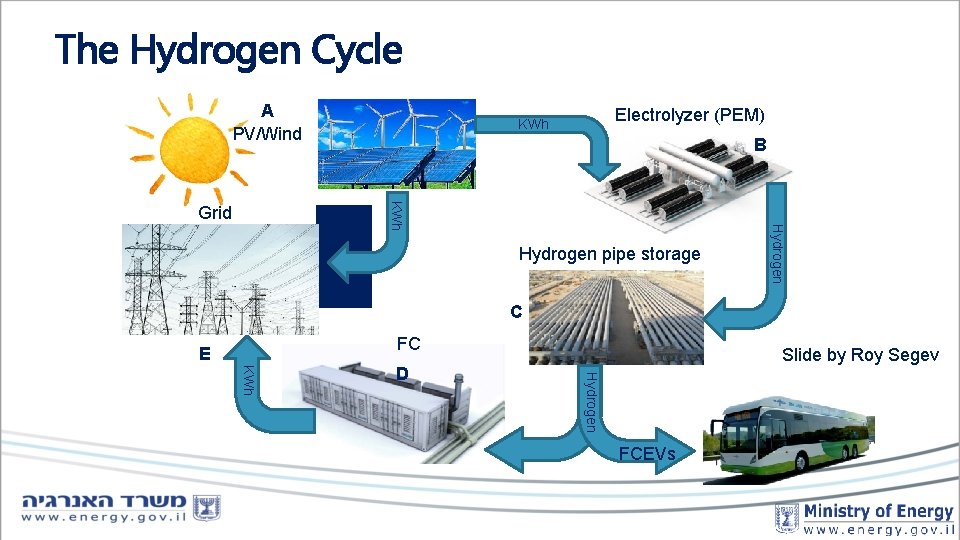

The Hydrogen Cycle A PV/Wind Electrolyzer (PEM) KWh B Hydrogen pipe storage Hydrogen KWh Grid C FC Hydrogen KWh D Slide by Roy Segev Hydrogen E FCEVs

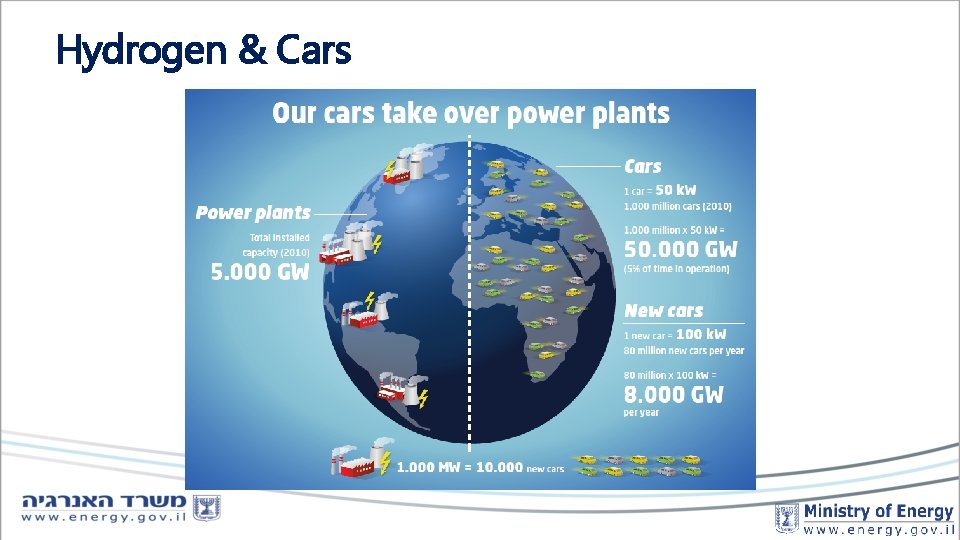

Hydrogen & Cars

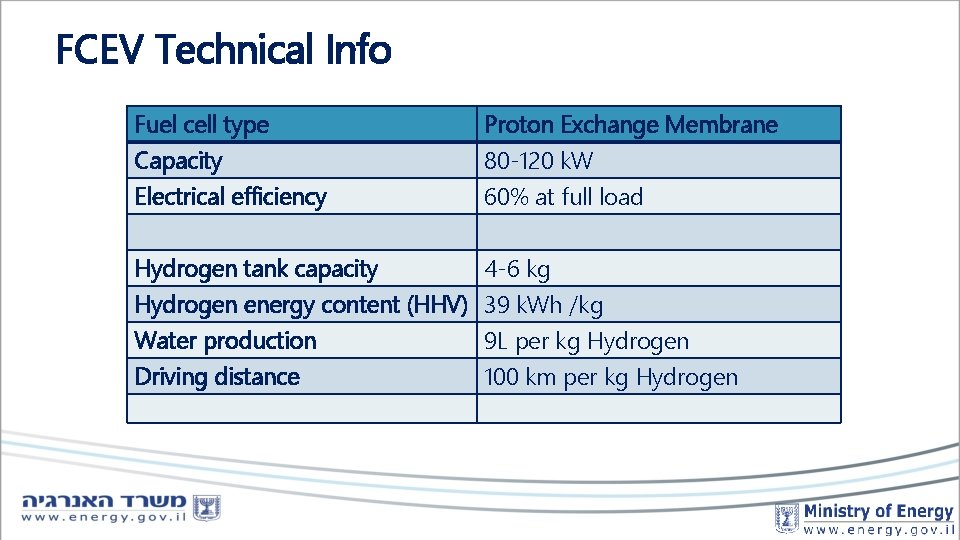

FCEV Technical Info Fuel cell type Capacity Electrical efficiency Proton Exchange Membrane 80 -120 k. W 60% at full load Hydrogen tank capacity Hydrogen energy content (HHV) Water production Driving distance 4 -6 kg 39 k. Wh /kg 9 L per kg Hydrogen 100 km per kg Hydrogen

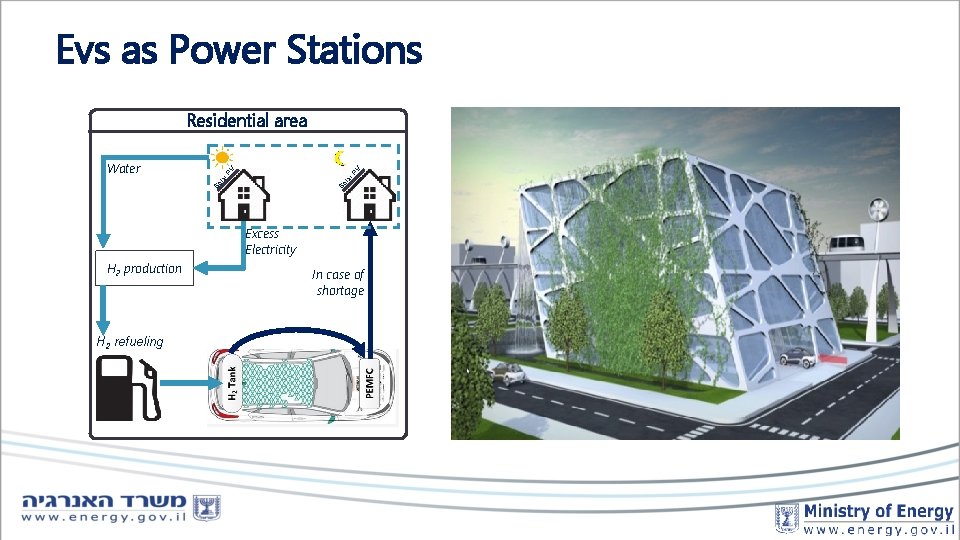

Evs as Power Stations So la r. P V Water So la r. P V Residential area Excess Electricity H 2 production H 2 refueling In case of shortage

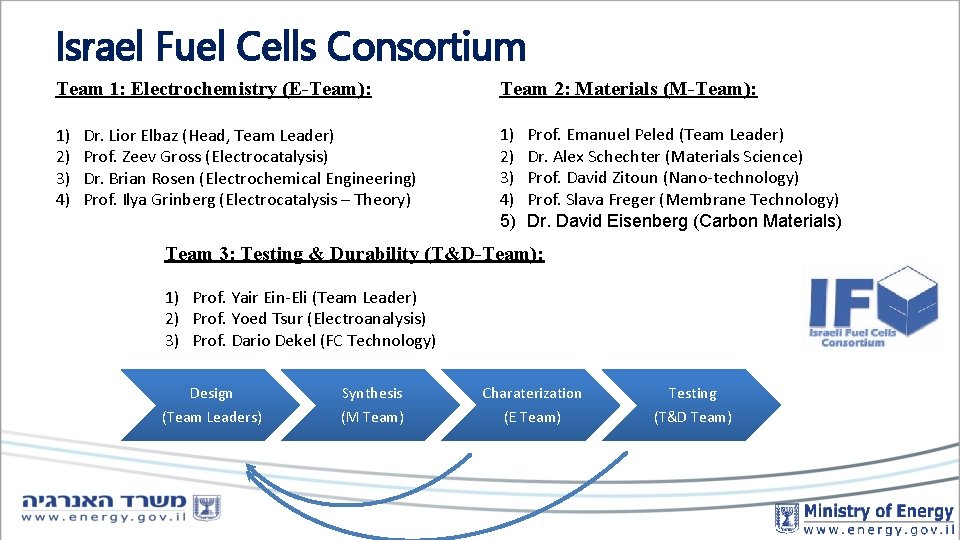

Israel Fuel Cells Consortium Team 1: Electrochemistry (E-Team): Team 2: Materials (M-Team): 1) 2) 3) 4) 5) Dr. Lior Elbaz (Head, Team Leader) Prof. Zeev Gross (Electrocatalysis) Dr. Brian Rosen (Electrochemical Engineering) Prof. Ilya Grinberg (Electrocatalysis – Theory) Prof. Emanuel Peled (Team Leader) Dr. Alex Schechter (Materials Science) Prof. David Zitoun (Nano-technology) Prof. Slava Freger (Membrane Technology) Dr. David Eisenberg (Carbon Materials) Team 3: Testing & Durability (T&D-Team): 1) Prof. Yair Ein-Eli (Team Leader) 2) Prof. Yoed Tsur (Electroanalysis) 3) Prof. Dario Dekel (FC Technology) Design Synthesis Charaterization Testing (Team Leaders) (M Team) (E Team) (T&D Team)

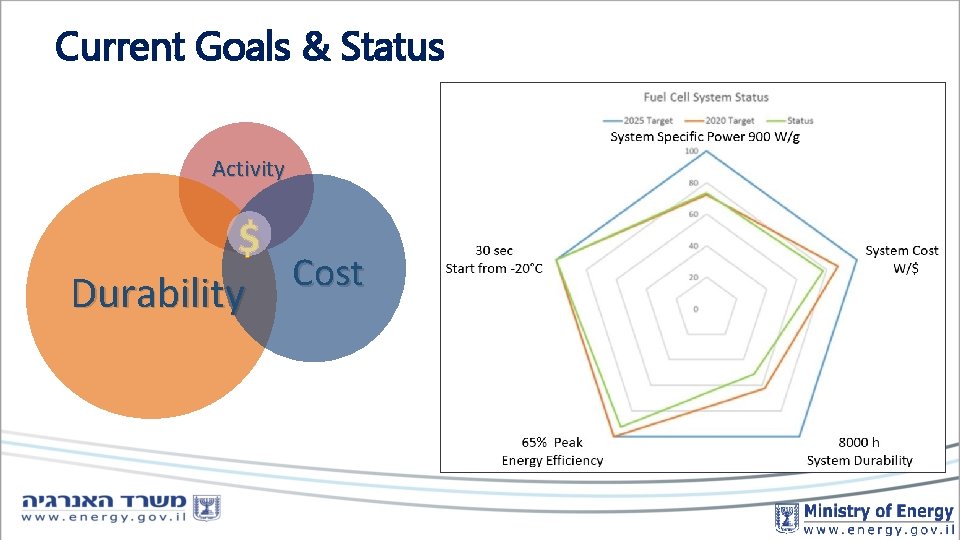

Current Goals & Status Activity $ Cost Durability

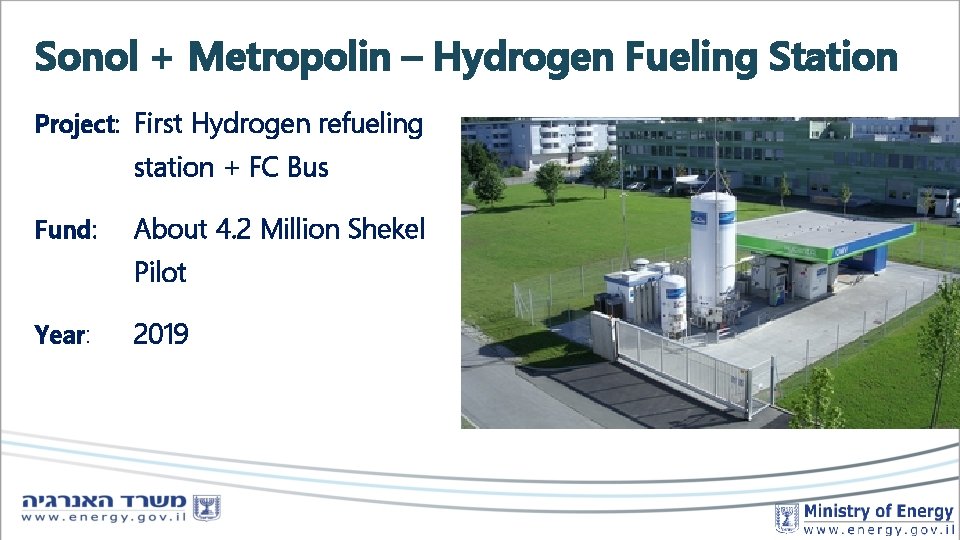

Sonol + Metropolin – Hydrogen Fueling Station Project: First Hydrogen refueling station + FC Bus Fund: About 4. 2 Million Shekel Pilot Year: 2019

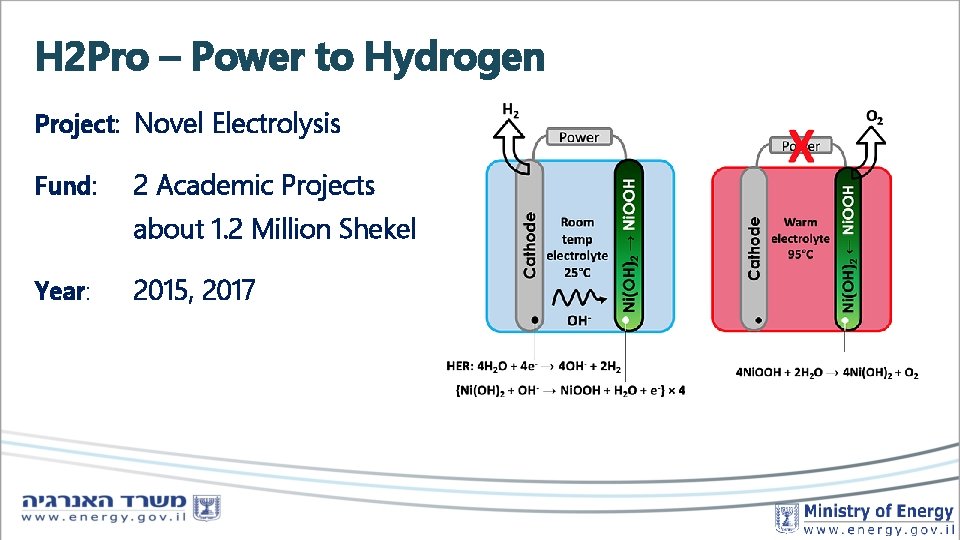

H 2 Pro – Power to Hydrogen Project: Novel Electrolysis Fund: 2 Academic Projects about 1. 2 Million Shekel Year: 2015, 2017

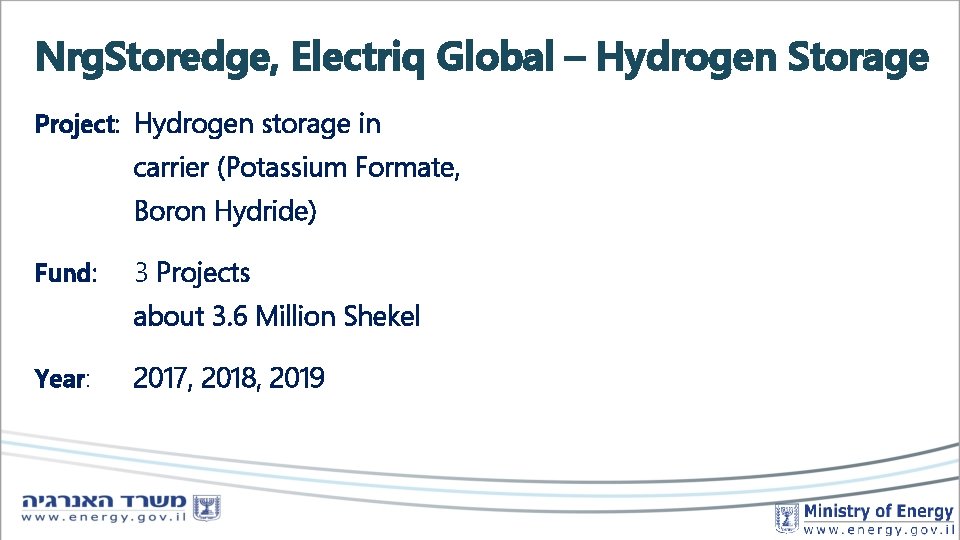

Nrg. Storedge, Electriq Global – Hydrogen Storage Project: Hydrogen storage in carrier (Potassium Formate, Boron Hydride) Fund: 3 Projects about 3. 6 Million Shekel Year: 2017, 2018, 2019

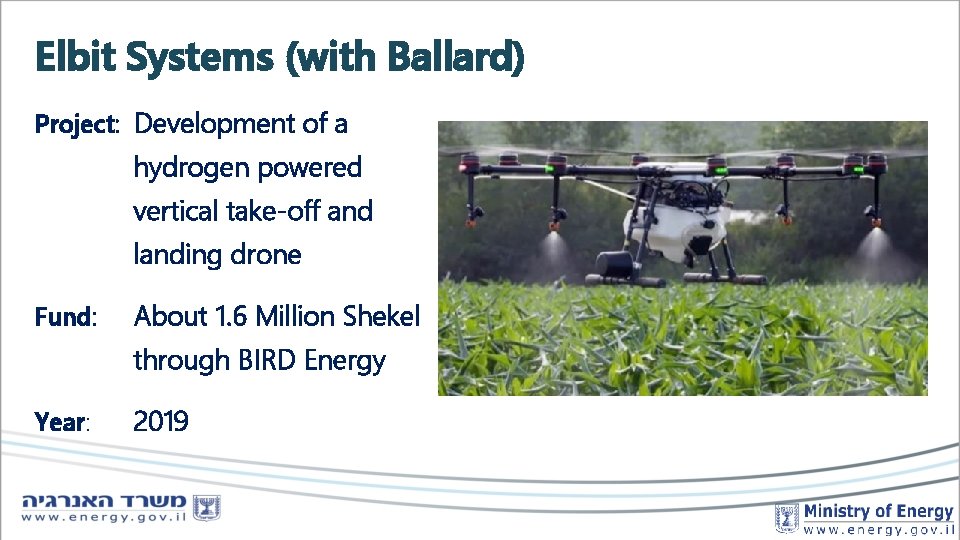

Elbit Systems (with Ballard) Project: Development of a hydrogen powered vertical take-off and landing drone Fund: About 1. 6 Million Shekel through BIRD Energy Year: 2019

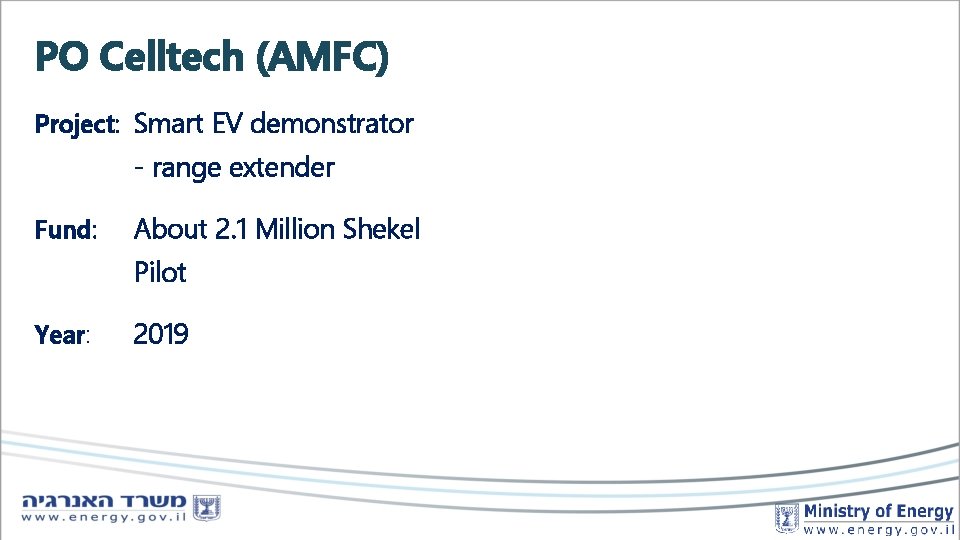

PO Celltech (AMFC) Project: Smart EV demonstrator - range extender Fund: About 2. 1 Million Shekel Pilot Year: 2019

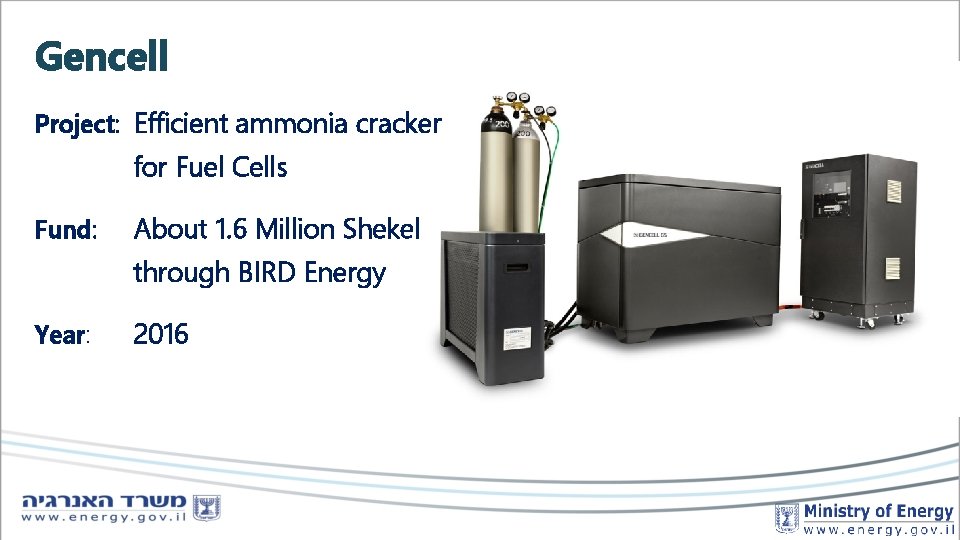

Gencell Project: Efficient ammonia cracker for Fuel Cells Fund: About 1. 6 Million Shekel through BIRD Energy Year: 2016

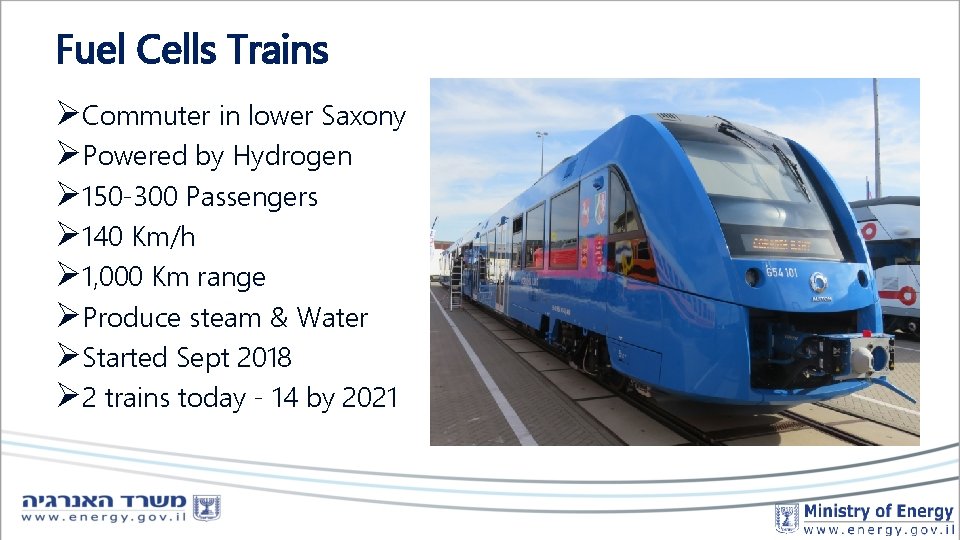

Fuel Cells Trains ØCommuter in lower Saxony ØPowered by Hydrogen Ø 150 -300 Passengers Ø 140 Km/h Ø 1, 000 Km range ØProduce steam & Water ØStarted Sept 2018 Ø 2 trains today - 14 by 2021

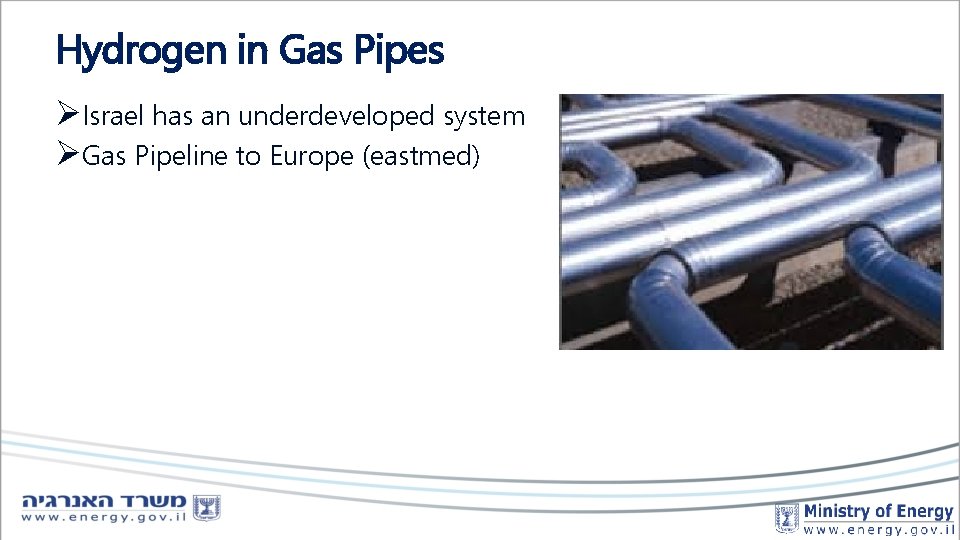

Hydrogen in Gas Pipes ØIsrael has an underdeveloped system ØGas Pipeline to Europe (eastmed)
