Hydraulic Press in New Age Drive your press

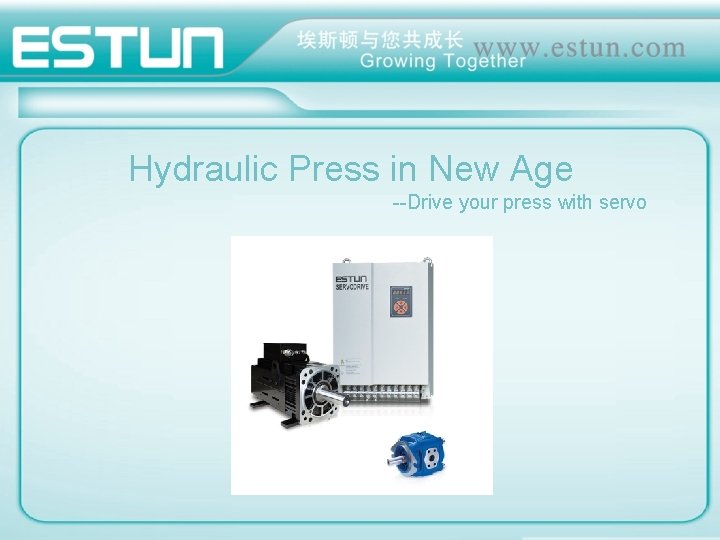

Hydraulic Press in New Age --Drive your press with servo

Contents 1. Introduction 2. Features, Advantages & Benefits 3. System detail 4. Case & Data

1. Introduction-SVP –Servo Variable-speed Pump (each pump 25 cc ~250 cc) SVP system is formed by pressure and flow double closed-loop control. The power and speed of whole press system is optimum adjustable, after SVP replaces the classic AC motor and pump system. • Pressure and flow double closed-loop control • ESTUN servo system • PQ Decoupling control algorithm • Rexroth (or specified) Internal gear pump

1. Introduction-SVP • Permanent magnet synchronous servo motor • PQ Decoupling control algorithm • 40%~80% Energy saving • 1‰ repeatability precision • ± 0. 3 bar accuracy • ± 0. 1 mm Injection • Flow response 20 ms • Pressure response 70 ms • Decompression time 120 ms Energy saving High Efficiency Accuracy Durable • Triple protection • high overload capacity

2. Features, Advantages & Benefits Product features Advantages Benefit No need valve control system high efficiency, low power consumption up to 80% energy saving, Block-based design, compact oil tank 50% less Installation volume high productivity, easy to install, retrofitting position, pressure and flow triple closed-loop control Up to 80% Hydraulic oil saving Accurate, maintenance free Full process monitoring System self-diagnose Low failure rate Total solution is ready for use Short developing, designing, and installation time. extremely testing, training and maintenance costs saving. Specially designed algorithm for hydraulic system

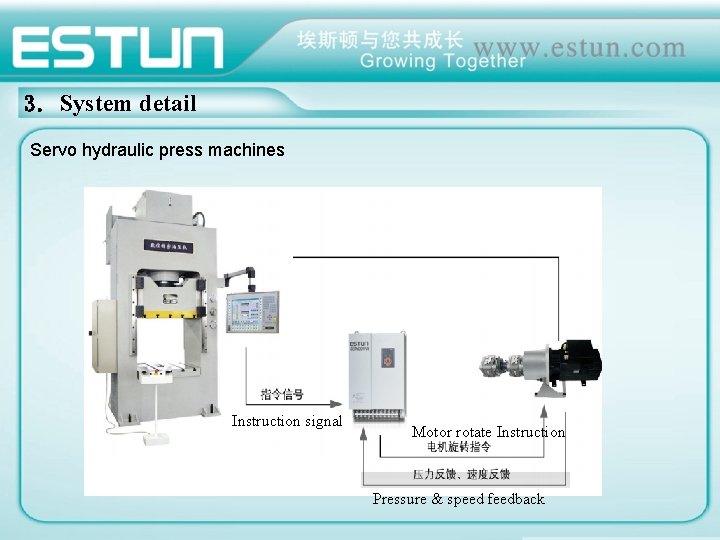

3. System detail Servo hydraulic press machines Instruction signal Motor rotate Instruction Pressure & speed feedback

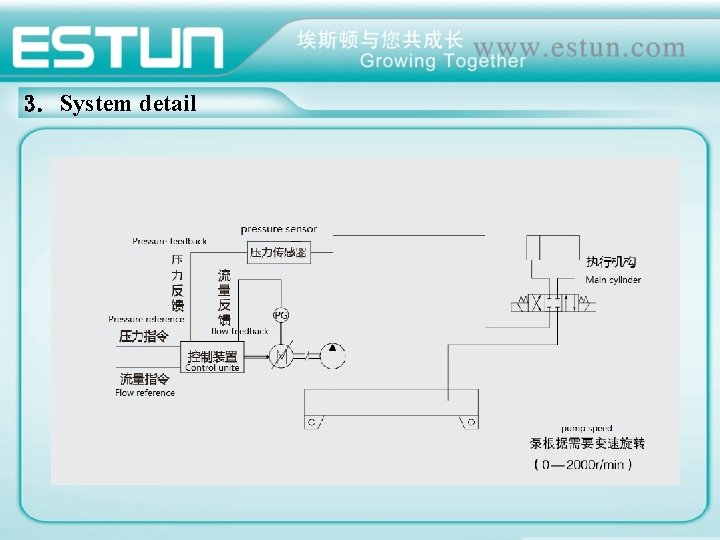

3. System detail

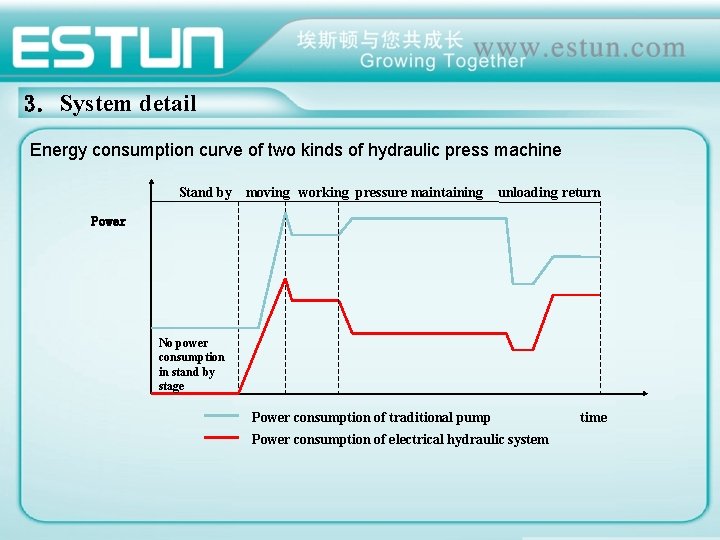

3. System detail Energy consumption curve of two kinds of hydraulic press machine Stand by moving working pressure maintaining unloading return Power No power consumption in stand by stage Power consumption of traditional pump Power consumption of electrical hydraulic system time

4. Case & Data TIANDUAN 200 T Sheet drawing press YANGLI 315 T Hydraulic press

4. Case & Data 黑色：流量反馈 1500 Rpm 绿色：流量给定 1500 Rpm 黑色：流量反馈 1200 Rpm 绿色：流量给定 1200 Rpm Pressure characteristic curve 红色：压力反馈 25. 0 Mpa 压力精度 ± 0. 1 Mpa Flow characteristic curve

4. Case & Data HAIDE high precision hydraulic pressure machine PENGDA DSVP high precision hydraulic pressure machine

4. Case & Data XINHONG Machinery-- 2000 T Hydraulic Press Machine

4. Case & Data 6 sets 35 kw servo, 100+63 cc Dual pump system. 49% energy saving

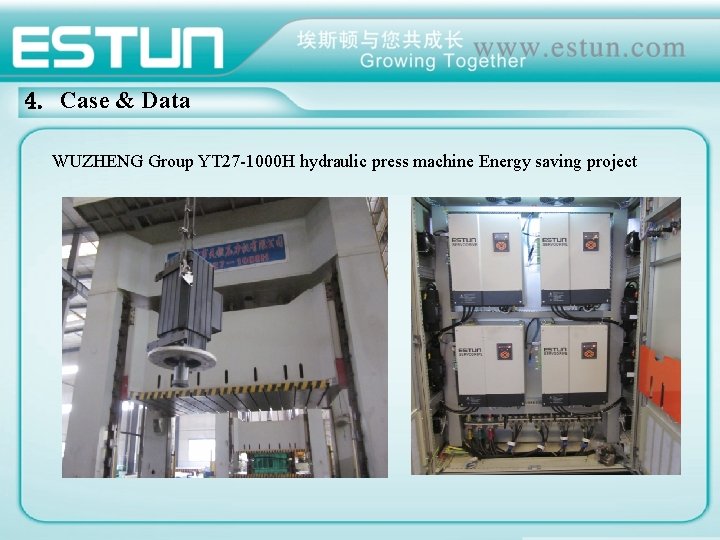

4. Case & Data WUZHENG Group YT 27 -1000 H hydraulic press machine Energy saving project

4. Case & Data WUZHENG Group YT 27 -1000 H hydraulic press machine Energy saving project

4. Case & Data Short term energy saving comparing test YT 27 -1000 H Long term energy saving comparing test YT 27 -1000 H Hybrid type Test date 2015. 05. 15 Product 1800 Cover Material Quantity (pieces) Total test time（min） Starting meter read (k. W. h) final meter read (k. W. h) Power consumption (k. W. h) Energy saving % Starting oil temp（℃） Final oil temp（℃） Temp rising （℃） power consumption (k. W. h/h) production cycle (s) Motor noise（d. B） 0. 8 mm sheet 100 40 40 3. 2（X 120） 3. 35（X 120） 3. 7（X 120） 3. 65（X 120） 60 36 Punching workshop data comparison East 1000 t Work times Meter reading Power consump tion （kw. h） Power/ti me （kw. h） 　 　 25. 3 　 　 312 0. 33987 1036 27 204 0. 19691 39. 7 36 　 1057 29. 4 288 0. 27247 1361 42. 9 384 0. 28215 1189 31. 7 276 0. 23213 7/6 1540 46. 2 396 0. 25714 1370 34. 4 324 0. 23650 8/6 　 49 336 　 　 35 72 　 9/6 　 54. 5 660 　 　 　 10/6 1042 58 420 0. 40307 1065 38. 3 396 0. 37183 Date （60 -36）/60 =40（%） 29 33. 4 35. 4 36. 5 6. 4 4. 1 West 1000 t Power/ti consum me ption （kw. h） Work times Meter reading 3/6 　 36. 8 　 4/6 918 39. 4 5/6 　 6/6 90 k. W. h/h 54 k. W. h/h 11/6 906 63. 6 672 0. 74172 708 41. 1 336 0. 47458 24 s 85 24 s 78 Total 5767 　 3216 　 6425 　 1896 　

Thank You!
