Hybridization Organic Chemistry

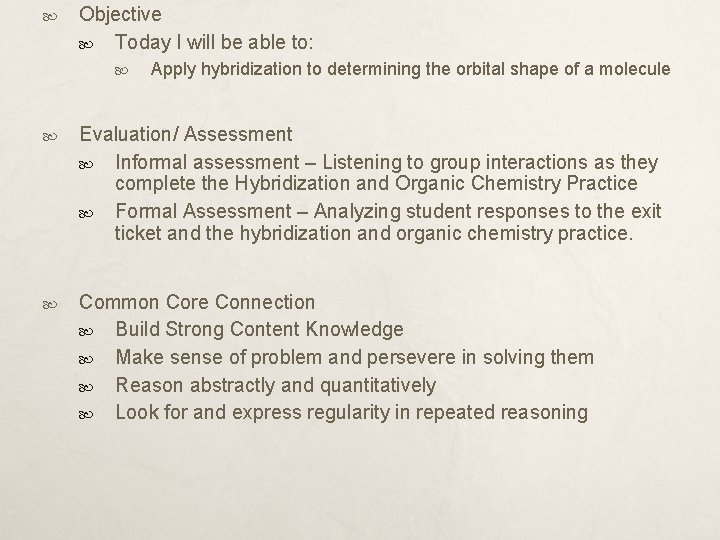

Objective Today I will be able to: Apply hybridization to determining the orbital shape of a molecule Evaluation/ Assessment Informal assessment – Listening to group interactions as they complete the Hybridization and Organic Chemistry Practice Formal Assessment – Analyzing student responses to the exit ticket and the hybridization and organic chemistry practice. Common Core Connection Build Strong Content Knowledge Make sense of problem and persevere in solving them Reason abstractly and quantitatively Look for and express regularity in repeated reasoning

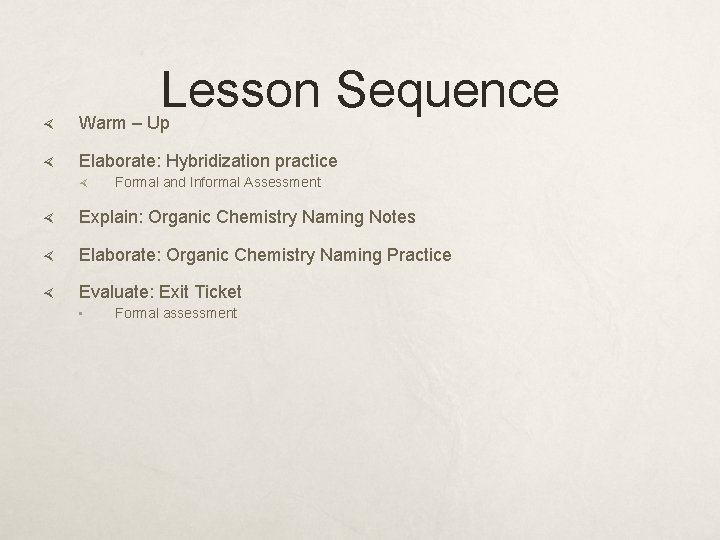

Lesson Sequence Warm – Up Elaborate: Hybridization practice Formal and Informal Assessment Explain: Organic Chemistry Naming Notes Elaborate: Organic Chemistry Naming Practice Evaluate: Exit Ticket • Formal assessment

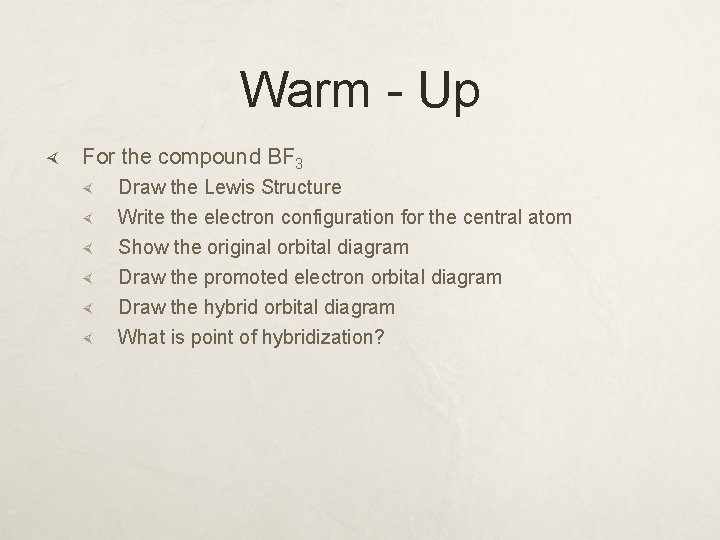

Warm - Up For the compound BF 3 Draw the Lewis Structure Write the electron configuration for the central atom Show the original orbital diagram Draw the promoted electron orbital diagram Draw the hybrid orbital diagram What is point of hybridization?

Objective Today I will be able to: Apply hybridization to determining the orbital shape Apply naming rules to naming organic compounds

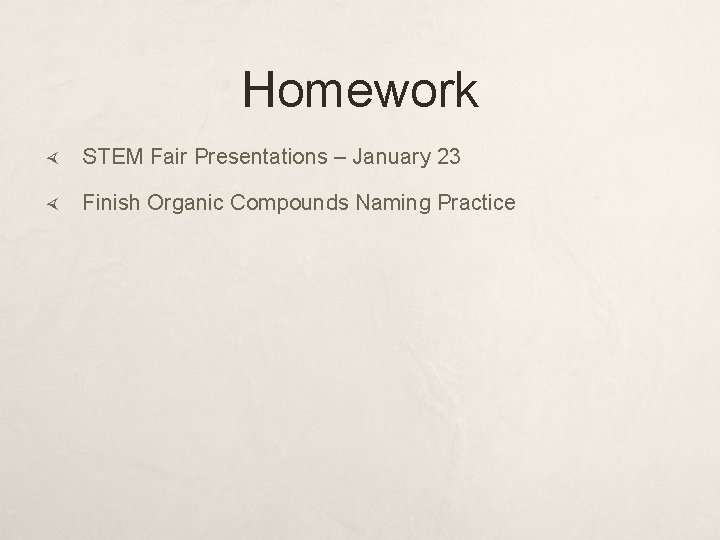

Homework STEM Fair Presentations – January 23 Finish Organic Compounds Naming Practice

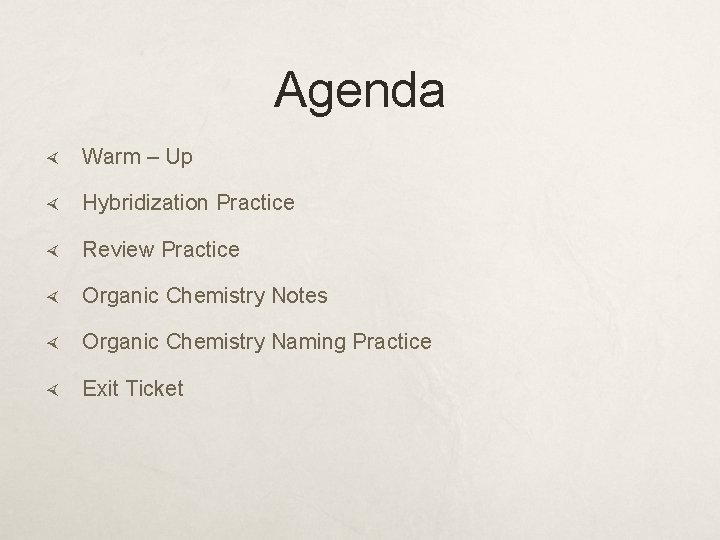

Agenda Warm – Up Hybridization Practice Review Practice Organic Chemistry Notes Organic Chemistry Naming Practice Exit Ticket

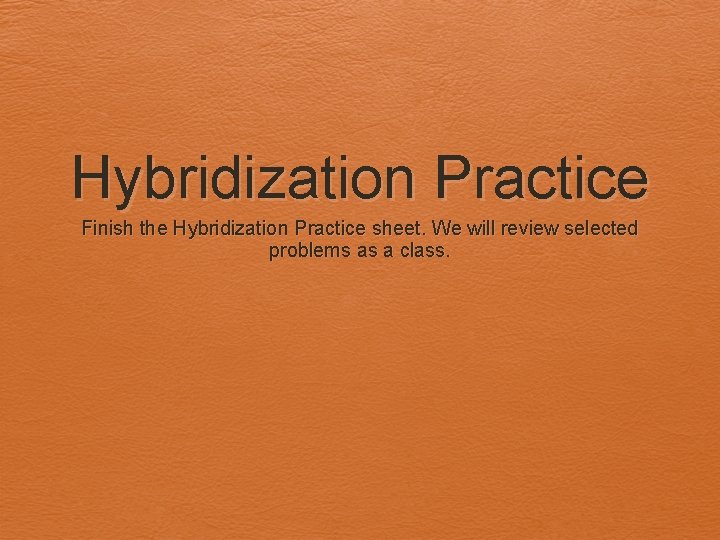

Hybridization Practice Finish the Hybridization Practice sheet. We will review selected problems as a class.

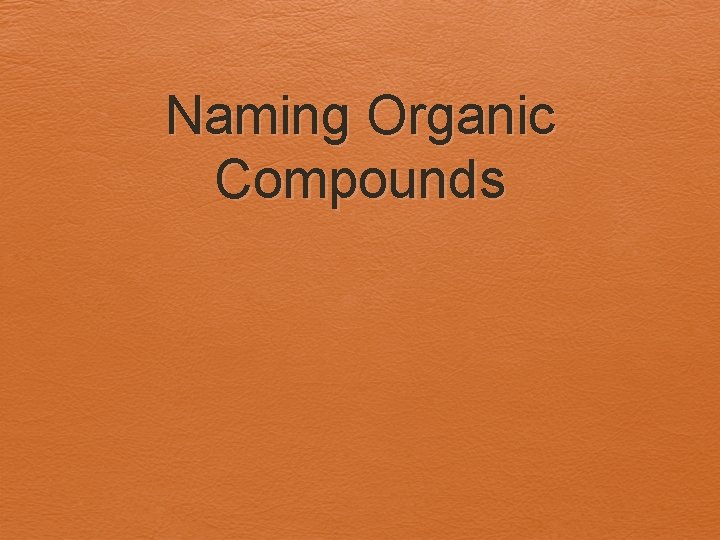

Naming Organic Compounds

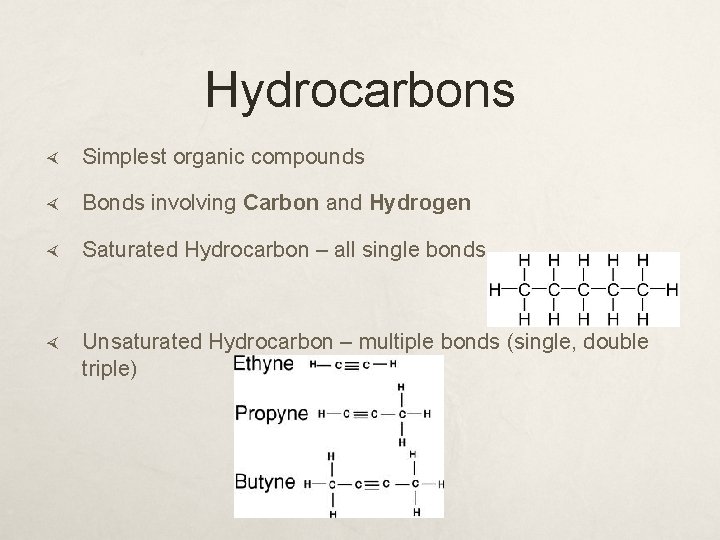

Hydrocarbons Simplest organic compounds Bonds involving Carbon and Hydrogen Saturated Hydrocarbon – all single bonds Unsaturated Hydrocarbon – multiple bonds (single, double triple)

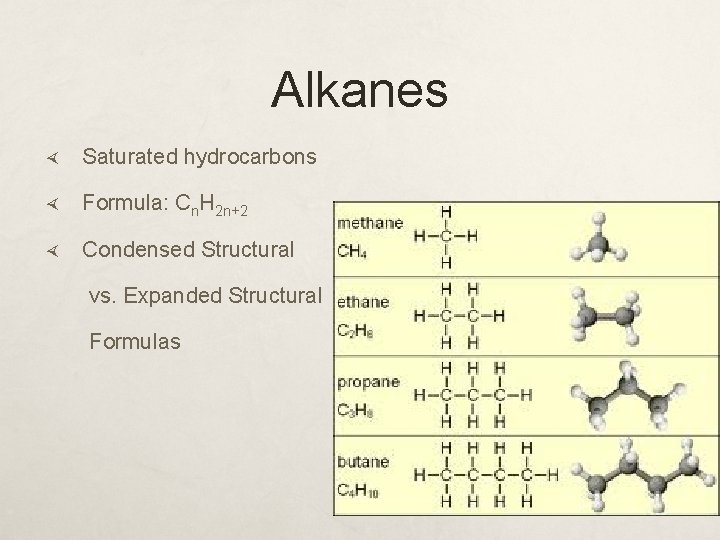

Alkanes Saturated hydrocarbons Formula: Cn. H 2 n+2 Condensed Structural vs. Expanded Structural Formulas

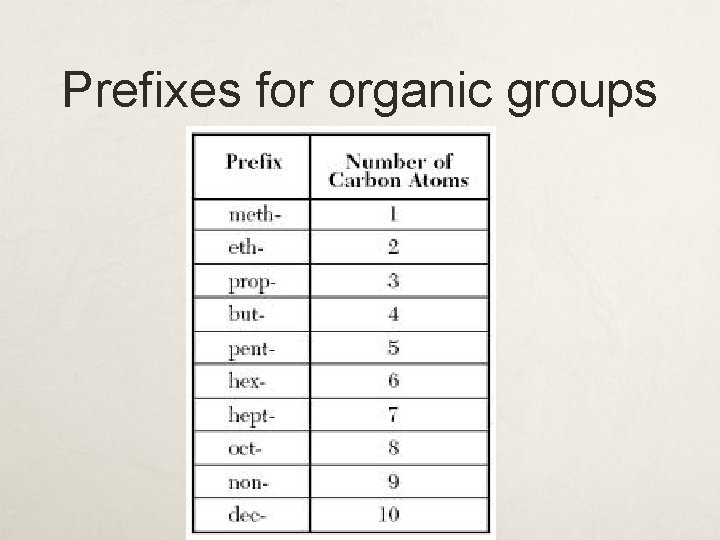

Prefixes for organic groups

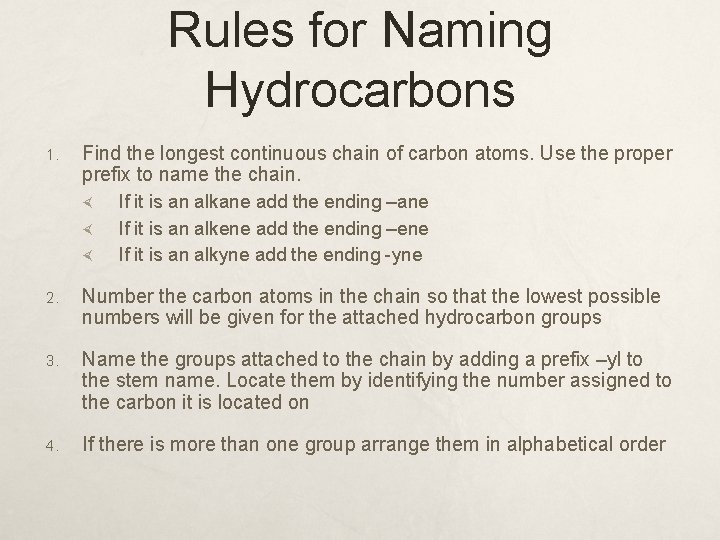

Rules for Naming Hydrocarbons 1. Find the longest continuous chain of carbon atoms. Use the proper prefix to name the chain. If it is an alkane add the ending –ane If it is an alkene add the ending –ene If it is an alkyne add the ending -yne 2. Number the carbon atoms in the chain so that the lowest possible numbers will be given for the attached hydrocarbon groups 3. Name the groups attached to the chain by adding a prefix –yl to the stem name. Locate them by identifying the number assigned to the carbon it is located on 4. If there is more than one group arrange them in alphabetical order

Complete problems 1, 2, 3 on a sheet of paper We will review selected responses as a class by drawing the structure or writing the name on the board.

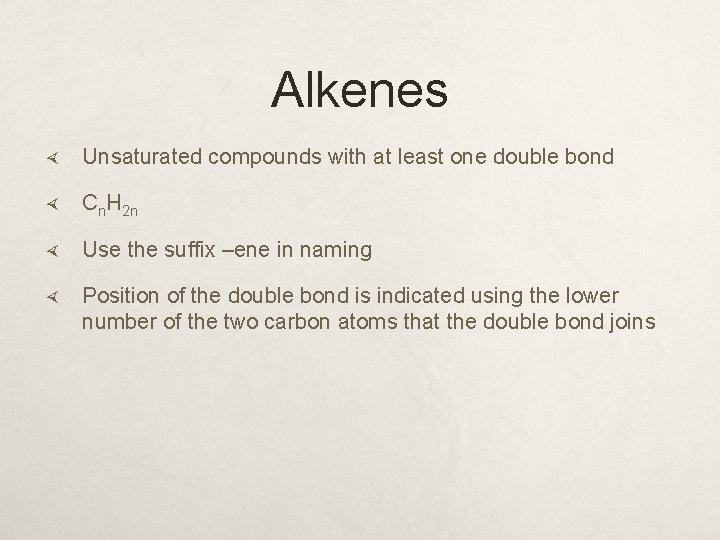

Alkenes Unsaturated compounds with at least one double bond Cn. H 2 n Use the suffix –ene in naming Position of the double bond is indicated using the lower number of the two carbon atoms that the double bond joins

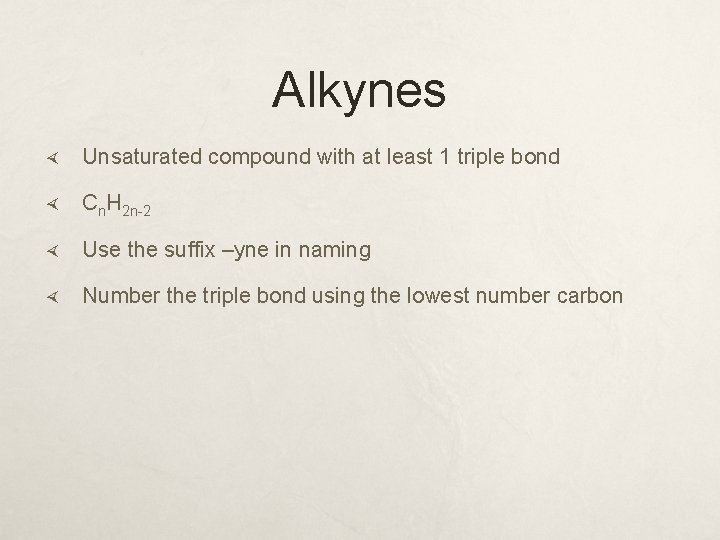

Alkynes Unsaturated compound with at least 1 triple bond Cn. H 2 n-2 Use the suffix –yne in naming Number the triple bond using the lowest number carbon

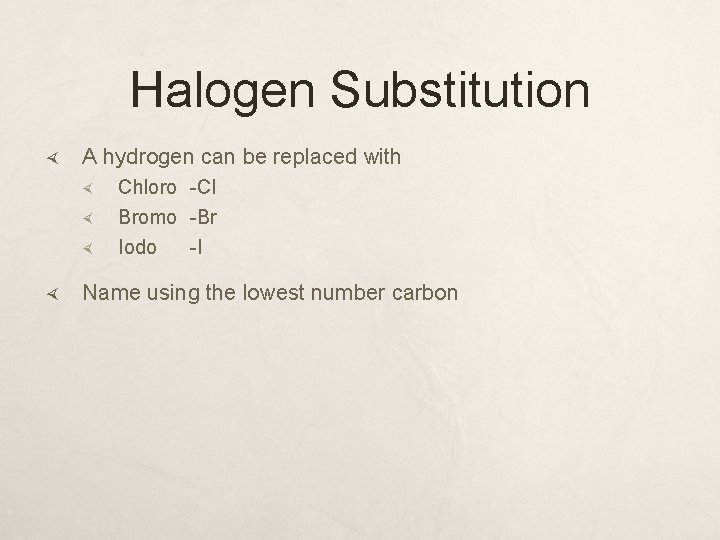

Halogen Substitution A hydrogen can be replaced with Chloro -Cl Bromo -Br Iodo -I Name using the lowest number carbon

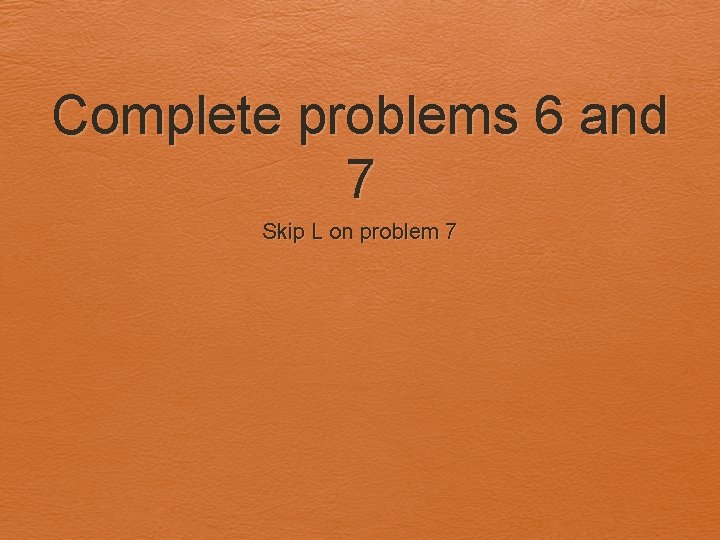

Complete problems 6 and 7 Skip L on problem 7

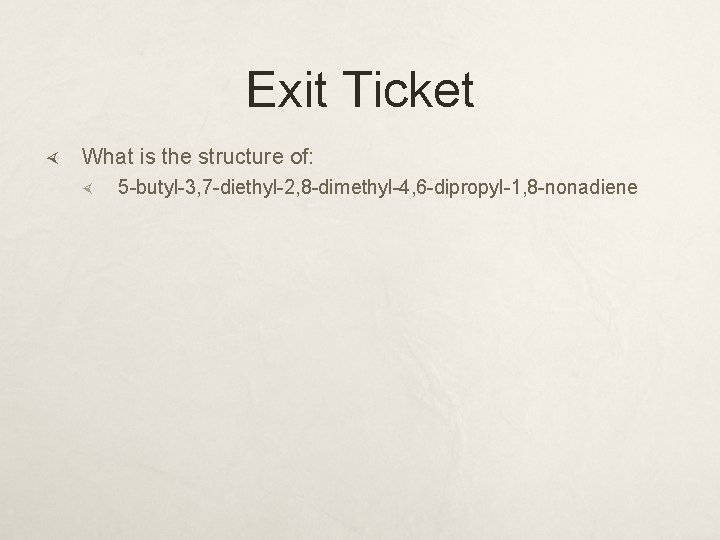

Exit Ticket What is the structure of: 5 -butyl-3, 7 -diethyl-2, 8 -dimethyl-4, 6 -dipropyl-1, 8 -nonadiene

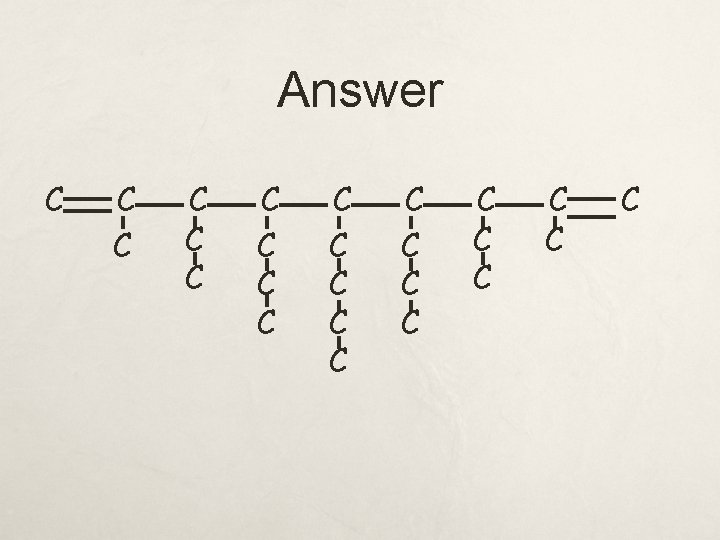

Answer C C C C C C C
