Hybrid IP PBX KXTDA 600 September 2005 Panasonic

Hybrid IP PBX KX-TDA 600 September 2005, Panasonic Eastern Europe

Hybrid IP-PBX KX-TDA Series KX-TDA 600 Basic Shelf KX-TDA 600 + TDA 620 Expansion Shelf 1 KX-TDA 600 + 2 x TDA 620 Expansion Shelf 2 KX-TDA 600 + 3 x TDA 620 Expansion Shelf 3

Hybrid IP-PBX KX-TDA Series 3 -Shelf System 512 ports w/o DXDP 752 ports w/ DXDP Basic System 160 ports w/o DXDP 240 ports w/ DXDP 2 -Shelf System 336 ports w/o DXDP 496 ports w/ DXDP Expansion Shelf 2 Max. System 688 ports w/o DXDP 1, 008 ports w/ DXDP Expansion Shelf 3 Expansion Shelf 1 Basic Shelf Power Supply Unit Max. Capacity is configured with All Analogue, BRI or Vo. IP Trunk, except for PRI Card.

Hybrid IP-PBX KX-TDA Series BUS Configuration between Shelves Optional BUS-Master Expansion card (BUS-ME) must be connected to BUS-M Card for the 3 rd and 4 th cabinets BUS-S The connecting Cables are included in : -Bus-M (TDA 6110) -Bus-ME (TDA 6111) BUS-S BUS-ME BUS-ME BUS-Slave (Built-in) BUS-Master (TDA 6110) BUS-Master Expansion (TDA 6111) BUS-S BUS-ME

KX-TDA 600　System Capacity Trunk 640 968 ports 1288 ports 600 368 1008 ports 688 ports 90 48 DXDP 640 Analogue, BRI or Vo. IP Trunk 960 Ext DXDP 640 688 368 Ext 960 PRI 30 Trunk Shelf 1 2 3 4 Max. Port 160 336 512 688 Max. Port 230 476 722 968 Max. Trunk 160 320 480 640 Max. Trunk 150 300 450 600 160 320 480 640 Max. Ext. 160 320 480 640 Max. Port 240 496 752 1008 Max. Port 310 636 962 1288 Max. Trunk 160 320 480 640 Max. Trunk 150 300 450 600 240 480 720 960 Max. Ext. SLT/DPT DXDP

KX-TDA 600 System Capacity -1 Basic System TDA 600 With DXDP 2 Shelf System With DXDP TDA 600 + TDA 620 160 240 0 0 Free Card Slot 10 -slots 21 -slots Power Supply M/L M/L Max. Port Initial Configuration Max. Trunk Port 336 496 160 320 Max. CO (PSTN) 160 320 Max. E&M (Tie Line) 80 80 160 Max. BRI, S 0 -Bus 80 (160 -ch) 160 (320 -ch) Max. PRI, Internal PRI 5 (150 -ch) 10 (300 -ch) Max. E 1 5 (150 -ch) 10 (300 -ch) Max. IP Gateway Card 10 (160 -ch) 20 (320 -ch)

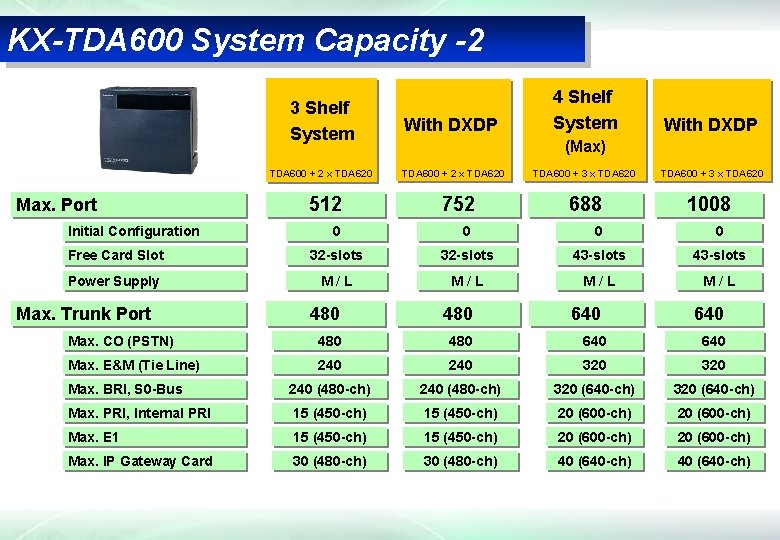

KX-TDA 600 System Capacity -2 3 Shelf System With DXDP TDA 600 + 2 x TDA 620 4 Shelf System With DXDP (Max) TDA 600 + 3 x TDA 620 1008 512 752 688 0 0 Free Card Slot 32 -slots 43 -slots Power Supply M/L M/L Max. Port Initial Configuration Max. Trunk Port 480 640 Max. CO (PSTN) 480 640 Max. E&M (Tie Line) 240 320 Max. BRI, S 0 -Bus 240 (480 -ch) 320 (640 -ch) Max. PRI, Internal PRI 15 (450 -ch) 20 (600 -ch) Max. E 1 15 (450 -ch) 20 (600 -ch) Max. IP Gateway Card 30 (480 -ch) 40 (640 -ch)

KX-TDA 600 System Capacity -3 Max. Extension Basic System With DXDP 2 Shelf System TDA 600 + TDA 620 160 240 320 With DXDP 480 Max. SLT 160 320 Max. D-PT 80 160 320 Max. Old D-PT 128 256 Max. APT 80 80 160 Max. DSS Console 16 16 32 32 Max. VPS 8 8 (T 7600 series, T 7565, T 7560) (T 75/T 74/T 72 series)

KX-TDA 600 System Capacity -4 Max. Extension 3 Shelf System With DXDP TDA 600 + 2 x TDA 620 480 4 Shelf System With DXDP (Max) 720 TDA 600 + 3 x TDA 620 640 960 Max. SLT 480 640 Max. D-PT 240 480 320 640 384 512 Max. APT 240 320 Max. DSS Console 48 48 64 64 Max. VPS 8 8 (T 7600 series, T 7565, T 7560) Max. Old D-PT (Note-1 ) (T 75/T 74/T 72 series)

KX-TDA 600 System Capacity -5 Other Accessories Basic System 2 Shelf System 3 Shelf System 4 Shelf System (Max) TDA 600 + TDA 620 TDA 600 + 2 x TDA 620 TDA 600 + 3 x TDA 620 Max. DECT CS* (Antenna) 32 64 96 128 Max. DECT PS w/o EMEC 64 128 192 256 Max. DECT PS with EMEC 128 256 384 512 Max. Doorphone 16 32 48 64 Max. Door Opener 16 32 48 64 Max. External Relay 16 32 48 64 Max. External Sensor 16 32 48 64 Max. BGM / MOH Input 2 2 Max. External Paging 2 2 Max. RS 232 C / SMDR 1 1 Max. USB 1 1 Max. Ethernet For CTI or Programming 1 1 128 128 8 8 Max. PC Phone Max. PC Console *DECT CS belongs to Extension Type and it has to be counted as Extension.

Hybrid IP-PBX KX-TDA 600 Basic Shelf – Main Unit 6 7 8 Free slot Free slot 9 10 Bus card slot 5 MPR(CPU) 4 Free slot 3 Free slot 2 Free slot Serial I/F USB Power Supply M / L 1 ¬Free Slot supports any types of cards ¬Bus Card connects to TDA 620 Expansion Shelf Bus card

Hybrid IP-PBX KX-TDA 620 Expansion Shelf – Bus Slave Connection Circuit added initially (BUS S) 6 7 8 Free slot Free slot 9 10 11 ¬Free Slot supports any types of cards ¬No MPR Card needed ¬Bus Card connects to TDA 600 Basic Shelf Bus card slot 5 Free slot 4 Free slot 3 Free slot 2 Free slot Power Supply M / L 1

KX-TDA 600/620 MPR Card MPR : Main Processor card (Pre-installed) SD Slot 32 MB Expansion Shelf Basic Shelf SD (Secure Digital) card (32 M-byte Pre-installed) - Store Main Software - Store Customer Database - Replaceable - ISDN Remote Maintenance to update Main Software Analogue Modem card KX-TDA 0196 (Optional) RMT Analogue Modem USB I/F EMEC Expansion Memory Serial I/F - Support Max. 56 K bps (V. 90) USB Interface (Pre-installed) - Programming / CTI Expansion Memory card KX-TDA 6105 (Optional) - Extension Capacity Expansion RS 232 -C / V. 24 Interface (Pre-installed) - Programming / SMDR

KX-TDA 600/620 Trunk Card Expansion Shelf Trunk card (Optional) Installed in “Free slot” LCOT 16 CID/PAY 8 CID 8 KX-TDA 6181 16 Analogue CO card KX-TDA 0189 Caller ID/Paytone card for 8 CO DID 8 Basic Shelf KX-TDA 0182 8 Direct Dialing In Card KX-TDA 0193 Caller ID card for 8 CO BRI 4 BRI 8 E 1 (30 -ch) KX-TDA 0284 4 Basic Rate ISDN card KX-TDA 0288 8 Basic Rate ISDN card KX-TDA 0188 1 E 1 card - RJ 45 / BNC E&M 8 KX-TDA 0184 8 E&M card - Type 5 PRI 30 KX-TDA 0290 1 Primary Rate ISDN card (30 -ch) - RJ 45 / BNC

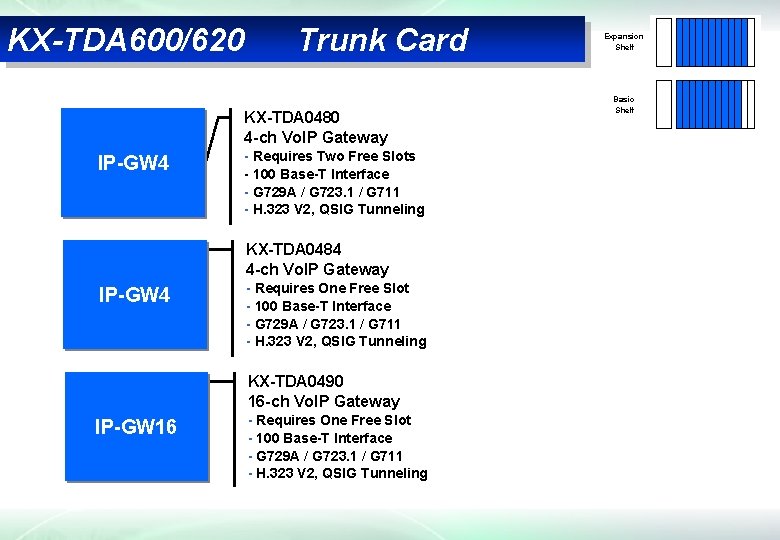

KX-TDA 600/620 Trunk Card KX-TDA 0480 4 -ch Vo. IP Gateway IP-GW 4 - Requires Two Free Slots - 100 Base-T Interface - G 729 A / G 723. 1 / G 711 - H. 323 V 2, QSIG Tunneling KX-TDA 0484 4 -ch Vo. IP Gateway IP-GW 4 - Requires One Free Slot - 100 Base-T Interface - G 729 A / G 723. 1 / G 711 - H. 323 V 2, QSIG Tunneling KX-TDA 0490 16 -ch Vo. IP Gateway IP-GW 16 - Requires One Free Slot - 100 Base-T Interface - G 729 A / G 723. 1 / G 711 - H. 323 V 2, QSIG Tunneling Expansion Shelf Basic Shelf

KX-TDA 600/620 Extension Card Extension card (Optional) Installed in “Free slot” DHLC 8 DLC 16 SLC 8 CID 8 KX-TDA 0170 8 Digital Hybrid Line card - Support 8 D-PT and 8 SLT, or 8 A-PT. - 2 Power Failure port - 8 DTMF Receiver - XDP and DXDP KX-TDA 0171 8 Digital Extension card KX-TDA 0172 16 Digital Extension card KX-TDA 0173 8 SLT Line card - 2 Power Failure port - 8 DTMF Receiver KX-TDA 0168 Caller ID card for 8 Analogue Extension SLC 16 Expansion Shelf Basic Shelf KX-TDA 6174 16 SLT Line card - 4 Power Failure port - 16 DTMF Receiver MSLC 16 KX-TD 60175 16 SLT with Message Lamp - 90 -Volt Neon Lamp - 4 Power Failure port - 16 DTMF Receiver SLC 24 KX-TDA 6176 24 SLT with Message Lamp - 90 -Volt Neon Lamp - 6 Power Failure port - 16 DTMF Receiver Under consideration for Version 2. 0

KX-TDA 600/620 Extension Card Expansion Shelf Basic Shelf IP-EXT 16 KX-TDA 0470 16 port IP Extension Card CSINF 4 KX-TDA 0143 4 DECT-CS Interface Card Cabling: 1000 m CSINF 8 KX-TDA 0144 8 DECT-CS Interface Card Cabling: 1000 m

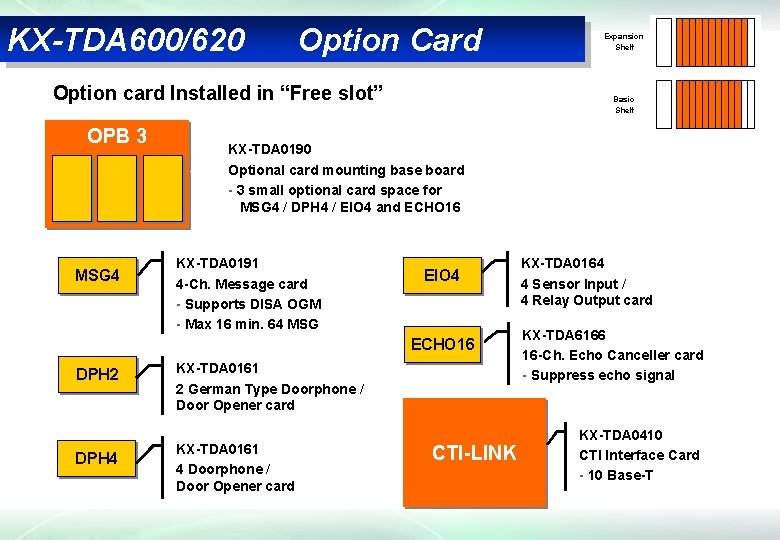

KX-TDA 600/620 Option Card Option card Installed in “Free slot” OPB 3 MSG 4 Basic Shelf KX-TDA 0190 Optional card mounting base board - 3 small optional card space for MSG 4 / DPH 4 / EIO 4 and ECHO 16 KX-TDA 0191 4 -Ch. Message card - Supports DISA OGM - Max 16 min. 64 MSG EIO 4 ECHO 16 DPH 2 DPH 4 Expansion Shelf KX-TDA 0161 2 German Type Doorphone / Door Opener card KX-TDA 0161 4 Doorphone / Door Opener card CTI-LINK KX-TDA 0164 4 Sensor Input / 4 Relay Output card KX-TDA 6166 16 -Ch. Echo Canceller card - Suppress echo signal KX-TDA 0410 CTI Interface Card - 10 Base-T

KX-TDA 600/620 Other Options Expansion Shelf Basic Shelf KX-TDA 6920 SD Card containing Enhanced Features 32 MB BUS ME KX-TDA 6110 Shelf Expansion connection Card for Basic Shelf KX-TDA 6111 Additional Card for connection of Expansion Shelf 2 and 3 Connects to BUS M card

KX-TDA Option Card Compatibility Optional Card MPR TDA 600 TDA 100/200 MPR (for TDA 100/200) N/A OK MPR (for TDA 600) OK N/A Analog Remote Modem TDA 0196 TDA 6105 TDA 0105 DHLC 8 TDA 0170 DLC 8 TDA 0171 DLC 16 TDA 0172 SLC 8 TDA 0173 SLC 16 TDA 6174 TDA 0174 MSLC 16 TDA 6175 TDA 0175 CSIF 4 TDA 0143 CSIF 8 TDA 0144 IP-EXT 16 TDA 0470 EXT-CID (for SLC 8) TDA 0168 MEC Extension N/A : Not Available

KX-TDA Option Card Compatibility Optional Card CO TDA 600 TDA 200 LCOT 4 N/A TDA 0183 LCOT 8 N/A TDA 0180 LCOT 16 TDA 6181 TDA 0181 CID/PAY 8(for LCOT) TDA 0189 CID 8 (for LCOT) TDA 0193 E&M 8 TDA 0184 T 1 TDA 0187 E 1 TDA 0188 DID 8 TDA 0182 BRI 4 TDA 0284 BRI 8 TDA 0288 PRI 30 TDA 0290 CE PRI 23 TDA 0290 IP-GW 4 TDA 0484 IP-GW 16 TDA 0490 N/A : Not Available

KX-TDA Option Card Compatibility Optional Card OPB 3 TDA 600 TDA 200 OPB 3 TDA 0190 DPH 4 TDA 0161 DPH 2(for Germany type) TDA 0162 EIO 4 TDA 0164 See TDA 6166 TDA 0166 MSG 4 TDA 0191 CTI-LINK TDA 0410 EECHO 16 TDA 6166 N/A BUS-Master TDA 6110 N/A BUS-Master Expansion TDA 6111 N/A Floor Mounting Kit TDA 6201 N/A Expansion Shelf TDA 620 N/A TDA 0103 TDA 0104 ECHO 16 Others Power Unit N/A : Not Available

KX-TDA 600/620 Power Supply Upgrade-able Power Supply for TDA 600/620 PWS - M 128 Power Units (pu) Expansion Shelf Basic Shelf PWS - L 512 Power Units (pu) Note-1: New DPT, s are T 7565, T 7560, and T 7600 series have a power unit rating of 1. Note-2: Old DPT, s are T 7200, T 7500 and T 7400 series have a power unit rating of 4. PWS - L PWS - M TDA 600/620 New D-PT : Max. 128 (128 pu / 1 pu) New D-PT : Max. 160 (512 pu / 1 pu)* Old D-PT : Max. 32 (128 pu / 4 pu) Old D-PT : Max. 128 (512 pu / 4 pu) *Maximum number of New DPT Extensions = 160 per shelf

KX-TDA 600/620 Power Supply The required power supply capacity will differ depending on the types of extensions installed. Check that the power supply capacity falls within the allowable values using the Power Unit (pu) table below and select the power supply type. Power Unit Rating Max M-Type 128 pu Max L-Type 512 pu T 7600/T 7565/T 7560 Series 1 128 160*² NT 136 IP Phone 1 128 160*² T 7500/T 7400/T 7200 Series 4 32 128*² APT 4 32 80*² DSS 4 16 32*² SLC 8 8 10 cards*² SLC 16 16 8 cards 10 cards MSLC 16 16 8 cards 10 cards DHLC 8 8 10 cards*² DECT CS (TDA 0141/TDA 0142) 4 32 128*² ISDN Extension (2 ch) 2 64 150*² TVM Port 1 8*² SLT*1 *1 Calculation must be based on the number of cards, not the number of terminals. *2 Maximum capacity per shelf

KX-TDA 6105 Memory Expansion The following features are available when a KX-TDA 6105 Memory Expansion Card (EMEC) is installed: Without EMEC card 4 Party Conference with Broadcast With EMEC card Not Available System Speed Dial 1000 per system 1000 per Tenant 8 tenants per system Station Speed Dial Max: 10 per Station Max: 100 per Station Not Available 8000 calls 1000 calls 4 digits, 80 entries 8 digits, 1000 entries SMDR Call Storage for Check-out SMDR Call Storage Quick Dial

KX-TDA 600/620 Enhanced Features KX-TDA 600 Built-in SD Card will contain same features as TDA 100/200 Version 2. 0 KX-TDA 6920 contains the following Enhanced features: ¬Network Busy Lamp Field – An operators programmed DSS key LED will show the status of another system extension when it is: busy, receiving an incoming call (ringing) or in ‘Do not Disturb’ (DND) mode. All these features are available for a single PBX and QSIG or Vo. IP networked TDA PBX systems. A Maximum of 32 extensions over 7 PBX systems can be monitored by one operator extension. ¬CTI Enhancement for DECT Multi PBX Control Function – 2 PBXs can be controlled by TAPI software. New Hardware supported – External Sensor/Relay (TDA 0164) and IP-PT (NT 136) now supported. System Phone, IP Phone, and DECT Handset Command Control for following functions: - Microphone, Message Waiting Lamp*, Flexible CO Key, Speakerphone On/Off*, Speakerphone Volume*, Ringing On/Off, LCD display contents. Other – Controlling Ringing Pattern for restricted calls, Setting Absent Message * Not available for DECT Handset.
