HYBRID IFV Khorunzhiy7 on base IFV M80 Khorunzhiy3

HYBRID IFV Khorunzhiy-7 on base IFV M-80

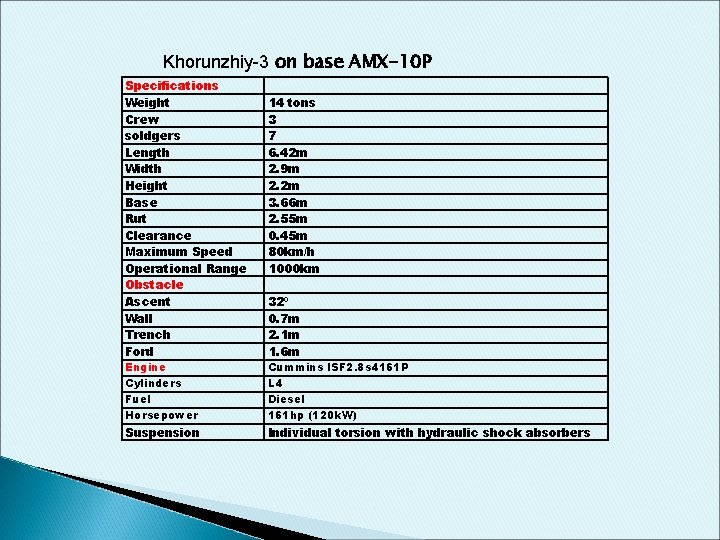

Khorunzhiy-3 on base AMX-10 P Specifications Weight Crew soldgers Length Width Height Base Rut Clearance Maximum Speed Operational Range Obstacle Ascent Wall Trench Ford Engine Cylinders Fuel Horsepower Suspension 14 tons 3 7 6. 42 m 2. 9 m 2. 2 m 3. 66 m 2. 55 m 0. 45 m 80 km/h 1000 km 32⁰ 0. 7 m 2. 1 m 1. 6 m Cummins ISF 2. 8 s 4161 P L 4 Diesel 161 hp (120 k. W) Individual torsion with hydraulic shock absorbers

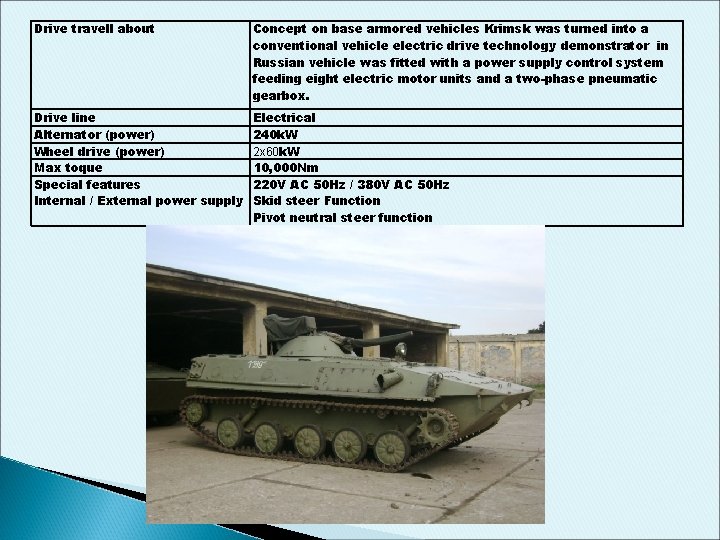

Drive travell about Concept on base armored vehicles Krimsk was turned into a conventional vehicle electric drive technology demonstrator in Russian vehicle was fitted with a power supply control system feeding eight electric motor units and a two-phase pneumatic gearbox. Drive line Alternator (power) Wheel drive (power) Max toque Special features Internal / External power supply Electrical 240 k. W 2 x 60 k. W 10, 000 Nm 220 V AC 50 Hz / 380 V AC 50 Hz Skid steer Function Pivot neutral steer function

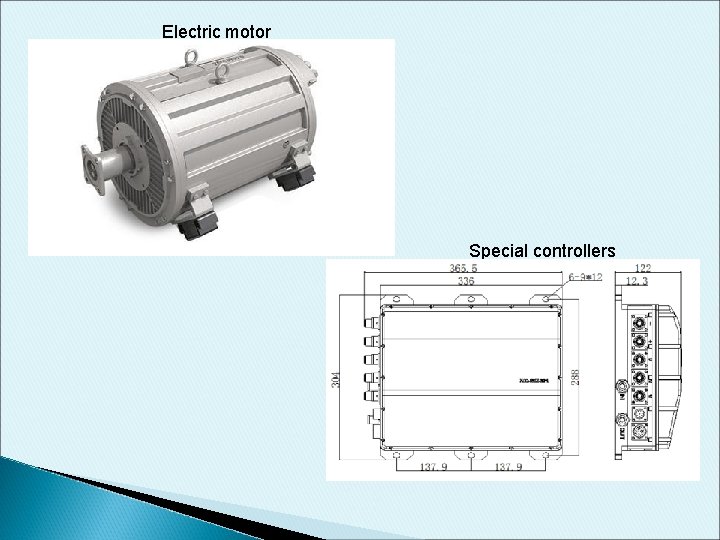

Electric motor Special controllers

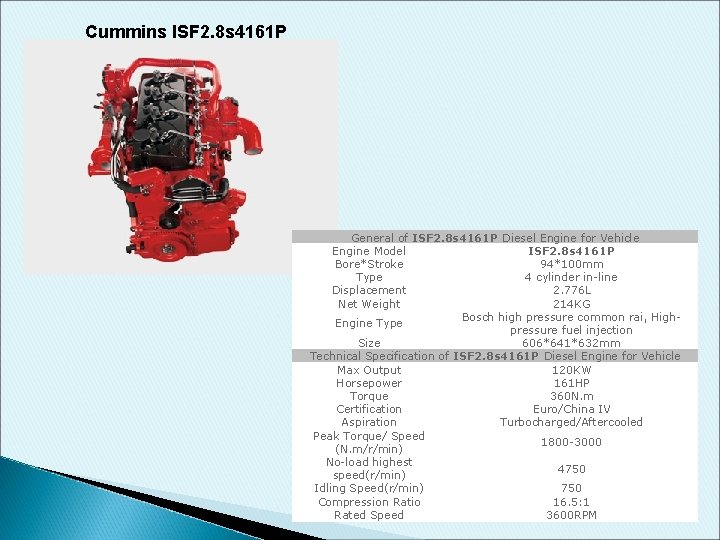

Cummins ISF 2. 8 s 4161 P General of ISF 2. 8 s 4161 P Diesel Engine for Vehicle Engine Model ISF 2. 8 s 4161 P Bore*Stroke 94*100 mm Type 4 cylinder in-line Displacement 2. 776 L Net Weight 214 KG Bosch high pressure common rai, High. Engine Type pressure fuel injection Size 606*641*632 mm Technical Specification of ISF 2. 8 s 4161 P Diesel Engine for Vehicle Max Output 120 KW Horsepower 161 HP Torque 360 N. m Certification Euro/China IV Aspiration Turbocharged/Aftercooled Peak Torque/ Speed 1800 -3000 (N. m/r/min) No-load highest 4750 speed(r/min) Idling Speed(r/min) 750 Compression Ratio 16. 5: 1 Rated Speed 3600 RPM

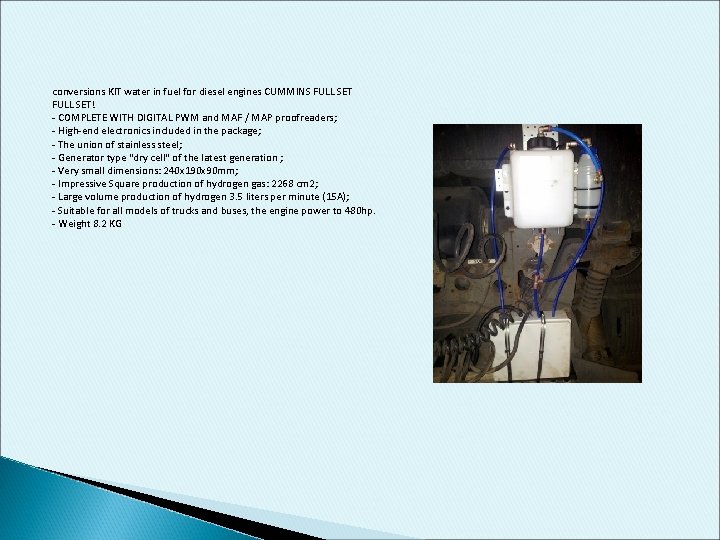

conversions KIT water in fuel for diesel engines CUMMINS FULL SET! - COMPLETE WITH DIGITAL PWM and MAF / MAP proofreaders; - High-end electronics included in the package; - The union of stainless steel; - Generator type "dry cell" of the latest generation ; - Very small dimensions: 240 x 190 x 90 mm; - Impressive Square production of hydrogen gas: 2268 cm 2; - Large volume production of hydrogen 3. 5 liters per minute (15 A); - Suitable for all models of trucks and buses, the engine power to 480 hp. - Weight 8. 2 KG

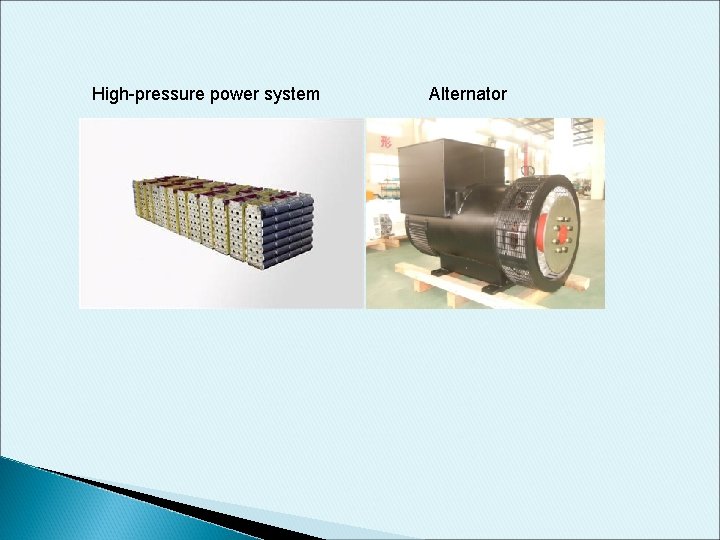

High-pressure power system Alternator

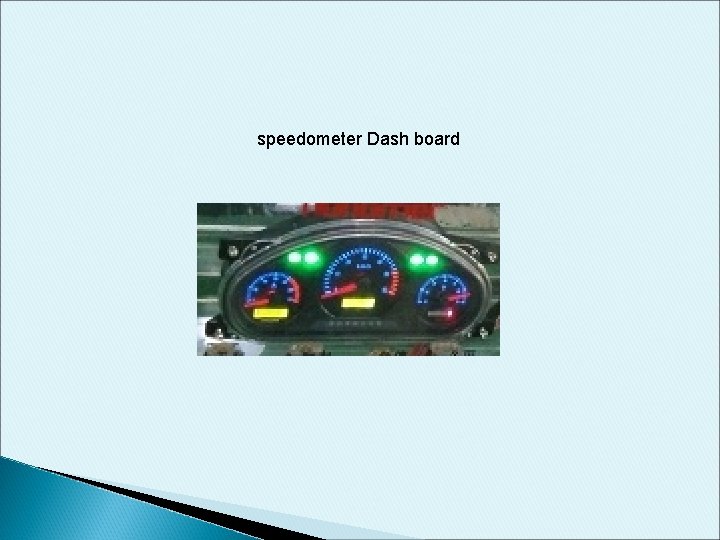

speedometer Dash board

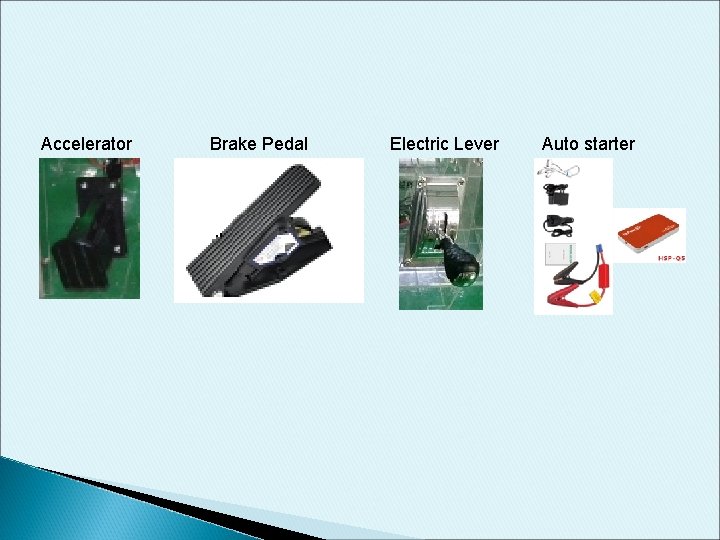

Accelerator Brake Pedal Electric Lever Auto starter

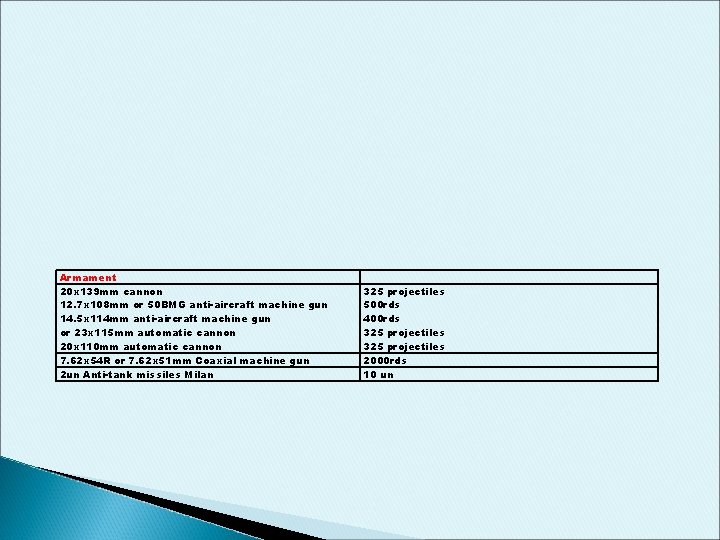

Armament 20 x 139 mm cannon 12. 7 x 108 mm or 50 BMG anti-aircraft machine gun 14. 5 x 114 mm anti-aircraft machine gun or 23 x 115 mm automatic cannon 20 x 110 mm automatic cannon 7. 62 x 54 R or 7. 62 x 51 mm Coaxial machine gun 2 un Anti-tank missiles Milan 325 projectiles 500 rds 400 rds 325 projectiles 2000 rds 10 un

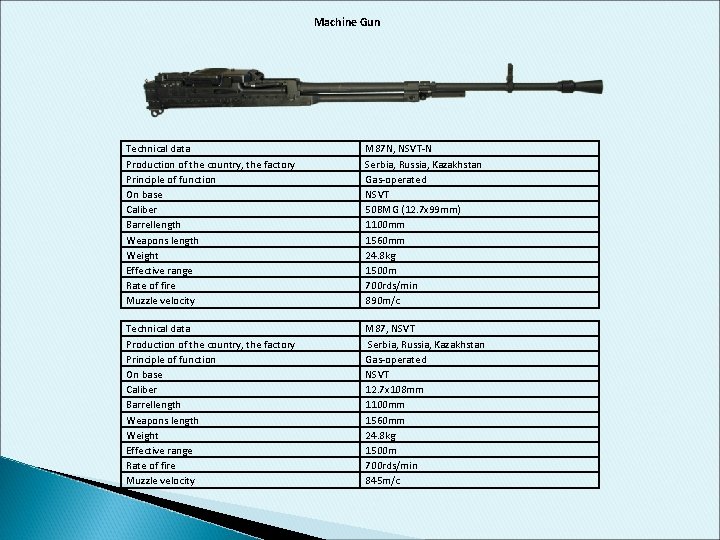

Machine Gun Technical data Production of the country, the factory Principle of function On base Caliber Barrellength Weapons length Weight Effective range Rate of fire Muzzle velocity M 87 N, NSVT-N Serbia, Russia, Kazakhstan Gas-operated NSVT 50 BMG (12. 7 x 99 mm) 1100 mm 1560 mm 24. 8 kg 1500 m 700 rds/min 890 m/c Technical data Production of the country, the factory Principle of function On base Caliber Barrellength Weapons length Weight Effective range Rate of fire Muzzle velocity M 87, NSVT Serbia, Russia, Kazakhstan Gas-operated NSVT 12. 7 x 108 mm 1100 mm 1560 mm 24. 8 kg 1500 m 700 rds/min 845 m/c

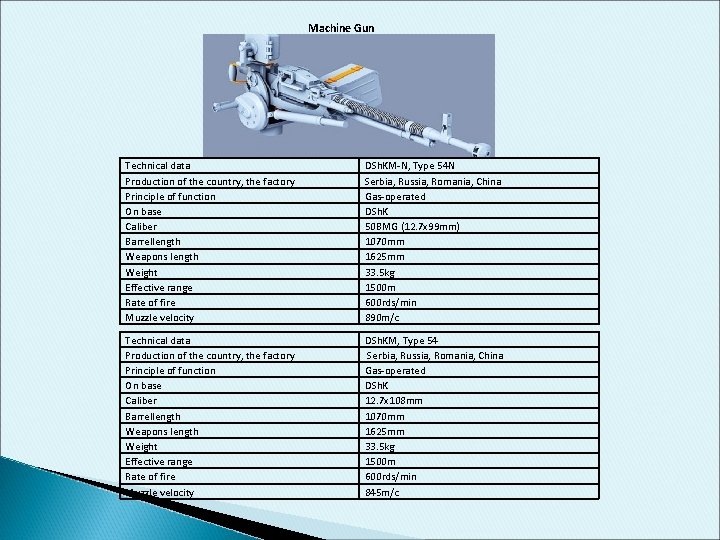

Machine Gun Technical data Production of the country, the factory Principle of function On base Caliber Barrellength Weapons length Weight Effective range Rate of fire Muzzle velocity DSh. KM-N, Type 54 N Serbia, Russia, Romania, China Gas-operated DSh. K 50 BMG (12. 7 x 99 mm) 1070 mm 1625 mm 33. 5 kg 1500 m 600 rds/min 890 m/c Technical data Production of the country, the factory Principle of function On base Caliber Barrellength Weapons length Weight Effective range Rate of fire Muzzle velocity DSh. KM, Type 54 Serbia, Russia, Romania, China Gas-operated DSh. K 12. 7 x 108 mm 1070 mm 1625 mm 33. 5 kg 1500 m 600 rds/min 845 m/c

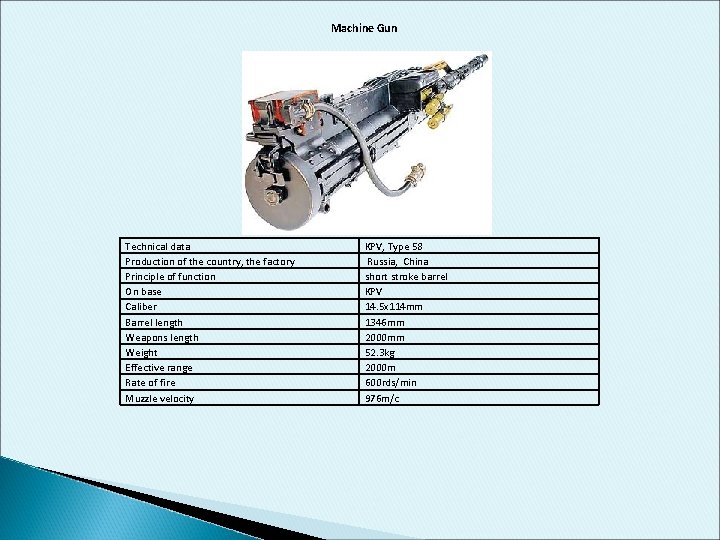

Machine Gun Technical data Production of the country, the factory Principle of function On base Caliber Barrel length Weapons length Weight Effective range Rate of fire Muzzle velocity KPV, Type 58 Russia, China short stroke barrel KPV 14. 5 x 114 mm 1346 mm 2000 mm 52. 3 kg 2000 m 600 rds/min 976 m/c

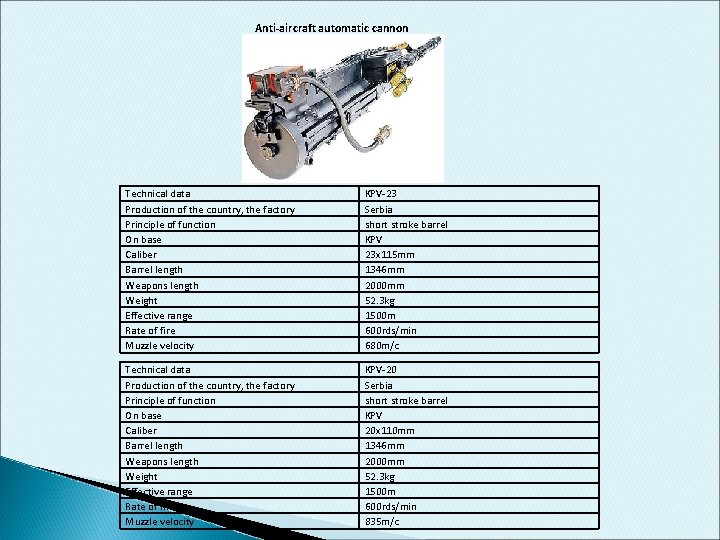

Anti-aircraft automatic cannon Technical data Production of the country, the factory Principle of function On base Caliber Barrel length Weapons length Weight Effective range Rate of fire Muzzle velocity KPV-23 Serbia short stroke barrel KPV 23 x 115 mm 1346 mm 2000 mm 52. 3 kg 1500 m 600 rds/min 680 m/c Technical data Production of the country, the factory Principle of function On base Caliber Barrel length Weapons length Weight Effective range Rate of fire Muzzle velocity KPV-20 Serbia short stroke barrel KPV 20 x 110 mm 1346 mm 2000 mm 52. 3 kg 1500 m 600 rds/min 835 m/c

Anti-aircraft automatic cannon Technical data Production of the country, the factory Principle of function On base Caliber Barrel length Weapons length Weight Effective range Rate of fire Muzzle velocity M 55 Serbia Gas-operated HSS-804 20 x 110 mm 1740 mm 2500 mm 24. 85 kg 1500 m 600 -750 rds/min 880 m/c

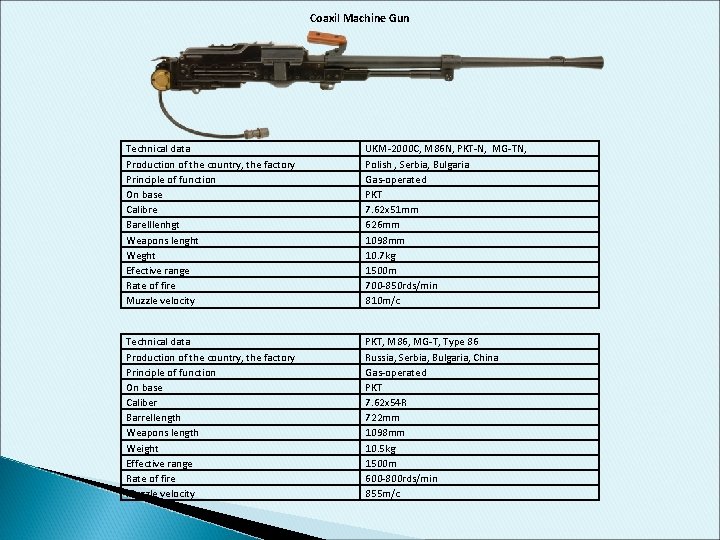

Coaxil Machine Gun Technical data Production of the country, the factory Principle of function On base Calibre Barelllenhgt Weapons lenght Weght Efective range Rate of fire Muzzle velocity UKM-2000 C, M 86 N, PKT-N, MG-TN, Polish , Serbia, Bulgaria Gas-operated PKT 7. 62 x 51 mm 626 mm 1098 mm 10. 7 kg 1500 m 700 -850 rds/min 810 m/c Technical data Production of the country, the factory Principle of function On base Caliber Barrellength Weapons length Weight Effective range Rate of fire Muzzle velocity PKT, M 86, MG-T, Type 86 Russia, Serbia, Bulgaria, China Gas-operated PKT 7. 62 x 54 R 722 mm 1098 mm 10. 5 kg 1500 m 600 -800 rds/min 855 m/c

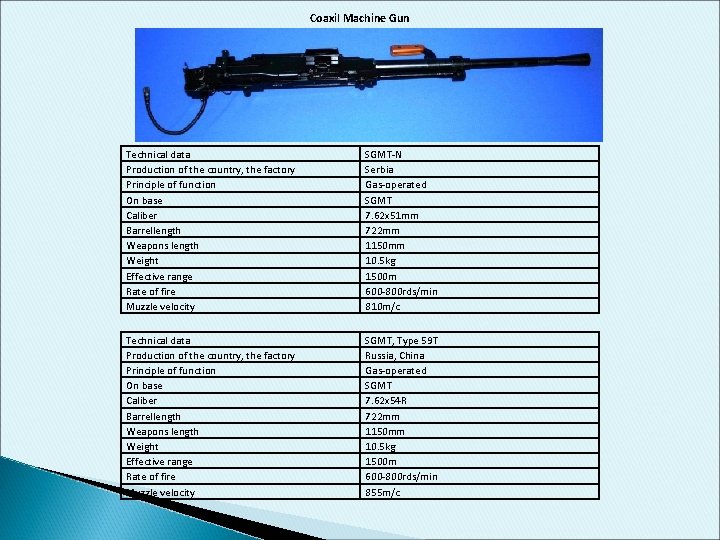

Coaxil Machine Gun Technical data Production of the country, the factory Principle of function On base Caliber Barrellength Weapons length Weight Effective range Rate of fire Muzzle velocity SGMT-N Serbia Gas-operated SGMT 7. 62 x 51 mm 722 mm 1150 mm 10. 5 kg 1500 m 600 -800 rds/min 810 m/c Technical data Production of the country, the factory Principle of function On base Caliber Barrellength Weapons length Weight Effective range Rate of fire Muzzle velocity SGMT, Type 59 T Russia, China Gas-operated SGMT 7. 62 x 54 R 722 mm 1150 mm 10. 5 kg 1500 m 600 -800 rds/min 855 m/c

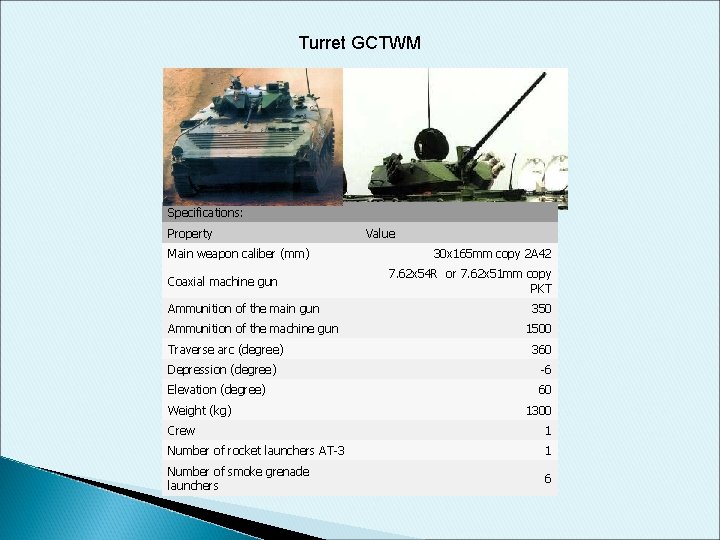

Turret GCTWM Specifications: Property Main weapon caliber (mm) Coaxial machine gun Ammunition of the main gun Ammunition of the machine gun Traverse arc (degree) Value 30 x 165 mm copy 2 A 42 7. 62 x 54 R or 7. 62 x 51 mm copy PKT 350 1500 360 Depression (degree) -6 Elevation (degree) 60 Weight (kg) 1300 Crew 1 Number of rocket launchers AT-3 1 Number of smoke grenade launchers 6

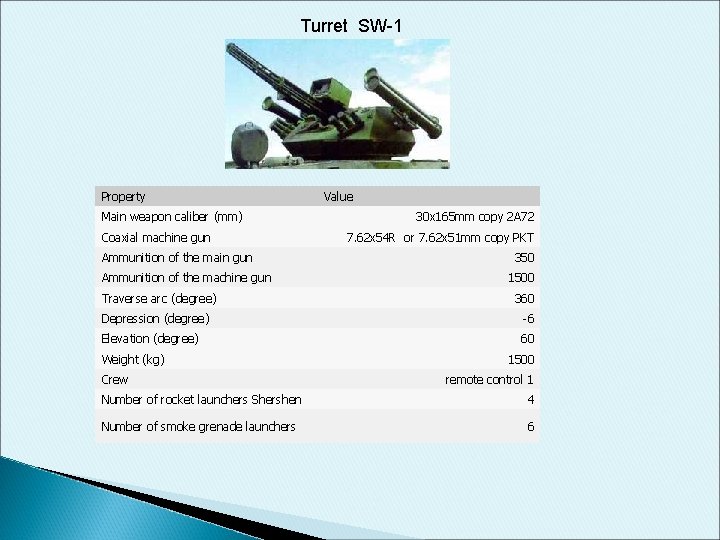

Turret SW-1 Property Main weapon caliber (mm) Coaxial machine gun Ammunition of the main gun Ammunition of the machine gun Traverse arc (degree) Value 30 x 165 mm copy 2 A 72 7. 62 x 54 R or 7. 62 x 51 mm copy PKT 350 1500 360 Depression (degree) -6 Elevation (degree) 60 Weight (kg) Crew 1500 remote control 1 Number of rocket launchers Shershen 4 Number of smoke grenade launchers 6

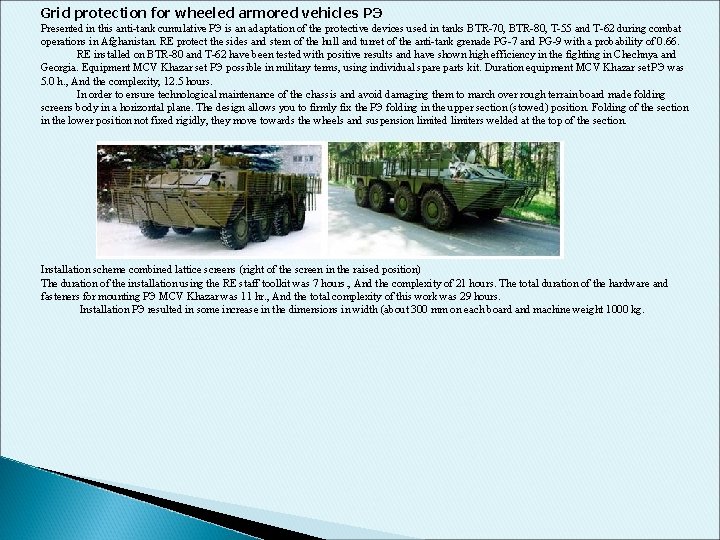

Grid protection for wheeled armored vehicles РЭ Presented in this anti-tank cumulative РЭ is an adaptation of the protective devices used in tanks BTR-70, BTR-80, T-55 and T-62 during combat operations in Afghanistan. RE protect the sides and stern of the hull and turret of the anti-tank grenade PG-7 and PG-9 with a probability of 0. 66. RE installed on BTR-80 and T-62 have been tested with positive results and have shown high efficiency in the fighting in Chechnya and Georgia. Equipment MCV Khazar set РЭ possible in military terms, using individual spare parts kit. Duration equipment MCV Khazar set РЭ was 5. 0 h. , And the complexity, 12. 5 hours. In order to ensure technological maintenance of the chassis and avoid damaging them to march over rough terrain board made folding screens body in a horizontal plane. The design allows you to firmly fix the РЭ folding in the upper section (stowed) position. Folding of the section in the lower position not fixed rigidly, they move towards the wheels and suspension limited limiters welded at the top of the section. Installation scheme combined lattice screens (right of the screen in the raised position) The duration of the installation using the RE staff toolkit was 7 hours. , And the complexity of 21 hours. The total duration of the hardware and fasteners for mounting РЭ MCV Khazar was 11 hr. , And the total complexity of this work was 29 hours. Installation РЭ resulted in some increase in the dimensions in width (about 300 mm on each board and machine weight 1000 kg.

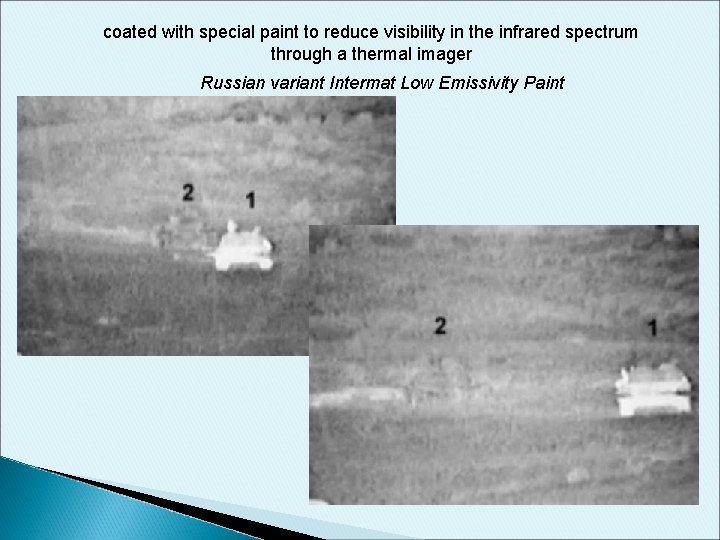

coated with special paint to reduce visibility in the infrared spectrum through a thermal imager Russian variant Intermat Low Emissivity Paint
