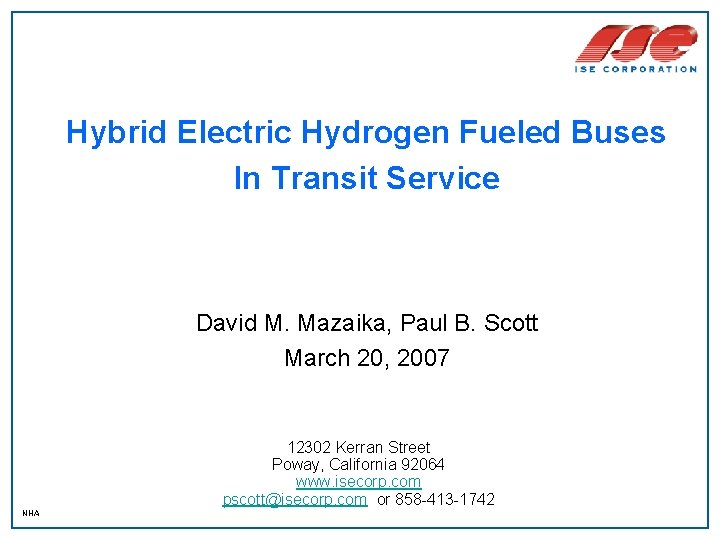

Hybrid Electric Hydrogen Fueled Buses In Transit Service David M. Mazaika, Paul B. Scott March 20, 2007 12302 Kerran Street Poway, California 92064 www. isecorp. com pscott@isecorp. com or 858 -413 -1742 NHA

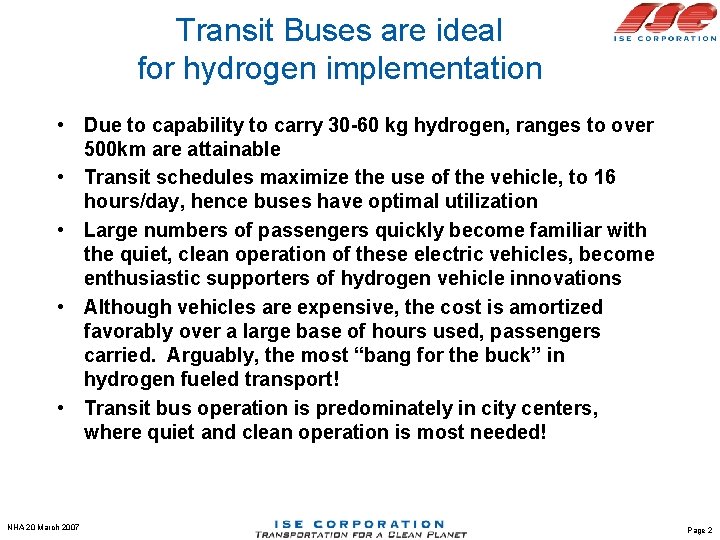

Transit Buses are ideal for hydrogen implementation • Due to capability to carry 30 -60 kg hydrogen, ranges to over 500 km are attainable • Transit schedules maximize the use of the vehicle, to 16 hours/day, hence buses have optimal utilization • Large numbers of passengers quickly become familiar with the quiet, clean operation of these electric vehicles, become enthusiastic supporters of hydrogen vehicle innovations • Although vehicles are expensive, the cost is amortized favorably over a large base of hours used, passengers carried. Arguably, the most “bang for the buck” in hydrogen fueled transport! • Transit bus operation is predominately in city centers, where quiet and clean operation is most needed! NHA 20 March 2007 Page 2

ISE Provides Hybrid Electric Buses Diesel Hybrid Bus Highest fuel economy of any commerciallyavailable heavy-duty vehicle drive system Fuel Cell Bus First fuel cell bus used in revenue service in California; nearly 50, 000 miles Gasoline Hybrid Bus First ARB-certified bus hybrid drive system; now in high rate production (100 in 2005) Hydrogen Hybrid Bus Lower cost near-zero emission alternative to fuel cell buses; started revenue service in December 2004 – over 50, 000 mi in service

High Efficiency, Zero Emission Fuel Cell Bus • • • NHA 20 March 2007 Joint Venture established with Thor Industries to develop a series of fuel cell buses Equipped with UTC Fuel Cells 60 k. W PEM fuel cell Fuel Cell Subsystem Operates at Over 50% Net Efficiency Battery Hybrid Drive System Improves Efficiency ~30% Achieves 10 -16 km/kg H 2 (16 km/kg Average in Palm Springs Service) First Fuel Cell Bus in Revenue Service at Sunline Transit, AC Transit Page 4

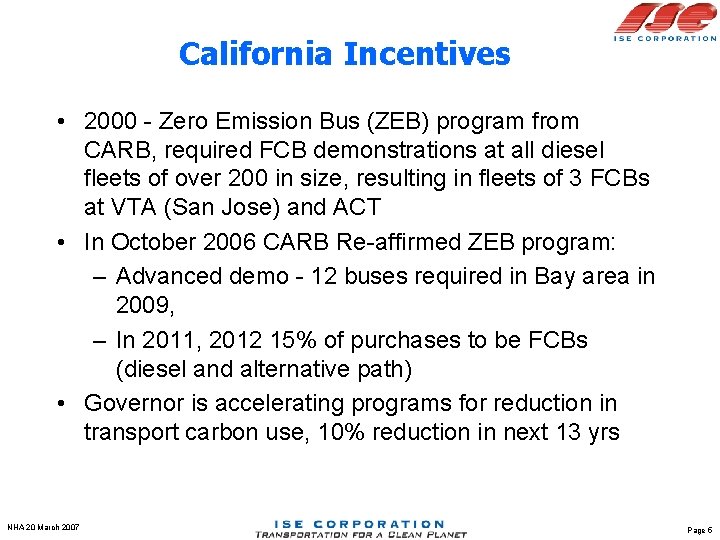

California Incentives • 2000 - Zero Emission Bus (ZEB) program from CARB, required FCB demonstrations at all diesel fleets of over 200 in size, resulting in fleets of 3 FCBs at VTA (San Jose) and ACT • In October 2006 CARB Re-affirmed ZEB program: – Advanced demo - 12 buses required in Bay area in 2009, – In 2011, 2012 15% of purchases to be FCBs (diesel and alternative path) • Governor is accelerating programs for reduction in transport carbon use, 10% reduction in next 13 yrs NHA 20 March 2007 Page 5

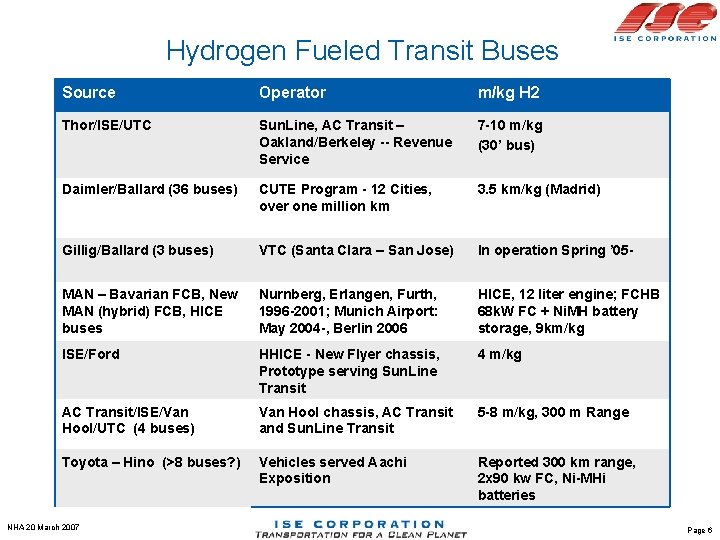

Hydrogen Fueled Transit Buses Source Operator m/kg H 2 Thor/ISE/UTC Sun. Line, AC Transit – Oakland/Berkeley -- Revenue Service 7 -10 m/kg (30’ bus) Daimler/Ballard (36 buses) CUTE Program - 12 Cities, over one million km 3. 5 km/kg (Madrid) Gillig/Ballard (3 buses) VTC (Santa Clara – San Jose) In operation Spring ’ 05 - MAN – Bavarian FCB, New MAN (hybrid) FCB, HICE buses Nurnberg, Erlangen, Furth, 1996 -2001; Munich Airport: May 2004 -, Berlin 2006 HICE, 12 liter engine; FCHB 68 k. W FC + Ni. MH battery storage, 9 km/kg ISE/Ford HHICE - New Flyer chassis, Prototype serving Sun. Line Transit 4 m/kg AC Transit/ISE/Van Hool/UTC (4 buses) Van Hool chassis, AC Transit and Sun. Line Transit 5 -8 m/kg, 300 m Range Toyota – Hino (>8 buses? ) Vehicles served Aachi Exposition Reported 300 km range, 2 x 90 kw FC, Ni-MHi batteries NHA 20 March 2007 Page 6

Worldwide – H 2 Bus programs • Berlin – four HICE buses introduced for 2006 World Cup, more coming • China – Two prototype buses, intent to have FC buses serving 2008 Olympics • Canada – BC Transit solicitation for HFC buses to serve 2010 Winter Olympics (20 buses) • London – solicitation for 10 H-buses to serve London route starting in 2008, hundreds by 2012 Olympics? • + … USA… NHA 20 March 2007 Page 7

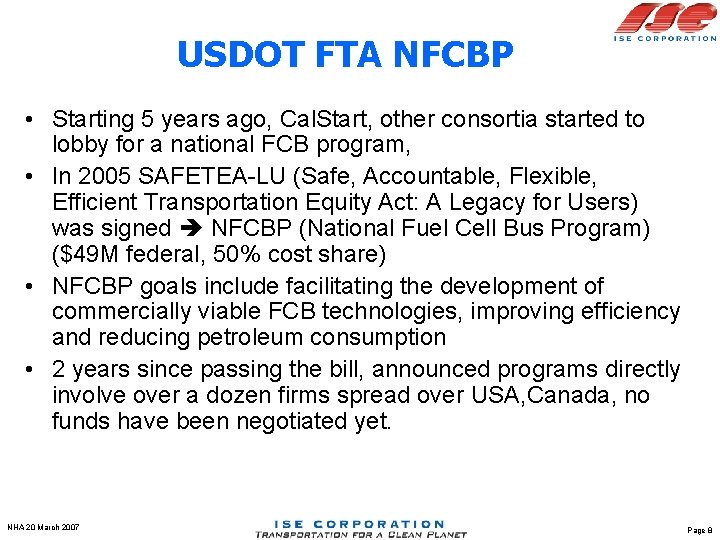

USDOT FTA NFCBP • Starting 5 years ago, Cal. Start, other consortia started to lobby for a national FCB program, • In 2005 SAFETEA-LU (Safe, Accountable, Flexible, Efficient Transportation Equity Act: A Legacy for Users) was signed NFCBP (National Fuel Cell Bus Program) ($49 M federal, 50% cost share) • NFCBP goals include facilitating the development of commercially viable FCB technologies, improving efficiency and reducing petroleum consumption • 2 years since passing the bill, announced programs directly involve over a dozen firms spread over USA, Canada, no funds have been negotiated yet. NHA 20 March 2007 Page 8

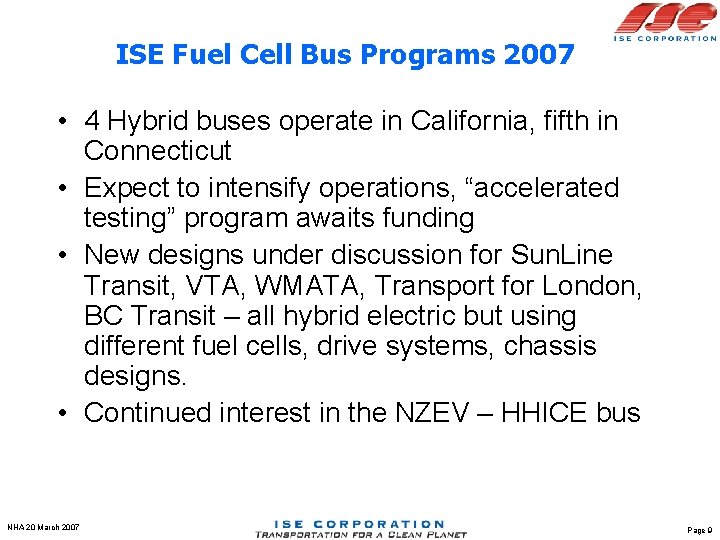

ISE Fuel Cell Bus Programs 2007 • 4 Hybrid buses operate in California, fifth in Connecticut • Expect to intensify operations, “accelerated testing” program awaits funding • New designs under discussion for Sun. Line Transit, VTA, WMATA, Transport for London, BC Transit – all hybrid electric but using different fuel cells, drive systems, chassis designs. • Continued interest in the NZEV – HHICE bus NHA 20 March 2007 Page 9

HHICE -- Bridging to a Fuel Cell Future Hydrogen Hybrid Bus Gasoline Hybrid Bus NHA 20 March 2007 Hybrid Fuel Cell Bus Page 10

HYDROGEN HYBRID ICE BUS CONFIGURATION Control System Ford V 10 H 2 Engine Energy Storage Accessories Generator Drive Motor Inverter NHA 20 March 2007 Page 11

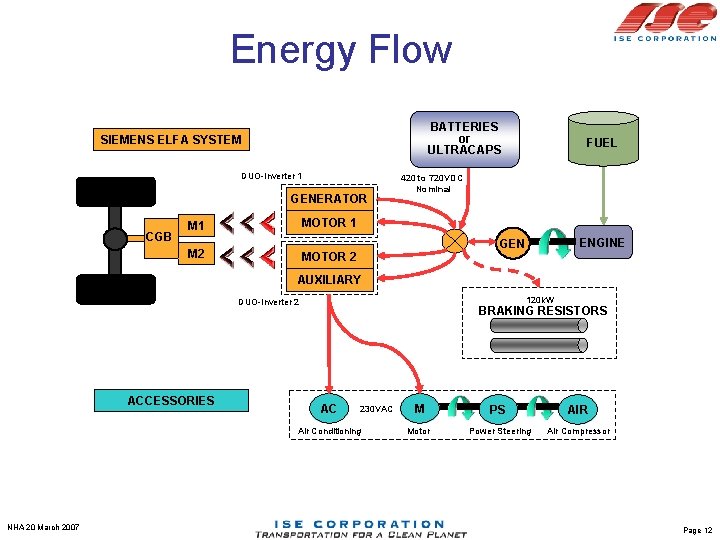

Energy Flow BATTERIES or ULTRACAPS SIEMENS ELFA SYSTEM DUO-Inverter 1 GENERATOR CGB FUEL 420 to 720 VDC Nominal MOTOR 1 M 2 ENGINE GEN MOTOR 2 AUXILIARY 120 k. W DUO-Inverter 2 ACCESSORIES BRAKING RESISTORS AC 230 VAC Air Conditioning NHA 20 March 2007 M PS AIR Motor Power Steering Air Compressor Page 12

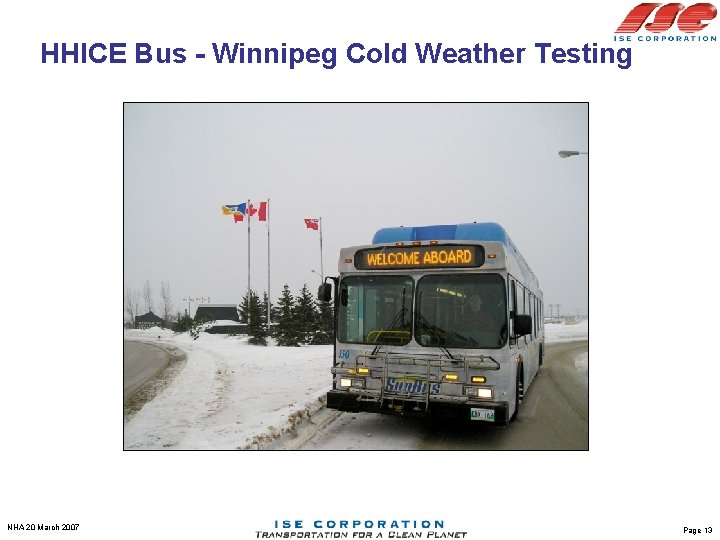

HHICE Bus - Winnipeg Cold Weather Testing NHA 20 March 2007 Page 13

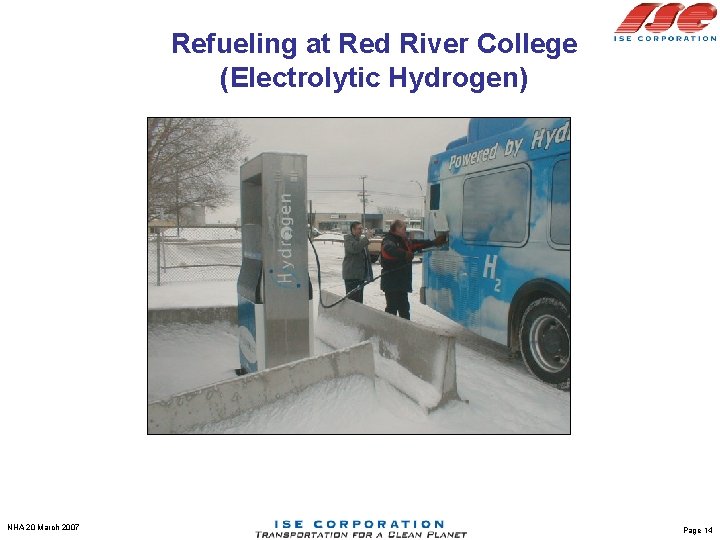

Refueling at Red River College (Electrolytic Hydrogen) NHA 20 March 2007 Page 14

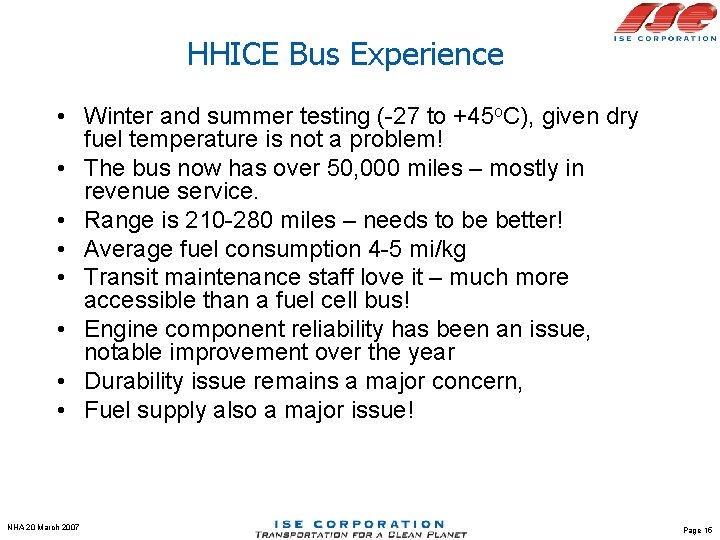

HHICE Bus Experience • Winter and summer testing (-27 to +45 o. C), given dry fuel temperature is not a problem! • The bus now has over 50, 000 miles – mostly in revenue service. • Range is 210 -280 miles – needs to be better! • Average fuel consumption 4 -5 mi/kg • Transit maintenance staff love it – much more accessible than a fuel cell bus! • Engine component reliability has been an issue, notable improvement over the year • Durability issue remains a major concern, • Fuel supply also a major issue! NHA 20 March 2007 Page 15

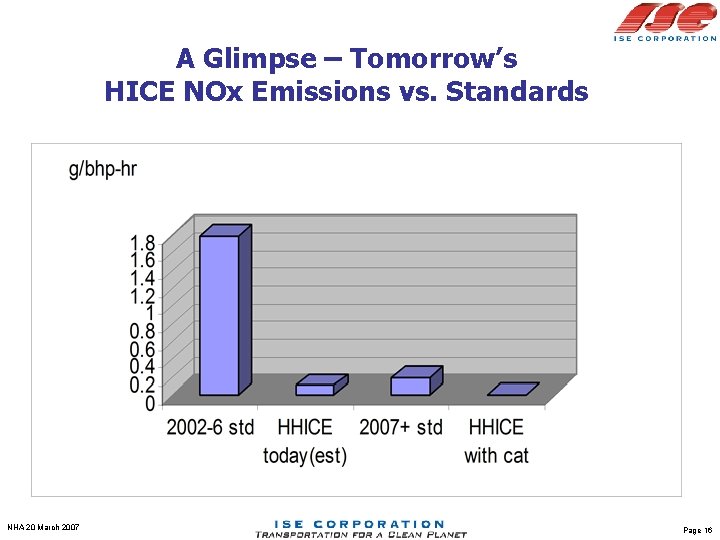

A Glimpse – Tomorrow’s HICE NOx Emissions vs. Standards NHA 20 March 2007 Page 16

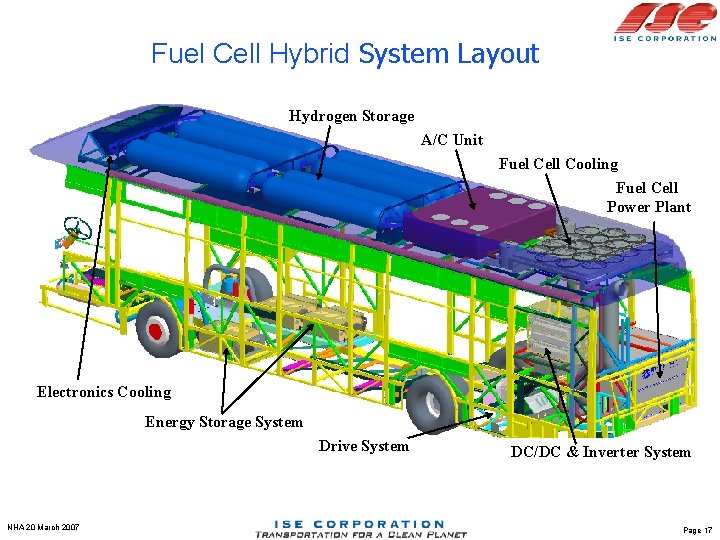

Fuel Cell Hybrid System Layout Hydrogen Storage A/C Unit Fuel Cell Cooling Fuel Cell Power Plant Electronics Cooling Energy Storage System Drive System NHA 20 March 2007 DC/DC & Inverter System Page 17

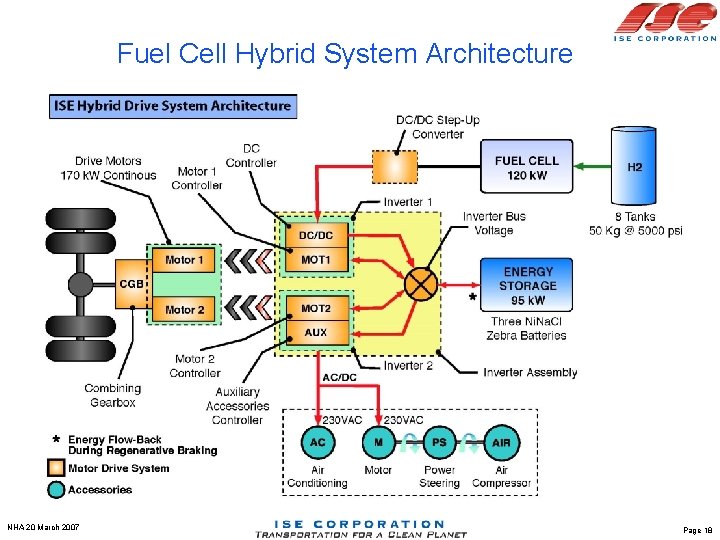

Fuel Cell Hybrid System Architecture NHA 20 March 2007 Page 18

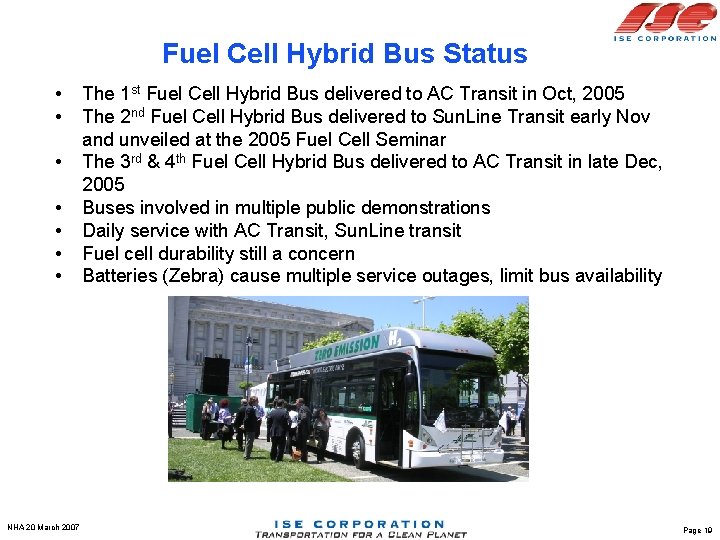

Fuel Cell Hybrid Bus Status • • NHA 20 March 2007 The 1 st Fuel Cell Hybrid Bus delivered to AC Transit in Oct, 2005 The 2 nd Fuel Cell Hybrid Bus delivered to Sun. Line Transit early Nov and unveiled at the 2005 Fuel Cell Seminar The 3 rd & 4 th Fuel Cell Hybrid Bus delivered to AC Transit in late Dec, 2005 Buses involved in multiple public demonstrations Daily service with AC Transit, Sun. Line transit Fuel cell durability still a concern Batteries (Zebra) cause multiple service outages, limit bus availability Page 19

AC Transit - 9 months experience with new FCHB • Official introduction ceremony in early March, 2006 • One bus is used primarily for shows (such as for the visit of the President – see right) with occasional returns to revenue service • 50, 000 miles revenue service in aggregate (3 buses), • Software issues mostly resolved, serious battery issue, • Bus operation was limited by limited FC warranty hours, accelerated life-test beginning as part of NFCB program NHA 20 March 2007 Page 20

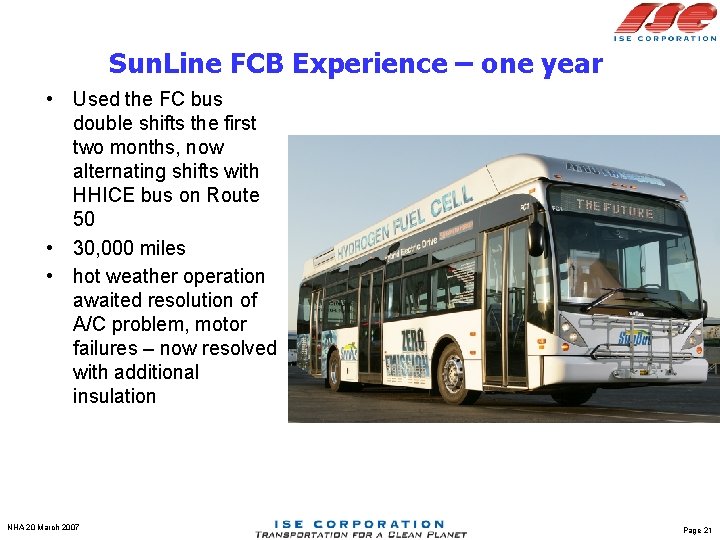

Sun. Line FCB Experience – one year • Used the FC bus double shifts the first two months, now alternating shifts with HHICE bus on Route 50 • 30, 000 miles • hot weather operation awaited resolution of A/C problem, motor failures – now resolved with additional insulation NHA 20 March 2007 Page 21

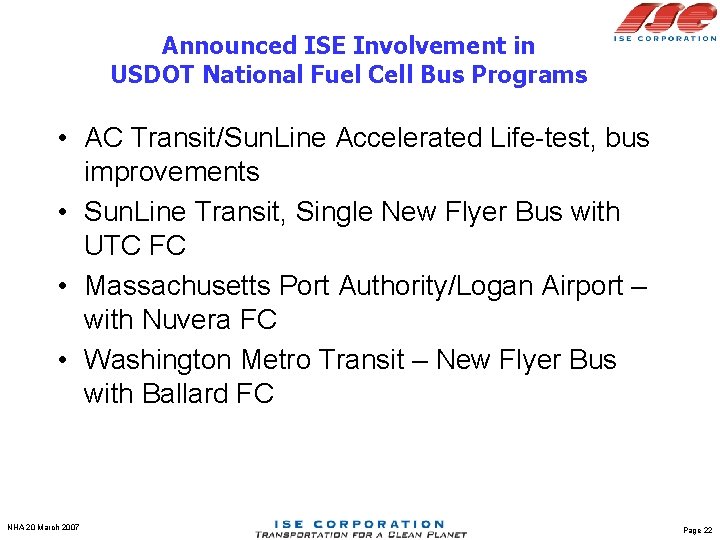

Announced ISE Involvement in USDOT National Fuel Cell Bus Programs • AC Transit/Sun. Line Accelerated Life-test, bus improvements • Sun. Line Transit, Single New Flyer Bus with UTC FC • Massachusetts Port Authority/Logan Airport – with Nuvera FC • Washington Metro Transit – New Flyer Bus with Ballard FC NHA 20 March 2007 Page 22

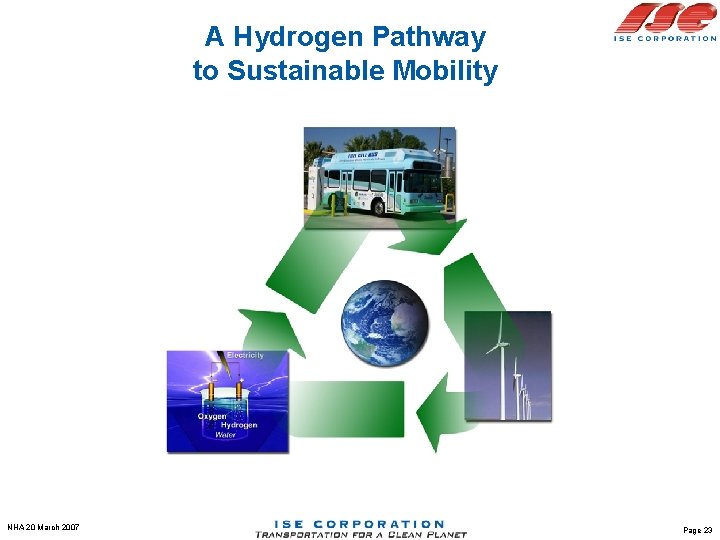

A Hydrogen Pathway to Sustainable Mobility NHA 20 March 2007 Page 23

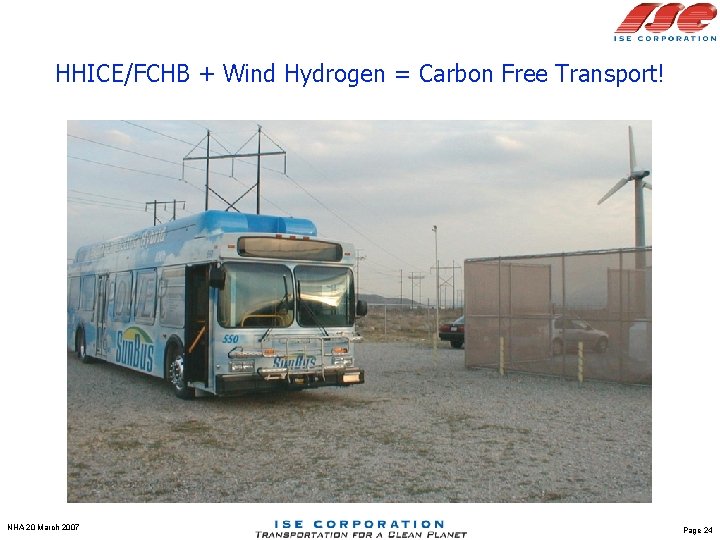

HHICE/FCHB + Wind Hydrogen = Carbon Free Transport! NHA 20 March 2007 Page 24

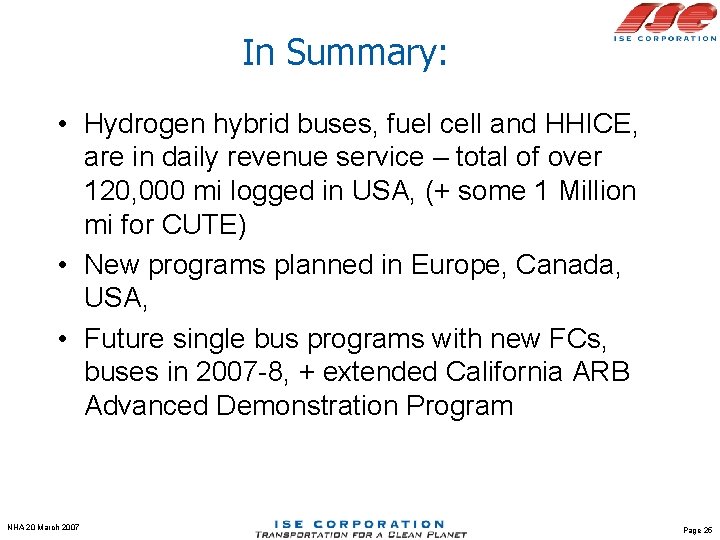

In Summary: • Hydrogen hybrid buses, fuel cell and HHICE, are in daily revenue service – total of over 120, 000 mi logged in USA, (+ some 1 Million mi for CUTE) • New programs planned in Europe, Canada, USA, • Future single bus programs with new FCs, buses in 2007 -8, + extended California ARB Advanced Demonstration Program NHA 20 March 2007 Page 25
