Hybrid Data Structure for IP Lookup in Virtual

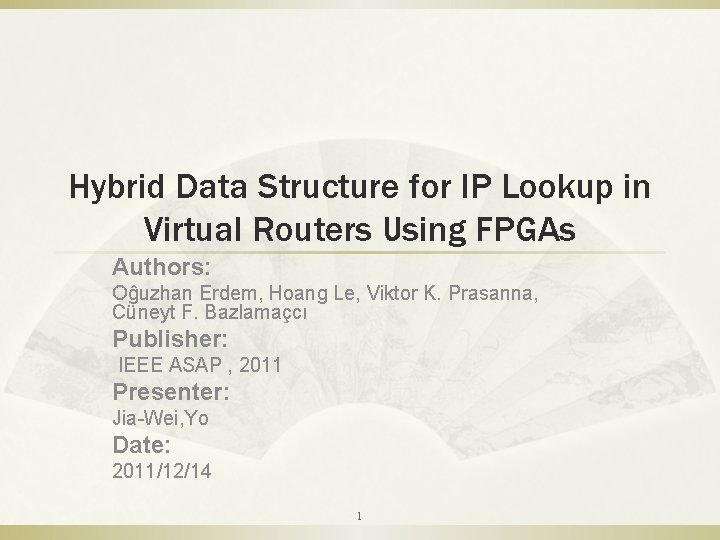

Hybrid Data Structure for IP Lookup in Virtual Routers Using FPGAs Authors: Oĝuzhan Erdem, Hoang Le, Viktor K. Prasanna, Cüneyt F. Bazlamaçcı Publisher: IEEE ASAP , 2011 Presenter: Jia-Wei, Yo Date: 2011/12/14 1

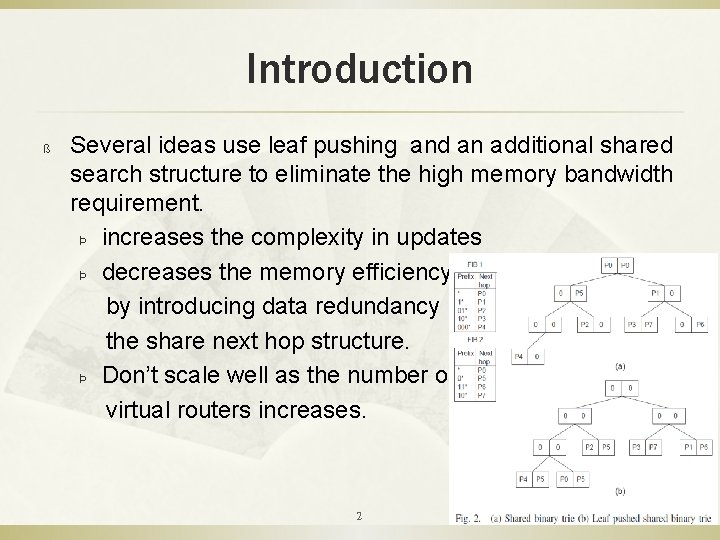

Introduction ß Several ideas use leaf pushing and an additional shared search structure to eliminate the high memory bandwidth requirement. Þ increases the complexity in updates Þ decreases the memory efficiency by introducing data redundancy in the share next hop structure. Þ Don’t scale well as the number of virtual routers increases. 2

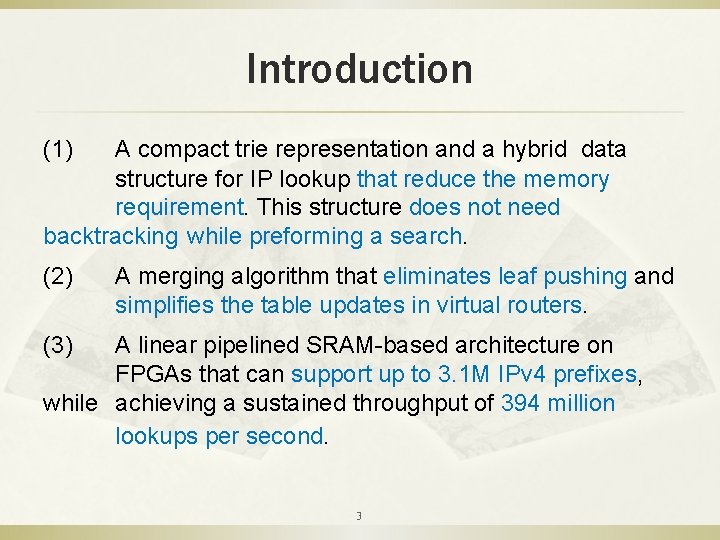

Introduction (1) A compact trie representation and a hybrid data structure for IP lookup that reduce the memory requirement. This structure does not need backtracking while preforming a search. (2) A merging algorithm that eliminates leaf pushing and simplifies the table updates in virtual routers. (3) A linear pipelined SRAM-based architecture on FPGAs that can support up to 3. 1 M IPv 4 prefixes, while achieving a sustained throughput of 394 million lookups per second. 3

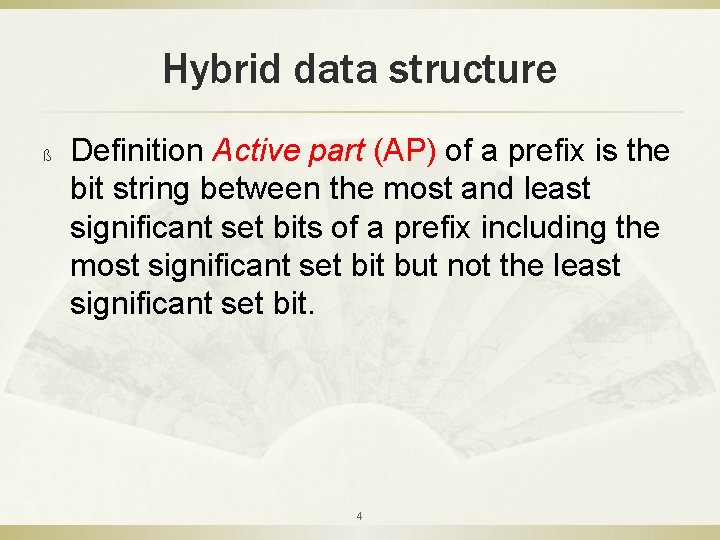

Hybrid data structure ß Definition Active part (AP) of a prefix is the bit string between the most and least significant set bits of a prefix including the most significant set bit but not the least significant set bit. 4

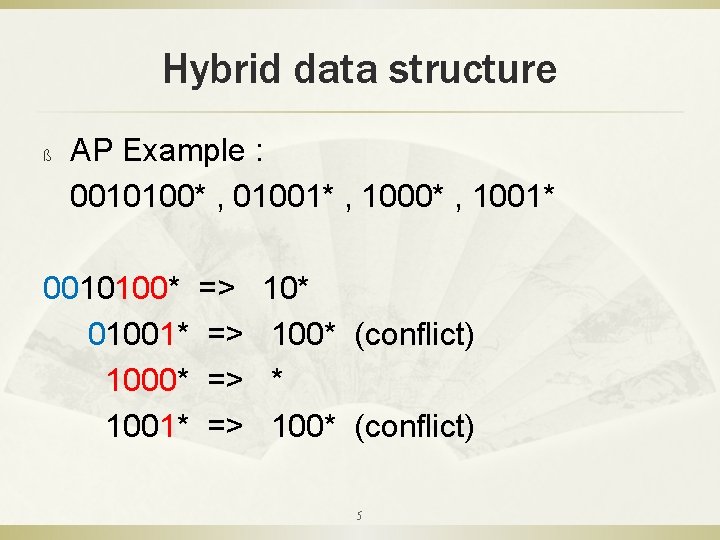

Hybrid data structure ß AP Example : 0010100* , 01001* , 1000* , 1001* 0010100* => 01001* => 1000* => 1001* => 10* 100* (conflict) 5

Hybrid data structure ß 6

Hybrid data structure-Converted 7

Hybrid data structure-Converted 8

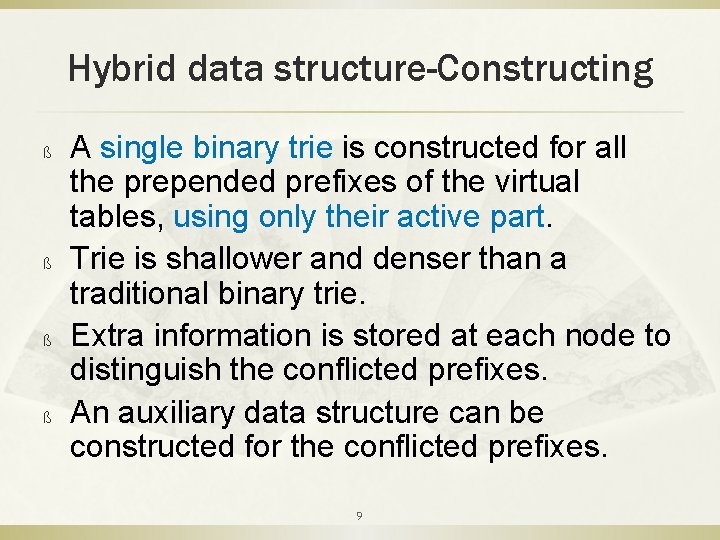

Hybrid data structure-Constructing ß ß A single binary trie is constructed for all the prepended prefixes of the virtual tables, using only their active part. Trie is shallower and denser than a traditional binary trie. Extra information is stored at each node to distinguish the conflicted prefixes. An auxiliary data structure can be constructed for the conflicted prefixes. 9

Hybrid data structure-Constructing 10

Hybrid data structure-Lookup 11

Hybrid data structure-Update ß ß ß Prefix insertion: If the new prefix conflicts with the existing prefixes, then the new prefix is added to the tree data structure. Otherwise, it is added to the trie data structure. Prefix deletion: The target prefix is located and its valid bit is reset. Route change: The target prefix is located and its next hop information is updated. 12

Architecture And Implementation On FPGA 13

Performance ß ß Xilinx ISE 12. 4 with Xilinx Virtex-6 XC 6 VSX 475 T with -2 speed Clock period 5. 084 ns Capable running at 197 MHz Using dual-pipeline , support 394 million lookups per second , or 126 Gbps ( for the minimum packet size of 40 Bytes ) 14

Performance The number of conflict prefix is less than 10% of the total number of prefix. 15

Performance 16
