Hybrid Control and Switched Systems Lecture 7 Stability
Hybrid Control and Switched Systems Lecture #7 Stability and convergence of ODEs NO CLASSES on Oct 18 & Oct 20 João P. Hespanha University of California at Santa Barbara

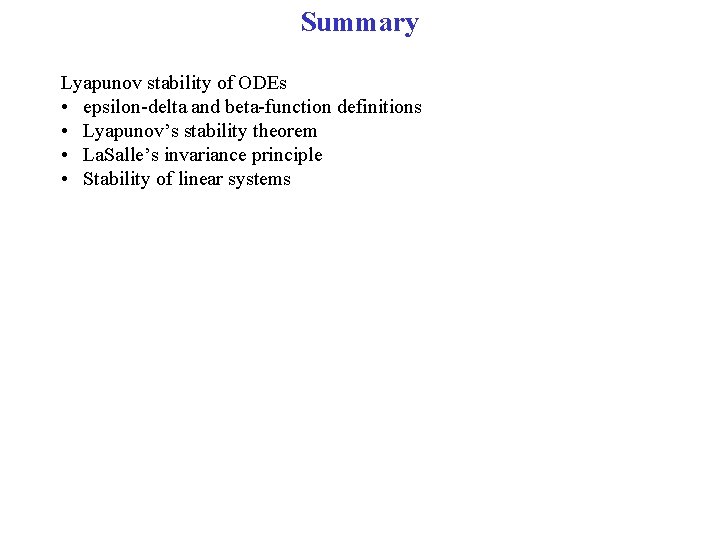

Summary Lyapunov stability of ODEs • epsilon-delta and beta-function definitions • Lyapunov’s stability theorem • La. Salle’s invariance principle • Stability of linear systems

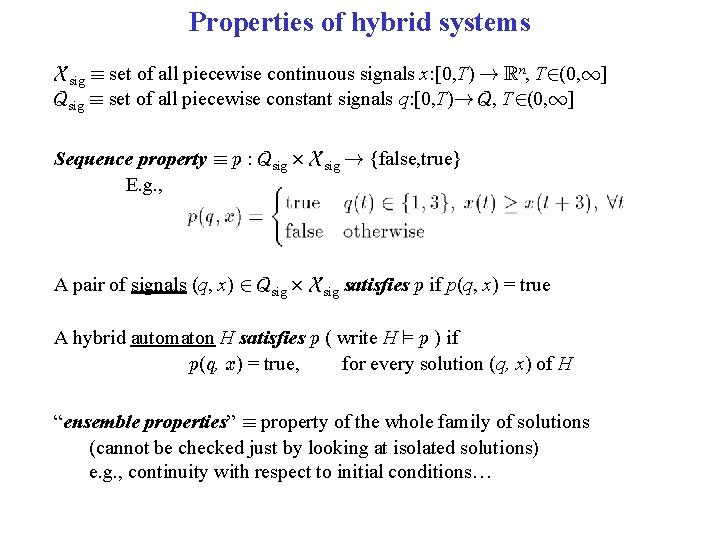

Properties of hybrid systems Xsig ´ set of all piecewise continuous signals x: [0, T) ! Rn, T 2(0, 1] Qsig ´ set of all piecewise constant signals q: [0, T)! Q, T 2(0, 1] Sequence property ´ p : Qsig £ Xsig ! {false, true} E. g. , A pair of signals (q, x) 2 Qsig £ Xsig satisfies p if p(q, x) = true A hybrid automaton H satisfies p ( write H ² p ) if p(q, x) = true, for every solution (q, x) of H “ensemble properties” ´ property of the whole family of solutions (cannot be checked just by looking at isolated solutions) e. g. , continuity with respect to initial conditions…
Lyapunov stability (ODEs) equilibrium point ´ xeq 2 Rn for which f(xeq) = 0 thus x(t) = xeq 8 t ¸ 0 is a solution to the ODE E. g. , pendulum equation l two equilibrium points: x 1 = 0, x 2 = 0 (down) and x 1 = p, x 2 = 0 (up) q m
Lyapunov stability (ODEs) equilibrium point ´ xeq 2 Rn for which f(xeq) = 0 thus x(t) = xeq 8 t ¸ 0 is a solution to the ODE Definition (e–d definition): The equilibrium point xeq 2 Rn is (Lyapunov) stable if 8 e > 0 9 d >0 : ||x(t 0) – xeq|| · d ) ||x(t) – xeq|| · e 8 t¸ t 0¸ 0 e xeq d x(t) 1. if the solution starts close to xeq it will remain close to it forever 2. e can be made arbitrarily small by choosing d sufficiently small

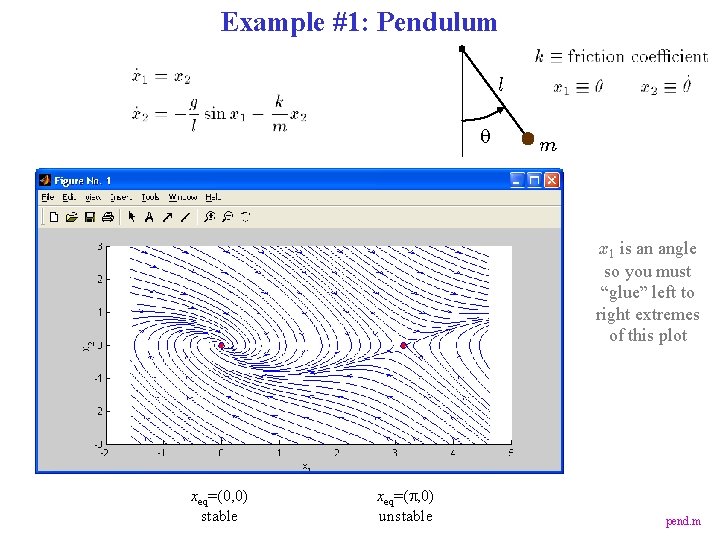

Example #1: Pendulum l q m x 1 is an angle so you must “glue” left to right extremes of this plot xeq=(0, 0) stable xeq=(p, 0) unstable pend. m

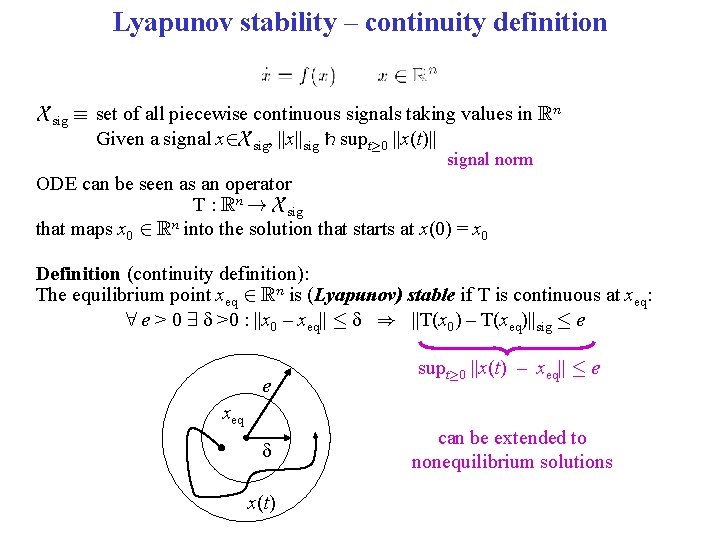

Lyapunov stability – continuity definition Xsig ´ set of all piecewise continuous signals taking values in Rn Given a signal x 2 Xsig, ||x||sig supt¸ 0 ||x(t)|| signal norm ODE can be seen as an operator T : Rn ! Xsig that maps x 0 2 Rn into the solution that starts at x(0) = x 0 Definition (continuity definition): The equilibrium point xeq 2 Rn is (Lyapunov) stable if T is continuous at xeq: 8 e > 0 9 d >0 : ||x 0 – xeq|| · d ) ||T(x 0) – T(xeq)||sig · e e xeq d x(t) supt¸ 0 ||x(t) – xeq|| · e can be extended to nonequilibrium solutions

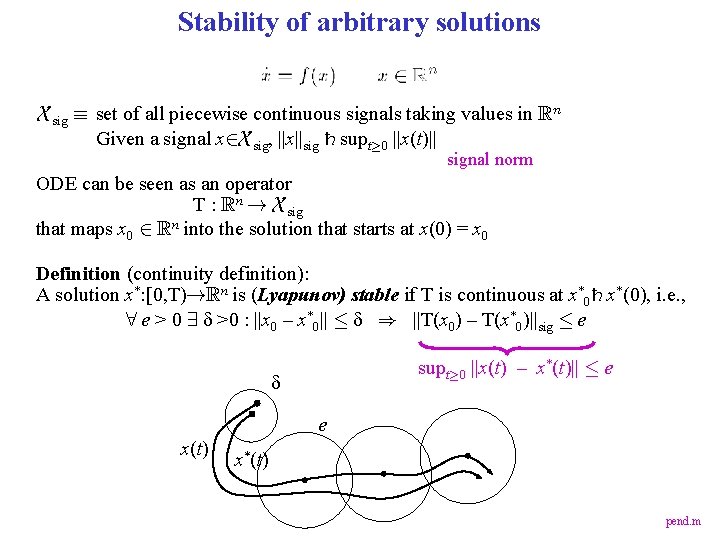

Stability of arbitrary solutions Xsig ´ set of all piecewise continuous signals taking values in Rn Given a signal x 2 Xsig, ||x||sig supt¸ 0 ||x(t)|| signal norm ODE can be seen as an operator T : Rn ! Xsig that maps x 0 2 Rn into the solution that starts at x(0) = x 0 Definition (continuity definition): A solution x*: [0, T)!Rn is (Lyapunov) stable if T is continuous at x*0 x*(0), i. e. , 8 e > 0 9 d >0 : ||x 0 – x*0|| · d ) ||T(x 0) – T(x*0)||sig · e supt¸ 0 ||x(t) – x*(t)|| · e d x(t) e x*(t) pend. m

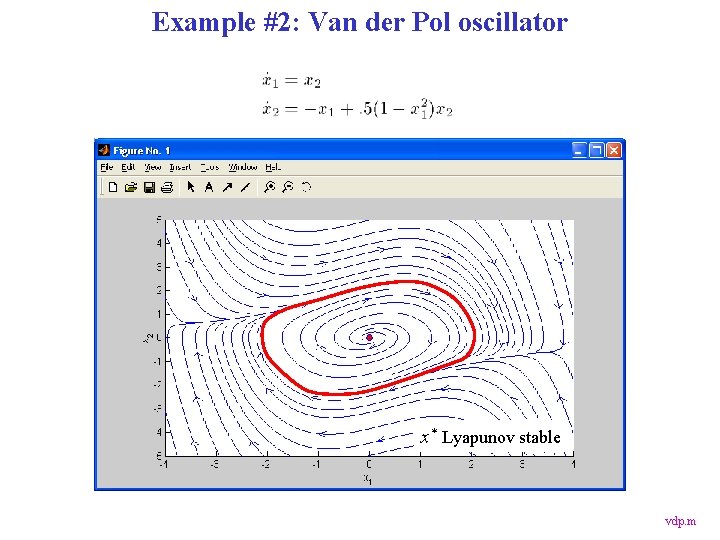

Example #2: Van der Pol oscillator x* Lyapunov stable vdp. m

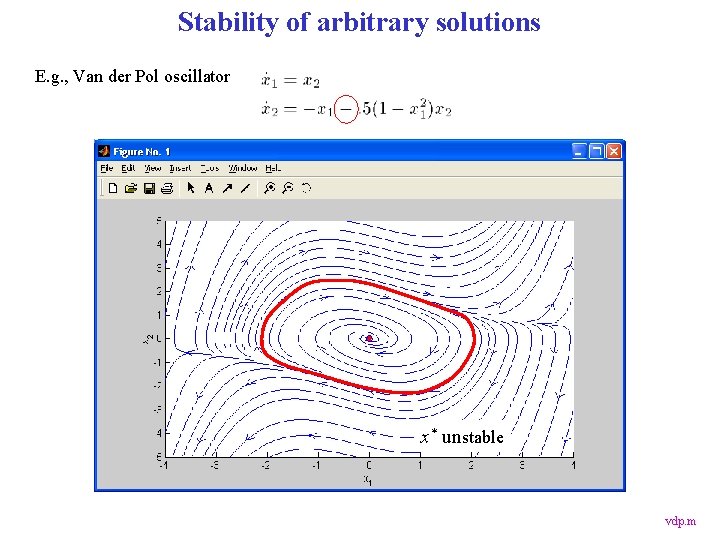

Stability of arbitrary solutions E. g. , Van der Pol oscillator x* unstable vdp. m
Lyapunov stability equilibrium point ´ xeq 2 Rn for which f(xeq) = 0 class K ´ set of functions a: [0, 1)![0, 1) that are 1. continuous 2. strictly increasing 3. a(0)=0 a(s) s ||x(t 0) – xeq|| a(||x(t 0) – xeq||) Definition (class K function definition): The equilibrium point xeq 2 Rn is (Lyapunov) stable if 9 a 2 K: ||x(t) – xeq|| · a(||x(t 0) – xeq||) 8 t¸ t 0¸ 0, ||x(t 0) – xeq||· c x(t) xeq t the function a can be constructed directly from the d(e) in the e–d (or continuity) definitions

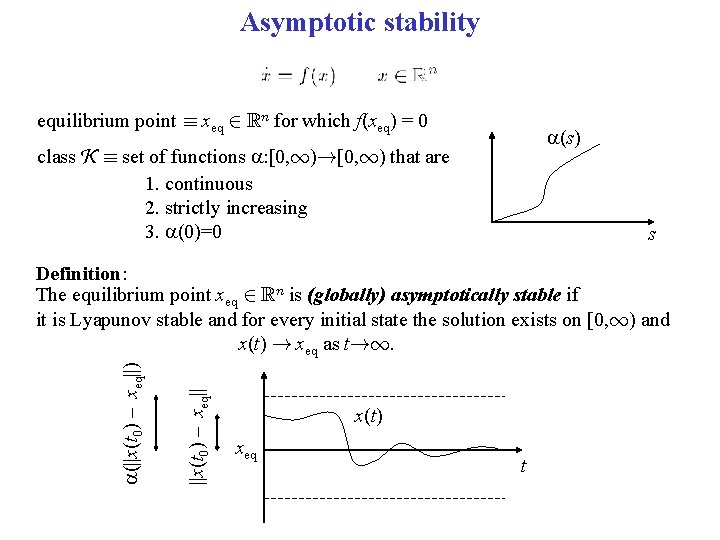

Asymptotic stability equilibrium point ´ xeq 2 Rn for which f(xeq) = 0 a(s) class K ´ set of functions a: [0, 1)![0, 1) that are 1. continuous 2. strictly increasing 3. a(0)=0 s ||x(t 0) – xeq|| a(||x(t 0) – xeq||) Definition: The equilibrium point xeq 2 Rn is (globally) asymptotically stable if it is Lyapunov stable and for every initial state the solution exists on [0, 1) and x(t) ! xeq as t!1. x(t) xeq t

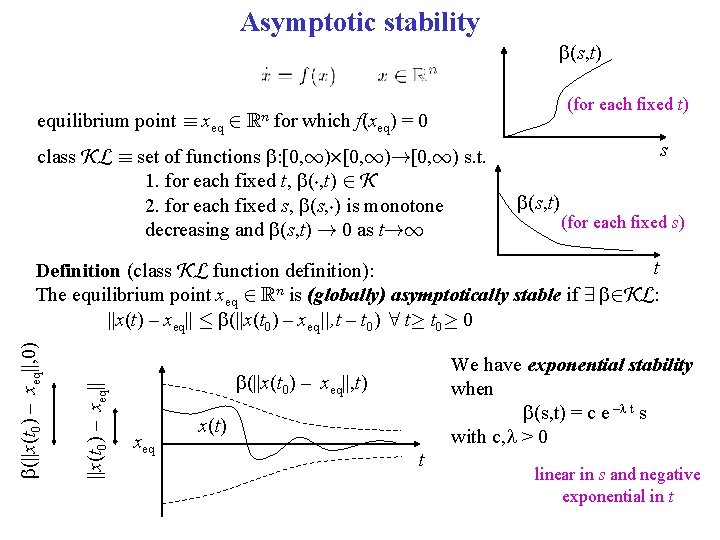

Asymptotic stability b(s, t) equilibrium point ´ xeq 2 Rn (for each fixed t) for which f(xeq) = 0 class KL ´ set of functions b: [0, 1)£[0, 1)![0, 1) s. t. 1. for each fixed t, b(¢, t) 2 K 2. for each fixed s, b(s, ¢) is monotone decreasing and b(s, t) ! 0 as t!1 s b(s, t) (for each fixed s) ||x(t 0) – xeq|| b(||x(t 0) – xeq||, 0) t Definition (class KL function definition): The equilibrium point xeq 2 Rn is (globally) asymptotically stable if 9 b 2 KL: ||x(t) – xeq|| · b(||x(t 0) – xeq||, t – t 0) 8 t¸ t 0¸ 0 We have exponential stability when b(s, t) = c e –l t s with c, l > 0 b(||x(t 0) – xeq||, t) xeq x(t) t linear in s and negative exponential in t

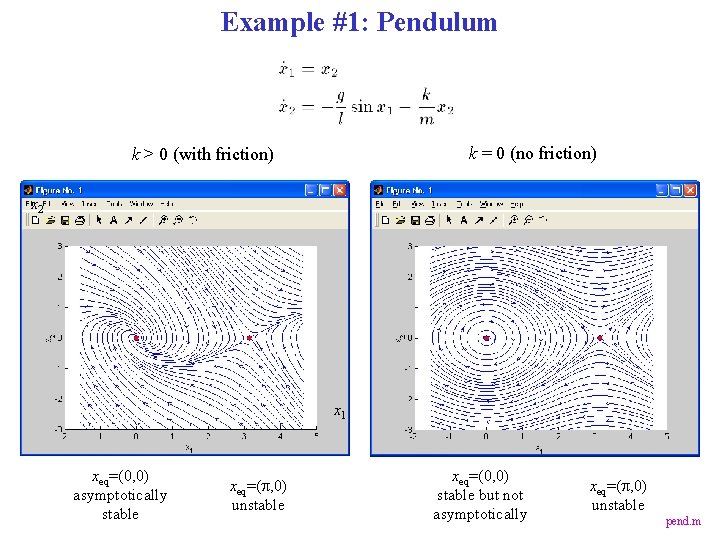

Example #1: Pendulum k = 0 (no friction) k > 0 (with friction) x 2 x 1 xeq=(0, 0) asymptotically stable xeq=(p, 0) unstable xeq=(0, 0) stable but not asymptotically xeq=(p, 0) unstable pend. m

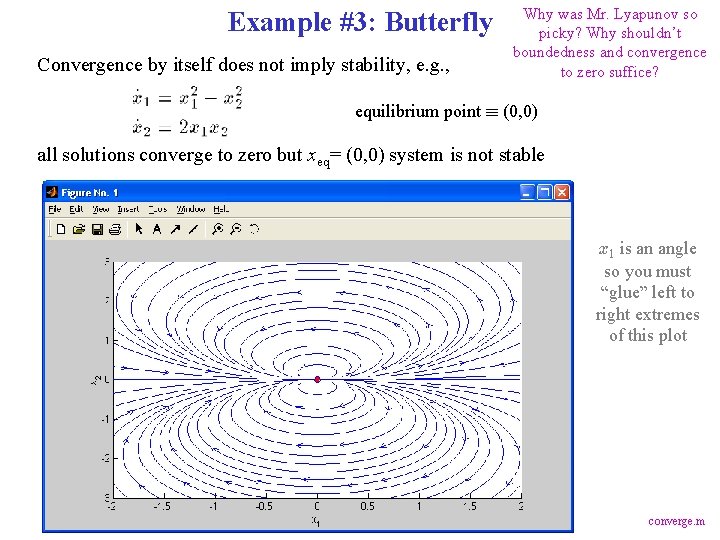

Example #3: Butterfly Convergence by itself does not imply stability, e. g. , Why was Mr. Lyapunov so picky? Why shouldn’t boundedness and convergence to zero suffice? equilibrium point ´ (0, 0) all solutions converge to zero but xeq= (0, 0) system is not stable x 1 is an angle so you must “glue” left to right extremes of this plot converge. m

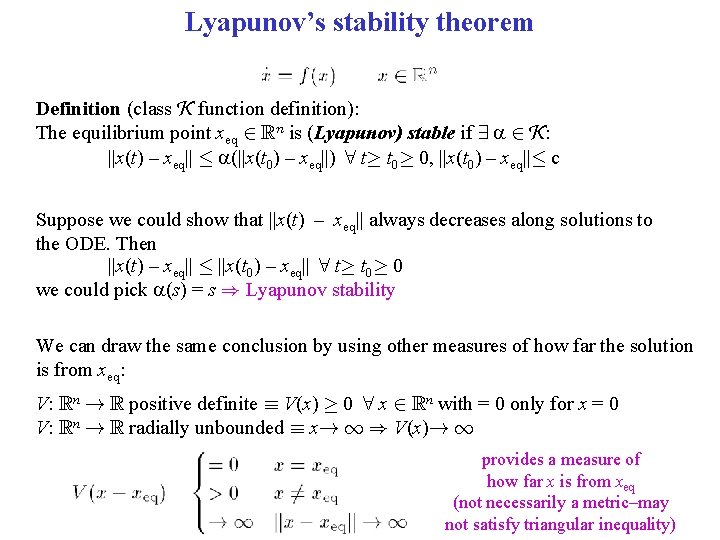

Lyapunov’s stability theorem Definition (class K function definition): The equilibrium point xeq 2 Rn is (Lyapunov) stable if 9 a 2 K: ||x(t) – xeq|| · a(||x(t 0) – xeq||) 8 t¸ t 0¸ 0, ||x(t 0) – xeq||· c Suppose we could show that ||x(t) – xeq|| always decreases along solutions to the ODE. Then ||x(t) – xeq|| · ||x(t 0) – xeq|| 8 t¸ t 0¸ 0 we could pick a(s) = s ) Lyapunov stability We can draw the same conclusion by using other measures of how far the solution is from xeq: V: Rn ! R positive definite ´ V(x) ¸ 0 8 x 2 Rn with = 0 only for x = 0 V: Rn ! R radially unbounded ´ x! 1 ) V(x)! 1 provides a measure of how far x is from xeq (not necessarily a metric–may not satisfy triangular inequality)
Lyapunov’s stability theorem V: Rn ! R positive definite ´ V(x) ¸ 0 8 x 2 Rn with = 0 only for x = 0 provides a measure of how far x is from xeq (not necessarily a metric–may not satisfy triangular inequality) Q: How to check if V(x(t) – xeq) decreases along solutions? A: V(x(t) – xeq) will decrease if gradient of V can be computed without actually computing x(t) (i. e. , solving the ODE)

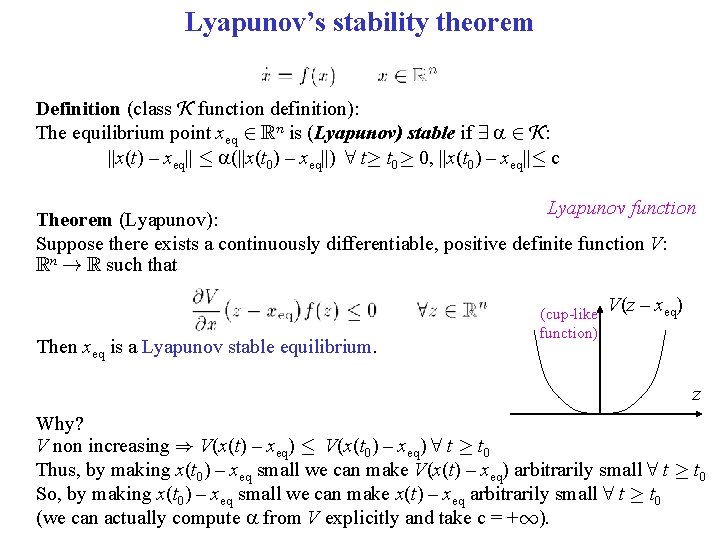

Lyapunov’s stability theorem Definition (class K function definition): The equilibrium point xeq 2 Rn is (Lyapunov) stable if 9 a 2 K: ||x(t) – xeq|| · a(||x(t 0) – xeq||) 8 t¸ t 0¸ 0, ||x(t 0) – xeq||· c Lyapunov function Theorem (Lyapunov): Suppose there exists a continuously differentiable, positive definite function V: Rn ! R such that Then xeq is a Lyapunov stable equilibrium. (cup-like function) V(z – xeq) z Why? V non increasing ) V(x(t) – xeq) · V(x(t 0) – xeq) 8 t ¸ t 0 Thus, by making x(t 0) – xeq small we can make V(x(t) – xeq) arbitrarily small 8 t ¸ t 0 So, by making x(t 0) – xeq small we can make x(t) – xeq arbitrarily small 8 t ¸ t 0 (we can actually compute a from V explicitly and take c = +1).

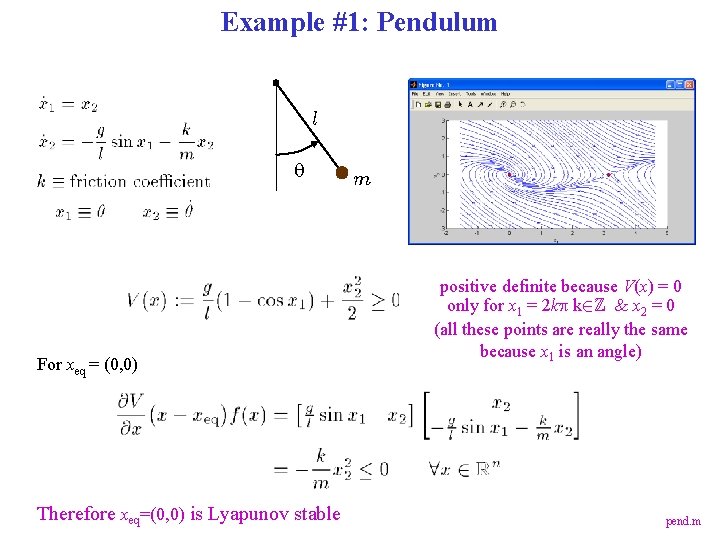

Example #1: Pendulum l q For xeq = (0, 0) Therefore xeq=(0, 0) is Lyapunov stable m positive definite because V(x) = 0 only for x 1 = 2 kp k 2 Z & x 2 = 0 (all these points are really the same because x 1 is an angle) pend. m

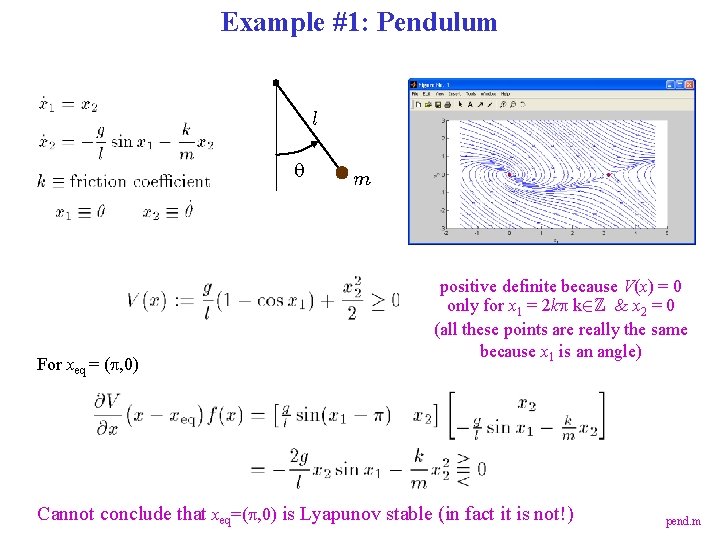

Example #1: Pendulum l q For xeq = (p, 0) m positive definite because V(x) = 0 only for x 1 = 2 kp k 2 Z & x 2 = 0 (all these points are really the same because x 1 is an angle) Cannot conclude that xeq=(p, 0) is Lyapunov stable (in fact it is not!) pend. m
Lyapunov’s stability theorem Definition (class K function definition): The equilibrium point xeq 2 Rn is (Lyapunov) stable if 9 a 2 K: ||x(t) – xeq|| · a(||x(t 0) – xeq||) 8 t¸ t 0¸ 0, ||x(t 0) – xeq||· c Theorem (Lyapunov): Suppose there exists a continuously differentiable, positive definite, radially unbounded function V: Rn ! R such that Then xeq is a Lyapunov stable equilibrium and the solution always exists globally. Moreover, if = 0 only for z = xeq then xeq is a (globally) asymptotically stable equilibrium. Why? V can only stop decreasing when x(t) reaches xeq but V must stop decreasing because it cannot become negative Thus, x(t) must converge to xeq

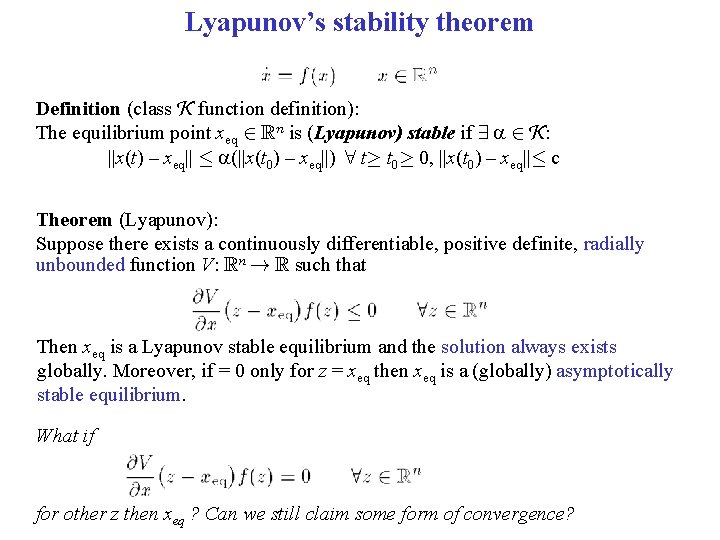

Lyapunov’s stability theorem Definition (class K function definition): The equilibrium point xeq 2 Rn is (Lyapunov) stable if 9 a 2 K: ||x(t) – xeq|| · a(||x(t 0) – xeq||) 8 t¸ t 0¸ 0, ||x(t 0) – xeq||· c Theorem (Lyapunov): Suppose there exists a continuously differentiable, positive definite, radially unbounded function V: Rn ! R such that Then xeq is a Lyapunov stable equilibrium and the solution always exists globally. Moreover, if = 0 only for z = xeq then xeq is a (globally) asymptotically stable equilibrium. What if for other z then xeq ? Can we still claim some form of convergence?

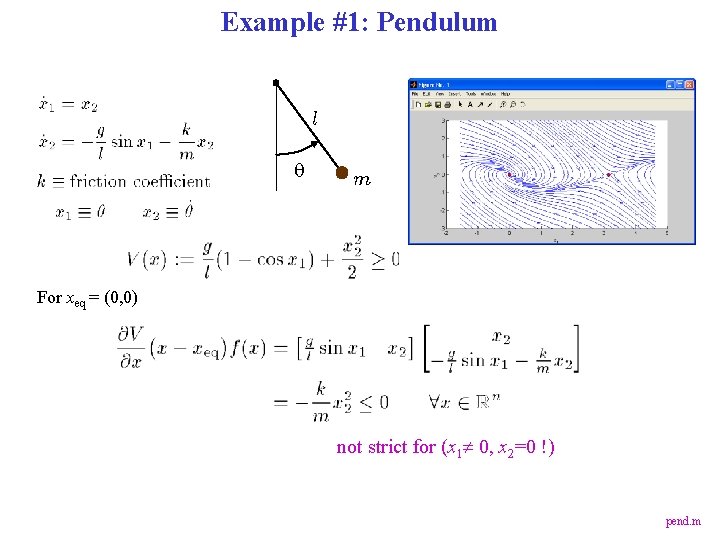

Example #1: Pendulum l q m For xeq = (0, 0) not strict for (x 1¹ 0, x 2=0 !) pend. m
La. Salle’s Invariance Principle M 2 Rn is an invariant set ´ x(t 0) 2 M ) x(t)2 M 8 t¸ t 0 (in the context of hybrid systems: Reach(M) ½ M…) Theorem (La. Salle Invariance Principle): Suppose there exists a continuously differentiable, positive definite, radially unbounded function V: Rn ! R such that Then xeq is a Lyapunov stable equilibrium and the solution always exists globally. Moreover, x(t) converges to the largest invariant set M contained in E { z 2 Rn : W(z) = 0 } Note that: 1. When W(z) = 0 only for z = xeq then E = {xeq }. Since M ½ E, M = {xeq } and therefore x(t) ! xeq ) asympt. stability 2. Even when E is larger then {xeq } we often have M = {xeq } and can conclude asymptotic stability. Lyapunov theorem

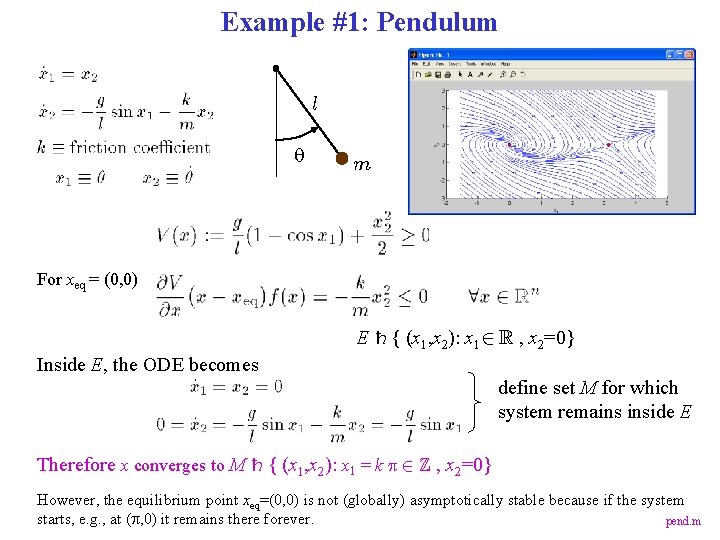

Example #1: Pendulum l q m For xeq = (0, 0) E { (x 1, x 2): x 12 R , x 2=0} Inside E, the ODE becomes define set M for which system remains inside E Therefore x converges to M { (x 1, x 2): x 1 = k p 2 Z , x 2=0} However, the equilibrium point xeq=(0, 0) is not (globally) asymptotically stable because if the system starts, e. g. , at (p, 0) it remains there forever. pend. m

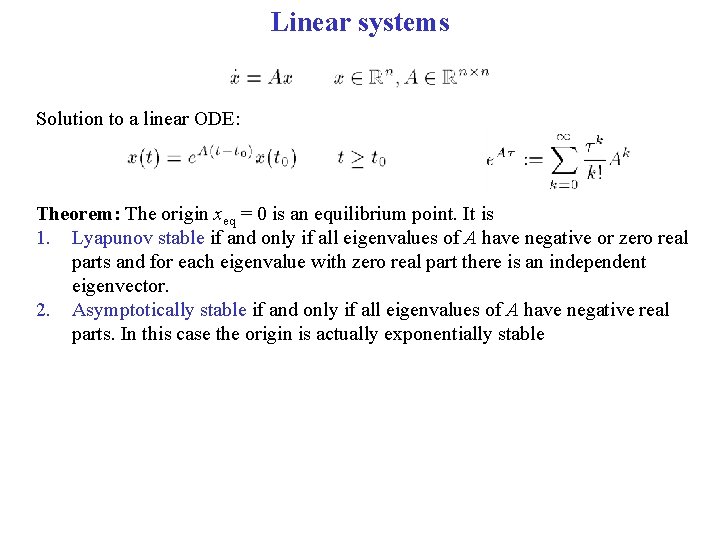

Linear systems Solution to a linear ODE: Theorem: The origin xeq = 0 is an equilibrium point. It is 1. Lyapunov stable if and only if all eigenvalues of A have negative or zero real parts and for each eigenvalue with zero real part there is an independent eigenvector. 2. Asymptotically stable if and only if all eigenvalues of A have negative real parts. In this case the origin is actually exponentially stable

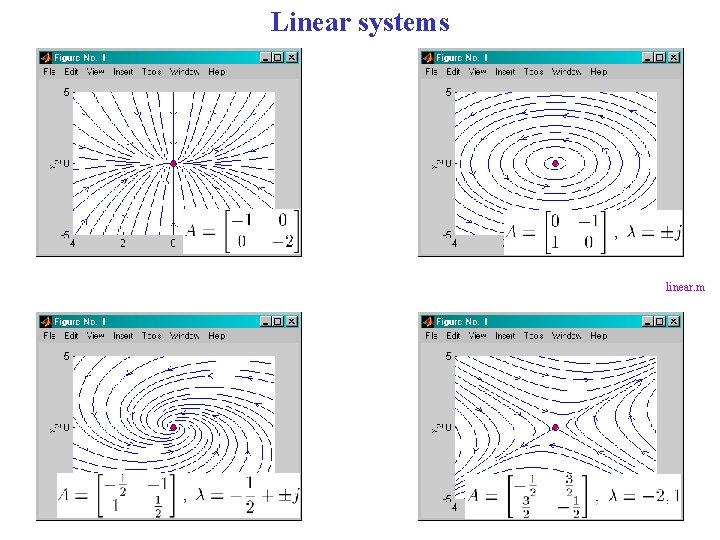

Linear systems linear. m
Lyapunov equation Solution to a linear ODE: Theorem: The origin xeq = 0 is an equilibrium point. It is asymptotically stable if and only if for every positive symmetric definite matrix Q the equation A’ P + P A = – Q Lyapunov equation has a unique solutions P that is symmetric and positive definite Recall: given a symmetric matrix P P is positive definite ´ all eigenvalues are positive P positive definite ) x’ P x > 0 8 x ¹ 0 P is positive semi-definite ´ all eigenvalues are positive or zero P positive semi-definite ) x’ P x ¸ 0 8 x

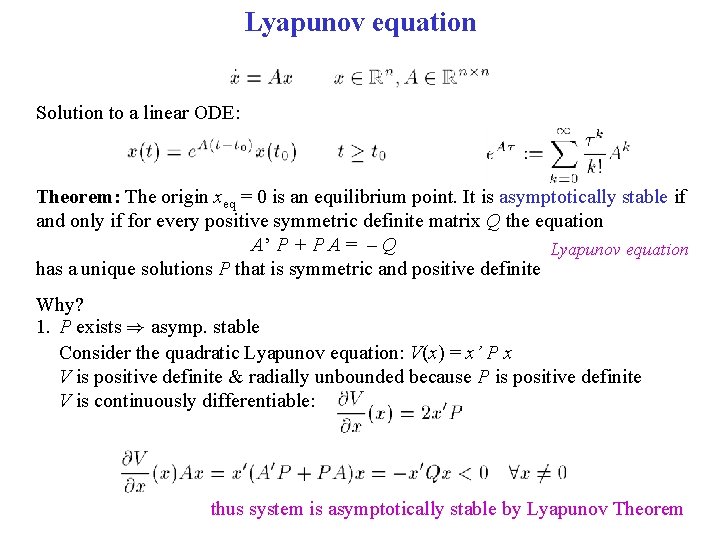

Lyapunov equation Solution to a linear ODE: Theorem: The origin xeq = 0 is an equilibrium point. It is asymptotically stable if and only if for every positive symmetric definite matrix Q the equation A’ P + P A = – Q Lyapunov equation has a unique solutions P that is symmetric and positive definite Why? 1. P exists ) asymp. stable Consider the quadratic Lyapunov equation: V(x) = x’ P x V is positive definite & radially unbounded because P is positive definite V is continuously differentiable: thus system is asymptotically stable by Lyapunov Theorem

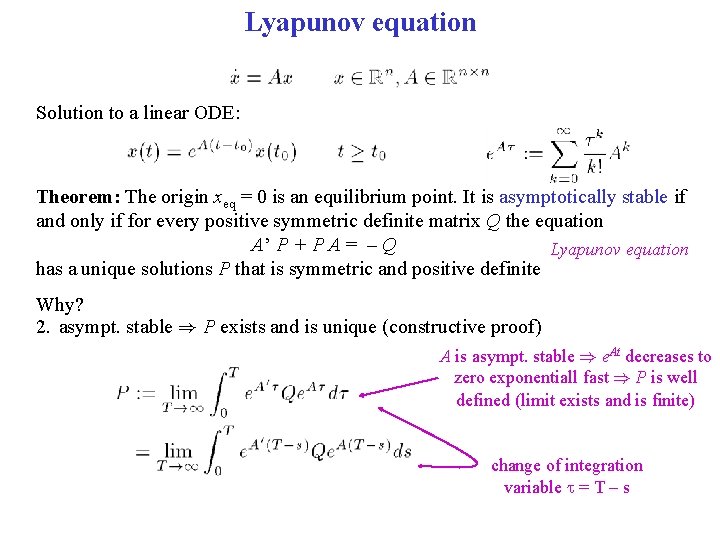

Lyapunov equation Solution to a linear ODE: Theorem: The origin xeq = 0 is an equilibrium point. It is asymptotically stable if and only if for every positive symmetric definite matrix Q the equation A’ P + P A = – Q Lyapunov equation has a unique solutions P that is symmetric and positive definite Why? 2. asympt. stable ) P exists and is unique (constructive proof) A is asympt. stable ) e. At decreases to zero exponentiall fast ) P is well defined (limit exists and is finite) change of integration variable t = T – s

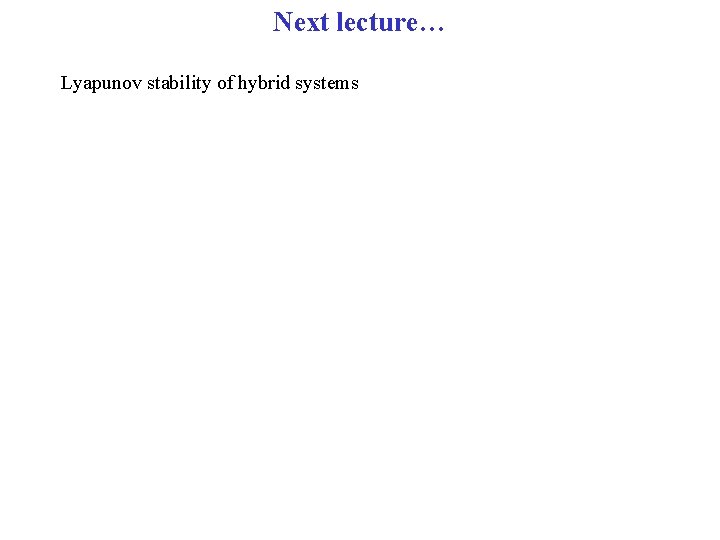

Next lecture… Lyapunov stability of hybrid systems
