Husky Optimal RS 900 CL Color Options White

Husky Optimal RS 900 CL Color Options White with Silver trim Black with Silver trim www. husky-international. com Black with Black trim

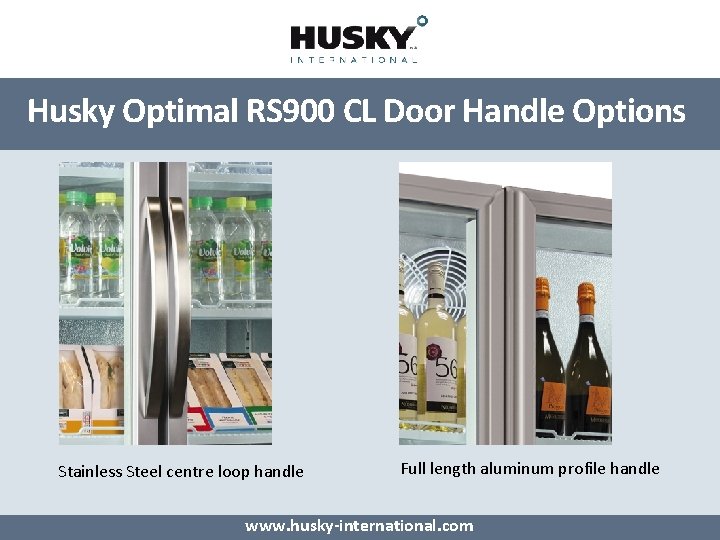

Husky Optimal RS 900 CL Door Handle Options Stainless Steel centre loop handle Full length aluminum profile handle www. husky-international. com

Husky Optimal RS 900 CL Internal Dimensions Internal dimensions for first samples Internal dimensions for production run The main difference is that production units will include 15 mm channels in each interior side wall, allowing the outer width to be reduced to 900 mm. www. husky-international. com

Husky Optimal RS 900 CL System Mounting Points Sample units use a Stainless Steel disc fixed to the internal base and top of the chiller to allow easy installation of the Roto system. For production units the steel disc will be placed inside the foam insulation. This gives the same functionality but the discs will be less visible. www. husky-international. com

Husky Optimal RS 900 CL Finished Height The sample as pictured has an overall external height of 1530 mm (60”) with an internal height of 1250 mm (49”). The unit shown is loaded four high with 20 oz Coca-Cola bottles. We have the option to reduce the finished height of the production units by around 30 mm to achieve an overall external height of 1500 mm (59”). www. husky-international. com

Husky Optimal RS 900 CL Top Plate Sample unit will show this top plate Production unit will show this top plate www. husky-international. com

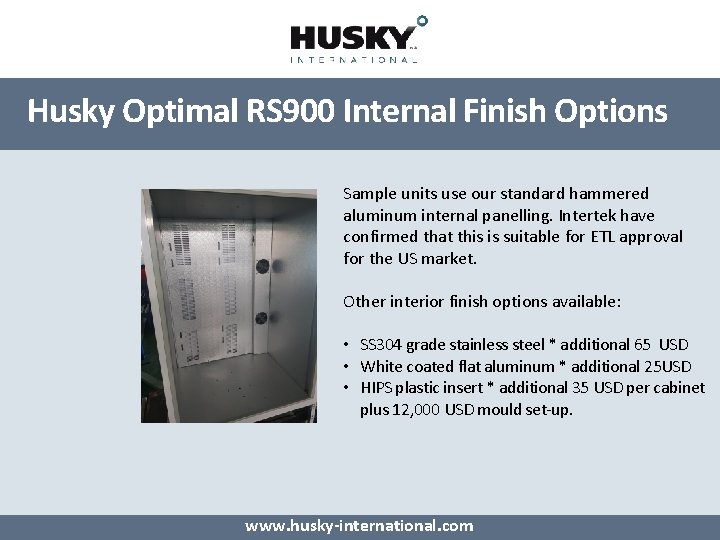

Husky Optimal RS 900 Internal Finish Options Sample units use our standard hammered aluminum internal panelling. Intertek have confirmed that this is suitable for ETL approval for the US market. Other interior finish options available: • SS 304 grade stainless steel * additional 65 USD • White coated flat aluminum * additional 25 USD • HIPS plastic insert * additional 35 USD per cabinet plus 12, 000 USD mould set-up. www. husky-international. com

Husky Optimal RS 900 CL Refrigeration Tray The base of the sample units have a centre mounted component tray leaving space each side of the cooling system. In the production units the base of the cabinet will be a solid section of galvanised steel. www. husky-international. com

Husky Optimal RS 900 CL Door Opening Sample units use a standard Husky self-closing door mechanism. In production units the self-closing spring will work up to a 90° door opening. Once opened past 90° the door will remain open to allow easy use of the Roto system. www. husky-international. com

Husky Optimal RS 900 Cash Line Sample Spec Husky Optimal RS 900 Cash Line • Energy-efficient R 290 hydrocarbon refrigerant 100 g • Total Capacity: 594 Litres / 21 Cubic Feet • Dimensions without optional canopy (Hx. Wx. D): 1530 x 930 x 820 mm • Temperature range: 0 to 10°C / 32 to 50°F • Auto defrost • Full height LED lighting • Aluminium frame self-closing door • Aluminium hammered interior • Stainless steel mounting points (visible) www. husky-international. com
