Human Form Function The urinary system Urinary system

Human Form & Function The urinary system

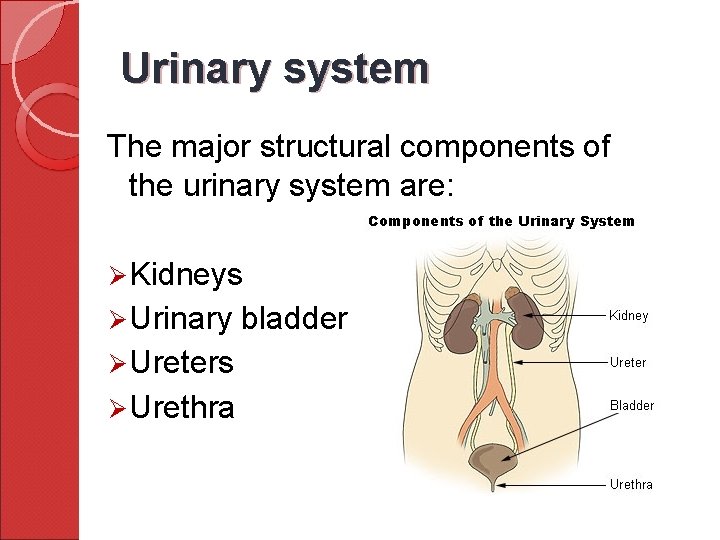

Urinary system The major structural components of the urinary system are: Ø Kidneys Ø Urinary Ø Ureters Ø Urethra bladder

Urinary system Function Ø To rid the body of wastes, especially nitrogenous wastes such as urea. Ø To regulate the balance of fluid, salt & p. H. Ø The blood is filtered as it passes through the kidneys. Ø Waste substances are removed by the processes of filtration and tubular secretion. Ø Useful substances are returned to the body by the process of selective re-absorption.

The kidneys The functional unit of the kidney is the nephron A nephron consists of a Bowman’s capsule, a renal tubule and the associated blood supply. It filters waste products out of the blood Each kidney contains about 1. 2 million nephrons 10/7/2020 3 HBS 4

convoluting The kidney. Proximaltubule Glomerulus Capsule Cortex Distal convoluting tubule Medulla Renal artery Renal vein Renal pelvis Collecting duct Loop of Henle Capillaries Ureter KIDNEY A NEPHRON

The kidneys Renal medulla – loops of Henle Renal artery Renal vein Renal cortex – Bowman’s capsules Ureter – to the bladder 10/7/2020 3 HBS 6

The nephron Bowman’s capsule Common collecting duct Renal corpuscle Proximal convolute tubule Distal convolute tubule Loop of Henle

The renal corpuscle ØFiltration takes place in the renal corpuscle. ØThe renal corpuscle consists of the Bowman’s capsule and a mass of blood capillaries – the glomerulus.

The renal corpuscle Afferent arteriole Bowman’s capsule Efferent arteriole Glomerulus Proximal convolute tubule

Filtration • Filtering the blood is a passive process and occurs under high pressure. • The filtrate includes: ØWater ØUrea ØGlucose ØAmino acids ØVitamins ØSalts (sodium & chlorine)

Microscopic section through a kidney Glomerulus Tubule

Photograph of a glomerulus taken with a scanning electron microscope Capillaries of the glomerulus Wellcome Images – David Gregory & Debbie Marshall

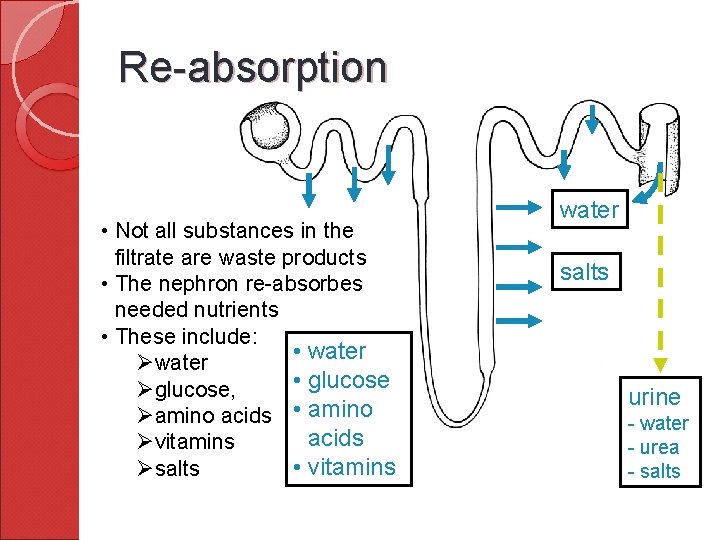

Re-absorption • Not all substances in the filtrate are waste products • The nephron re-absorbes needed nutrients • These include: • water Øwater • glucose Øglucose, Øamino acids • amino acids Øvitamins • vitamins Øsalts water salts urine - water - urea - salts

Section through a renal tubule taken with a scanning electron microscope Wellcome Images – David Gregory & Debbie Marshall

The proximal tubule Microvilli line the proximal convolute tubule and create a brush border This greatly increases the surface area for re-absorption. Microvilli L Slomianka ANHB - UWA

Re-absorption Structure Substance Active/passive Proximal Water (60 -70%) convolute tubule Salts (60 -70%) Glucose (100%) Amino acids (100%) Vitamins (100%) Passive (osmosis) Loop of Henle Water (25%) Passive (osmosis) Na+/Cl- (25%) Active transport Distal convolute tubule Water (5%) Passive (osmosis) Na+/Cl- (5%) Active transport Collecting duct Water (5%) Passive (osmosis) Active transport

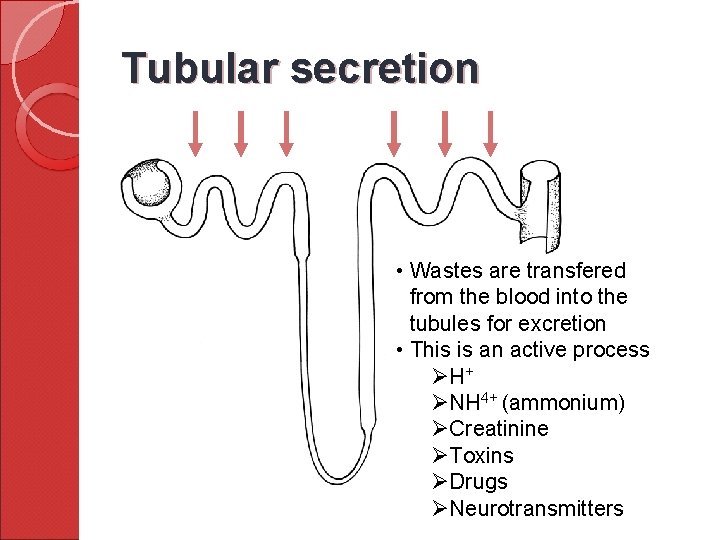

Tubular secretion • Wastes are transfered from the blood into the tubules for excretion • This is an active process Ø H+ ØNH 4+ (ammonium) ØCreatinine ØToxins ØDrugs ØNeurotransmitters

Tubular secretion Process Tubular secretion Structure Proximal collection tubule (PCT) Distal collection tubule (DCT) Substance Mode H+ Active NH 4+ (ammonium) transport Creatinine Toxins Drugs Neurotransmitters Creatinine is a chemical waste molecule that is generated from muscle metabolism.

Filtration – a summary 1. Blood enters the glomerulus (Bowman’s capsule) under high pressure. 2. Water and other small molecules are forced out of the blood vessels 3. This filtrate is collected and passes through several tubules 4. Some water and useful substances are reabsorbed 5. The rest passes through to the ureters and is stored in the bladder for excretion 10/7/2020 3 HBS 19

Filtration – a summary Filtration Re-absorption + Tubular secretion Excretion Renal cortex Renal medulla

Deamination Definition: The stripping of nitrogen from amino acid & nitrogen bases (RNA) Deamination occurs in the liver Nitrogen occurs in the amino (NH 2) part of an amino acid. Nitrogen is toxic to the human body and must The amino group be removed. Alanine

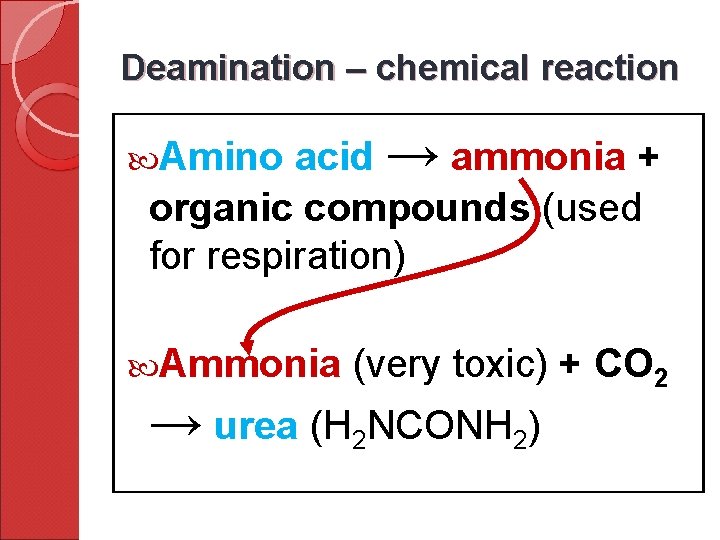

Deamination – chemical reaction acid → ammonia + organic compounds (used for respiration) Amino Ammonia (very toxic) + CO 2 → urea (H 2 NCONH 2)

Nitrogen wastes Nitrogen Source compound Amount Relative toxicity Urea Amino Acids 21 g/day Moderate Creatinine Muscle metabolism 1. 8 g/day High Uric acid RNA 480 mg/day Weak

Urine is a clear, transparent fluid. It normally has an amber colour. It is collected in the bladder and eliminated through the urethra. The average amount of urine voided in 24 hours is about 1, 200 cm 3.

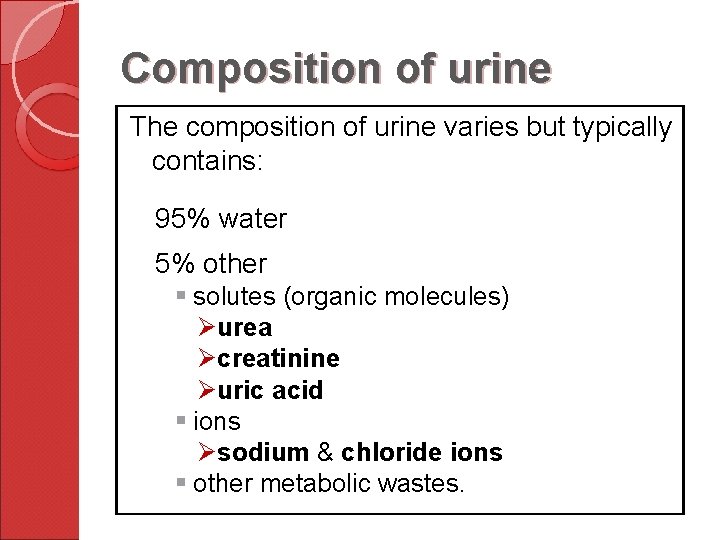

Composition of urine The composition of urine varies but typically contains: 95% water 5% other § solutes (organic molecules) Øurea Øcreatinine Øuric acid § ions Øsodium & chloride ions § other metabolic wastes.

Elimination vs. excretion Elimination is the removal of undigested food and waste from the body. Excretion is the removal of metabolic waste produced by cells from the body

Kidney Failure Most kidney diseases affect the glomeruli which reduces their ability to filter the blood (proteins and RBCs will be present in urine) Some lifestyle measures to reduce the risk of kidney damage include: 1. 2. 3. 4. Maintain a healthy weight Don’t smoke Drink plenty of water Alcohol only in moderation Kidney failure is when kidneys lose their ability to excrete waste and control the level of fluid in the body. 7/10/2020 Stage 2 HBS: Excretory System 27

Dialysis is a method of removing wastes from the blood when kidney failure occurs. There are two types of dialysis Øperitoneal dialysis Øhaemodialysis 7/10/2020 Stage 2 HBS: Excretory System 28

Peritoneal dialysis occurs inside the body using the peritoneum (a membrane that lines the inside of the abdominal cavity and covers organs such as stomach, liver and intestines) A fluid containing glucose and other substances at concentrations similar blood (and no wastes) is pumped via catheter into the abdominal cavity. Because of the concentration gradient wastes diffuse from the blood into the fluid in the abdominal cavity, useful products stay in the blood as there is not concentration gradient.

Peritoneal dialysis is usually done each day 7/10/2020 Stage 2 HBS: Excretory System 30

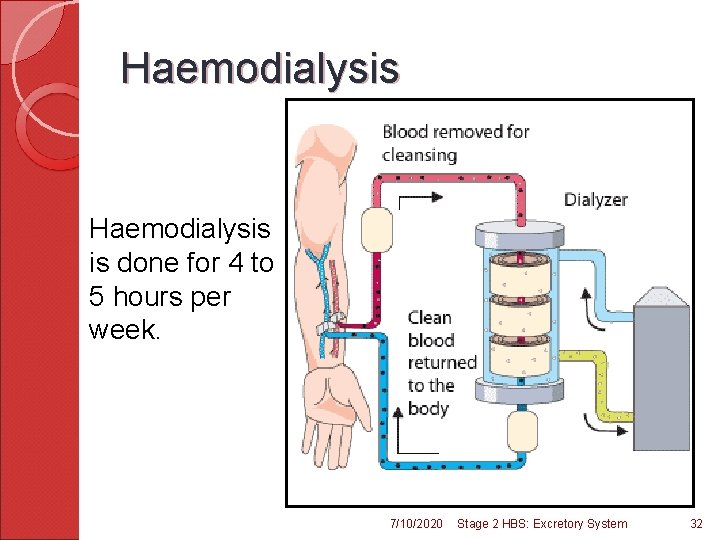

Haemodialysis involves passing blood through an artificial kidney or dialysis machine The blood is passed through many tubes made of differentially permeable membrane and immersed in a bath of fluid. The concentration of substances in the fluid bath are similar to those in the blood (fluid has no waste) Due to concentration gradient wastes are passed from the blood into the fluid, useful substances remain in blood (no concentration gradient) 7/10/2020 Stage 2 HBS: Excretory System 31

Haemodialysis is done for 4 to 5 hours per week. 7/10/2020 Stage 2 HBS: Excretory System 32
