Human Bartonellosis caused by Bartonella bacilliformis 1 Henrquez

Human Bartonellosis caused by Bartonella bacilliformis

1 Henríquez César 2 Paul Pachas Phillip Lawyer 3 Larry Laughlin 3 Ciro Maguiña 1 1. Instituto de Medicina Tropical Alexander von Humboldt-Universidad Peruana Cayetano Heredia 2. Oficina General de Epidemiologia 3. Uniformed Services University of the Health Sciences 2002

Introduction • Human bartonellosis is the clinical term to define the bacterial infections by the genus Bartonella. • There are five important species that produce human diseases.

History and Archeology Bartonellosis has been known since Pre-Inca times. Numerous artistic representations in clay “huacos” depict the chronic phase of the disease. The historian Garcilazo De La Vega described a disease with warts in Spanish troops when they arrived for the first time in Coaque. Ecuador. For a long time it was thought that the disease was endemic only in Peru and that it had only one phase: “Peruvian wart” or “Verruga peruana”

Historical Figures In 1875 an outbreak, characterized by fever and anemia (Oroya fever) occurred in the region of construction of the railroad line between Lima and Oroya. In 1885, Daniel A. Carrion, a Peruvian medical student, inoculated himself with material taken from a patient with Peruvian wart. He subsequently acquired Oroya Dr. Alberto L Daniel A. Carrión fever and died a month later. (1858 -1885) Barton Later, Alberto Barton discovered the etiologic agent (1871 -1950) of “Carrion’s disease”

Epidemiology • Bartonellosis is endemic in Perú, Ecuador and Colombia. • Geography and weather conditions vary depending of the region. • Emergence or reemergence of several infectious diseases, including bartonellosis, seem to

Carrion’s disease cases (1945 -2001) YEAR

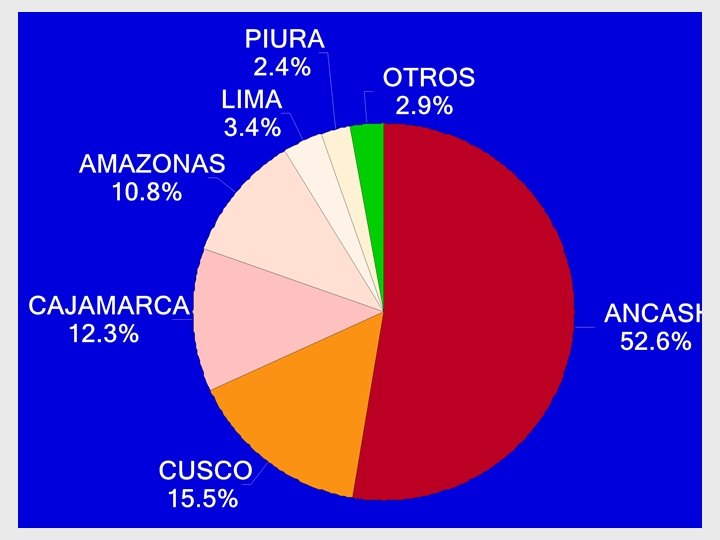

Ancash department was the most important endemic area of bartonellosis since 1945 until 1994.

Reported cases of Carrion’s disease (1995 -2001) 1995 1997 1999 2001

Incidence of Carrion’s disease by regions (1996 -2002) YEARS Coast Jungle Andes

New foci of Carrion’s disease New epidemic areas identified. Mortality during the outbreaks is high. No cases of chronic phase (Peruvian wart)in epidemic areas. No animal reservoir identified. February 2002

Suspected vectors: Phlebotomine sand flies • Smaller than a mosquito, larger than a midge • Coloration varies from light brown (sandy or fawn) to gray or black • Require humid, not wet, conditions • Only female sand flies take a blood meal • Nocturnal feeding behavior Lutzomyia verrucarum Photo Courtesy Dr. Grieco and Dr. Lawyer

Suspected Vectors: Phlebotomine sand flies • Sand fies are weak fliers • Fly only at night unless disturbed in their daytime resting site • Sand flies transmit Bartonella bacilliformis from infected to uninfected hosts by bite • At least two species suspected in Peru: Lu. verrucarum and Lu. peruensis Lutzomyia peruensis Courtesy Dr. Grieco and Dr. Lawyer

Distribution of Carrion’s disease cases and Lutzomyia verrucarum Provinces with Lutzomya verrucarum Provinces with Carrion’s disease cases

Etiologic agent: Bartonella bacilliformis Gram negative aerobic, pleomorphic, flagellated, motile, coccobacillary, 2 -3 m large and 0, 2 - 0, 5 m wide and facultative intracellular bacterium. For its isolation, special cultures are required containing complemental soy agar, proteases, peptones, some essential amino acids and blood. The optimum growing temperature is 19 -29 ºC.

Pathogenesis • Bartonella bacilliformis is transmitted by the bite of the suspected vector Lutzomyia spp • Following transmission, the bacterium infects red blood cells and endothelial cells • The physical damage and introduction of antigens in the membranes of the red cells stimulate the Reticuloendothelial System to produce an intense erythrophagocytosis by macrophages and histiocytic cells resulting in severe extra vascular hemolytic anemia

Endothelial cells: the last target? • The invasion of endothelial cells is an active process dependent on the activation of Rho, which is an intracellular signal implicated in the rearrangement of the host cell actin cytoskeletal network

The disease • The clinical symptoms of bartonellosis are pleomorphic and some patients may be asymptomatic • The two classical clinical presentations are the acute phase and the chronic phase, corresponding to the two different host cell types invaded by the bacterium

Acute phase: Oroya fever or Carrion’s disease • The mean incubation time is 21 days (range 10 to 270 days) • The diagnostic tests in this phase are: Values in porcentaje

The diagnosis in the acute phase can be done using the thin blood film with Giemsa stain. It is possible to observe the bacillus inside the red blood cells.

Molecular technics M Base pairs 1500 bp 600 bp 1 2 3 4 M: DNA ladder (100 bp). 1: B. bacilliformis DNA from culture extracted by thermal lysis (100°C, 10 min. ) using 16 S 23 S primers (positive control). 2: Whole blood extraction from an acute phase patient, using 16 S 23 S primers. 3: Whole blood extraction from an acute phase patient, using primers for Citrate Synthetase gene. 4: B. bacilliformis DNA from a culture extraction using primers for Citrate Synthetase gene.

Immunologic technics: Sonicated immunoblot 20 18 17 14 k. Da A B C D Lane A: Positive control pool Lane Band C: Bartonella bacilliformispositive serum taken from a patient in acute phase Lane D: Negative control pool

Chronic Phase: Peruvian wart (Verruga Peruana) Mularlesions

Chronic Phase: Peruvian wart (Verruga Peruana) Miliary lesions

Chronic Phase: Peruvian wart (Verruga Peruana) Miliary lesions with overwhelming infection

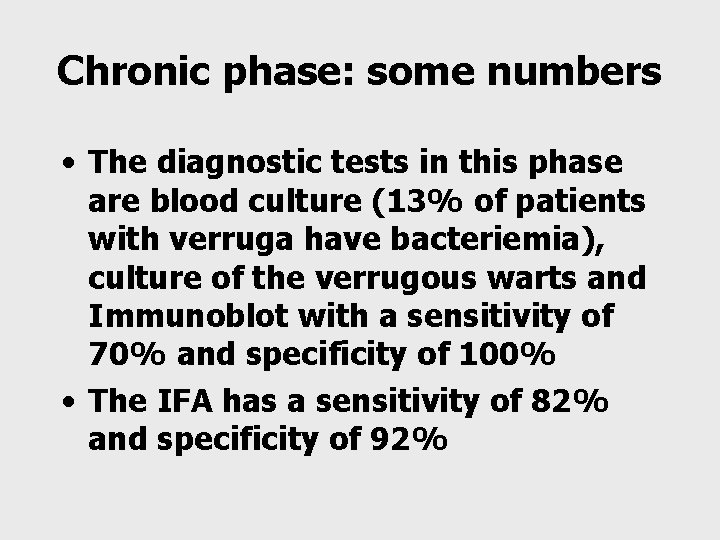

Chronic phase: some numbers • The diagnostic tests in this phase are blood culture (13% of patients with verruga have bacteriemia), culture of the verrugous warts and Immunoblot with a sensitivity of 70% and specificity of 100% • The IFA has a sensitivity of 82% and specificity of 92%

Immunity and infection • One factor that complicates the clearance of the bacterium is that intraerythrocytic Bartonella are protected from both humoral and cellular immune responses due to a lack of major histocompatibility complex (MHC) molecules on the surface of the mature erythrocytes • They are unable to present antigens of their invaders to the immune system

Conclusion • Human bartonellosis is a bacterial infection by the genus bartonella • Bartonellosis caused by B. bacilliformis (Oroya’s fever or Carrion’s disease) is endemic in Peru, Ecuador and Colombia • No animal reservoir identified • Suspected vectors: Phlebotomine sand flies • About the disease, there are two classical clinical presentations: acute and chronic phase • New endemic areas identified: Emergent infectious disease
