Human Anatomy and Physiology Lab 1 Blood

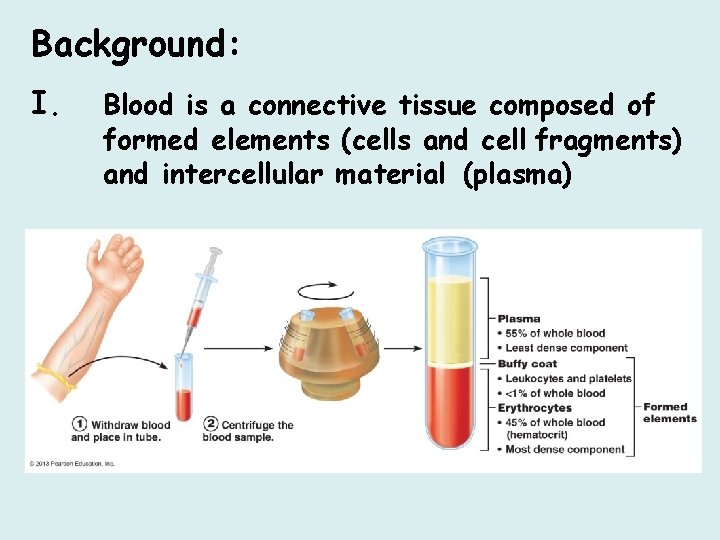

Background: I. Blood is a connective tissue composed of formed elements (cells and cell fragments) and intercellular material (plasma)

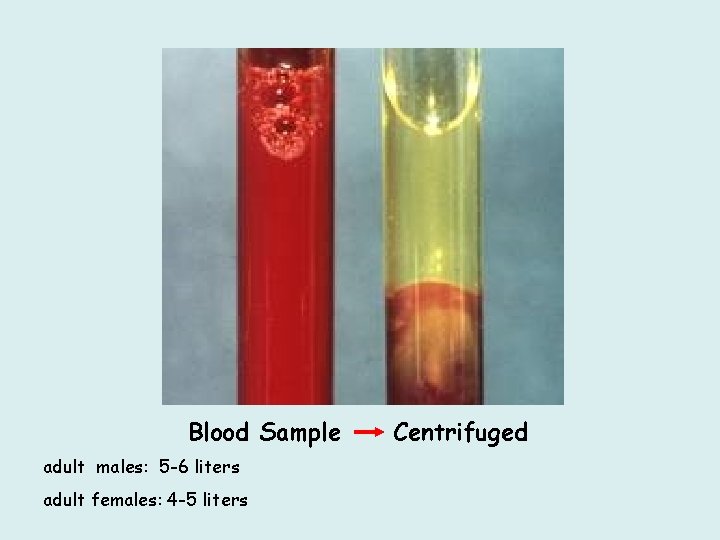

Blood Sample adult males: 5 -6 liters adult females: 4 -5 liters Centrifuged

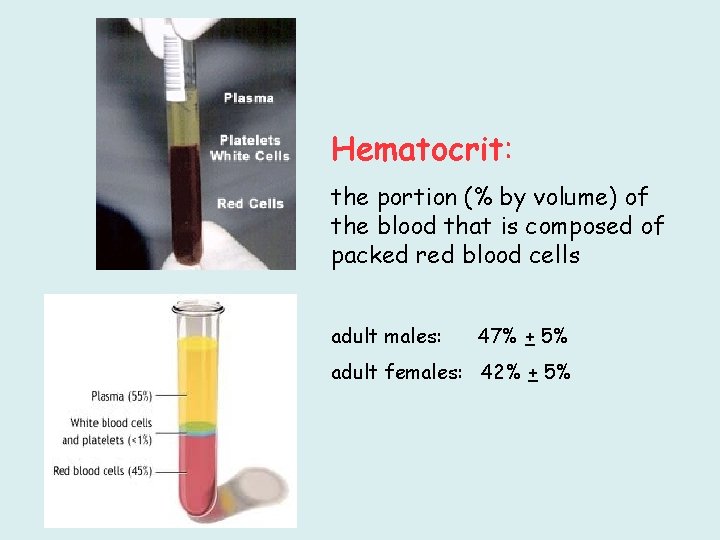

Hematocrit: the portion (% by volume) of the blood that is composed of packed red blood cells adult males: 47% + 5% adult females: 42% + 5%

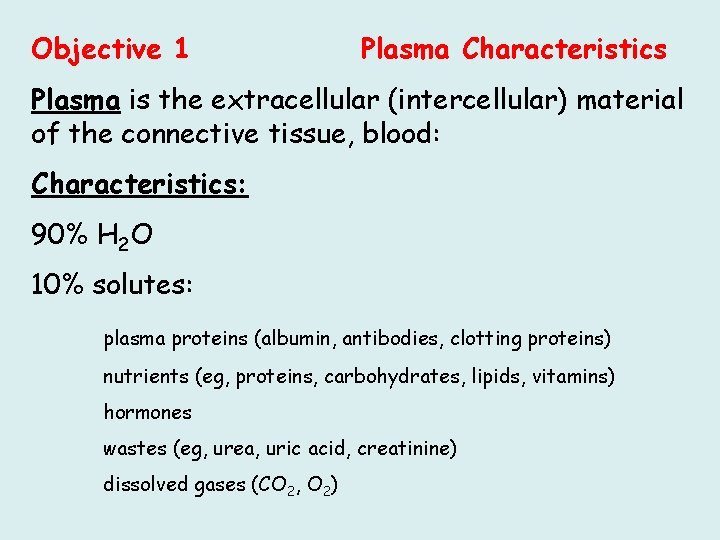

Objective 1 Plasma Characteristics Plasma is the extracellular (intercellular) material of the connective tissue, blood: Characteristics: 90% H 2 O 10% solutes: plasma proteins (albumin, antibodies, clotting proteins) nutrients (eg, proteins, carbohydrates, lipids, vitamins) hormones wastes (eg, urea, uric acid, creatinine) dissolved gases (CO 2, O 2)

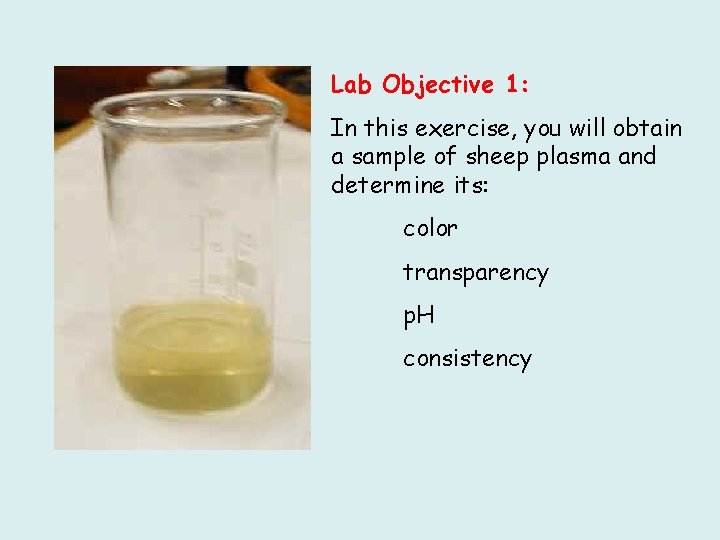

Lab Objective 1: In this exercise, you will obtain a sample of sheep plasma and determine its: color transparency p. H consistency

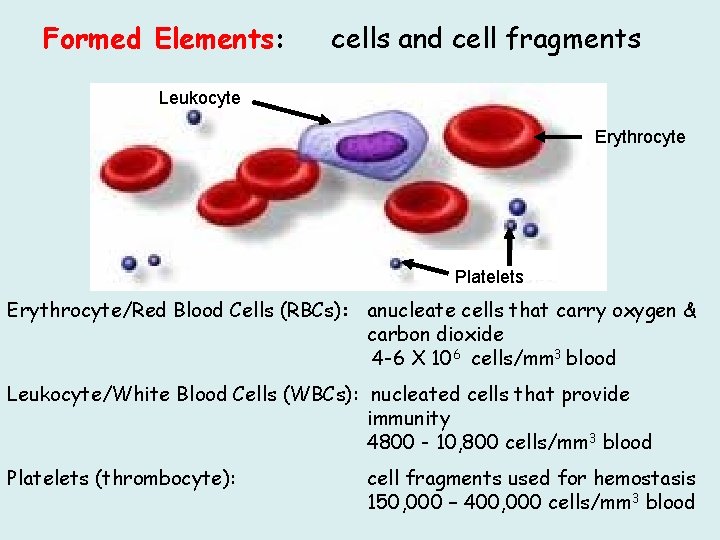

Formed Elements: cells and cell fragments Leukocyte Erythrocyte Platelets Erythrocyte/Red Blood Cells (RBCs): anucleate cells that carry oxygen & carbon dioxide 4 -6 X 106 cells/mm 3 blood Leukocyte/White Blood Cells (WBCs): nucleated cells that provide immunity 4800 - 10, 800 cells/mm 3 blood Platelets (thrombocyte): cell fragments used for hemostasis 150, 000 – 400, 000 cells/mm 3 blood

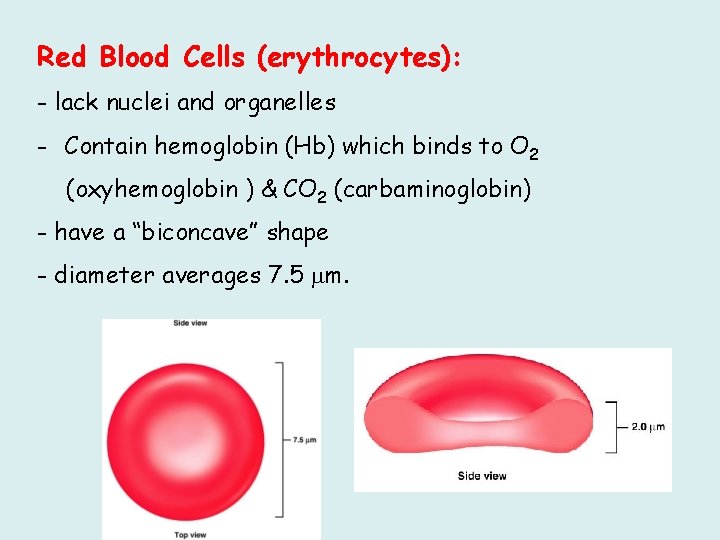

Red Blood Cells (erythrocytes): - lack nuclei and organelles - Contain hemoglobin (Hb) which binds to O 2 (oxyhemoglobin ) & CO 2 (carbaminoglobin) - have a “biconcave” shape - diameter averages 7. 5 m.

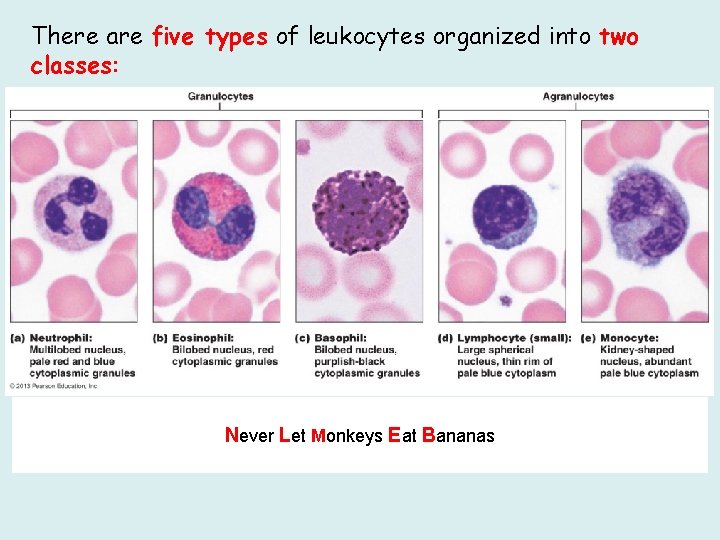

There are five types of leukocytes organized into two classes: Never Let Monkeys Eat Bananas

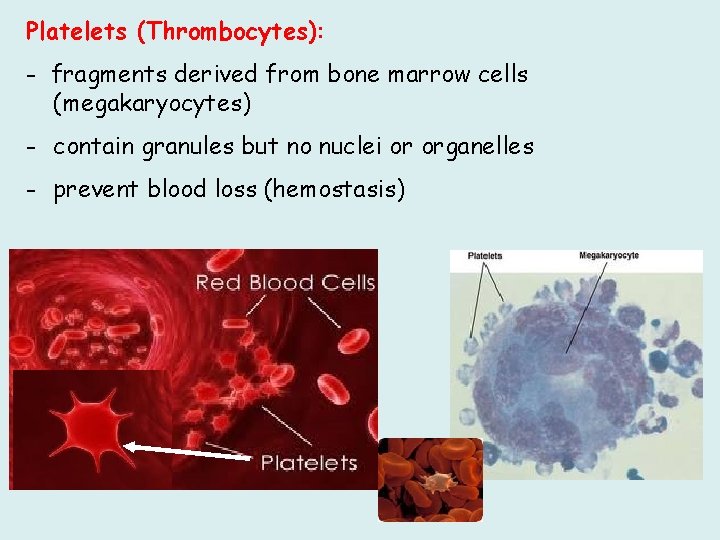

Platelets (Thrombocytes): - fragments derived from bone marrow cells (megakaryocytes) - contain granules but no nuclei or organelles - prevent blood loss (hemostasis)

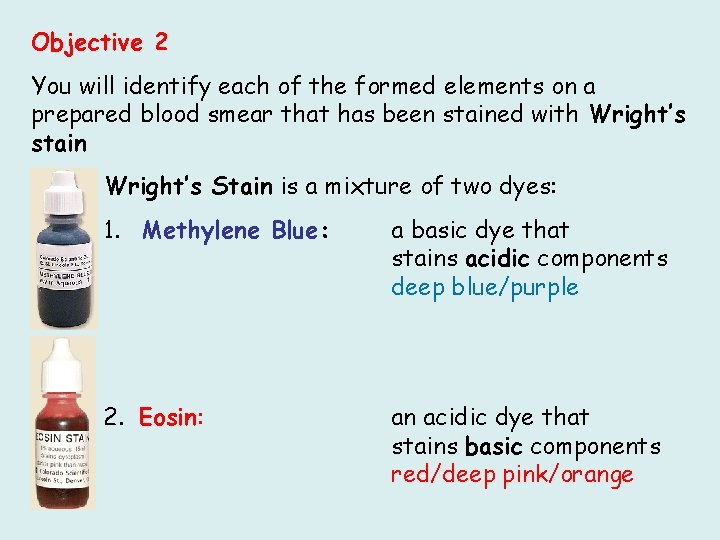

Objective 2 You will identify each of the formed elements on a prepared blood smear that has been stained with Wright’s stain Wright’s Stain is a mixture of two dyes: 1. Methylene Blue: a basic dye that stains acidic components deep blue/purple 2. Eosin: an acidic dye that stains basic components red/deep pink/orange

Different stains can be applied – one popular stain is a differential stain called Wright’s Stain. Wright’s stain is a mixture of eosin and methylene blue. Methylene blue (blue dye) has a positive charge and stains negatively charged substances (acids found in some granules, and DNA and RNA) structures that combine with methylene blue are called basophilic Eosin (red dye) has a negative charge and stains positively charged substances (bases found in some granules, and hemoglobin) structures that combine with eosin blue are called acidophilic Eosin/Methylene Blue Complex stains neutral substances (such as components of some granules) lilac

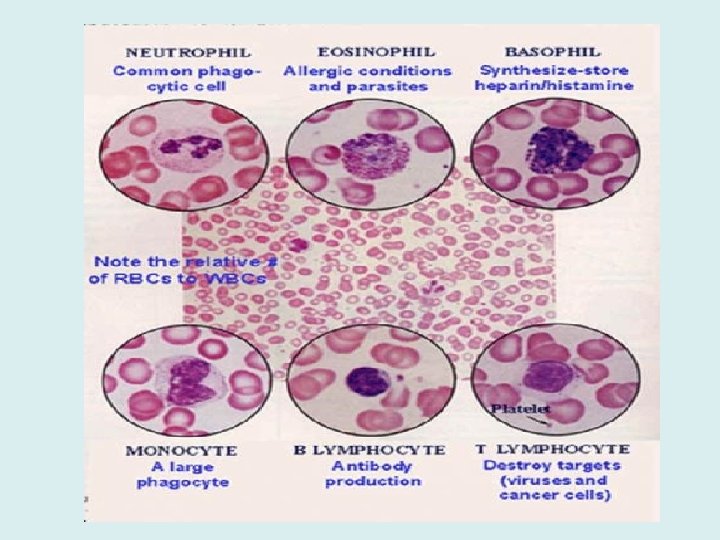

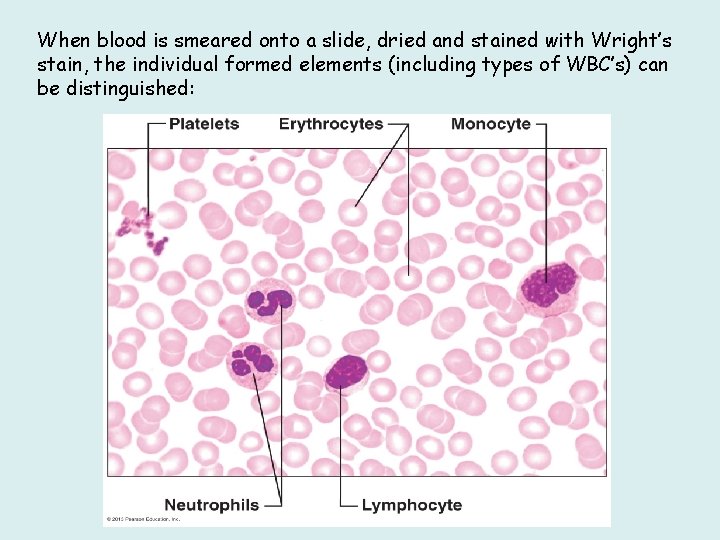

When blood is smeared onto a slide, dried and stained with Wright’s stain, the individual formed elements (including types of WBC’s) can be distinguished:

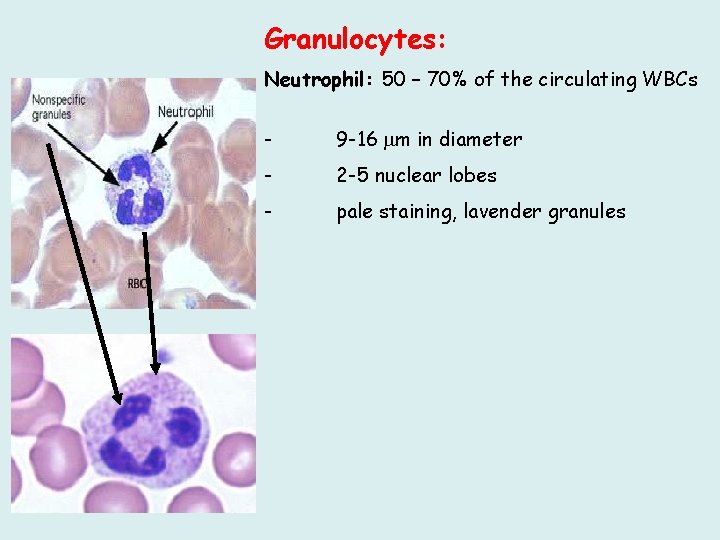

Granulocytes: Neutrophil: 50 – 70% of the circulating WBCs - 9 -16 m in diameter - 2 -5 nuclear lobes - pale staining, lavender granules

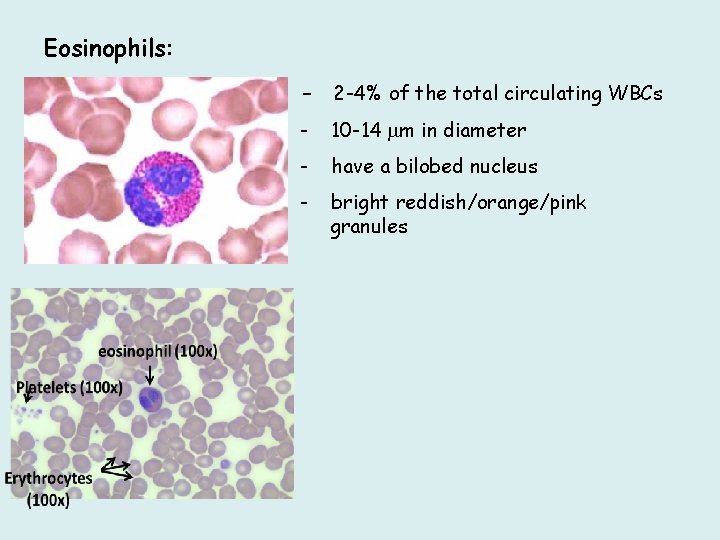

Eosinophils: - 2 -4% of the total circulating WBCs cytoplasmic - 10 -14 m in diameter - have a bilobed nucleus - bright reddish/orange/pink granules

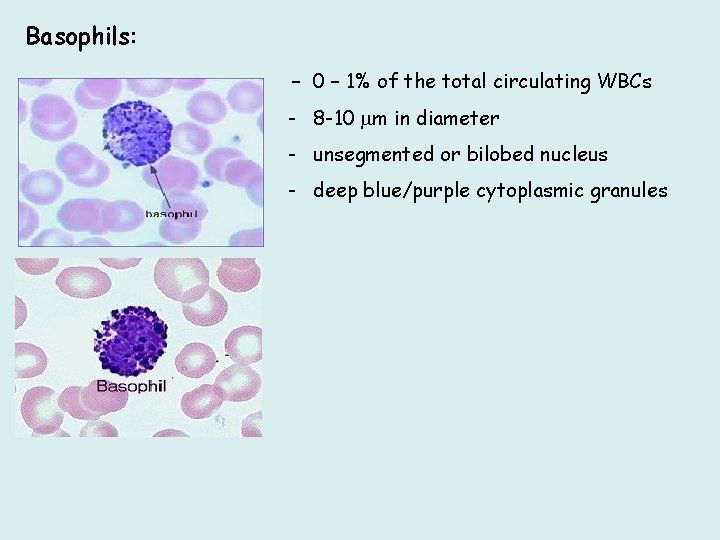

Basophils: - 0 – 1% of the total circulating WBCs - 8 -10 m in diameter - unsegmented or bilobed nucleus - deep blue/purple cytoplasmic granules

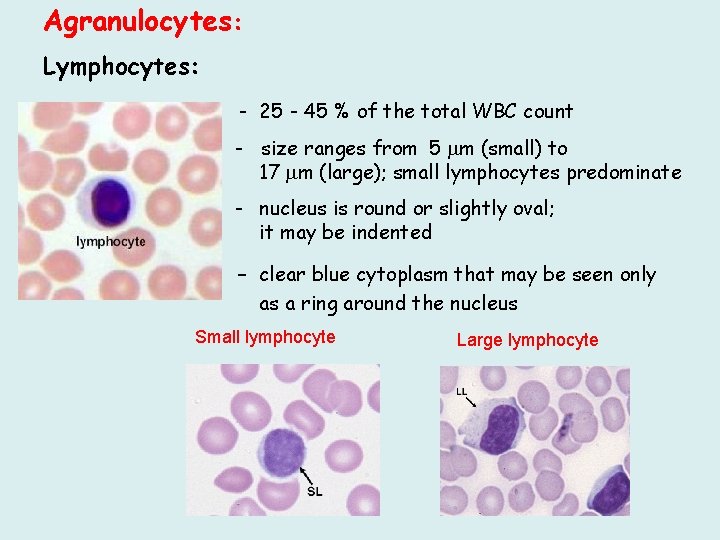

Agranulocytes: Lymphocytes: - 25 - 45 % of the total WBC count - size ranges from 5 m (small) to 17 m (large); small lymphocytes predominate - nucleus is round or slightly oval; it may be indented - clear blue cytoplasm that may be seen only as a ring around the nucleus Small lymphocyte Large lymphocyte

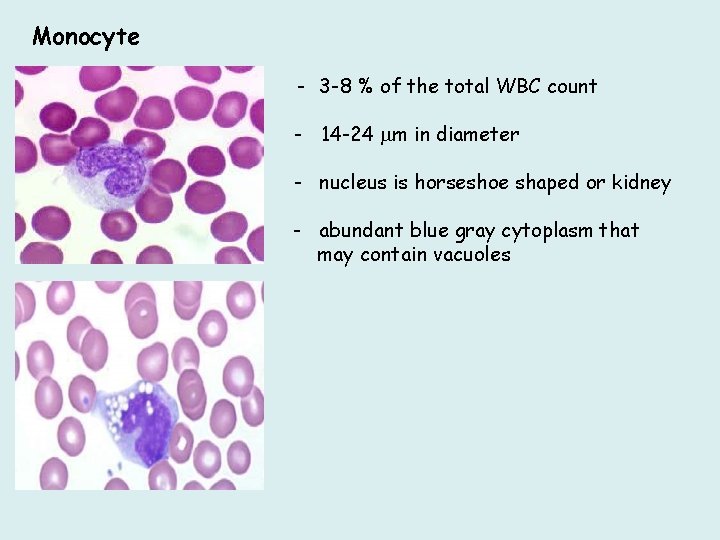

Monocyte - 3 -8 % of the total WBC count - 14 -24 m in diameter shaped - nucleus is horseshoe shaped or kidney - abundant blue gray cytoplasm that may contain vacuoles

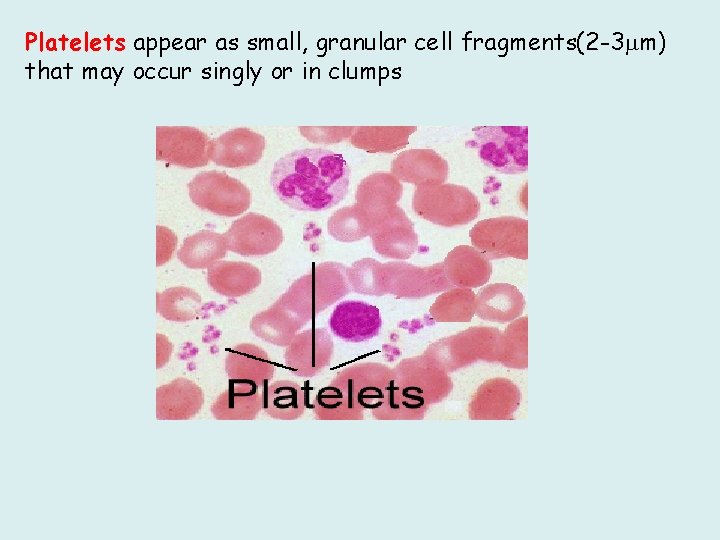

Platelets appear as small, granular cell fragments(2 -3 m) that may occur singly or in clumps

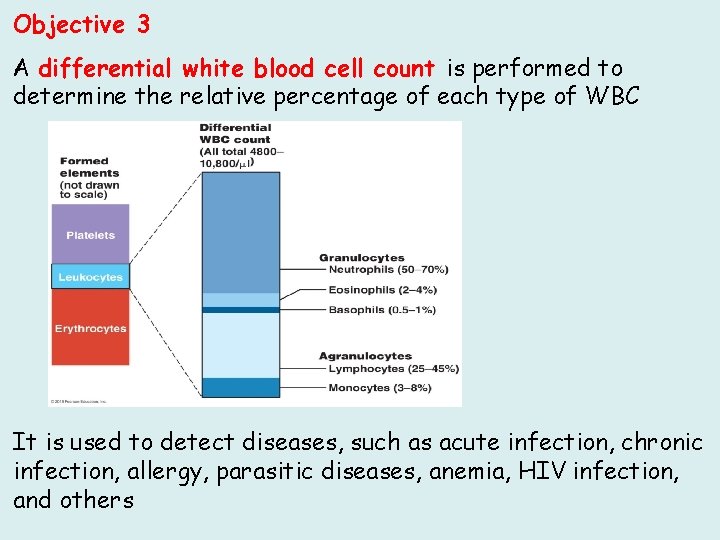

Objective 3 A differential white blood cell count is performed to determine the relative percentage of each type of WBC It is used to detect diseases, such as acute infection, chronic infection, allergy, parasitic diseases, anemia, HIV infection, and others

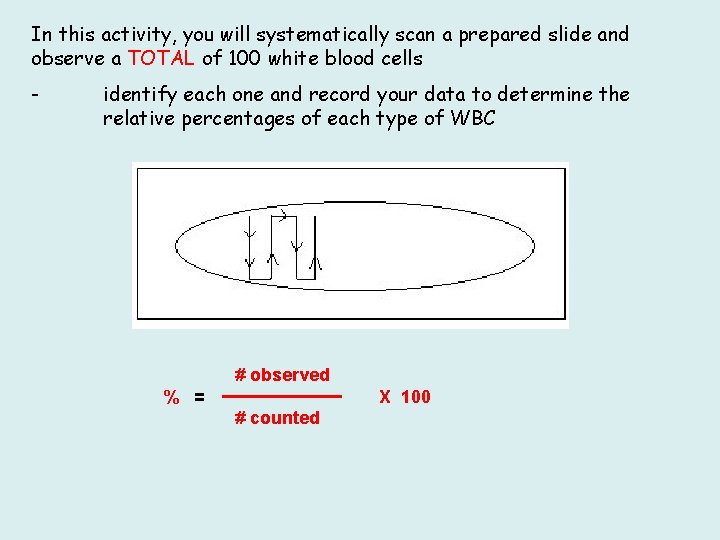

In this activity, you will systematically scan a prepared slide and observe a TOTAL of 100 white blood cells - identify each one and record your data to determine the relative percentages of each type of WBC # observed % = X 100 # counted

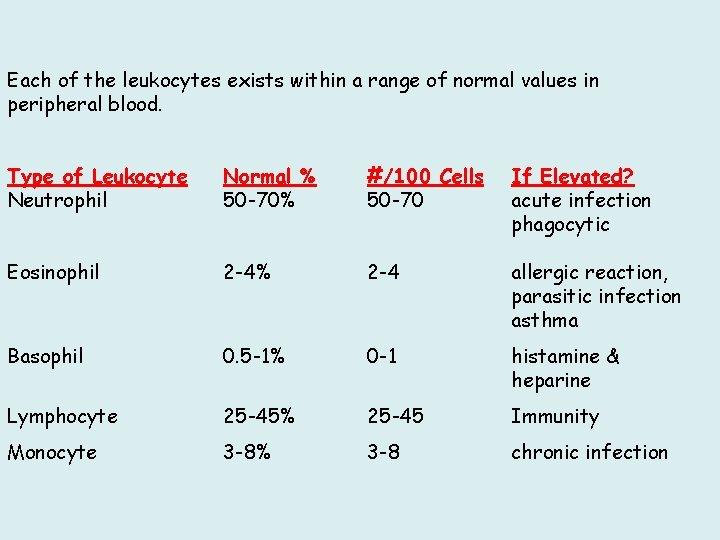

Each of the leukocytes exists within a range of normal values in peripheral blood. Type of Leukocyte Neutrophil Normal % 50 -70% #/100 Cells 50 -70 If Elevated? acute infection phagocytic Eosinophil 2 -4% 2 -4 allergic reaction, parasitic infection asthma Basophil 0. 5 -1% 0 -1 histamine & heparine Lymphocyte 25 -45% 25 -45 Immunity Monocyte 3 -8% 3 -8 chronic infection

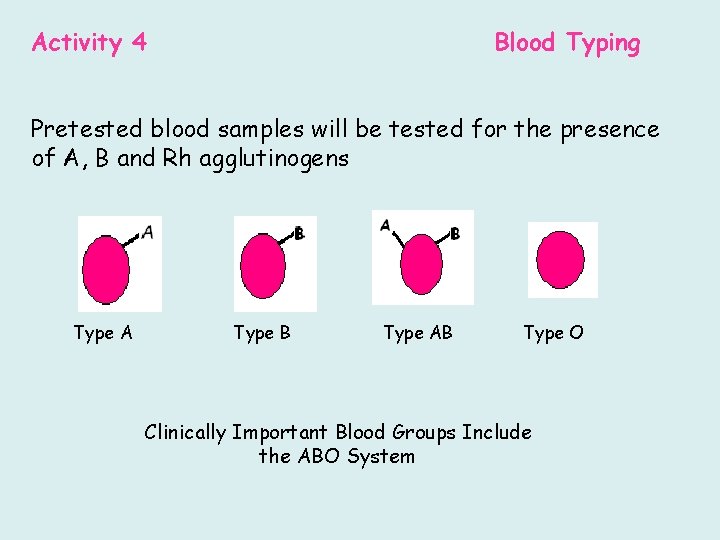

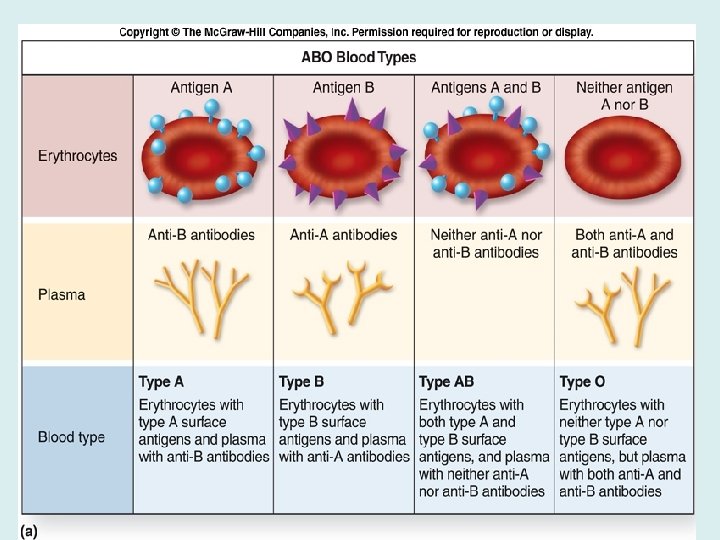

Activity 4 Blood Typing Pretested blood samples will be tested for the presence of A, B and Rh agglutinogens Type A Type B Type AB Type O Clinically Important Blood Groups Include the ABO System

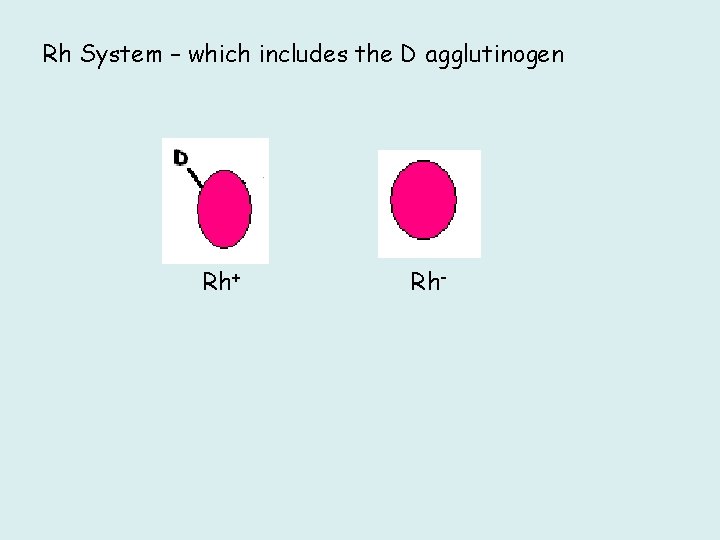

Rh System – which includes the D agglutinogen Rh+ Rh-

Blood Type is determined by which agglutinogens are present on RBC surfaces: Type A+ Type AB- Type AB+ Type B- Type O-

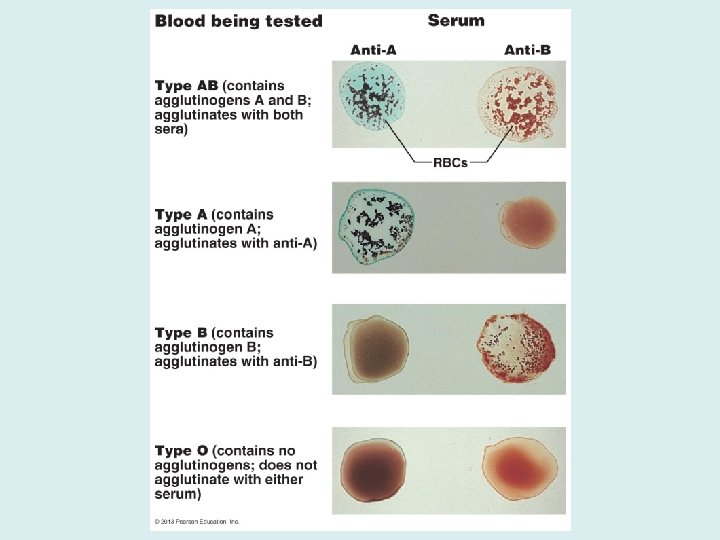

Agglutinins are antibodies that combine with agglutinogens and cause a clumping reaction called agglutination + Type B Cells Anti-B agglutinin Agglutination

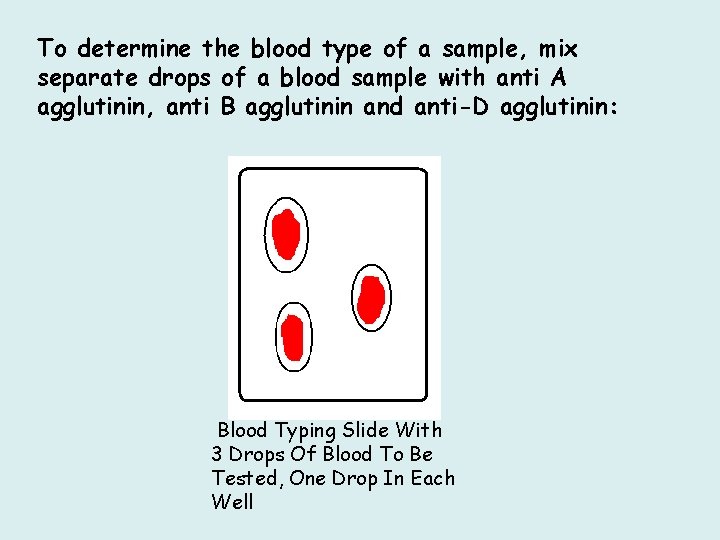

To determine the blood type of a sample, mix separate drops of a blood sample with anti A agglutinin, anti B agglutinin and anti-D agglutinin: Blood Typing Slide With 3 Drops Of Blood To Be Tested, One Drop In Each Well

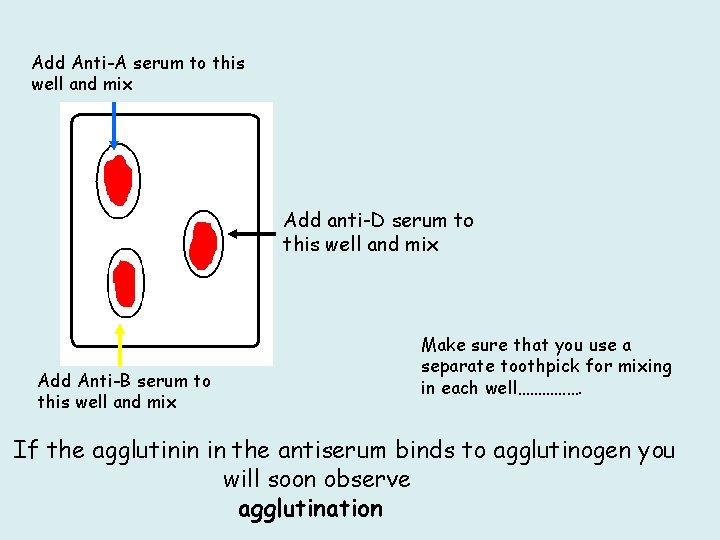

Add Anti-A serum to this well and mix Add anti-D serum to this well and mix Add Anti-B serum to this well and mix Make sure that you use a separate toothpick for mixing in each well……………. If the agglutinin in the antiserum binds to agglutinogen you will soon observe agglutination

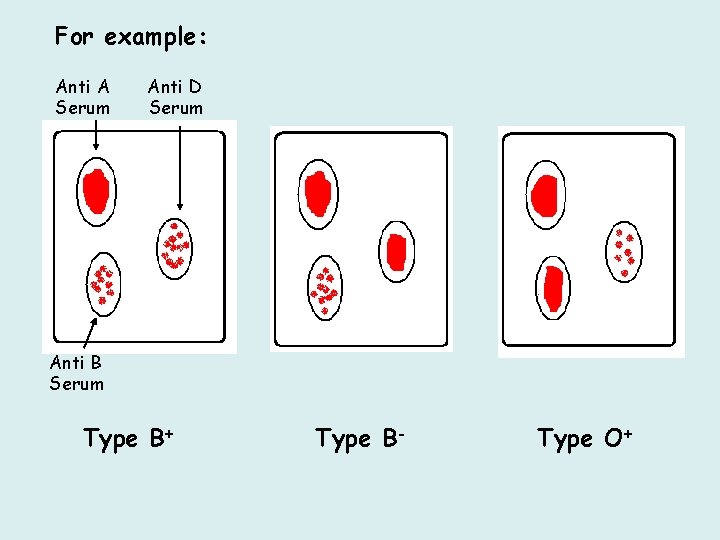

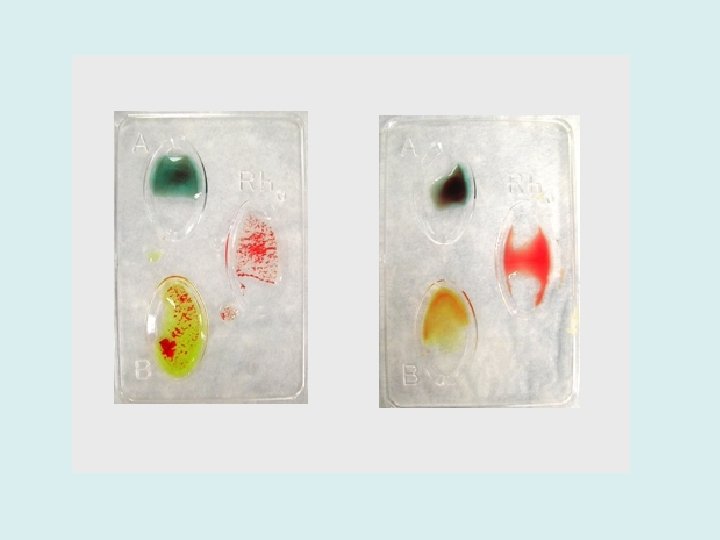

For example: Anti A Serum Anti D Serum Anti B Serum Type B+ Type B- Type O+

This is what agglutination will look like !!!!!!!!!!!!

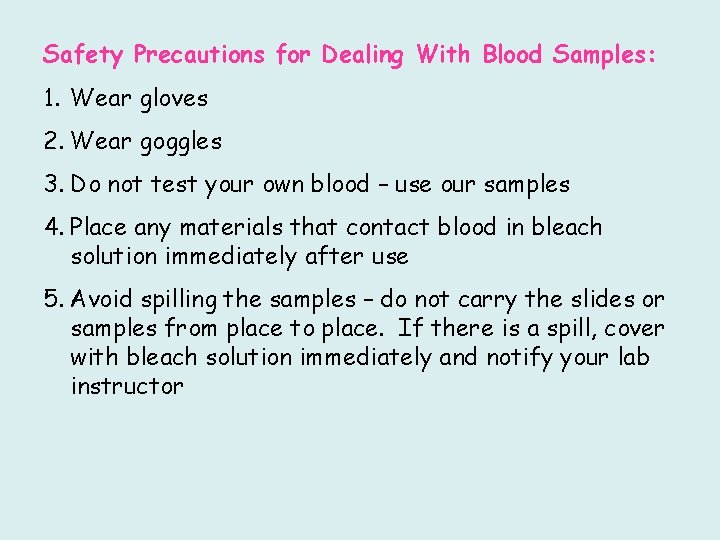

Safety Precautions for Dealing With Blood Samples: 1. Wear gloves 2. Wear goggles 3. Do not test your own blood – use our samples 4. Place any materials that contact blood in bleach solution immediately after use 5. Avoid spilling the samples – do not carry the slides or samples from place to place. If there is a spill, cover with bleach solution immediately and notify your lab instructor

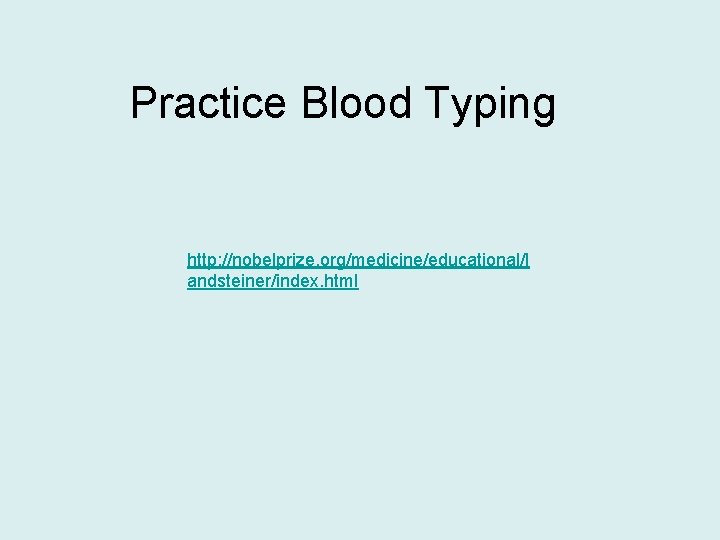

Practice Blood Typing http: //nobelprize. org/medicine/educational/l andsteiner/index. html
