Human Abilities Human Factors 1 Outline l l

Human Abilities / Human Factors: 1

Outline l l Human visual system Guidelines for design Models of human performance (MHP) Memory 2

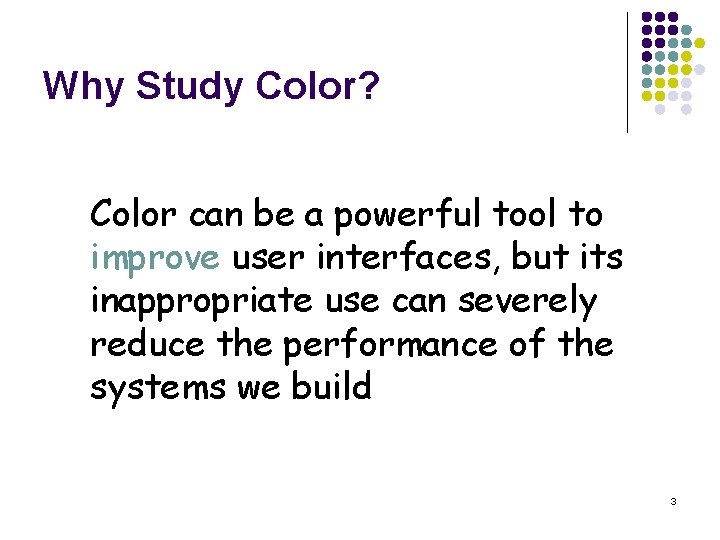

Why Study Color? Color can be a powerful tool to improve user interfaces, but its inappropriate use can severely reduce the performance of the systems we build 3

Visible Spectrum 4

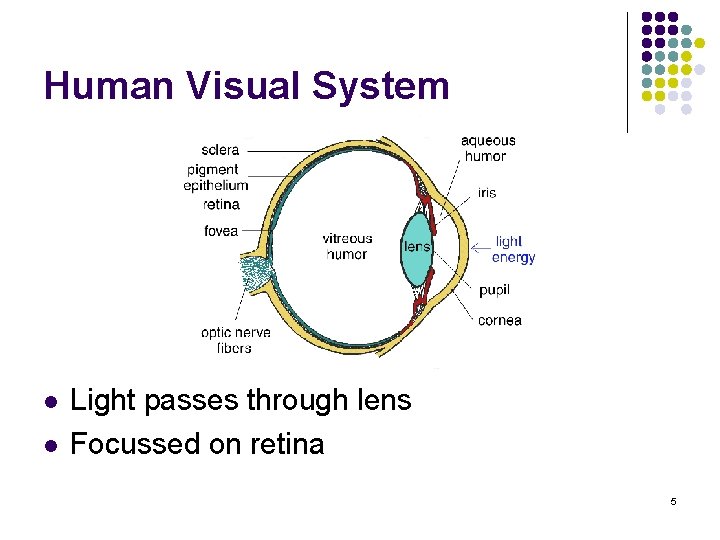

Human Visual System l l Light passes through lens Focussed on retina 5

Retina l Retina covered with light-sensitive receptors l rods l l l ? primarily for night vision & perceiving movement sensitive to broad spectrum of light can’t discriminate between colors sense intensity or shades of gray cones l used to sense color 6

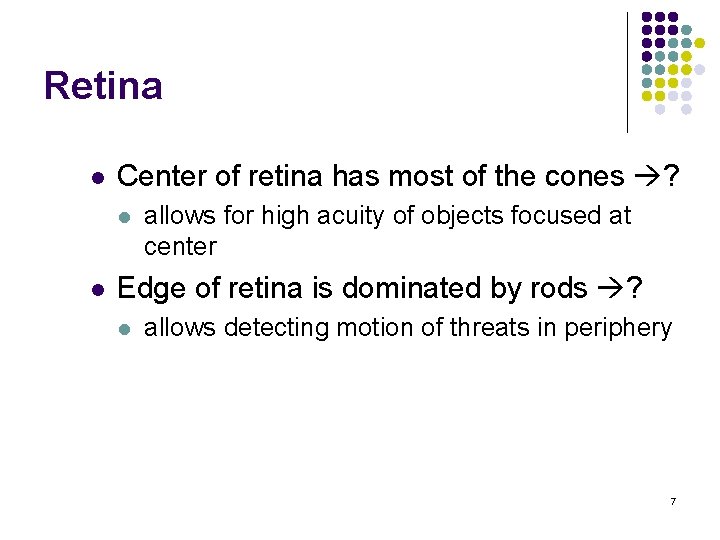

Retina l Center of retina has most of the cones ? l l allows for high acuity of objects focused at center Edge of retina is dominated by rods ? l allows detecting motion of threats in periphery 7

Color Perception via Cones l l “Photopigments” used to sense color 3 types: blue, green, “red” (really yellow) l l each sensitive to different band of spectrum ratio of neural activity of the 3 color l other colors are perceived by combining stimulation 8

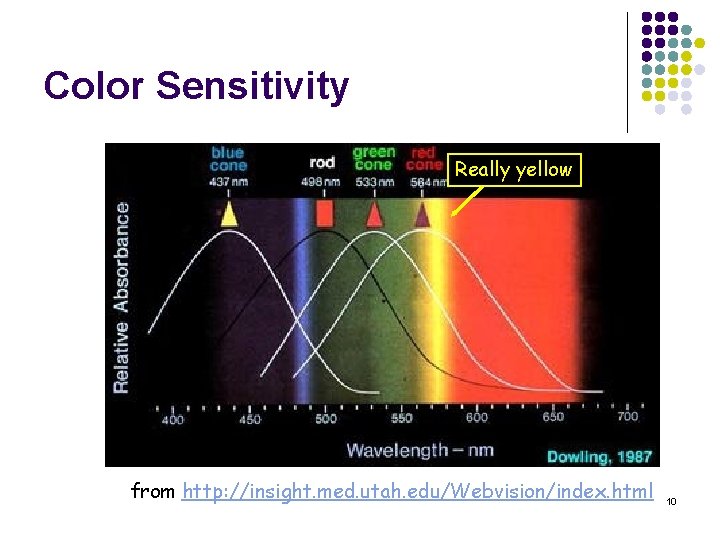

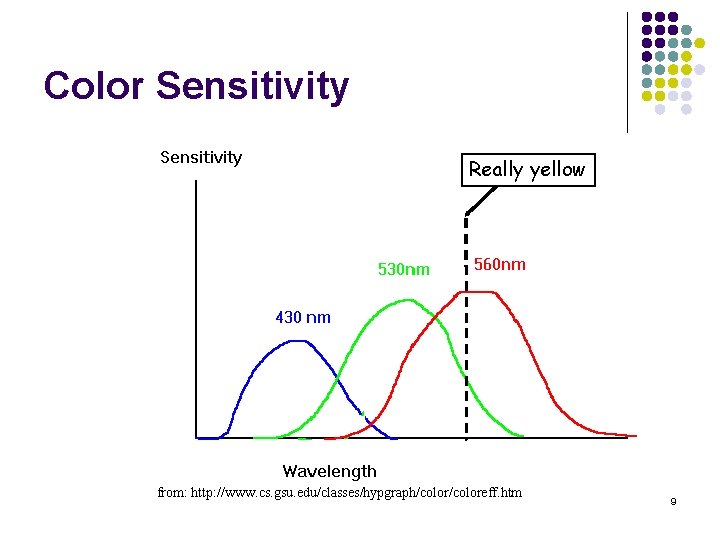

Color Sensitivity Really yellow from: http: //www. cs. gsu. edu/classes/hypgraph/coloreff. htm 9

Color Sensitivity Really yellow from http: //insight. med. utah. edu/Webvision/index. html 10

Distribution of Photopigments l Not distributed evenly l mainly reds (64%) & very few blues (4%) ? l insensitivity to short wavelengths § l cyan to deep-blue Center of retina (high acuity) has no blue cones ? l disappearance of small blue objects you fixate on 11

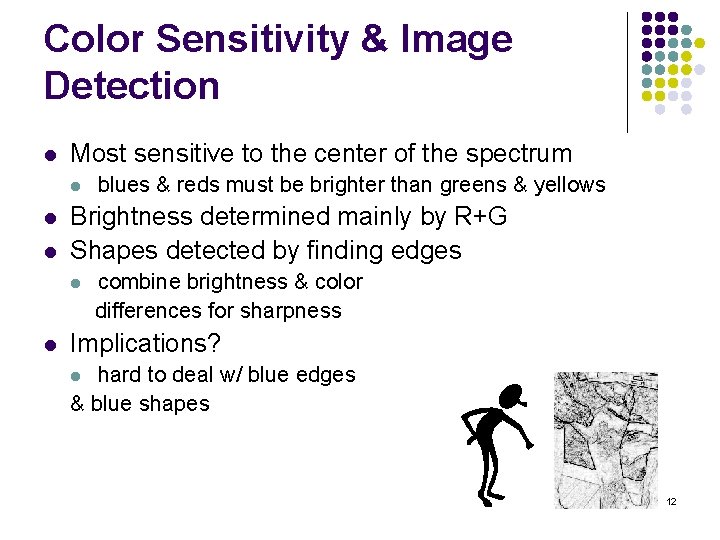

Color Sensitivity & Image Detection l Most sensitive to the center of the spectrum l l l Brightness determined mainly by R+G Shapes detected by finding edges l l blues & reds must be brighter than greens & yellows combine brightness & color differences for sharpness Implications? hard to deal w/ blue edges & blue shapes l 12

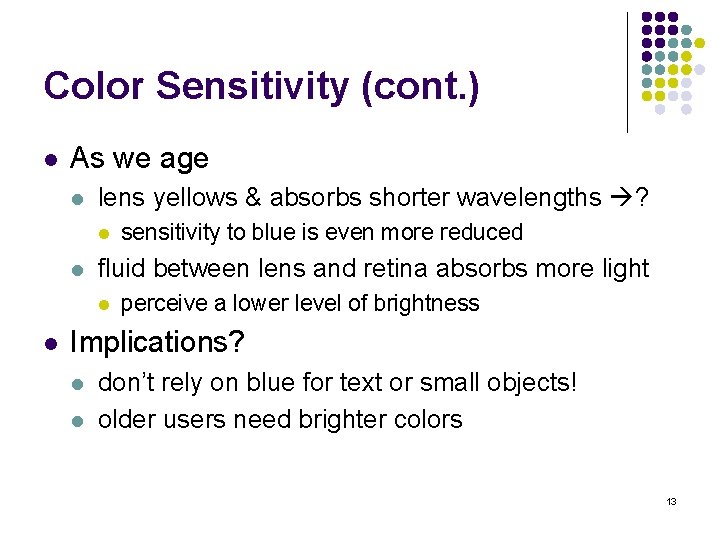

Color Sensitivity (cont. ) l As we age l lens yellows & absorbs shorter wavelengths ? l l fluid between lens and retina absorbs more light l l sensitivity to blue is even more reduced perceive a lower level of brightness Implications? l l don’t rely on blue for text or small objects! older users need brighter colors 13

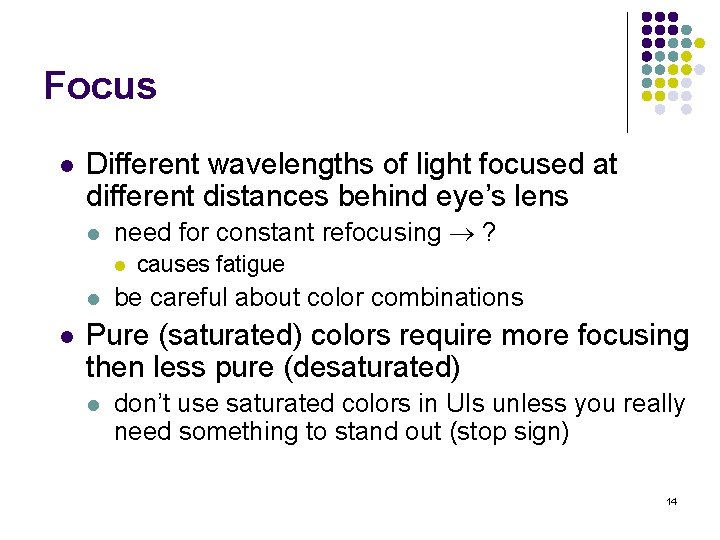

Focus l Different wavelengths of light focused at different distances behind eye’s lens l need for constant refocusing ? l l l causes fatigue be careful about color combinations Pure (saturated) colors require more focusing then less pure (desaturated) l don’t use saturated colors in UIs unless you really need something to stand out (stop sign) 14

Visual Illusions (not color) Can you guess the woman’s age? Keep looking. 15

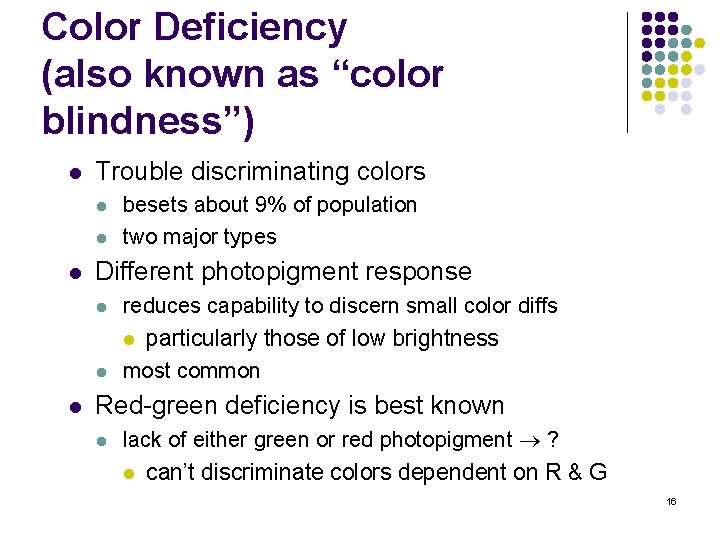

Color Deficiency (also known as “color blindness”) l Trouble discriminating colors l l l Different photopigment response l l l besets about 9% of population two major types reduces capability to discern small color diffs l particularly those of low brightness most common Red-green deficiency is best known l lack of either green or red photopigment ? l can’t discriminate colors dependent on R & G 16

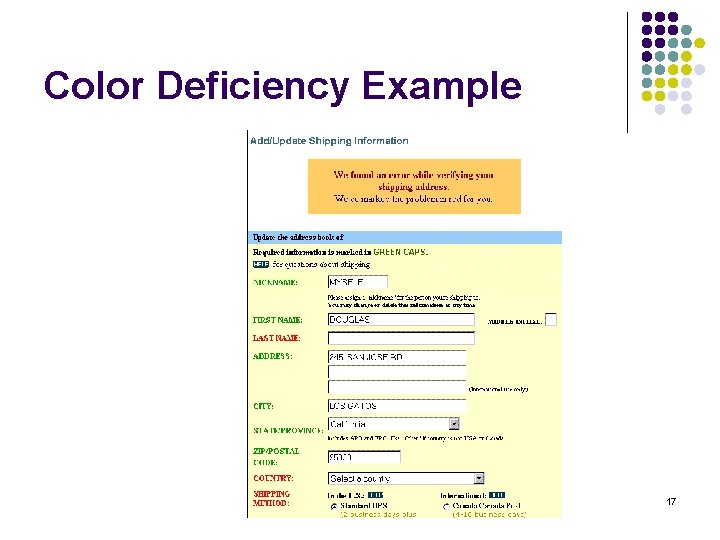

Color Deficiency Example 17

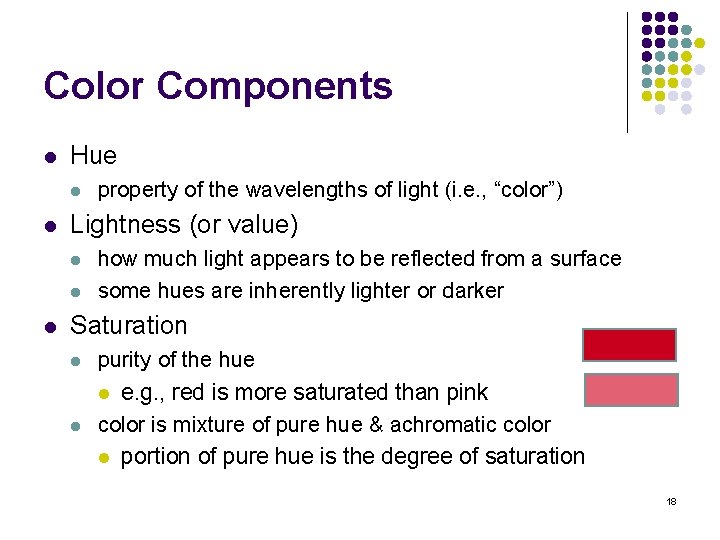

Color Components l Hue l l Lightness (or value) l l l property of the wavelengths of light (i. e. , “color”) how much light appears to be reflected from a surface some hues are inherently lighter or darker Saturation l l purity of the hue l e. g. , red is more saturated than pink color is mixture of pure hue & achromatic color l portion of pure hue is the degree of saturation 18

Color Components (cont. ) l Lightness l Saturation from http: //www 2. ncsu. edu/scivis/lessons/colormodels/color_models 2. html#saturation. 19

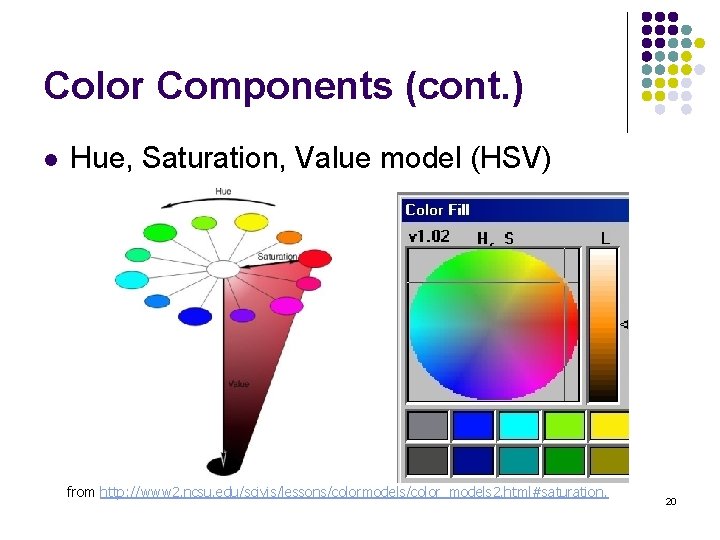

Color Components (cont. ) l Hue, Saturation, Value model (HSV) from http: //www 2. ncsu. edu/scivis/lessons/colormodels/color_models 2. html#saturation. 20

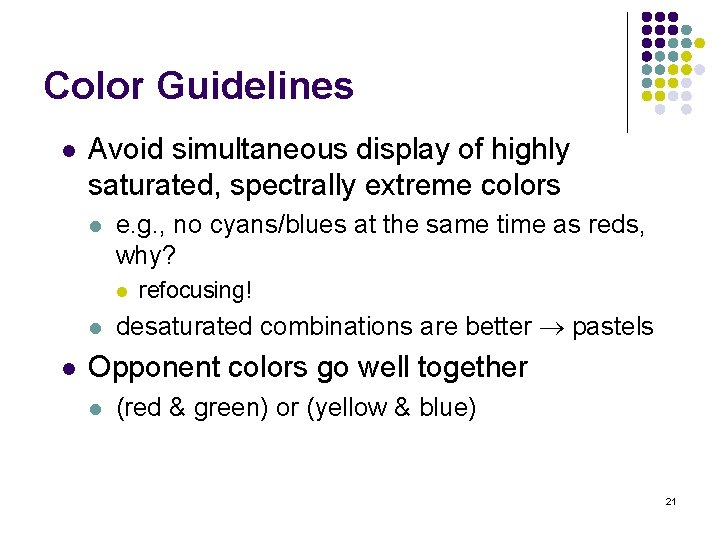

Color Guidelines l Avoid simultaneous display of highly saturated, spectrally extreme colors l e. g. , no cyans/blues at the same time as reds, why? l l l refocusing! desaturated combinations are better pastels Opponent colors go well together l (red & green) or (yellow & blue) 21

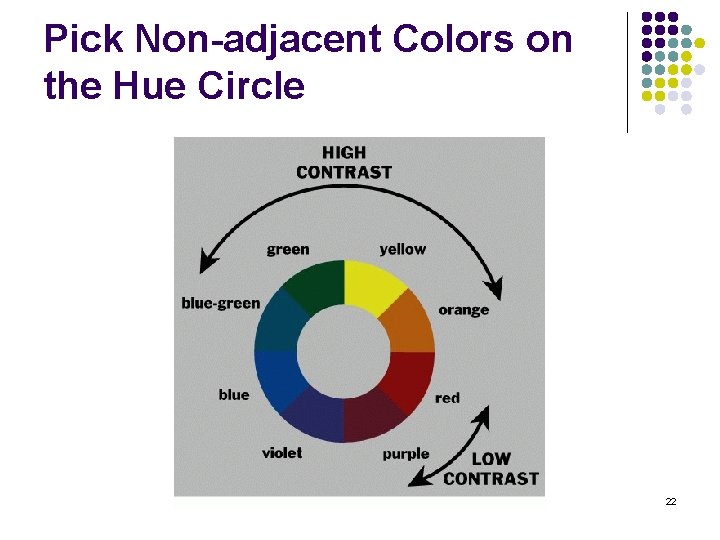

Pick Non-adjacent Colors on the Hue Circle 22

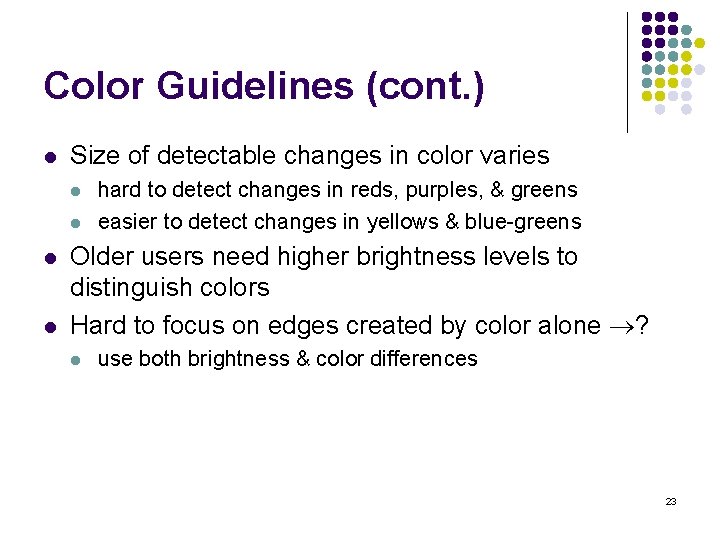

Color Guidelines (cont. ) l Size of detectable changes in color varies l l hard to detect changes in reds, purples, & greens easier to detect changes in yellows & blue-greens Older users need higher brightness levels to distinguish colors Hard to focus on edges created by color alone ? l use both brightness & color differences 23

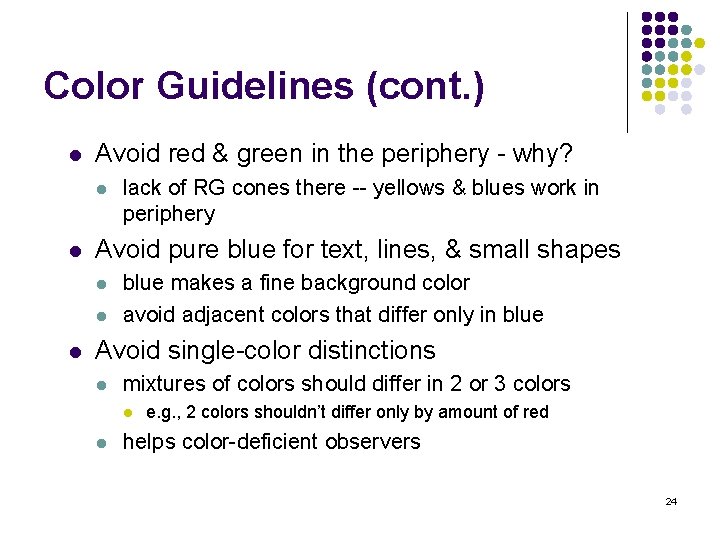

Color Guidelines (cont. ) l Avoid red & green in the periphery - why? l l Avoid pure blue for text, lines, & small shapes l lack of RG cones there -- yellows & blues work in periphery blue makes a fine background color avoid adjacent colors that differ only in blue Avoid single-color distinctions l mixtures of colors should differ in 2 or 3 colors l l e. g. , 2 colors shouldn’t differ only by amount of red helps color-deficient observers 24

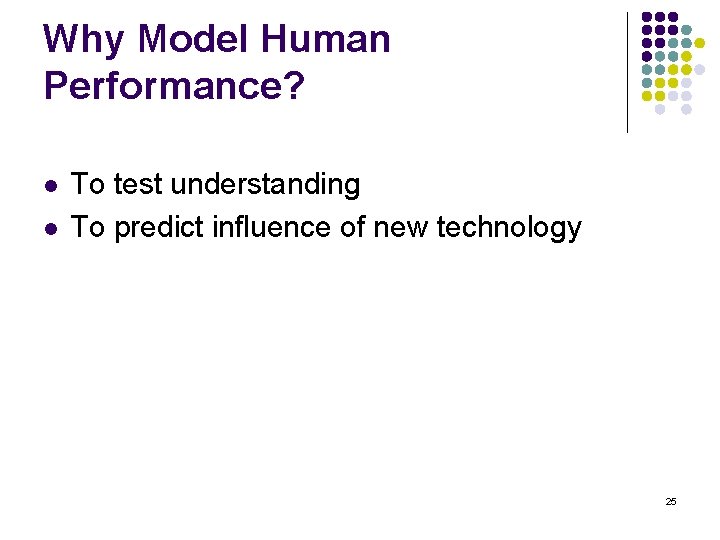

Why Model Human Performance? l l To test understanding To predict influence of new technology 25

The Model Human Processor Developed by Card, Moran, & Newell (‘ 83) l Long-term Memory Working Memory sensory buffers Eyes Ears Visual Image Store Perceptual Processor Auditory Image Store Motor Processor Cognitive Processor 26 Fingers, etc.

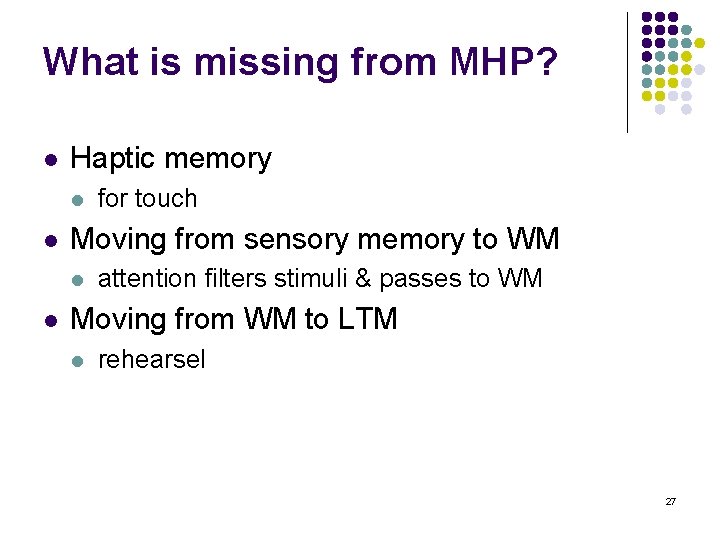

What is missing from MHP? l Haptic memory l l Moving from sensory memory to WM l l for touch attention filters stimuli & passes to WM Moving from WM to LTM l rehearsel 27

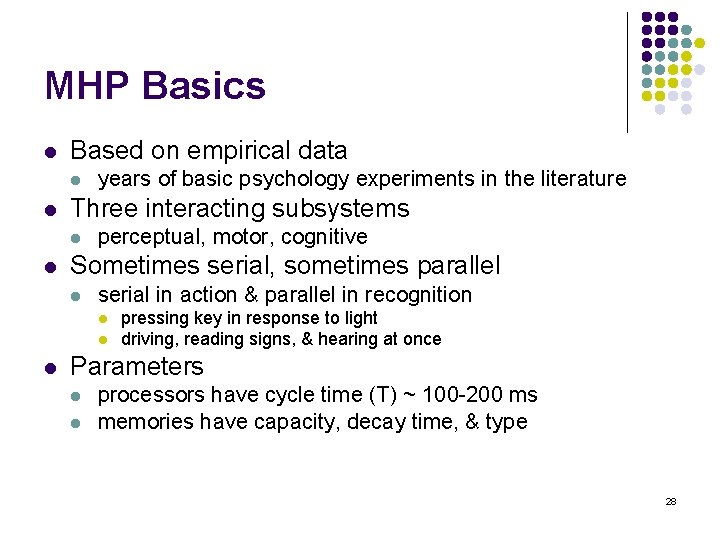

MHP Basics l Based on empirical data l l Three interacting subsystems l l years of basic psychology experiments in the literature perceptual, motor, cognitive Sometimes serial, sometimes parallel l serial in action & parallel in recognition l l l pressing key in response to light driving, reading signs, & hearing at once Parameters l l processors have cycle time (T) ~ 100 -200 ms memories have capacity, decay time, & type 28

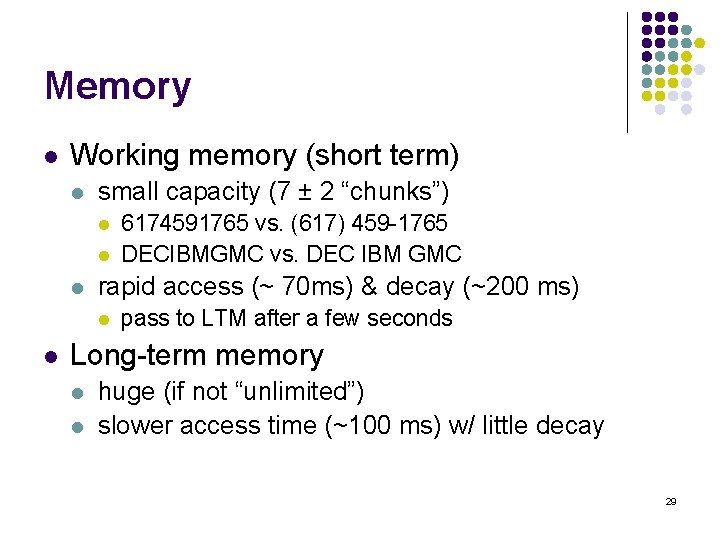

Memory l Working memory (short term) l small capacity (7 ± 2 “chunks”) l l l rapid access (~ 70 ms) & decay (~200 ms) l l 6174591765 vs. (617) 459 -1765 DECIBMGMC vs. DEC IBM GMC pass to LTM after a few seconds Long-term memory l l huge (if not “unlimited”) slower access time (~100 ms) w/ little decay 29

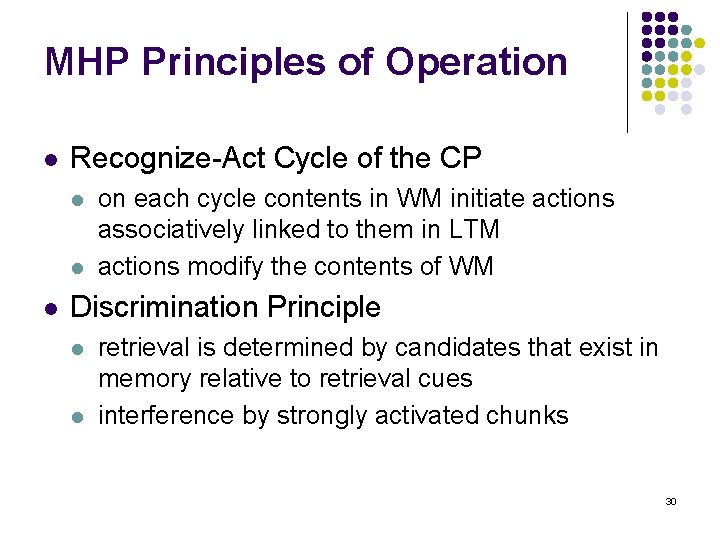

MHP Principles of Operation l Recognize-Act Cycle of the CP l l l on each cycle contents in WM initiate actions associatively linked to them in LTM actions modify the contents of WM Discrimination Principle l l retrieval is determined by candidates that exist in memory relative to retrieval cues interference by strongly activated chunks 30

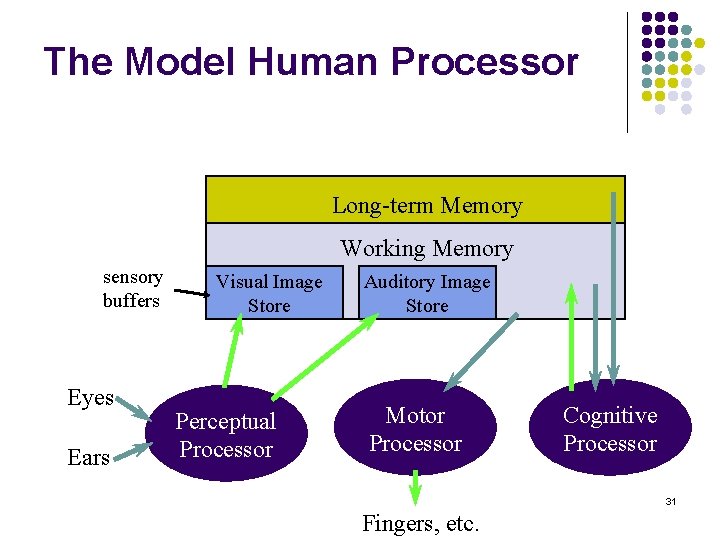

The Model Human Processor Long-term Memory Working Memory sensory buffers Eyes Ears Visual Image Store Perceptual Processor Auditory Image Store Motor Processor Cognitive Processor 31 Fingers, etc.

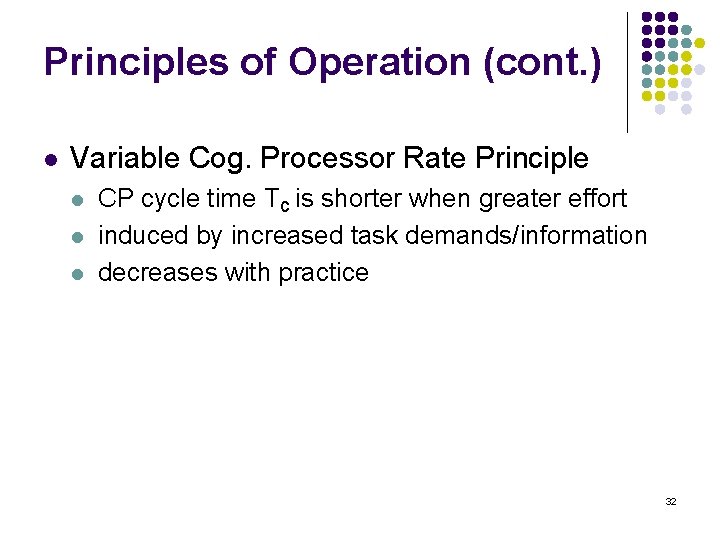

Principles of Operation (cont. ) l Variable Cog. Processor Rate Principle l l l CP cycle time Tc is shorter when greater effort induced by increased task demands/information decreases with practice 32

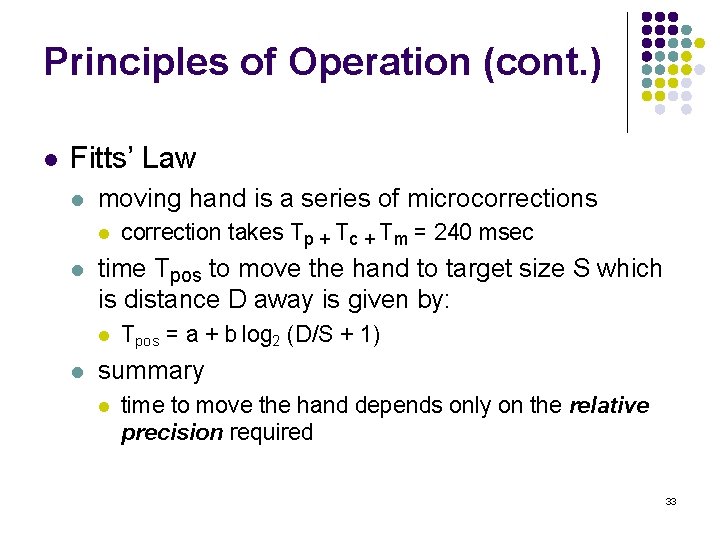

Principles of Operation (cont. ) l Fitts’ Law l moving hand is a series of microcorrections l l time Tpos to move the hand to target size S which is distance D away is given by: l l correction takes Tp + Tc + Tm = 240 msec Tpos = a + b log 2 (D/S + 1) summary l time to move the hand depends only on the relative precision required 33

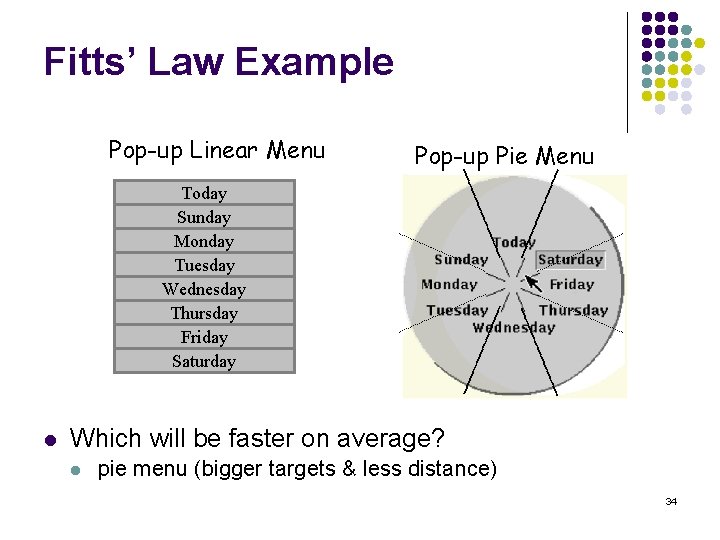

Fitts’ Law Example Pop-up Linear Menu Pop-up Pie Menu Today Sunday Monday Tuesday Wednesday Thursday Friday Saturday l Which will be faster on average? l pie menu (bigger targets & less distance) 34

Principles of Operation (cont. ) l Power Law of Practice l task time on the nth trial follows a power law l l Tn = T 1 n-a + c, where a =. 4, c = limiting constant i. e. , you get faster the more times you do it! applies to skilled behavior (sensory & motor) does not apply to knowledge acquisition or quality 35

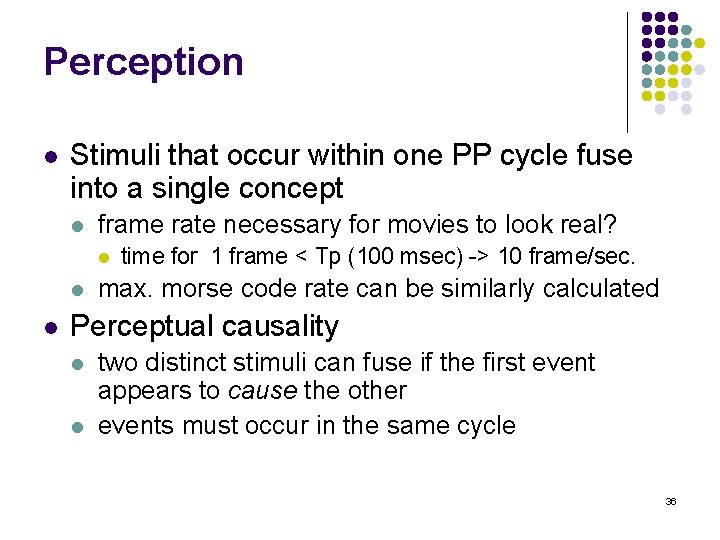

Perception l Stimuli that occur within one PP cycle fuse into a single concept l frame rate necessary for movies to look real? l l l time for 1 frame < Tp (100 msec) -> 10 frame/sec. max. morse code rate can be similarly calculated Perceptual causality l l two distinct stimuli can fuse if the first event appears to cause the other events must occur in the same cycle 36

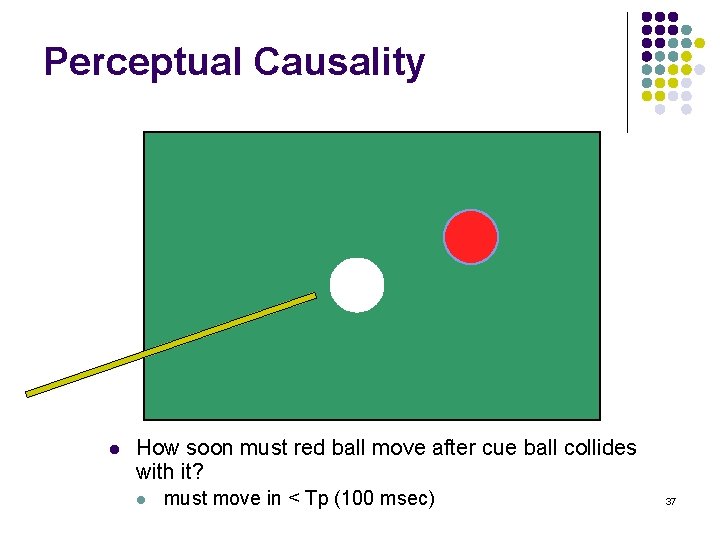

Perceptual Causality l How soon must red ball move after cue ball collides with it? l must move in < Tp (100 msec) 37

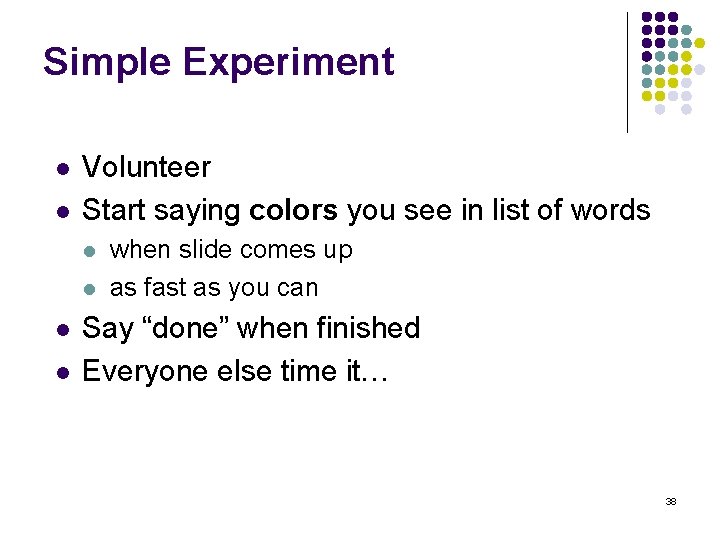

Simple Experiment l l Volunteer Start saying colors you see in list of words l l when slide comes up as fast as you can Say “done” when finished Everyone else time it… 38

Paper Home Back Schedule Page Change 39

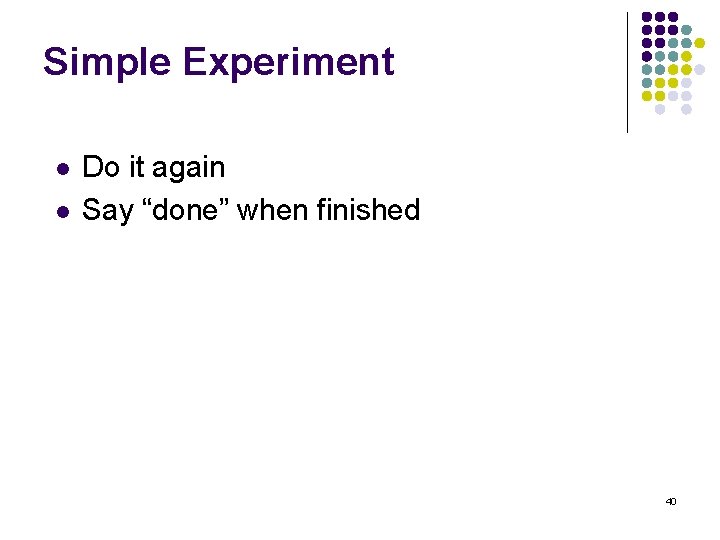

Simple Experiment l l Do it again Say “done” when finished 40

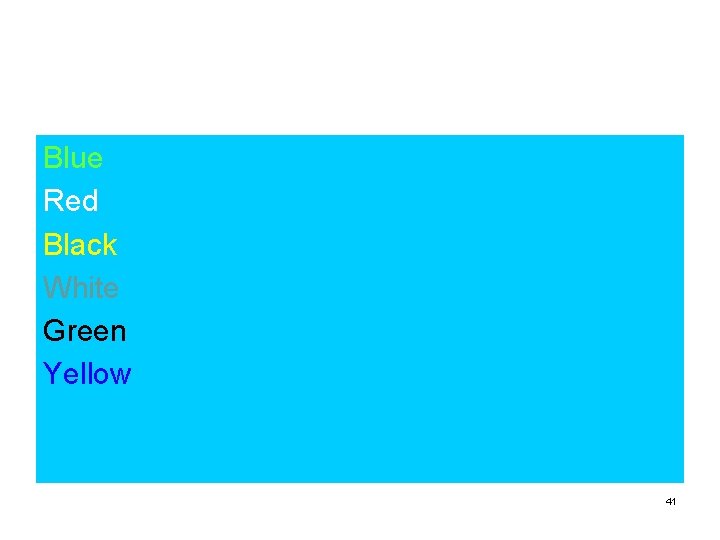

Blue Red Black White Green Yellow 41

Memory l Interference l l l two strong cues in working memory link to different chunks in long term memory Why learn about memory? l l l know what’s behind many HCI techniques helps you understand what users will “get” aging population of users 42

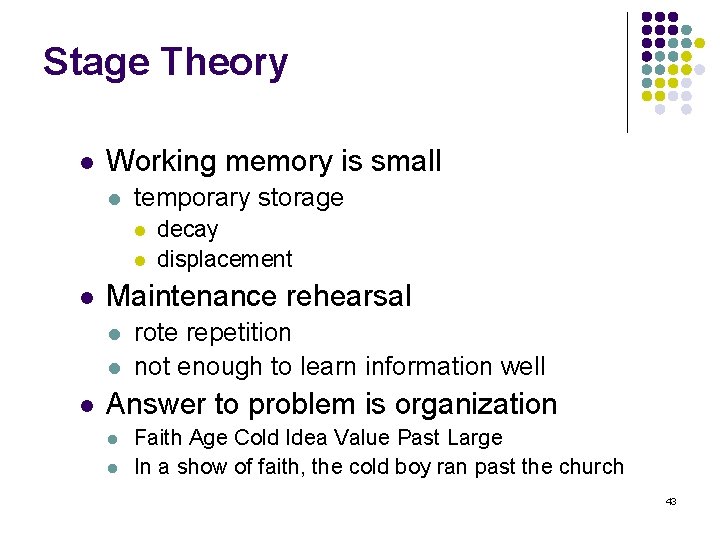

Stage Theory l Working memory is small l temporary storage l l l Maintenance rehearsal l decay displacement rote repetition not enough to learn information well Answer to problem is organization l l Faith Age Cold Idea Value Past Large In a show of faith, the cold boy ran past the church 43

Stage Theory maintenance rehearsal Sensory Image Store decay Working Memory decay, displacement Long Term Memory chunking / elaboration decay? interference? 44

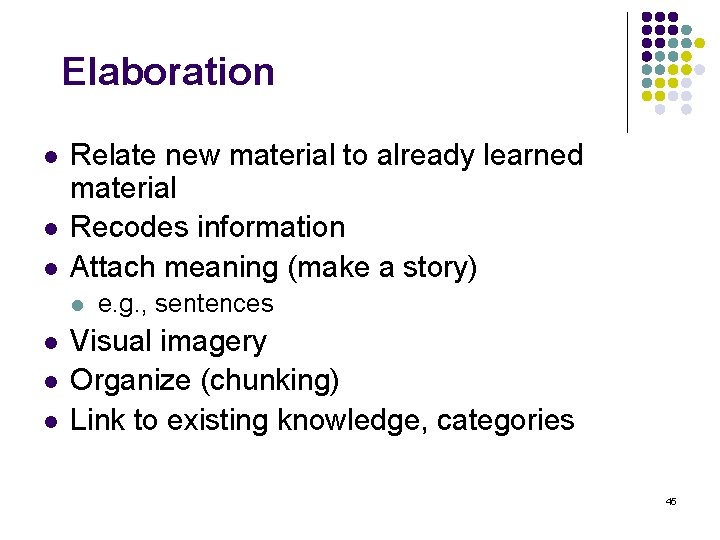

Elaboration l l l Relate new material to already learned material Recodes information Attach meaning (make a story) l l e. g. , sentences Visual imagery Organize (chunking) Link to existing knowledge, categories 45

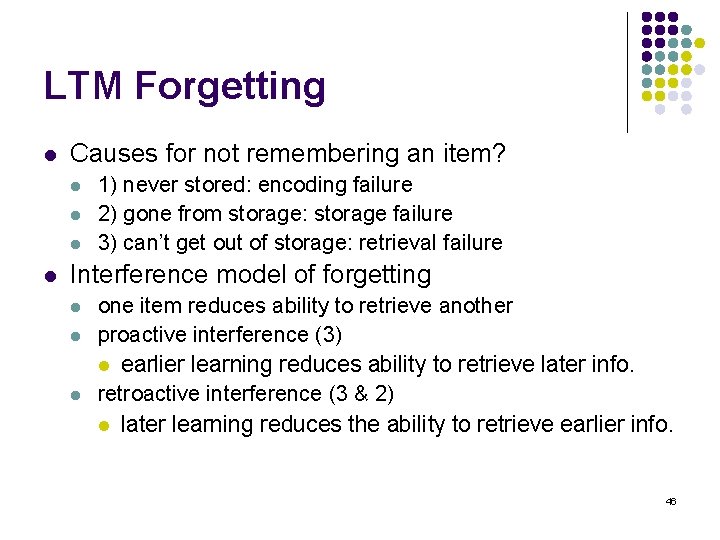

LTM Forgetting l Causes for not remembering an item? l l 1) never stored: encoding failure 2) gone from storage: storage failure 3) can’t get out of storage: retrieval failure Interference model of forgetting l l l one item reduces ability to retrieve another proactive interference (3) l earlier learning reduces ability to retrieve later info. retroactive interference (3 & 2) l later learning reduces the ability to retrieve earlier info. 46

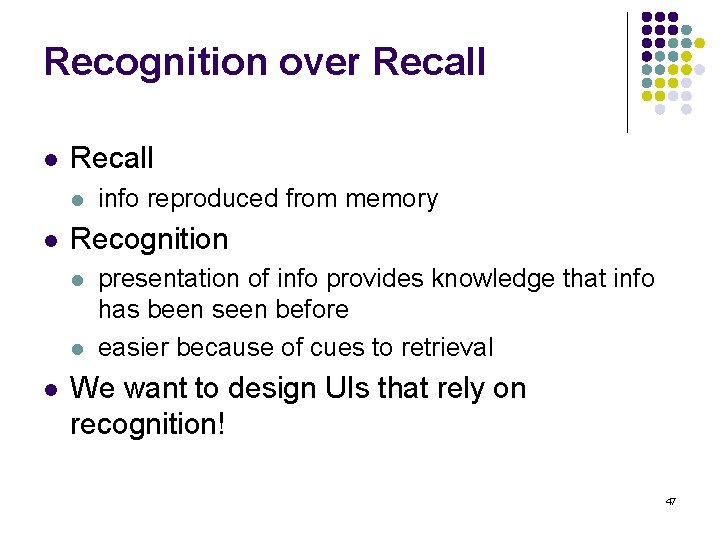

Recognition over Recall l l Recognition l l l info reproduced from memory presentation of info provides knowledge that info has been seen before easier because of cues to retrieval We want to design UIs that rely on recognition! 47

Facilitating Retrieval: Cues l Any stimulus that improves retrieval l Anything related to l l l example: giving hints other examples in software? l icons, labels, menu names, etc. item or situation where it was learned Can facilitate memory in any system What are we taking advantage of? l recognition over recall! 48

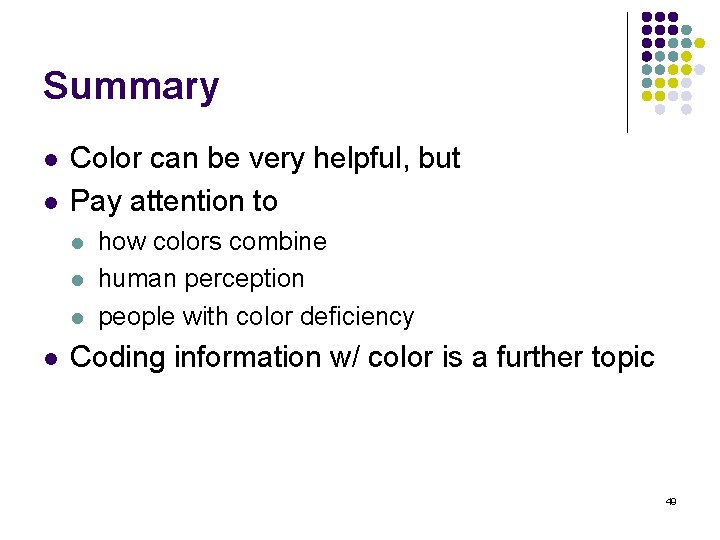

Summary l l Color can be very helpful, but Pay attention to l l how colors combine human perception people with color deficiency Coding information w/ color is a further topic 49

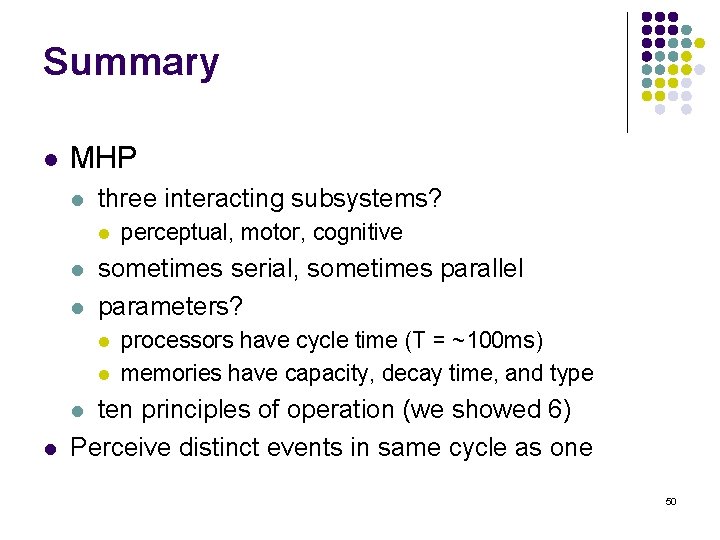

Summary l MHP l three interacting subsystems? l l l perceptual, motor, cognitive sometimes serial, sometimes parallel parameters? l l processors have cycle time (T = ~100 ms) memories have capacity, decay time, and type ten principles of operation (we showed 6) Perceive distinct events in same cycle as one l l 50

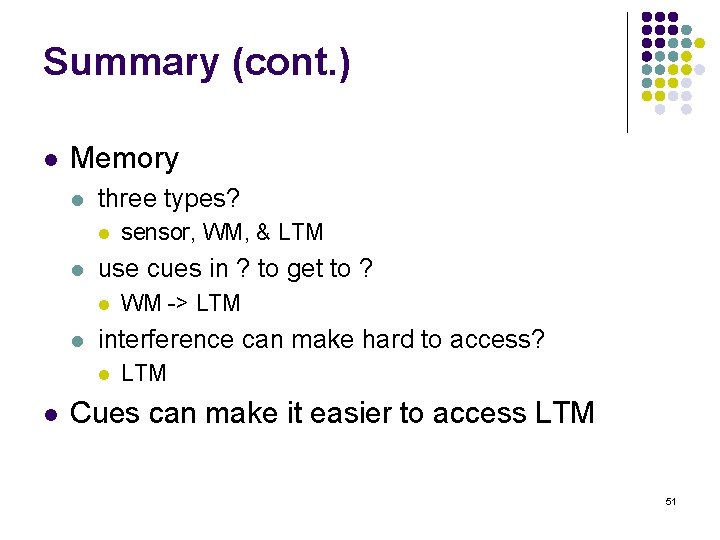

Summary (cont. ) l Memory l three types? l l use cues in ? to get to ? l l WM -> LTM interference can make hard to access? l l sensor, WM, & LTM Cues can make it easier to access LTM 51
