HUBbub 2013 Developing hub tools that submit HPC

HUBbub 2013: Developing hub tools that submit HPC jobs Rob Campbell Purdue University Thursday, September 5, 2013

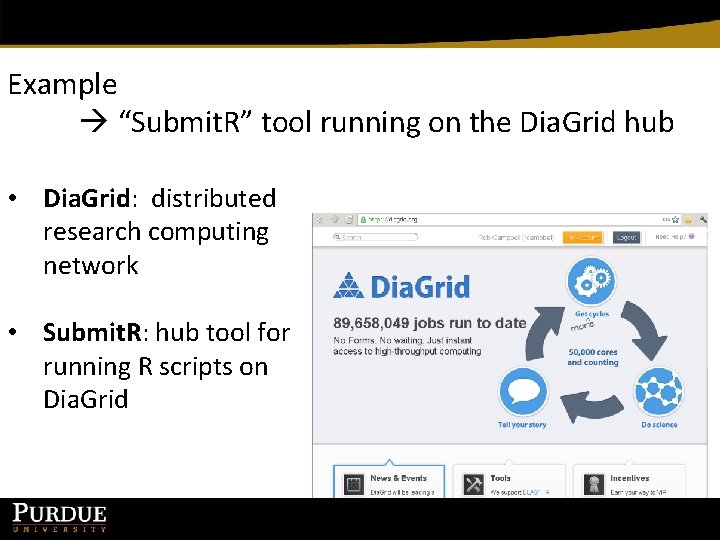

Example “Submit. R” tool running on the Dia. Grid hub • Dia. Grid: distributed research computing network • Submit. R: hub tool for running R scripts on Dia. Grid

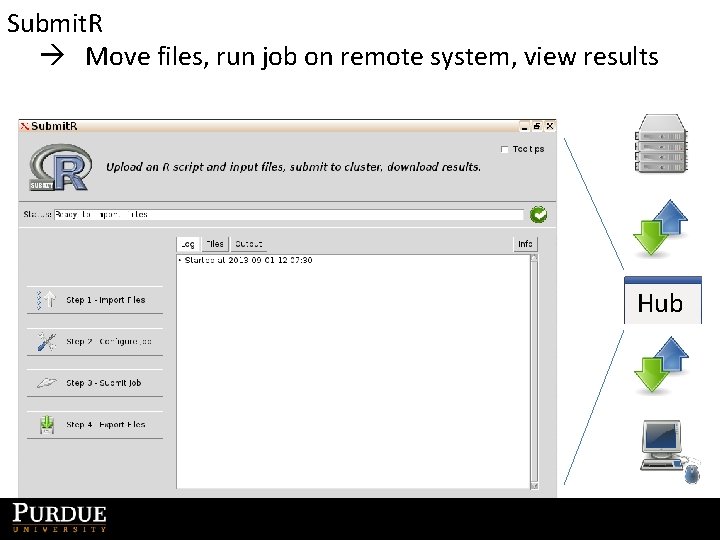

Submit. R Move files, run job on remote system, view results Hub

Building a job: Files, options/arguments, job parameters Job Types One process Multiple processes, communicating (parameter sweep) independent processes

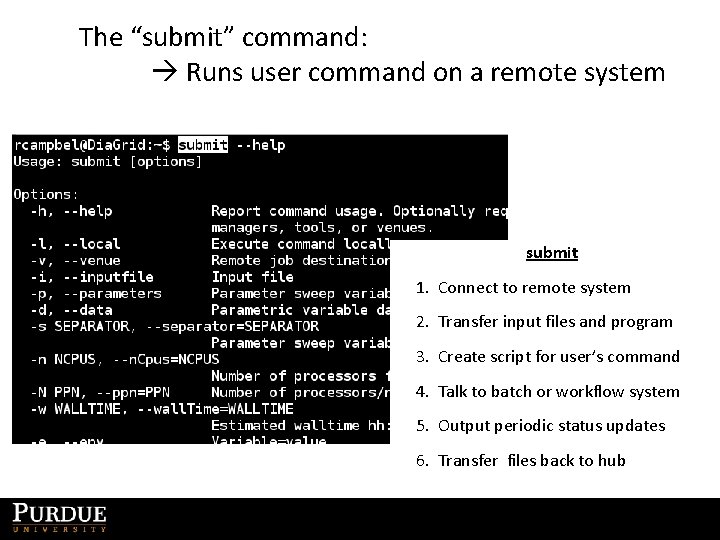

The “submit” command: Runs user command on a remote system submit 1. Connect to remote system 2. Transfer input files and program 3. Create script for user’s command 4. Talk to batch or workflow system 5. Output periodic status updates 6. Transfer files back to hub

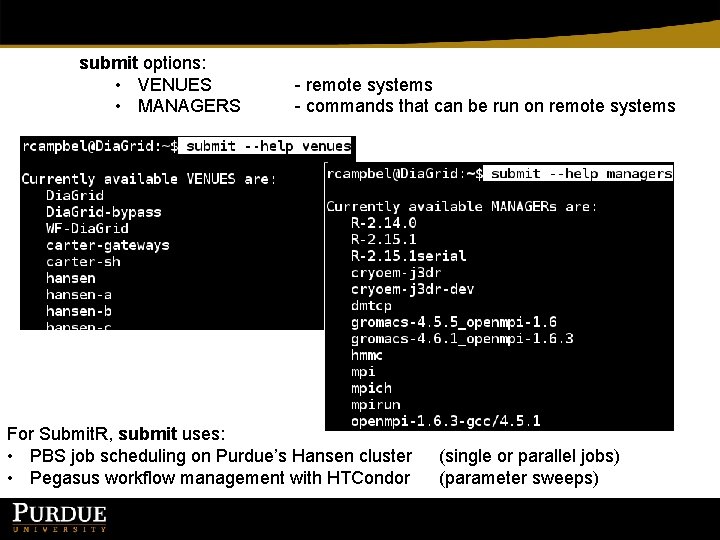

submit options: • VENUES • MANAGERS - remote systems - commands that can be run on remote systems For Submit. R, submit uses: • PBS job scheduling on Purdue’s Hansen cluster • Pegasus workflow management with HTCondor (single or parallel jobs) (parameter sweeps)

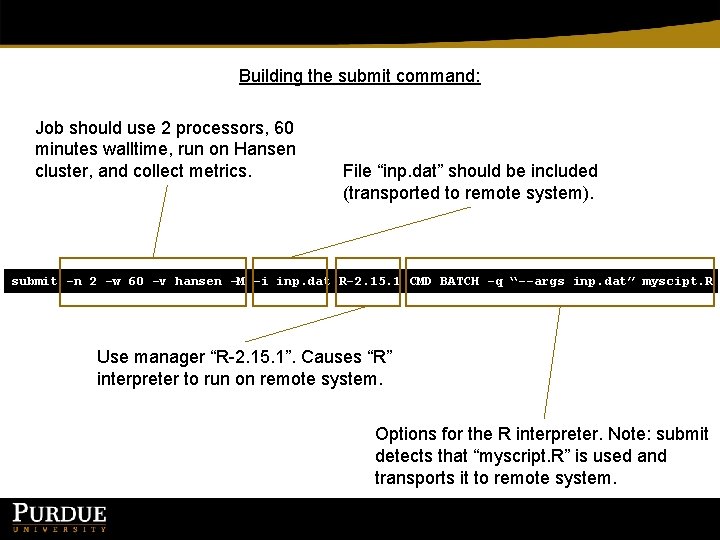

Building the submit command: Job should use 2 processors, 60 minutes walltime, run on Hansen cluster, and collect metrics. File “inp. dat” should be included (transported to remote system). submit -n 2 -w 60 -v hansen -M -i inp. dat R-2. 15. 1 CMD BATCH -q “--args inp. dat” myscipt. R Use manager “R-2. 15. 1”. Causes “R” interpreter to run on remote system. Options for the R interpreter. Note: submit detects that “myscript. R” is used and transports it to remote system.

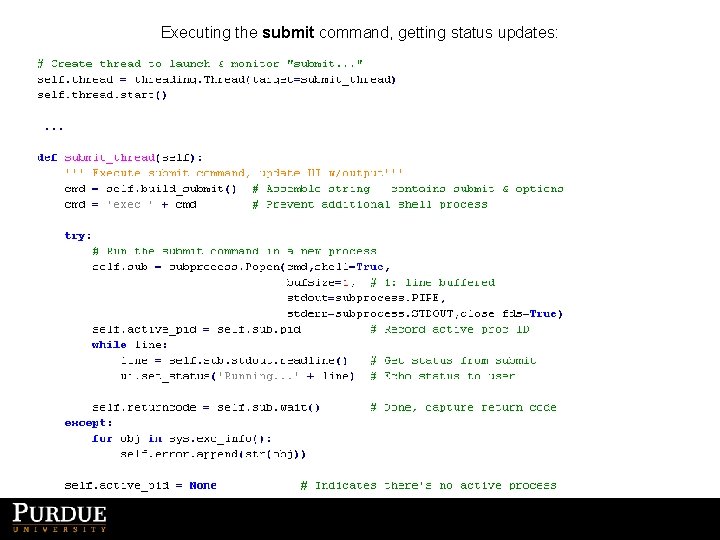

Executing the submit command, getting status updates:

Tips for using submit: Use submit’s email notification feature to alert user when job finishes: $> submit mail 2 self –s ‘Hey’ –t ‘Your job is done. ’ Test submit from the hub’s command line (workspace): $> submit -n 1 -w 5 -v hansen -M R-2. 15. 1 CMD BATCH -q "--args 1 2" testargs. R" =SUBMIT-METRICS=> job=1214144 (5073894) Job Submitted at hansen-a Mon Sep 2 17: 38: 54 2013 (5073894) Simulation Queued at hansen-a Mon Sep 2 17: 39: 04 2013 (5073894) Simulation Complete at hansen-a Mon Sep 2 17: 39: 20 2013 (5073894) Simulation Done at hansen-a Mon Sep 2 17: 39: 30 2013 =SUBMIT-METRICS=> job=1214144 venue=1: ssh. PBS: 5073894: diagrida@hansen. rcac. purdue. edu status=0 cpu=3. 290000 real=3. 000000 wait=14. 000000 (end of output)

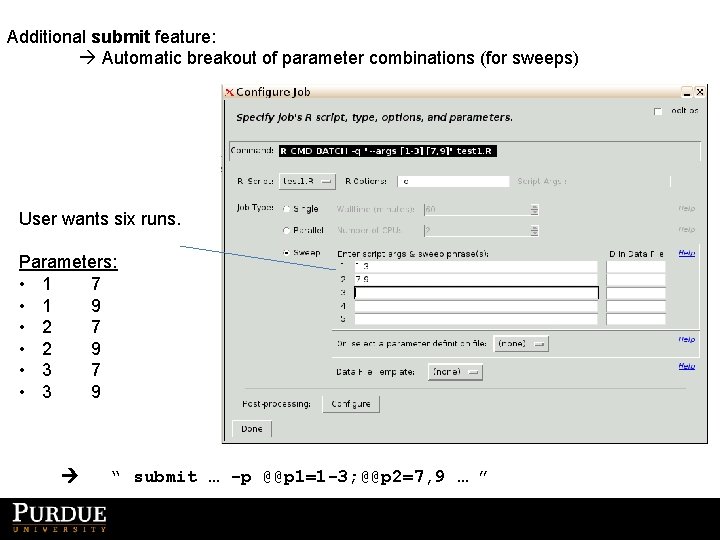

Additional submit feature: Automatic breakout of parameter combinations (for sweeps) User wants six runs. Parameters: • 1 7 • 1 9 • 2 7 • 2 9 • 3 7 • 3 9 “ submit … -p @@p 1=1 -3; @@p 2=7, 9 … ”

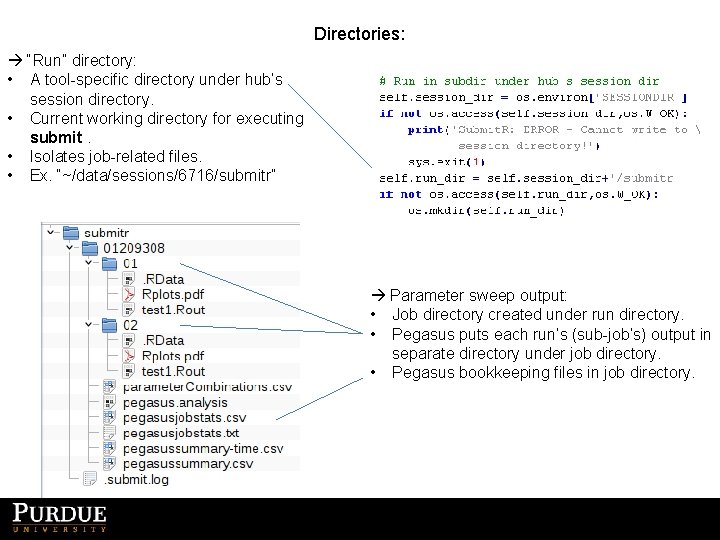

Directories: “Run” directory: • A tool-specific directory under hub’s session directory. • Current working directory for executing submit. • Isolates job-related files. • Ex. “~/data/sessions/6716/submitr” Parameter sweep output: • Job directory created under run directory. • Pegasus puts each run’s (sub-job’s) output in separate directory under job directory. • Pegasus bookkeeping files in job directory.

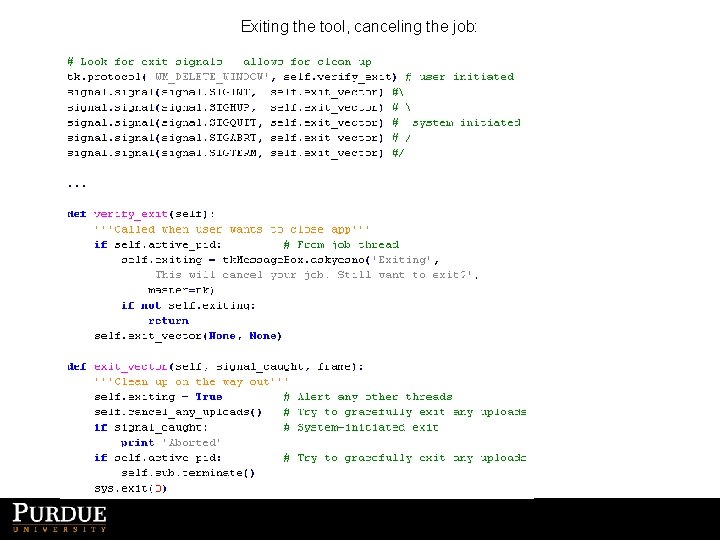

Exiting the tool, canceling the job:

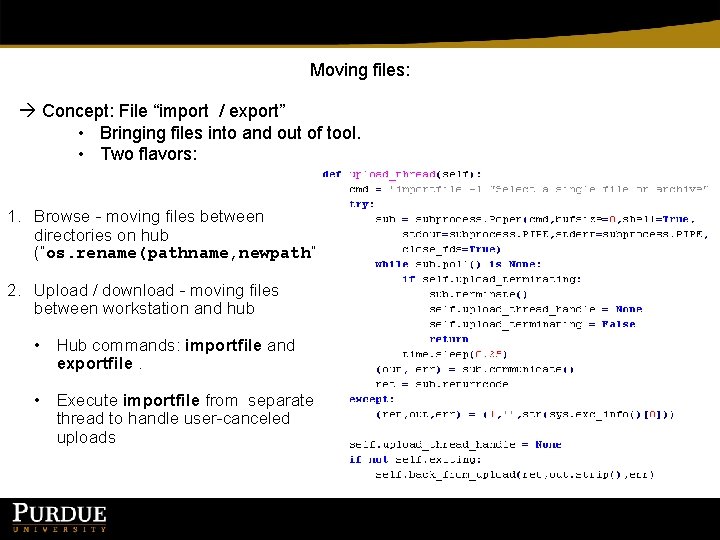

Moving files: Concept: File “import / export” • Bringing files into and out of tool. • Two flavors: 1. Browse - moving files between directories on hub (“os. rename(pathname, newpath”) 2. Upload / download - moving files between workstation and hub • Hub commands: importfile and exportfile. • Execute importfile from separate thread to handle user-canceled uploads

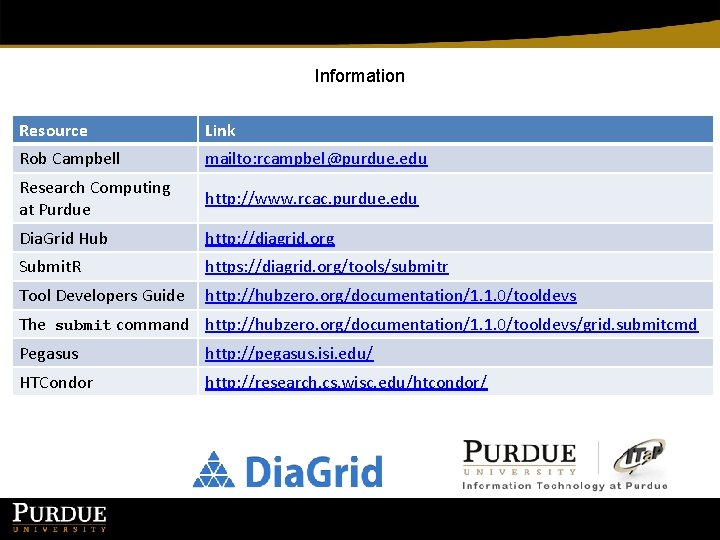

Information Resource Link Rob Campbell mailto: rcampbel@purdue. edu Research Computing at Purdue http: //www. rcac. purdue. edu Dia. Grid Hub http: //diagrid. org Submit. R https: //diagrid. org/tools/submitr Tool Developers Guide http: //hubzero. org/documentation/1. 1. 0/tooldevs The submit command http: //hubzero. org/documentation/1. 1. 0/tooldevs/grid. submitcmd Pegasus http: //pegasus. isi. edu/ HTCondor http: //research. cs. wisc. edu/htcondor/
