EVALUATION Quizzes 5% First practical exam 5% Final practical exam 10% LANGUAGE

ATTENDANCE • Lab • When will you be considered as a late • When will you be considered as an absent

WHAT IS A NETWORK? A computer network is simply two or more computers connected together so they can exchange information. A small network can be as simple as two computers linked together by a single cable.

Two Networked Computers

Most networks use hubs to connect computers together. A large network may connect thousands of computers and other devices together.

Computers Networked With a Hub

A wireless network connects computers without a hub or network cables. Computers use radio communications to send data between each other.

WHY DO WE USE NETWORKS

Without a network, you can access resources only on your own computer. These resources may be in your computer, such as a folder or disk drive, or they may be connected to your computer, such as a printer or CD- ROM drive.

Networking allows you to share resources among a group of computer users.

SHARING FILES AND DRIVES If your computers are connected to a network, each computer can make its resources available to other computers in your office by sharing them over the network. Instead of working in isolation as you do on a single computer that is not linked to a network, you can work collectively, within a system that shares resources among a group of computer users.

SHARING AN INTERNET CONNECTION If you already have access to the Internet from one computer on your network, you can share that Internet connection with other computers on the network. Then all the computers on your network can browse the Web at the same time, using this single Internet connection.

SECURITY AND PRIVACY Even If you share your resources with other, still you can decide and choose what to make available to them.

INFORMATION CENTRALIZATION You can save a file of information in one computer and allow other members of the network to share it. So, you do not need to send it to every one, also you do not need to save it in every computer.

COMMUNICATION Networks provide a very good communication between users. Through a network for instance, you can send e-mail, have free sound connection and play games.

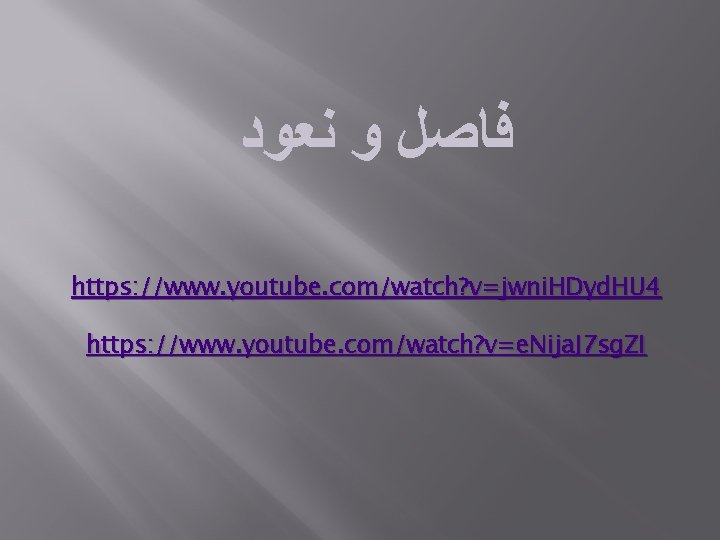

ﻓﺎﺻﻞ ﻭ ﻧﻌﻮﺩ https: //www. youtube. com/watch? v=jwni. HDyd. HU 4 https: //www. youtube. com/watch? v=e. Nija. J 7 sg. ZI

SERVERS AND CLIENT.

SERVERS it is a computer with special features to manage other computers in the networks. It has several duties and jobs as following: 1. manage sharing files and resources among other computers. 2. manage user accounts. 3. administrate networks users.

CLIENT OR HOST It is a user of a network which is administered by a server.

SOME KIND OF NETWORKS PEER TO PEER NETWORK And CLIENT / SERVER NETWORKS

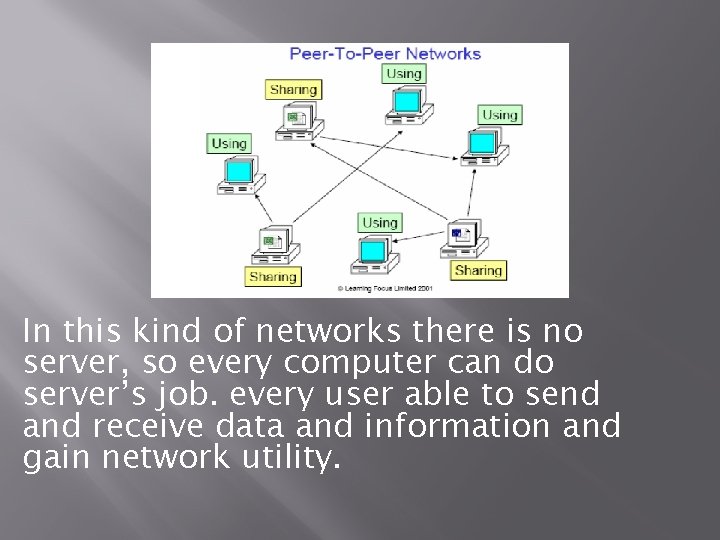

In this kind of networks there is no server, so every computer can do server’s job. every user able to send and receive data and information and gain network utility.

PEER TO PEER NETWORK: The maximum number of client should not exceed ten users. All of the network users should be in the same area. usages of the network should not require high level of security. It is not suitable for extendable institutions.

PEER TO PEER NETWORK ADVANTAGES: Does not cost too much. Does not require additional software or hardware. Easy to set up.

SERVER BASED NETWORK FEATURES: Regular Back up. Secure data. Include many big amount of accounts. Reaching information is more easier because all information in the server.

ADVANTAGES OF MIXED NETWORKS (PEER TO PEER AND SERVER NETWORKS): Manage and control centralization. Reaching more resources and devices with high level of performance and security.

Types of NETWORKS LAN, MAN and WAN

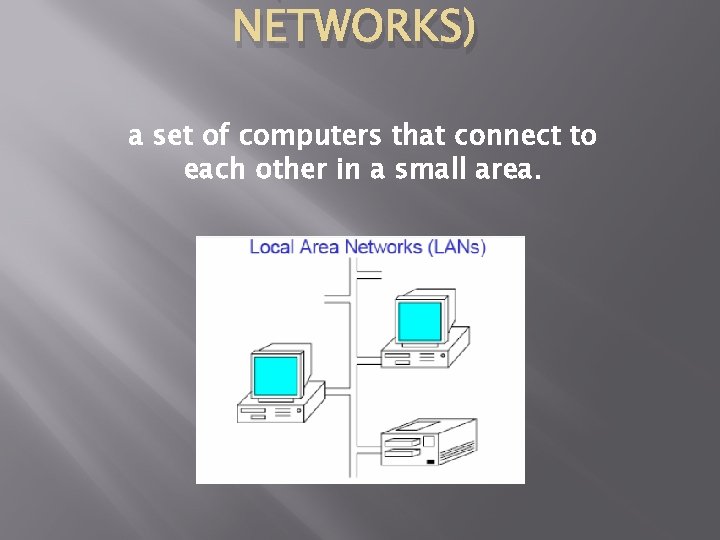

NETWORKS) a set of computers that connect to each other in a small area.

MAN (METROPOLITAN AREA NETWORKS) It is more bigger than LAN and it may contain number of LAN. It usually sets up to cover a huge geographical area with a very good speed and services. However, it requires high costs and its maintenance is complex.

WAN (WIDE AREA NETWORK) It covers a very huge geographical area. It connects cities and countries with very good speed and services. However, It requires high cost, maintenance and equipments.

THE INTERNET It is the biggest Network in the world. It includes all kind of networks (LAN, MAN and WAN).

WHAT DO WE NEED TO ESTABLISH A NETWORK ?

EVERY NETWORK INCLUDES THESE THREE COMPONENTS: Computers that are connected together. Computers and devices are called nodes when connected to a network. The networking hardware that connects the computers together, including hardware installed in your computer, network cables, and devices that are connected Networking software that runs on each computer and enables it to communicate with other computers on the network https: //www. youtube. com/watch? v=EWTJKcg 7 Pj 8 https: //www. youtube. com/watch? v=Ofjsh_E 4 HFY
