CEDRA-AVseries software operate within Arc. GIS without the need of any other third party software AVland AVcogo ™ AVcad ™ ™ ™ DXF export ™ ™ ™ AVparcel ™ AVwater AVsand Data Editor

CEDRA-AVseries SOFTWARE

CEDRA-AVland FEATURES • • • Base Map – Topography Project Design Specifications Horizontal & Vertical Alignment Design Roadway Grading & Final Site Contours Quantities & Design Tables Automatic Parcel Subdivision Into Lots Plan & Profile Sheet Preparation Interface With Sewer & Water Designs Interface With Arc. GIS 3 D Analyst

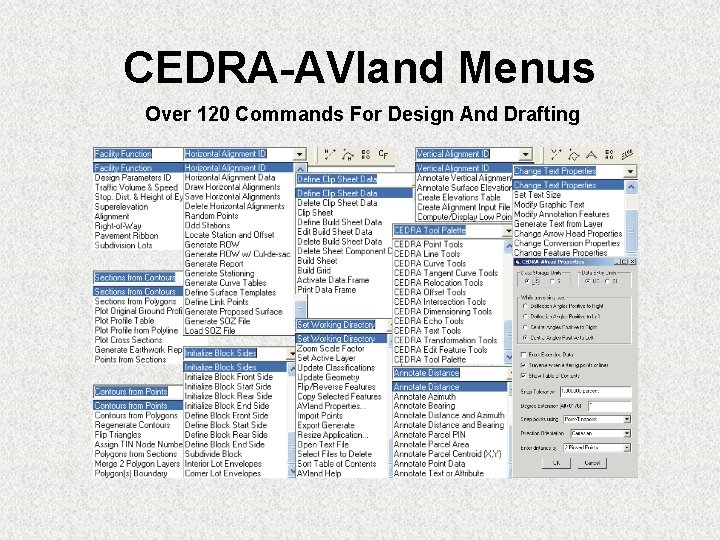

CEDRA-AVland Menus Over 120 Commands For Design And Drafting

Points Lines Curves Over 120 Cogo Tools Text Orientation Transformation Dimensioning Echo Intersections Relocations Tangencies Offsets CEDRA-AVland COGO Tools

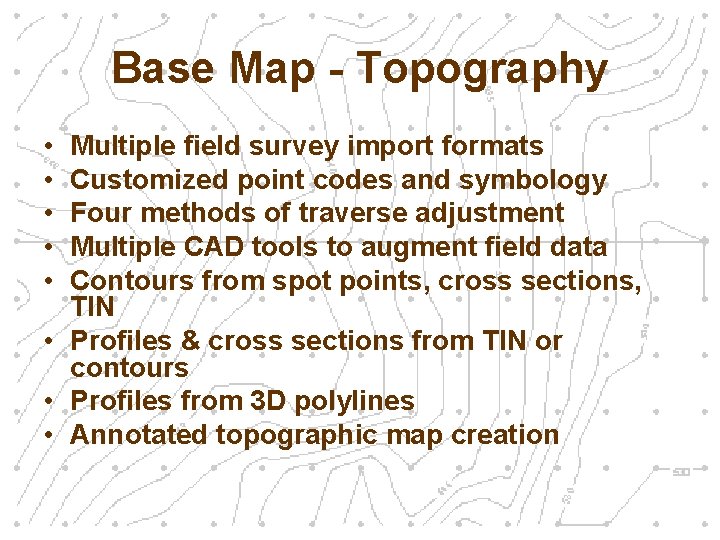

Base Map - Topography • • • Multiple field survey import formats Customized point codes and symbology Four methods of traverse adjustment Multiple CAD tools to augment field data Contours from spot points, cross sections, TIN • Profiles & cross sections from TIN or contours • Profiles from 3 D polylines • Annotated topographic map creation

Sample CEDRA-AVland Base Map

Automated mapping using survey data

Project Design Specifications • Create (draft) and apply typical roadway sections • Specify and apply right-or-way, cul-desac and other zones (buffers) • Zoning regulations for streets, lots and house footprint clearances • Stop and sight distances

Templates Create a library of roadway templates interactively, and select there from for specific project use. Create a library of design criteria, and select there from for specific project use.

Horizontal Alignment • Dynamic alignment definition • Over 120 design/drafting commands, and over 120 cogo tools • Mass stationing and annotation • Interactive application of typical sections • Alignment report & curve data annotation • Stakeout data report • Sight triangles • Automatic parcel subdivision into lots • Introduction of house envelopes

Vertical Alignment • • Dynamic alignment definition Alignment through specific grade points Interface w/Hor. Alignment & O. G. Profile Unlimited roadway template changes O. G. & F. G. annotated profile O. G. & F. G. annotated cross sections Annotated profile at curb or other offsets Multi-surface profiles and cross sections

Strip Cross Sections and Profile from Contours or TIN

Mass Generation of Fully Annotated Cross Section Sheets

Sample Cross Section Customizable Annotation Parameters, Earthwork Quantities and Optional Grid

Grading • • • Finish surface TIN and contours Merge F. G. and O. G. TIN’s and contours Unlimited surface templates Earthwork quantities report Accounting for shrinkage, swelling & muck • Arc. GIS 3 D Analyst interface

Drawing Preparation Ú Mass annotation of: – Horizontal alignment stationing – Curve tables – Parcel and ROW metes and bounds – Lot areas and other attributes – Vertical alignment curves and tangents – O. G. and F. G. cross sections Ú Custom annotated profile & X-section grids

Sewer Profile Superimposed on O. G. and F. G. Roadway Profile

Sample Screen Image

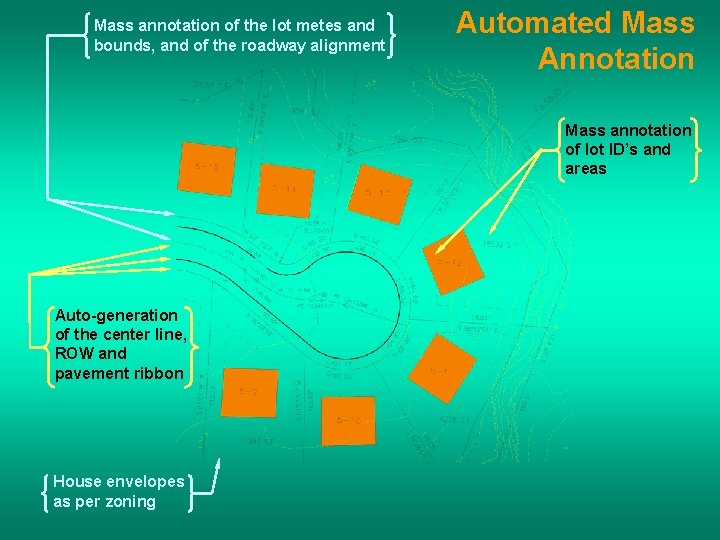

Mass annotation of the lot metes and bounds, and of the roadway alignment Automated Mass Annotation Mass annotation of lot ID’s and areas Auto-generation of the center line, ROW and pavement ribbon House envelopes as per zoning

Partial Annotated Profile

Interface w/Arc. GIS 3 D Analyst

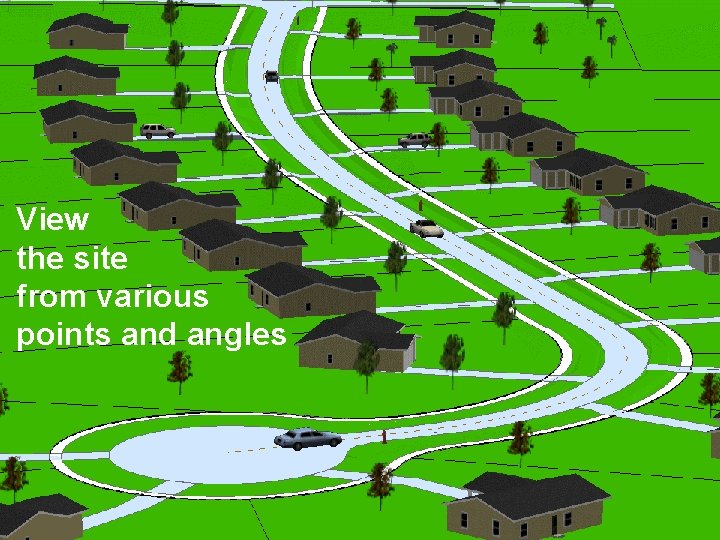

View the site from various points and angles

CEDRA-AVland with Arc. GIS 3 D Analyst provides the engineer a tool to create realistic images from engineering design models

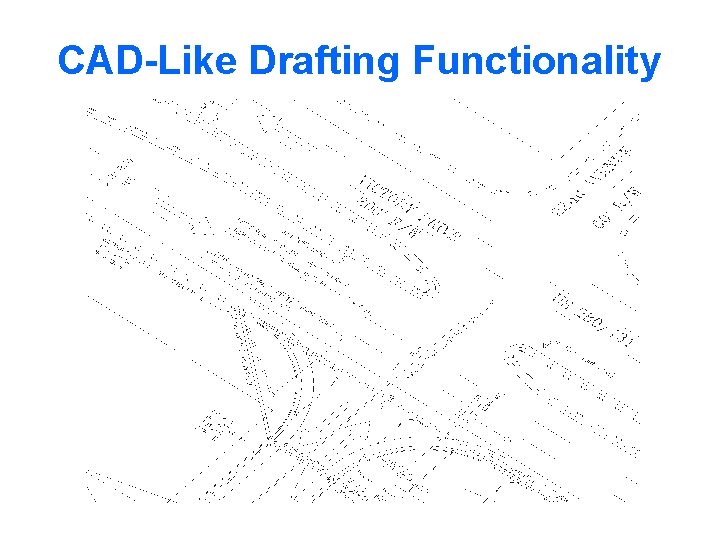

CAD-Like Drafting Functionality

CEDRA-AVland Demo Pack l To experience CEDRA-AVland’s functionality, The CEDRA Corporation provides a demo pack, which walks the user through a sample roadway and site design application, or lets users use their own project data. l Visit www. cedra. com for more details describing the CEDRA-AVland demo pack and other Arc. GIS based software.
