Todd Klindt Share. Point MVP since 2006 Speaker, writer, consultant, Aquarius, Iowa Native Fan of all Microsoft Technologies Personal Blog: www. toddklindt. com/blog Twitter: @toddklindt Podcast: www. toddklindt. com/netcast

5 www. rackspace. com

Web Server 1 Web Server 2 SQL Server 3 (Witness) SQL Server 2 Data Flow Mirror Principal SQL Server 1 App Server n

Web Server 1 Web Server 2 App Server n Cache Server n SQL Server 3 (Witness) Search Server n SQL Server 2 Data Flow Mirror Principal SQL Server 1

1 4

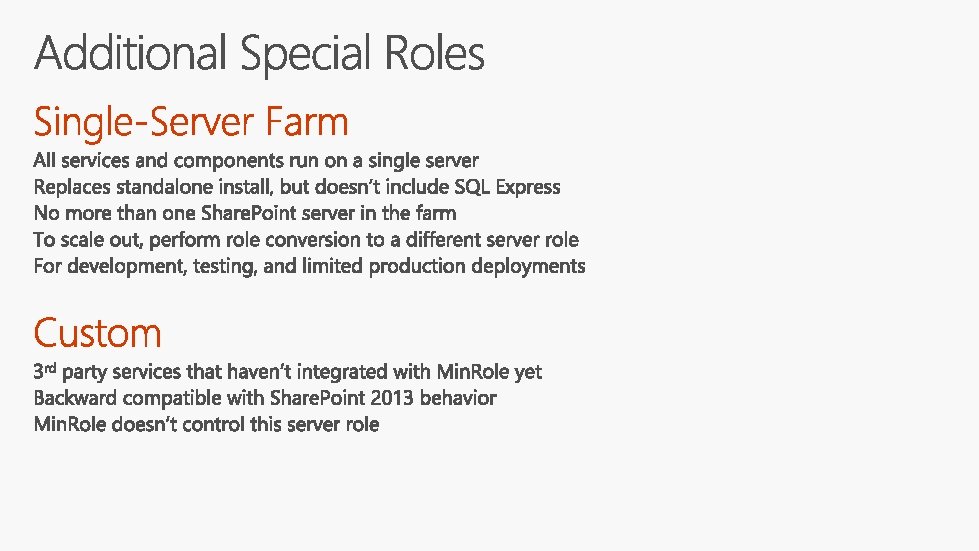

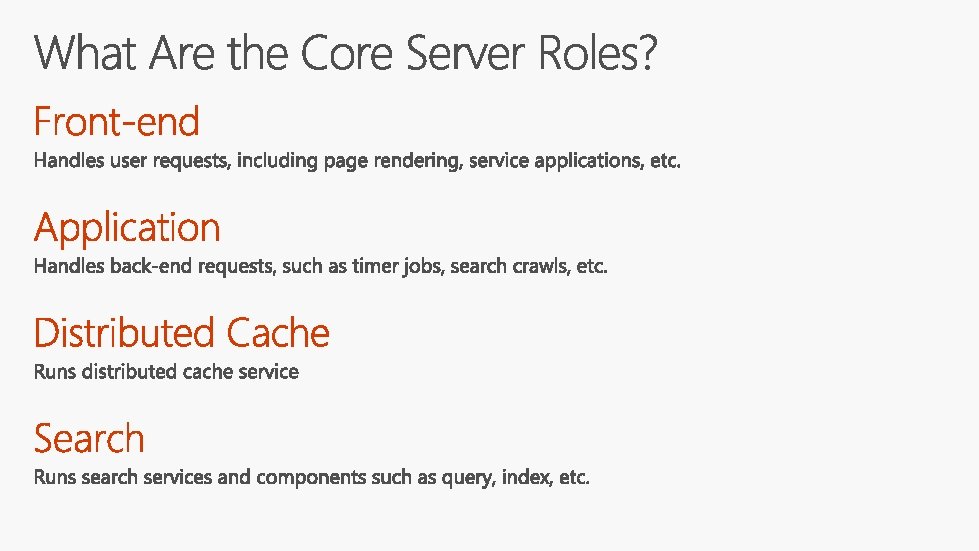

PSConfig (RTM) Two categories • Multiple-Server Farm • Single-Server Farm Server Role Description box shows description of currently selected server role Help link takes you to Min. Role overview article on Tech. Net

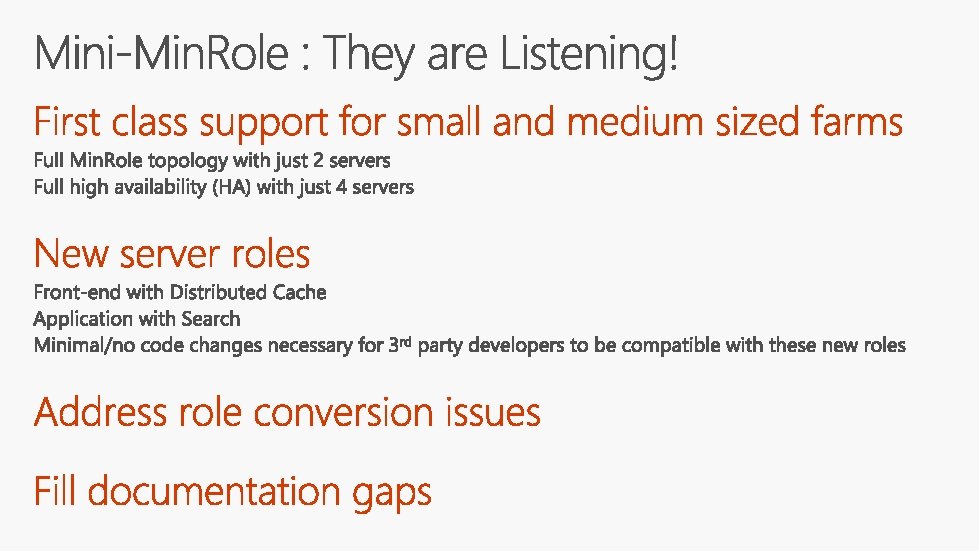

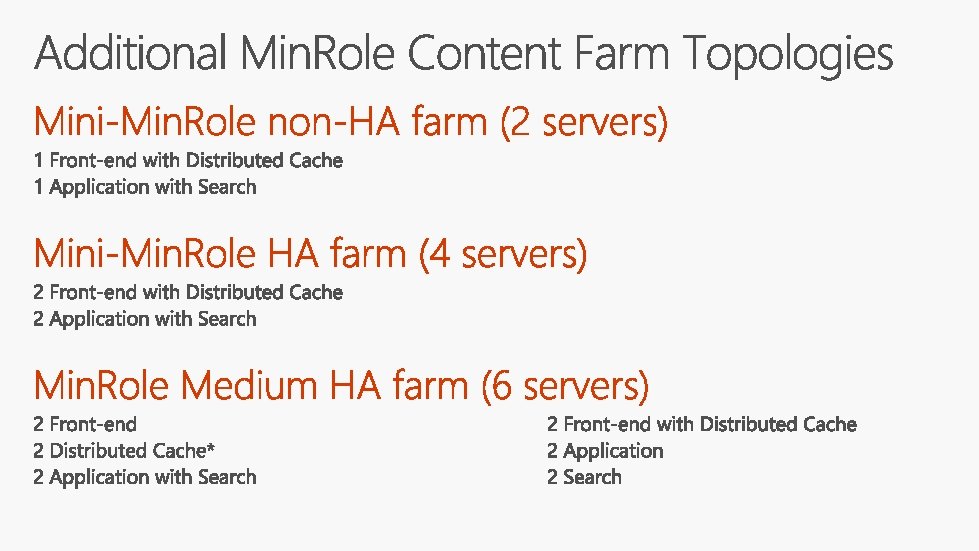

PSConfig (Enhanced) Introduce Shared Roles category with two new server roles for small and medium sized farms • Front-end with Distributed Cache • Application with Search Description box provides better guidance to get you started

DB Files RAID Level Optimization 1 Temp. DB data 10 Write 2 Temp. DB logs 10 Write 3 Content. DB data 10 ReadWrite 4 Content. DB logs 10 Write 5 Crawl DB logs 10 Write 6 Crawl DB data 10 ReadWrite 7 Property DB logs 10 Write 8 Property DB data 10 Write 9 Services DB logs 10 Write 10 Services DB data 5/10 ReadWrite 11 Archive Content DB 5 Read 12 Publishing Site Content DB 5 Read

https: //technet. microsoft. com/en-us/library/cc 262787(v=office. 16). aspx#Content. DB

3 7 www. rackspace. com

http: //www. toddklindt. com/blog http: //www. sharepointlonghorn. com http: //www. bifocal. show Tech. Net video of ZDP http: //www. toddklindt. com/sp 2016 builds

http: //fasttrack. microsoft. com/

http: //techcommunity. microsoft. com

http: //myignite. microsoft. com https: //aka. ms/ignite. mobileapp
