http cdip ucsd edu CDIP buoy locations Over

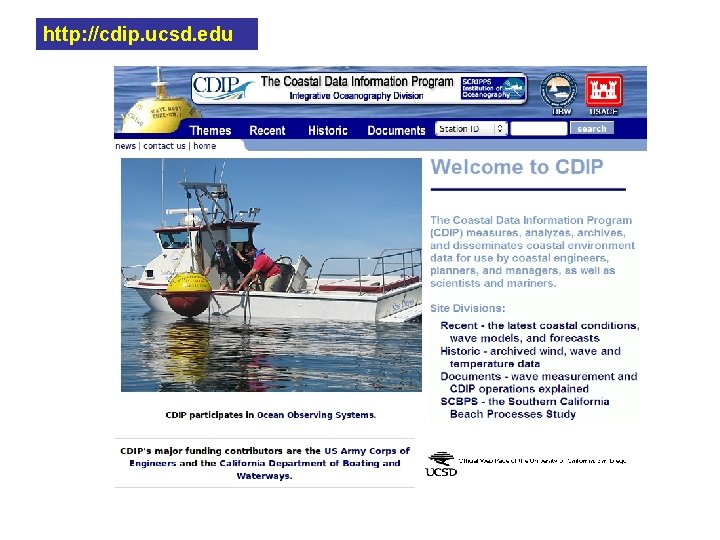

http: //cdip. ucsd. edu

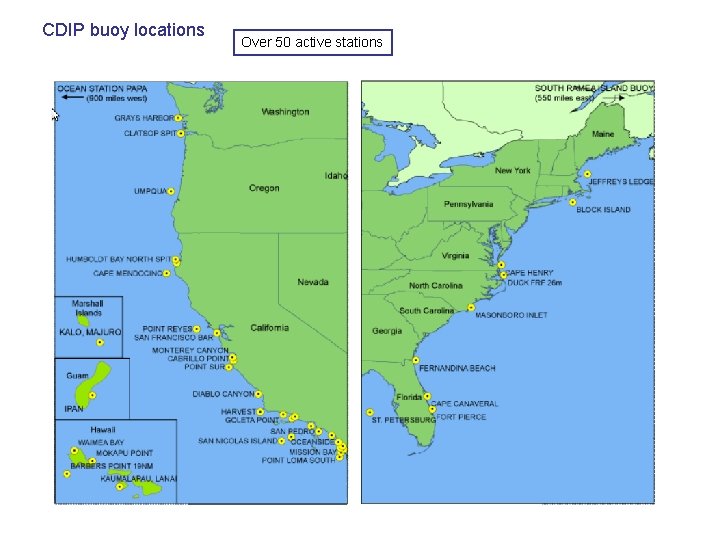

CDIP buoy locations Over 50 active stations

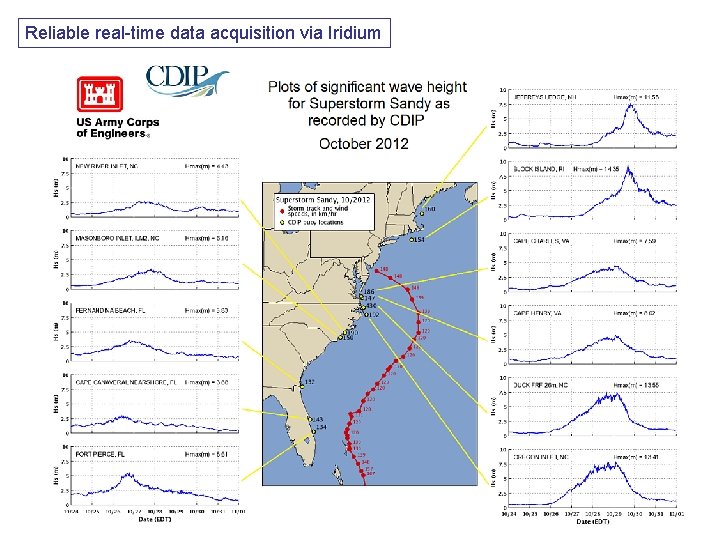

Reliable real-time data acquisition via Iridium

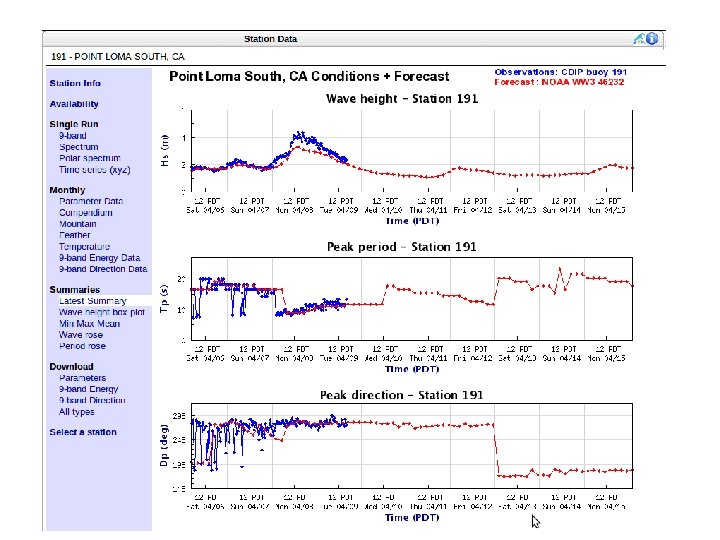

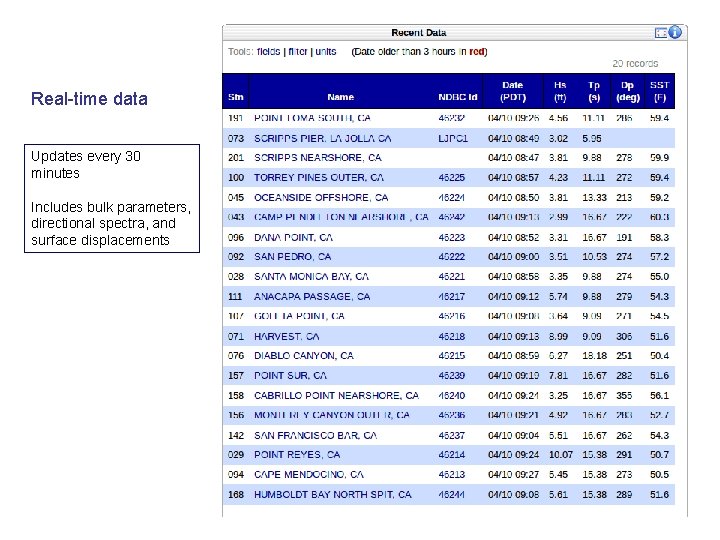

Real-time data Updates every 30 minutes Includes bulk parameters, directional spectra, and surface displacements

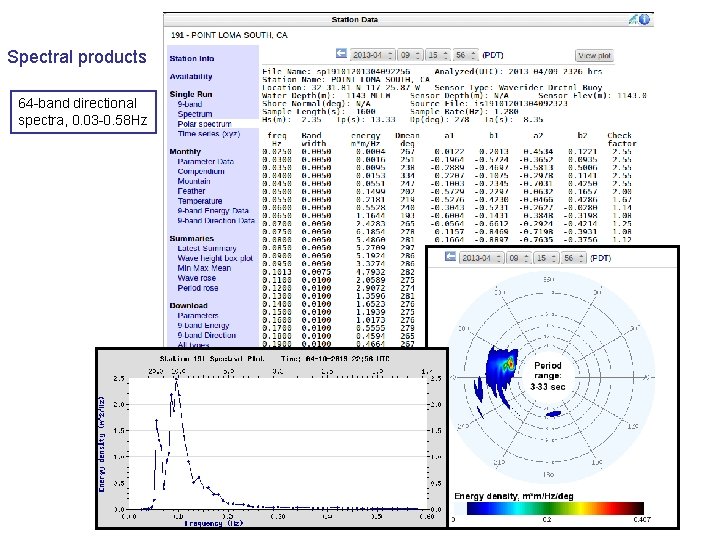

Spectral products 64 -band directional spectra, 0. 03 -0. 58 Hz

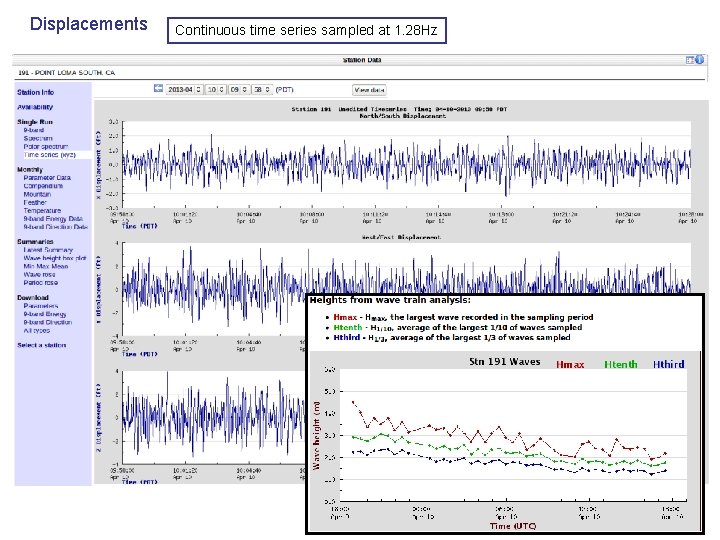

Displacements Continuous time series sampled at 1. 28 Hz

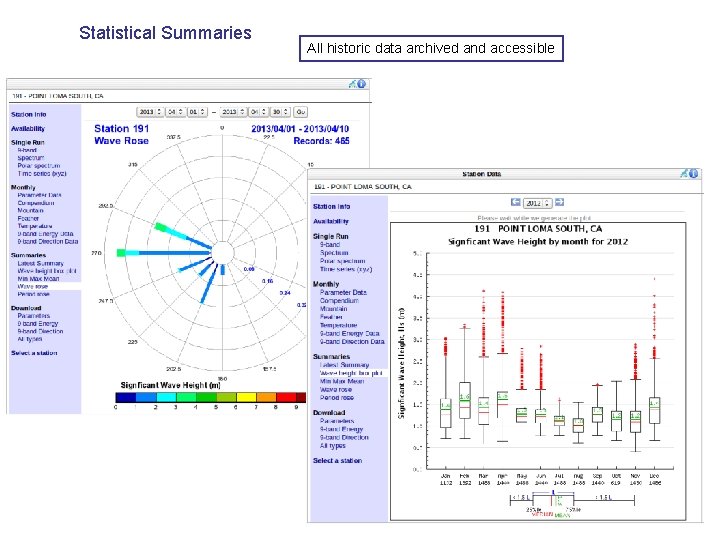

Statistical Summaries All historic data archived and accessible

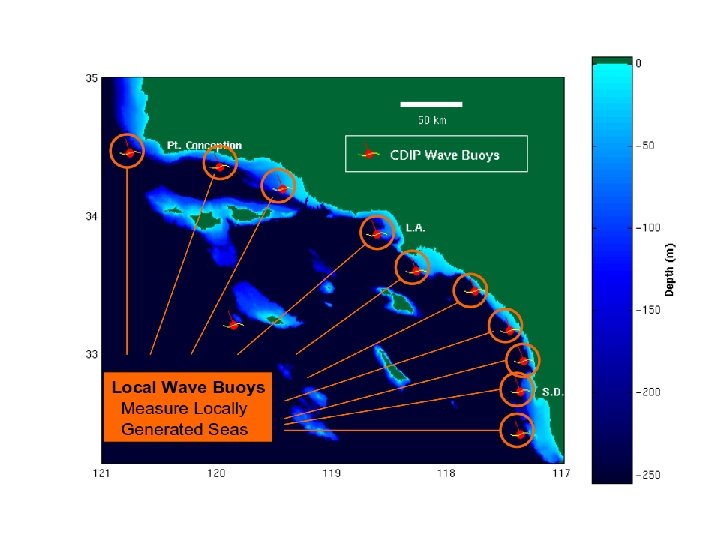

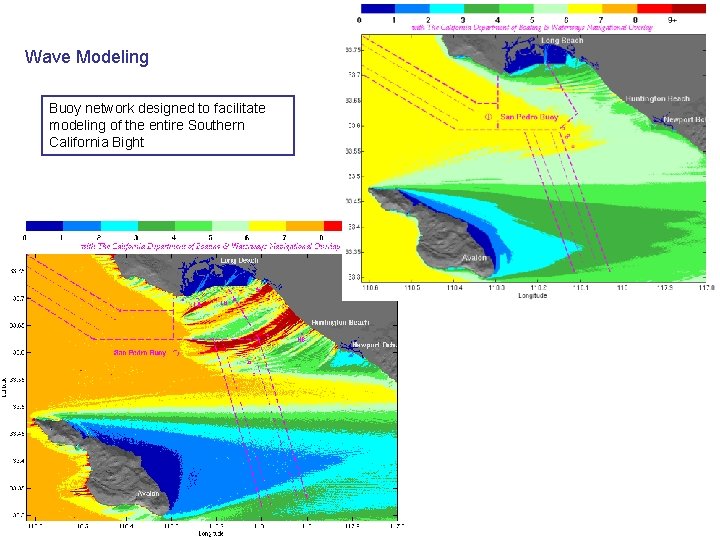

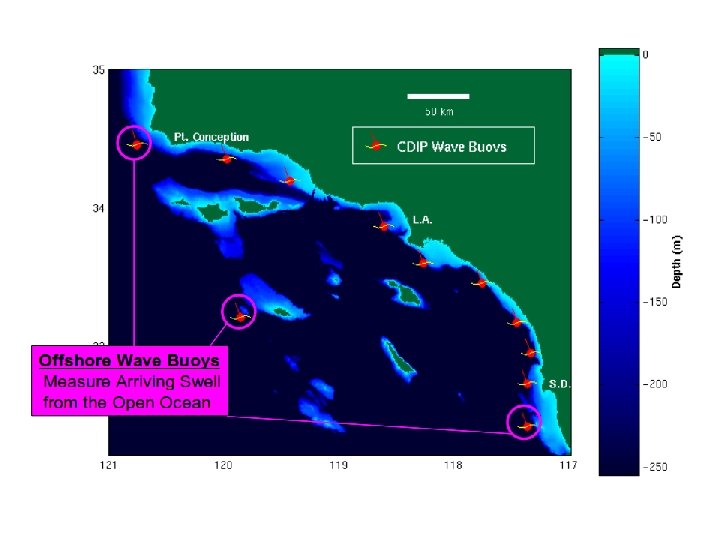

Wave Modeling Buoy network designed to facilitate modeling of the entire Southern California Bight

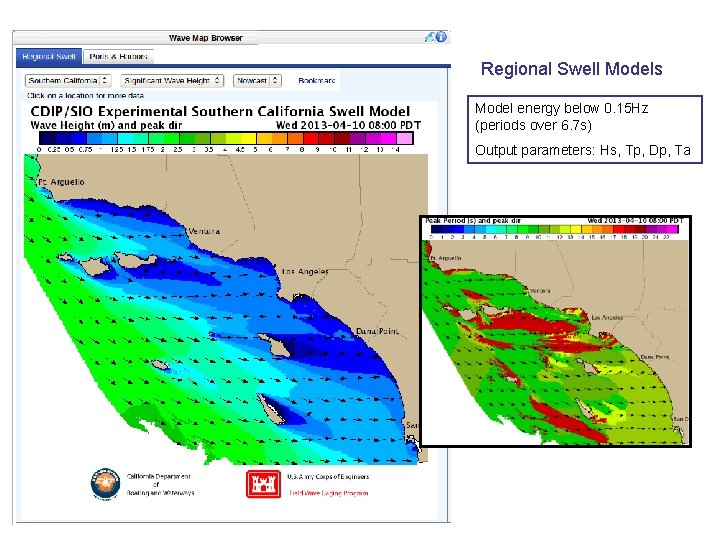

Regional Swell Models Model energy below 0. 15 Hz (periods over 6. 7 s) Output parameters: Hs, Tp, Dp, Ta

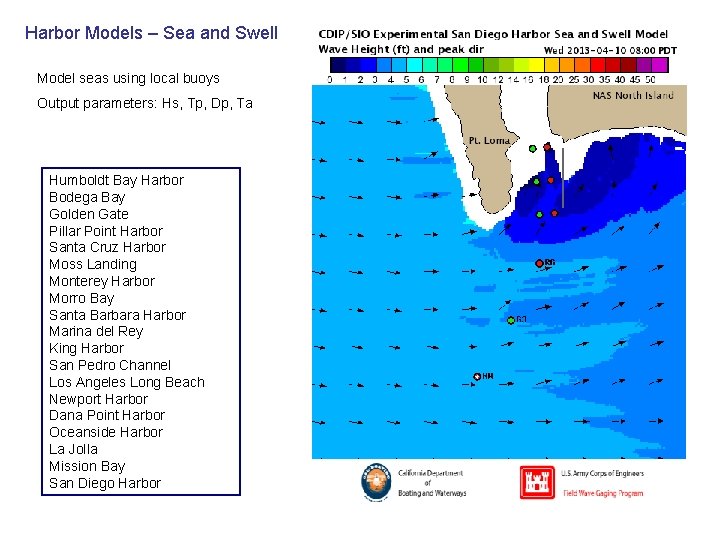

Harbor Models – Sea and Swell Model seas using local buoys Output parameters: Hs, Tp, Dp, Ta Humboldt Bay Harbor Bodega Bay Golden Gate Pillar Point Harbor Santa Cruz Harbor Moss Landing Monterey Harbor Morro Bay Santa Barbara Harbor Marina del Rey King Harbor San Pedro Channel Los Angeles Long Beach Newport Harbor Dana Point Harbor Oceanside Harbor La Jolla Mission Bay San Diego Harbor

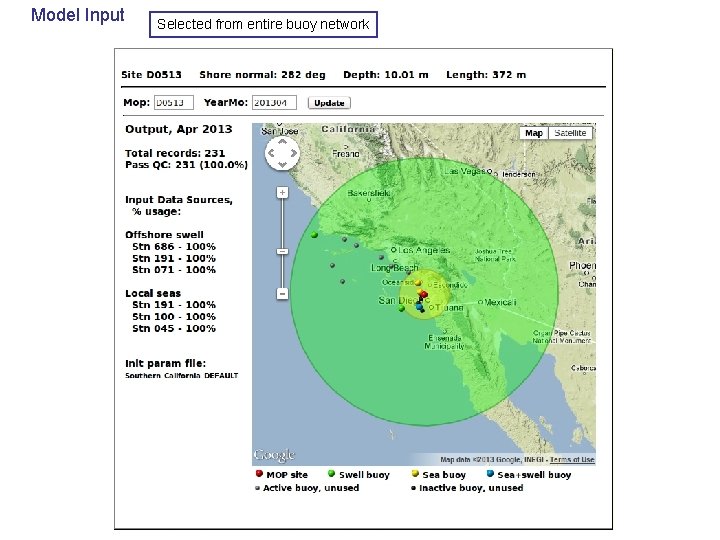

Model Input Selected from entire buoy network

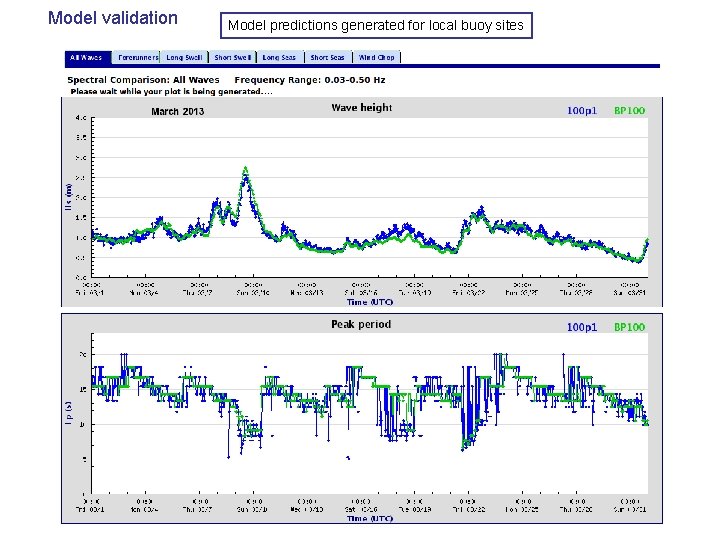

Model validation Model predictions generated for local buoy sites

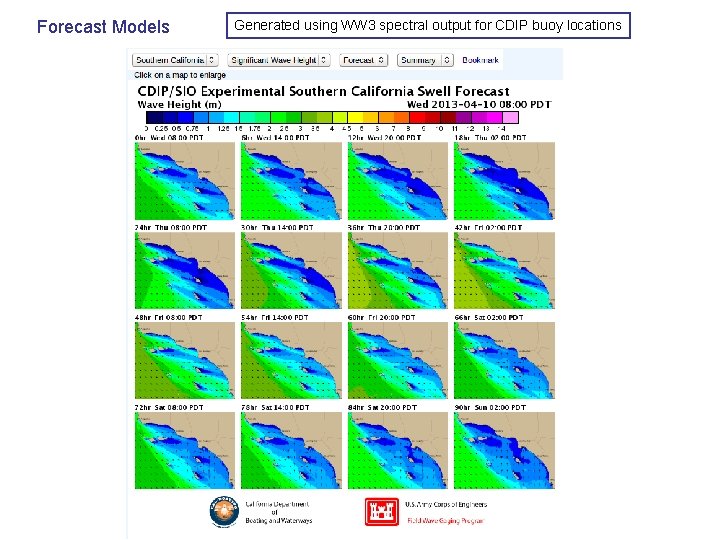

Forecast Models Generated using WW 3 spectral output for CDIP buoy locations

Regional swell forecasts

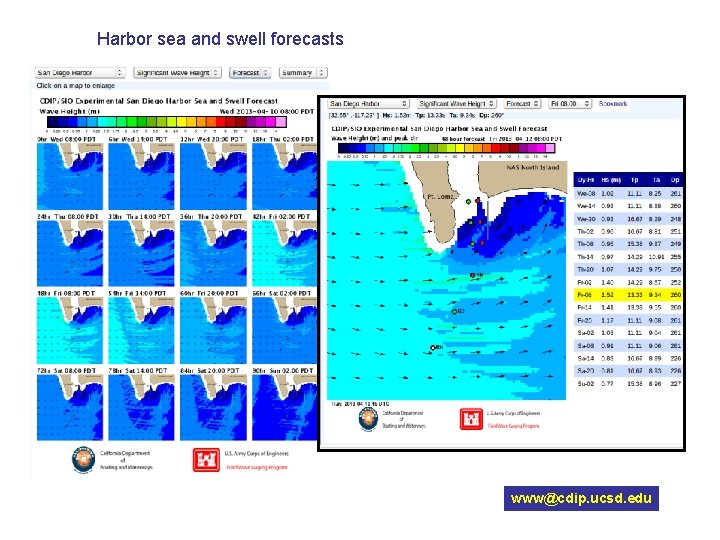

Harbor sea and swell forecasts www@cdip. ucsd. edu
